1.02 inch Mini flexible e-ink display small epaper screen module buy GDEW0102I3F

GDEW0102I3F
This is the 1.02 inch mini flexible E ink small Epaper display panel with 128*80 resolution, 30 pins FPC connection, SPI interface and it supports black and white. Ultra-thin, not fragile.
Price:
USD
$5.57
    Please select the information you wantX
Quantity:
-
+
(100 available)
  • Description
  • Reviews

Any questions, just feel free to contact me, my email is: clara@good-display.com

General Description

This is the 1.02 inch flexible E ink Epaper display panel with 128*80 resolution, 30 pins FPC connection, communication via SPI interface and IC driver with partial refresh.
Its waveform is stored in on-chip OTP, and it supports black and white.

In view of so many advantages: ultra low power consumption, ultra wide viewing angle, GDEW0102I4F is a very good choice for applications like:

· Smart tags
· Smart watches
· And other related products.


Feature
· Flexible & partial refresh e-ink e-paper display
· Unbendable, ultra-thin, not fragile
· Ultra low power consumption, the power is basically only needed when refreshing.
· SPI interface, for connecting with controller boards
· Comes with helpful development resources and manual (STM32 platform )


The above price inclundes
1)GDEW0102I3F*1pc
2) Matched FPC Connector*1pc
3) Example code and Manual*1pc.(Please advise email ID along with order,so that we can send them.)


Main Parameters

Part Number

GDEW0102I3F

Features

Fexible,unbendable, ultra-thin, not fragile

Resolution

128*80

Outline Size(mm)

32.57*18.6*0.3

Active Size(mm)

21.76*14

Pixel Pitch(mm)

0.175*0.17

Operating Temp.

0°C~50°C

Storage Temp.

-25°C~70°C

Connector

30 Pin

Max Grayscale

2

Color

Black,White


Matched Demo Kit (Highly Recommend)
https://zh-tw.buyepaper.com/demo-kit-driver-development-board-for-102-inch-e-paper-e-ink-display-despi-102-p0091-p0091.html
DESPI-C102-5 27.78USD

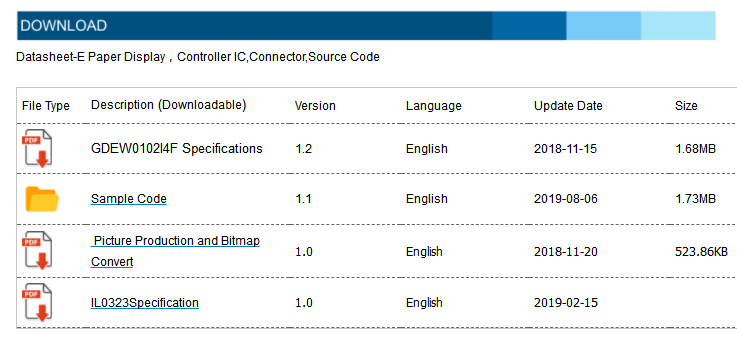

Specification download
http://www.e-paper-display.com/products_detail/productId=412.html
