1.54 inch e-paper display with touch screen color red display panel with demo kit drive board

GDEW0154Z04-T+DESPI
1.54 inch E ink E paper display with capacitive touch screen, 200*200 resolution, 24 pins FPC connection, FPC connector, SPI interface, supports black,white and red. With demo kit drive board.
Price:
USD
$48.82
    Please select the information you wantX
Quantity:
-
+
(0 available)
  • Description
  • Reviews
Any questions, please feel free to contact me, my email is: clara@good-display.comGeneral Description

This is a set of demo kit with color 1.54 inch touchable e-ink display, which has 200x200 resolution, 24 pins FPC connection, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform. Matched demo kit will help starters develop their own project as a reference.



In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, touchalbel panel, GDEW0154Z04-T is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, IED and other related products.


Feature

· Keep displaying the last content when power down.

· Reflect type, sunlight readable, frontlight optional.

· Ultra low power consumption, basically power is only required for refreshing.

· With touch panle, the e-ink display is touchable.

· Come with helpful development demo kit with resources and manual (STM32 platform )·


The above price inclundes

1. 1.54 inch color e-paper display with capacitive touch screen * 2pcs

2. Matched FPC Connector * 2pcs

3. Driving board DESPI-M02 * 1pc

4. Connector board DESPI-C02 * 1pc

5. USB port cable *1pc

6.Helpful resources and manual(sent via email or download link) *1pc


Main Parameters

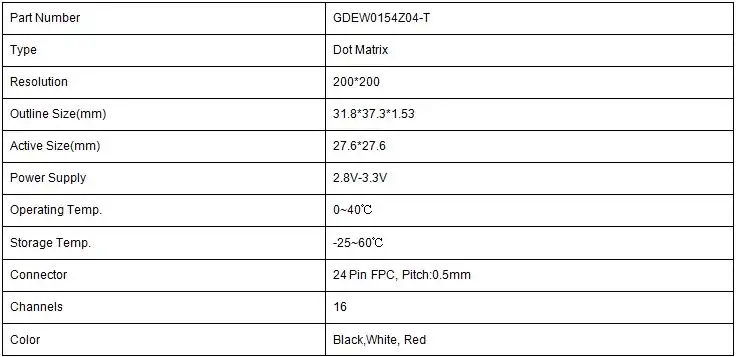

GDEW0154Z04-T参数表



Part Number

DESPI

Platform

STM32

Function

Drive E-paper Display

Outside Dimension

90x60mm (DESPI-M02)
41x22mm (DESPI-C02)

Power Interface

USB Interface

Power Input

DC5V

Feature

Fully and Partial refresh

Grey scale Level

Max 16 grey scale

Operating Temp

-20~70℃

Recommended Tool

Keil4

Example Code

Available

Reserved Function

USB to serial port, indicator
light 、keys、current detection and so on.

Specification download

http://www.e-paper-display.com/products_detail/productId=434.html
