ESP32-L(C102) development kit supports program development using Arduino development platform.This development kit is used to help users develop 30 Pin 1.02 inch e-paper display projects with provided source code to create more differentiated solutions.

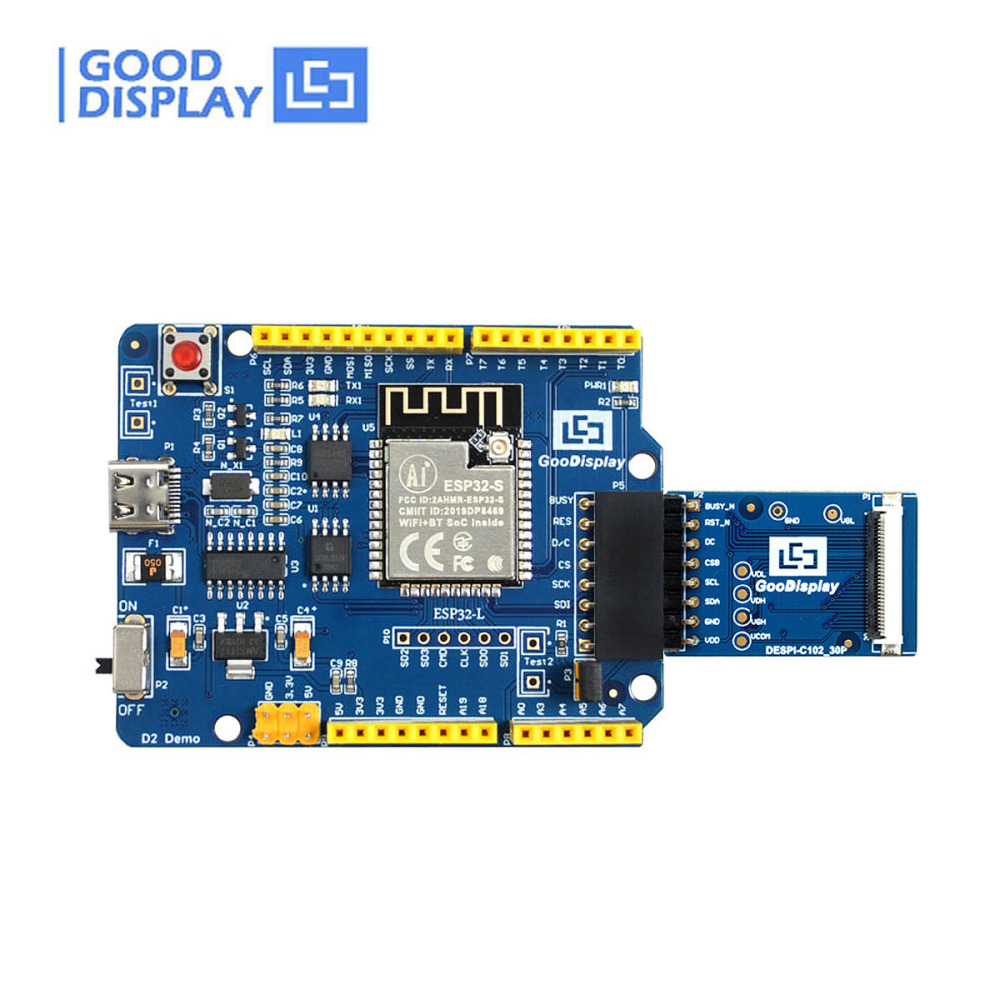

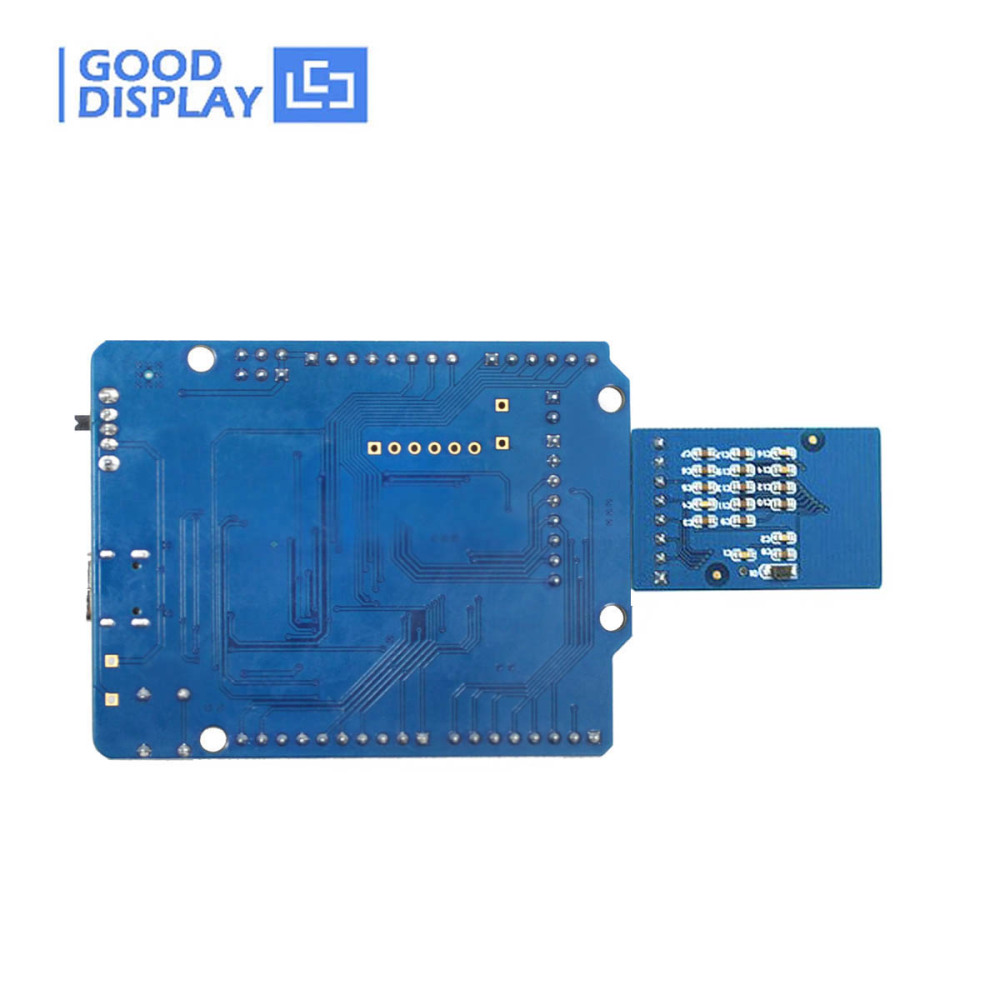

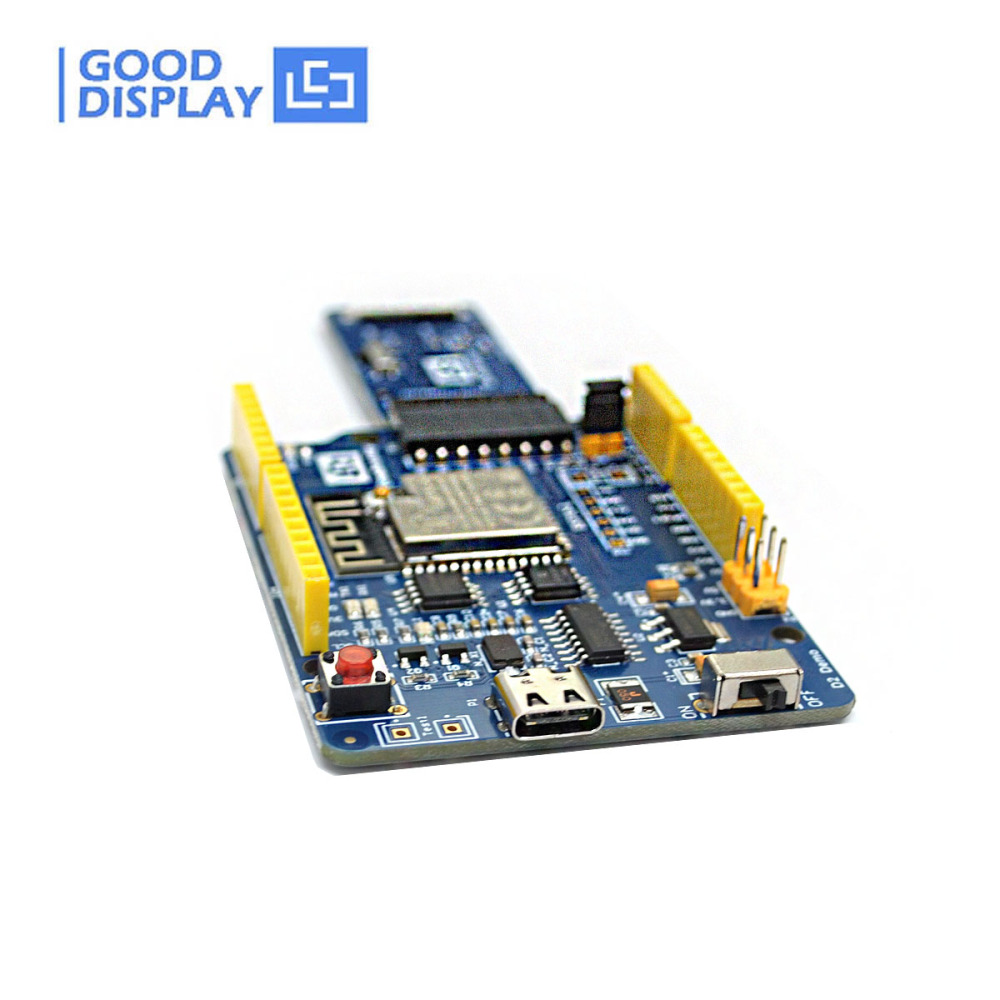

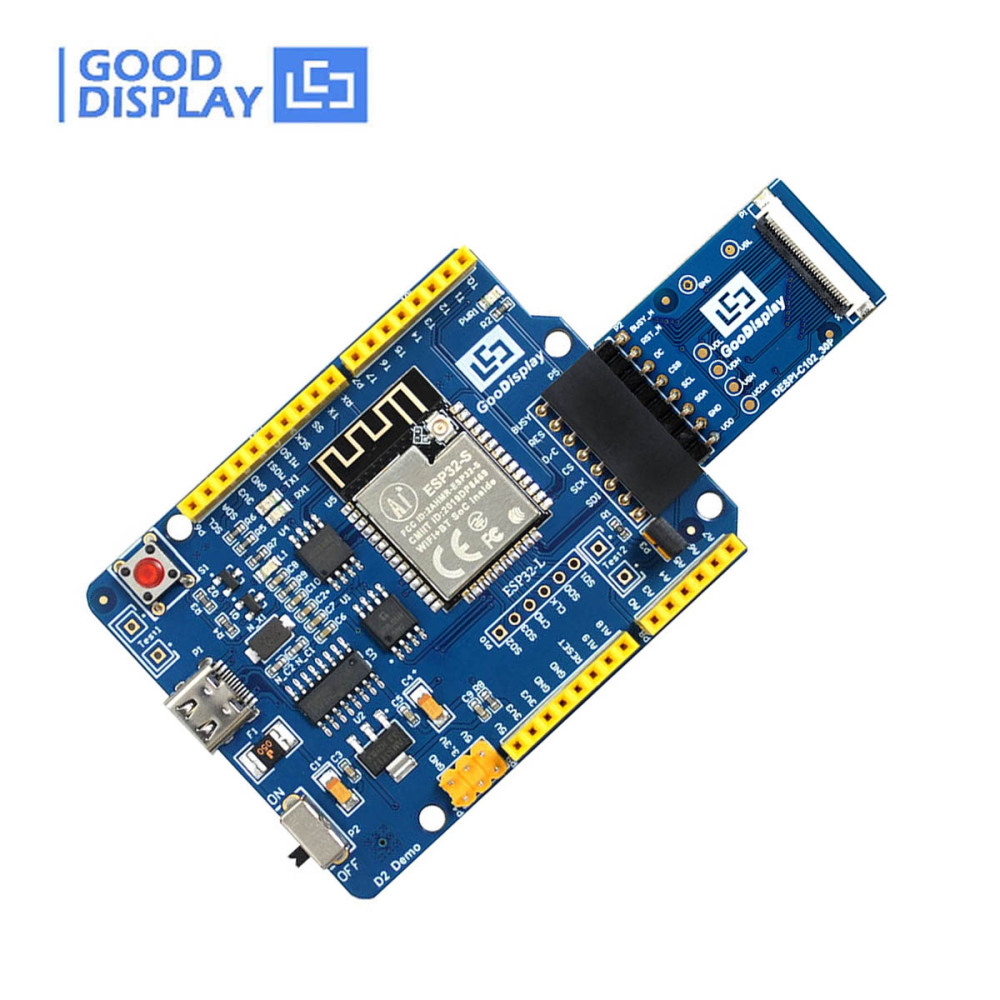

ESP32-L(C102) development kit consists of motherboard ESP32 for EPD and connector board DESPI-C102.
ESP32-L(C102) development kit is only for driving the e-paper, WIFI, BLE and other functions need to be developed by users according to the project
Relevant manual about this product on our official website (www.good-display.com), contact us please.
PART NUMBER | ESP32-L(C102) | ||
MCU | Arduino | OUTSIDE DIMENSION | 70x54mm (ESP32-L) 33.8x22.2mm (DESPI-C102) |
FUNCTION | Drive 1.02 inch E-paper Display | POWER INTERFACE | Type-C |
SAMPLE CODE | Available (please contact sales) | OPERATING TEMP. | -20~70℃ |
MAIN FUNCTION | Learn to drive e-paper display; Test and evaluate e-paper display; For secondary development.er display |
||
ADDITIONAL FUNCTION | Type-C, LED indicator, reset button, font chip, flash chip, current detection |
● ESP32-L(C102) Specification
● DESPI-C102(30P) Specification
● ESP32-L_SCH
● DESPI-C102-SCH
