2.9 inch e-paper display tri-color red eink screen with demo board

GDEW029C32+DESPI
This is an E ink E paper display panel, 2.9 inch, 296x128 resolution, square, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, supports yellow, black, and white.
Price:
USD
$46.85
    Please select the information you wantX
Quantity:
-
+
(500 available)
  • Description
  • Reviews

Any questions, please feel free to contact me, my email is: clara@good-display.com

General Description

This is a set of demo kit with yellow 2.9 inch 296*128 e ink display, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform.
In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight,
GDEW029C32 is a very good choice for applications like shelf label, smart tags, wearable devices, smart home application, industrial instrument, smart cards and other related products.Feature
· Three colors, black, white and yellow
· 296x128 resolution
· Comes with helpful development resources and manual (STM32 platform )
· Development platform available
 STM32 / Arduino Raspberry Pi
The above price inclundes
1. Driving board DESPI-M02 *1pc
2. Connector board DESPI-C02 *1pc
3. USB port cable *1pc
4. Connection cable*1pc
5. 2.9 inch 296*128 yellow e-paper display GDEW029C32 * 2pcs
5. Matched FPC Connector * 2pcs
6.Helpful resources and manual(sent via email or download link) *1pc
If you only want to buy this e-paper display, click here:
http://upaj177.myueeshop.com/china-e-paper-display-29-inch-three-colors-e-ink-display-manufacturer-p0067.html
Main Parameters

Part Number

GDEW029C32

Screen Size

2.9 inch

Resolution

296(H)*128(V)

Outline Size(mm)

79.0(H)*36.7(V)*1.18(D)

Actve Size(mm)

66.9(H)*29.06(V)

Pixel Pitch(mm)

0.227*0.226

Pixel Configuration

Square

Weight

7.4 + 0.5

Color

Black,White,Yellow

Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.0165
Time of refresh(s) 18


Part Number

DESPI

Platform

STM32

Function

Drive E-paper Display

Outside Dimension

90x60mm (DESPI-M02)
40x22mm (DESPI-C02)

Suitable Size

1.54/2.04/2.13/2.7/2.9/4.2/5.83/7.5''

Interface

USB, Raspberry Pi

Power Input

DC5V

Feature

Fully and Partial refresh

Grey scale Level

Max 16 grey scale

Operating Temp

-20~70℃

Recommended Tool

Keil4

Example Code

Available

Reserved Function

USB to Serial



Related Products

Part Number

Color

Features

Refresh Time

GDEH029A1

B/W

Partial refresh

3S

GDEW029Z10

B/W/R

Three colors

16S

    GDEM029E97

B/W

SPI interface

--

GDEW029C32

B/W/Y

Three colors

18S

GDEW029T5

B/W

Partial refresh, 4 Grayscale

3S

GDEH029D57LT

B/W

Ultra-low temperature

3S

GDEW029I6F

B/W

Flexible, Partial refresh, 4 Grayscale

3S

GDEH029Z12 B/W/R Three colors 13S

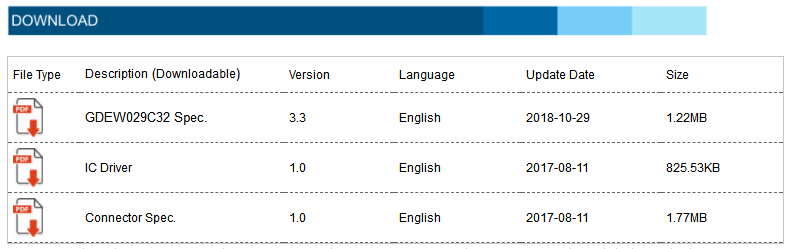

Specification download
http://www.e-paper-display.com/products_detail/productId=378.html
