5.83 inch high resolution color red e-paper display Tri-color e-ink screen module with demo kit drive board

GDEW0583Z83+DESPI
Higher resolution E ink E paper display panel, 5.83 inch, 648x480 resolution, square, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, supports black, white and red. With demo kit drive board.
Price:
USD
$67.78
    Please select the information you wantX
Quantity:
-
+
(100 available)
  • Description
  • Reviews

Any questions, please feel free to contact me, my email is: clara@good-display.com

General Description

This is a set of development kit and 5.83 inch colorful e-ink display with 648x480 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform. The display resolution is higher than GDEW0583Z21(600x448).



DESPI Develop Kit consists of the development board DESPI-M02 and the pinboard DESPI-C02.

It supports driving Good Display's black-white E-paper Display and three-color (black, white and red/Yellow) E-paper Display.

Feature

· Higher resoluiton(648x480) than GDEW0583Z21(600x448).

· Keep displaying the last content when power down.

· Ultra low power consumption, basically power is only required for refreshing.

· USB serial port, Raspberry Pi and LED indicator light.

· Come with helpful development demo kit with resources and manual (STM32 platform )

The above price inclundes

1. Driving board DESPI-M02 *1pc

2. Connector board DESPI-C02 *1pc

3. USB port cable *1pc

4. 5.83 inch color e-ink display 648x480 high resolution electronic paper screen*1pc

5. Matched FPC Connector*1pc

6 .Helpful resources and manual(sent via email or download link) *1pc
Main Parameters

Part Number

GDEW0583Z83

Type

Dot Matrix

Resolution

640(H)*480(V)

Outline Size(mm)

125.40x99.50x1.18

Actve Size(mm)

119.232x88.320

Pixel Pitch(mm)

0.184x0.1874

Operating Temp.

0~40C

Storage Temp.

-25~60C

Max Grayscale

2

Color

Black, White, Red

Interface

SPI

Power Supply 3.3V

Part Number

DESPI

Platform

STM32

Function

Drive E-paper Display

Outside Dimension

90x60mm (DESPI-M02)
41x22mm (DESPI-C02)

Power Interface

USB Interface

Power Input

DC5V

Feature

Fully and Partial refresh

Grey scale Level

Max 16 grey scale

Operating Temp

-20~70℃

Recommended Tool

Keil4

Example Code

Available

Reserved Function

USB to serial port, indicator
light 、keys、current detection and so on.

Related Products

Part Number

Color

Features

Refresh Time T/P(optional)     Front-Light
(optional)

GDEW0583T7

B/W

SPI interface

3S --

--

GDEW0583Z21

B/W/R

Three colors

15S --

--

GDEW0583Z83 B/W/R Three colors,high resolution -- -- --

GDEW0583C64

B/W/Y

Three colors

25S --

--

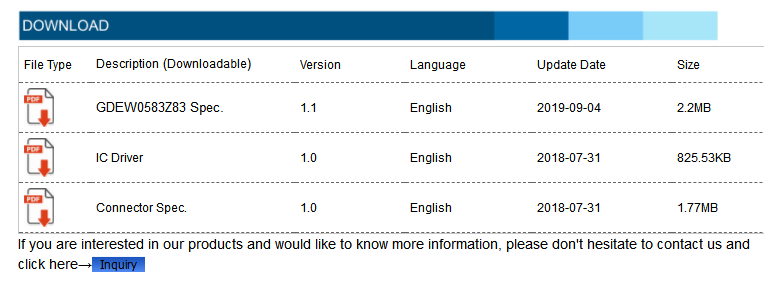

Specification download

http://www.e-paper-display.com/products_detail/productId=467.html
