7.5 inch Large 4 Grayscale e-paper display higher resolution 800x480 SPI interface black and white GDEW075T7 with connection board

GDEW075T7+DESPI-C02
This is a 7.5 inch black-white e-ink display with 800x480 resolution, support 4 grayscale, 24 pins FPC connection, SPI interfaceThe display resolution is higher than GDEW075T8(640x384). With connection board.
Price:
USD
$57.22
    Please select the information you wantX
Quantity:
-
+
(100 available)
  • Description
  • Reviews

Any questions, just feel free to contact me, my email is: clara@good-display.com



General Description

This is a 7.5 inch e-ink display GDEW075T7 with 800x480 resolution and a connection board DESPI-C02 which aims to help users to learn how to use the e-paper display easier. This e-paper display support black and white. The display resolution is higher than GDEW075T8(640x384).



This connection board DESPI-C02 is aim to help users to learn how to use the E-paper Display easier, and it is used for Good Display's black-white E-paper Display and three-color (black, white and red/Yellow) : 1.54'', 2.04'', 2.13'', 2.6'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'' and 7.5''.

Feature

· Support 4 Grayscale
· Higher resolution(800x480) than GDEW075T8(640x384).
· Development platform available
STM32 / Arduino Raspberry Pi
· Come with helpful development resources and manual (STM32 platform )

The above price inclundes

1. 7.5 inch 800x480 e-paper screen GDEW075T7*1pc

2. Matched FPC Connector*1pc

3. Connector board DESPI-C02 *1pc

4. Helpful resources and manual(sent via email or download link) *1pc

Main Parameters

Item

Parameters

Manufacturer

Good Display

Part Number

GDEW075T7

Type

Dot Matrix

Resolution

800x480

Outline Dimension

170.2x111.2x1.18mm

Active Area

163.2x97.92mm

Pixel Pitch

0.205x0.204mm

Operating Temp.

0℃~50℃

Storage Temp.

-25℃~70℃

Connector

24 Pin FPC

Color

Black,White

Interface

SPI

Max Grayscale 4

Part Number

DESPI-C02

Platform

STM32

Function

Connection E-paper Display with DESPI-M02

Outside Dimension

41x22mm

Interface

SPI

Power Input

DC3.3V

Feature

Fully and Partial refresh

Operating Temp

-20~70℃


product details

Related Products



Part Number

Color

Resolution

Features

Refresh Time

GEDW075T8

B/W

640*384

Large size

4S

GDEW072C21

B/W/Y

640*384

Colorful

18S

GDEW075C64 B/W/Y 800*480

Higher resolution, Colorful

--
 GDEW075Z09 B/W/R

640*384

Colorful

16S

GEDW075T7

B/W

800*480

Higher resolution, 4 Grayscale

4S

  GDEW075Z08

B/W/R

800*480

Higher resolution, Colorful

15S

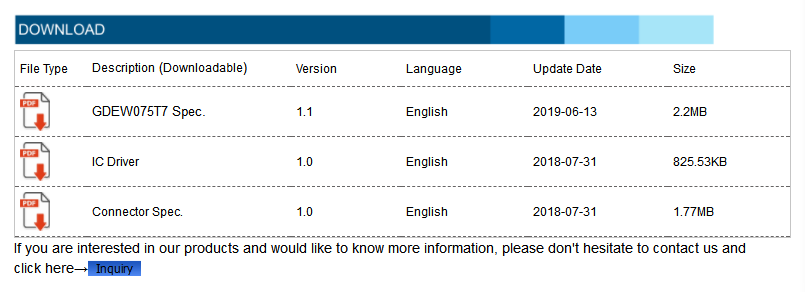

Specification download
http://www.e-paper-display.com/products_detail/productId=456.html
