2.9 inch e-ink screen panel E-paper display 4 grayscale with USB port Programmable Demo Kit

GDEW029T5+DESPI
The display is a TFT active matrix electrophoretic display with an interface and reference system design. 2.9 " 296 × 128 pixels, 4 grayscale, and has a white / black full display. Support partial refresh.
Price:
USD
$41.63
    Please select the information you wantX
Quantity:
-
+
(200 available)
  • Description
  • Reviews
Any questions, please feel free to contact me, my email is: clara@good-display.com

General Description

This is a set of demo kit with 2.9 with 296*128 e ink display, 24 pins FPC connection, optional FPC connector, 4 grayscalecommunicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform.
In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW029T5 is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument and other related products.
Feature
Partial refresh
4 grayscale
Come with helpful development resources and manual (STM32 platform )
The above price inclundes
1. Driving board DESPI-M02 *1pc
2. Connector board DESPI-C02  *1pc
3. USB port cable *1pc
4. Connection cable*1pc
5. 2.9 inch 296*128 low power consumption epaper display GDEW029T5 * 2pcs
5. Matched FPC Connector * 2pcs
6.Helpful resources and manual(sent via email or download link) *1pc
If you only want to buy this e-paper display, click here:
http://upaj177.myueeshop.com/29inch-e-paper-display-spi-support-for-partial-refresh-e-ink-display-screen-p0051.html
Main Parameters

Model

GDEW029T5

Dimension

79.0 (H)x36.7 (V) x1.05(D)mm

Screen Size

2.9inch

E-Paper Type

E-ink (EPD)

Resolution

296(H)x128(V)

Pixel Pitch

0.227×0.226mm

Active Area

66.9 (H)×29.1 (V)mm

Operation Temperature

0Cto60C

Storage Temperature

-25Cto85C

Weight

7.35±0.5g

Pixel Configuration

Rectangle

Max Grayscale 4
Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.0165
Time of refresh(s) 3
Time of partial refresh(s) 0.3
Main Parameters of demo kit

Part Number

DESPI

Platform

STM32

Function

Drive E-paper Display

Outside Dimension

90x60mm (DESPI-M01)
65x35mm (DESPI-C01)

Suitable Size

1.54/2.04/2.13/2.7/2.9/4.2/5.83/7.5''

Interface

USB, Raspberry Pi

Power Input

DC5V

Feature

Fully and Partial refresh

Grey scale Level

Max 16 grey scale

Operating Temp

-20~70℃

Recommended Tool

Keil4

Example Code

Available

Reserved Function

USB to Serial

Related Products

Part Number

Color

Features

Refresh Time

GDEH029A1

B/W

Partial refresh

3S

GDEW029Z10

B/W/R

Three colors

16S

    GDEM029E97

B/W

SPI interface

--

GDEW029C32

B/W/Y

Three colors

18S

GDEW029T5

B/W

Partial refresh, 4 Grayscale

3S

GDEH029D57LT

B/W

Ultra-low temperature

3S

GDEW029I6F

B/W

Flexible, Partial refresh, 4 Grayscale

3S

GDEH029Z12 B/W/R Three colors 13S

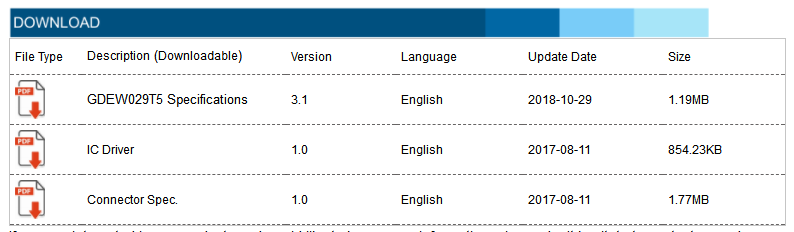

Specification download
http://www.e-paper-display.com/products_detail/productId=347.html
