2.5 inch TFT LCD Display Panel, Wide Operating Temperature, GDT250T2080

2.5 inch color TFT-LCD display panel, 320x240 resolution, wide operating temp. -30℃~85℃, suitable for outdoor or cold environment, 4:3 contrast, 6 o'clock viewing angle, surface anti-glare treatment, 18-bit RGB (with T-CON) + 4-wire SPI interface, Color:
Price:
USD
$29.23
Quantity:
-
+
(9 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Reviews(2)

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




GDT250T2080 is a 2.5 inch color TFT-LCD display panel, 320x240 resolution, wide operating temp. -30℃~85℃, suitable for outdoor or cold environment, 4:3 contrast, 6 o'clock viewing angle, surface anti-glare treatment, 18-bit RGB (with T-CON) + 4-wire SPI interface, superior display quality, wide range of applications, it can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.



Relevant manual about this product on our official website (www.good-display.com), contact us please.




 FEATURE




●  320xRGBx240 resolution

●  Wide operating temp.: -30℃~85℃

●  Viewing Angle: 50/70/75/75(U/D/L/R)

●  Color: 262K




 THE ABOVE PRICE INCLUDE



1) 2.5 inch TFT LCD Display Panel, Wide Operating Temperature * 1pc




 MAIN PARAMETERS



PART NUMBER GDT250T2080
SIZE 2.5''

DISPLAY MODE

262K

CONTRAST RATIO

500

LCD DISPLAY RATIO

4:3

RESOLUTION 320xRGBx240

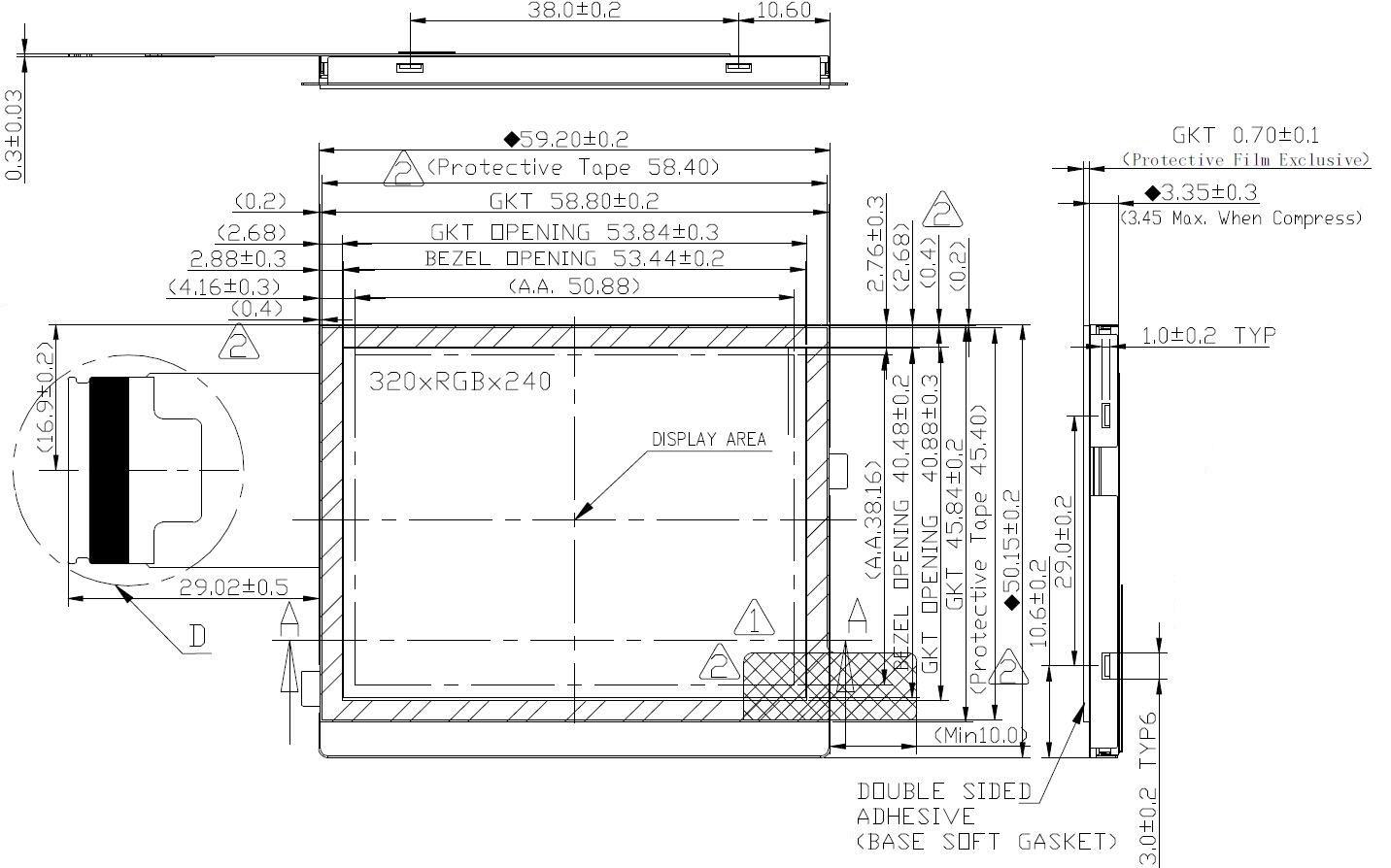

OUTSIDE DIMENSION OF LCD PANEL(mm) 59.2(W)x50.15(H)x3.35(D)
ACTIVE AREA OF LCD PANEL(mm) 50.88(H)x38.16(V)
STRUCTURAL DIMENSION OF PCBA(mm) ---50.0(W)x50.0(H)x5.2(D)
START TIME 30ms
VIEWING ANGLE (U/D/L/R) 50°/70°/75°/75°
OPERATING TEMP. -30℃~85℃
STORAGE TEMP. -40℃~90℃
INPUT VOLTAGE 3.0V

TYPE

TN

INTERFACE

18-bits RGB +4-wire SPI

DOT PITCH(mm)

0.053 (*3) (W) x 0.159 (H)

BRIGHTNESS 500cd/m2
BACKLIGHT LED







 PRECAUTIONS



1. When the metal parts of the TFT-LCD module (shielding cover and back cover) are dirty (such as water or finger grease), please wipe it with a dry soft cloth. Long-term contact with water may cause discoloration or spots.
2. The TFT-LCD panel is also glass. If it is dropped or bumped, the glass is easy to break. Please handle it carefully.
3. The IC on the TFT-LCD panel and module is sensitive to electrostatic discharge; please ensure that the equipment and the operator are properly grounded before and during operation.






☆ ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com







 SPECIFICATION DOWNLOAD




1)  GDT250T2080 Specification
