☆ INTRODUCTION

AFM201T is a low-power and small-volume embedded Wi-Fi + Bluetooth module. It uses Realtek's highly integrated wireless RF chip RTL8720CN and a small number of peripheral devices. The chip has built-in 802.11b / g / n Wi-Fi wireless Built-in ARM Cortex-M4F processing core, with large capacity (FLASH: 2MB ROM: 384KB) storage space (FLASH: up to 128MB), running space (SRAM: 256KB) and rich peripheral resources, RTOS system platform in MCU And the lightweight LWIP protocol, through packaging and optimization of the SDK, can meet a variety of embedded wireless communication applications.


Relevant manual about this product on our official website (www.iflabel.com), contact us please.
The official designated development board that matches the AFM201T module is RTL8720CN-EVB



☆ TECHNICAL DETAILS

ARM Cortex-M4 processing core, clocked at 100MHz
3.3V, 5V DC single power supply
Package: Stamp Hole
Size: 24(L) × 15(W) × 3.0(T)mm

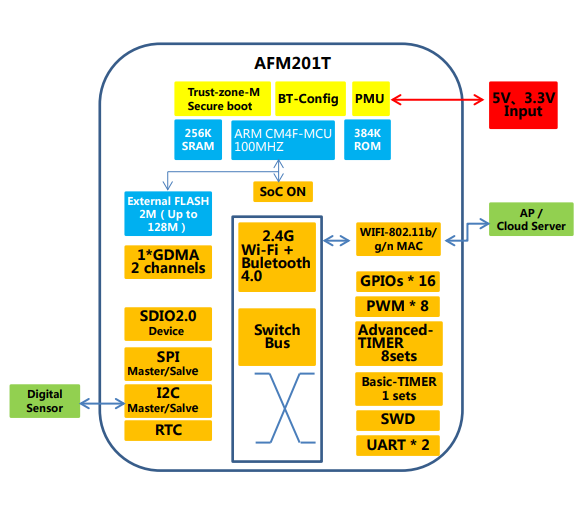

AFM201T structure



☆ THE ABOVE PRICE INCLUDE

☆ WLAN, BLUETOOTH PARAMETERS


Standard: 802.11 b / g / n 1x1
Transmit power: 11b: 18dBm / 11g: 16dBm / 11n: 15dBm
Receiving sensitivity: 11b: -93dBm / 11g: -82dBm / 11n: -76dBm
Communication rate: 11Mbps @ 11b / 54Mbps @ 11g / 150Mbps @ 11n
Working mode: STA, AP, STA + AP, Buletooth
Hardware encryption: WPA / WPA2
Antenna: external antenna, IPEX antenna interface, on-board antenna





☆  FEATURES


● Complete IoT solution (low-level development, cloud services, APP)
● Support AT + application set secondary development
● Support secondary development of C-SDK package
● Support OTA wireless upgrade
● Support Bluetooth smart networking, Airkiss WeChat distribution network function
● Industrial-grade application design, 4-layer PCB design, performance consistency guarantee
● FCC / CE certification, RoHS compliant




☆ SOFTWARE FEATURES


● Built-in IPV4 / IPV6 protocol stac
● Built-in FreeRTOS system
● Supports low power BLE 4.0
● Supports HTTP / HTTPS (SSL) encryption
● Support Ella Cloud, Amazon, Cloud, JD Cloud, Alibaba Cloud
● Support customized private cloud or user private cloud docking
● Support secondary development, secondary integration

☆ MODULE MODEL

☆ DOWNLOADS

File Type	Description	Version	Language	Update Date	Size
	AFM201T Datasheet	1.1	English	2021-5-16	2.13MB
	RTL872xZ2 IC Datasheet	0.8	English	2020-03-04	2.643MB

☆ RELATED PRODUCTS LISTS

☆ APPLICATION


● Intelligent electrical outlet
● Industrial control
● Intelligent home appliances
● Internet of things applications
● Thermal printer
● LED control card
● The POS


☆ OTHER REFERENCES
