RTL8720CM-EVB, Realtek Ameba Board based on RTL8720CM

RTL8720CM-EVB

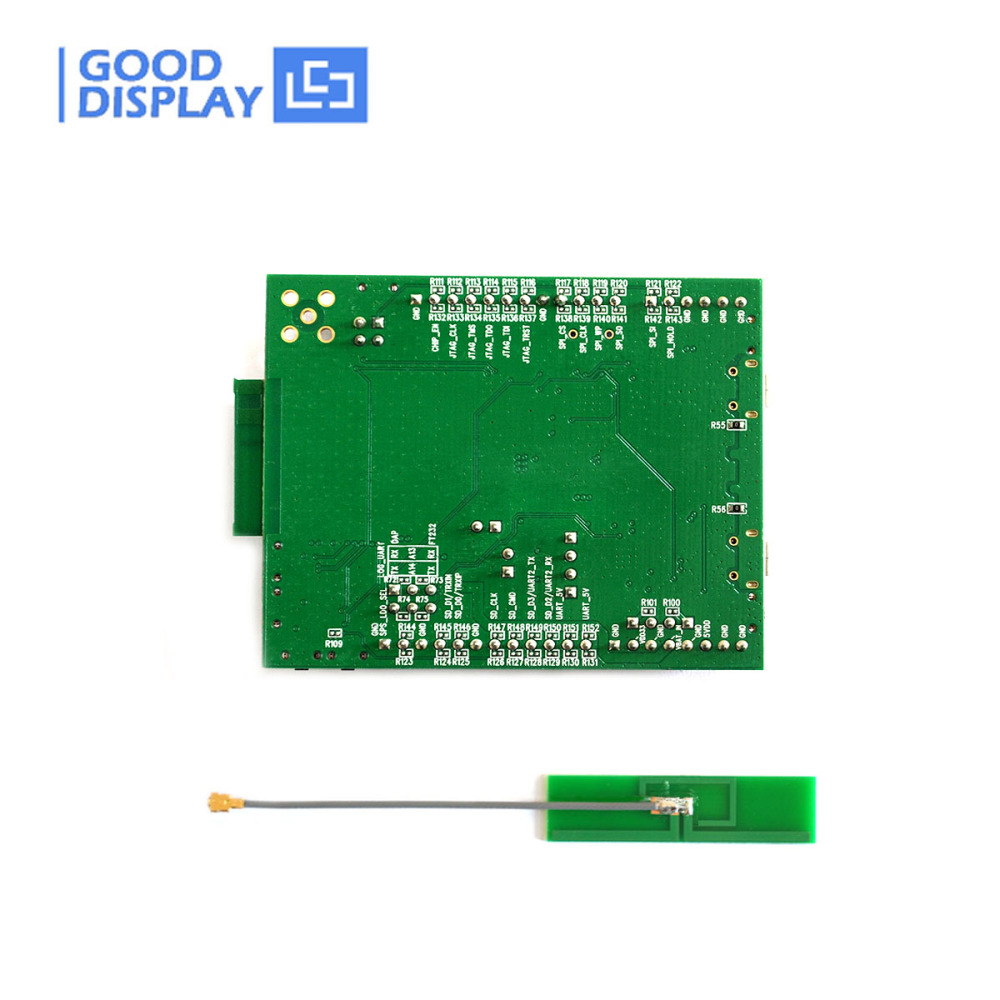

RTL8720CM WiFi+BLE4.2, Realtek amabaZ2, Development board RTL8720CM-EVB
Price:
USD
$34.99
Quantity:
-
+
(9 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Reviews(1)

Any questions, just feel free to contact me, my email is: info@good-display.com





☆ INTRODUCTION





Ameba Z2 RTL8720CM is a highly integrated single-chip with low power consumption mechanism for IoT (Internet of Things). It combines an arm® new architecture Armv8M KM4 MCU, Wi-Fi, Bluetooth and provides a bunch of configurable GPIOs which are configured as digital peripherals for different applications and control usage.

RTL8720CM SoC also integrates internal 4MB RAM memory to minimize IoT end-product size and reduce your development cost.

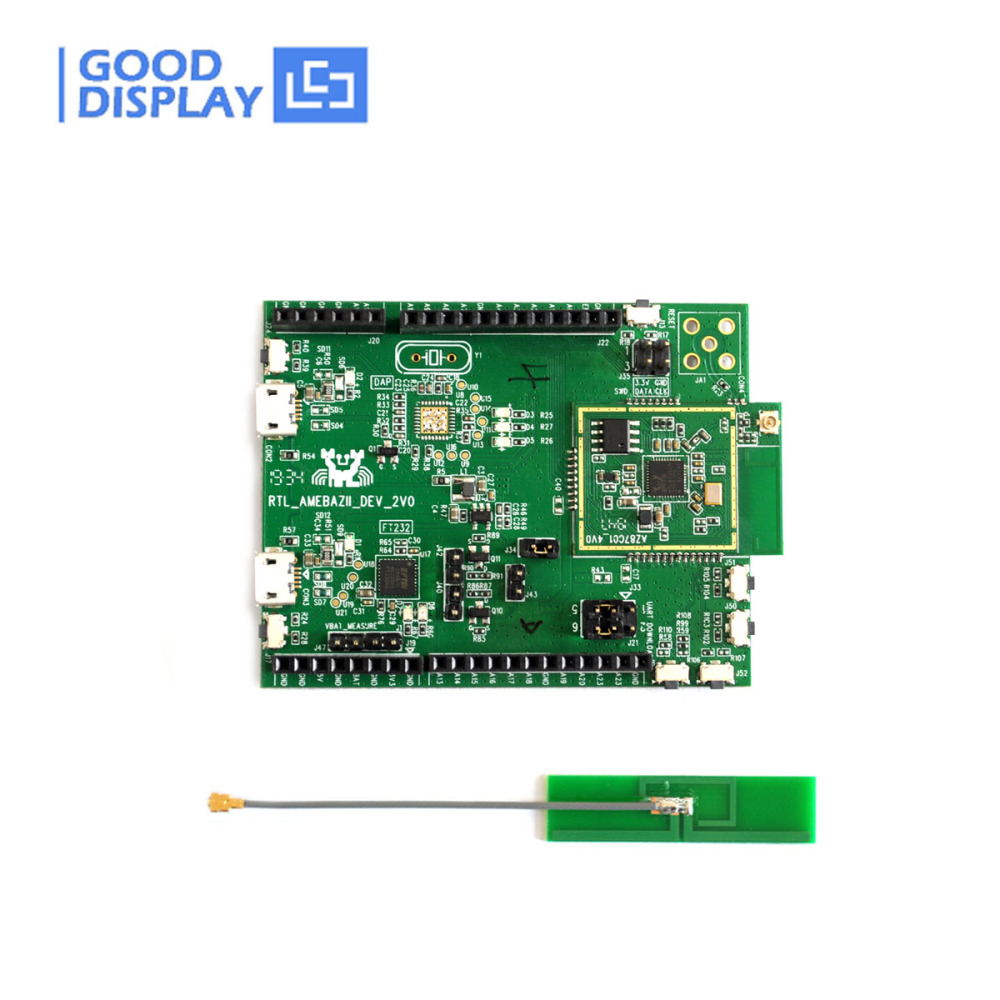

RTL8720CM-EVB Wireless Dev Board is a convenient development kit for makers. It separate into 2 boards, the small one- AFM203T. WiFi+Bluetooth Module on the top is main mother board with all functions included, and the other on the bottom is similar to Arduino UNO form factor size which provides the development interface CMSIS-DAP mode and J-LINK debugger mode.



Relevant manual about this product on our official website (www.iflabel.com), contact us please.





☆ TECHNICAL DETAILS




Dimensions 76mm x56mm x12mm
Weight  22g
Battery Exclude






 THE ABOVE PRICE INCLUDE



RTL8720CM,Realtek Multi-function RTL8720CM development board * 1pc





  FEATURES



●  MCU
ARMv8M KM4, 100MHz

●  Memory
4.2MB internal RAM on SoC and 2MB external flash on Dev. Board

●  Wi-Fi
802.11 b/g/n 1×1 Wi-Fi (20/40MHz)
Wi-Fi simple config

●  Bluetooth
BLE 4.2
SIG Mesh (optional)

●  Security
Cryptographic operation
Secure boot (optional)
Wi-Fi WEP, WPA, WPA2, WPS

●  Interface
3 UART including 2 HS-UART and 1 log UART
1 SPI (Master/Slave)
1 I2C (Master/Slave)
1 SDIO 2.0
8 PWM
Max. 16 GPIOs






 APPLICATION



● Intelligent electrical outlet
● Industrial control
● Intelligent home appliances
● Internet of things applications
● Thermal printer
● LED control card







 DOWNLOAD





File Type

Description (Downloadable)

Version

Language

Update Date

Size

 RTL872xZ2 IC Datasheet 0.8 English 2020-03-04 2.643MB
 Ameba Z2 Dev. board schematic 1.0 English 2020-03-04 104KB
 Ameba Z2 Application Note 1.5 English 2020-03-04 5.35MB
 Ameba Z2 SDK 7.1 English 2020-03-04 119.7MB
 Burn Tool:Ameba Z2 PGTool 1.2.7 English 2020-03-04 579KB
