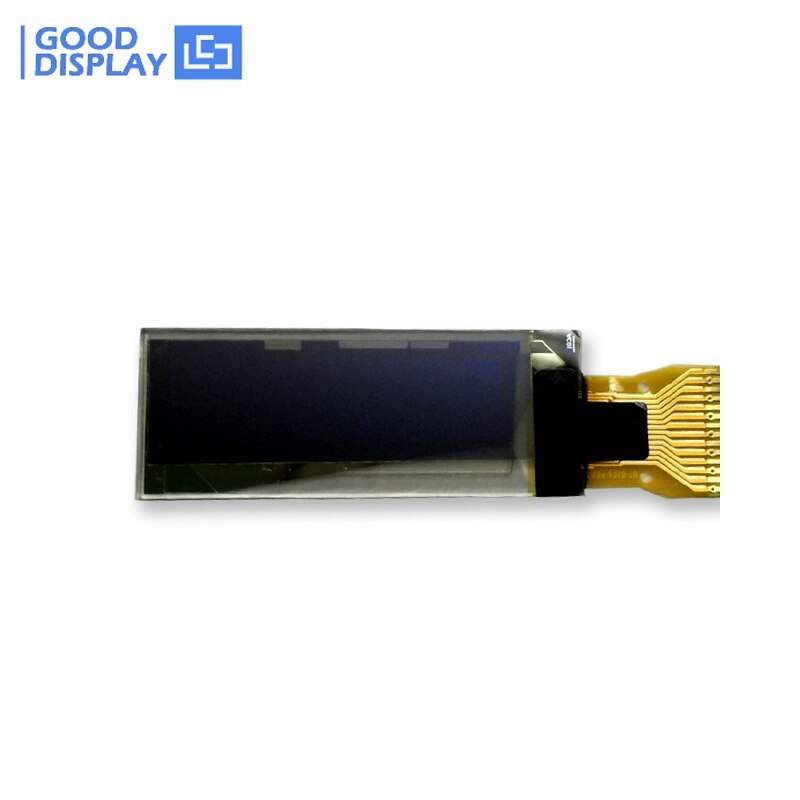

0.86 inch Small mini 96x32 Pixel OLED Display Blue

GDO0086W is the graphic OLED display module made of 96x32 individual blue OLED pixels,diagonal is only 0.86 inch.
    Please select the information you wantX
(7 available)
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews

Any questions, just feel free to contact me, my email is:

The above price inclundes

0.86"96x32 Pixel OLED Display :GDO0086W*1pc

General Description

GDO0086W is the graphic OLED display module made of 96x32 individual blue OLED pixels,diagonal is only 0.86 inch.The controller ic SSD1316, communicates via I2C serial interface only,thanks to controller's built-in voltage generation,only a single 2.8V power supply is needed. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type,no need connector.Just solder the FPC on your PCB directly.



Main Parameters

Outline Dimension 29.10*9.20*1.20
Visual Area 23.1*8.06
Active Area 21.1*6.06
Display Format 96x32 Dots
Interface I2C
Display Type OLED
Brightness 120cd/m2
Operating Temperature -40℃~80℃
Storage Temperature -40℃~80℃
Power Supply 2.8V
IC or Equivalent SSD1316



GDO0086W drawing02


Specification download
