☆ MAIN PARAMETERS
| Manufacturer |
GOODDISPLAY |
| Part Number |
EDC190 |
| Display content |
4-digits
|
| Outline Dimension |
50.8x30.48x2.8mm |
| Active Area |
45.72x17.78mm |
| Viewing Direction |
6:00/12:00 o'clock |
| Backlight Color |
White ,(Optional) |
| Operating Voltage |
3.0V/5.0V |
|
Operating Temp
|
Normal temp LCD：-10℃—60℃
Extended temp LCD: -20℃—70℃
Super-extended temp LCD: -40℃—80℃
|
|
Storage Tempe
|
Normal temp LCD：-20℃—70℃
Extended temp LCD: -30℃—80℃
Super-extended temp LCD: -45℃—85℃
|
| Drive method |
Static |
| Display Type |
TN Positive |
| Polarizer Mode |
Semi-transparent |
| Connector |
Pin (40 Pins) Pin Length is optional |
| Net Weight |
10g |
* If you need the EDC190(Semi-transparent), please click EDC190(Reflective/Transflective/Transmissive)
☆ ABOUT US

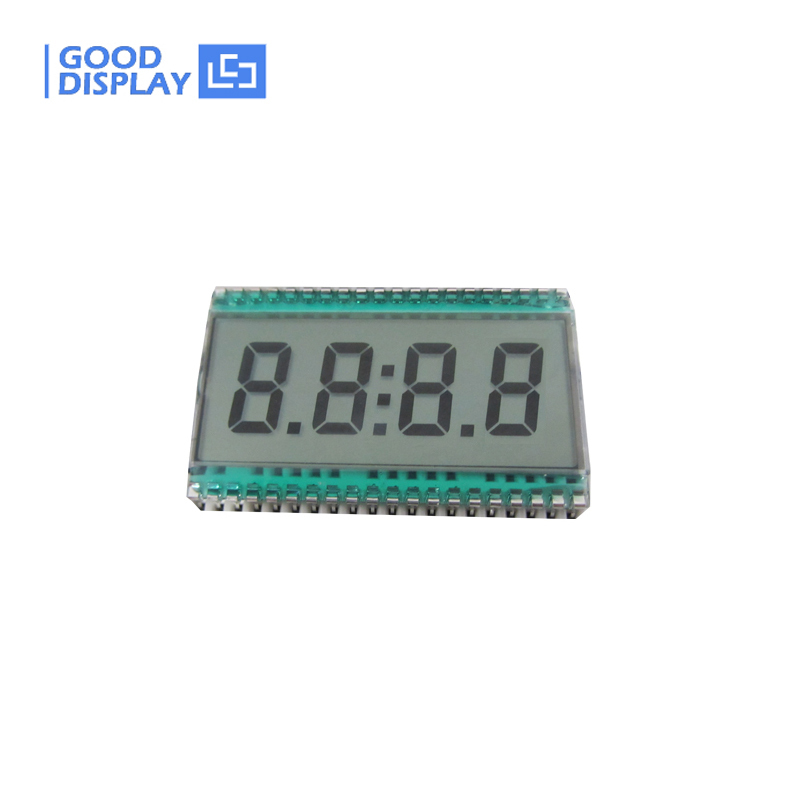

1) 4 Digits LCD Panel EDC190, Semi-transparent * 10pcs
☆ DRAWING
☆ OTHER PRODUCTS
|
Part Number
|
Digit
|
Outline Dimension
|
Active(View) Area
|
Drive method
|
|
GDC02693
|
2
|
7.5x10x1.1mm
|
5.5x4.0mm
|
1/4D,1/2B
|
|
GDC0209
|
4
|
23x10x2.8mm
|
20x6mm
|
1/4D,1/3B
|
|
GDC0178
|
11
|
--
|
--
|
1/4D,1/3B
|
|
GDC8811D
|
--
|
36.00x36.00x2.00mm
|
33.00x31.00mm
|
Static
|
|
GDC21310
|
2
|
30x21x2.8mm
|
27x16mm
|
1/4D,1/3B
|
|
GDC03828
|
5
|
81.0×37.5×2.8mm
|
78.0×27.5mm
|
Static
|
|
GDC6375
|
--
|
98x34.3x2.8mm
|
92.64x24.94mm
|
1/4D,1/3B
|
|
GDC130
|
4
|
51.0x34.0x2.8mm
|
48.0x25.0mm
|
1/4 D, 1/3 B
|
| GDC1156 |
6 |
253x65.5x2.8mm |
250x60mm |
1/4 D, 1/3 B |
| GDM0689 |
6 |
58.0x28.0x6.70mm |
39.0x17.0mm |
1/4Duty |
|
GDM0328
|
8
|
55.8x37x2.8mm
|
45x27mm
|
1/4D,1/3B
|
|
GDC0689
|
6
|
42x25x2.8mm
|
39.0x17.0mm
|
1/4 D, 1/3 B
|
| GDC9188 |
12 |
156x99x2.8mm |
148x87mm |
Static |
|
EDM1190-03
|
4
|
72.8x35.5x10.7mm
|
54.2x24mm
|
Static
|
|
EDC103
|
8
|
64x22.0x2.8mm
|
60.5x13.5mm
|
1/4D,1/3B
|
|
EDC190
|
4
|
50.8x30.48x2.8mm
|
45.72x17.78mm
|
Static
|
|
EDS819
|
2-1/2
|
30.0x26.17mm
|
26.0x17.17mm
|
Static
|
|
EDS816
|
4
|
93.98x45.72x2.8mm
|
86.36x30.48 mm
|
Static
|
|
EDS815
|
4
|
69.85x38.1x2.8mm
|
62.23x22.86mm
|
Static
|
| EDS805 |
4 |
50.8x30.48x2.8mm |
45.72x16.51mm |
Static |
|
EDS809
|
6
|
69.85x30.48x2.8mm
|
64.77x16.51mm
|
Static
|
|
EDS810
|
6
|
93.85x38.1x2.8mm
|
86.36x24.13mm
|
Static
|
|
YM0801B
|
--
|
55.0x17.0x8.5mm
|
39.5x8.0mm
|
--
|
|
YM0802B
|
--
|
58.0x32.0x13.0mm
|
38.0x16.0mm
|
--
|
|
YM0802SYG-3
|
--
|
58x32x13.2mm
|
39x16mm
|
--
|
|
YM12864C
|
--
|
78x70x13mm
|
62x44mm
|
--
|
|
YM1601A
|
--
|
80.0x36.0x13.0mm
|
64.5x14.0mm
|
--
|
|
YM1604C
|
--
|
77.0x51.0x13.0 mm
|
61.7x25.2 mm
|
--
|
|
YM1602C
|
--
|
80.0x36.0x12.5mm
|
64.5x15.8mm
|
--
|
|
YM1602L
|
--
|
122.0x44.0x14.0mm
|
99.0x24.0 mm
|
--
|
|
YM128128G-3
|
--
|
46.5x56.7x4.0mm
|
39.64x46.04mm
|
--
|
|
YM320240B-3
|
--
|
139.0x120.0x13.2mm
|
103.0x79.0mm
|
--
|
|
YM19264A
|
--
|
130.0x65.0x13.0mm
|
104.0x39.0mm
|
--
|
|
YM12864FS-655
|
--
|
70.0x50.0x5.8mm
|
67.0x37.0mm
|
--
|
|
YM0802A-1
|
--
|
40.0x35.8x12.0mm
|
25.74x9.48mm
|
--
|
|
YM12864-G35
|
--
|
80.2x51.2x5.6mm
|
66.52x33.24mm
|
--
|
|
YM12864J
|
--
|
93.0x70.0x14.0mm
|
70.7x38.8mm
|
--
|
|
YM12864J-7
|
--
|
93x70x13.5mm
|
72x40mm
|
--
|
| YM240128A-11 |
-- |
144.0x105.5x15.0mm |
107.95x57.55mm |
-- |
