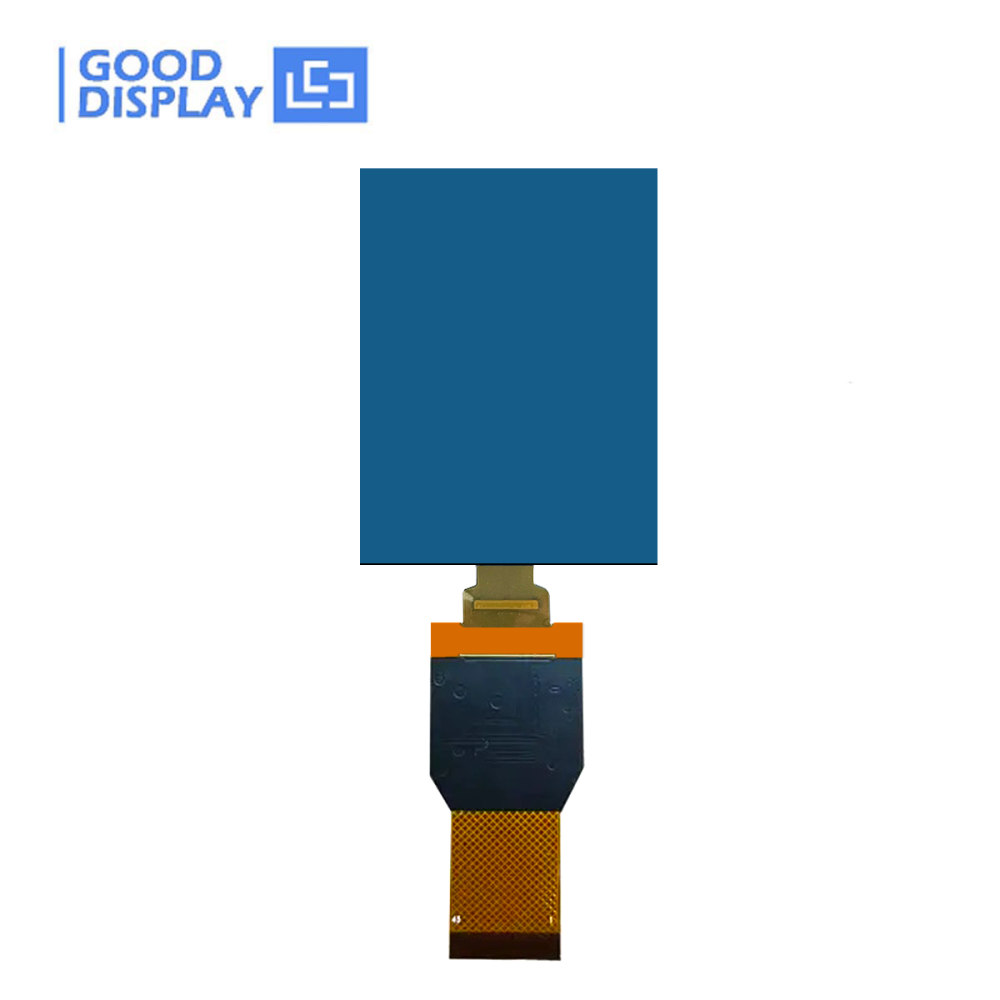

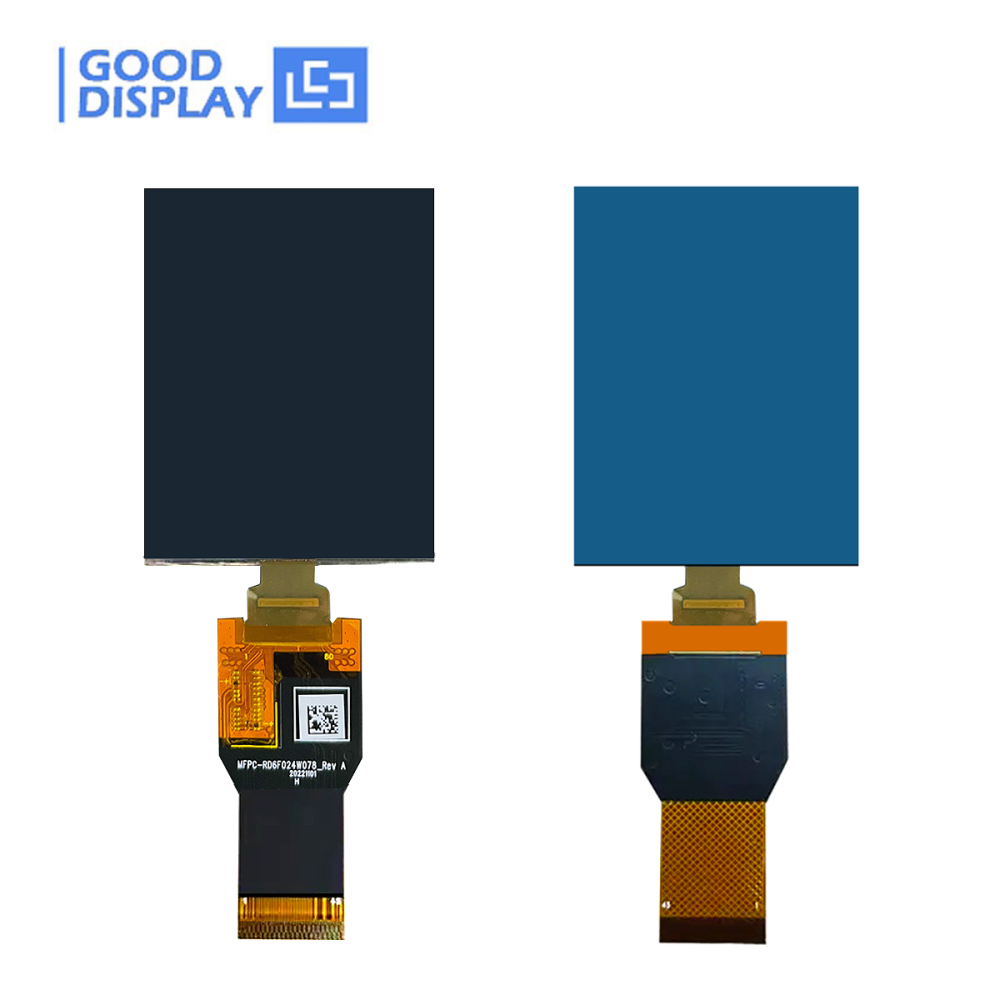

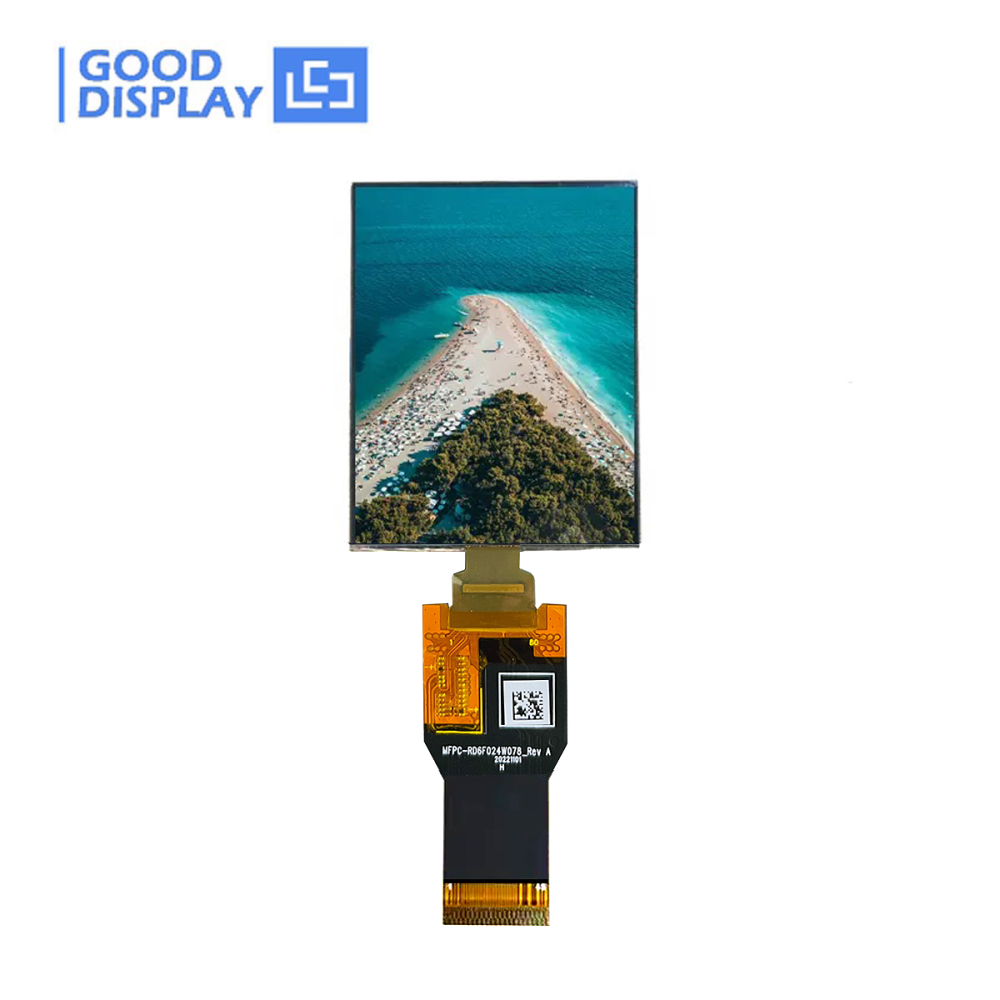

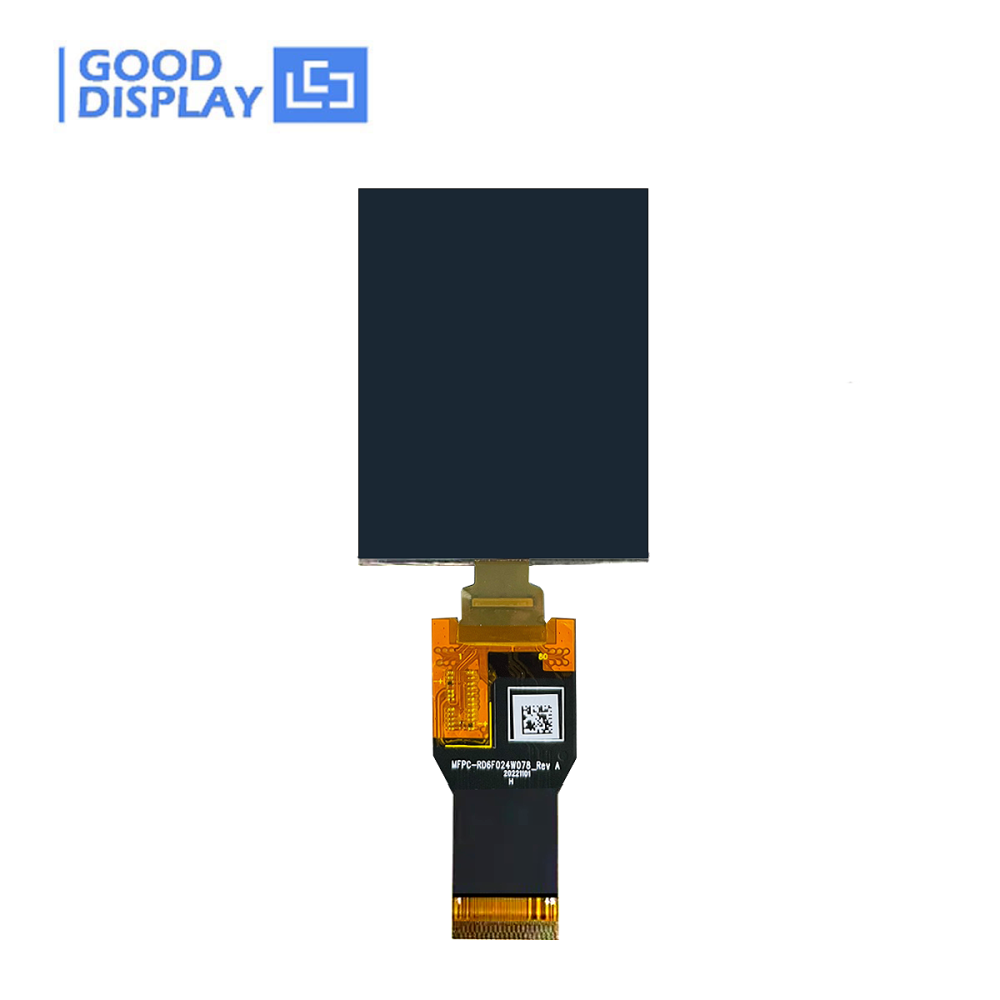

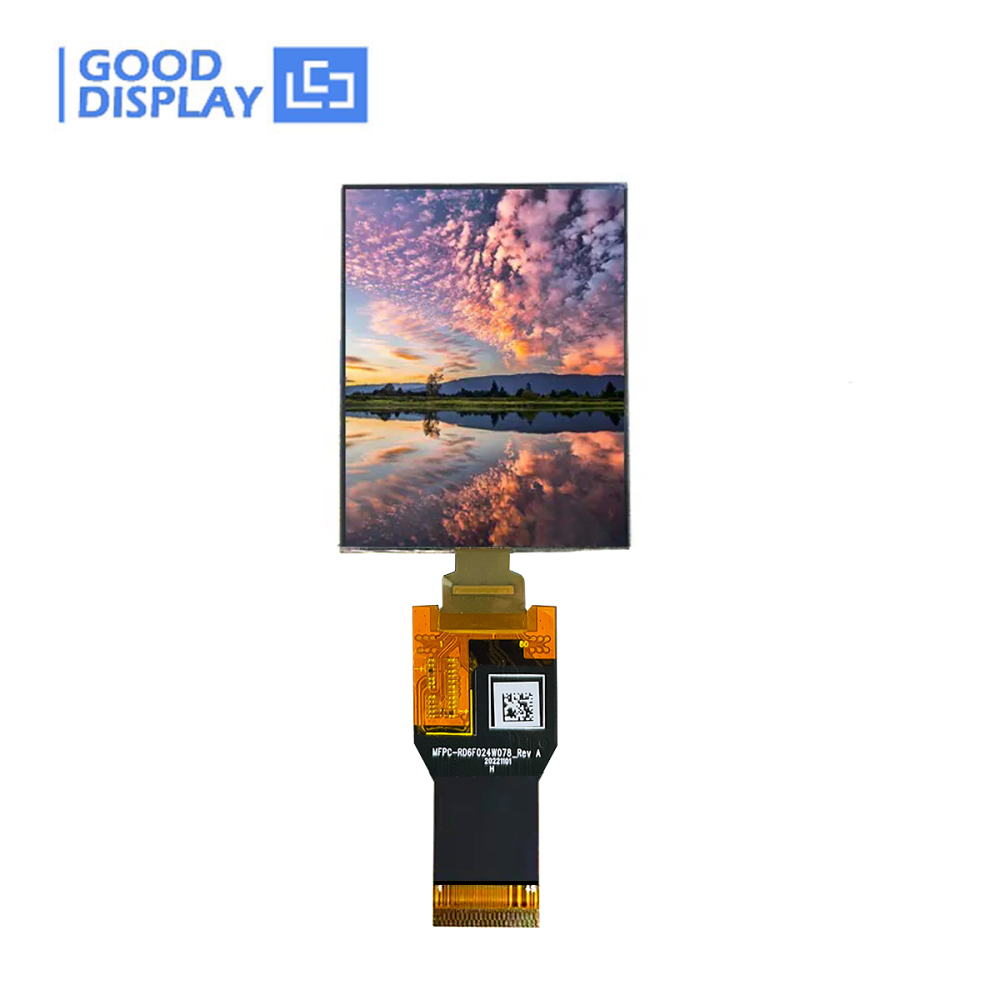

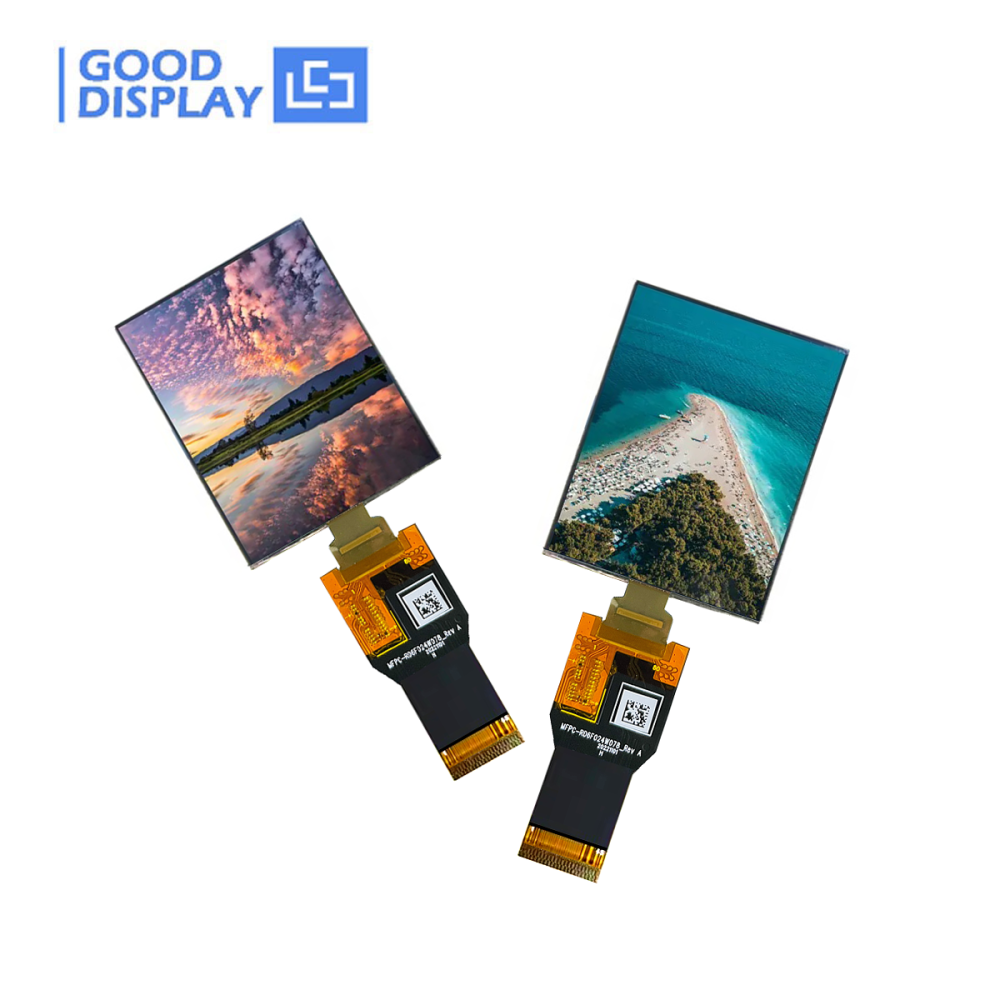

2.4 inch Rigid AMOLED 450x600 full color sunlight readable portrait display, wide temperature -20~80C, GDOJ024C45

2.4 inch full color AMOLED display has a high level of clarity and vivid colors with a resolution of 450x600 pixels and 16.7 million colors, which can present extremely delicate images and text, also has fast response speed and high contrast
Sold:1
Price:
USD
$23.70
Quantity:
-
+
(4 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • OLED Product List
  • Reviews



☆ INTRODUCTION




 GDOJ024C45 is a 2.4 inch full color AM OLED display, and has a 450x600 pixels. Display color 16.7M(RGB x 24bits), SPI/MCU/MIPI interface, pixel arrangement is pentile arrangement.
Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature. In view of so many advantages, GDOJ024C45 is a very good choice for various applications.



Relevant manual about this product on Library or you could go to our official website (www.einkpro.com), contact us please.



☆ THE ABOVE PRICE INCLUDE



1) 2.4 inch AM OLED display panel, 450x600 resolution,GDOJ024C45 * 1pc




☆ MAIN PARAMETERS




PART NUMBER GDOJ0269C01-T01
DISPLAY FORMAT 800x600Dots DISPLAY TYPE AM OLED
OUTLINE DIMENSION 56.6(W)x47.25(H)x0.505(T)mm DRIVER IC RM69700
ACTIVE AREA 54.6(W)x40.95(H)mm IC S3601
OPERATING TEMPERATURE -40℃~85℃ INTERFACE DSI 2-lane
STORAGE TEMPERATURE -55℃~125℃



☆ FEATURE




● Wide temperature range(Operating temperature: -20℃~80℃)
● AM OLED display
● Self-luminous, no backlight is required.
● High contrast,extremely wide viewing angle 80/80/80/80
● Lightweight and thin, 2.4 inch 450x600
● Polarizer: Hard-coated polarizer
● Driver IC: RM690B0
● Interface: SPI/MCU/MIPI
● 16.7M (24-bit) color depth




☆ DETAILS






☆ RELATED INFORMATION DOWNLOAD



● GDOJ024C45 Specification
