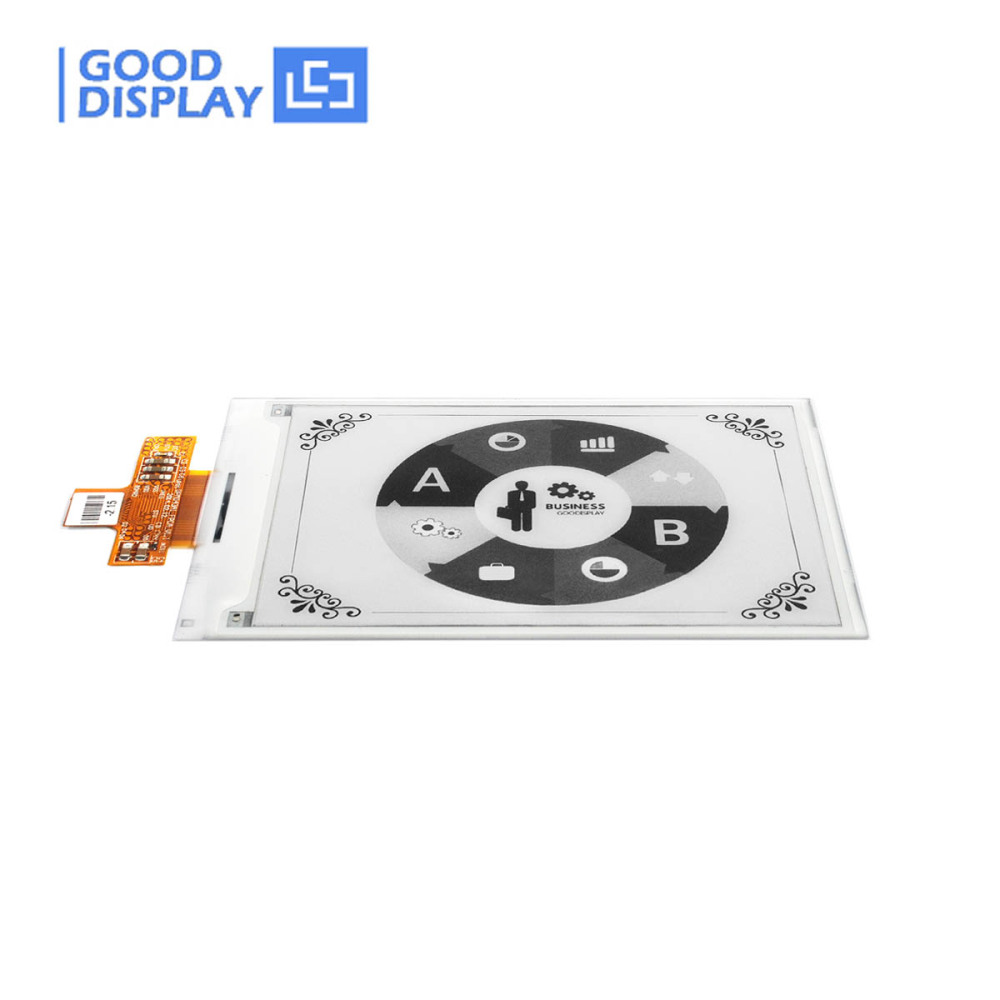

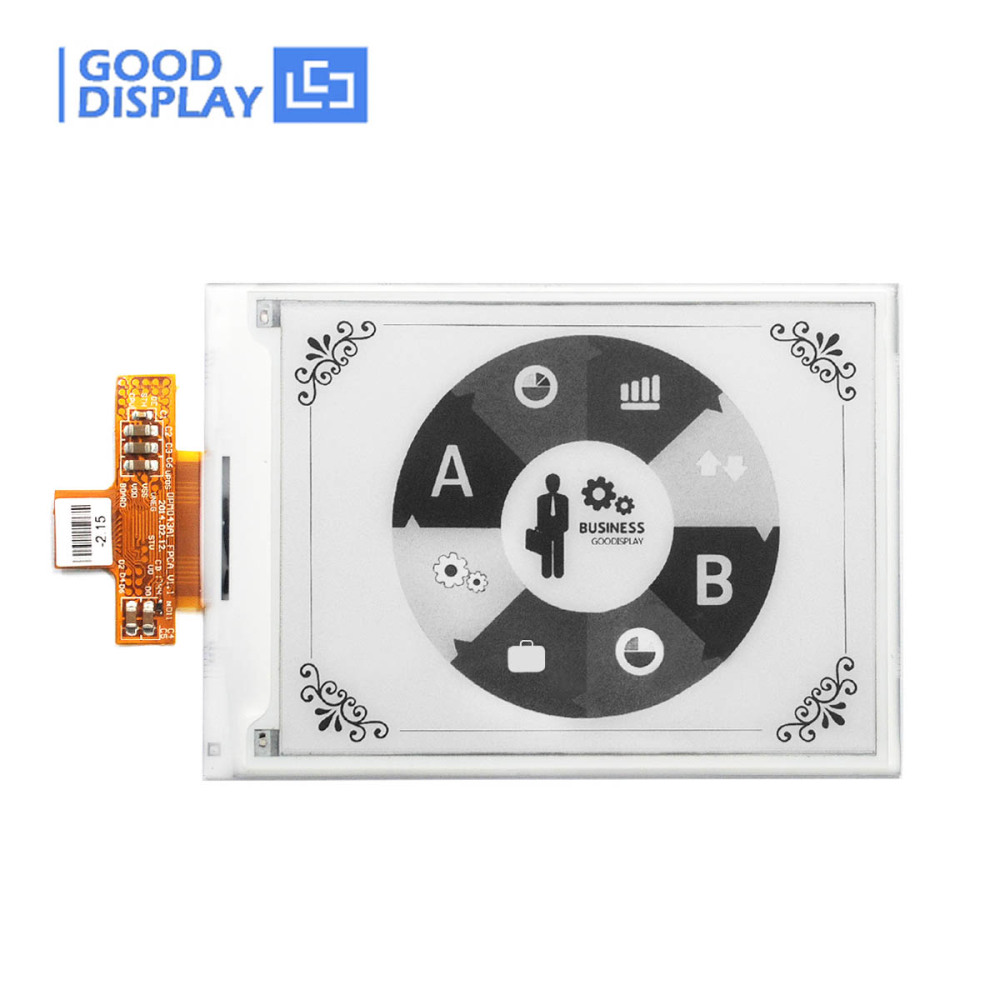

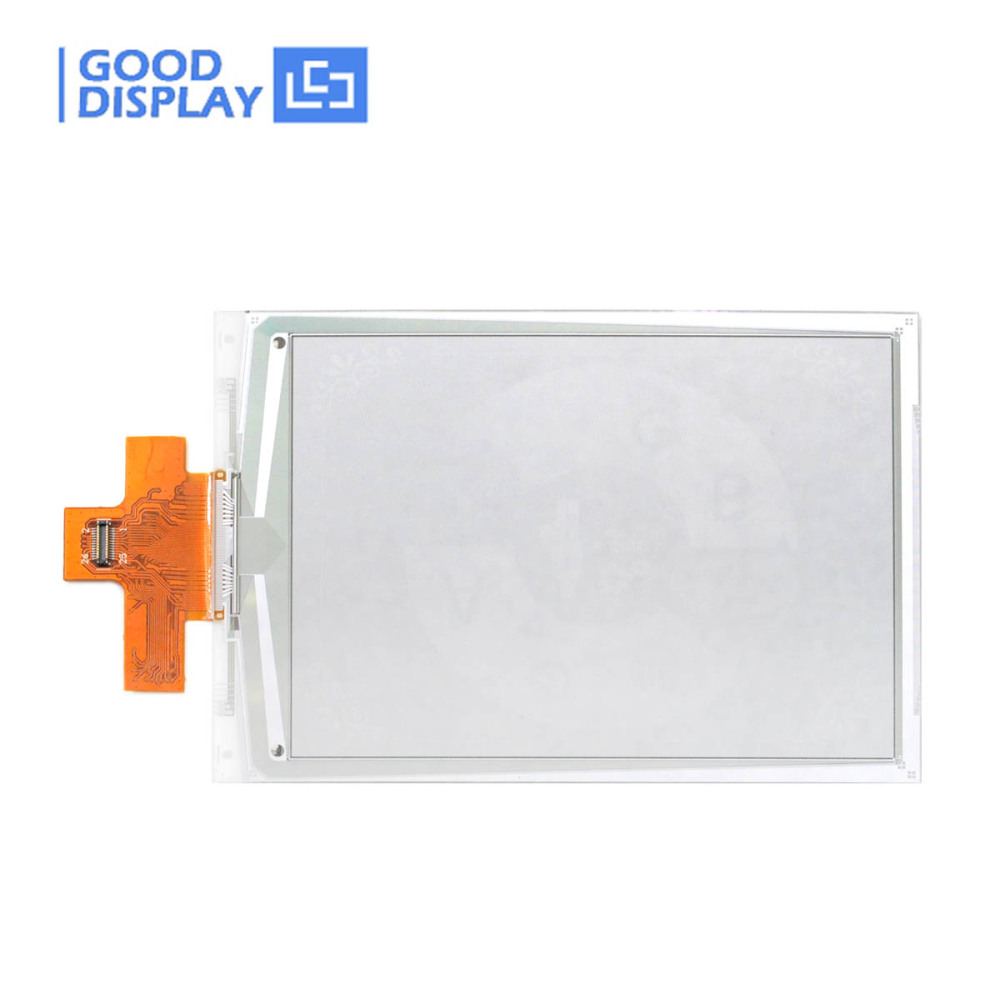

4.3 inch e-paper display parallel interface, with glossy glass cover, GDE043A3

With glossy glass cover, the clarity of the font has been significantly improved, can be used in portable electronic devices, such as E-book Reader. The resolution is 800×600, support 16 Grayscale, partial refresh, Its IC driver is HX8705.
1 Review(s) Sold:1
Price:
USD
$24.20
Quantity:
-
+
(0 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Selection Guide
  • Reviews(1)

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




This is a 4.3 inch e-paper display with 800x600 resolution, Parallel interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.


Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, this 4.3 inch e-paper display GDE043A3 is an ideal choice for applications such as shelf label, industrial instrument and so on.



We could provide front light, touch screen and other accessories for you.


You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd.

Relevant manual about this product on our official website (www.good-display.com), contact us please.







 FEATURE




●  Black and white monochrome is easy to read

●  Versatile. Use in portrait or landscape format

●  Bistable. (Will continue to display with no power source)

●  Low power consumption, basically power is only required for refreshing







 THE ABOVE PRICE INCLUDE



1) 4.3 inch e-paper display parallel interface, with glossy glass cover * 1pc






 MAIN PARAMETERS




PART NUMBER

GDE043A3

SIZE

4.3 inch

TYPE

Dot Matrix

IC

HX8705

RESOLUTION

800x600

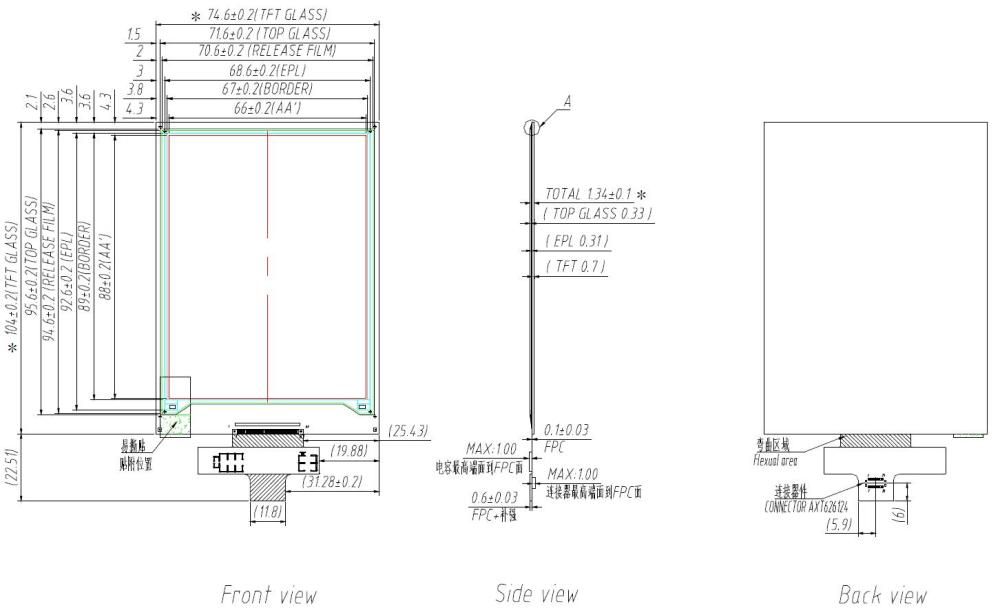

OUTLINE SIZE(mm)

104x74.6x1.34

ACTIVE SIZE(mm)

88x66

PIXEL PITCH(mm)

0.11x0.11

OPERATING TEMP.

0℃~50℃

STORAGE TEMP.

-20℃~70℃

CONSTRAST RADIO

Above 8:1

MAX GRAYSCALE

16

COLOR

Black,White

INTERFACE

Parallel

FULL REFRESH(s)

1

PARTIAL REFRESH(s) 1

POWER CONSUMPTION OF THE REFRESH(mW)

600

STANDBY POWER CONSUMPTION (mW)

0.4








 ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com




PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI

GDEW0102I4FC

1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -10℃~60℃     SPI
GDEH0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃   SPI
GDEH0154Z90 1.54'' BWR 2 200x200 27x27 15 0℃~40℃     SPI
GDEW0154I9FC 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ SPI
GDEW0213M21 2.13'' BW 2 212x104 48.548x23.712 3 -10℃~60℃     SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ SPI
GDEQ0213B74 2.13'' BW 4 250x122 48.55x23.7046 3 0℃~50℃   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW0213T5D-FL01(With Frontlight) 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃   SPI
GDEY0266T90 2.66'' BW 4 296x152 60.088x30.704 3 0℃~50℃   SPI
GDEW027W3 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEW027W3-T(With Touch Panel) 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEH029Z13 2.9'' BWR 2 296x128 66.9x29.06 15 0℃~40℃     SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃   SPI
GDEY029Z94 2.9'' BWR 2 296x128 66.896x29.056 12 0℃~40℃     SPI
GDEW029M06 2.9'' BW 2 296x128 66.896x29.056 3 -10℃~60℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ SPI
GDEW029T5D 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEW029T5D-FL02(With Frontlight) 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEY037Z03 3.71'' BWR 2 416x240 81.54x47.04 12 0℃~40℃     SPI
GDEW0371W7 3.71'' BW 2 416x240 81.536x47.04 4 0℃~50℃     SPI
