☆ INTRODUCTION

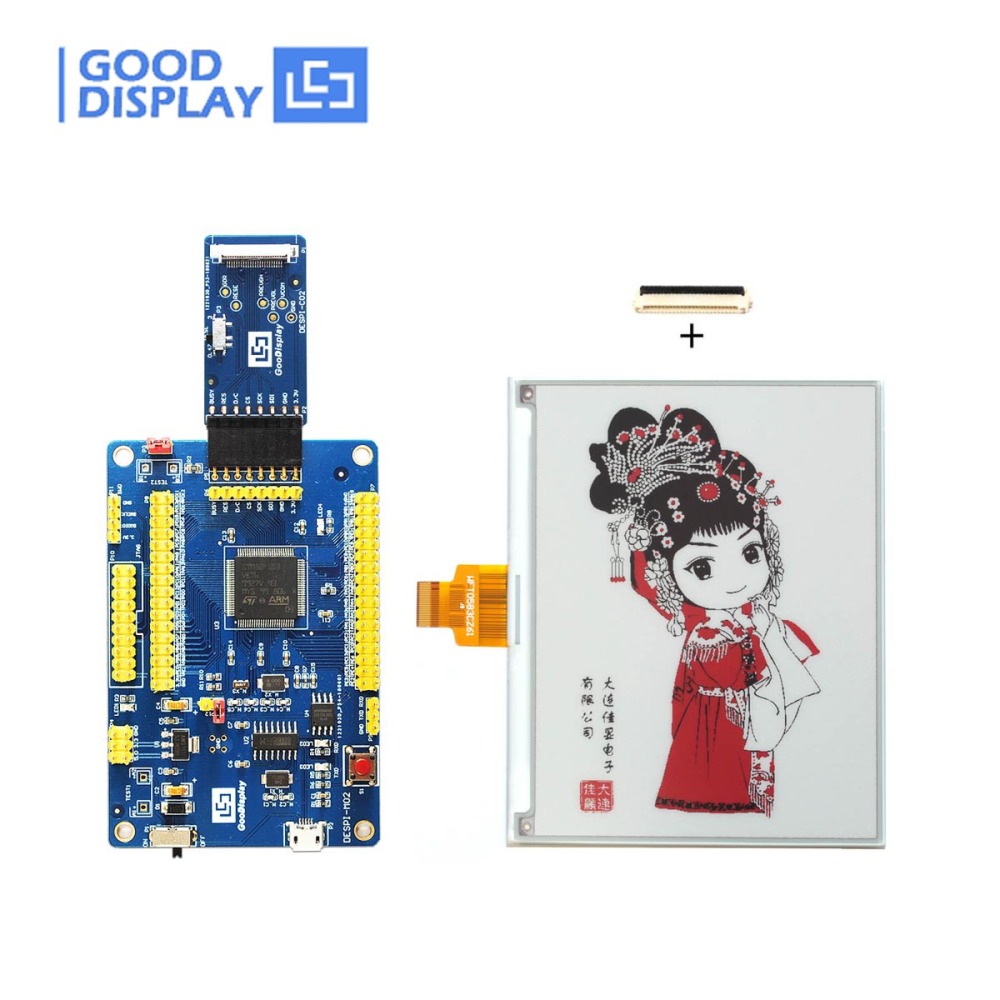

This is a set of development kit with 5.83 inch color e-ink display with 648x480 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. This 5.83 inch e-ink display GDEW0583Z83 is perfect for low power devices powered by solar or batteries. or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.
This connection board DESPI-C02 used for Good Display's black-white E-paper Display and three-color (black, white and red/Yellow)
This Development Kit designed for SPI E-paper Display aims to help users to begin constructing our e-paper display with provided source code to create more differentiated solutions. And it is added the functions of USB serial port and LED indicator light ect. It also supports being updated by computer directly.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
☆ FEATURE
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Black, white and red. Compared with monochrome electronic paper display, it is more beautiful
☆ THE ABOVE PRICE INCLUDE
1) 5.83 inch high resolution color red e-paper display Tri-color e-ink screen module buy GDEW0583Z83 *1pc
2) Matched FPC Connector*1pc
3) Driving board DESPI-M02 *1pc
4) Connector board DESPI-C02 *1pc
5) USB port cable *1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEW0583Z83
|
|
SIZE
|
5.83 inch
|
|
TYPE
|
Dot Matrix
|
|
IC
|
UC8179
|
|
RESOLUTION
|
648x480
|
|
OUTLINE SIZE(mm)
|
125.4x99.5x1.18
|
|
ACTIVE SIZE(mm)
|
119.232x88.32
|
|
PIXEL PITCH(mm)
|
0.184x0.184
|
|
OPERATING TEMP.
|
0℃~40℃
|
|
STORAGE TEMP.
|
-25℃~60℃
|
|
CONNECTOR
|
24 Pin FPC
|
|
MAX GRAYSCALE
|
2
|
|
COLOR
|
Black, White, Red
|
|
INTERFACE
|
SPI
|
|
FULL REFRESH(s)
|
12
|
|
POWER CONSUMPTION OF THE REFRESH(mW)
|
26.4
|
|
STANDBY POWER CONSUMPTION (mW)
|
0.71
|
|
PART NUMBER
|
DESPI
|
|
PLATFORM
|
STM32
|
|
FUNCTION
|
Drive E-paper Display
|
|
OUTSIDE DIMENSION
|
90x60mm(DESPI-M02)
41x22mm(DESPI-C02)
|
|
INTERFACE
|
USB
|
|
POWER INPUT
|
DC5V
|
|
FEATURE
|
Fully and Partial Refresh
|
|
OPERATING TEMP.
|
-20℃~70℃
|
|
RECOMMENDED
|
Keil 4
|
☆ 5.83 INCH E-INK DISPLAY
|
Part Number
|
Color
|
IC |
Resolution |
Feature
|
Full refresh time |
| GDEW0583C64 |
B/W/Y |
UC8159 |
600x448 |
Three colors,SPI interface |
25s |
| GDEW0583Z83 |
B/W/R |
UC8159 |
648x480 |
Three colors,High resolution |
12s |
| GDEW0583T8 |
B/W |
UC8159 |
648x480 |
High resolution |
4s |
