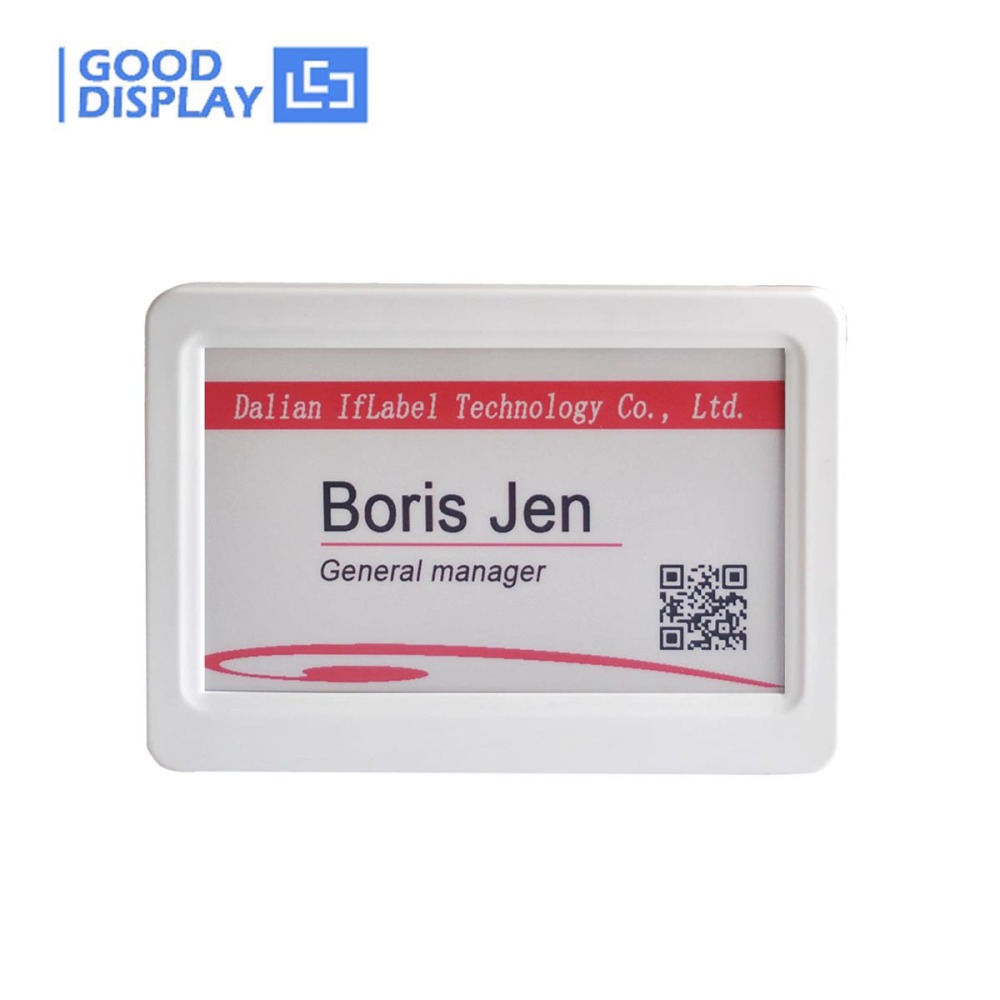

IL075E series ESL tags are a large high definition displays giving the freedom to choose the layout that suits. Whether it is an extra large text, promotion, QR code or barcode, there is room to fit it all directly on-screen,
with no paper required. It can be used for different application, such as the retails, conference systems and industrial tags etc.
· Environmental protection
· Energy saving
· Convenient operation
· Wide practical range
· Controlled by PC or mobile
· No base station required, support Android Phone
1)7.5 inch ESL tag*1pc
2) Manual*1pc.(Please advise email ID along with order,so that we can send them.)
|
Model
|
GDIF075ED (double screen) |
|
Outline Size
|
195.0x137.0x13.0mm
7.68 x 5.39 x 0.51” |
| Visible area |
161.0 x 96.0mm
6.34 x 3.78” |
|
Resolution
|
800x480 |
|
DPI
|
125 |
|
Display Type
|
Color option (Black-white, black-white-red, black-
white-yellow) |
|
Viewing angle
|
Near 180° |
|
Appearance
|
Standard unit available with white or black
frame |
|
Weight
|
221g |
|
Operating Temp.
|
0℃ ~ 50℃ |
| Storage Temp. |
-20℃ ~ 70℃ |
Power
consumption |
Operating current for refreshing is 30mA,
standby current below 0.1mA |
| Mapping mode 1 |
Through the NFC in the center of the display |
| Mapping mode 2 |
Through Bluetooth on your phone |
| Operating system |
Only supports Android system phone, does not support Apple phone |
1, Scan the QR code(Getting it from the manual below, please), follow the prompts to download, install and register the APP(only supports Android system and does not support the IOS)
2, Simple interface and Simple operating
3, Support Bluetooth and NFC transmission
4, Support Batch mapping

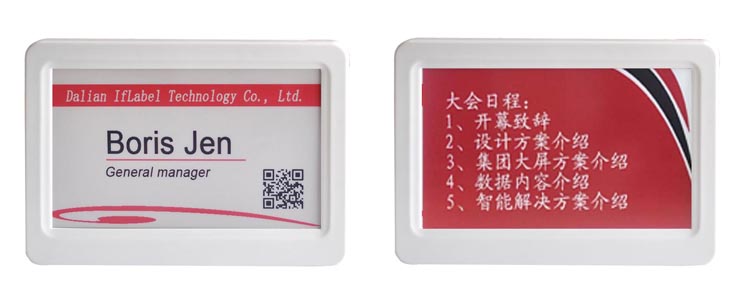

5, Support single-sided/double-sided display, can show the name of the participants and the meeting agenda.
Want to know more about the APP operation guide, or want to use the cloud operating system, please refer to the manual below.
