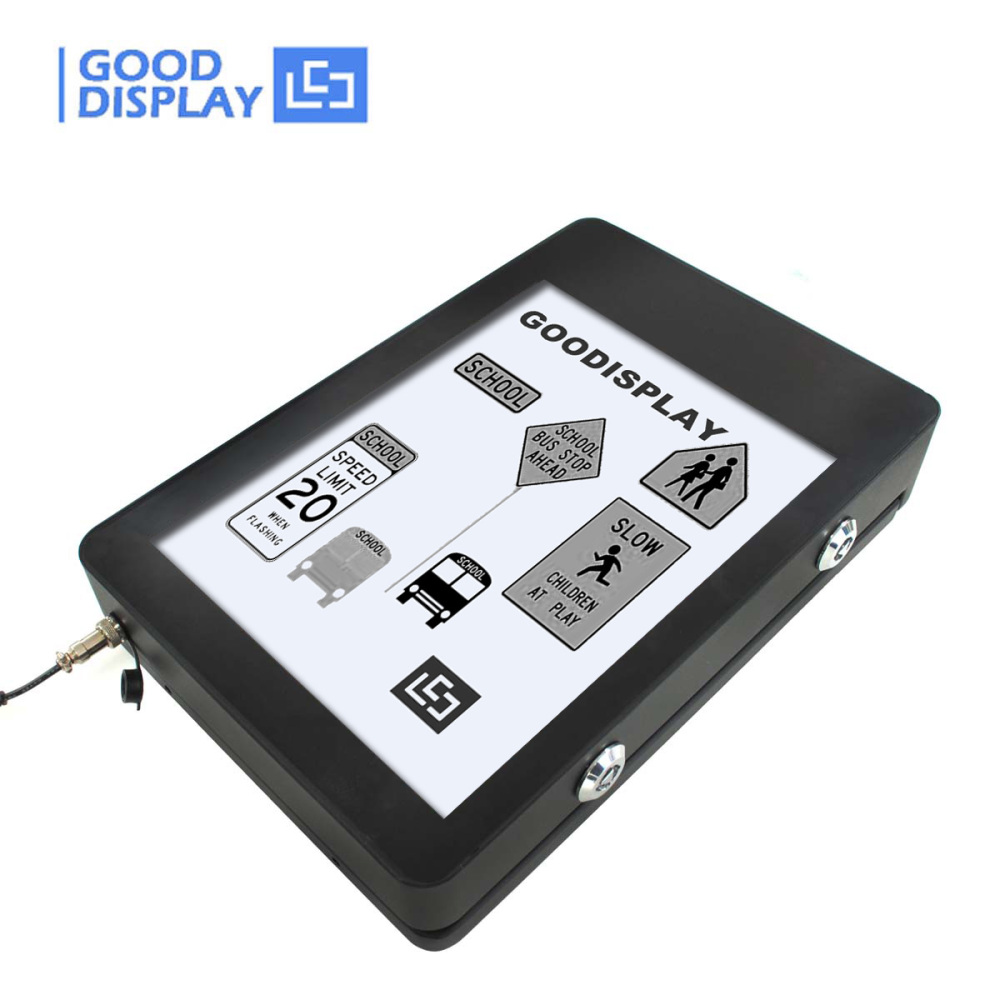

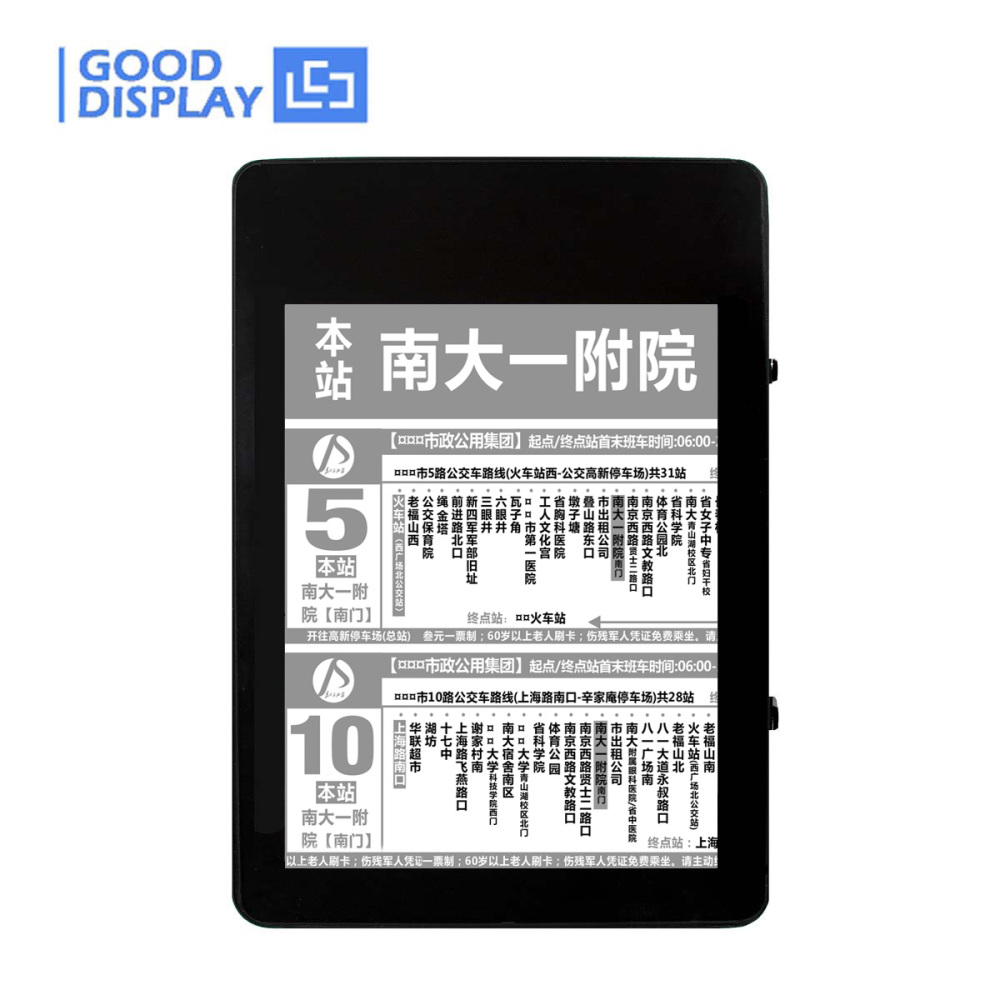

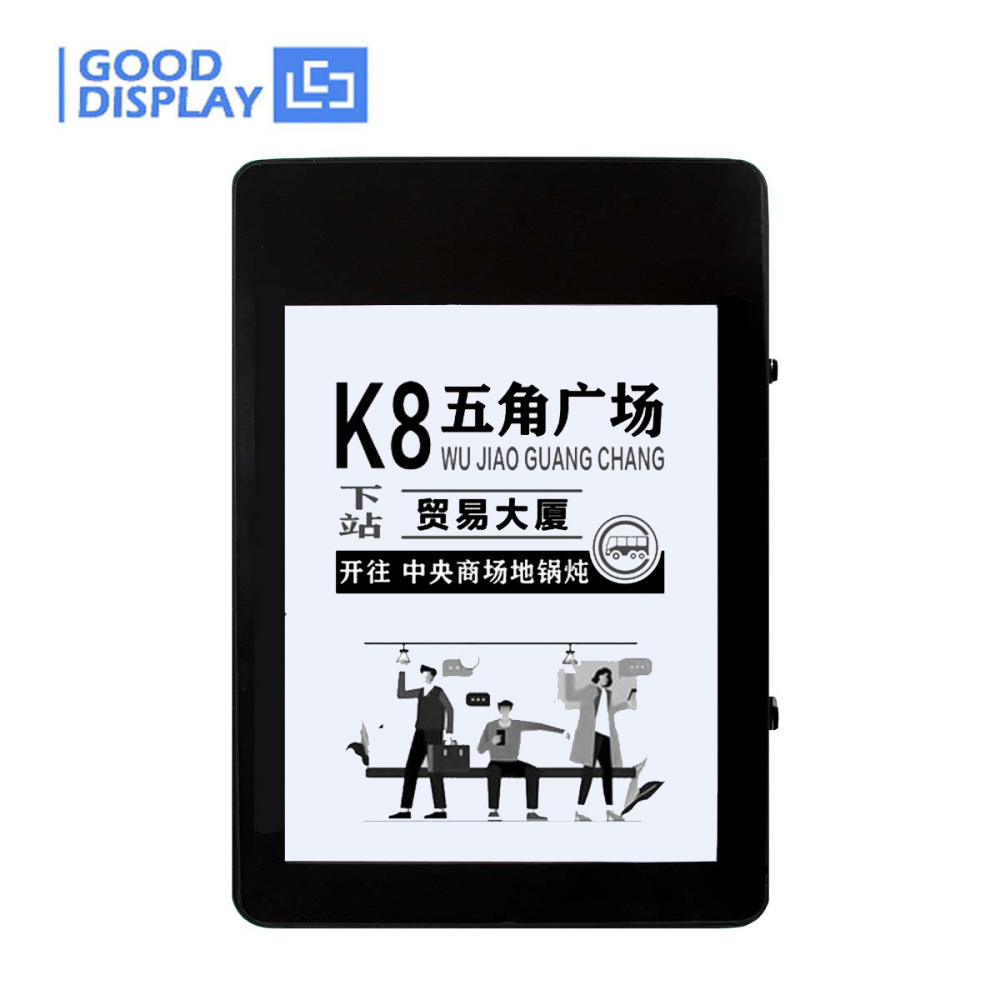

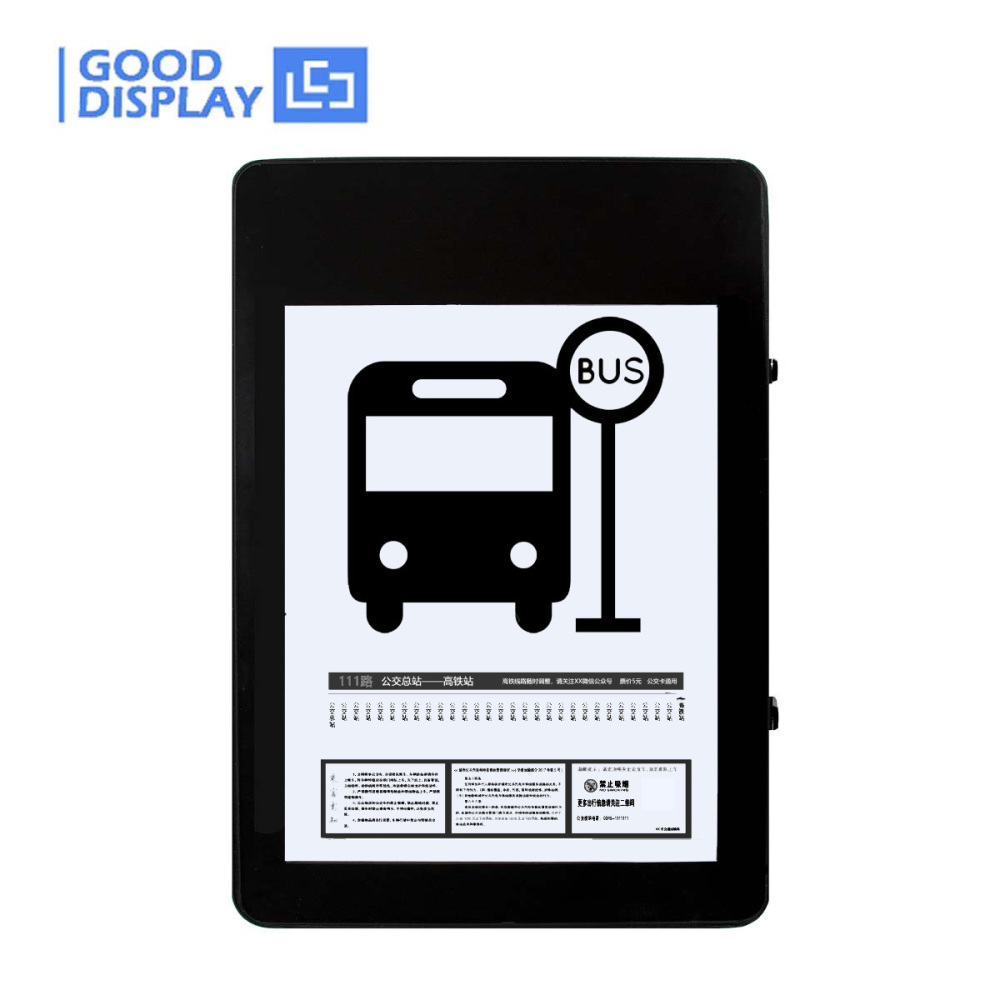

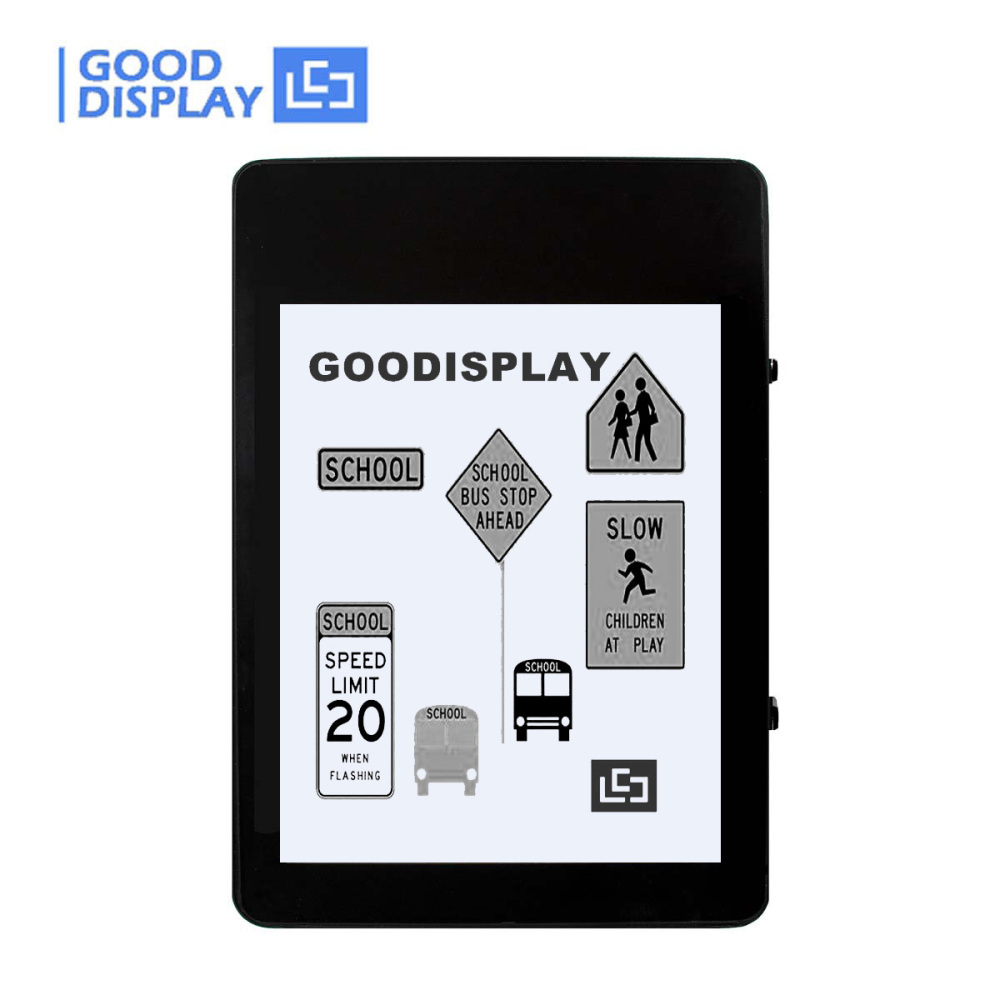

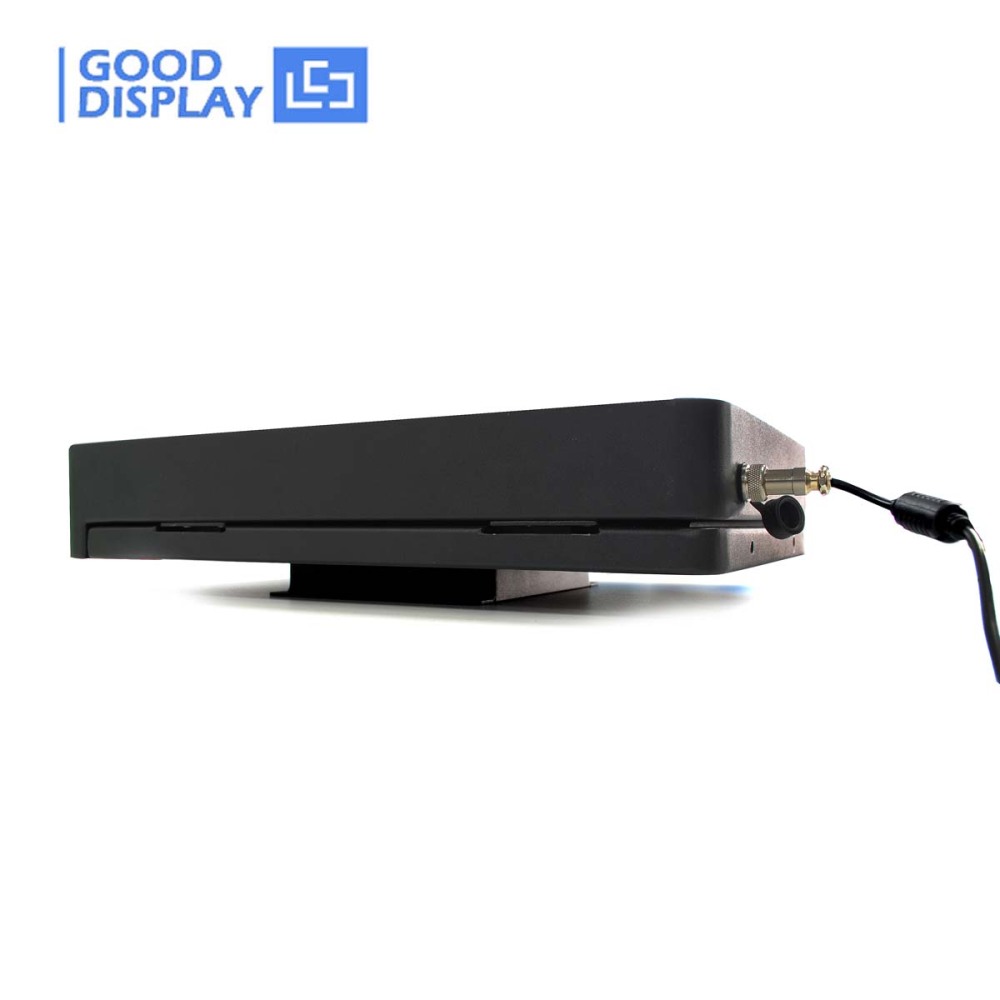

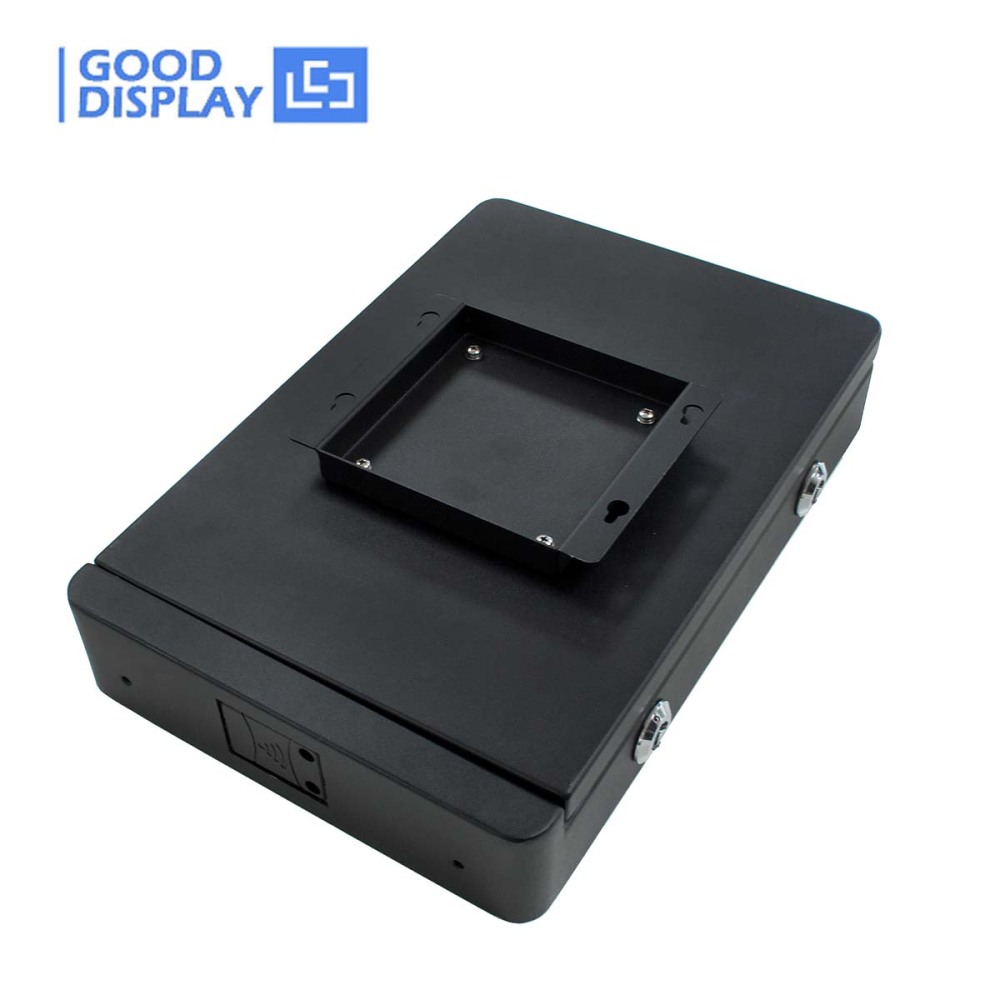

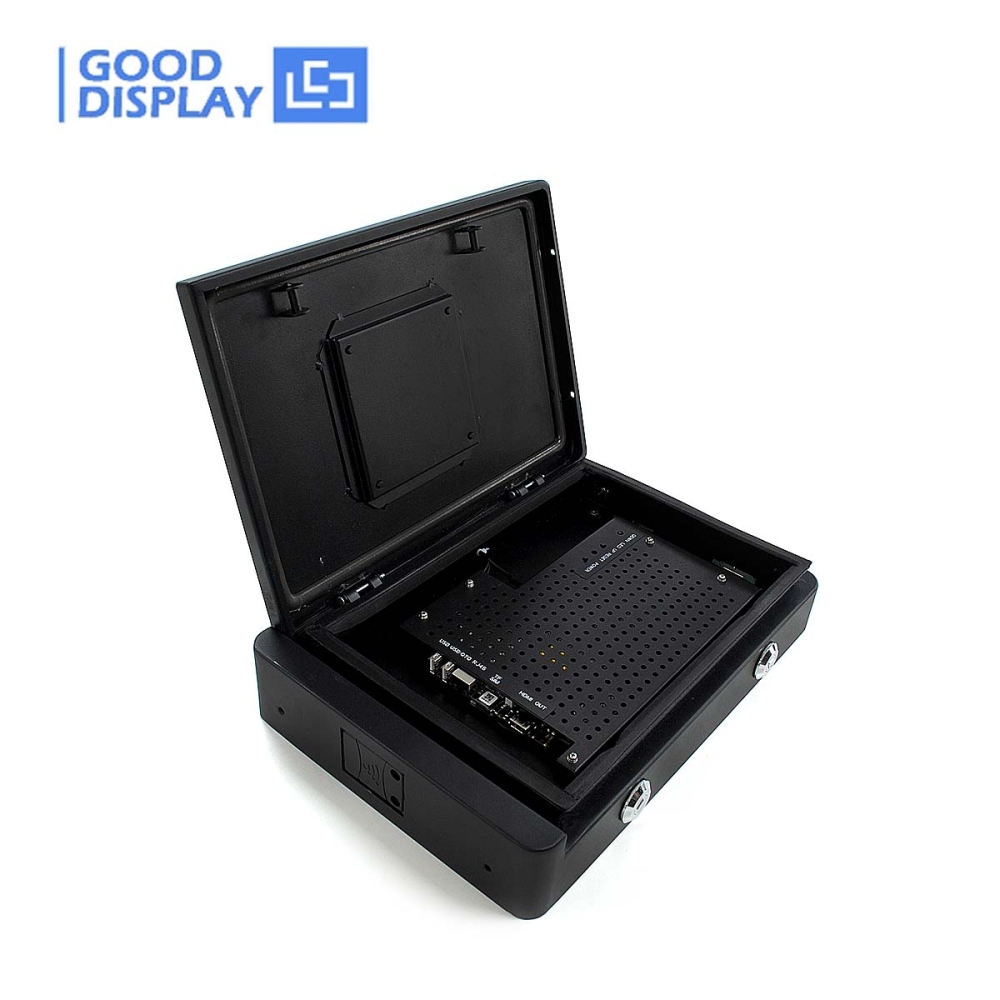

13.3'' E Ink Real-Time Bus Arrival Display High-Resolution RTPI Electronic Sign

DMPH133EC1
Real-Time Passenger Information (RTPI) electronic signs display the number of minutes until the next bus arrives at a bus stop. 13.3 inch, 1600x1200 resolution, SPI interface
Have a question?
Price:
USD
$1109.00
Quantity:
-
+
(1 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews


13.3-inch black, white e-paper display WiFi large-size ink screen sign





The DMPH133EC1 is a 13.3-inch high-resolution (1600x1200) monochrome E Ink display, the ultimate outdoor advertising solution, capable of withstanding temperatures from -15°C to 65°C. It can be easily updated via USB or Wi-Fi, offering not only eco-friendliness and ultra-low power consumption ( 3.7W ), but also fast refresh times (2 s), and a paper-like visual experience. Even under direct sunlight, it remains clear and readable, glare-free, providing a friendly visual effect and a unique aesthetic that traditional LCD screens cannot match. This display does not require a constant power supply, offering exceptional portability. It is perfect for applications such as billboards, smart streetlights, exhibition halls, bus stops, libraries, museums, hospitals, and other places where reducing light pollution is important.









Special Features


 ● Our standard unit is just the starting point – our real expertise lies in creating tailored solutions to meet your specific needs.
 ● We offer flexible hardware configurations and seamless API integration to ensure compatibility with your systems.
 ● With us, you’re not just buying a product – you’re getting a partner committed to delivering the perfect fit for your business.





System Types and Features

The GDP133BW1 runs on Android, providing an interactive GUI and smooth user experience. Its strong extensibility supports diverse third-party apps and plugins, making it ideal for smart devices, terminals, and user interfaces.

Alternatively, an industrial-grade X86-based PC offers higher computational power and excellent compatibility, supporting a wide range of industrial-grade software and applications for demanding hardware and software needs.

For simpler applications, an embedded system like a microcontroller or Linux-based system is a cost-effective, energy-efficient choice. These systems offer fast response times and are ideal for basic automation, data collection, or equipment monitoring.




Technical Details



Click here to view the pin definitions, on page 7







Product Specifications


PART NUMBER  DMPH133EC1
DISPLAY PARAMETERS  Screen Size: 13.3 inch
 Screen Type: Black and White
 E-Ink Display Screen
 Resolution: 1600x1200
 Screen Grayscale: 16 Gray
PORT PARAMETERS  USB2.0: One way HOST, one way OTG
 HDMI-OUT: 1 route
 RJ45: 1 route 10M/100M
 adaptive TF: Reserved (maximum expansion 128G)
 KEY: POWER, UP, DOWN, RESET
POWER CONSUMPTION PARAMETERS  Power supply mode: 12-20V/2A
 power adapter Refresh power: ≤3.5W
 Standby power: ≤0.01W
 Built-in battery: No battery
SOFTWARE PARAMETERS  Image update interval: 2s
 Image update method: USB or WiFi image update
 (USB image update is preferred, simultaneous use of both methods is not supported temporarily)
 Language: Supports multiple languages (English by default)
MOTHERBOARD PARAMETERS  WiFi frequency band: 2.4GHz
 Bluetooth: 4.0 (Bluetooth firmware update not supported at present)
 Operating System: Android 7.1
 CPU: Quad-core ARM Cortex A7
 DDR: 1GB
 EMMC: 8GB
 Front Light Power: ≤2.16W
 Waterproof Level: IP65
SPECIFICATIONS  Weight: Approximately 5.75kg
 Dimensions: 375x250x65mm
TEMPERATURE AND HUMIDITY PARAMETERS  Operating Temperature: 0°C to 40°C
 Storage Temperature: -25°C to 70°C
 Operating Humidity: 40% to 70%








Applications of Electronic Paper Signage



E ink display ideal for environments such as Public Information Boards,Education, Digital Signage and Retail Displays, where reducing light pollution and operating without a direct power supply are essential.










Files And Download


● DMPH133EC1_Specification ● Why can't I download the files(updated)?
● The Lastest Catalog ● To Understand for a Complete Machine Project Handover?







Every Day is Earth Day




  You don't need to be an environmental scientist to make sustainable choices.
At GooDisplay, we passionately integrate sustainability into the production of e-paper.









Substitute for Paper Usage

Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.

Device Packaging
95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.

Energy Efficiency
Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.
