ESP8266-L evaluation kit is used to help users develop e-paper display projects with provided source code to create more differentiated solutions. It is designed for SPI e-paper display. It supports driving Good Display's black-white e-paper display and three-color (black, white and red/Yellow) e-paper display: 0.97'', 1.54'',2.13'', 2.66'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'' and 7.5''. And it is added the functions of USB serial port and LED indicator light, Reset button, font chip, Flash chip and etc.

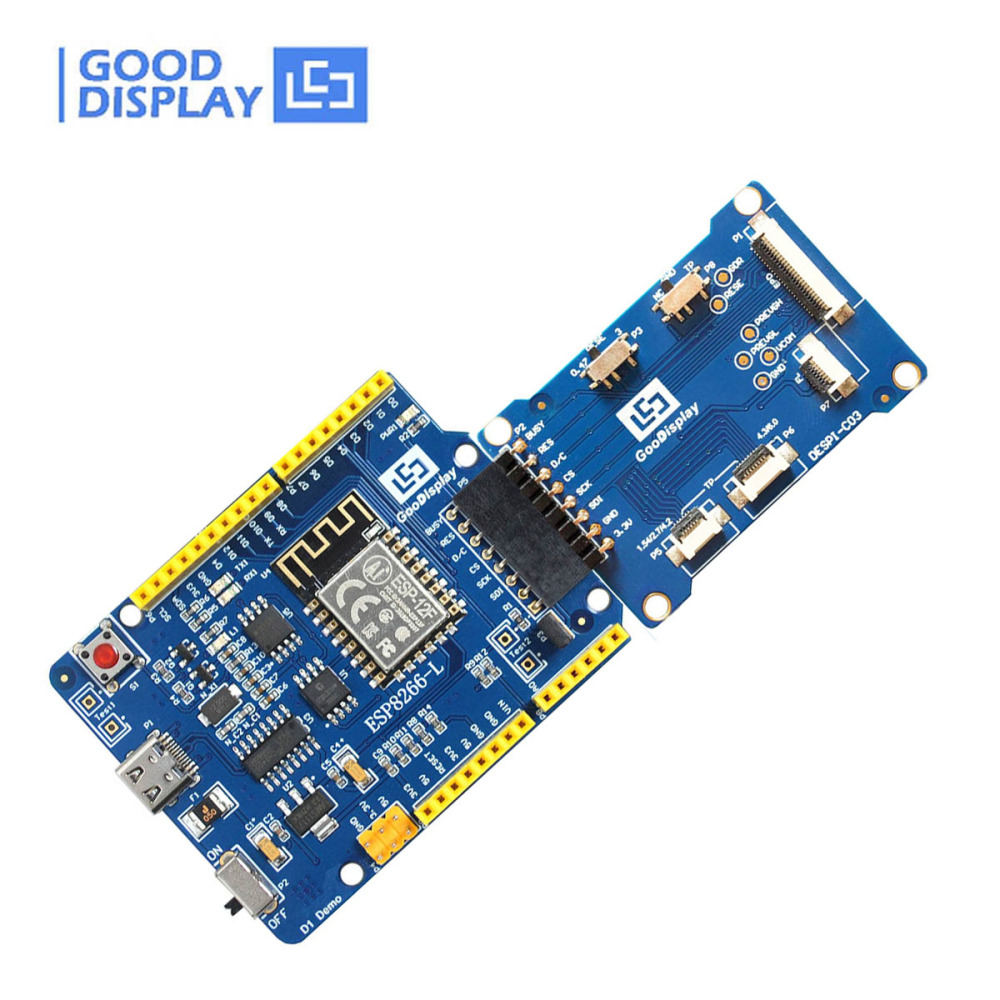

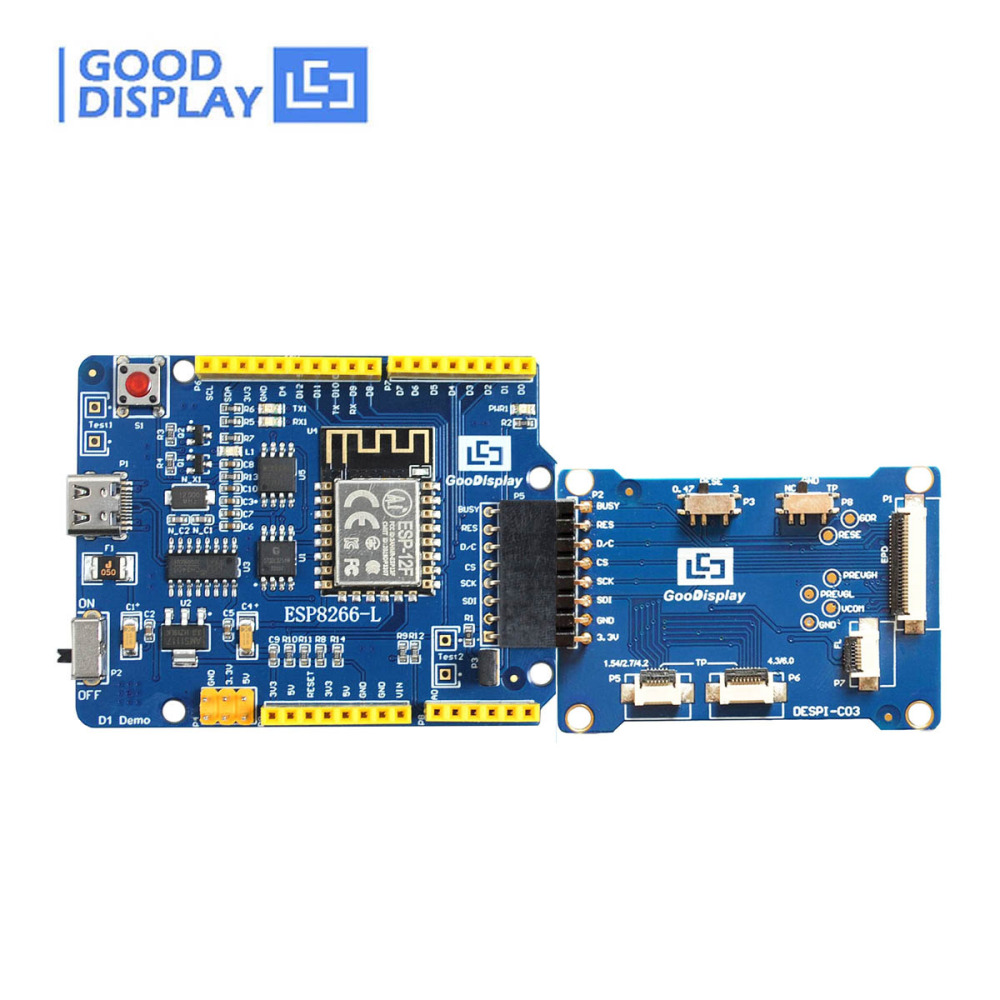

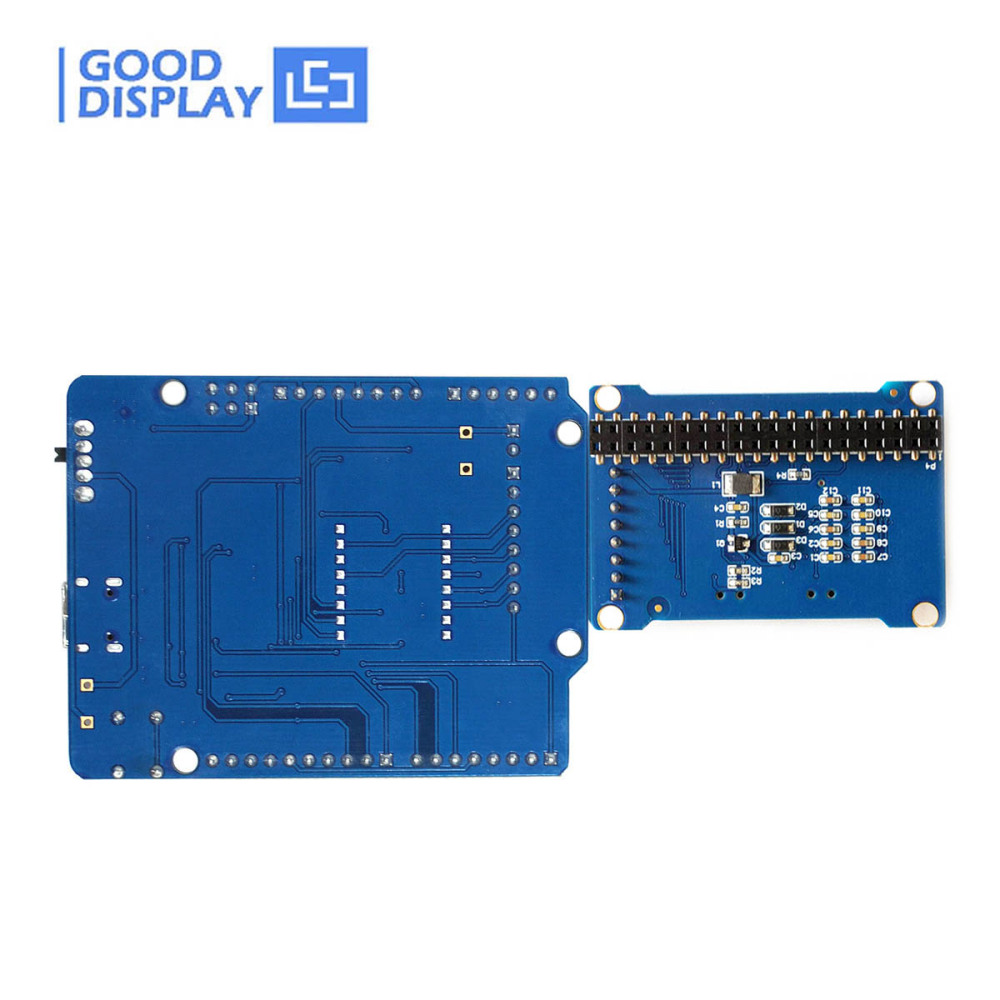

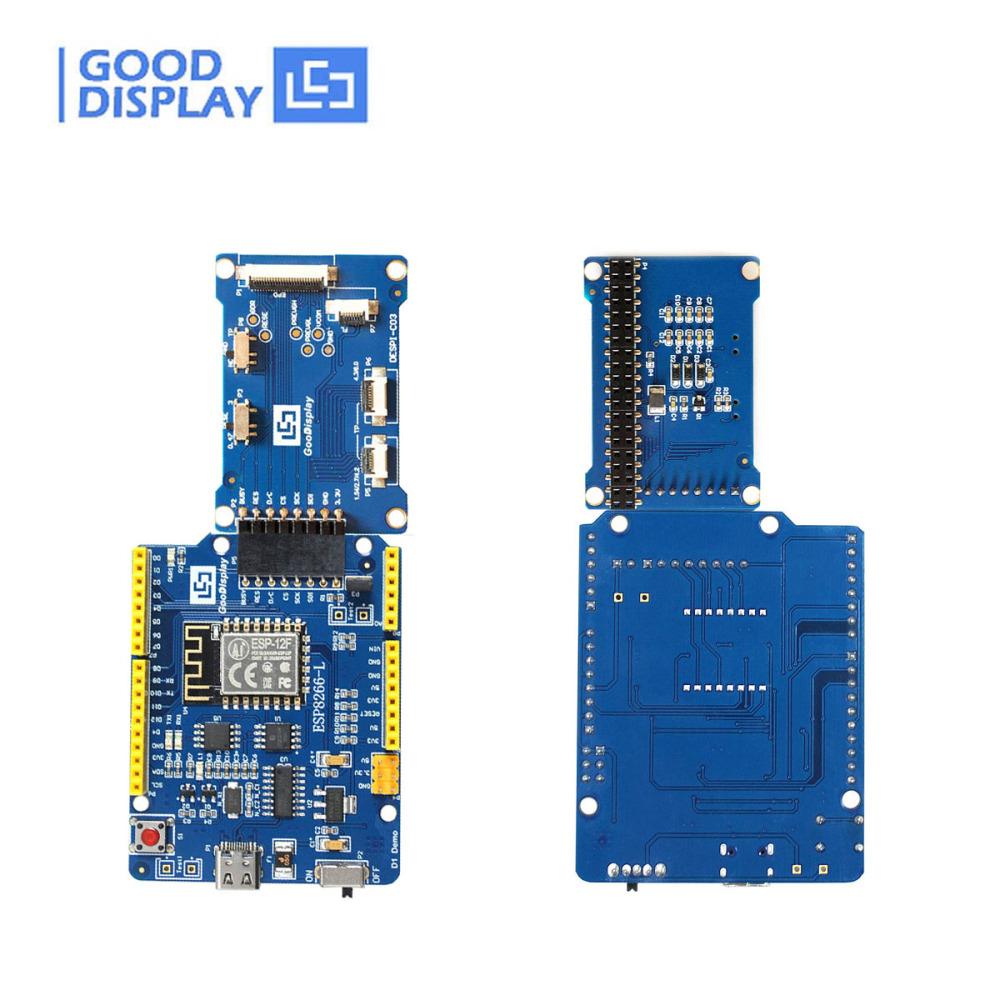

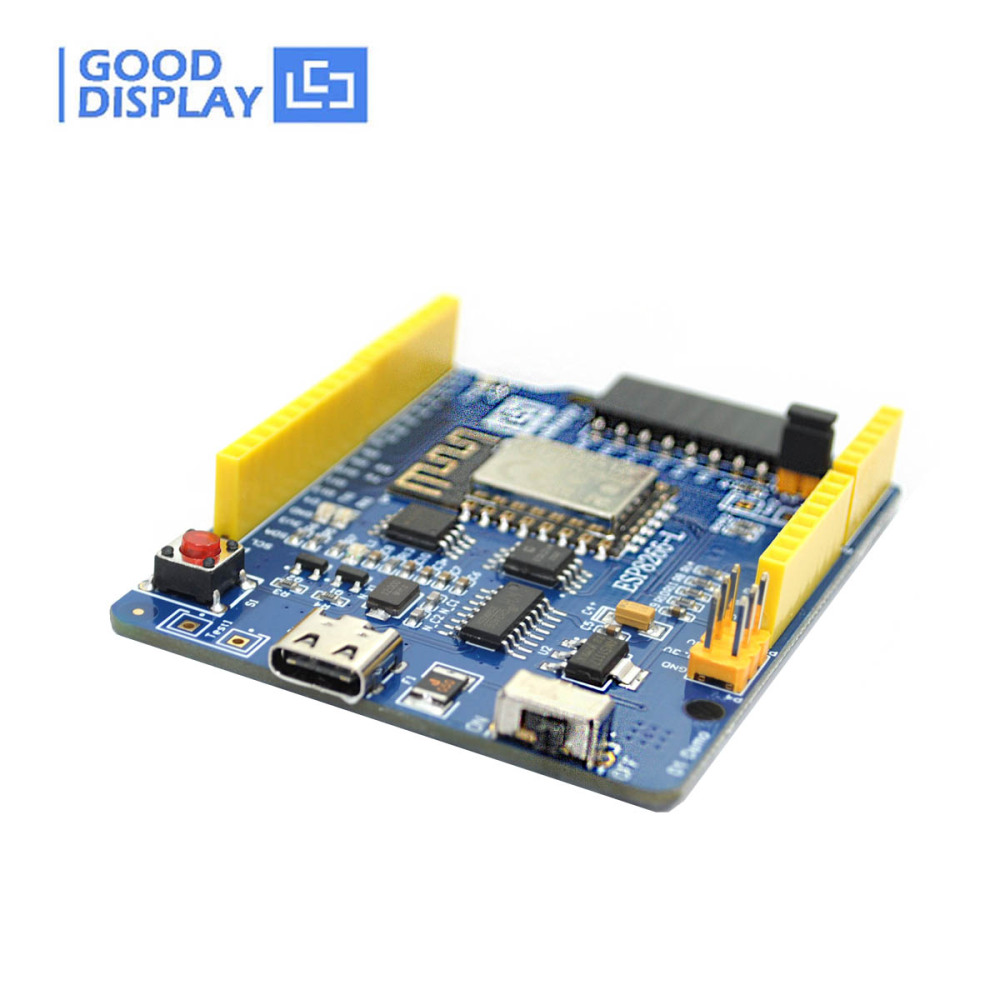

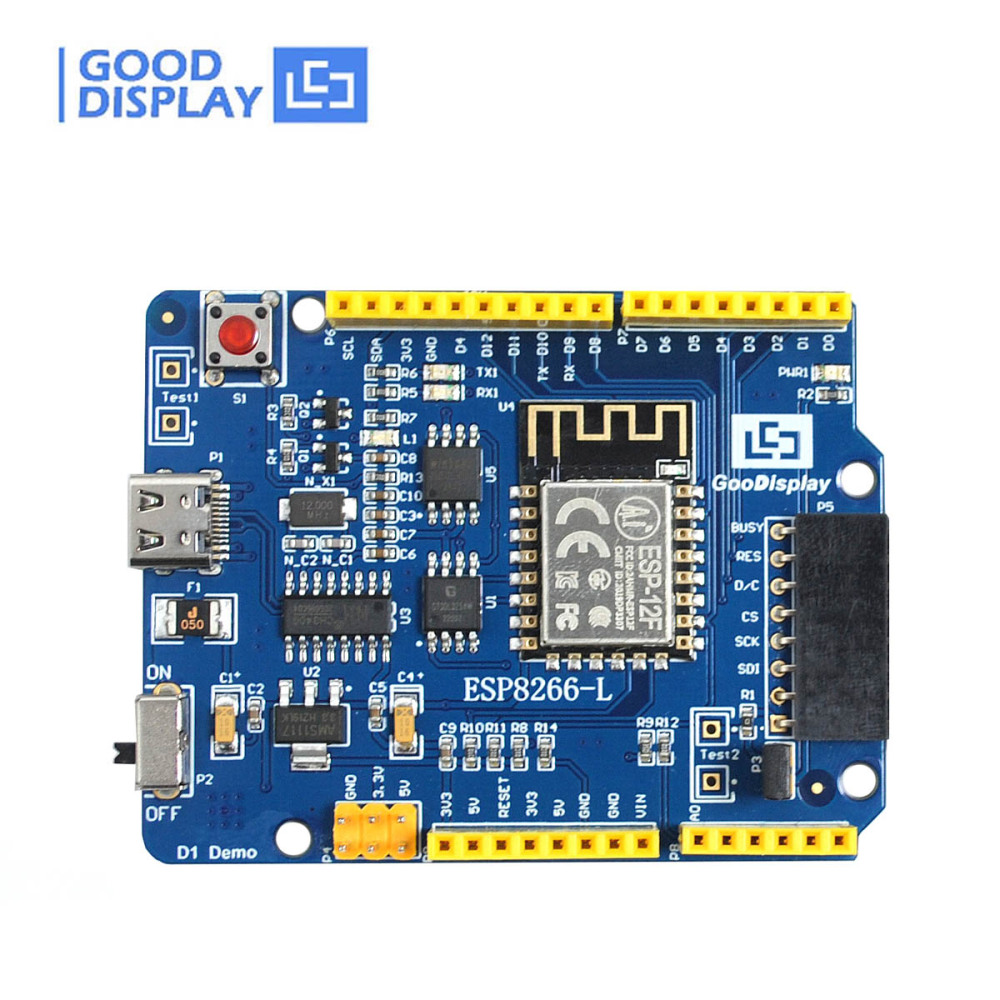

ESP8266-L (C03) development kit consists of motherboard ESP8266-L for EPD and connector board DESPI-C03.
ESP8266-L (C03) development kit is only for users to develop and drive electronic paper display screens. The application of WiFi and other functions requires users to develop on their own according to the project.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
DEMO does not provide electronic paper screen, the screen must be purchased separately
● For SPI interface e-paper display.
● Supports Wi-Fi, users need to develop by themselves.
● The connector board DESPI-C03 adds driving function for touch panel and frontlight.
● Learn how to drive E-Paper Display based on Arduino.
● Test and evaluate the E-Paper Display.
● Secondary development based on DEArduino.
|
PART NUMBER |
ESP8266-L(C03) |
|
MCU |
Arduino |
|
FUNCTION |
Drive E-paper Display |
|
OUTSIDE DIMENSION |
70mmx54mm (ESP8266 for EPD) 52mm x 36mm (DESPI-C03) |
|
POWER INTERFACE |
Type-C Interface |
|
POWER INPUT |
DC5V |
|
OPERATING TEMP. |
-20~70℃ |
| MAIN FUNCTION |
Learn to drive E-paper display; Test and evaluate e-paper display; Support secondary development
|
| ADDITIONAL FUNCTION | Type-C,LED indicator, Reset button, Font chip, Flash chip, Current detection |
