E-paper display development demo kit, drive board Arduino, Support Wi-Fi, with touch screen and frontlight interface ESP8266(C03)

ESP8266(C03)
ESP8266 (C03) development kit supports program development using Arduino development platform. It is designed for SPI e-paper display. The connector board DESPI-C03 adds driving function for touch panel and frontlight.
Price:
USD
$14.58
Quantity:
-
+
(18 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Reviews
Any questions, just feel free to contact me, my email is: clara@good-display.com

ESP8266 (C03) development kit supports program development using Arduino development platform.This development kit is used to help users develop e-paper display projects with provided source code to create more differentiated solutions. It is designed for SPI e-paper display. It supports driving Good Display's black-white e-paper display and three-color (black, white and red/Yellow) e-paper display: 1.54'', 2.04'', 2.13'', 2.6'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'' and 7.5''. What’s more, DESPI-C03 can drive touch panel and front light panel.

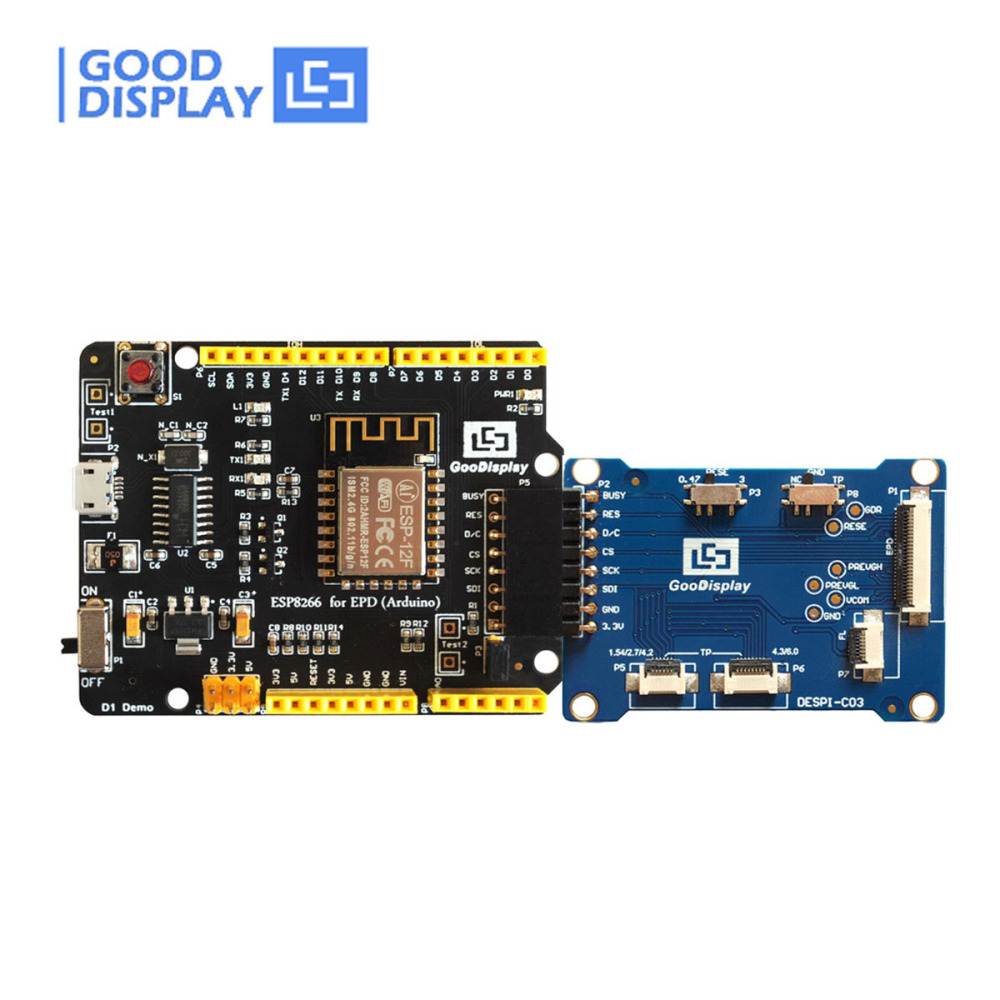

ESP8266 (C03) development kit consists of motherboard ESP8266 for EPD and connector board DESPI-C03.

ESP8266 development kit is only for driving the e-paper, WIFI and other functions need to be developed by users according to the project.

· For SPI interface e-paper display.

. Supports Wi-Fi, users need to develop by themselves.

· The connector board DESPI-C03 adds driving function for touch panel and frontlight.

· Learn how to drive E-Paper Display based on Arduino.

· Test and evaluate the E-Paper Display.

. Secondary development based on DEArduino.

· Come with resources and manual.


1. Driving board ESP8266 for EPD*1pc
2. Connector board DESPI-C03 *1pc
3. USB port cable *1pc
4.Helpful resources and manual(sent via email or download link) *1pc

Part Number

ESP8266(C03)

MCU

Arduino

Function

Drive E-paper Display

Outside Dimension

70mmx54mm (ESP8266 for EPD)
52mm x 36mm (DESPI-C03)

Power Interface

USB Interface

Main Function

Driving e-paper display

Sample Code

Available (please contact sales)

Operating Temp

-20~70℃

Additional Function  USB to serial port, indicator light, keys, current detection
and so on.

RESE To 0.47 Ω:
1.1.54 inch E-Paper Display:
GDEW0154T8,GDEW0154Z17,GDEW0154Z04,GDEW0154C39
2.2.13 inch E-Paper Display:  GDEW0213T5,GDEW0213Z16,GDEW0213I5F,GDEW0213C38,GDEW0213V7LT
3.2.6 inch E-Paper Display: GDEW026T0,GDEW026Z39
4.2.7 inch E-Paper Display:  GDEW027W3  GDEW027C44
5.2.9 inch E-Paper Display:  GDEW029T5,GDEW029Z10,GDEW029I6F,GDEW029C32
6.3.71 inch E-Paper Display: GDEW0371W7,GDEW0371Z80
7.4.2 inch E-Paper Display:  GDEW042T2,GDEW042Z15,GDEW042C37
8.5.83 inch E-Paper Display:  GDEW0583Z21,GDEW0583C64,GDEW0583Z83
9.7.5 inch E-Paper Display:  GDEW075Z09,GDEW075C21,GDEW075C64,GDEW075Z08

RESE To 3 Ω:
1.1.54 inch E-Paper Display:
GDEH0154D67,GDEM0154E97LT
2.2.04 inch E-Paper Display: GDE021A1
3.2.13 inch E-Paper Display:
GDEH0213D30LT,GDEH0213B73
4.2.9 inch E-Paper Display: GDEH029A1,GDEH029D56LT
5.5.83 inch E-Paper Display: GDEW0583T7
6.7.5 inch E-Paper Display: GDEW075T8

DEMO does not provide electronic paper screen, the screen must be purchased separately



http://www.e-paper-display.com/products_detail/productId=514.html


International Shipping & Delivery FAQs>>
Payment Methods>>
Shipping & Returns>>


Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!! my email is: clara@good-display.com


PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -20℃~60℃     SPI
GDEH0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃   SPI
GDEW0154M09 1.54'' BW 2 200x200 27.6x27.6 0.82 0℃~50℃   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃   SPI
GDEH0154Z90 1.54'' BWR 2 200x200 27x27 15 0℃~40℃     SPI
GDEW0213M21 2.13'' BW 2 212x104 48.548x23.712 3 -20℃~60℃     SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ SPI
GDEM0213B74 2.13'' BW 4 250x122 48.55x23.7 3 0℃~50℃     SPI
GDEM0213U23 2.13'' BWR 2 250x122 23.67x48.50 - 0℃~25℃     SPI
GDEM0213D23 2.13'' BW 2 250x122 23.67x48.50 - 0℃~25℃     SPI
GDEW0213V7LT 2.13'' BW 2 212x104 48.55x23.71 3 -25℃~10℃   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW0213T5D-FL01(With Frontlight) 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃   SPI
GDEW027W3 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEW027W3-T(With Touch Panel) 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEM029E97 2.9'' BW 2 296x128 66.9x29.06 3 0℃~50℃     SPI
GDEH029Z13 2.9'' BWR 2 296x128 66.9x29.06 15 0℃~40℃     SPI
GDEM029T94 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃   SPI
GDEW029M06 2.9'' BW 2 296x128 66.896x29.056 3 -20℃~60℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ SPI
GDEW029T5D 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEW029T5D-FL02(With Frontlight) 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEH037Z01 3.71'' BWR 2 416x240 81.54x47.04 16 0℃~40℃     SPI
GDEW0371W7 3.71'' BW 2 416x240 81.536x47.04 4 0℃~50℃     SPI
