☆ INTRODUCTION
ESP8266 for EPD development kit supports Arduino platform for development procedures. This development kit is mainly to assist customers to develop e-paper display projects faster and smoother. It supports driving Good Display's black-white SPI E-paper Display and three-color (black, white and red/Yellow) Good Display ‘s SPI E-paper Display: 1.54'', 2.04'', 2.13'', 2.6'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'' and 7.5''.
The ESP8266 for EPD development kit supports Wi-Fi, users need to develop by themselves. And it includes the motherboard ESP8266 for EPD and the adapter board DESPI-C02.

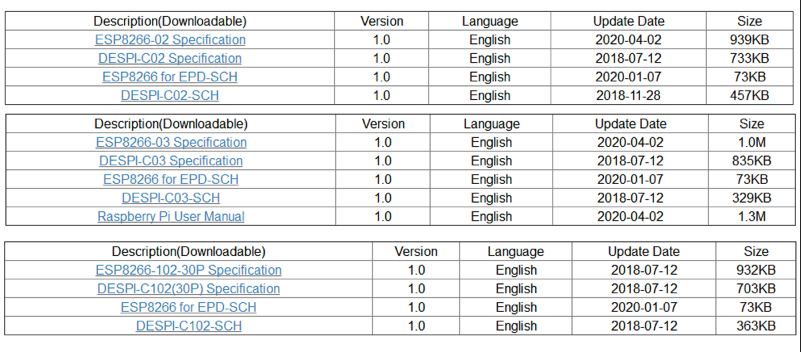

Relevant manual about this product on our official website (www.good-display.com), contact us please.
☆ THE ABOVE PRICE INCLUDE

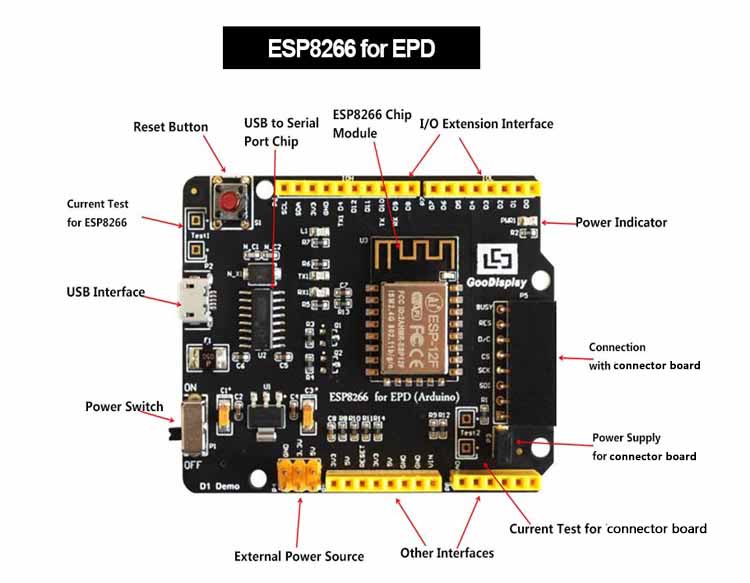

1) WIFI Driver board ESP8266 * 1pc

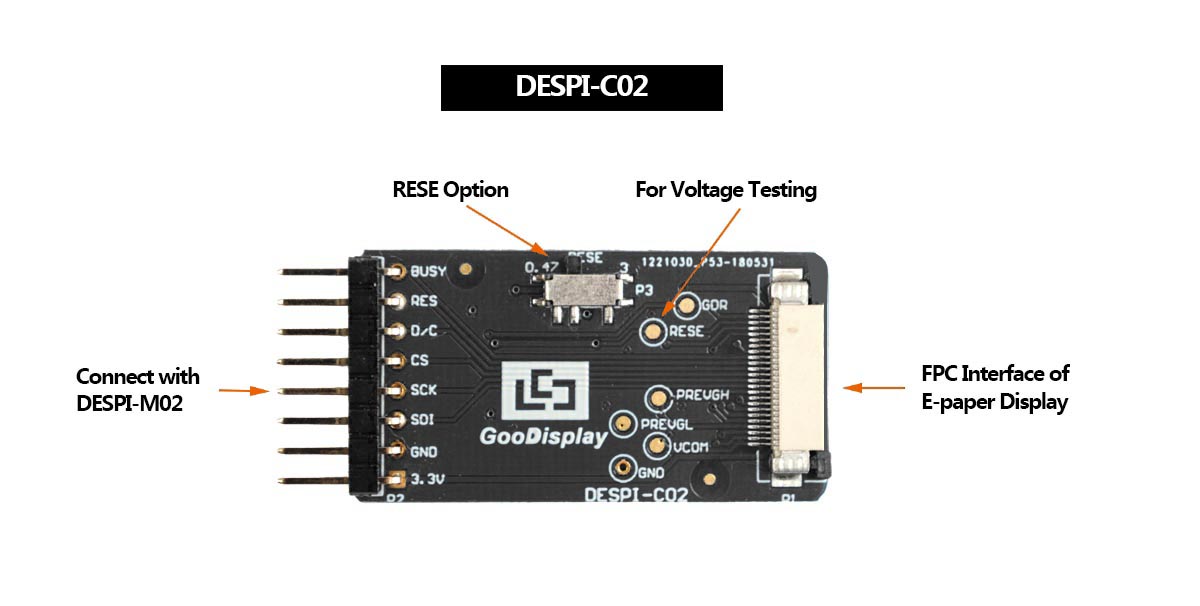

2) Connector board DESPI-C02 * 1pc
3) USB port cable * 1pc
☆ MAIN PARAMETERS
| Part Number |
ESP8266-C02 |
| Platform |
Arduino |
| Function |
Drive E-paper Display |
| Outside Dimension |
70mmx54mm (ESP8266 for EPD)
41x22mm (DESPI-C02) |
| Power Interface |
USB Interface |
| Sample Code |
Available (please contact sales) |
| Operating Temp. |
-20~70℃ |
| Example Code |
Available |
| Reserved Function |
USB to serial port, indicator light, keys, current detection and so on. |
☆ OTHER EPD DRIVE BOARD
● DESPI (STM32 Platform/Universal)
● DEArduino (Arduino Platform)
● ESP32 (WiFi / Bluetooth)
☆ ABOUT US
Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com
| PART NUMBER |
SIZE |
COLOR |
GREY SCALE |
RESOLUTION |
ACTIVE SIZE(mm) |
FULL REFRESH TIME (S) |
OPERATING TEMP. |
PARTIAL REFRESH |
FLEXIBLE |
INTERFACE |
| GDEW0102T4 |
1.02'' |
BW |
2 |
128x80 |
21.76x14 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW0102I3F |
1.02'' |
BW |
2 |
128x80 |
21.76x14 |
3 |
0℃~50℃ |
√ |
√ |
SPI |
| GDEW0154M10 |
1.54'' |
BW |
2 |
152x152 |
27.512x27.512 |
3 |
-20℃~60℃ |
|
|
SPI |
| GDEH0154D67 |
1.54'' |
BW |
4 |
200x200 |
27x27 |
2 |
0℃~50℃ |
√ |
|
SPI |
| GDEW0154M09 |
1.54'' |
BW |
2 |
200x200 |
27.6x27.6 |
0.82 |
0℃~50℃ |
√ |
|
SPI |
| GDEW0154T8D |
1.54'' |
BW |
4 |
152x152 |
27.51x27.51 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEH0154Z90 |
1.54'' |
BWR |
2 |
200x200 |
27x27 |
15 |
0℃~40℃ |
|
|
SPI |
| GDEW0213M21 |
2.13'' |
BW |
2 |
212x104 |
48.548x23.712 |
3 |
-20℃~60℃ |
|
|
SPI |
| GDEW0213I5FD |
2.13'' |
BW |
4 |
212x104 |
48.55x23.71 |
3 |
0℃~50℃ |
√ |
√ |
SPI |
| GDEM0213B74 |
2.13'' |
BW |
4 |
250x122 |
48.55x23.7 |
3 |
0℃~50℃ |
|
|
SPI |
| GDEM0213U23 |
2.13'' |
BWR |
2 |
250x122 |
23.67x48.50 |
- |
0℃~25℃ |
|
|
SPI |
| GDEM0213D23 |
2.13'' |
BW |
2 |
250x122 |
23.67x48.50 |
- |
0℃~25℃ |
|
|
SPI |
| GDEW0213V7LT |
2.13'' |
BW |
2 |
212x104 |
48.55x23.71 |
3 |
-25℃~10℃ |
√ |
|
SPI |
| GDEY0213Z98 |
2.13'' |
BWR |
2 |
250x122 |
48.55x23.7046 |
14 |
0℃~40℃ |
|
|
SPI |
| GDEW0213T5D |
2.13'' |
BW |
4 |
212x104 |
48.55x23.71 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW0213T5D-FL01(With Frontlight) |
2.13'' |
BW |
4 |
212x104 |
48.55x23.71 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW026T0D |
2.6'' |
BW |
4 |
296x152 |
60.09x30.7 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW027W3 |
2.7'' |
BW |
4 |
264x176 |
57.288x38.192 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW027W3-T(With Touch Panel) |
2.7'' |
BW |
4 |
264x176 |
57.288x38.192 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEM029E97 |
2.9'' |
BW |
2 |
296x128 |
66.9x29.06 |
3 |
0℃~50℃ |
|
|
SPI |
| GDEH029Z13 |
2.9'' |
BWR |
2 |
296x128 |
66.9x29.06 |
15 |
0℃~40℃ |
|
|
SPI |
| GDEM029T94 |
2.9'' |
BW |
4 |
296x128 |
66.9x29.06 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEY029T94 |
2.9'' |
BW |
4 |
296x128 |
66.896x29.056 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW029M06 |
2.9'' |
BW |
2 |
296x128 |
66.896x29.056 |
3 |
-20℃~60℃ |
|
|
SPI |
| GDEW029I6FD |
2.9'' |
BW |
4 |
296x128 |
66.9x29.06 |
3 |
0℃~50℃ |
√ |
√ |
SPI |
| GDEW029T5D |
2.9'' |
BW |
4 |
296x128 |
66.9x29.06 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW029T5D-FL02(With Frontlight) |
2.9'' |
BW |
4 |
296x128 |
66.9x29.06 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEH037Z01 |
3.71'' |
BWR |
2 |
416x240 |
81.54x47.04 |
16 |
0℃~40℃ |
|
|
SPI |
| GDEW0371W7 |
3.71'' |
BW |
2 |
416x240 |
81.536x47.04 |
4 |
0℃~50℃ |
|
|
SPI |
| PART NUMBER |
SIZE |
COLOR |
GREY SCALE |
RESOLUTION |
ACTIVE SIZE(mm) |
FULL REFRESH TIME (S) |
OPERATING TEMP. |
PARTIAL REFRESH |
FLEXIBLE |
INTERFACE |
| GDEW042C37 |
4.2'' |
BWY |
2 |
400x300 |
84.8x63.6 |
28 |
0℃~40℃ |
|
|
SPI |
| GDEW042T2 |
4.2'' |
BW |
4 |
400x300 |
84.8x63.6 |
3 |
0℃~50℃ |
|
|
SPI |
| GDE043A2 |
4.3'' |
BW |
16 |
800x600 |
88x66 |
1 |
0℃~50℃ |
√ |
|
Parallel |
| GDE043A2-T(With Touch Panel) |
4.3'' |
BW |
16 |
800x600 |
88x66 |
1 |
0℃~50℃ |
√ |
|
Parallel |
| GDE043A3 |
4.3'' |
BW |
16 |
800x600 |
88x66 |
1 |
0℃~50℃ |
√ |
|
Parallel |
| GDEW0583C64 |
5.83'' |
BWY |
2 |
600x448 |
118.80x88.26 |
25 |
0℃~40℃ |
|
|
SPI |
| GDEW0583T8 |
5.83'' |
BW |
2 |
648x480 |
119.232x88.32 |
4 |
0℃~50℃ |
|
|
SPI |
| GDEW0583Z83 |
5.83'' |
BWR |
2 |
648x480 |
119.232x88.32 |
12 |
0℃~40℃ |
|
|
SPI |
| GDE060F3 |
6.0'' |
BW |
16 |
1024x758 |
90.581x122.368 |
1 |
0℃~50℃ |
√ |
|
Parallel |
| GDEY075T7 |
7.5'' |
BW |
4 |
800x480 |
163.2x97.72 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEY075Z08 |
7.5'' |
BWR |
2 |
800x480 |
163.2x97.72 |
12 |
0℃~40℃ |
|
|
SPI |
| GDEH116T91 |
11.6'' |
BW |
2 |
960x640 |
244.512x163.008 |
5 |
0℃~50℃ |
|
|
SPI |
| GDEH116Z91 |
11.6'' |
BWR |
2 |
960x640 |
244.512x163.008 |
30 |
0℃~35℃ |
|
|
SPI |
