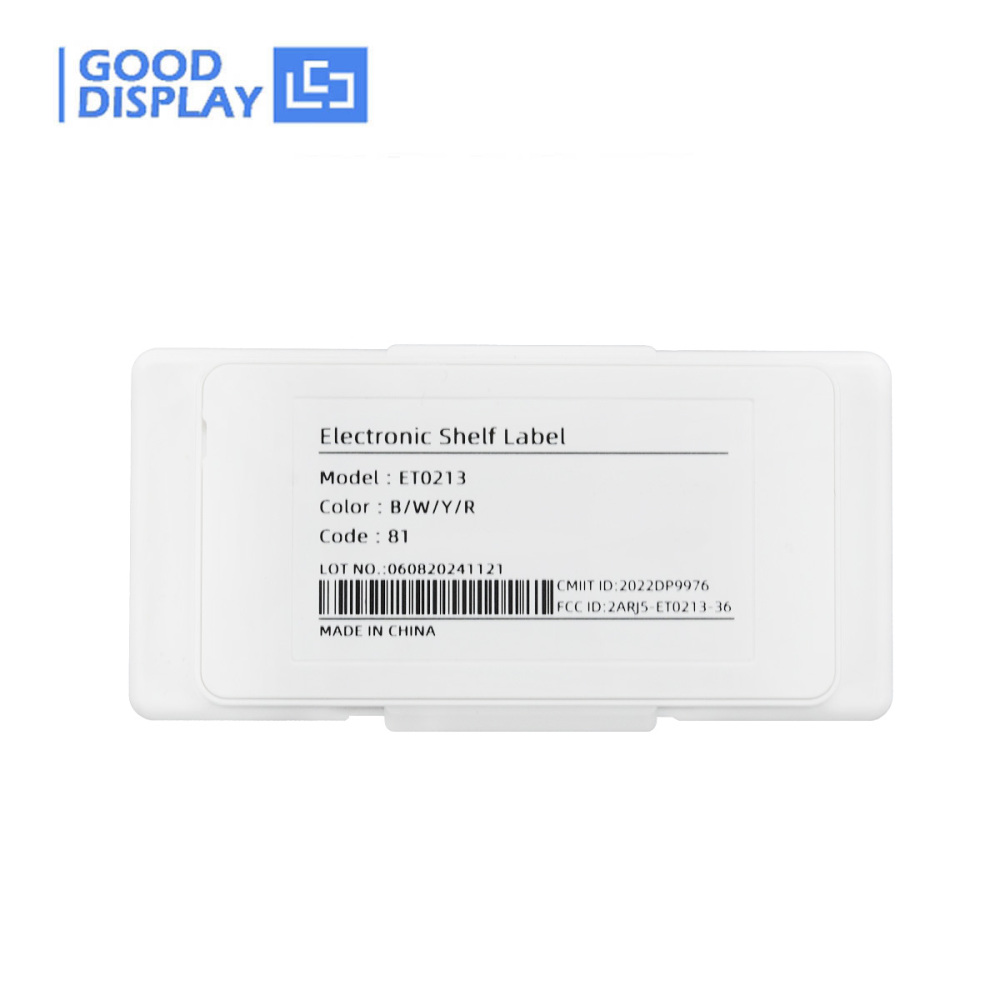

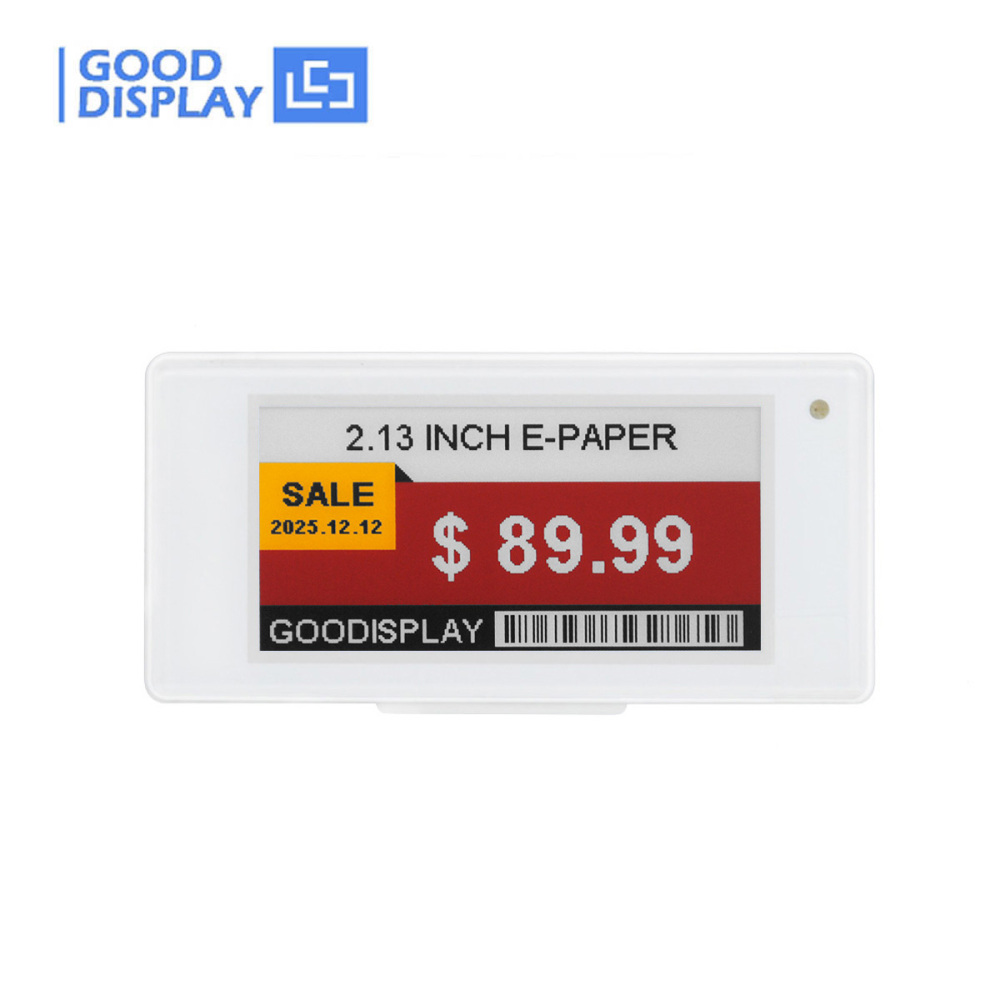

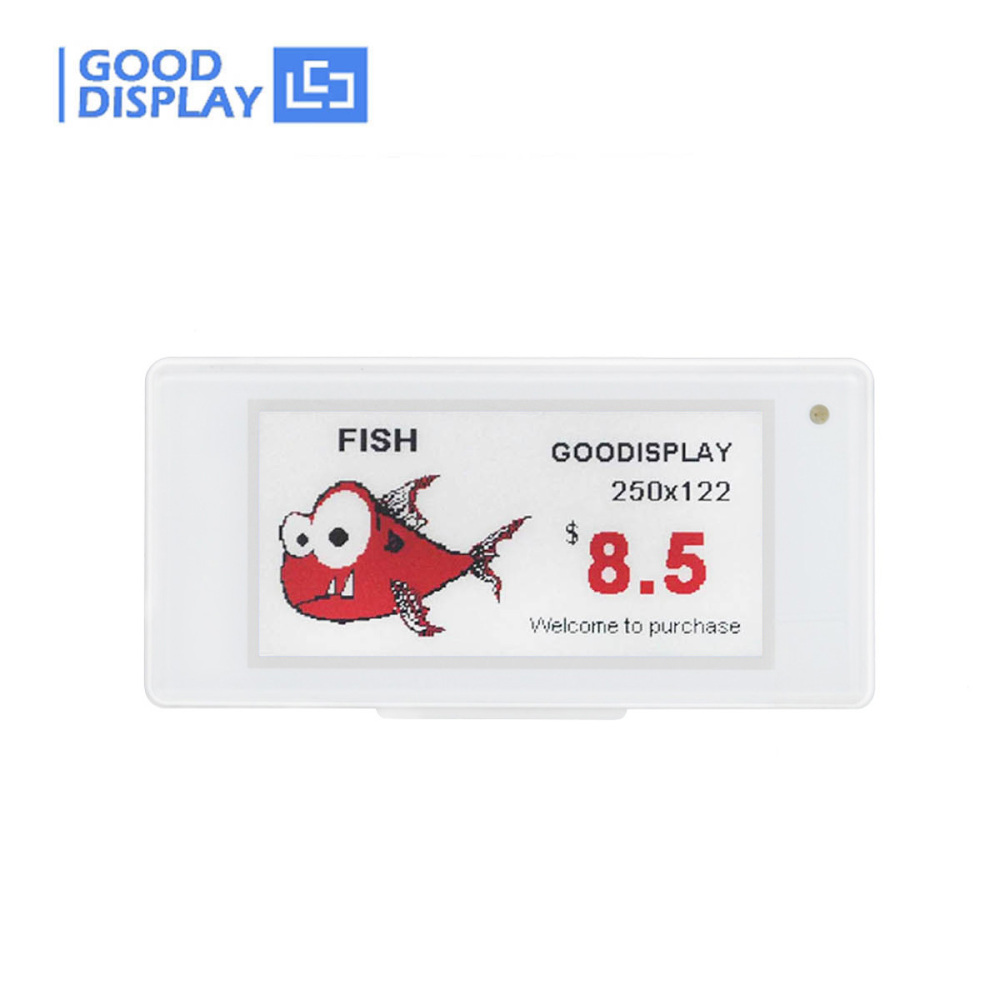

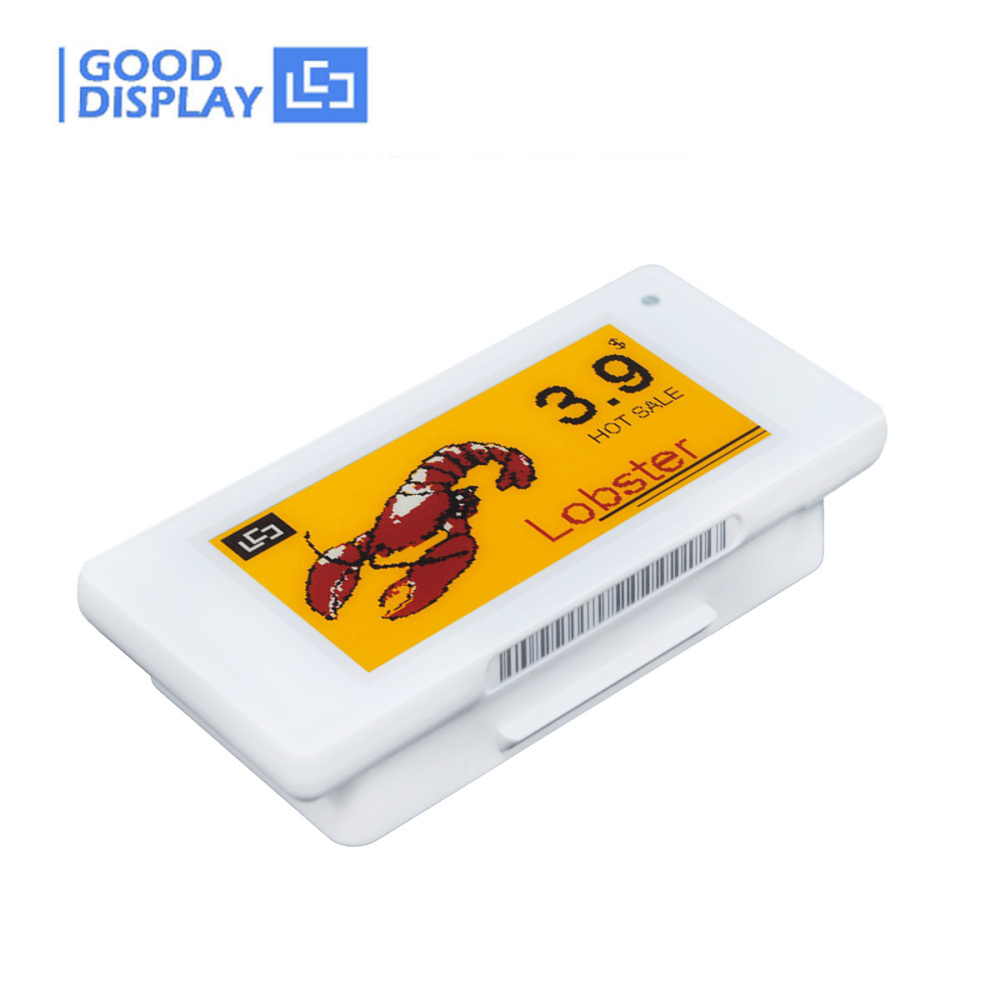

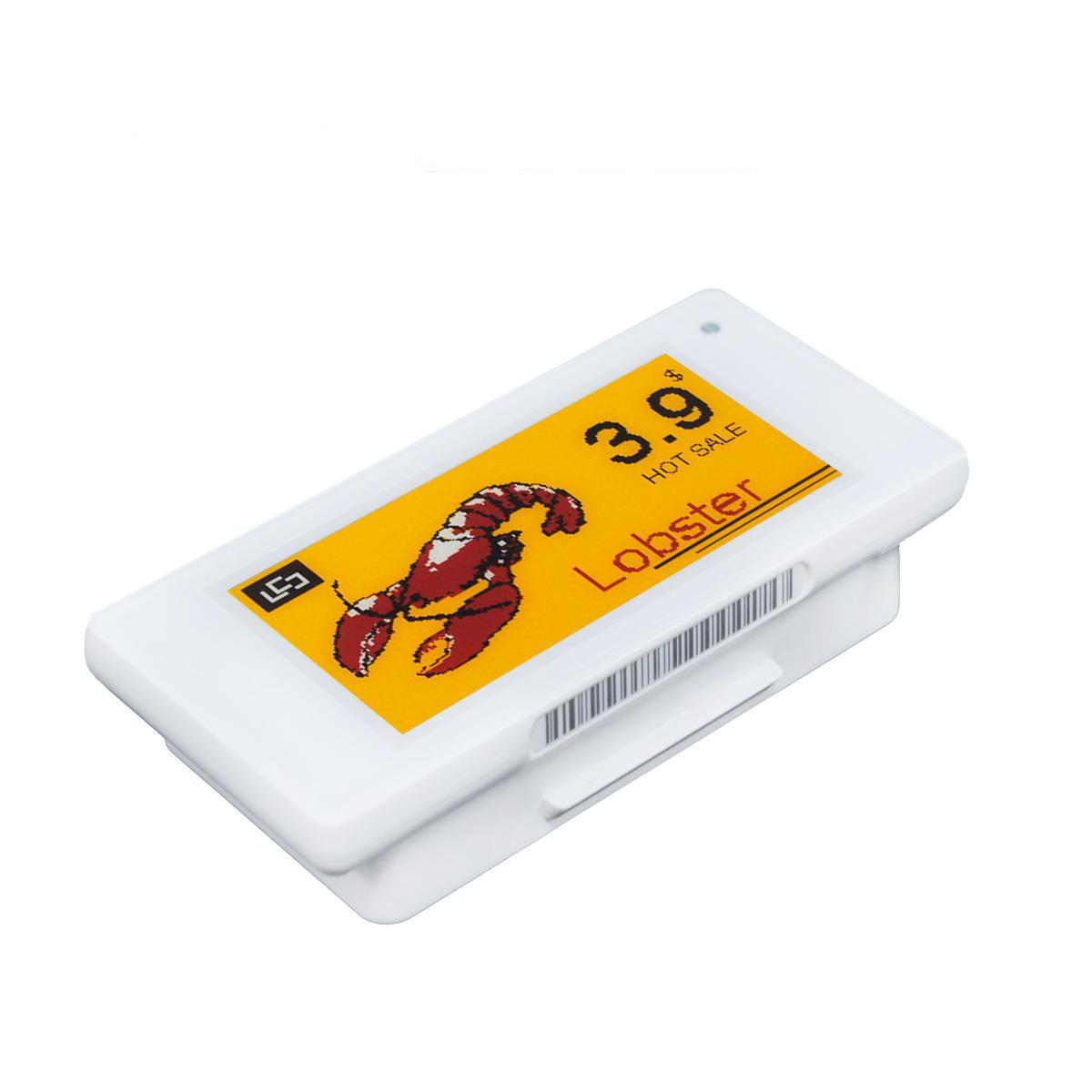

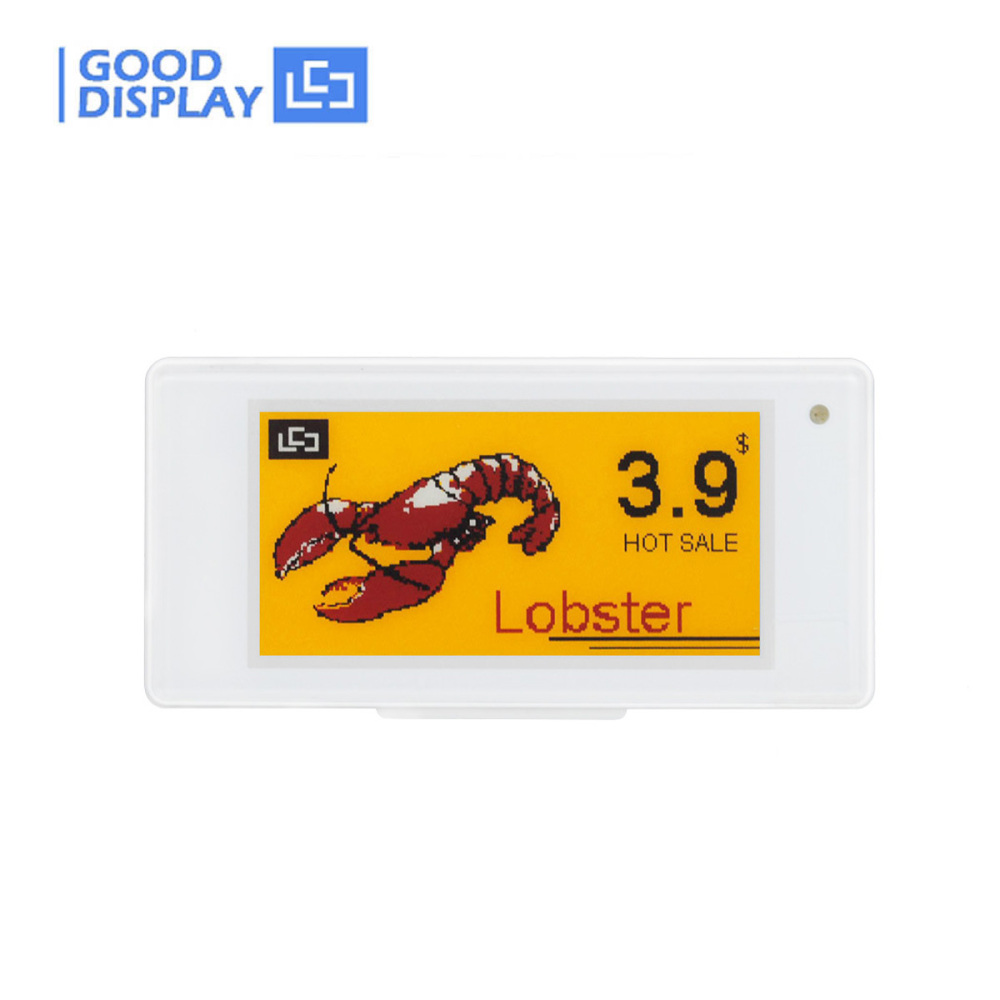

2.13-inch 4-Colors E-Paper Price Tag [Gateway Version]
This 2.13-inch four-color e-paper smart price tag offers a vibrant display, ideal for retail stores and supermarkets. Easily update prices remotely via a base station, eliminating the need for manual changes. With low energy consumption and high durability, it’s an eco-friendly and cost-effective solution. Customizable to fit your store’s branding, it helps reduce operational costs and streamline pricing, making it a key tool for digital retail transformation.
| |
|
|
| |
Special Features
|
|
● The standard protection rating is IP65, which offers complete dust and water resistance and is suitable for outdoor and humid environments. An optional IP68 rating is also available.
● We offer a wide range of personalized customization options, such as custom casing or logo, support for various communication protocols, custom advertising messages, and even the option to purchase just our PCBA.
● We will select the appropriate communication protocol based on the customer's needs, ranging from Bluetooth with a 30-meter radius to long-range WloTa or LoRa 433 transmission up to 2 km.
● With our API interface provided to third parties, it can integrate with any application system. Take advantage of our years of hardware expertise to ensure seamless integration with your system. |
| |
| |
Technical Details
|
|
Network Architecture
|
| |
Product Specifications
|
|
| TECHNICAL SPECIFICATIONS |

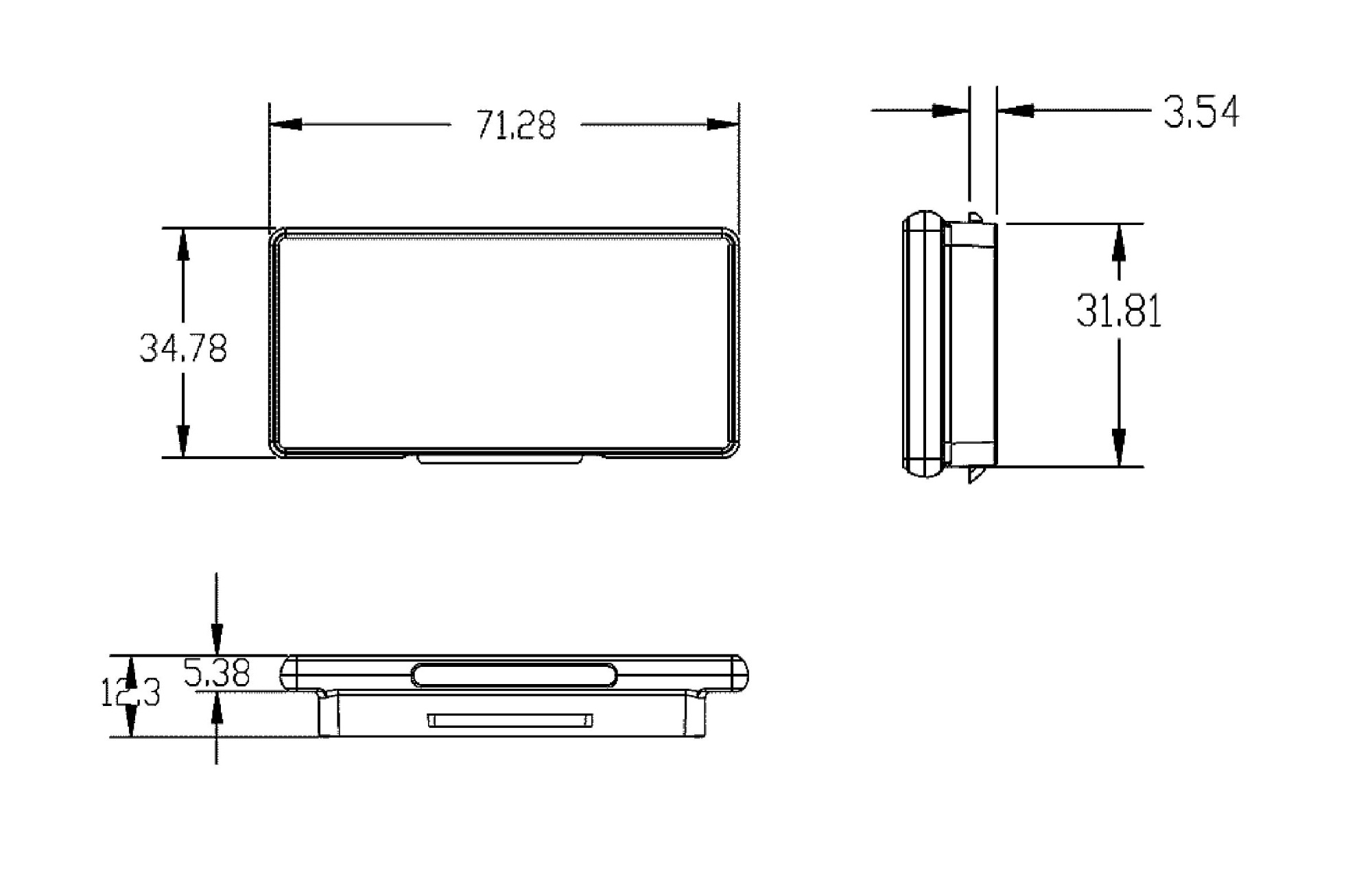

Outline Dimension: 71.28mm(H)×34.78mm(V)×12.3mm(D)
Operating temperature: 0~40℃
Operating humidity: 45%~70%RH
Protection rating (Optional): IP54/IP65/IP68
LED: Red, Green, Blue, three primary colors, Support 7 colors
Image: Update Over 30 000 labels / hour (500 / min)
Communication Band: 2.400-2.480 GHz
Communication Distance: Within 30 meters (50 meters in open areas)
Weight: 32g |
| DISPLAY SPECIFICATIONS |
Size: 2.13 inch
Resolution: 250(H)×122(V)
DPI: 131
Active Area: 48.55mm(H)×23.70mm(V)
View Angle: >170°
Shell Color (optional): Black or White

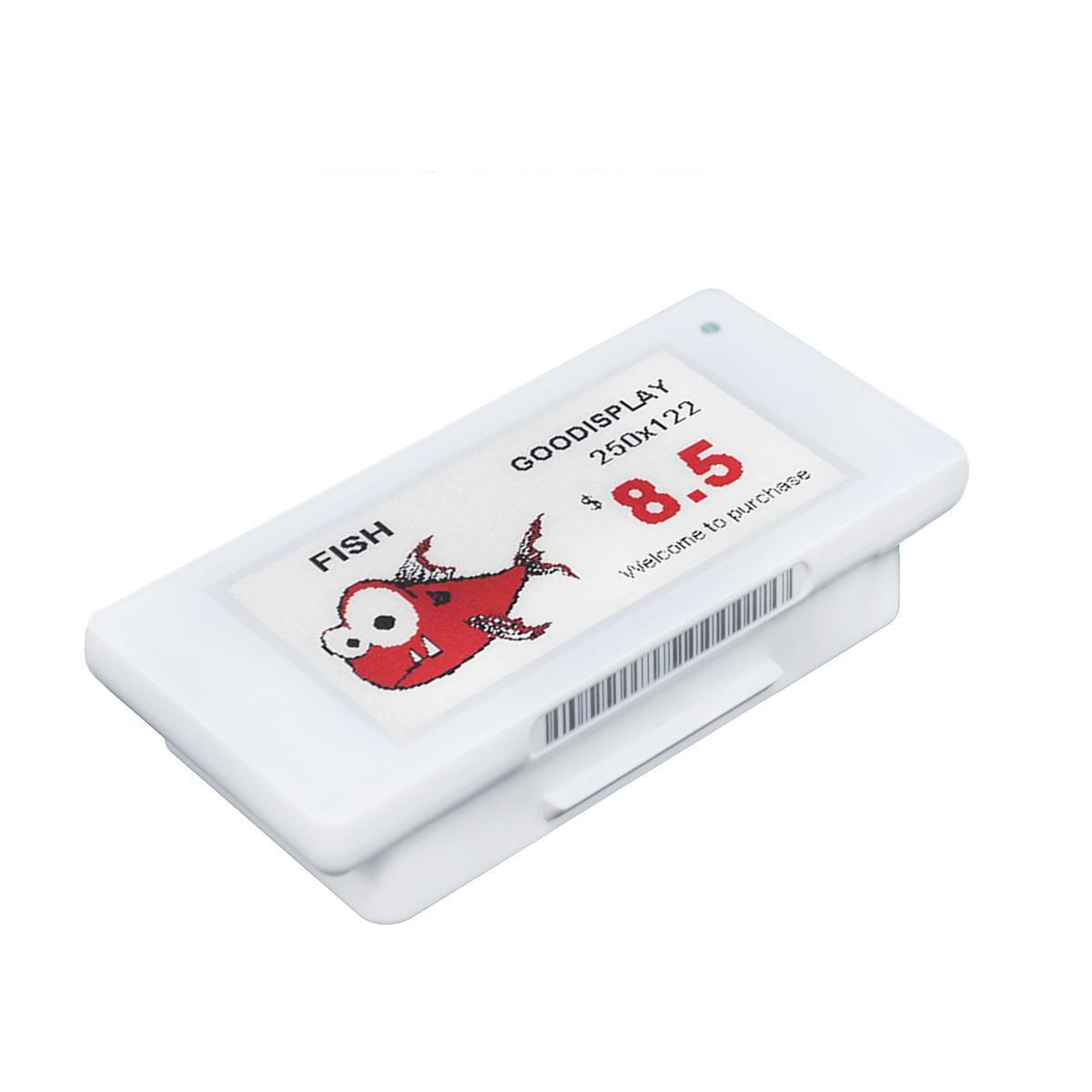

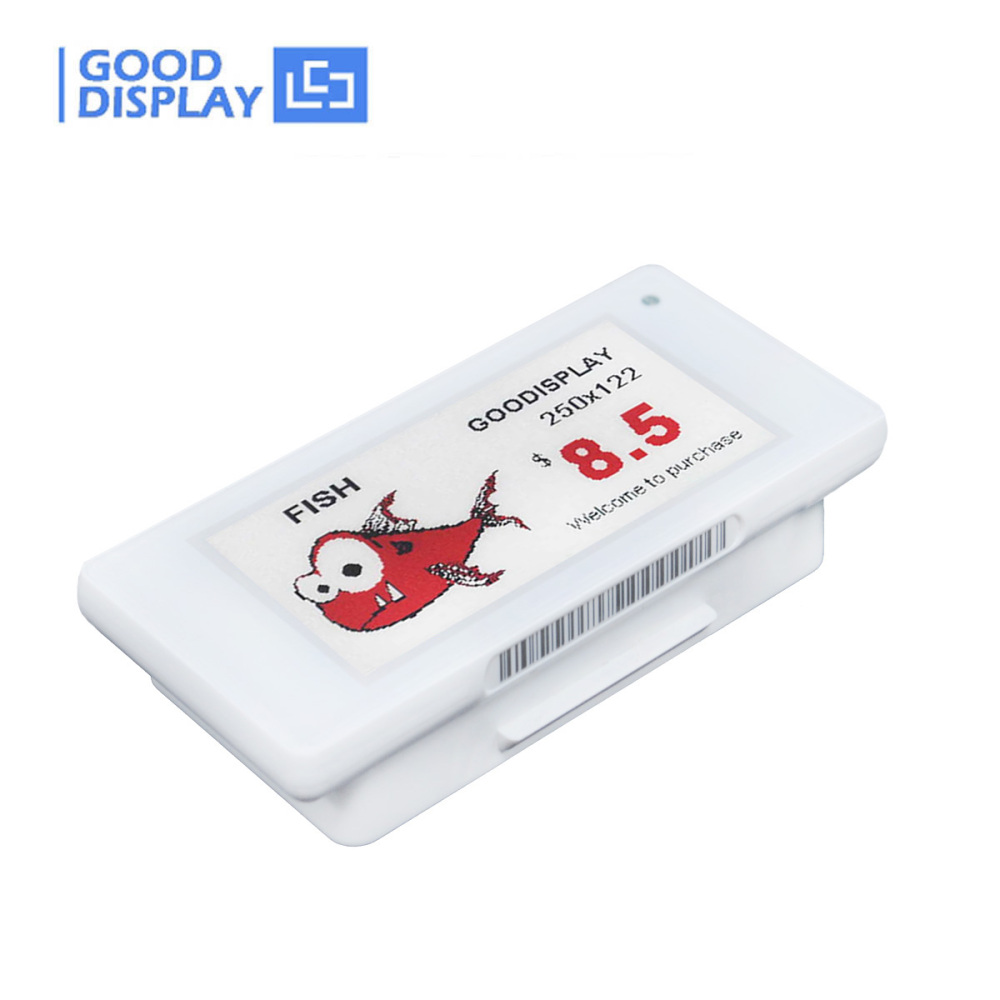

Screen Display Color (optional): Black and White / Black, White, and Red (tri-color) / Black, White, Red, and Yellow (four-color) |
| BATTERY SPECIFICATIONS |
Batteries: CR2450 x 2
Battery life time: Up to 7 years (industry leader) |
FEATURES |
NFC (Optional): Yes
Wireless Firmware Update: Yes
Usable Pages: 8 Pages
Compliance: CE, RoHS, FCC, MIC, SRRC
|
| |
|
Choose Your Perfect Solution: Smartphone APP or Gateway Version
Mobile Communication
When using a small number of electronic tags, you don't need cloud servers, ESL management systems, or access points—just a single Android smartphone is sufficient to easily update prices and give your store a modern, sophisticated appearance.

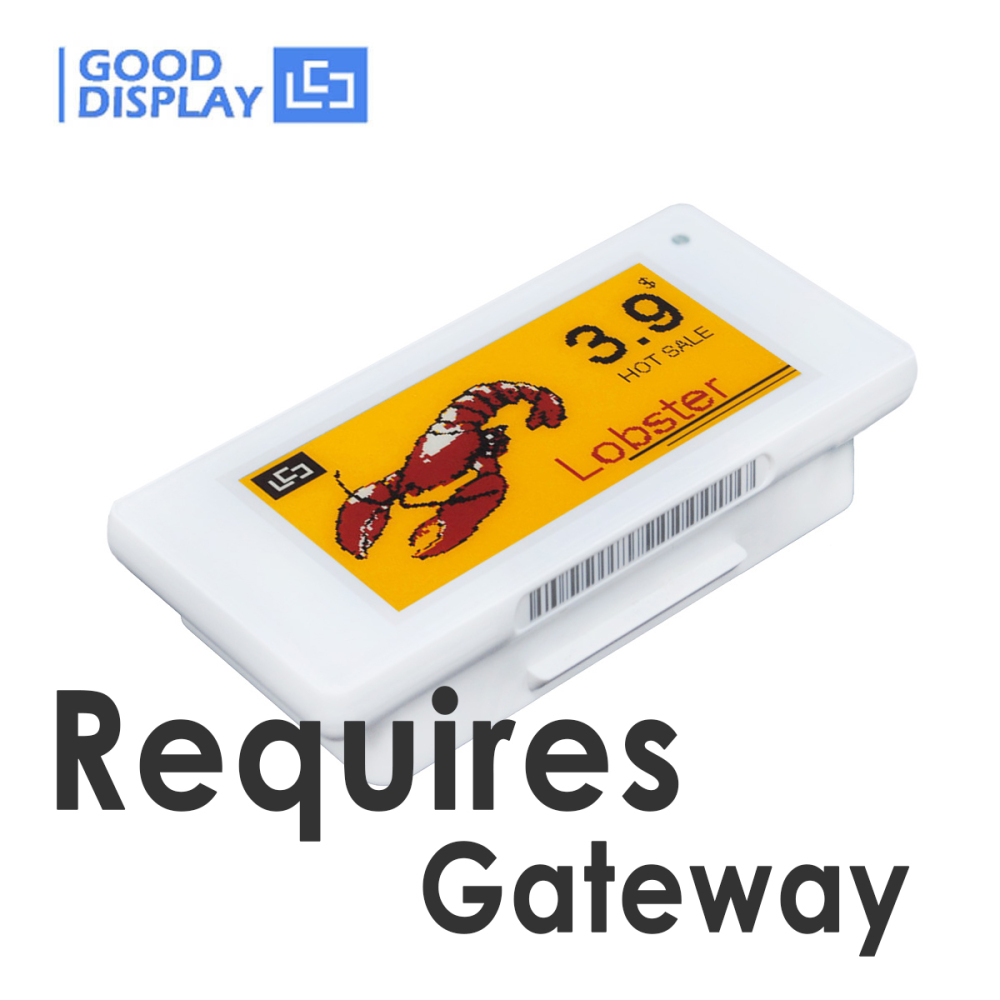

Gateway Version

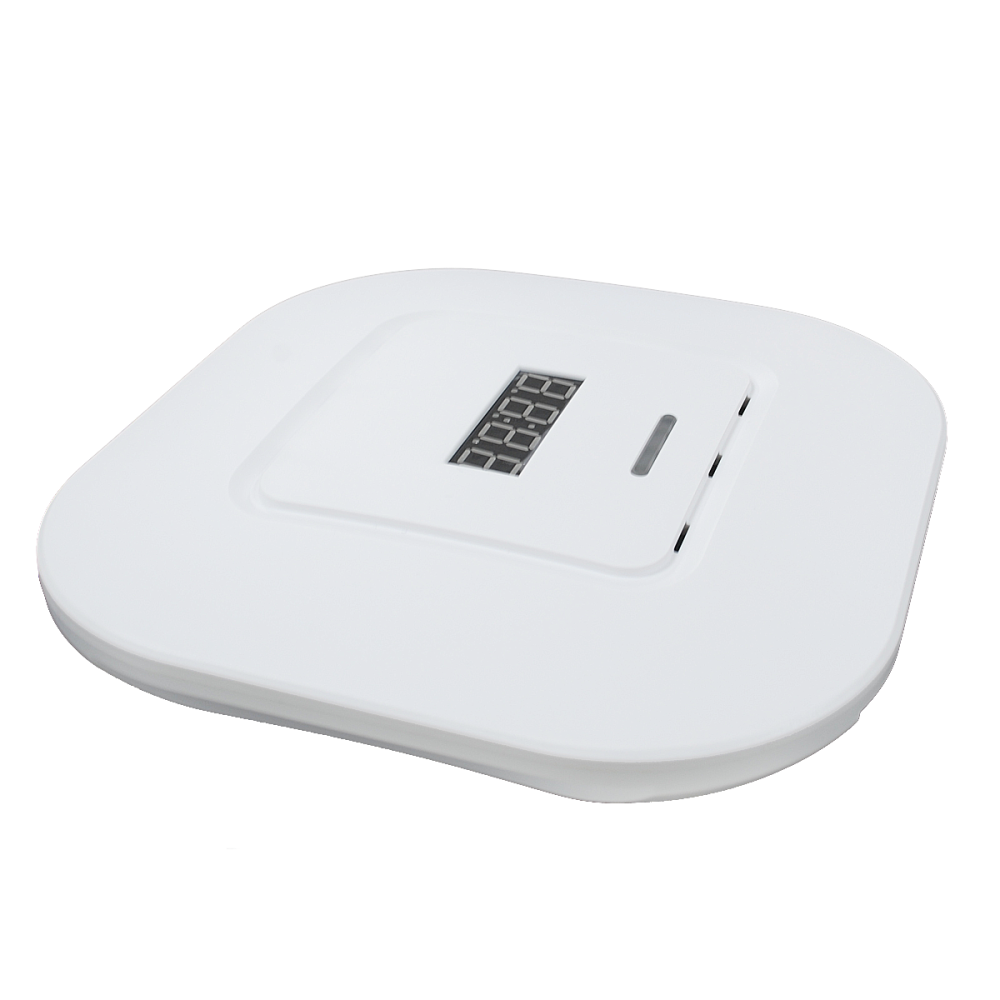

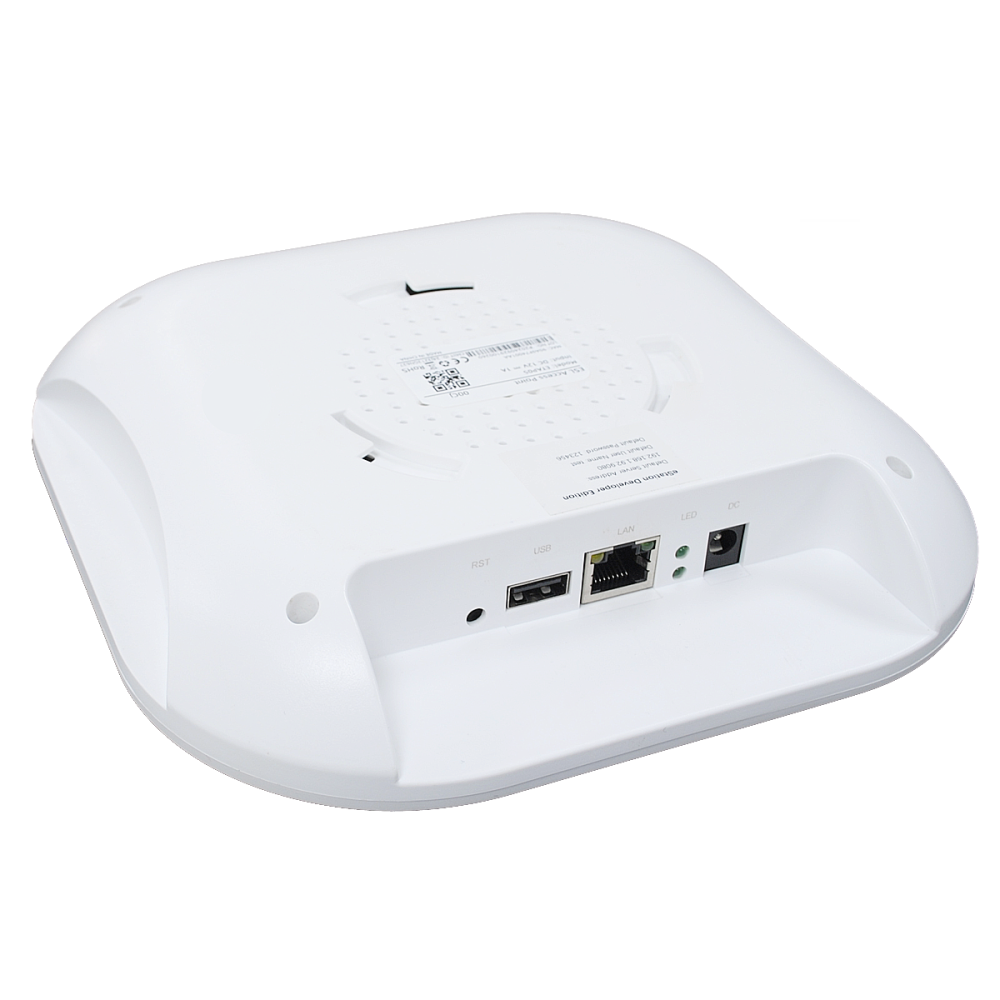

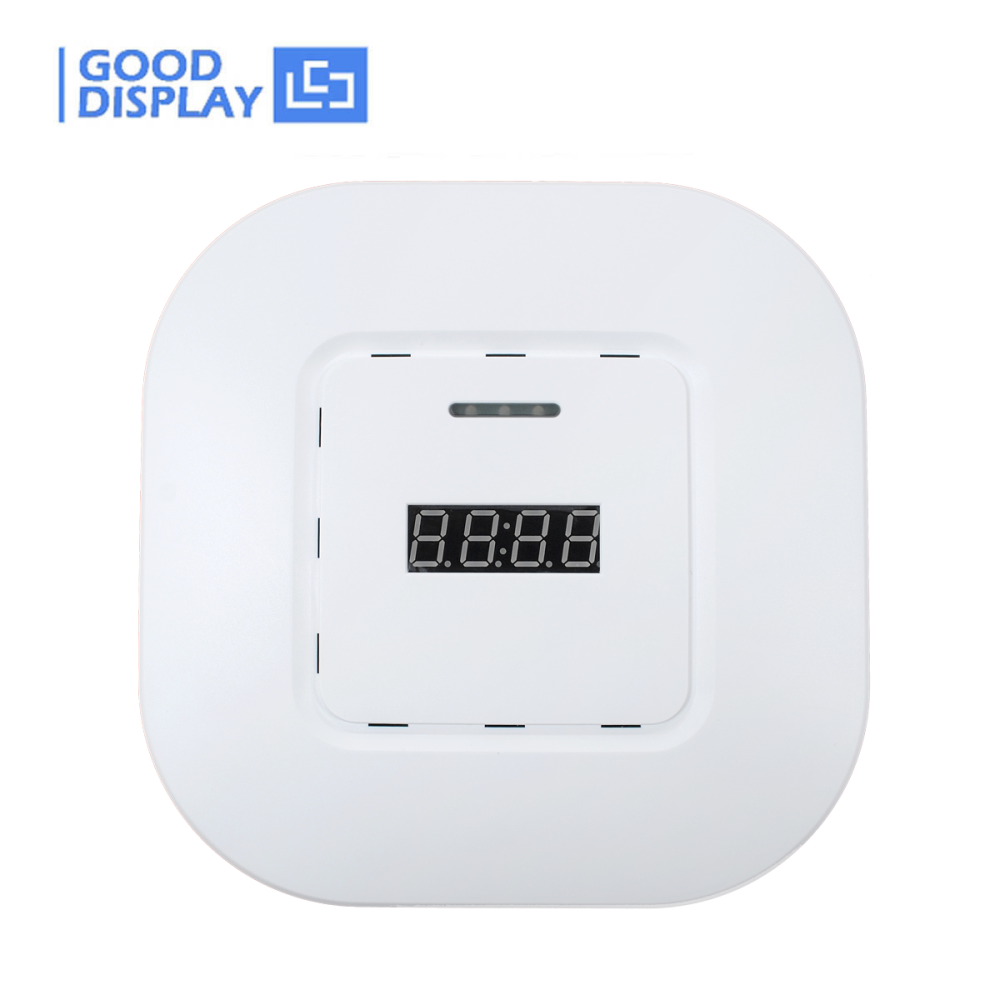

For a larger number of electronic tags, the access point allows for centralized management and remote updates. This setup reduces maintenance costs, saves time, and enhances the store's overall image.
| Feature |
Smart Phone APP Ver. |
Part Number |
| Four Color |
ET0213-81B |
ET0213-81 |
| Three Color |
ET0213-36B |
ET0213-36 |
| Monochrome /Low Temperature |
ET0213-39B |
ET0213-39 |
We aim to make electronic shelf labels
more than just price displays
Here's an example scenario: Smart Pet Health Tracker Card A smart pet card with E Ink display that shows real-time health data like temperature, steps, and feeding times. The card automatically updates when you're near your pet, displaying the latest health info or vaccine reminders. It can even track event results and performance during pet competitions. Sounds like a fun and creative idea? If you're looking to create something similar, please contact us — we have ready-made solutions available.
About Us
Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at [www.good-display.com].
If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
