Name: NFC E-Paper Programmer, PC Connected Writer for 2.13" 2.9" 4.2" E Ink NFC Tags & ESL Displays, GDPN02
Brand: GOOD DISPLAY
SKU: GDPN02
Price: 25.42 USD
Availability: InStock

SKU: GDPN02

(0)

10 Sold

$25.42 ~~$29.90~~

15% OFF

GDPN02 is your all-in-one PC-controlled NFC E-Paper tag programmer. No phone, no app, no cloud, no batteries needed. Just plug in via USB, upload your image, and refresh any 0.97"–4.2" ESL tag instantly. Supports multi-color E-Paper displays with stable, low-power performance for fast, easy, and professional tag updates.

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

5% OFF WITH PURCHASE OVER 2 UNITS
8% OFF WITH PURCHASE OVER 3 UNITS

Add to Favorites (0)

1/1

Description

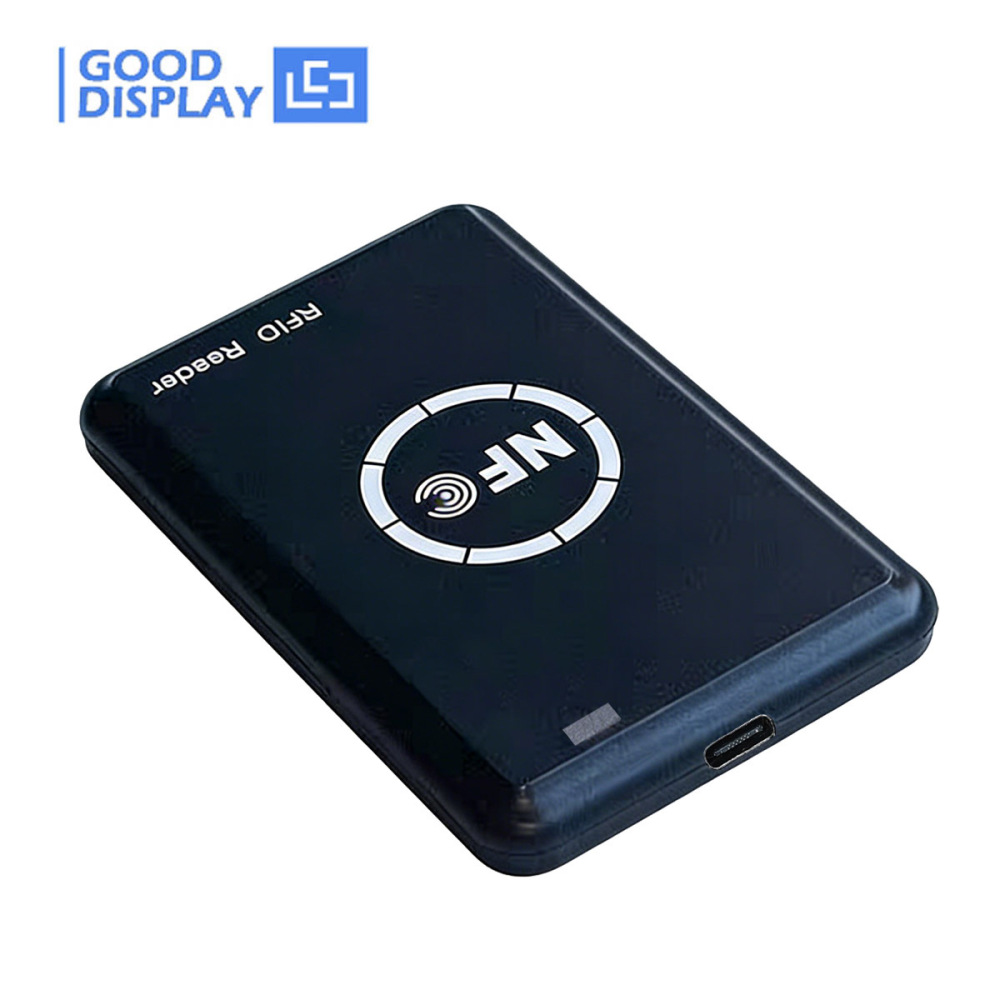

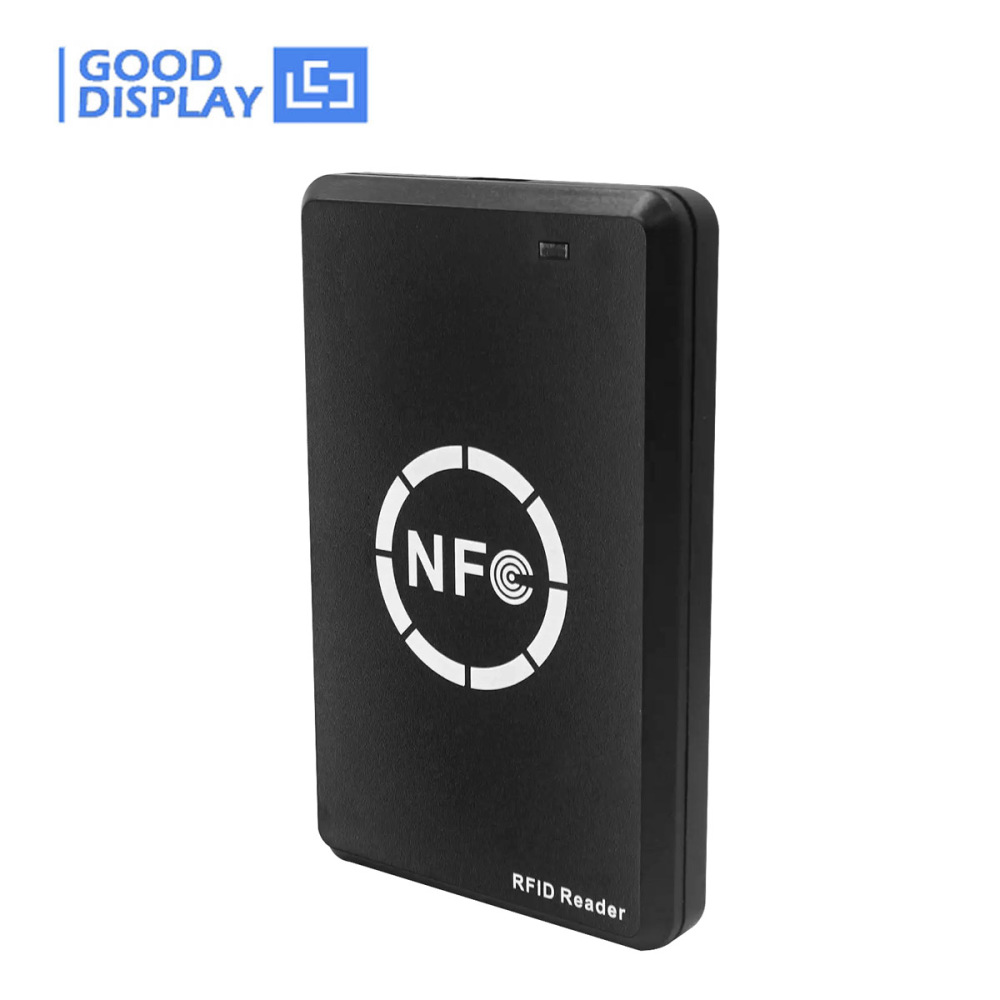

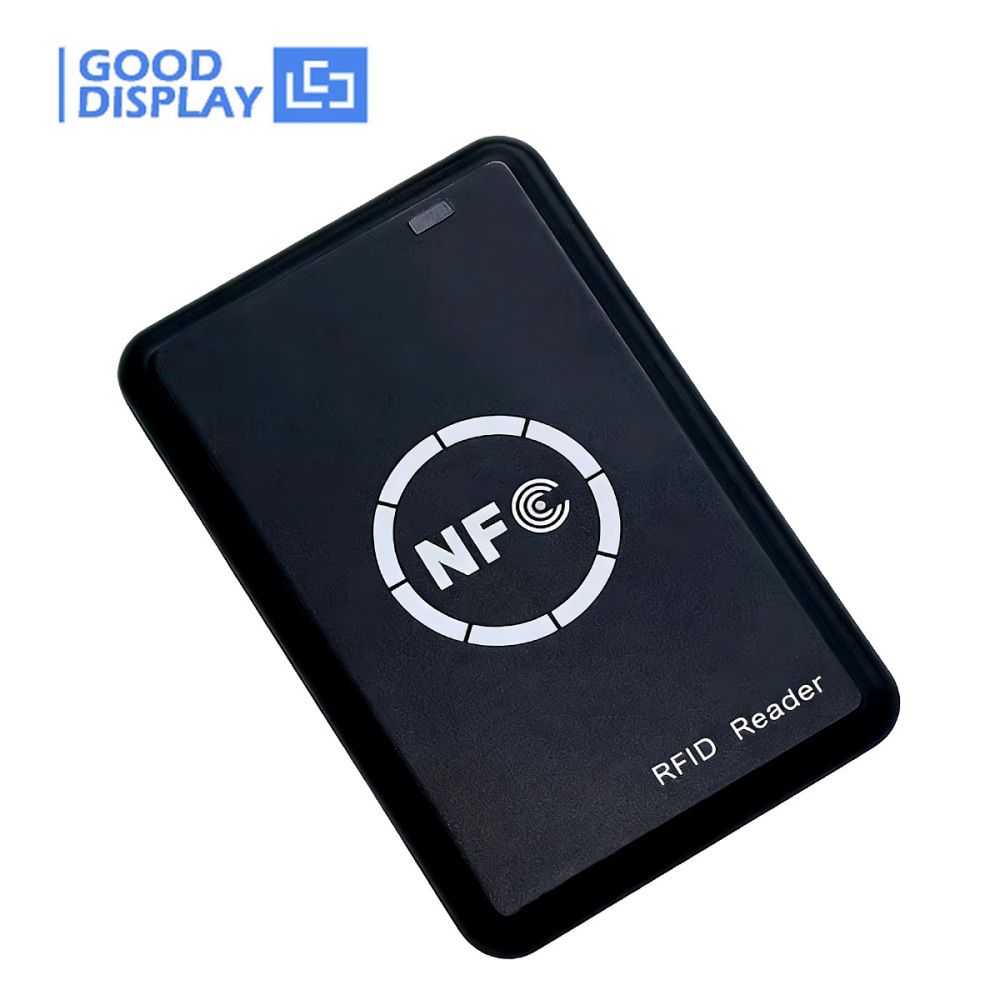

PC‑Driven NFC E‑Paper Reader

GDPN02 – Update any 0.97" to 4.2" NFC E‑Paper tag directly from your Windows PC. No phone, no cloud, no batteries needed. Plug‑and‑play via USB‑C, with the intuitive ImageToNFC software. Perfect for retail, logistics, and smart labelling.

✦ USB‑C (power + data)
✦ Supports 2/3/4‑color tags
✦ < 200 mW power
✦ 20s max refresh
✦ CH340 driver (built‑in)
✦ 0°C ~ 50°C operating

Why GDPN02

Three Core Advantages

Designed for efficiency, simplicity, and versatility.

💻

PC Direct

No Phone Required Just USB & software

Update tags directly from your Windows PC. No mobile app, no Bluetooth pairing – simply connect, select your image, and click "Display".

Plug & Play

🔋

0 Batteries

Battery‑Free Operation Power from NFC field

The reader generates a wireless field to power tags – no batteries, no maintenance. Ideal for sustainable, low‑power deployments.

Green Tech

🎨

2–4 Colors

Multi‑Color & Size 0.97" to 4.2"

Compatible with B/W, B/W/R, and B/W/R/Y tags. Auto‑scales resolution – no manual image processing. Supports all major NFC e‑paper sizes.

Versatile

Ecosystem

PC‑Centric Workflow

From your desktop to the tag – in seconds.

🖥️ ImageToNFC

One‑Click Update

Simple tool for instant tag refresh

✦ Drag & drop images (JPG, BMP)
✦ Auto‑detect tag resolution & color mode
✦ Batch update ready
✦ Serial monitor for troubleshooting

▶ How to update a tag

Download Software →

🏷️ Tag Compatibility

Wide Model Support

Works with all GDN series NFC tags

✦ 0.97" · 1.54" · 2.13" · 2.66"
✦ 2.9" · 3.7" · 4.2"
✦ B/W, B/W/R, B/W/R/Y
✦ Auto‑scaling & color detection

Scan for tag list

▶ Reader operation video

View Tag Models →

⚠️

Important: Driver & Model Matching
The GDPN02 reader requires the CH340 driver (included) for first‑time use. It is compatible with all GDN series tags (0.97″–4.2″). For DMP series tags, please use the corresponding DMP reader – models are not interchangeable.

📌 Software: Use ImageToNFC.exe (v1.0+) – available for Windows 10/11. Ensure the tag is placed centered on the reader’s top surface.

📱 Mobile Alternative: For smartphone users, we offer the NFC‑D3‑Pro App (Android/iOS) – but for professional bulk updates, the PC workflow is recommended.

Technical Data

Precision Specifications

Engineered for reliability, ease of use, and broad compatibility.

Parameter	Value
Model	GDPN02
Interface	Type‑C (Power + Data)
LED Status	Solid (data transfer) / Blink (idle)
Driver Chip	CH340 (built‑in, driver required)
Connection Mode	Plug & Play (after driver install)
Tag Size Compatibility	0.97" to 4.2" (all major NFC e‑paper tags)
Programming Method	USB + NFC Wireless Refresh
Power Consumption	< 200 mW
Operating Temperature	0°C ~ 50°C
Storage Temperature	-25°C ~ 70°C

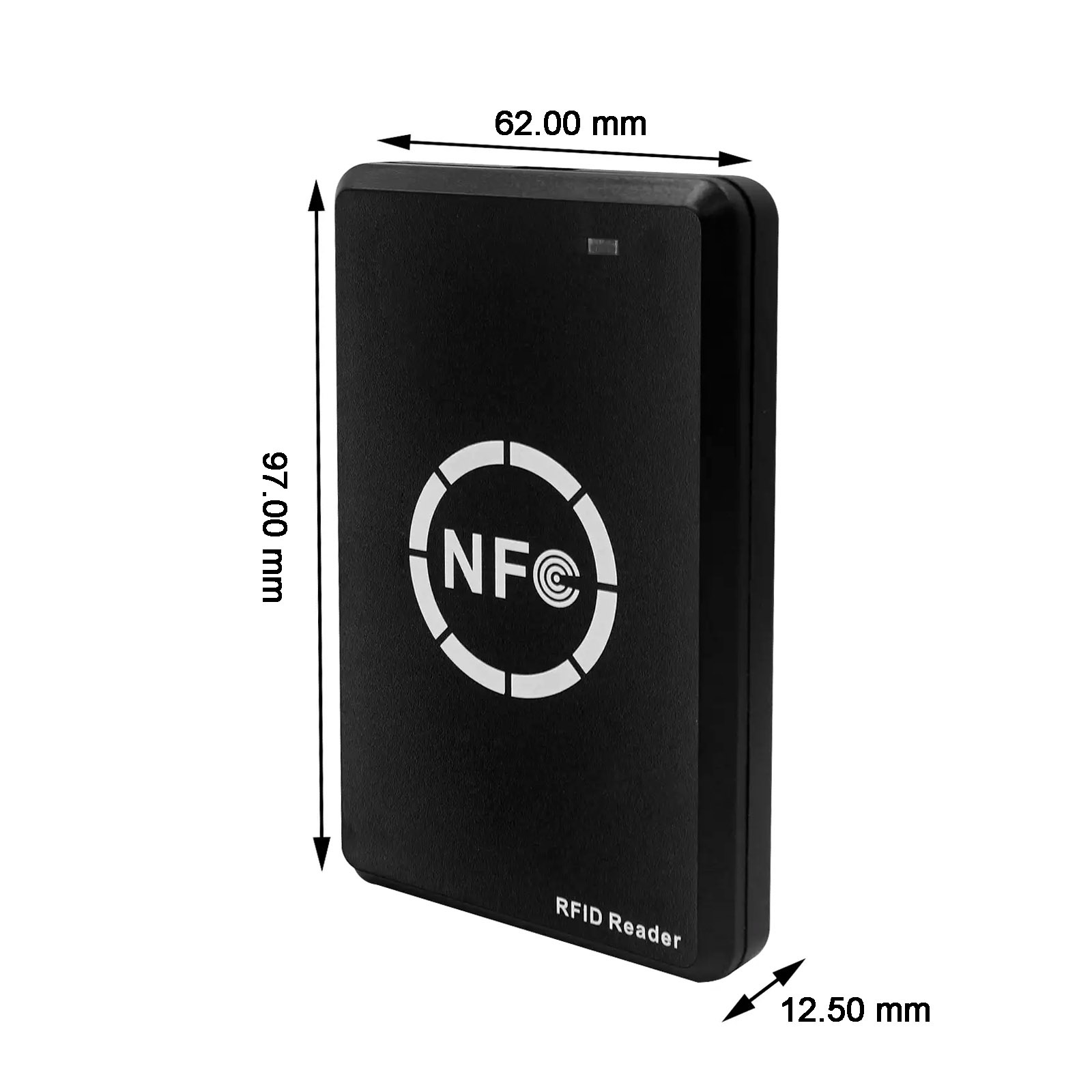

Dimensions (mm)	97 × 62 × 12.5
Weight	approx. 49g
Humidity	40% ~ 70%
Supported Image Formats	JPG, BMP
Max Upload Time	20s (for 4.2" 4‑color)

Mechanical

Product Structure

Compact, lightweight, and ready for any workspace.

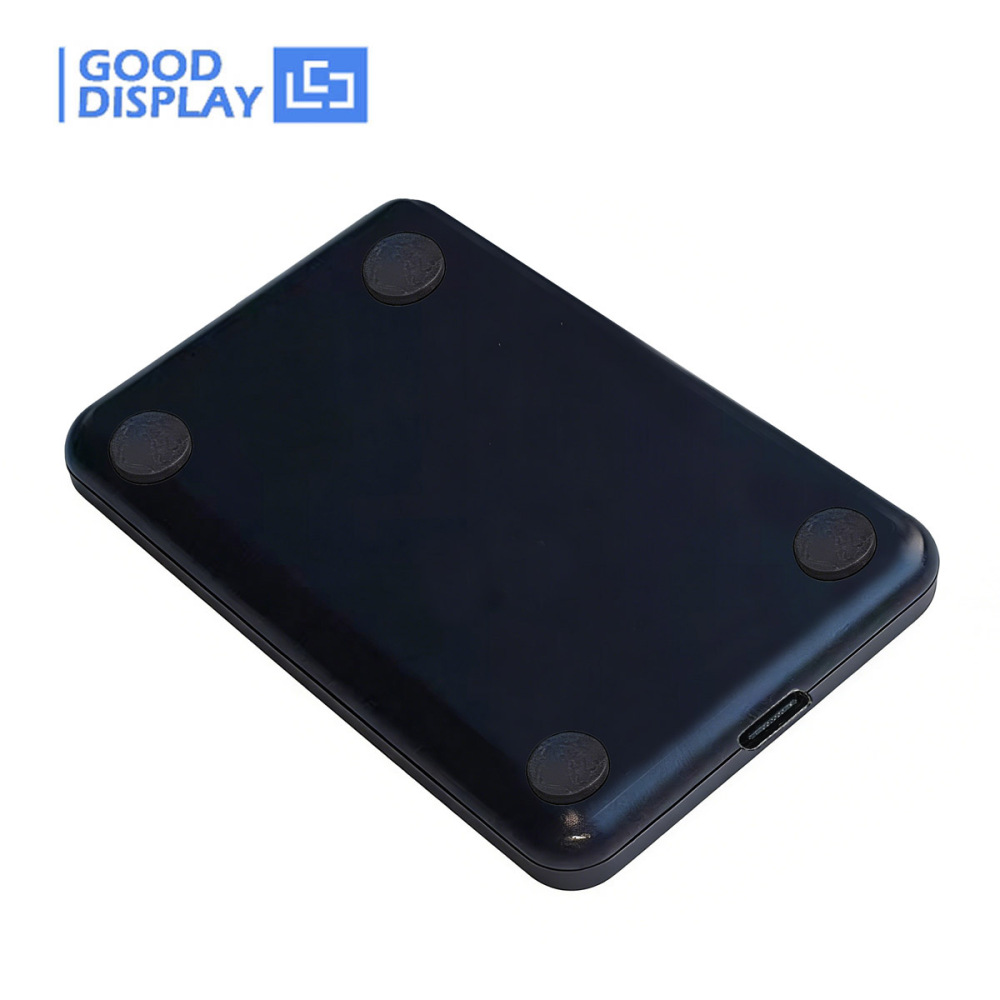

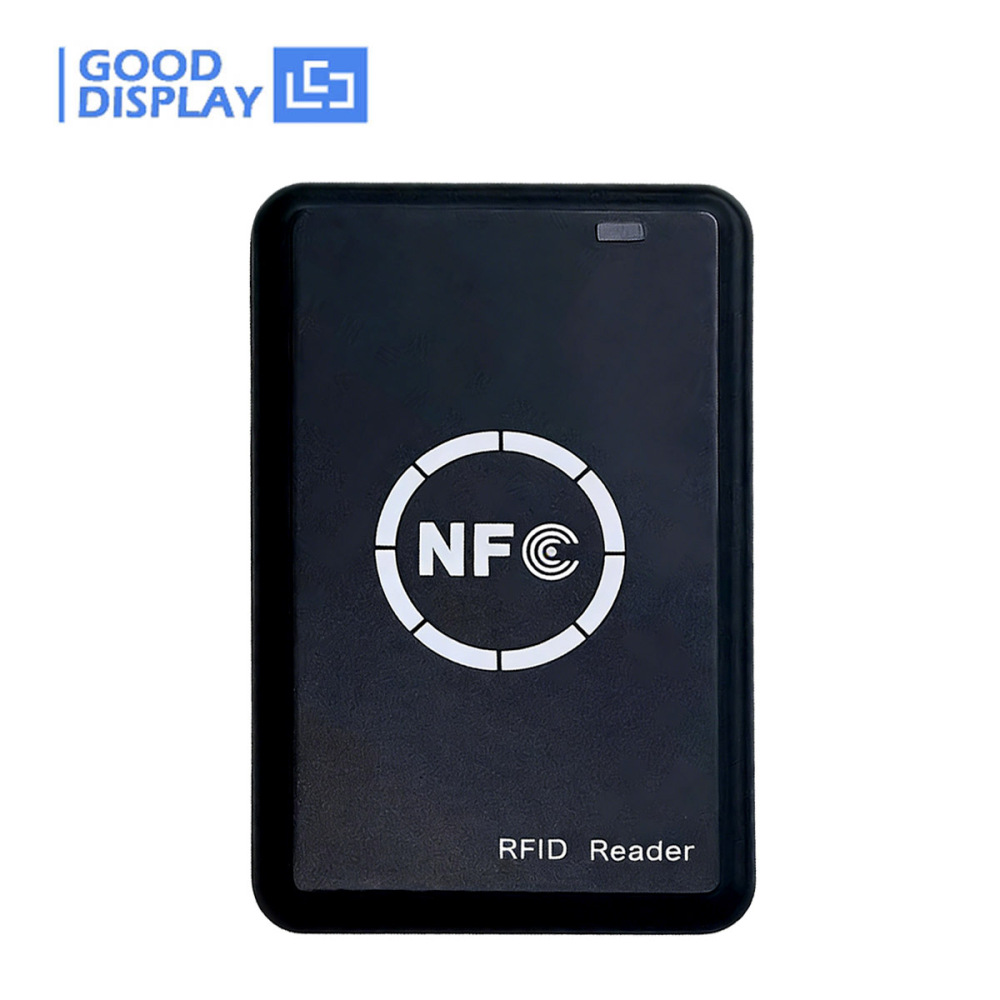

GDPN02 – Front & Side Views GDPN02 mechanical drawing

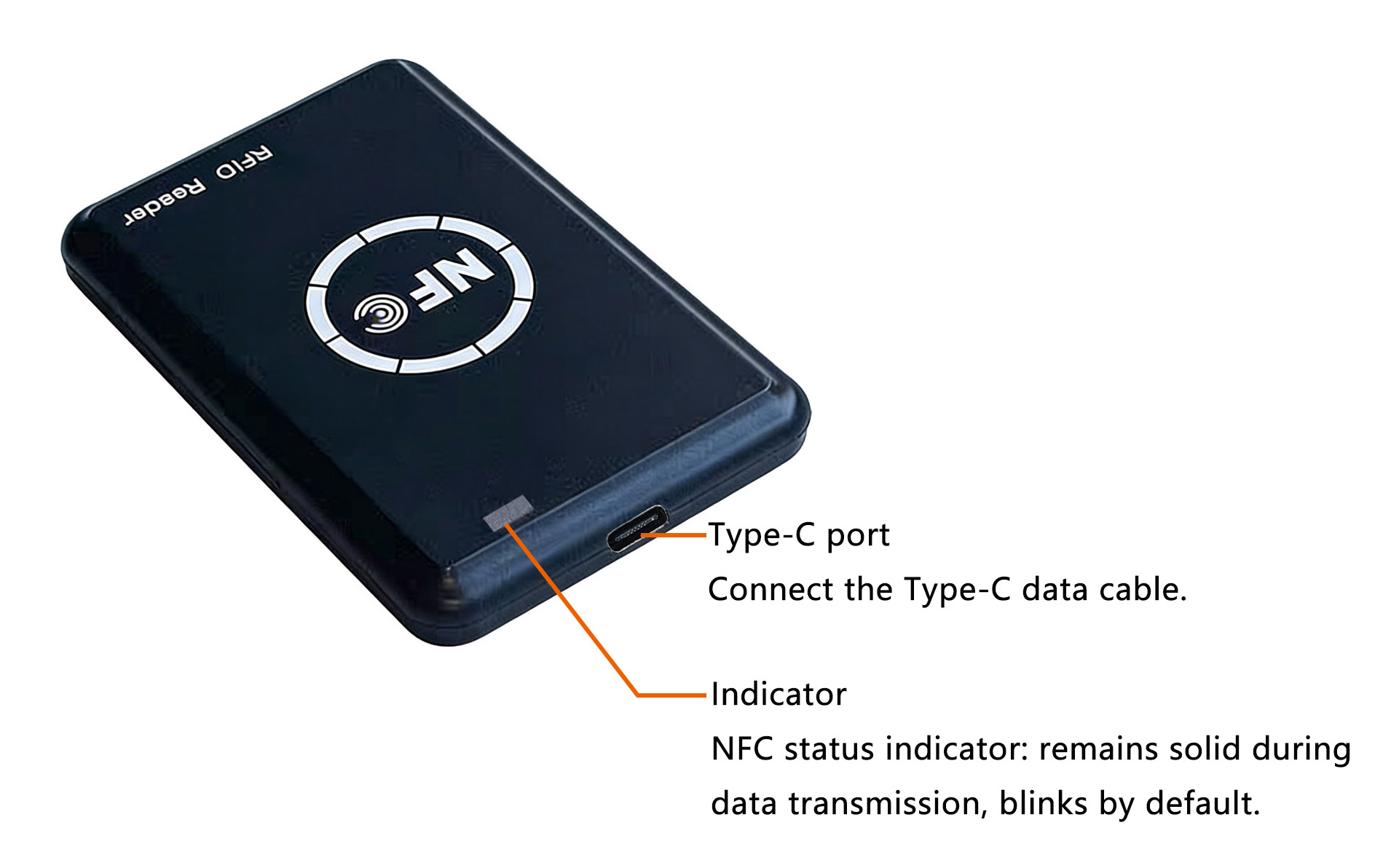

① Type‑C Port ② Status LED

Sustainability

Technology That Cares

Low power, long life, and a smaller footprint – for a better tomorrow.

🌳

Paperless Future

Each e‑paper tag saves thousands of paper labels annually. Join the movement toward digital, reusable displays.

♻️

Eco‑Friendly Packaging

Reader and tags come in 95% recycled, FSC‑certified packaging – plastic‑free and fully recyclable.

⚡

Energy Leadership

With < 200 mW power consumption, the GDPN02 is one of the most energy‑efficient NFC readers on the market.

Resources

Files & Downloads

Everything you need – from drivers to user manuals.

📄 Specifications & Manuals

🛠️ Software & Tools

📘 View the latest product catalog →

Explore More

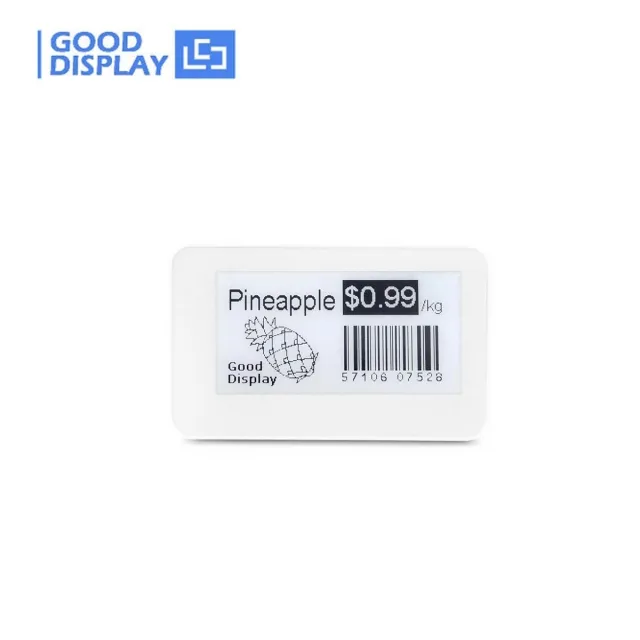

Compatible NFC Tags

Choose from our full range of battery‑free E‑Paper tags – all compatible with GDPN02.

Contact

Let's Build Together

Expert support, custom solutions, and fast turnaround.

📧 Email us

buyepaper@good-display.com

We offer custom firmware, bulk orders, and integration support.
Visit our official website →

Certifications: CE · ISO 14001 · ISO 9001 · REACH · RoHS · Energy Star

📧 Contact Engineering Team
