Millimeter Wave WiFi (2.4G) Human Fall Detection Radar , ST-FDA1W

Human fall detection radar is based on millimeter wave Doppler frequency modulated continuous wave radar system to realize the static perception of human biological movement and human biological perception.
Sold:1
Price:
USD
$76.00
Quantity:
-
+
(5 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




Human fall detection radar is based on millimeter wave Doppler frequency modulated continuous wave radar system to realize the static perception of human biological movement and human biological perception, realize the wireless perception of personnel status in specific places through the synchronous perception technology of Doppler parameters of personnel movement and personnel physiological parameters, and realize the scene linkage through the wireless signal notification gateway; Suitable for home, hotel, office and other places. (not affected by temperature, humidity, noise, airflow, dust, light and other factors)

Search “TuyaSmart”in APP store,install, register with phone number and log in, then you could use the radar through this APP.





 THE ABOVE PRICE INCLUDE



1) millimeter wave WiFi (2.4G) Human fall detection radar, ST-FDA1W * 1pc





 MAIN PARAMETERS




Part Number ST-FDA1W
Communication WiFi(2.4G)
Outline Dimension 29.5×73×86mm
Power Input 5V==1A
Radar Frequency 24.05~24.25GHz
Measuring Principle Doppler
Transmitting Power 6dBm
Horizontal Detecting Angle 90°
Vertical Detecting Angle 60°
Sitting Detecting Range Max 4m
Movement Detecting Range Max 12m
Operating Temperature -10℃-50℃
Operating Humidity 20%-85%(non-condensing)
Installation Top-mounted

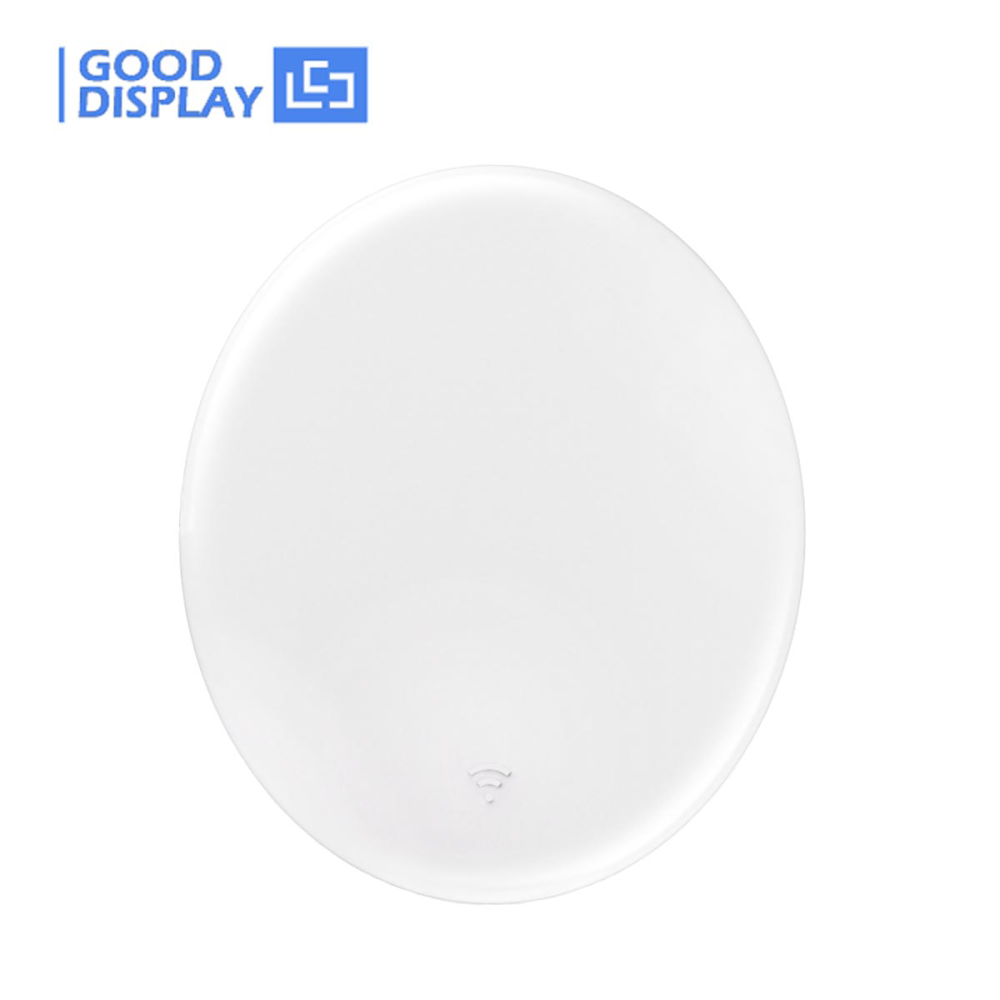

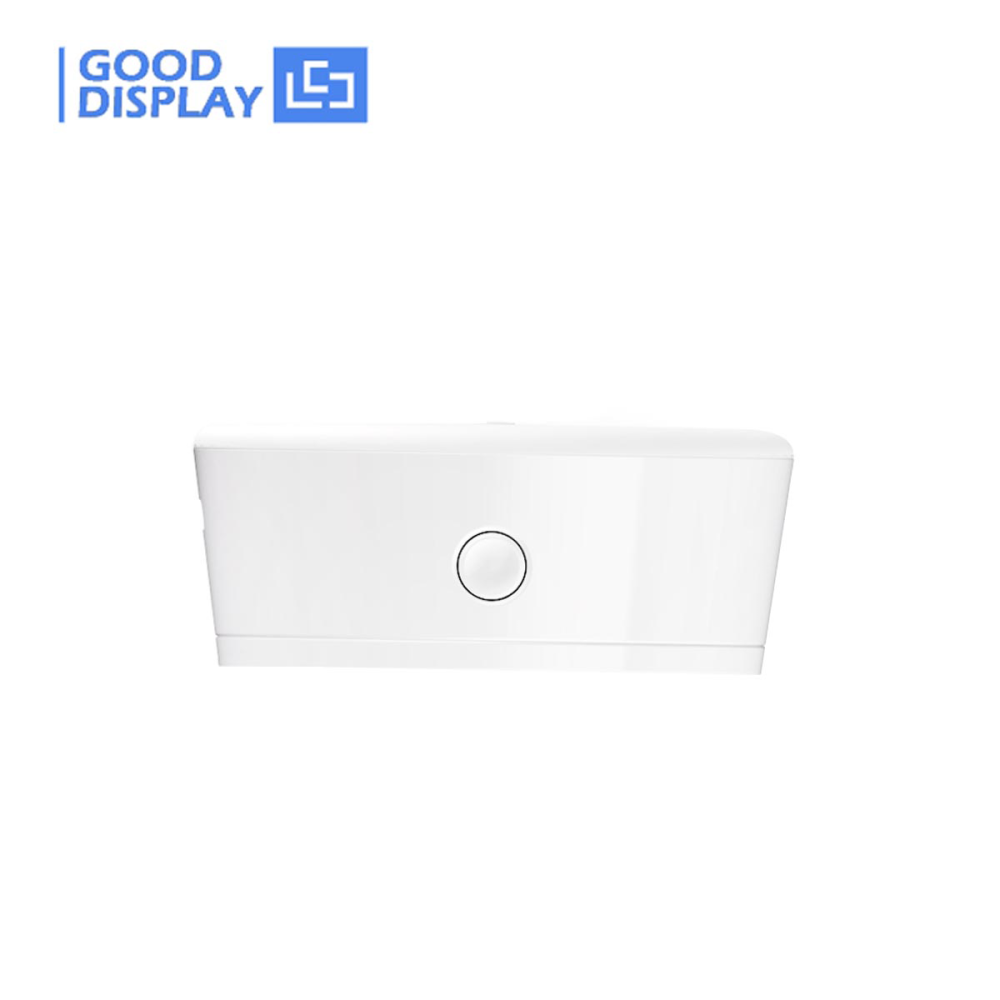

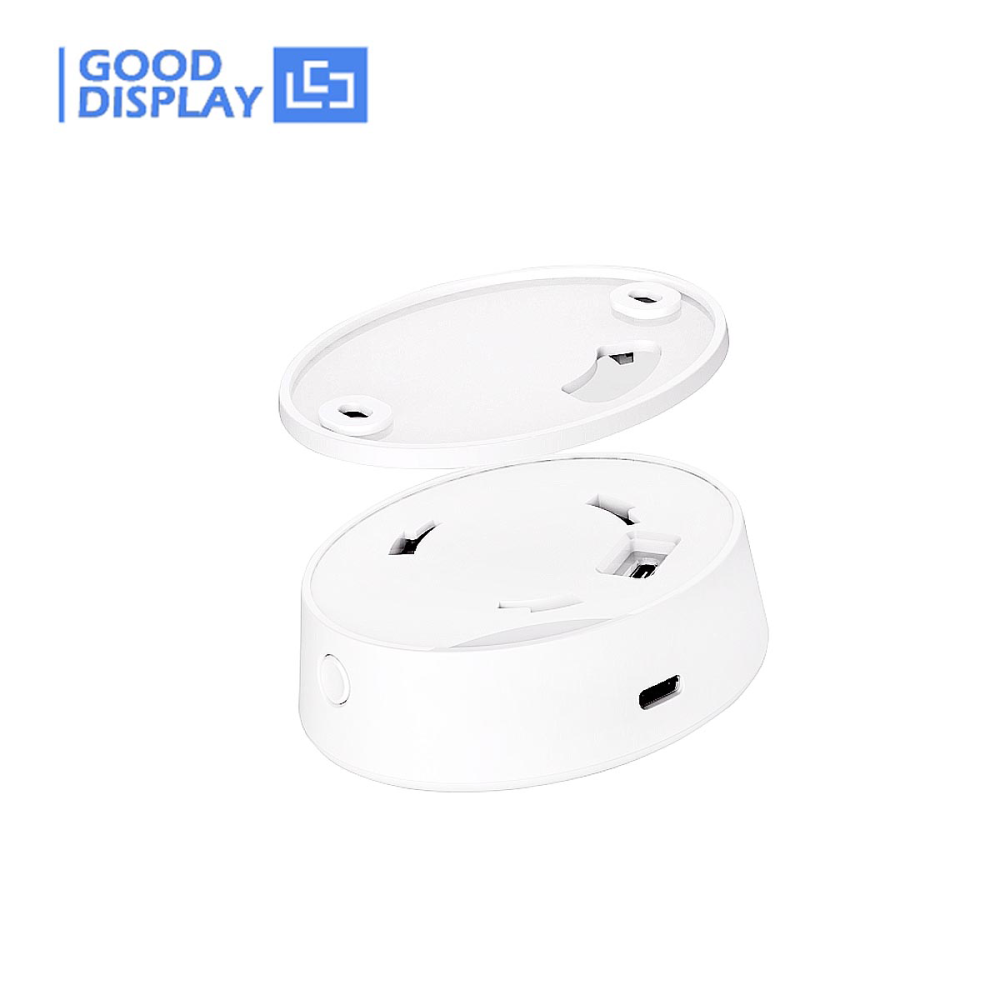

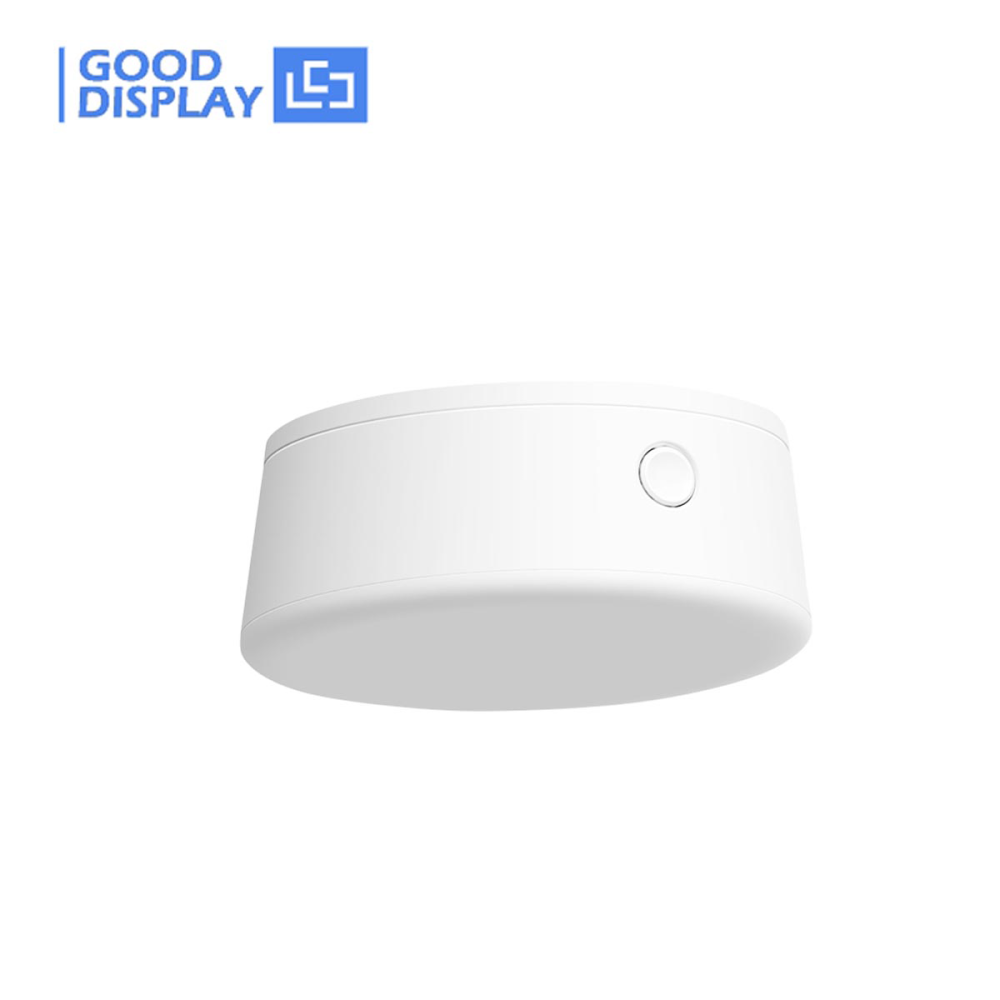

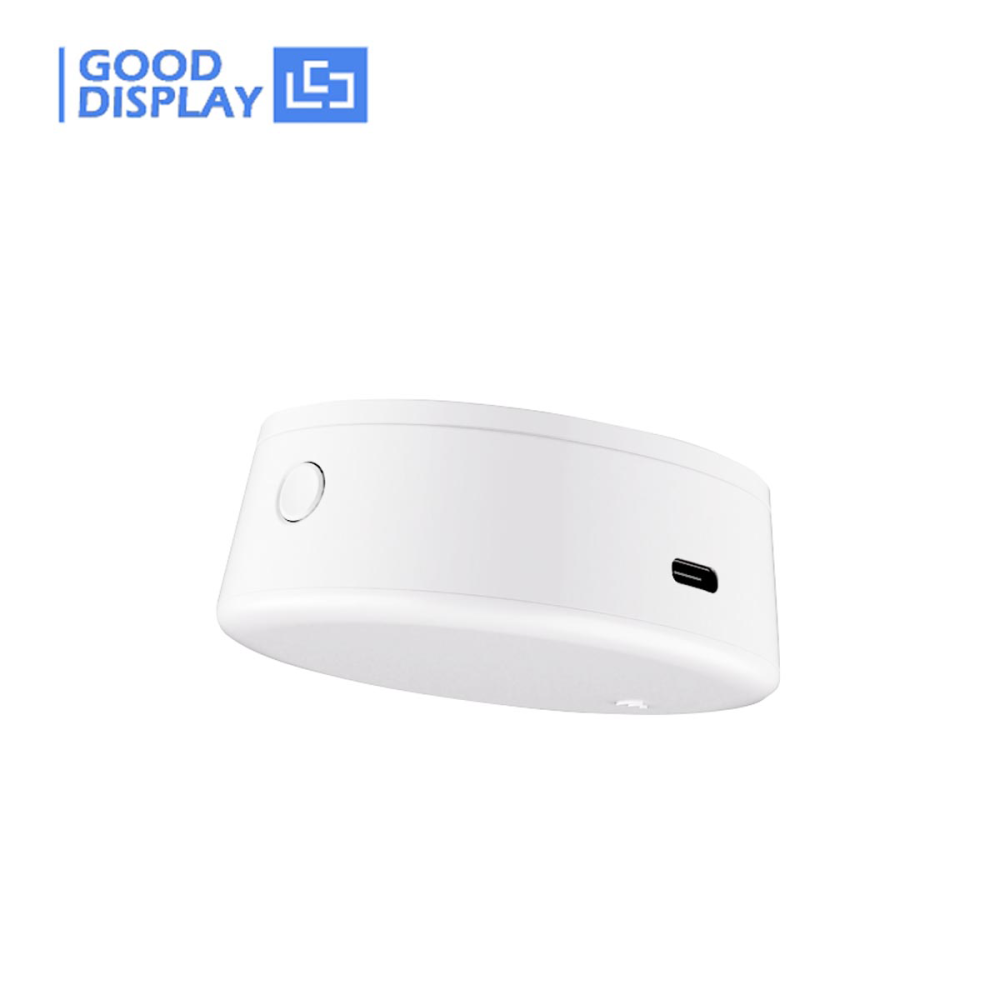

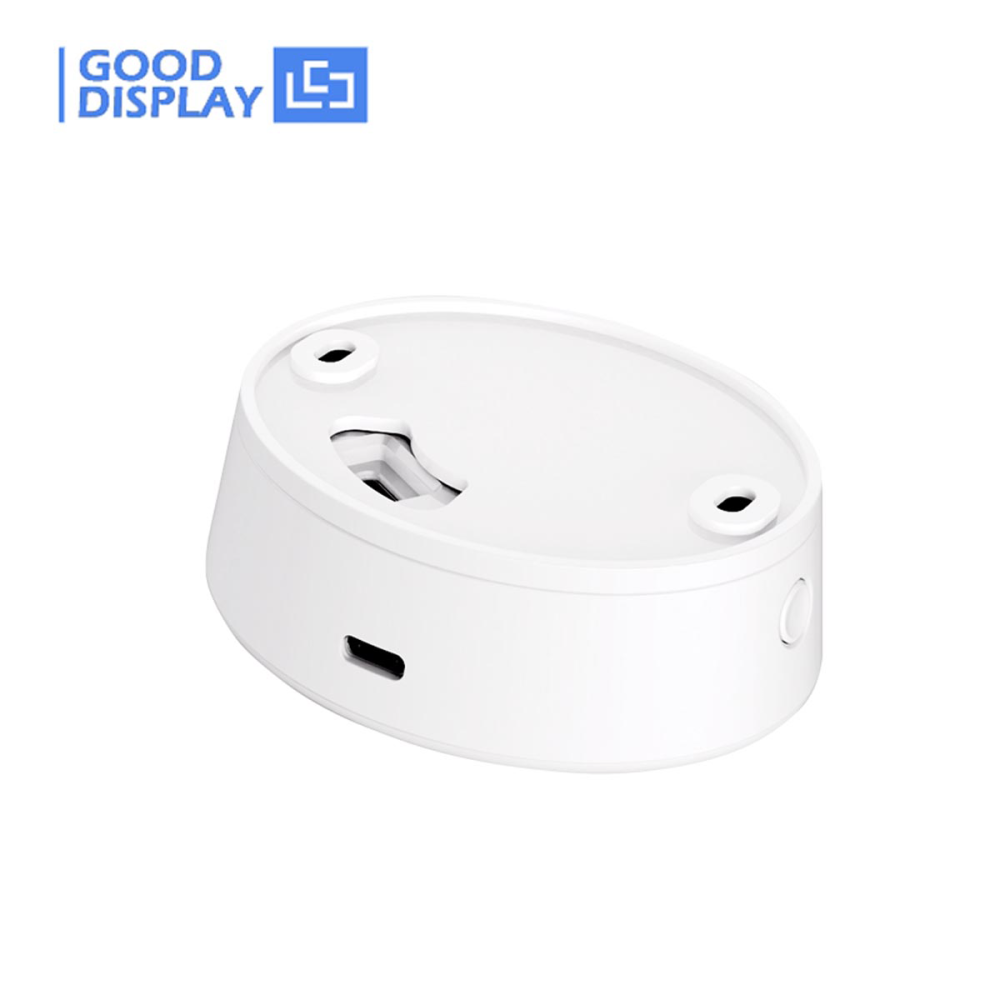

☆ EXTERNAL APPEARANCE







☆ SENSING RANGE




Millimeter wave radar can sense the existence of human body through large action or micro action during human sitting. When the radar detects the existence of human body, it will trigger somebody command to report, and the indicator light is always on; When the human body is not sensed, the nobody command will be triggered and the indicator light will go out.

When a rapid fall occurs within the detection range, the radar will report a suspected fall alarm; If the human body remains stationary in the detection area for a long time, the radar will give a classified alarm according to the residence time.

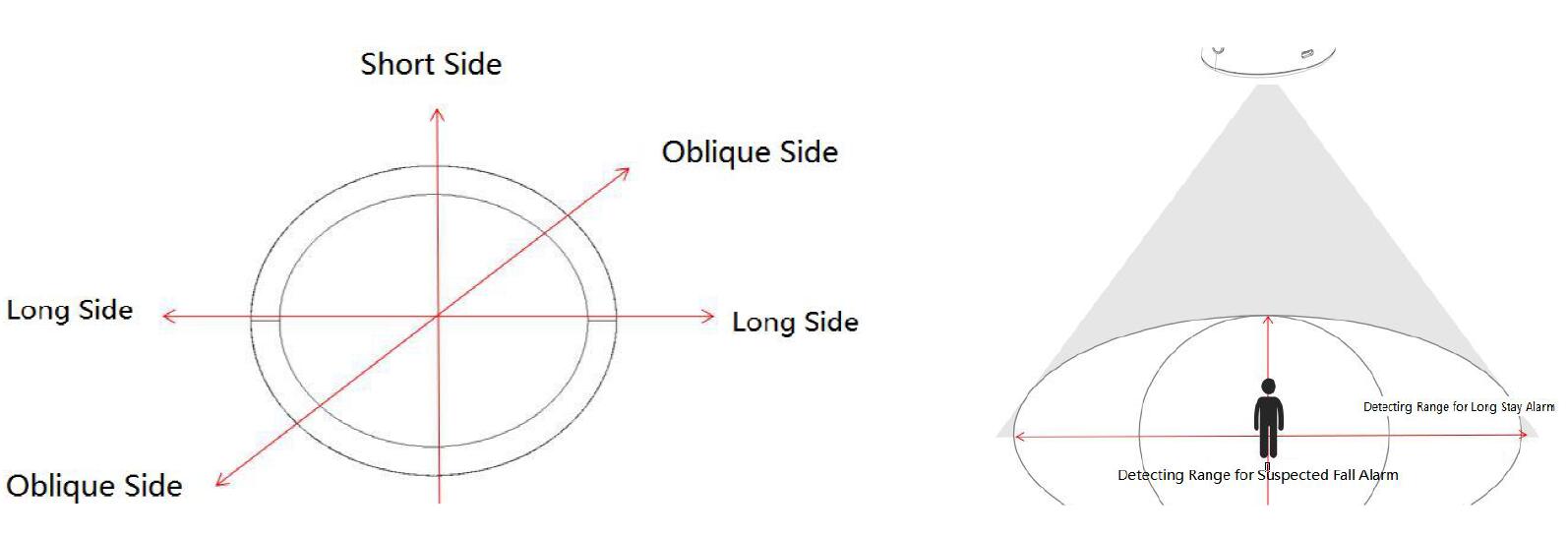

Diagram of Fall Detection Range:


The detection range of static dwell alarm of roof-mounted radar is 3M * 4m, and the detection range of suspected fall is 3M * 3M. The radar installation position needs to be designed according to the room layout.







☆ FALL ALARM REPORT TIME




The adjustment gear of fall alarm judgment time is 1 - 10min, which can be adjusted according to differents needs of users. The default is 3min. If the judgment conditions of the real fall alarm are met within 3min after the suspected fall is triggered, the real fall alarm will be reported after 3min.

Setting Options: None(90s),10s , 30s ,1min ,2min ,5min ,10min ,30min ,1H;







☆ INSTRUCTION




(1) Radar scanning will penetrate objects with low density such as glass, veneer and gypsum board partition wall, but cannot penetrate conductive media such as human body, liquid and metal objects. Please confirm the installation position according to the room layout before installation;

(2) The installation method is top mounted. It is recommended that the installation height be within 3 M. The installation scene is recommended to be in slippery areas such as kitchen and toilet;

(3) Power supply via USB interface (Type-C)


(4) Use the upper wall mounting bracket to drill the wall and push in the capsule;

(5) Push in the expansion screw to secure the mounting bracket;

(6) Align the radar base with the snap of the mounting bracket and fix the radar in the direction of rotation;

(7) Power-on the device;







☆ ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com






 SPECIFICATION DOWNLOAD




1)  Falling Detection Radar(FDS) Specification(Tuya Smart),ST-FDA1W
