STM32 E-ink Development Board for SPI E-paper Display, supports back light and touch panel, DESPI-L(C03)

DESPI-L(C03) development kit is used to help users develop epaper display projects  with provided source code to create more differentiated solutions. It is designed for  SPI e-paper display.
Sold:1
Price:
USD
$27.99
Quantity:
-
+
(198 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com



☆ INTRODUCTION




DESPI-L(C03) development kit is used to help users develop epaper display projects  with provided source code to create more differentiated solutions. It is designed for  SPI e-paper display.It supports driving Good Display's black-white e-paper display and three-color(black,white and red/Yellow)e paper display 0.97'', 1.54'', 2.13'', 2.6'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83''and 7.5''. It can driver touch screen for 1.54'', 2.7'', 4.2'',  4.3'' and 6.0'' e-paper and can support 3.3V front light;also support USB to serial port, LED indicator, reset key, user-defined button, font chip, FLash chip and other functions;support via PC software to control e-paper display.

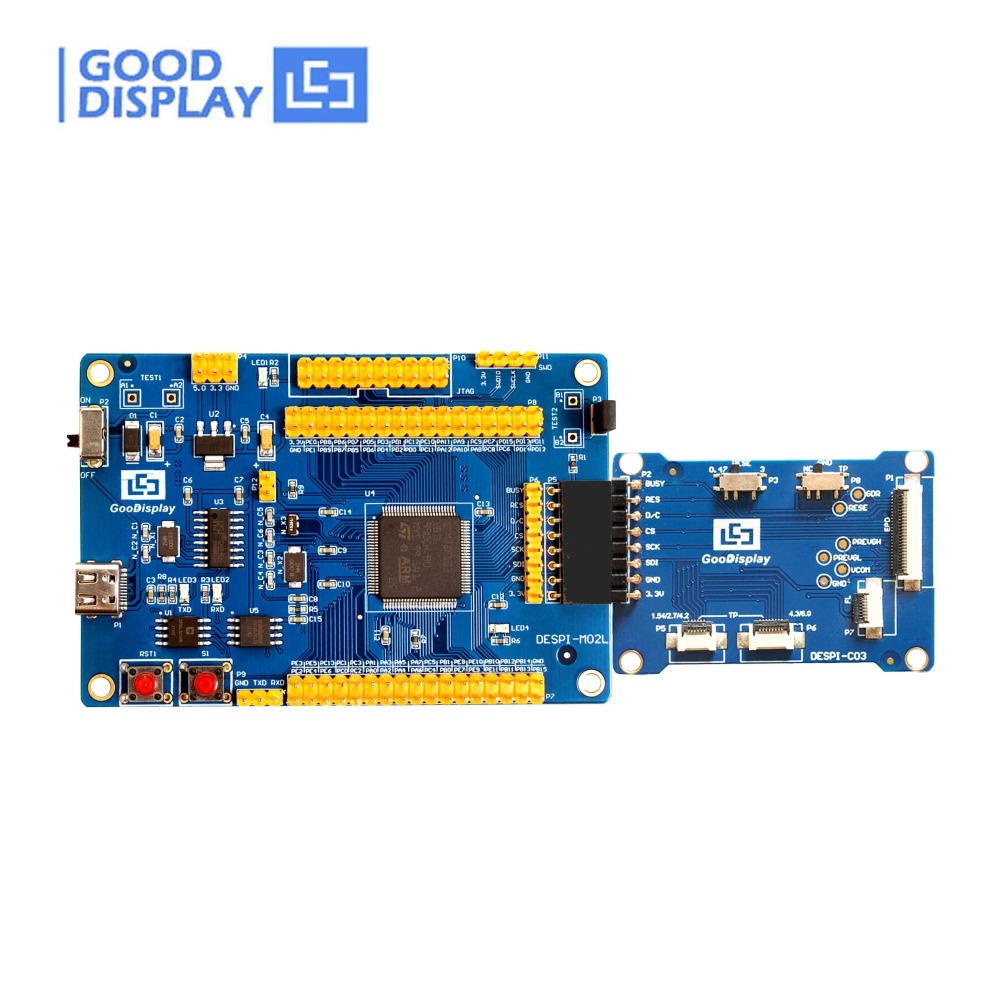

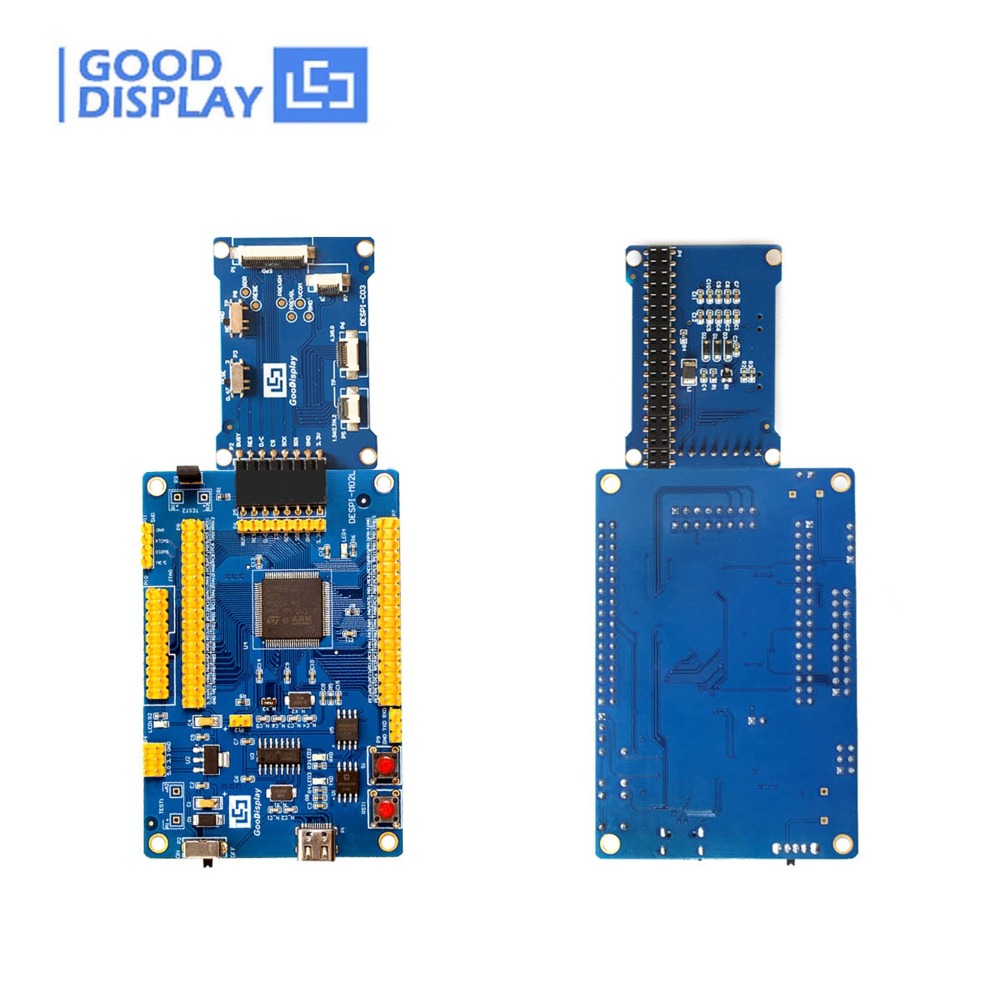

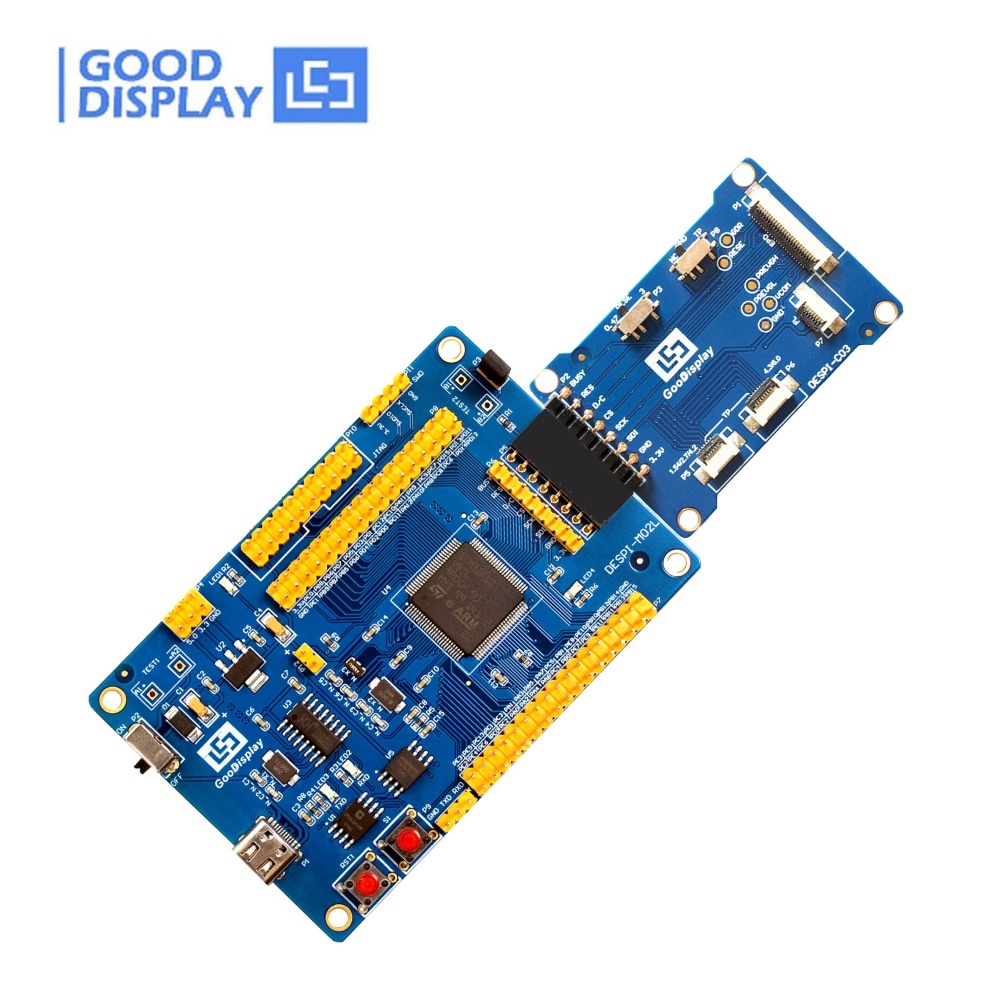

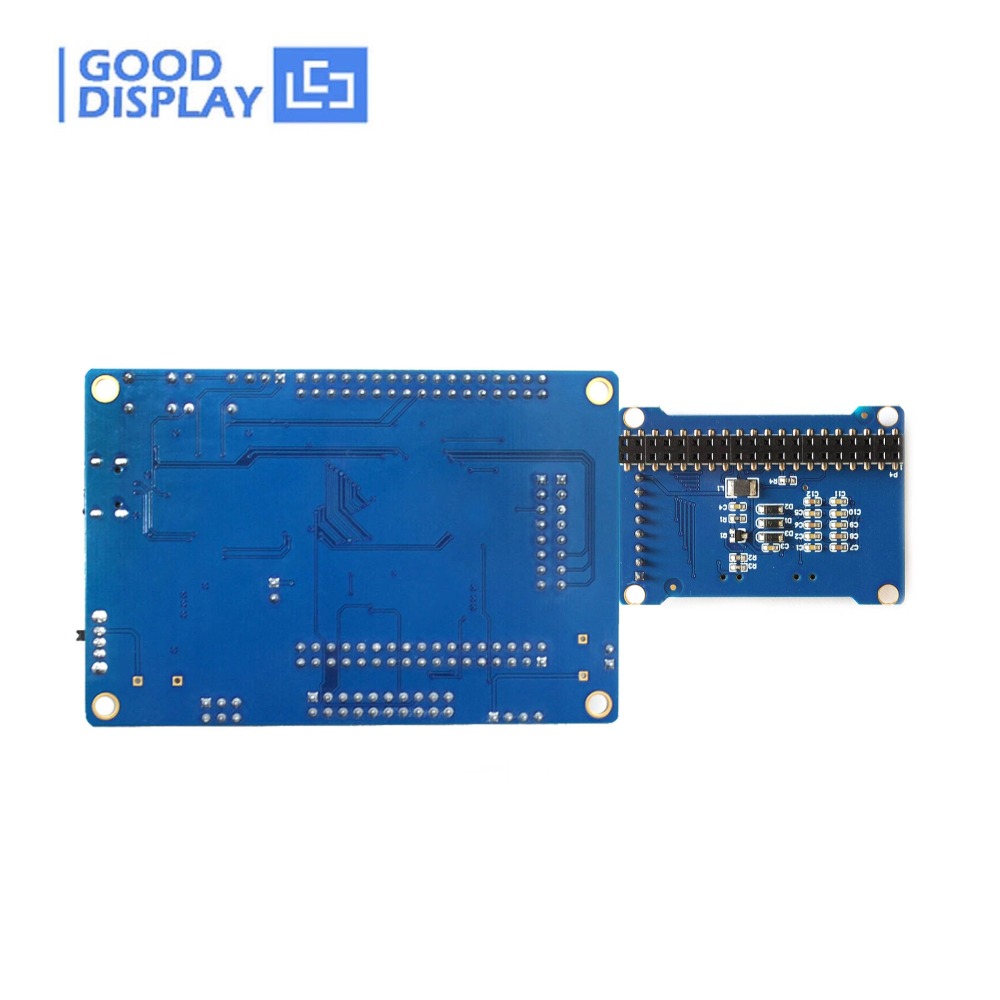

DESPI-L(C03) evaluation kit consists of motherboard DESPI-M02L and connector board DESPI-C03.

Relevant manual about this product on our official website (www.good-display.com), contact us please.

* Note: Compared with DESPI-V3.0, it has Type-C interface, reset button and font chip.







 THE ABOVE PRICE INCLUDE



1) Driving board DESPI-M02L * 1pc
2) Connector board DESPI-C03 * 1pc
3) USB port cable  * 1pc






 MAIN PARAMETERS




PART NUMBER DESPI-L(C03)
PLATFORM STM32
FUNCTION Drive E-paper Display

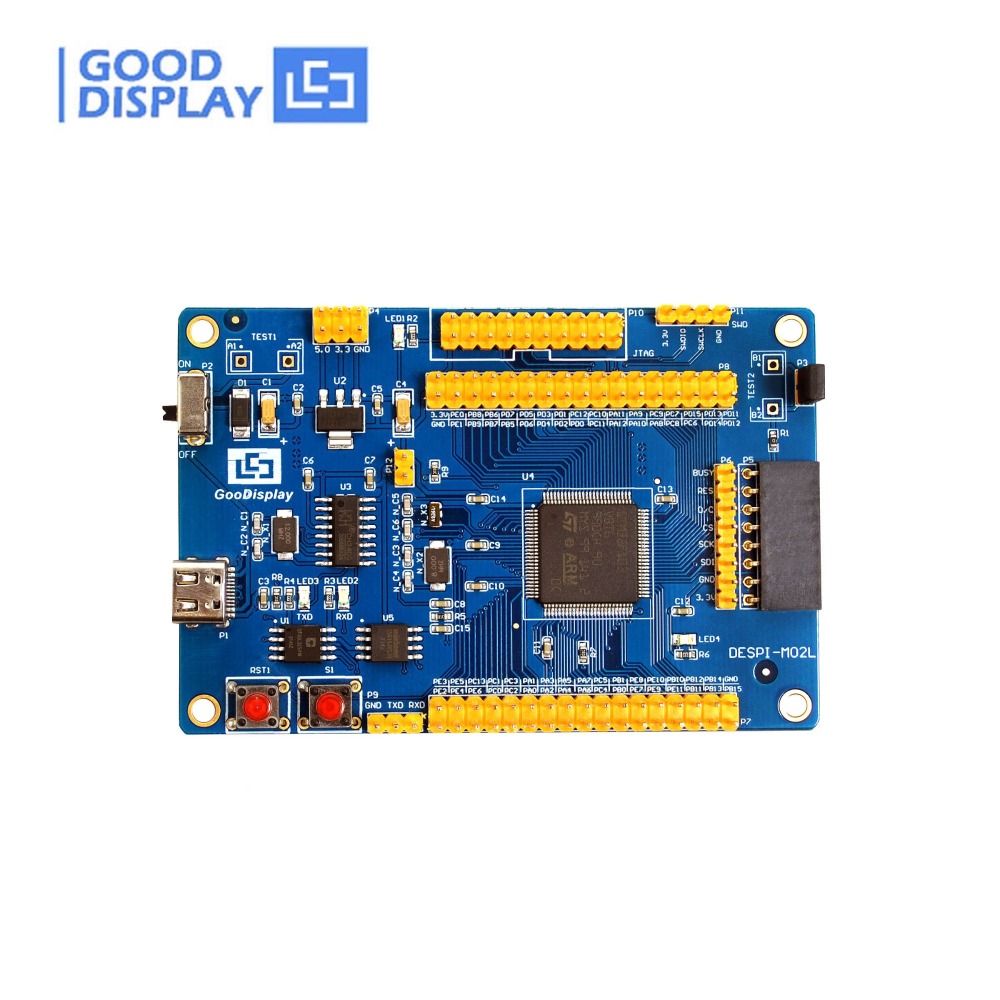

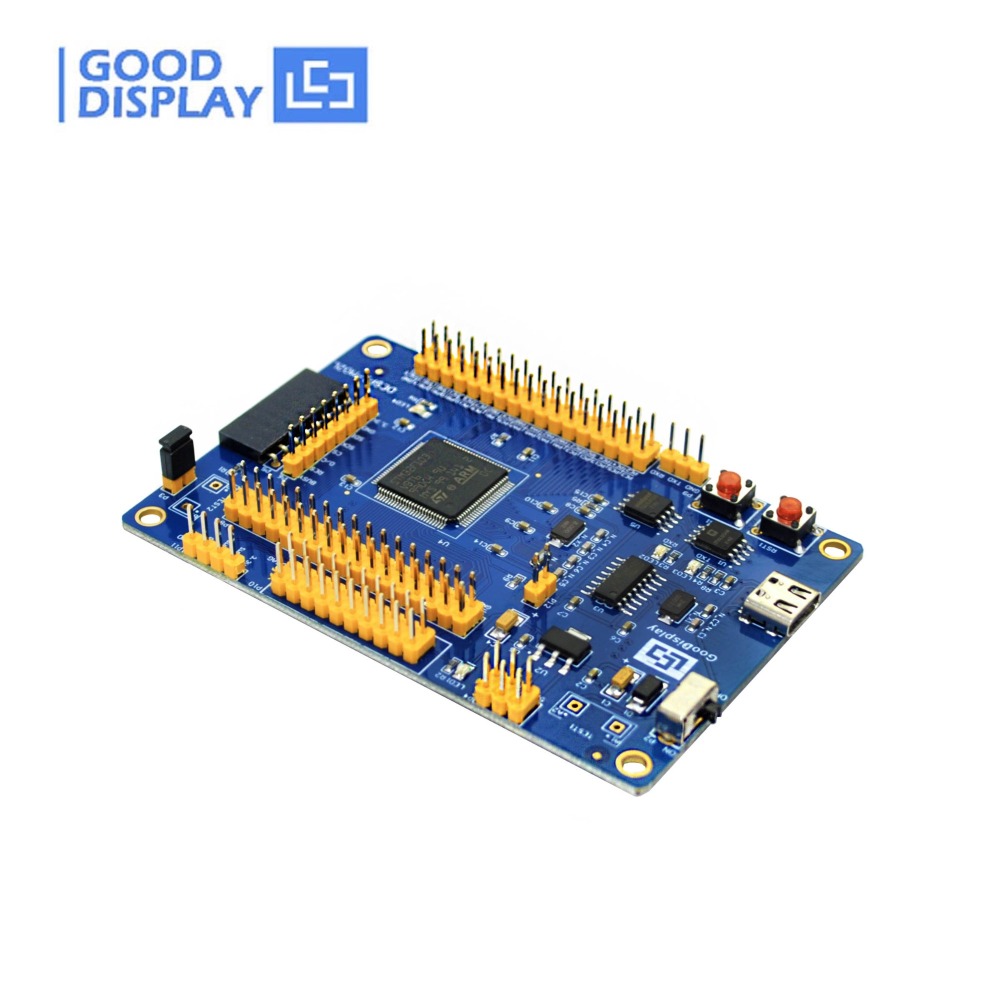

OUTSIDE DIMENSION 90x60mm (DESPI-M02L)
52x36mm (DESPI-C03)
POWER INTERFACE Type-C
OPERATING TEMP. -20~70℃
EXAMPLE CODE Available

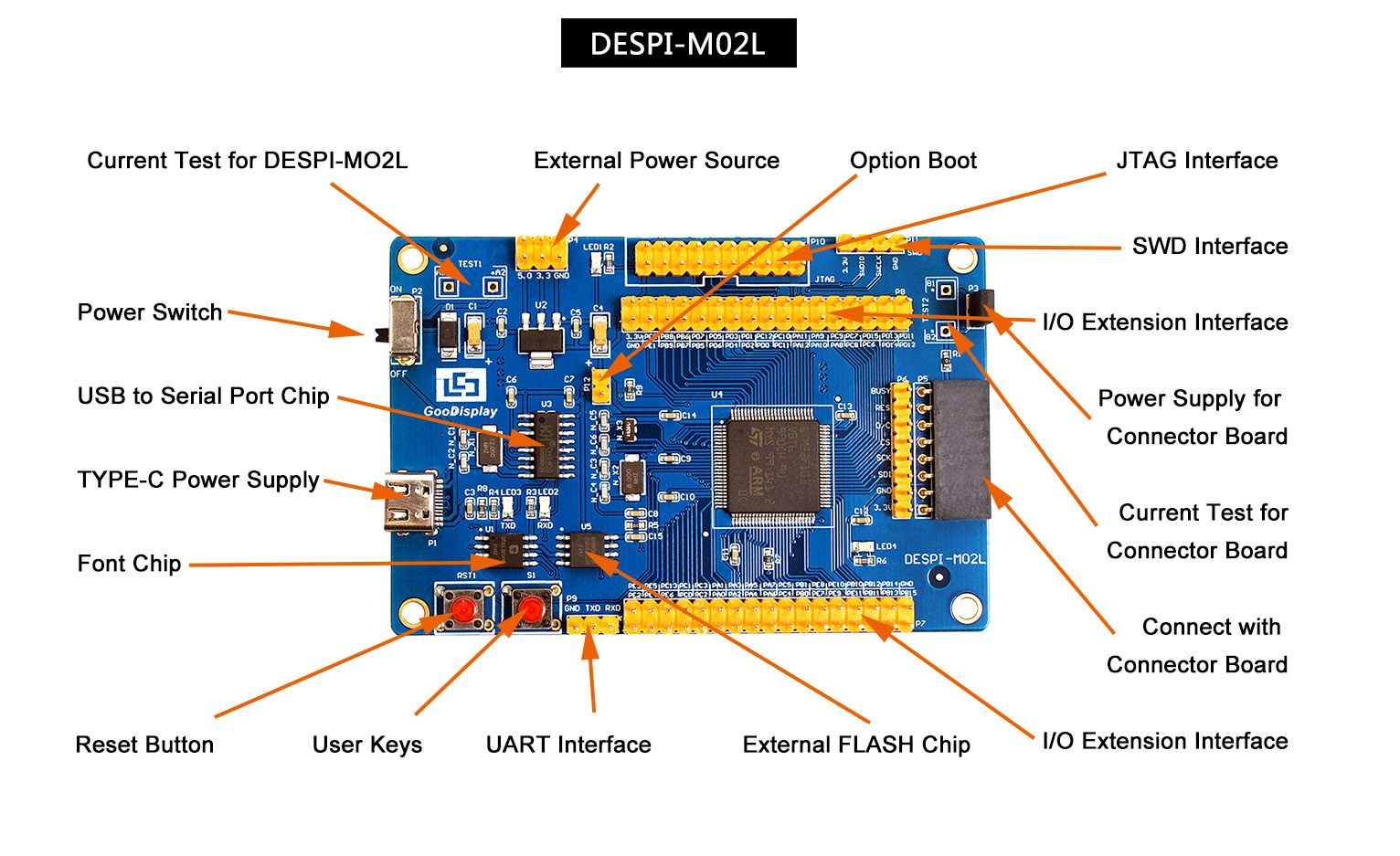

RESERVED FUNCTION Type-C, LED indicator, User-defined button, Reset button, Font chip, Flash chip, Current detection
MAIN FUNCTION Learn to drive E-paper display;
Test and evaluate e-paper display;
Support secondary development









☆ FEATURE




● USB serial port and LED indicator light.
● Supports being updated by computer directly.
● For SPI interface EPD, power interface is Type-C interface.

● it is added the functions of USB serial port and LED indicator light ect.

● The connector board DESPI-C03 adds driving function for touch panel and frontlight.







☆ PARTICULAR











☆ ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com





☆ SPECIFICATION DOWNLOAD




1. The STM32 Platform relevant download information is as follows:
①  Image to EPD Instruction Manual
②  Host Computer Software
③  Slave Computer Program


2. Relevant information of DESPI-L(C03)
①  DESPI-L(C03) Specification
②  DESPI-C03 Specification
③  DESPI-M02L-SCH
④  DESPI-C03-SCH
⑤  Raspberry Pi User Manual




PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -20℃~60℃     SPI
GDEH0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃   SPI
GDEW0154M09 1.54'' BW 2 200x200 27.6x27.6 0.82 0℃~50℃   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃   SPI
GDEH0154Z90 1.54'' BWR 2 200x200 27x27 15 0℃~40℃     SPI
GDEW0213M21 2.13'' BW 2 212x104 48.548x23.712 3 -20℃~60℃     SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ SPI
GDEM0213B74 2.13'' BW 4 250x122 48.55x23.7 3 0℃~50℃     SPI
GDEM0213U23 2.13'' BWR 2 250x122 23.67x48.50 - 0℃~25℃     SPI
GDEM0213D23 2.13'' BW 2 250x122 23.67x48.50 - 0℃~25℃     SPI
GDEW0213V7LT 2.13'' BW 2 212x104 48.55x23.71 3 -25℃~10℃   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW0213T5D-FL01(With Frontlight) 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃   SPI
GDEW027W3 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEW027W3-T(With Touch Panel) 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEM029E97 2.9'' BW 2 296x128 66.9x29.06 3 0℃~50℃     SPI
GDEH029Z13 2.9'' BWR 2 296x128 66.9x29.06 15 0℃~40℃     SPI
GDEM029T94 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃   SPI
GDEW029M06 2.9'' BW 2 296x128 66.896x29.056 3 -20℃~60℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ SPI
GDEW029T5D 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEW029T5D-FL02(With Frontlight) 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEH037Z01 3.71'' BWR 2 416x240 81.54x47.04 16 0℃~40℃     SPI
GDEW0371W7 3.71'' BW 2 416x240 81.536x47.04 4 0℃~50℃     SPI
