Home > Touch & Front-light > 2.9-inch E-Ink Screen with Front Light 296x128 High-Resolution, Perfect for Any Light Condition

1/1

Share:

Limited Offer!

2 sold

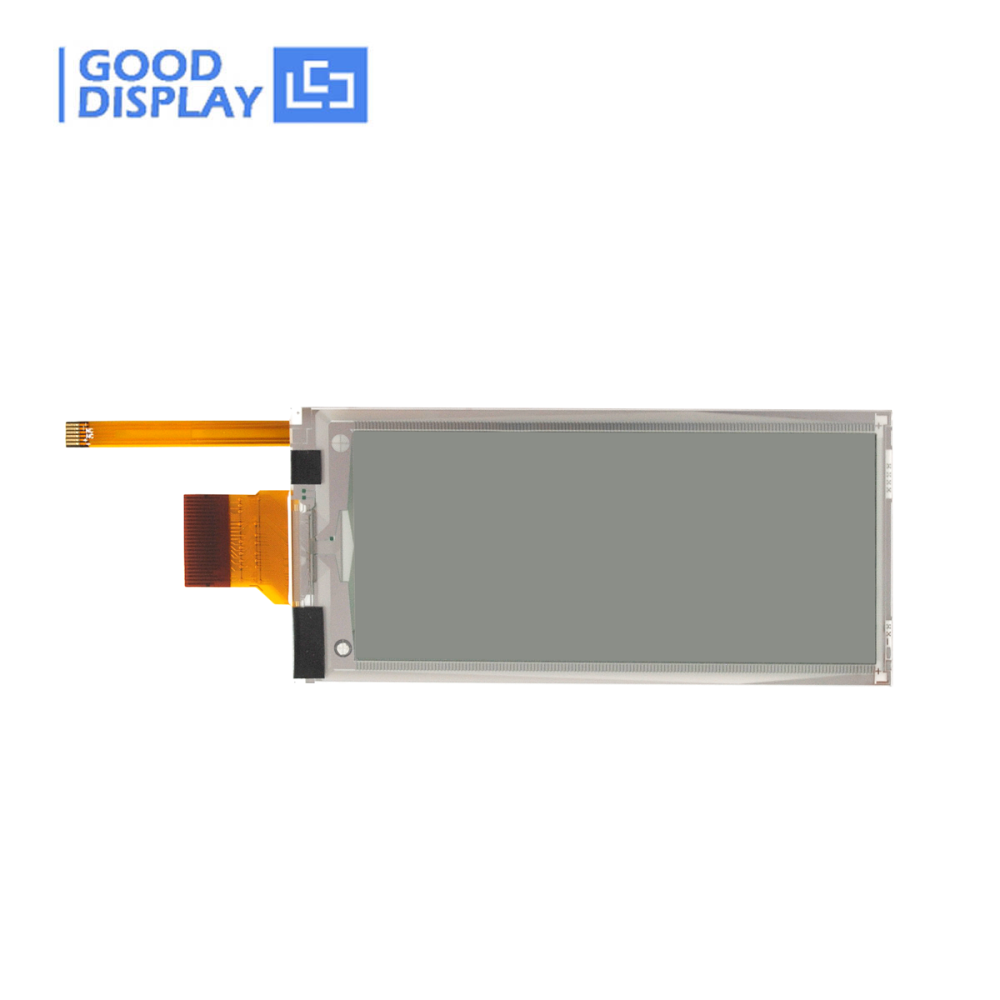

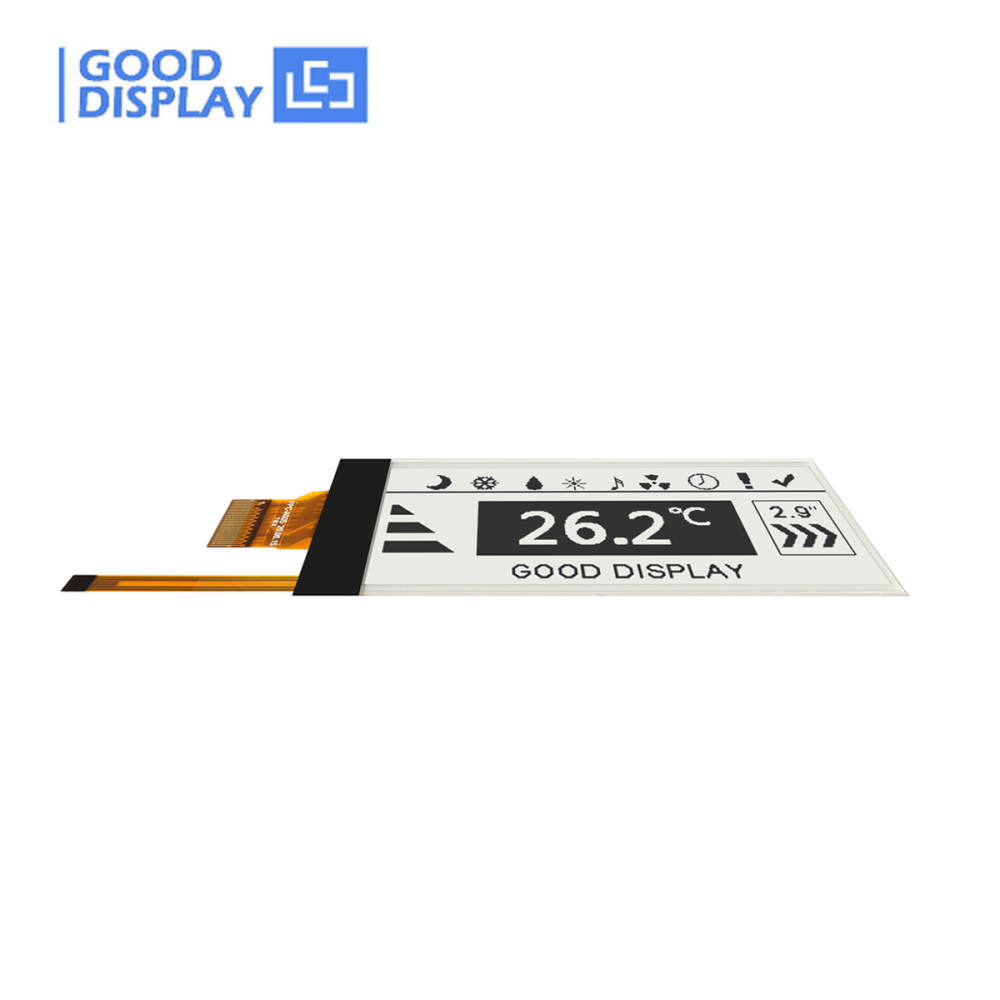

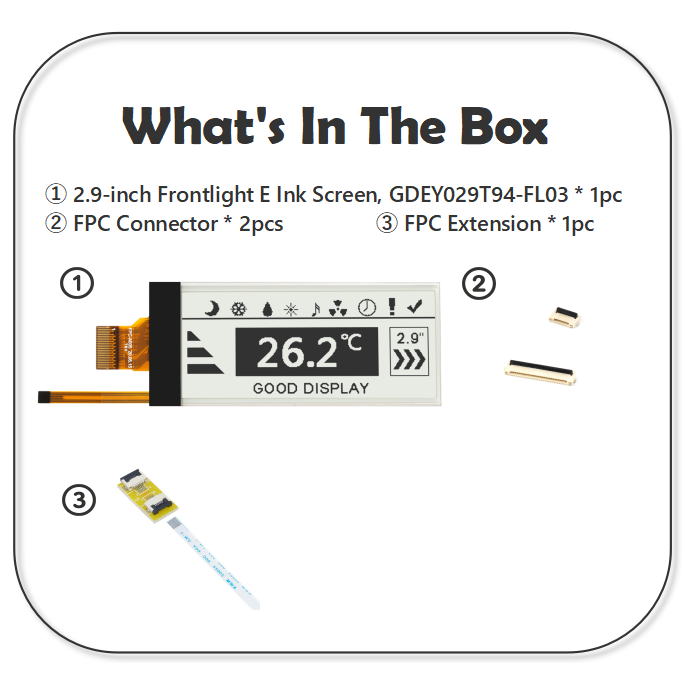

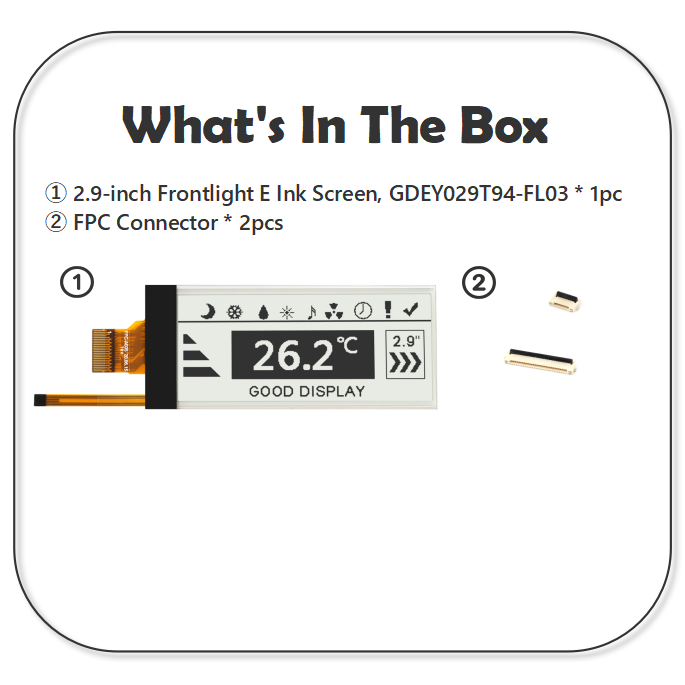

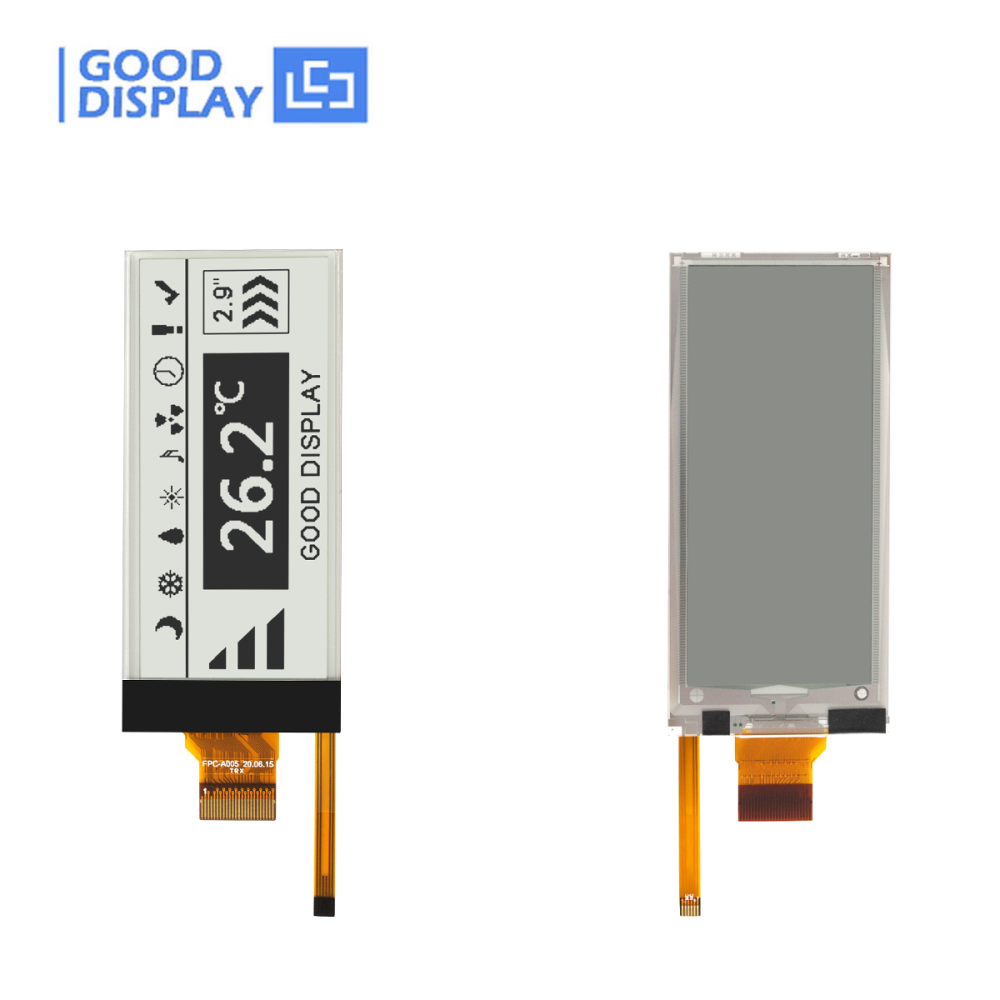

2.9-inch E-Ink Screen with Front Light 296x128 High-Resolution, Perfect for Any Light Condition GDEY029T94-FL03

(3)

503 Sold

$9.44 ~~$11.80~~

20% OFF

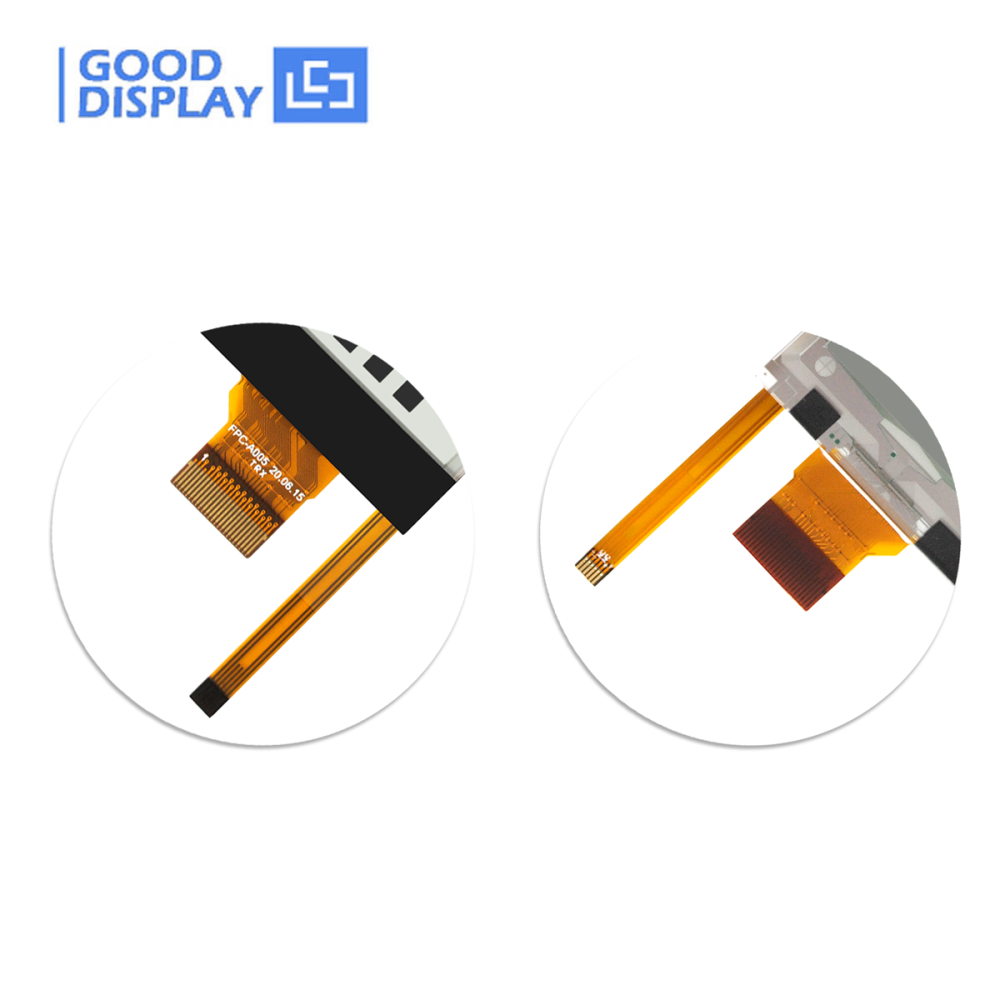

E ink E paper display panel, 6 pins FPC frontlight, 2.9 inch, 296x128 resolution, 24 pins FPC connection, SPI interface, with embedded controller(COG package) and on-chip stored waveform, black and white, support fast refresh and partial refresh

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (3)

1/1

Description

TIP: The front light is not sold separately due to precise bonding requirements. Please purchase the complete bonded product. For temperature details, refer to the display screen specifications.

Goodisplay Front Light Panel

Move your LED light to the front

The Goodisplay Front Light Panel is designed to deliver precise lighting for E Ink displays. It reduces power consumption, improves aesthetics, and enables thinner devices. Our ultra-thin optical film integrates seamlessly with the front surface of reflective displays, providing the optimal display module for superior performance.


	New Generation of Front-light ePaper



	Resolution: 296x128	Max Grayscale: 4	Low Power Consumption	Fast Update: 1.5s	Partial Update: 0.3s	Full Update: 2s

Our front-lit e-paper display offers:

● Powered by our proprietary Front Light Driver Board, the front light achieves exceptional energy efficiency in an ultra-compact form factor.

● Choice between cool white or warm light modes.

● Adjustable brightness by increasing the number of LEDs.

● Flexible circuit design with options for series or parallel configurations.

● We're introducing the 2.9-inch frontlight module, designed to fit any 2.9-inch E-Ink display.

Technical Detail


	Product Specifications
	PART NUMBER	GDEY029T94-FL03	CONNECTOR	24 Pin FPC
	TYPE	Dot Matrix	COLOR	Black,White
	SIZE	2.9 inch	MAX GRAYSCALE	4
	IC	SSD1680Z8	FRONT-LIT CONNECTOR	6 pin FPC
	RESOLUTION	296x128	NUMBER OF LED LIGHT	4
	OUTLINE SIZE(mm)	79.00x36.70x2.01	FRONT-LIT CIRCUIT MODE	Parallel connection
	ACTIVE SIZE(mm)	66.896x29.056	OPERATING VOLTAGE	2.8V-3.3V
	ACTIVE SIZE(mm)	0.226x0.227	OPERATING CURRENT	≤60mA
	OPERATING TEMP.	0℃~50℃	FULL REFRESH(s)	2
	STORAGE TEMP.	-25℃~70℃	FAST REFRESH(s)	1.5
	POWER CONSUMPTION OF THE REFRESH(mW)	9	PARTIAL REFRESH(s)	0.3
	STANDBY POWER CONSUMPTION (mW)	0.003	INTERFACE	SPI

Matching Driver Boards

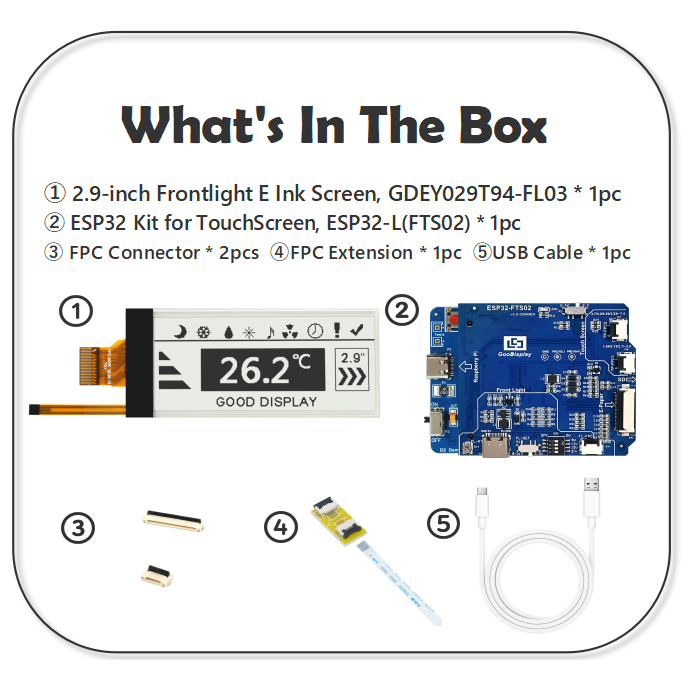

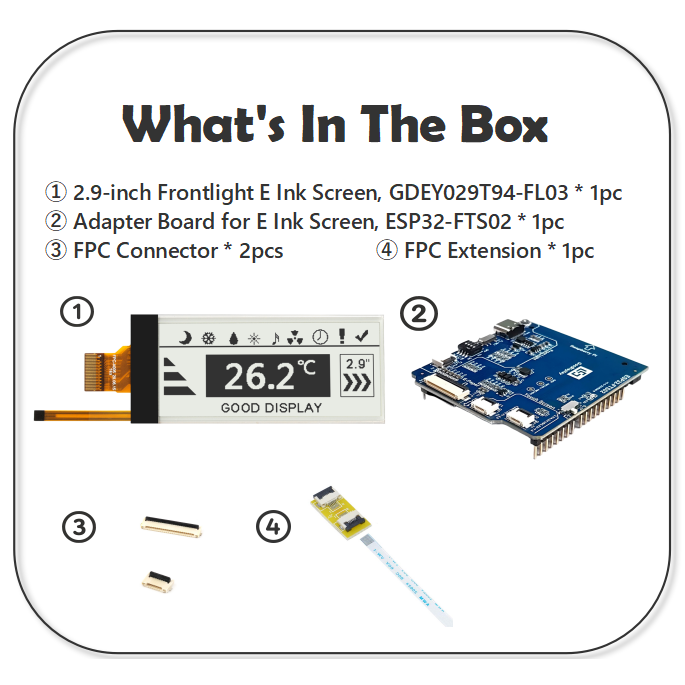

Ⅰ. ESP32-FTS02
(Adapter Board for Front Light & Touch Screen)

Ⅱ. ESP32-L(FTS02)
(ESP32 Demo Kit with Front Light & Touch)

Ⅲ. ESP32E6-E01
(Bluetooth/WiFi/USB/SD Card Driver Board)


	Files And Download

	● GDEY029T94-FL03_Specification	● Why can't I download the files(updated)?
	● GDEY029T94-FL03 Drawing	● The Lastest Catalog
	● Front-light Drawing of 2.9 inch EPD

Eco-friendly & Sustainable


Eye-friendly		E-paper technology		No fear of the dark
No harmful blue light, so it won't cause any damage to your eyes even with prolonged use.		Eco-friendly and sustainable. Get rid of any paper or printing.		Bright, clear image even in dimly lit spaces.

Product Application


Industrial equipment	Portable Information Tags	Medical Devices	Smart Home Control Panels
