TIP: The Touch Screen is not sold separately due to precise bonding requirements. Please purchase the complete bonded product. For temperature details, refer to the display screen specifications.
| |
Goodisplay Touch ePaper Supplier
Enhance Interaction with Precision Touch
Good Display, with 17 years of expertise in e-paper technology, is dedicated to bringing the best e-paper solutions to its customers. This touchscreen e-paper panel seamlessly integrates a PET material touch sensor directly onto the top of the E Ink display, creating an advanced touch solution. This design not only reduces power consumption and costs but also improves the aesthetic appeal and visual clarity of the display. It's an ideal fit for a wide range of smart devices.
|
|
|
| |
|
|
|
|
New Generation of Touch Screen ePaper
|
|
|
|
|
|
|
|
|
|
Resolution: 250x122
|
Max Grayscale: 4
|
Low Power Consumption
|
Fast Update: 1.5s
|
Partial Update: 0.3s
|
Full Update: 2s
|
| |
|
|
|
|
|
E Ink Touch Screens for Every Need
Why We're the Best Choice for You

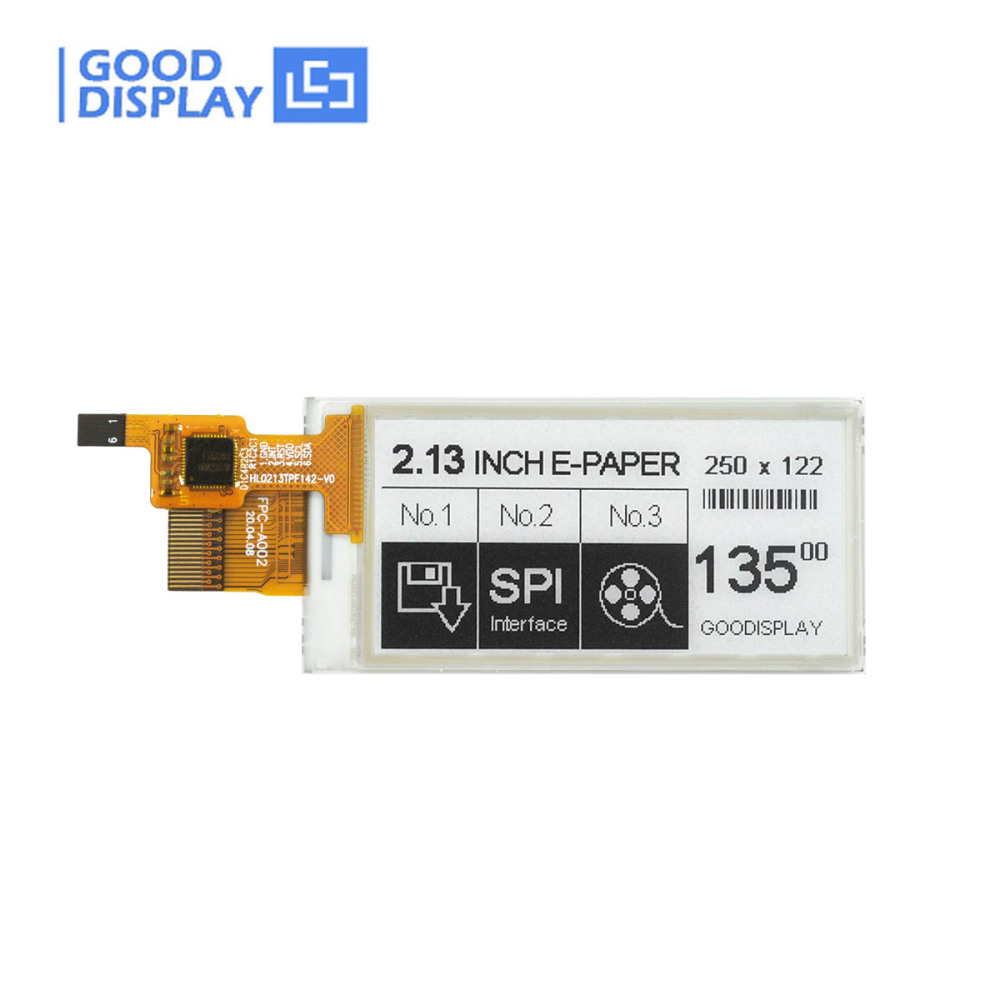

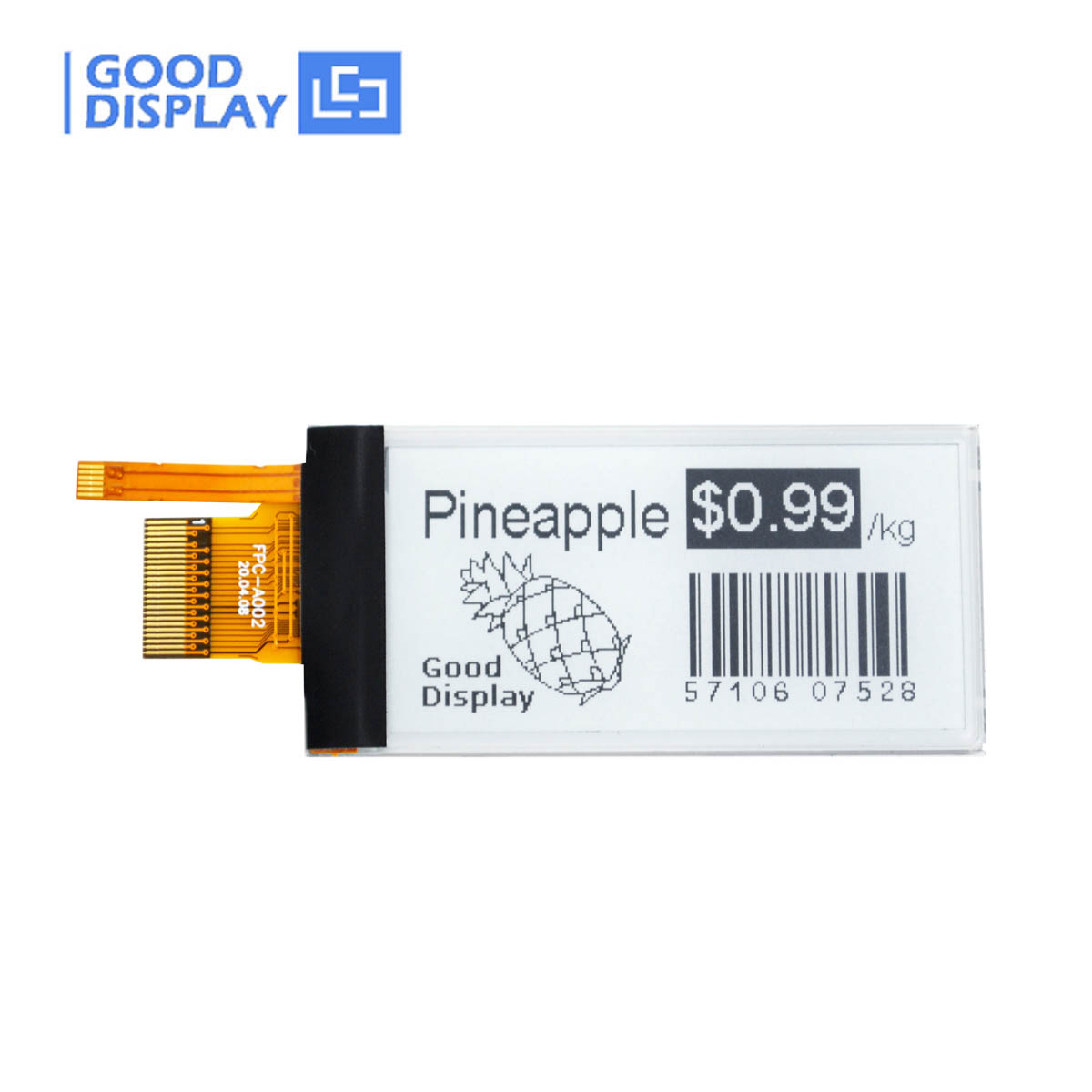

- Advanced Touch Technology: GDEY0213B74-T11 is a TFT active matrix electrophoretic display with capacitive touch panel-FT6336U ， Supports dual-point touch and features an I²C interface.
- Exceptional Transparency: The e-paper touchscreen offers superior light transmission, enhancing contrast and clarity.
- Ultra-Low Power Consumption: Both the e-paper display and touchscreen use minimal power.
- Fast Refresh Rate: Faster touch response thanks to improved e-paper refresh rates.
|
|
|
Custom Touch Module Solutions
● Designed to be fully compatible with any 2.13-inch E Ink display, ensuring seamless integration.
● Our dedicated quality control team guarantees the highest product standards, delivering only the best to our customers.
● Backed by comprehensive technical support from our expert team, we're here to ensure your success every step of the way.
|
|
|
Technical Details
|
|
|
|
|
| |
|
|
| |
Product Specifications
|
|
| PART NUMBER |
GDEY0213B74-T11 |
CONNECTOR OF EPD |
24 Pin FPC |
| TYPE |
Dot Matrix |
CONNECTOR OF TOUCH PANEL |
6 Pin FPC |
| SIZE |
2.13 inch |
TOUCH IC |
FT6336U |
| IC |
SSD1680Z8 |
WORKING VOLTAGE(V) |
2.8V-3.6 V |
| RESOLUTION |
250x122 |
FULL REFRESH(s) |
3 |

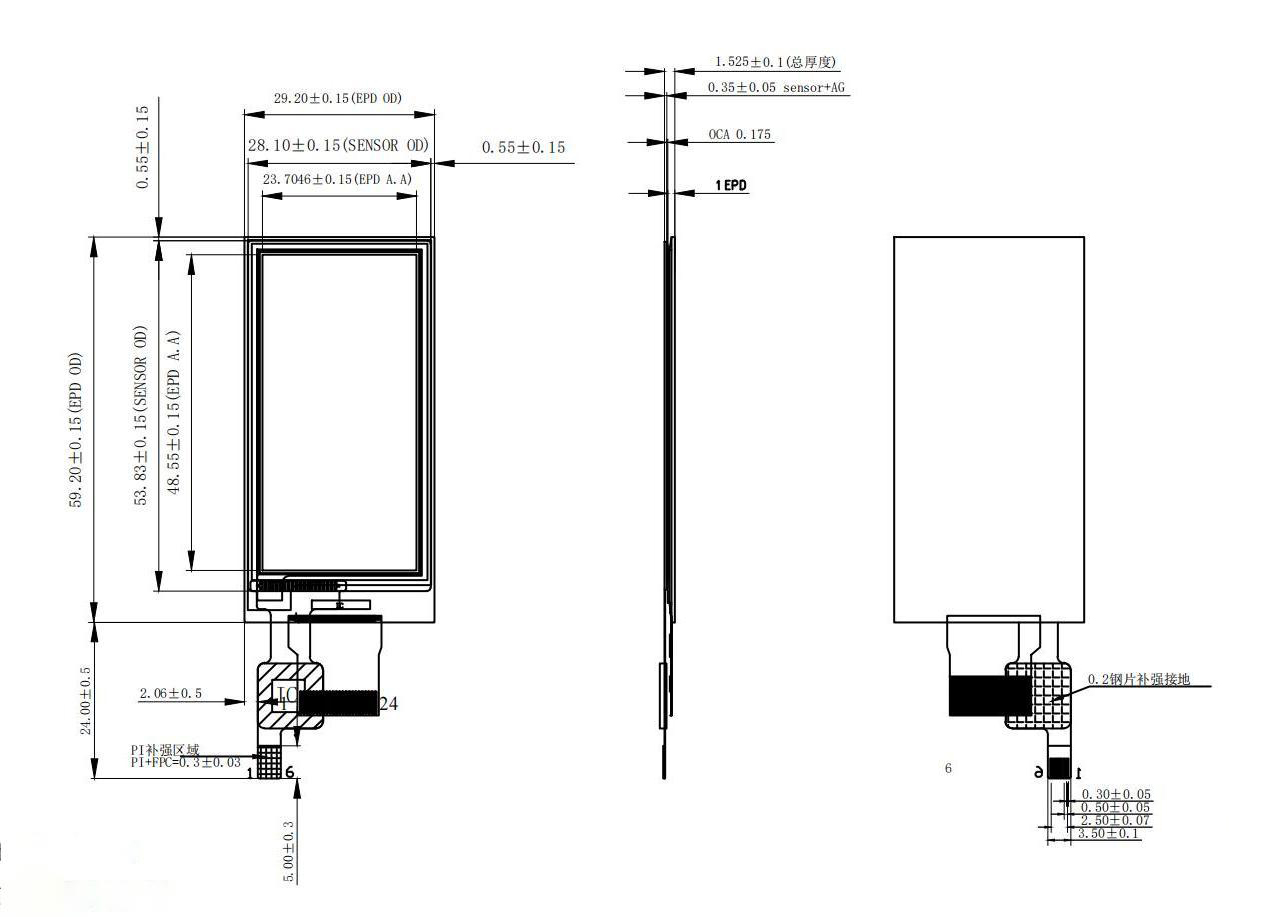

| OUTLINE SIZE(mm) |
29.2x59.2x1.525 |
FAST REFRESH TIME(s) |
1.5 |
| ACTIVE SIZE(mm) |
23.7x48.55 |
PARTIAL REFRESH TIME(s) |
0.42 |
| PIXEL PITCH(mm) |
0.1942x0.1942 |
POWER CONSUMPTION OF THE REFRESH(MW) |
9 |
| OPERATING ENVIRONMENT |
0℃~50℃ |
STANDBY POWER CONSUMPTION PC(MW) |
0.003 |
| STORAGE ENVIRONMENT |
-20℃~70℃ |
|
|
| |
|
|
|

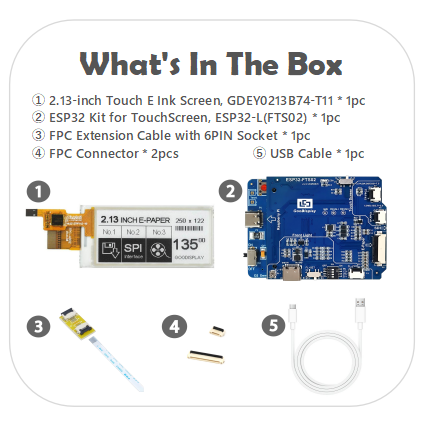

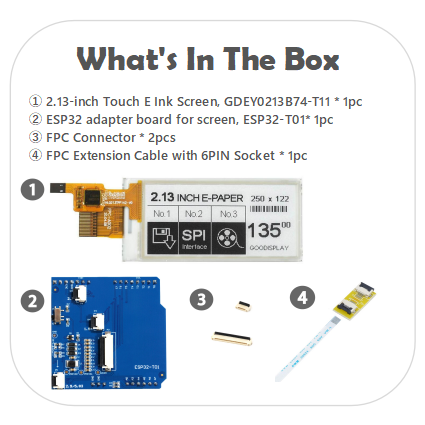

Matching Driver Boards
Product Application
|
 |
 |
 |
 |
 |
Portable E-Book or Notepad
|
Portable Medical Devices |
Wearable Devices
|
Smart Home Control Panels
|
