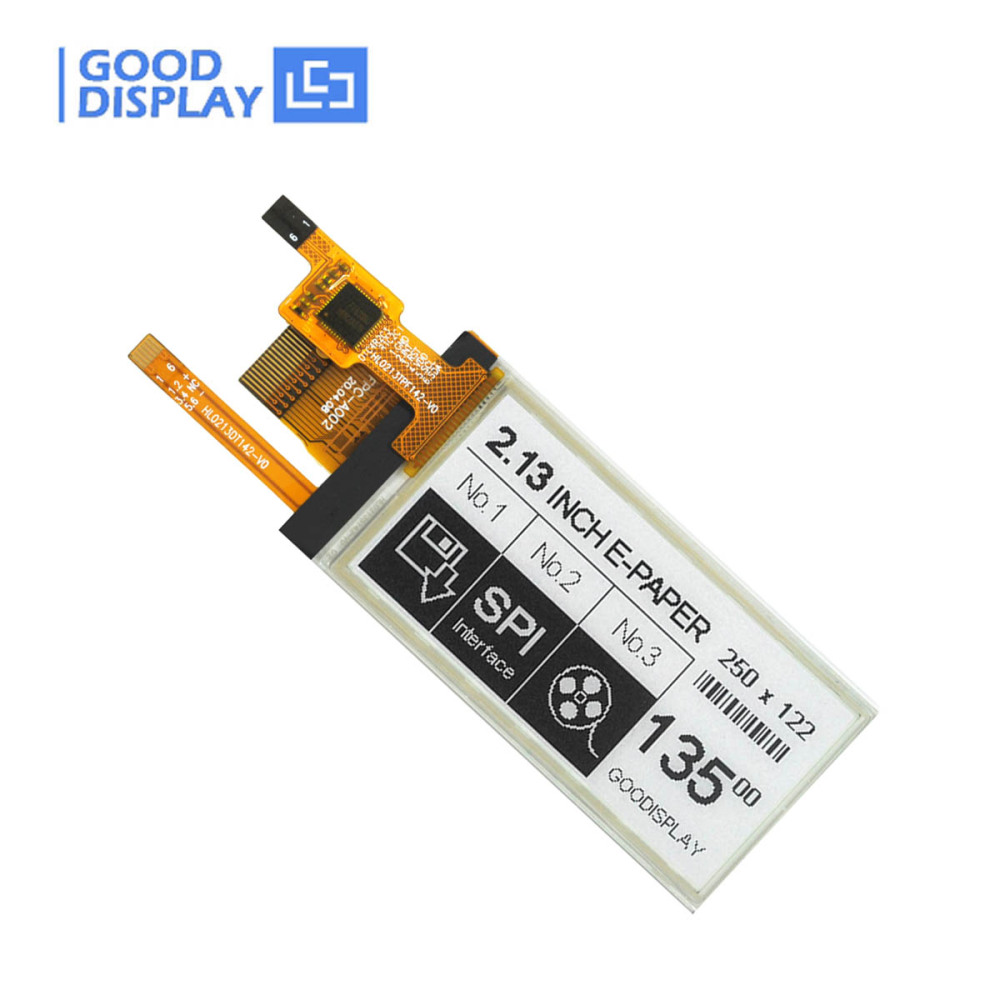

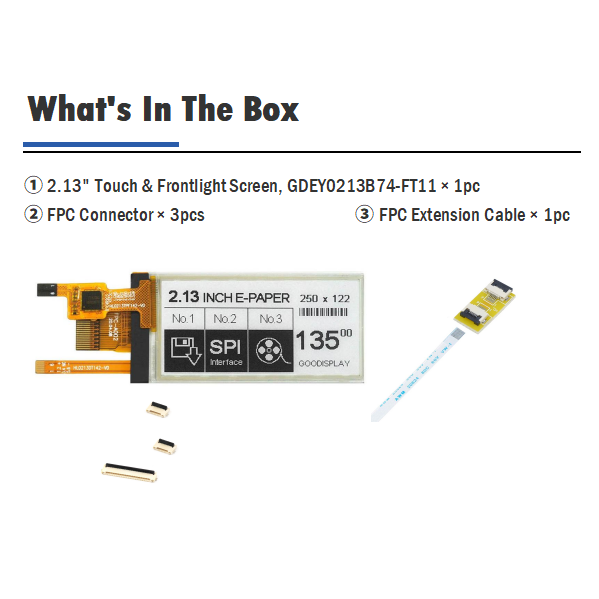

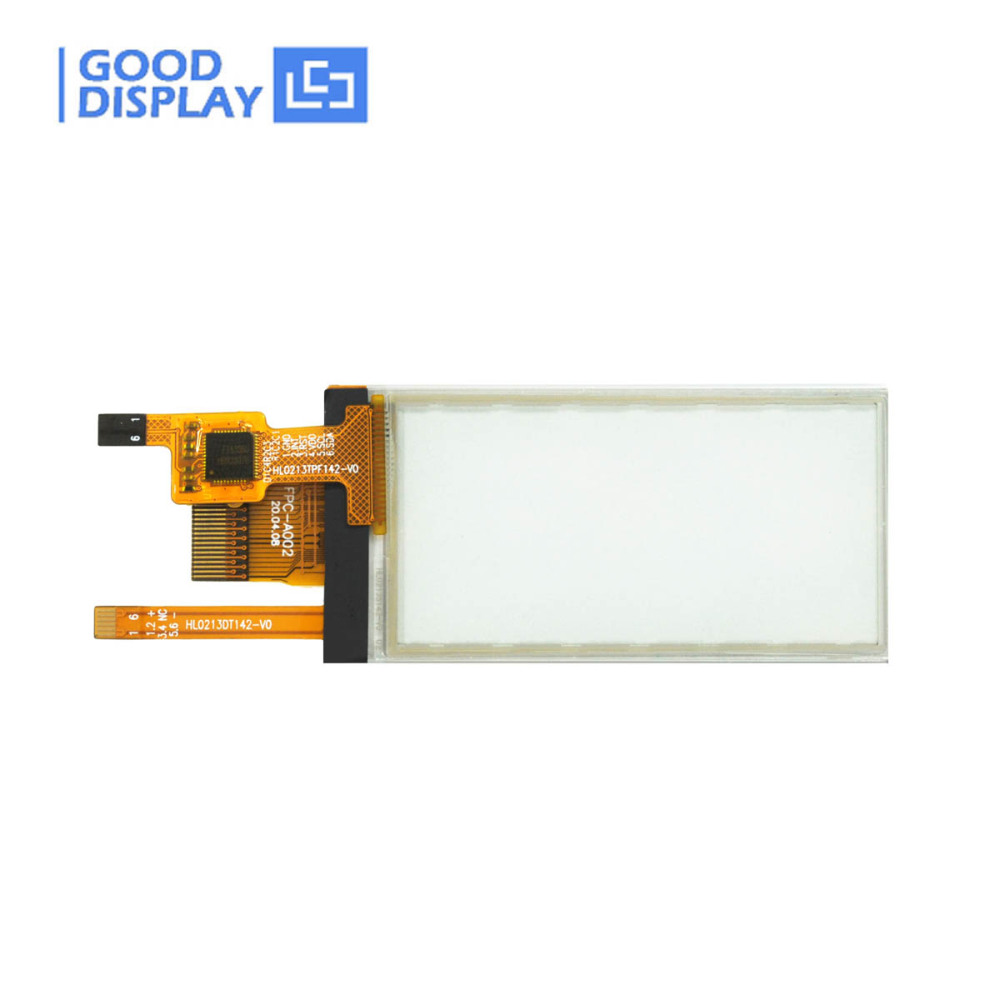

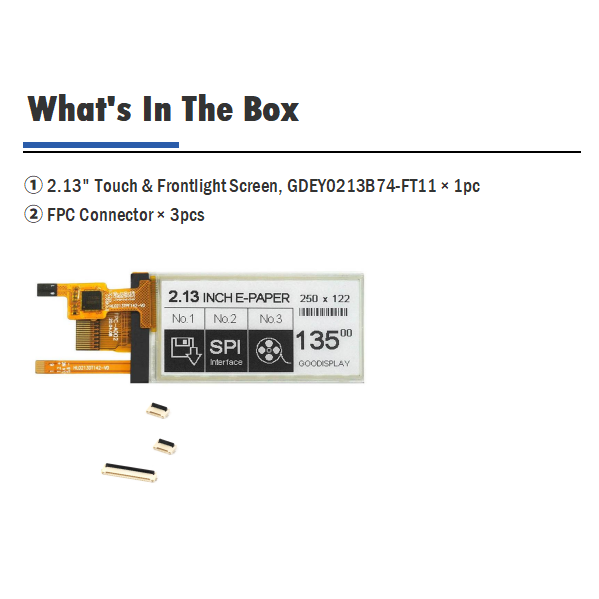

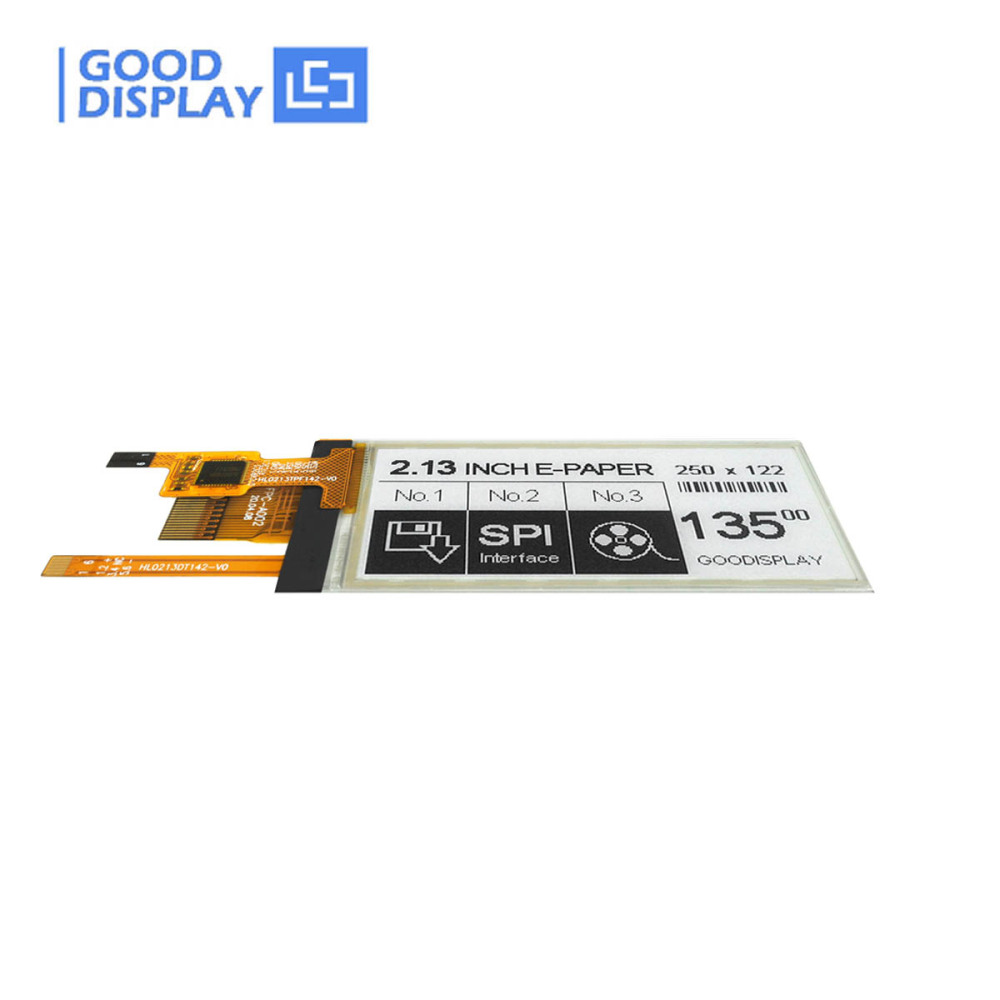

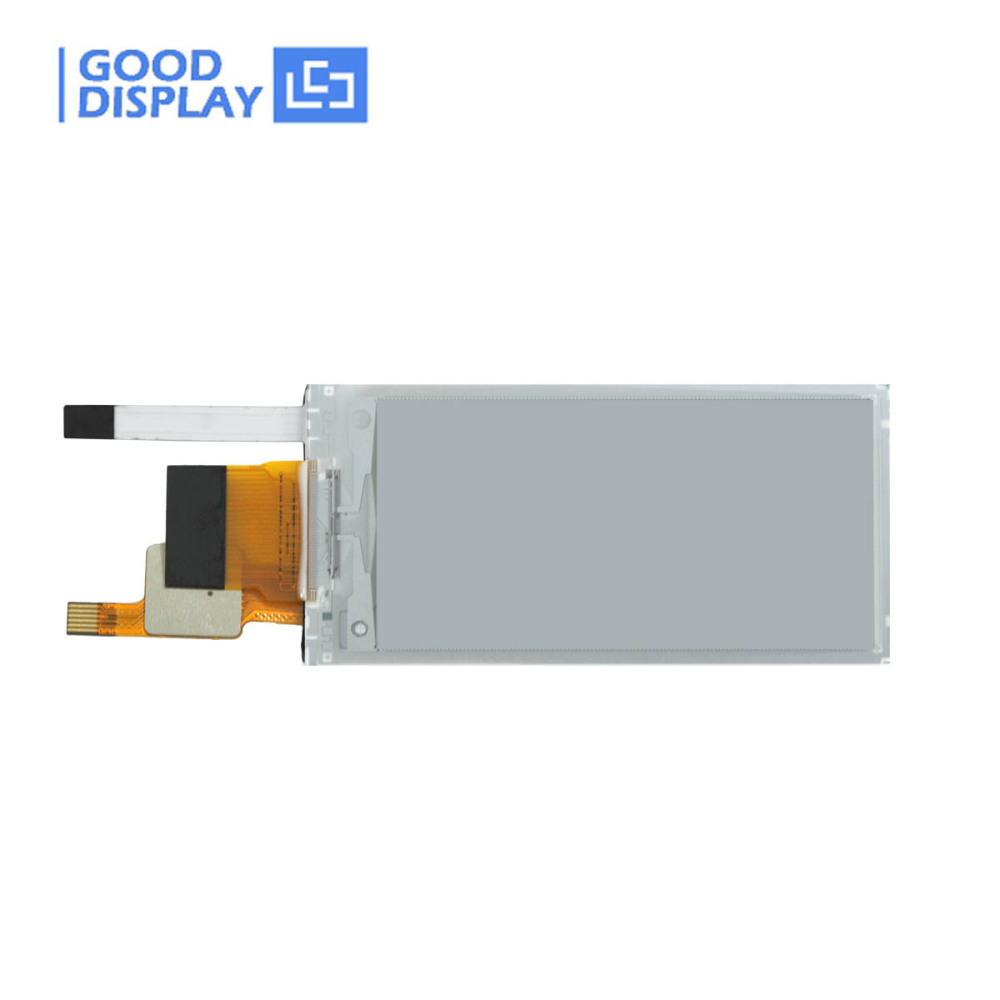

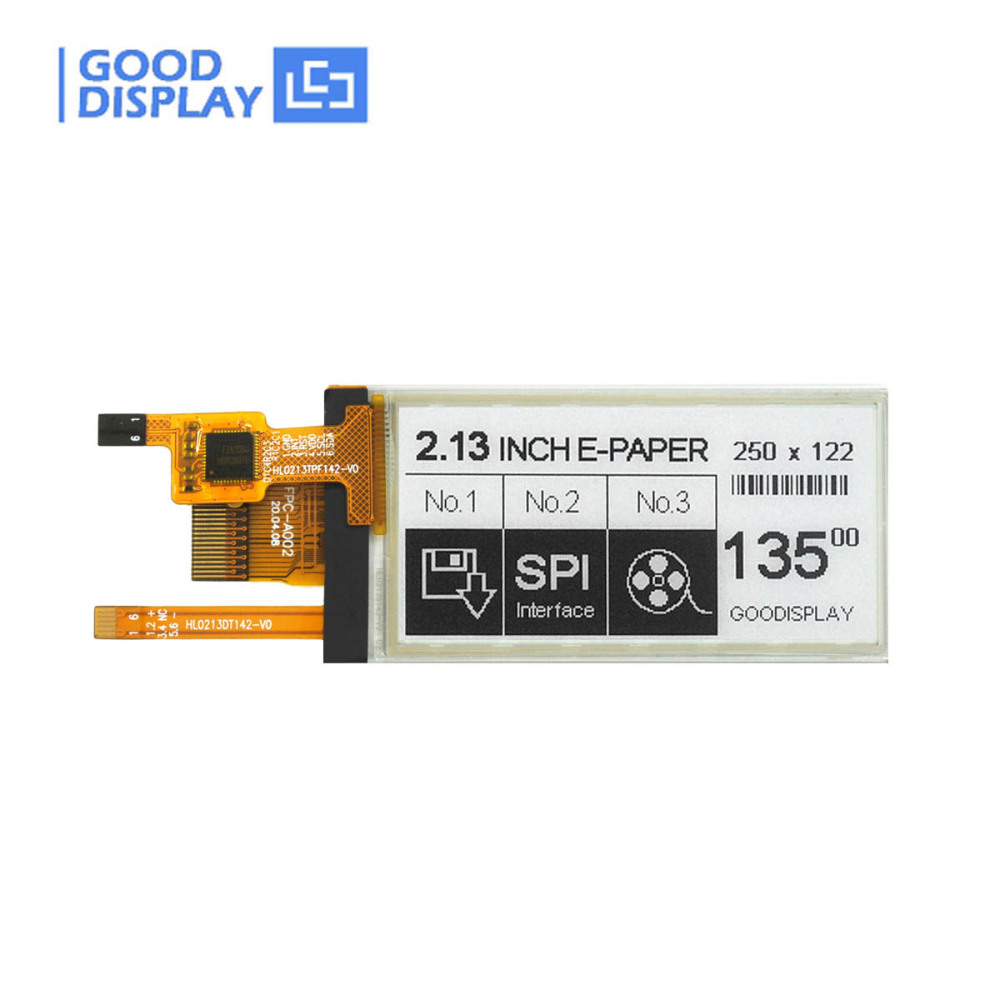

2.13" Touchscreen and Front-light E-Paper HAT Capacitive Touch E-Ink Module, GDEY0213B74-FT11

Name: 2.13" Touchscreen and Front-light E-Paper HAT Capacitive Touch E-Ink Module, GDEY0213B74-FT11
Brand: GOOD DISPLAY
Price: 11.06 USD
Availability: InStock
Rating: 5 (3 reviews)

(3)

27 Sold

$11.06 ~~$13.82~~

20% OFF

This is 2.13 inch E-Paper Eink Display with backlit, 250x122 resolution, 6 pin FPC, Parallel connection , 4 Grayscale, can be used in dark environment.

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (1)

1/1

Description

2.13" Front-Light E Ink Touchscreen Display

Ultra-Thin Integrated Solution – Seamlessly combines capacitive touch, uniform front lighting, and E Ink display in only 2.15mm thickness.

Exceptional Display Experience – Maintains ultra-low power consumption with responsive touch control and soft, even illumination for clear visibility in all lighting conditions.

Enhanced Stability – Optimized based on the proven GDEY0213B74 standard model for reliable integration.

Core Advantages

Integrated Design

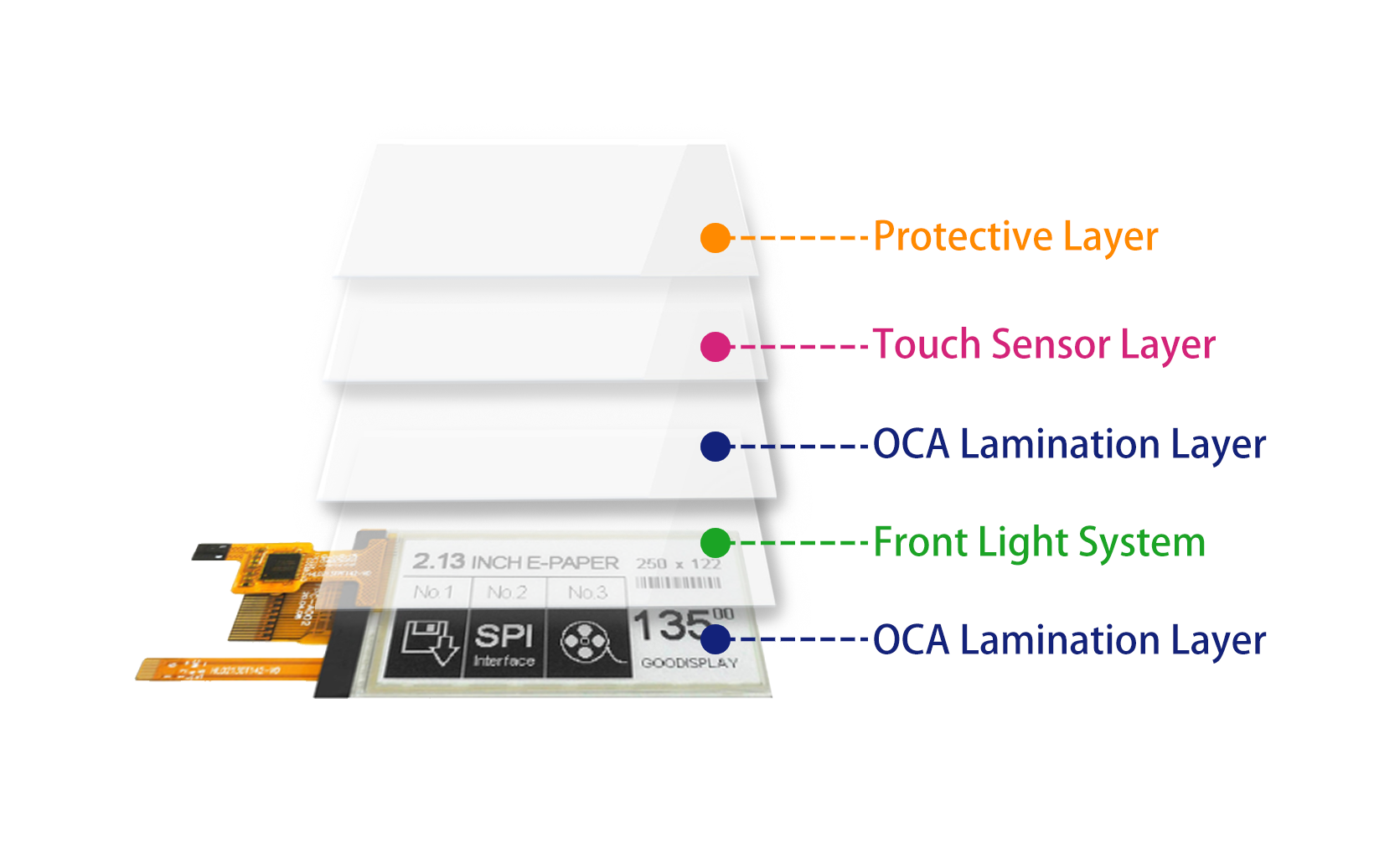

Three-in-One Ultra-Thin Module – Integrates E Ink display, capacitive touch, and front lighting with 2.15mm thickness, reducing space by 60%.

Simplifies embedded design and reduces system complexity
Reduces the number of connectors, improving reliability
Integrated testing ensures perfect synergy

Intelligent Front Light System

Efficient and Uniform Illumination – Uses three LEDs with ≤45mA operating current, 90% less power than LCD backlights.

Adjustable brightness to adapt to various ambient light conditions
Low-power design extends working life
Flicker-free, ensuring comfortable long-duration reading

High-Efficiency Touch Response

Fast Refresh Response – 0.3s partial refresh with 55μA touch standby current for smooth interaction.

FT6336U touch controller supporting multi-touch
Industry-leading refresh power consumption of 9mW
Exceptional power saving with standby consumption of 0.003mW

Technical Specifications

PART NUMBER GDEY0213B74-FT11

TYPE Dot Matrix

SIZE 2.13 inch

IC SSD1680Z8

RESOLUTION 250x122

OUTLINE SIZE(mm) 59.2x29.2x2.15

ACTIVE SIZE(mm) 48.55x23.7

PIXEL PITCH(mm) 0.1942x0.1942

OPERATING TEMP 0℃~50℃

STORAGE TEMP -25℃~70℃

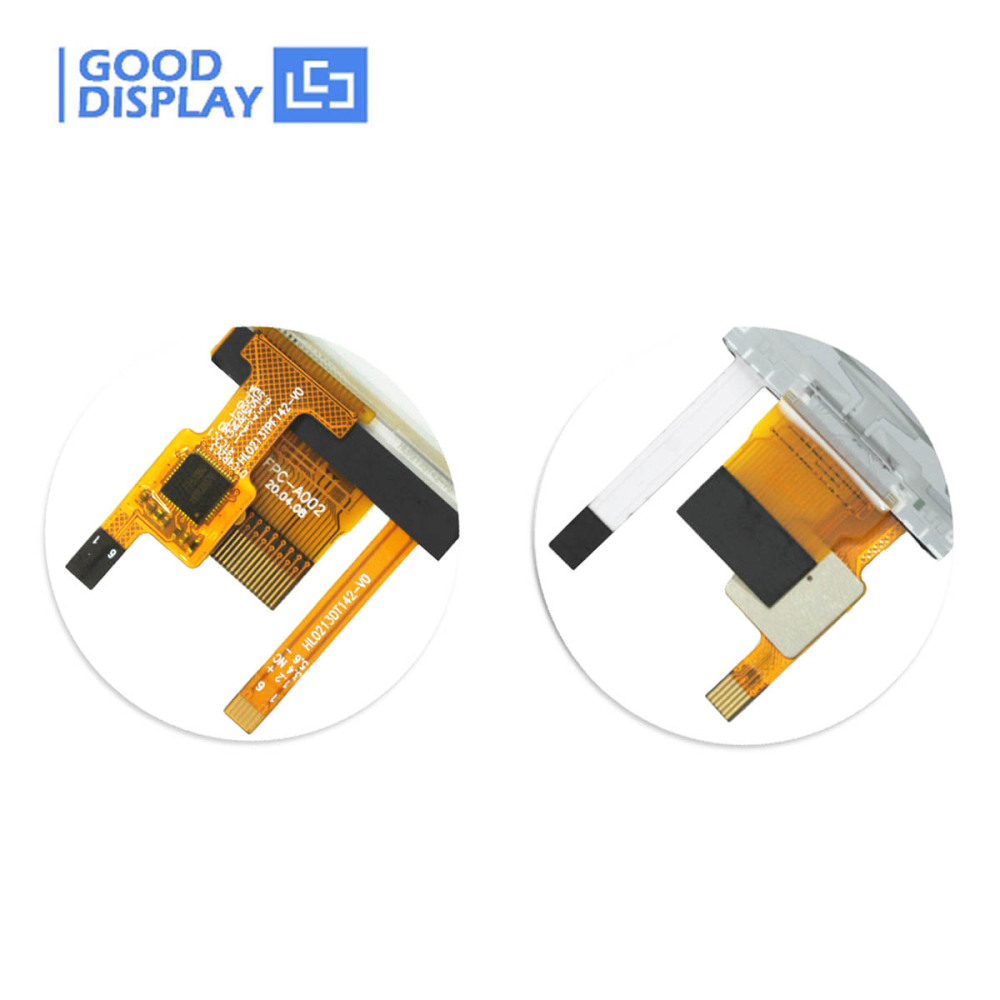

CONNECTOR 24-pin FPC, pitch: 0.5 mm

MAX GRAYSCALE 4

COLOR Black,White

INTERFACE SPI

FULL REFRESH(s) 3

FAST REFRESH(s) 1.5

PARTIAL REFRESH TIME(s) 0.3

POWER CONSUMPTION OF THE REFRESH(mW) 9

STANDBY POWER CONSUMPTION (mW) 0.003

TOUCHSCREEN SPECIFICATIONS

TOUCHSCREEN CONNECTOR 6 Pin FPC

TOUCHSCREEN IC FT6336U

TOUCHSCREEN VOLTAGE 2.8-3.6 V

TOUCHSCREEN OPERATING CURRENT 4.32mA

TOUCHSCREEN STANDBY CURRENT 55uA

FRONT-LIT SPECIFICATIONS

FRONT-LIT CONNECTOR 6 pin FPC

FRONT-LIT NUMBER OF LED 3

FRONT-LIT CIRCUIT MODE Parallel

FRONT-LIT OPERATING VOLTAGE 2.8V-3.3V

FRONT-LIT OPERATING CURRENT ≤45mA

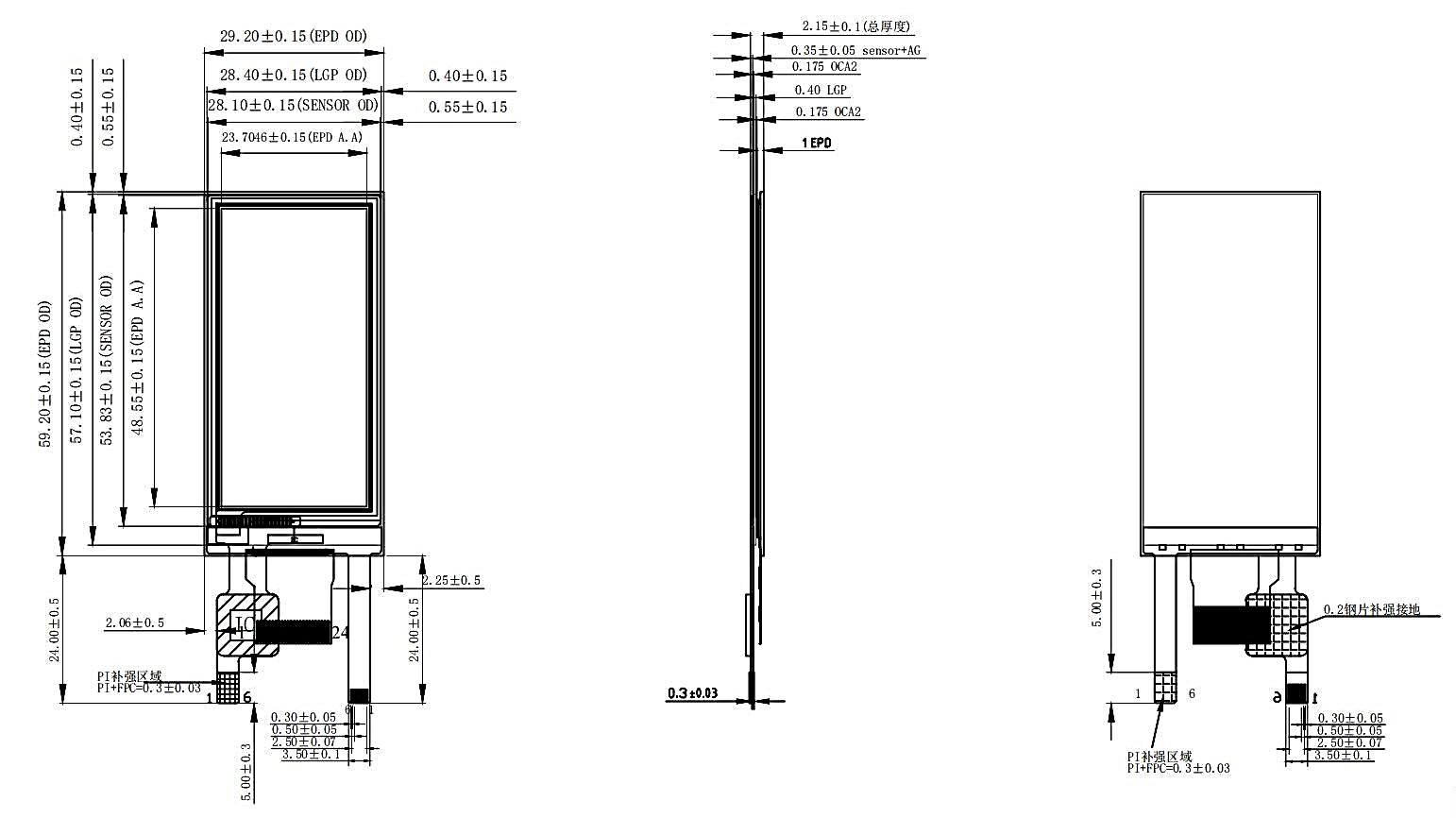

Drawing Details

Custom Front Light & Touch Module Solution

End-to-End Customization

Full-process technical support from requirements analysis to batch production.

Flexible Technical Options

Support for multiple touch technologies, lighting modes, and interface protocols.

Fast Delivery Cycle

Standard custom projects completed in 8-12 weeks with expedited options available.

Technical Specifications Customization

Touch Technology：Capacitive/Infrared/EMR, Multi-touch
Front Light Modes：Cool/Warm light switching, adjustable brightness, zone control
Interface Protocols：SPI/I2C/UART, custom pin definitions
Protection Options：Anti-glare/AF coating/Water-resistant coating
FPC Customization：Flexible length, connector types, routing optimization
Mechanical Integration：OCA bonding, glass thickness, bezel design

Application Areas

Electronic Shelf Labels Smart Office Tablets Medical Devices Industrial HMI Smart Home Control Retail POS Systems

Request Custom Solution

Free technical consultation and sample support available - Over 1,000 companies have chosen our customization services

Driver Solutions

ESP32-FTS02 Adapter Board

A high-performance adapter board designed for touch front-light screens, integrating power management, level conversion, and signal conditioning to offer a plug-and-play solution.

Type-C Interface Touch Driver Front Light Control

View Details

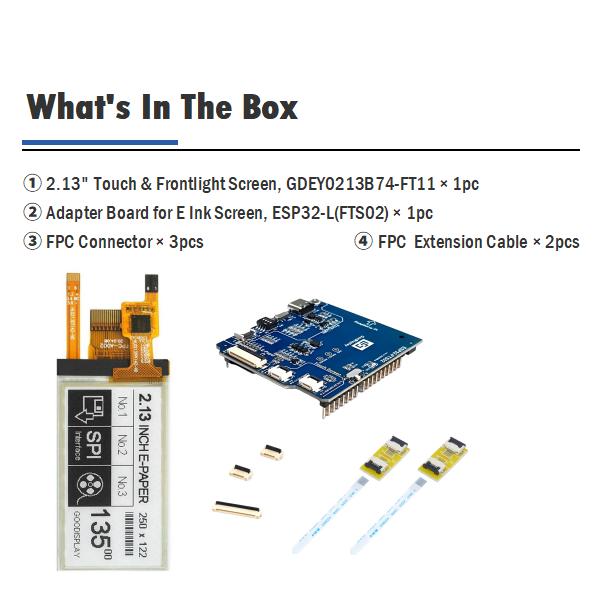

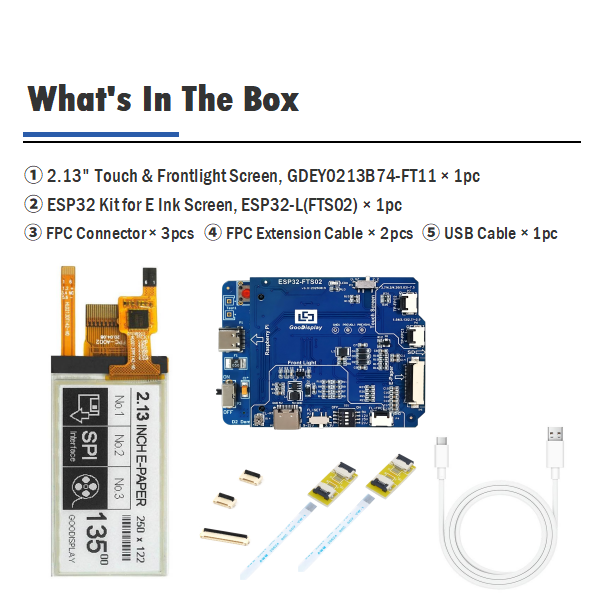

ESP32-L(FTS02) Development Kit

A complete development platform integrating the ESP32 main controller, Wi-Fi/Bluetooth, and providing rich example codes and graphics libraries to accelerate prototype development.

ESP32 Main Controller Wi-Fi/Bluetooth USB-C Debugging

View Details

ESP32E6-E01 Driver Board

A multi-protocol communication board supporting Bluetooth, Wi-Fi, USB, and SD card, suitable for IoT applications and providing a complete wireless display solution.

Bluetooth 5.0 Wi-Fi 6 USB 2.0 Cloud Connectivity

View Details

Connection Guide

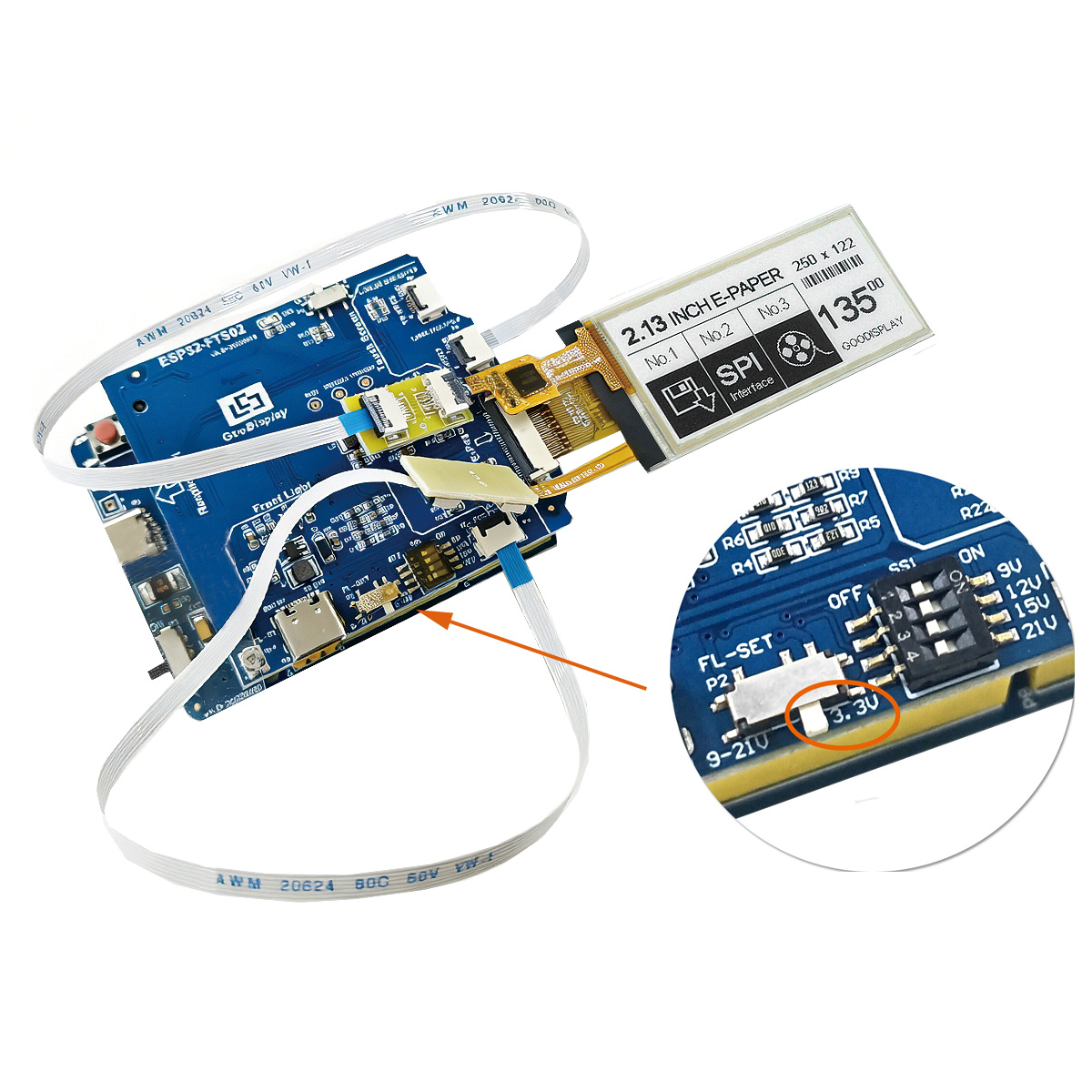

Connection Diagram

Important Safety Notes

• Always use ESD protection when handling the display module
• Keep the display in dry conditions to avoid moisture damage
• Front light operating voltage must be 2.8-3.3V (±5%)
• Do not apply excessive pressure to the touch surface

Files & Download

[PDF] GDEY0213B74-FT11 Specification

[PDF] IC Driver FT6336U Datasheet

[PDF] GDEY0213B74-FT11-Drawing

[RAR] GDEY0213B74-FT11 ESP32 Sample Code

[RAR] GDEY0213B74-FT11 STM32 Sample Code

[PDF] Why can't I download the files?

[PDF] The Latest Catalog
