2.9-Inch Touchscreen ePaper with Frontlight for Crystal-Clear and Interactive Viewing

GDEY029T94-FT01

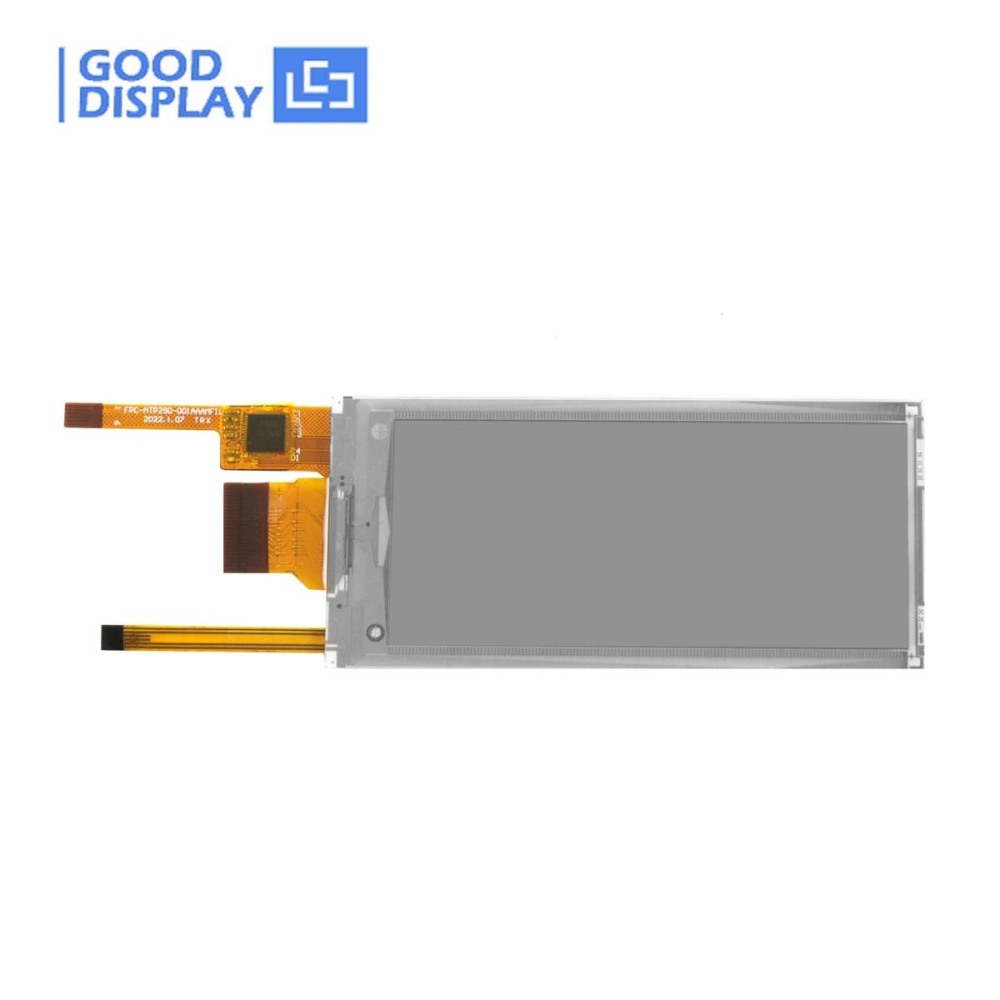

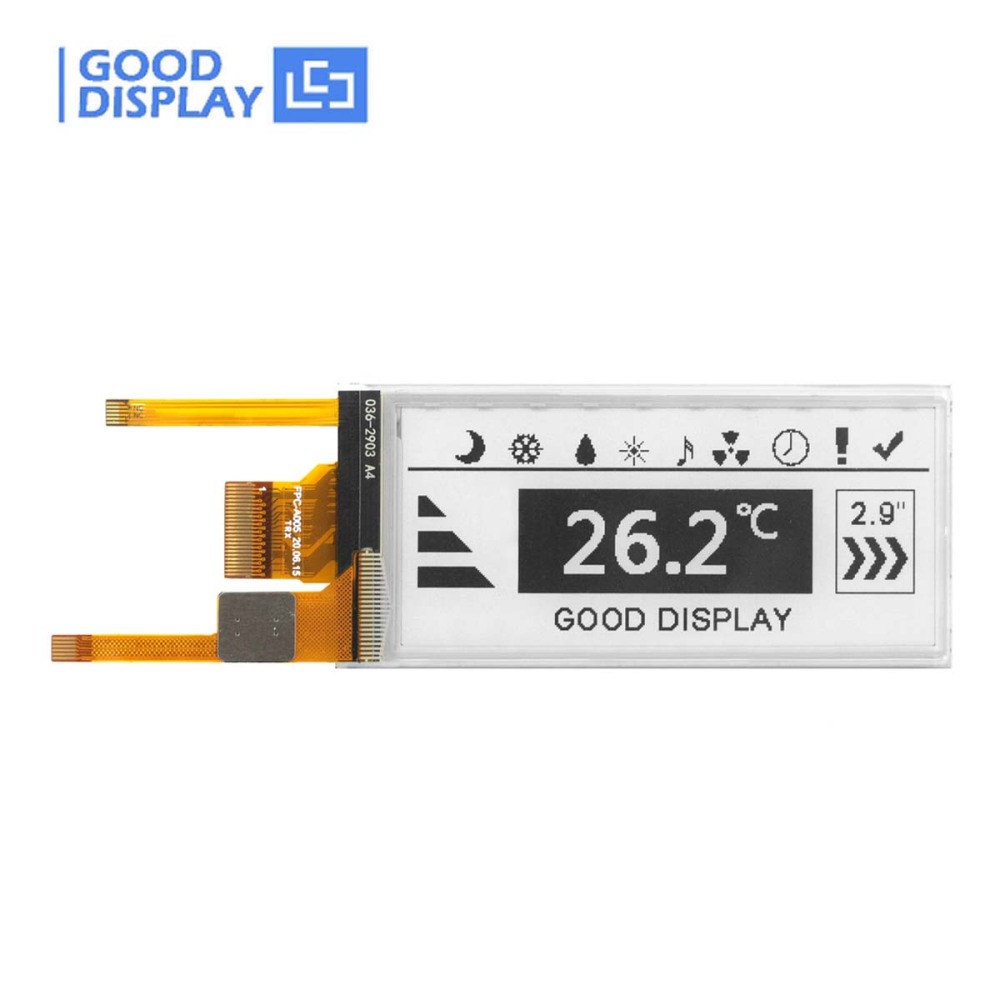

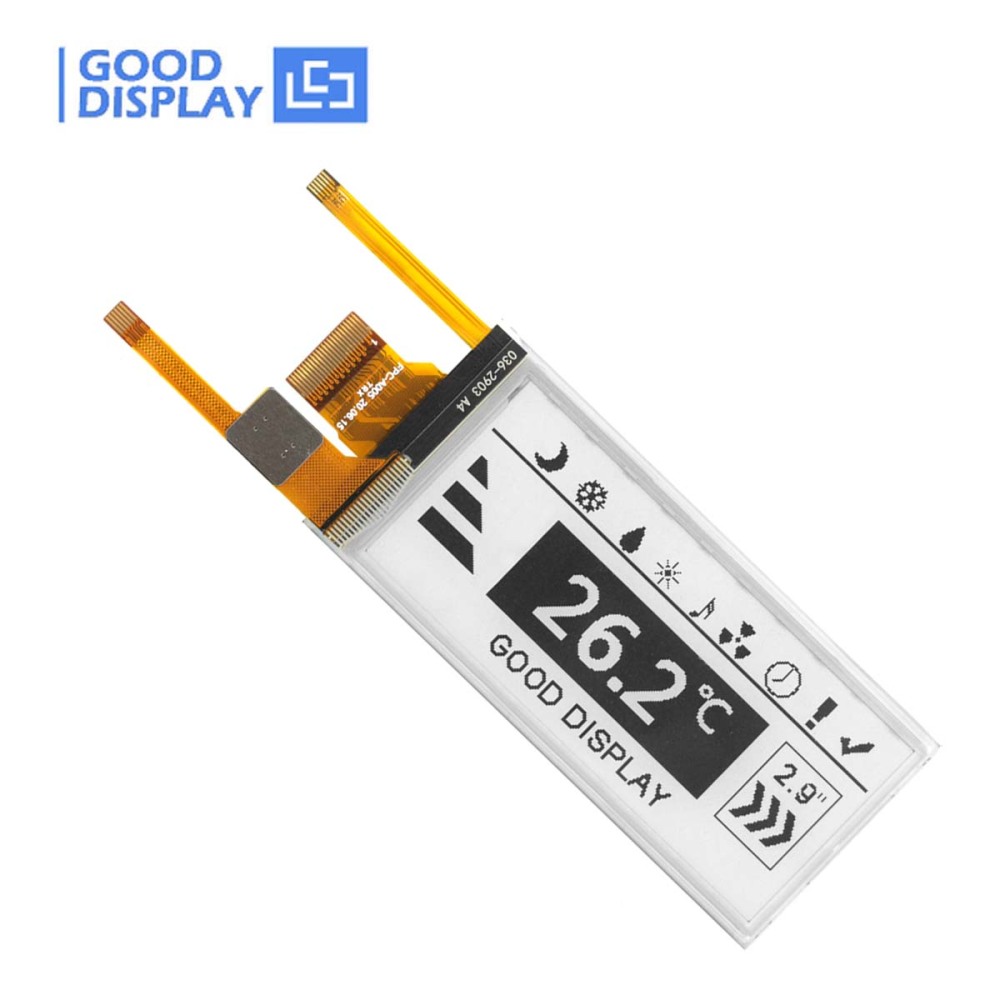

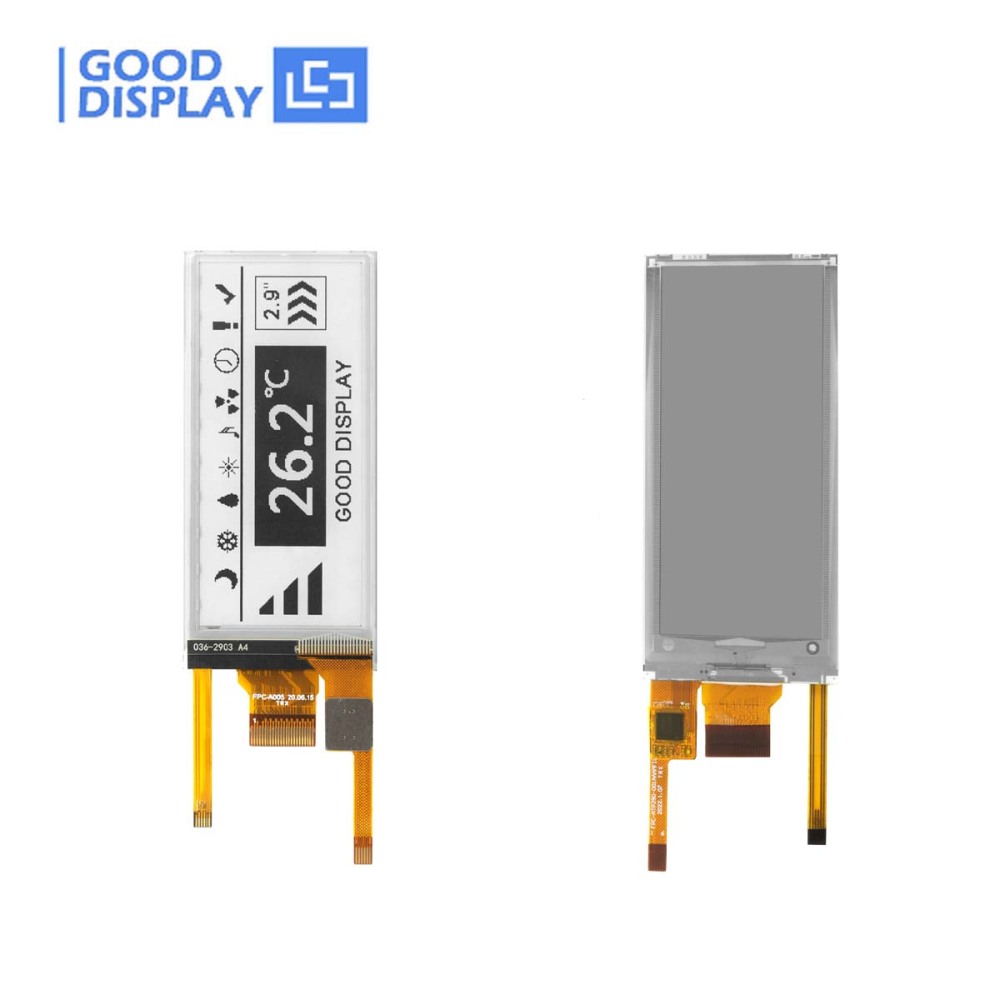

This is a 2.9 inch small e-ink display with 6 pins FPC frontlight and 6 pins FPC touch , 296x128 resolution, SPI interface, Fast update for 1.5s
Price:
USD
$13.82
  • Product:
    EPD
    EPD with adapter board
    EPD with STM32 adapter board
    EPD with STM32 Demo Kit
    EPD with ESP32 adapter board

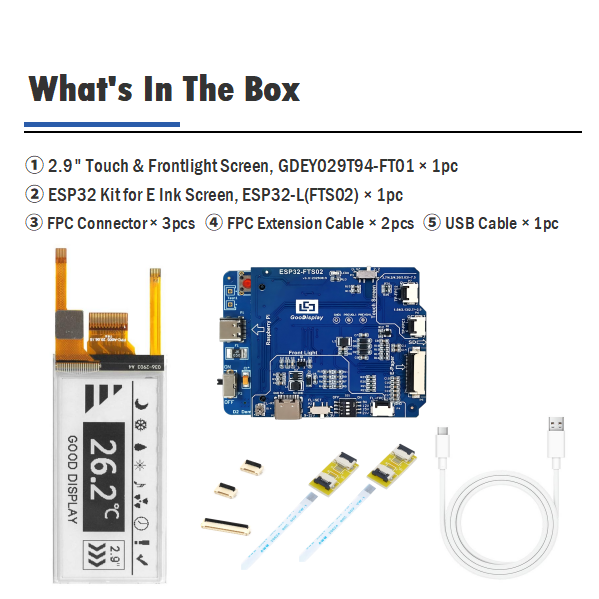

    EPD with ESP32 Demo Kit
Quantity:
-
+
(9 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews(46)

TIP: The front light is not sold separately due to precise bonding requirements. Please purchase the complete bonded product. For temperature details, refer to the display screen specifications.




2.9 inch Touch & Frontlight ePaper Display  Ultimate Portable Reading Solution

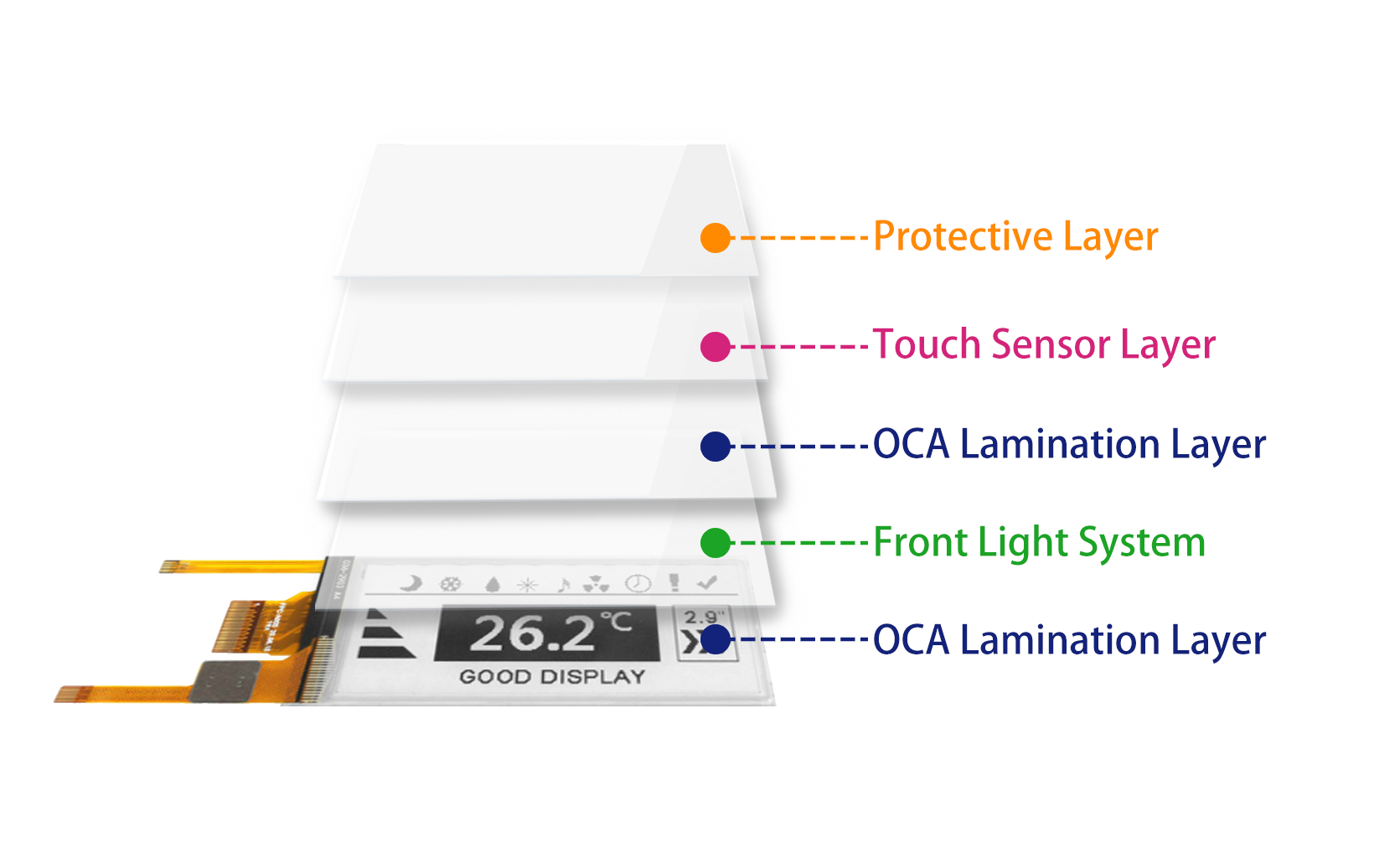

Introducing the innovative 2.9-inch e-paper display GDEY029T94-FT01, featuring 6-pin FPC frontlight and touch, 296x128 resolution, and a fast 1.5s update via SPI interface. This display showcases black and white images indefinitely without power, making it perfect for low-power, solar or battery-operated devices. Ideal for smart home gadgets, wearables, retail tags, and medical displays, it ensures clear readability in any light and seamless user interaction with touch capability. Experience efficient and reliable performance with our advanced e-paper technology.









Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  Power Saver Extraordinaire: Ideal for battery or solar-powered devices, our display keeps your content vivid without draining power.
  ●  Bright in Any Light: Integrated frontlight technology ensures crystal-clear readability, day or night.
  ●  Touch of Innovation: Experience seamless interaction with our responsive touchscreen, enhancing your user experience.
  ●  Speedy Updates: Refresh your content in just 1.5 seconds, ensuring quick and efficient performance every time.
  ●  Crystal Clear Resolution: Enjoy crisp, high-resolution images and text with our 296x128 display.
  ●  Forever Visible: Your image remains indefinitely without power, making it perfect for essential, always-on displays.













Technical Details

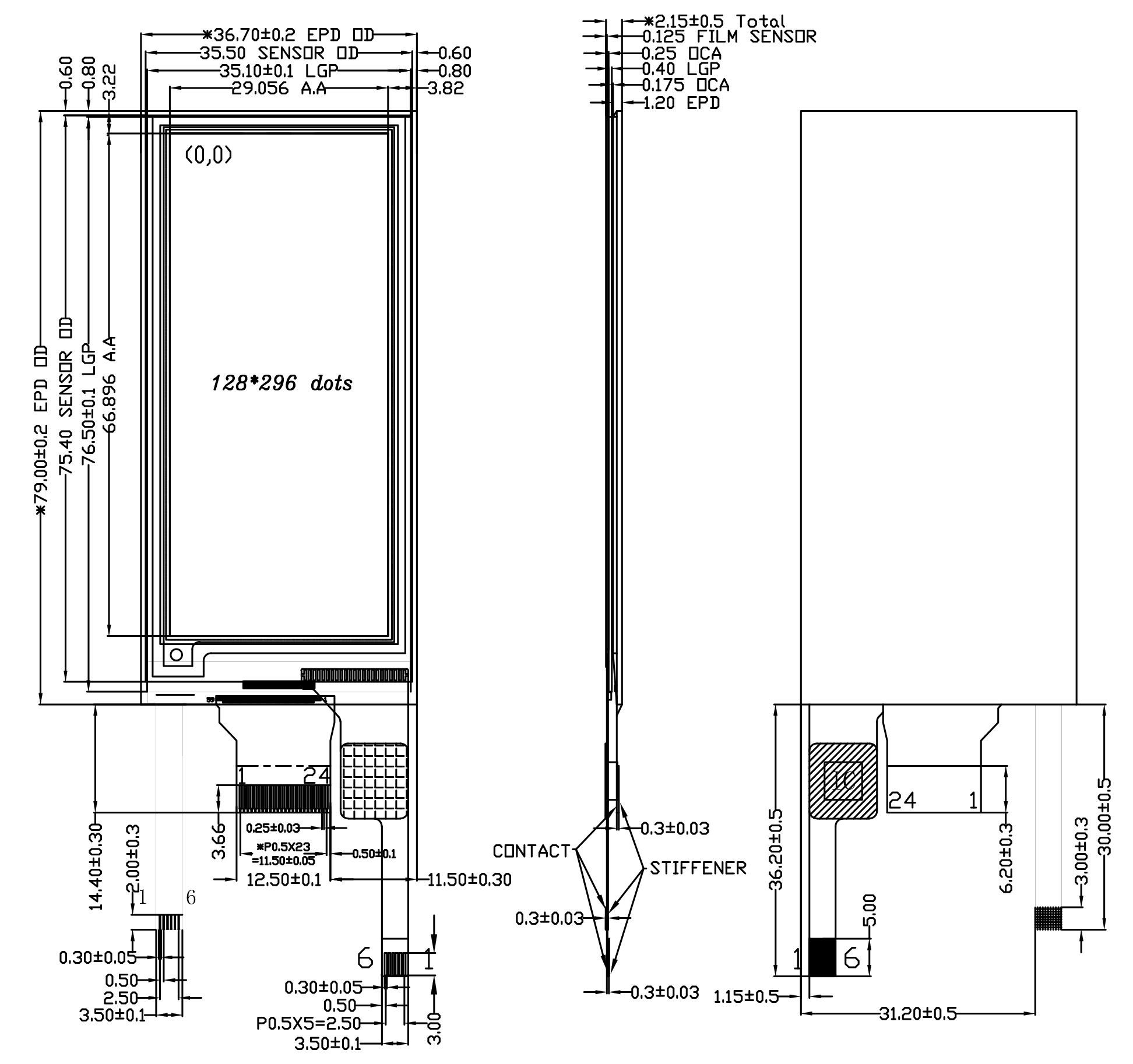

Please refer to the product drawings for detailed dimensions















Product Specifications









Please refer to the product specifications for more details









PART NUMBER GDEY029T94-FT01 CONNECTOR ePaper: 24 Pin FPC
Front-light: 6 pin FPC
Touch Panel: 6 pin FPC
SIZE 2.9 inch FRONT LIGHT CONNECTION LED parallel
IC SSD1680 COLOR Black,White
OUTLINE SIZE(mm) 79x36.7x2.3 MAX GRAYSCALE 4
RESOLUTION 296x128 INTERFACE SPI
ACTIVE SIZE(mm) 66.896x29.056 FULL REFRESH(s) 3
PIXEL PITCH(mm) 0.227x0.226 PARTIAL REFRESH TIME(s) 0.3
OPERATING TEMP. 0℃~50℃ TIME OF FAST REFRESH(s) 1
STORAGE TEMP. -25℃~70℃ POWER CONSUMPTION OF THE REFRESH(mW) 9

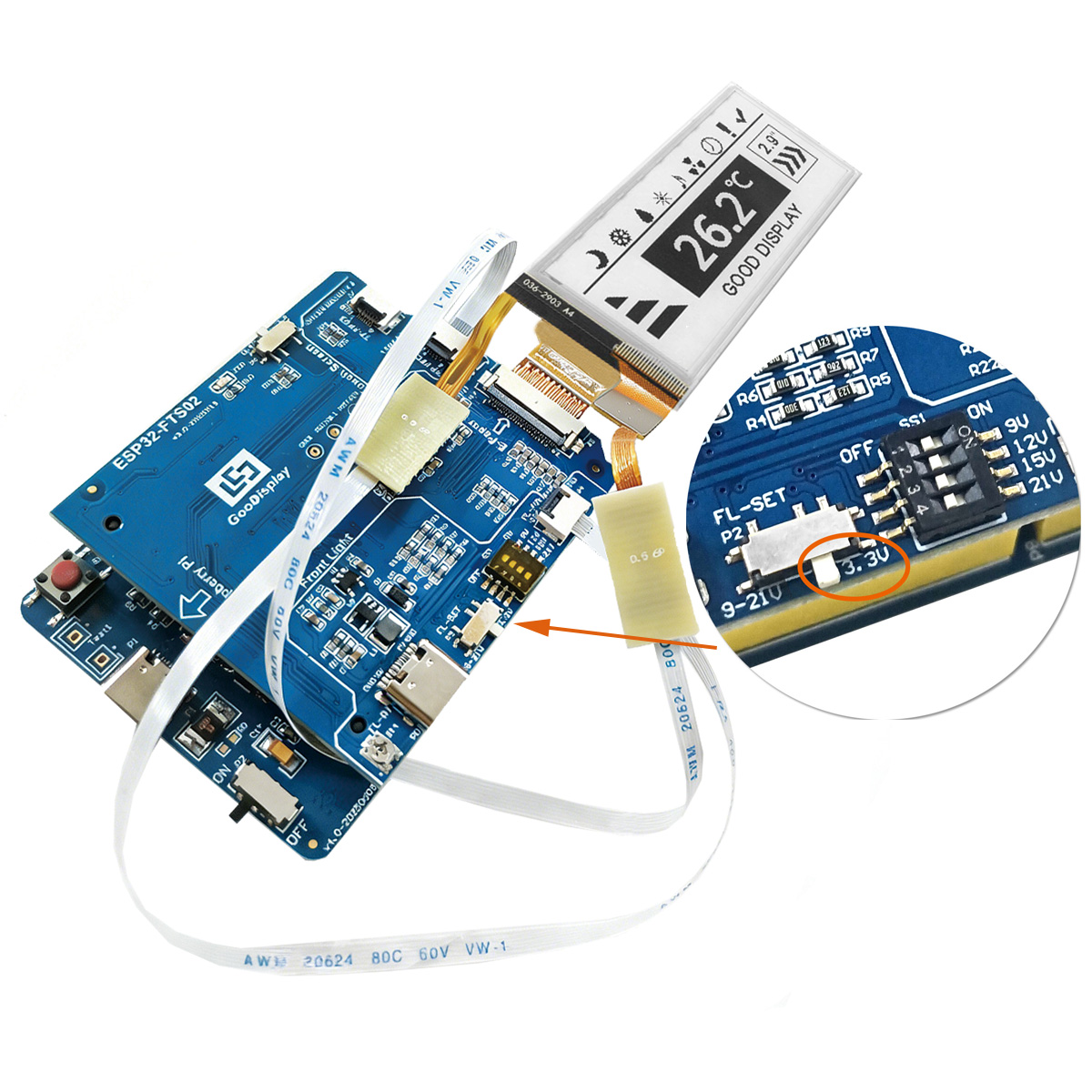

Matching Driver Board



To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.





a. DESPI-F01(Front-light Driver Board)

b. STM32-T01 (STM32 adapter Board)

c. DESPI-L(T01) (STM32 Demo Kit)



d. ESP32-T01 (ESP32 adapter Board)

e. ESP32-L(T01) (ESP32 Demo Kit)










Every day is Earth Day





You don't need to be an environmental scientist to make sustainable choices.
At Good Display, we passionately integrate sustainability into the production of e-paper.













Substitute for Paper Usage

Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.

Device Packaging
95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.

Energy Efficiency
Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.
