☆ INTRODUCTION

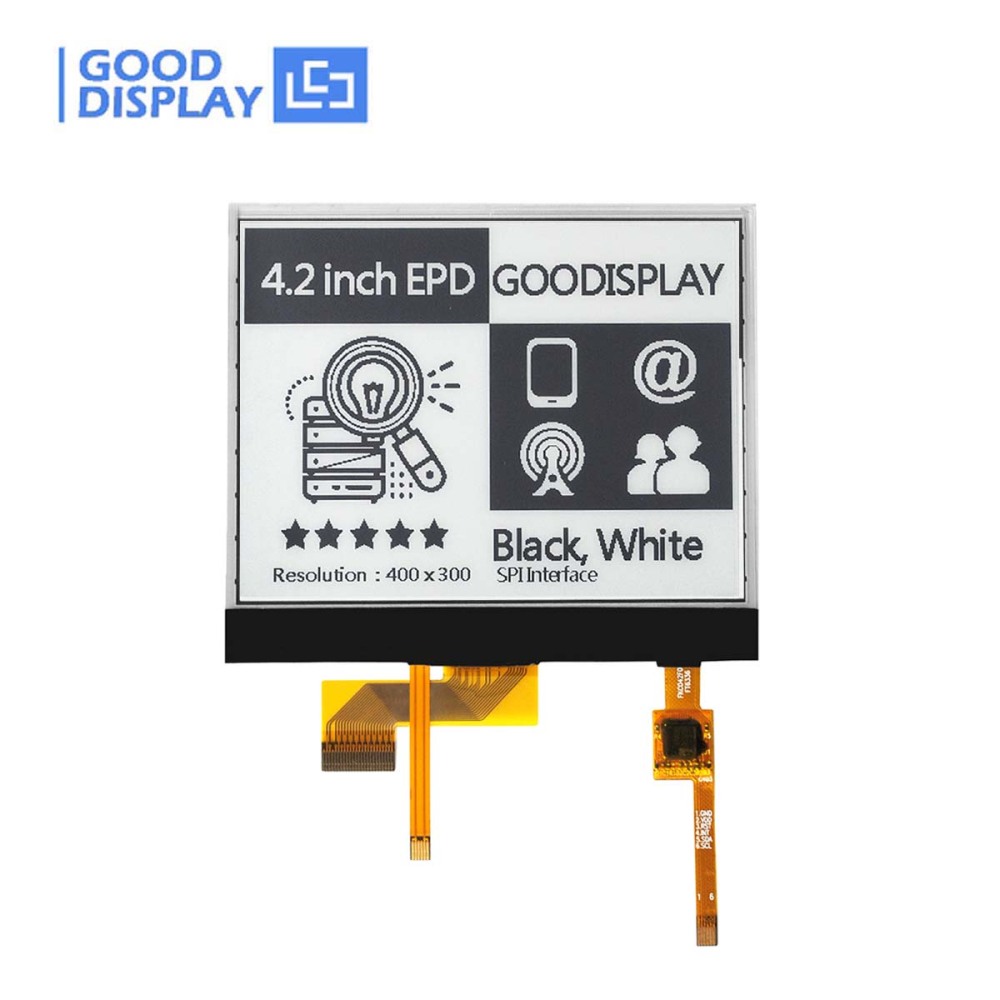

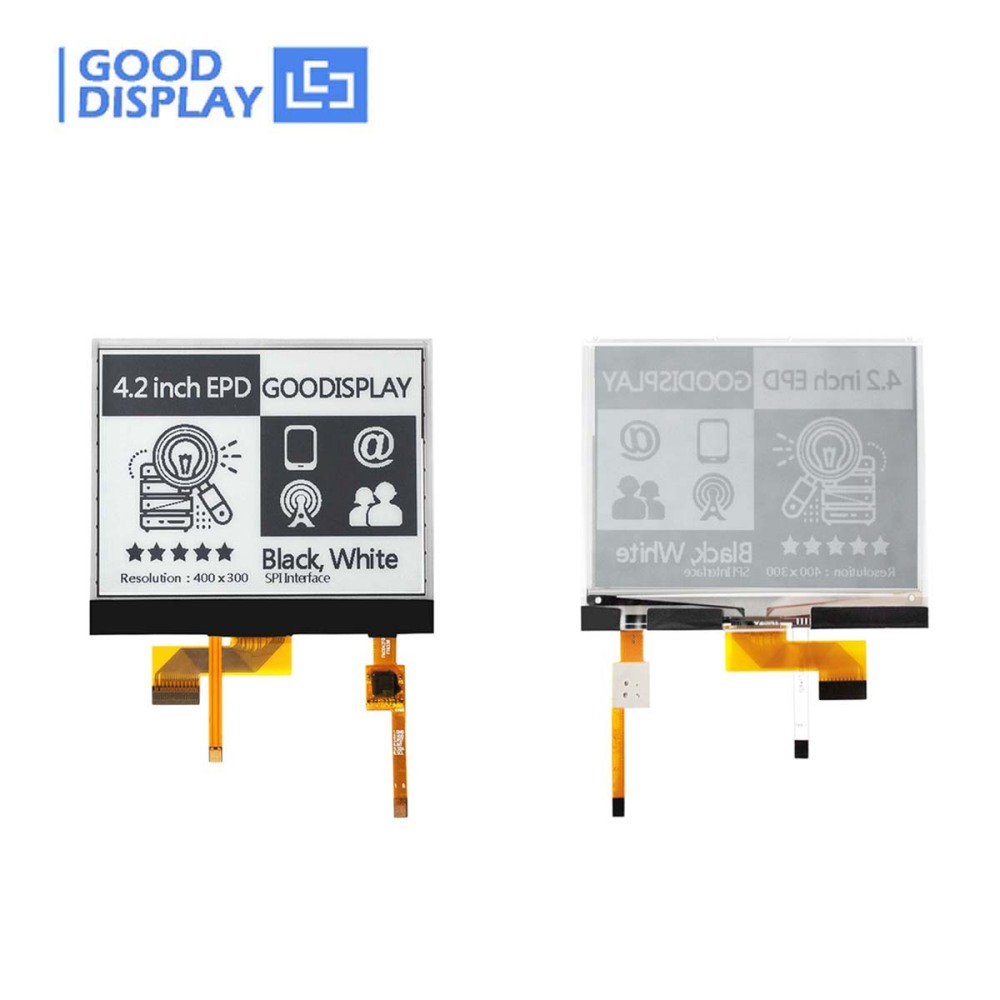

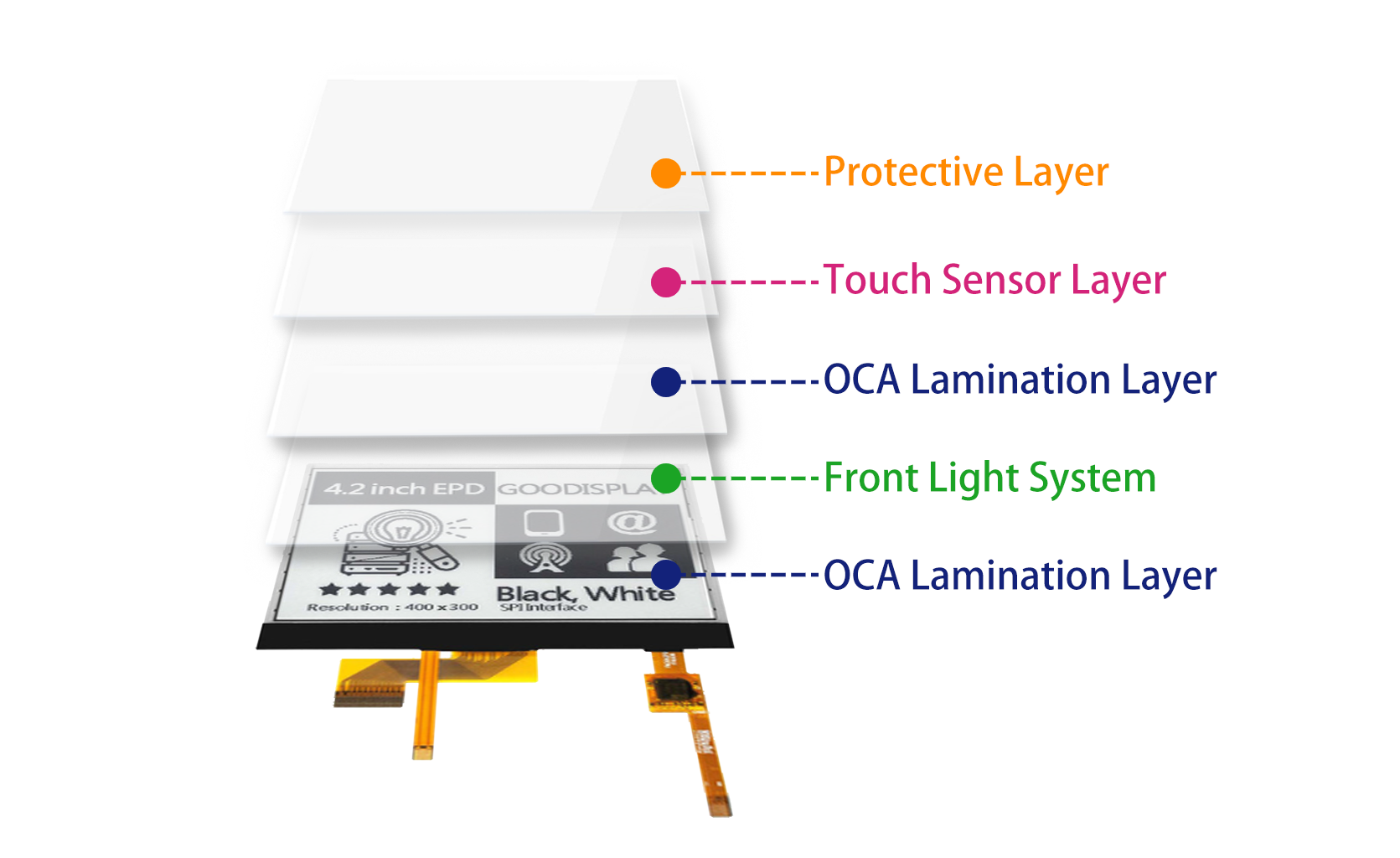

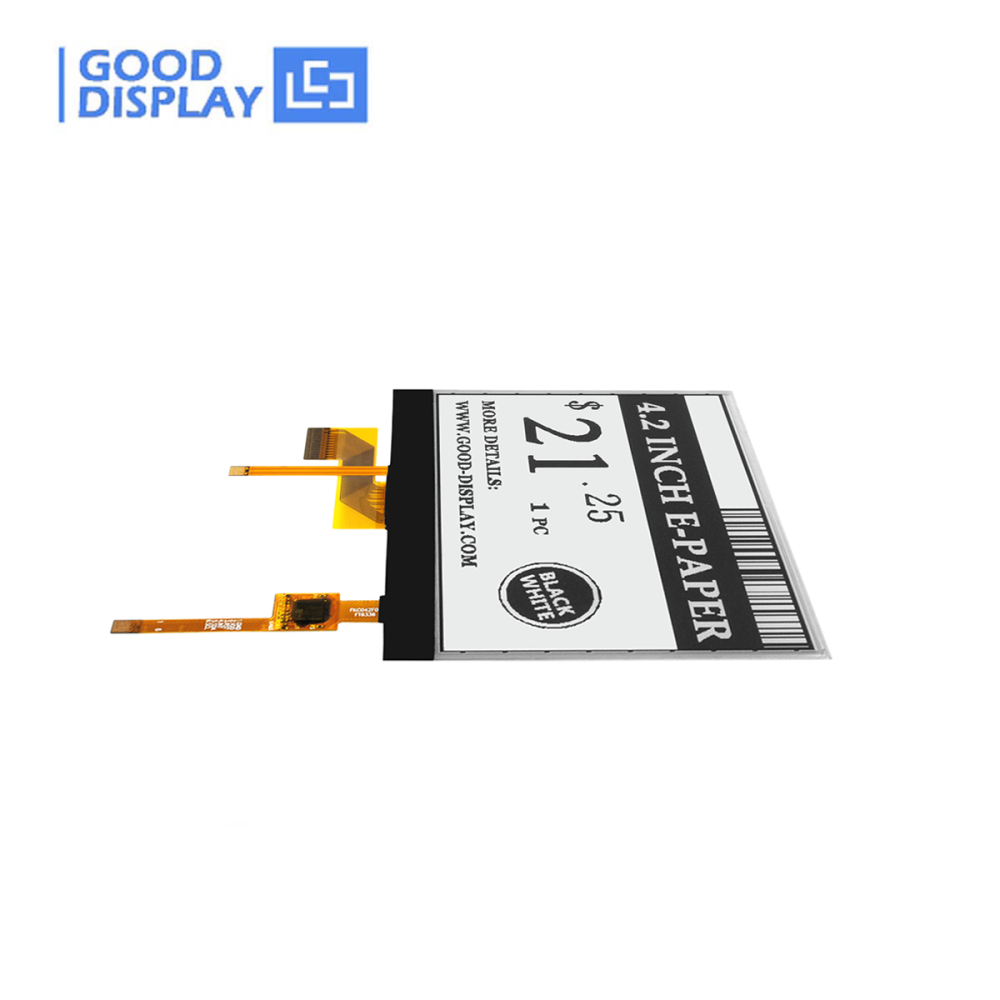

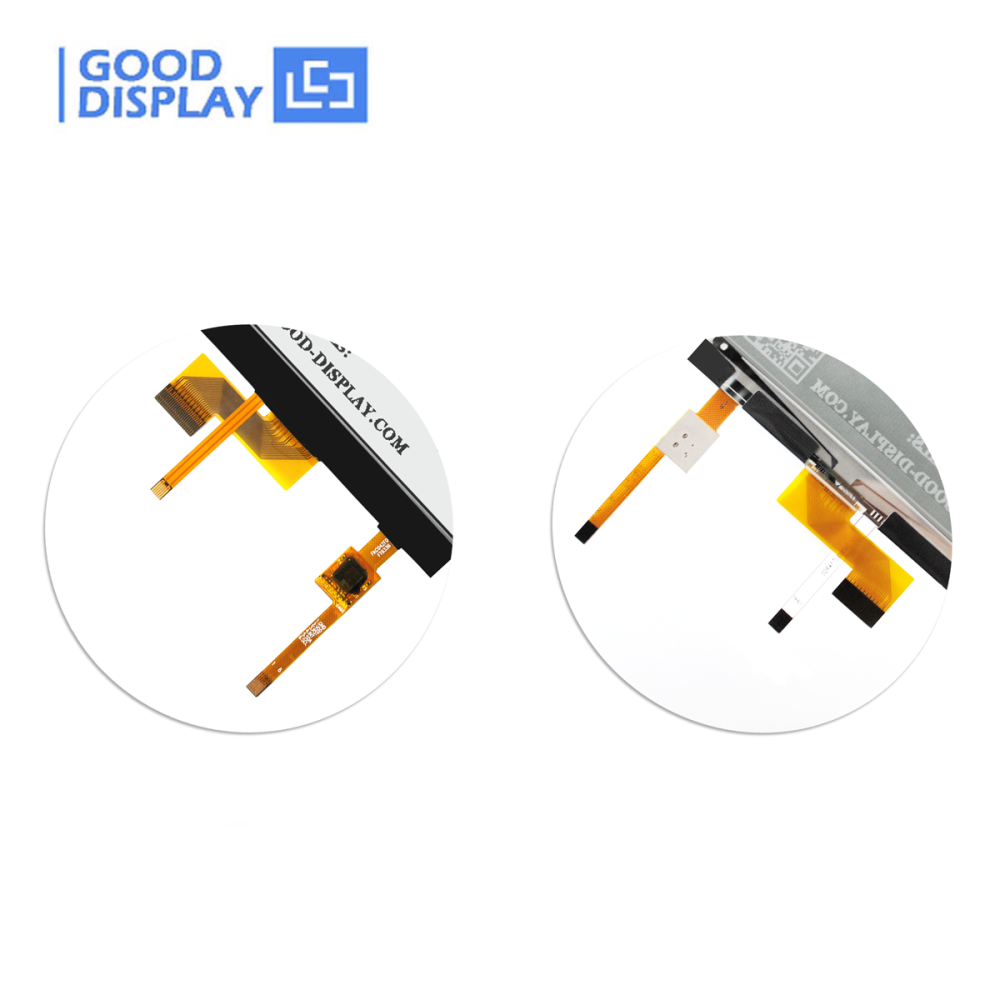

This is a 4.2 inch small e-ink display with 6 pins FPC frontlight and 6 pins FPC touch, 400x300 resolution, SPI interface, and the display is capable to display images with black and white content. It supports 3s full screen update, 0.42s partial screen update, and 1s/1.5s fast update. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. Your image holds indefinitely without power – put up your image, then shut down the power.
This 4.2 inch e-paper display GDEY042T81-FT02 is perfect for low power touchble devices, especially in dark environment.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
Package A | + | ||||||||

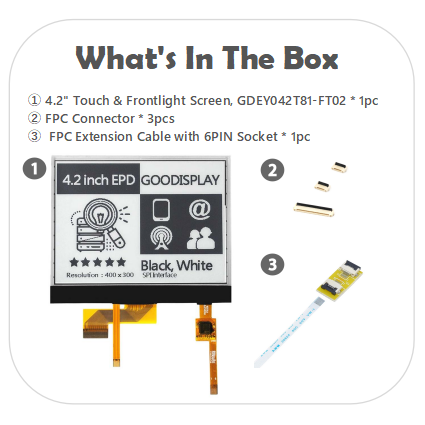

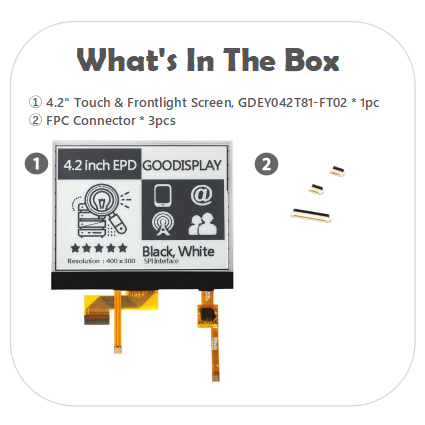

a. 4.2 inch e-paper display Morochrome SPI e-ink, GDEY042T81-FT02 * 1pc | b. FPC Connector * 3pcs | ||||||||
|
|||||||||
Package B | + | + | |||||||
a. 4.2 inch e-paper display Morochrome SPI e-ink, GDEY042T81-FT02 * 1pc | b. FPC Connector * 3pcs | c. Epaper HAT Connection Adapter Board Frontlight Drive Board, DESPI-F01 *1pc | |||||||
|
|||||||||
Package C | |||||||||
a. 4.2 inch e-paper display Morochrome SPI e-ink, GDEY042T81-FT02 * 1pc | b. FPC Connector * 3pcs | c. Multifunction E-paper HAT connection STM32 adapter board, STM32-T01 *1pc | |||||||
|
|||||||||
Package D | + | + | + | ||||||

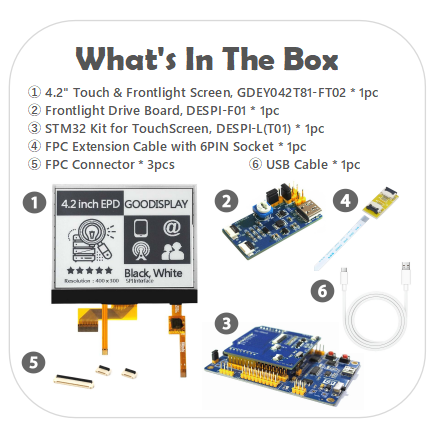

a. 4.2 inch e-paper display Morochrome SPI e-ink, GDEY042T81-FT02 *1pc | b. FPC Connector * 3pcs | c. STM32 development board Type-C interface ultra-low power consumption for touch e-ink epaper, DESPI-L(T01) *1pc | d. USB Cable *1pc | ||||||
|
Package E | |||||||

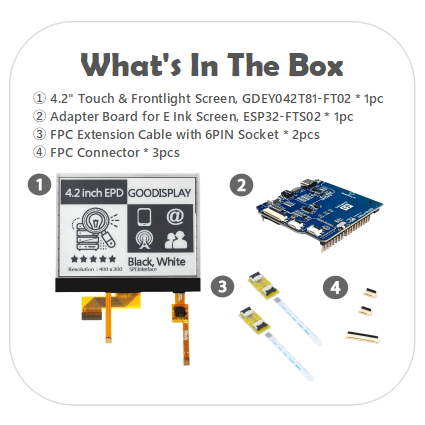

a. 4.2 inch e-paper display Morochrome SPI e-ink, GDEY042T81-FT02 * 1pc | b. FPC Connector * 3pcs | c. Multifunction E-paper HAT connection ESP32 adapter board, ESP32-T01 *1pc | |||||
|

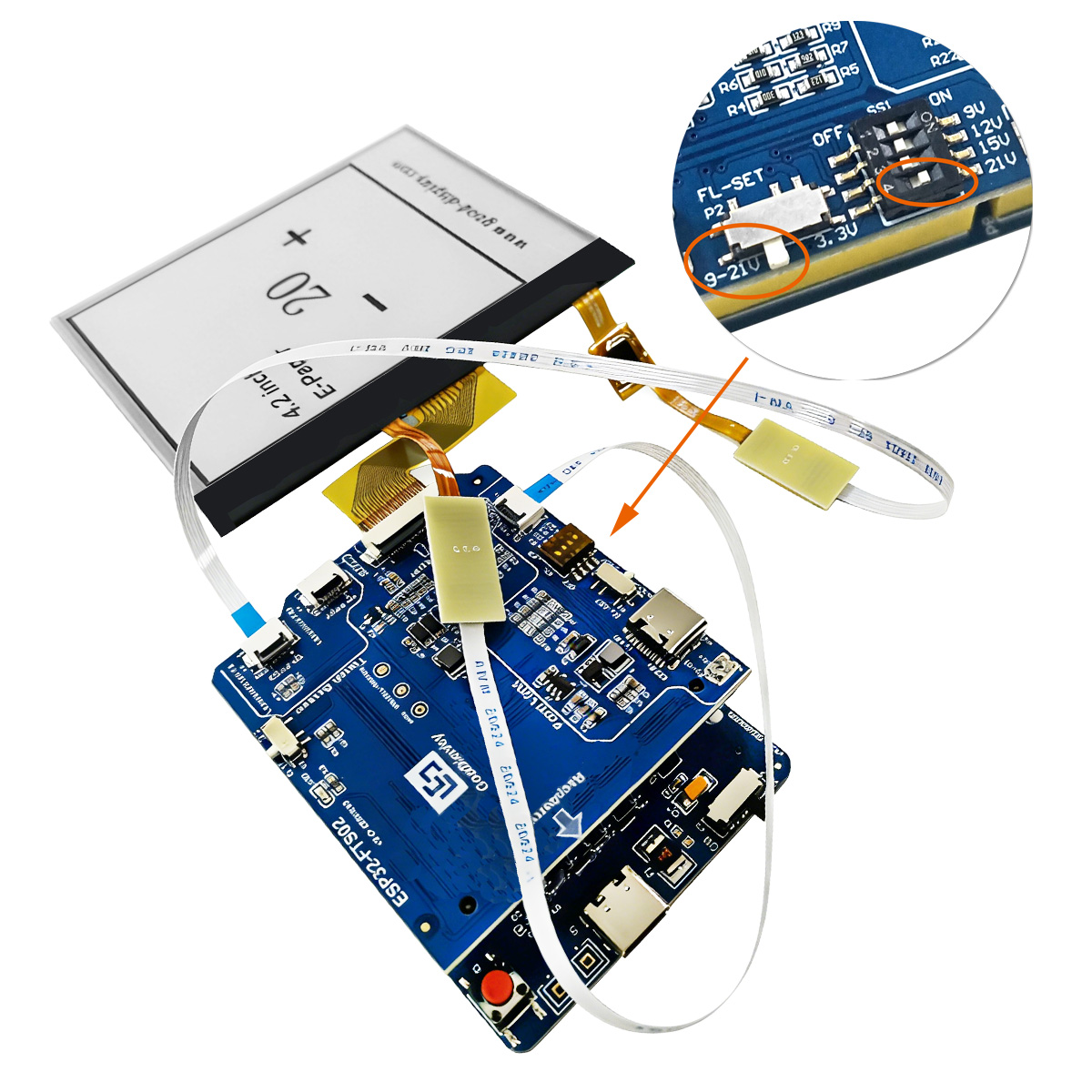

|||||||
Package F | + | + | + | ||||

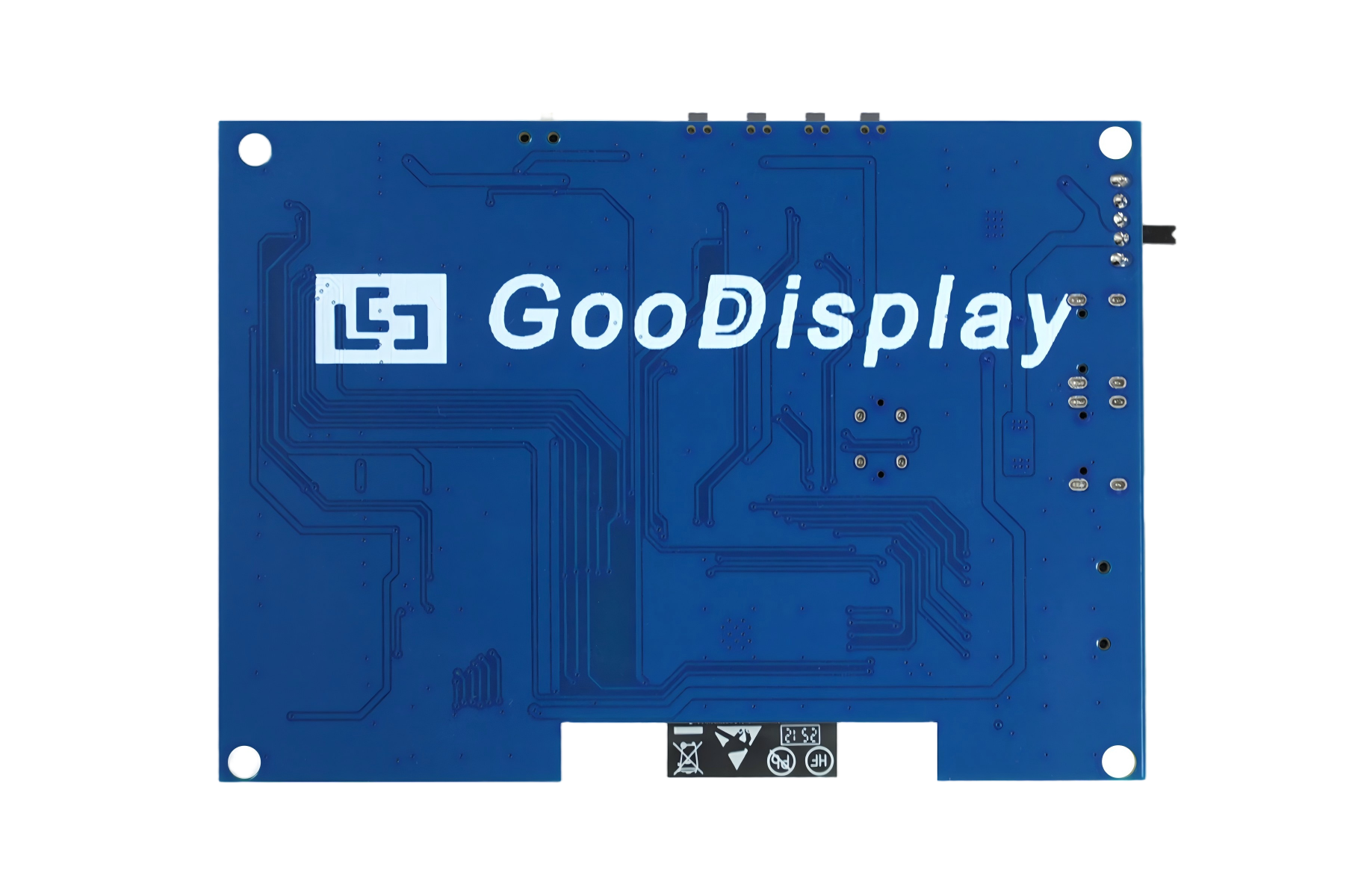

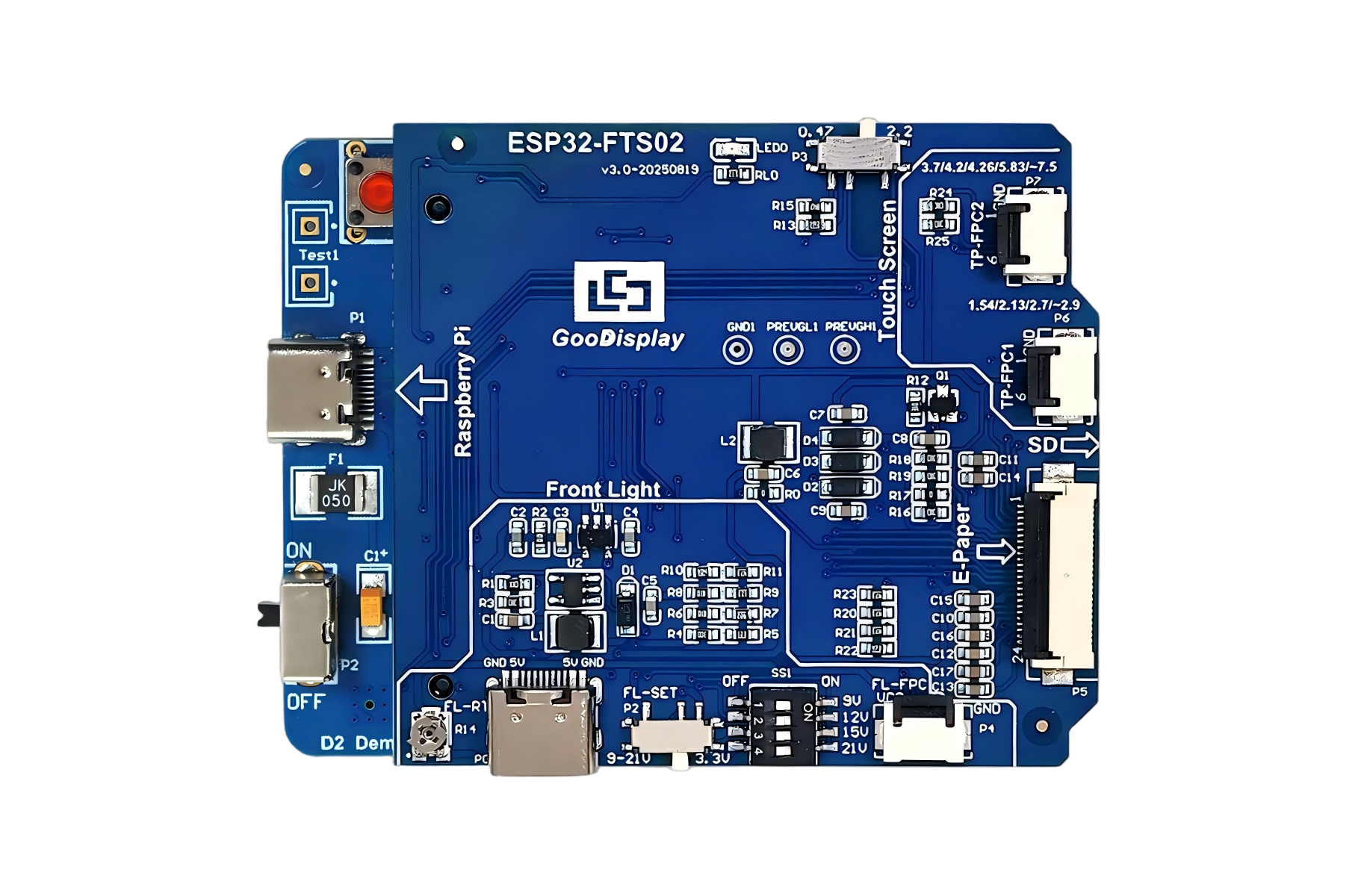

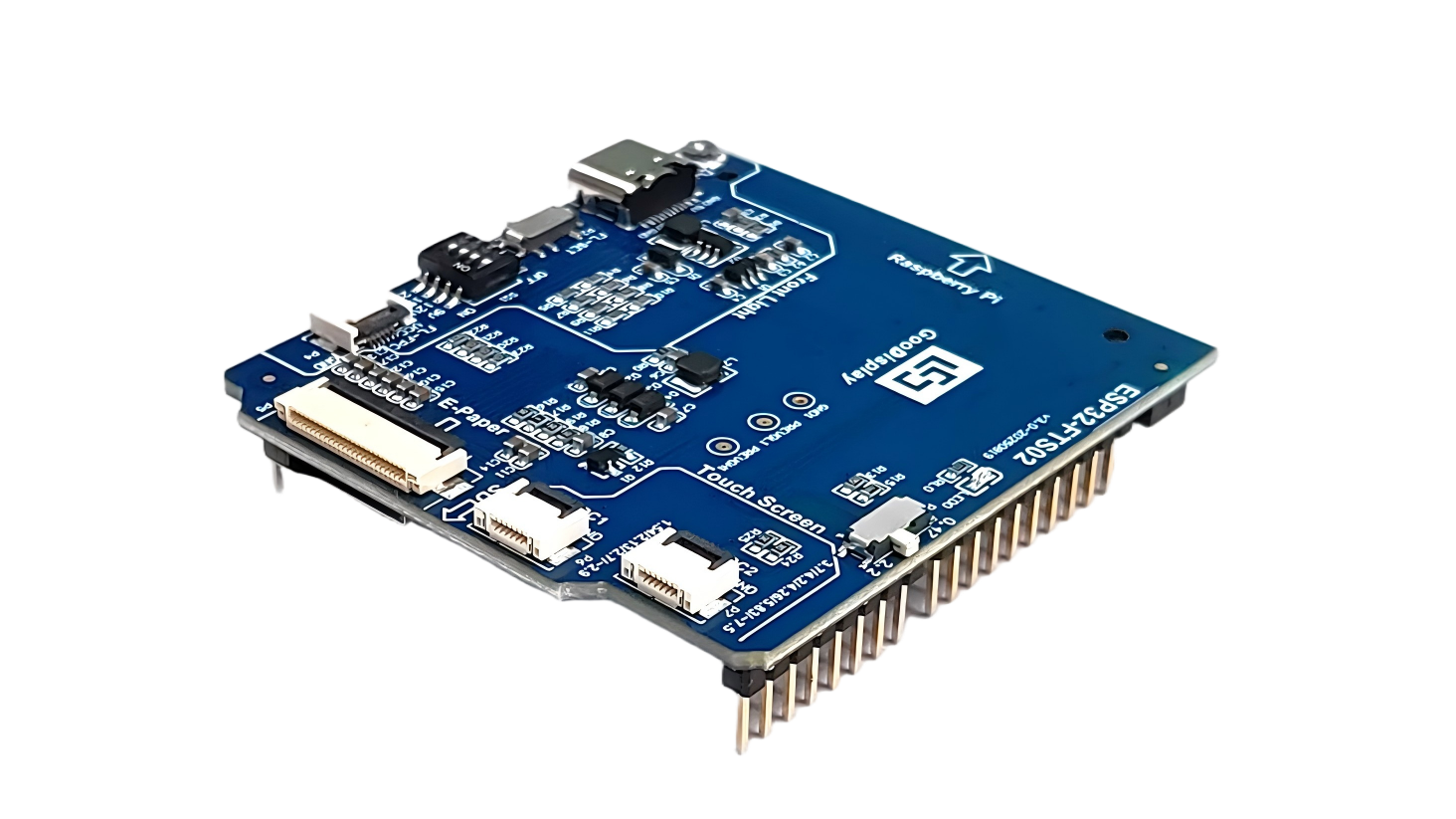

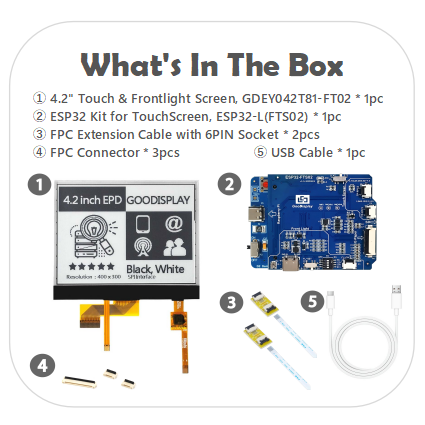

a. 4.2 inch e-paper display Morochrome SPI e-ink, GDEY042T81-FT02 *1pc | b. FPC Connector * 3pcs | c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02) *1pc | d. USB Cable *1pc |
☆ MAIN PARAMETERS
PART NUMBER |
GDEY042T81-FT02 |
||
SIZE |
4.2 inch |
CONNECTOR | 24 Pin FPC |
TYPE |
Dot Matrix |
MAX GRAYSCALE | 2 |
IC |
SSD1683 |
COLOR | Black,White |
RESOLUTION |
400x300 (DPI:120) |
INTERFACE | SPI |
OUTLINE SIZE(mm) |
91x77x2.25 |
FULL SCREEN UPDATE(s) | 3 |
ACTIVE SIZE(mm) |
84.8x63.6 |
PARTIAL SCREEN UPDATE(s) | 0.42 |
PIXEL PITCH(mm) |
0.212x0.212 |
FAST UPDATE(s) | 1/1.5 |
OPERATING TEMP. |
0℃~50℃ |
POWER CONSUMPTION OF THE REFRESH(mW) | 13.2 |
STORAGE TEMP. | -25℃~70℃ | STANDBY POWER CONSUMPTION (mW) | 0.26 |
VOLTAGE OF FRONT-LIGHT | ≤21V | VOLTAGE OF TOUCH | 2.8V-3.6V |
CONNECTOR OF FRONT LIGHT | 6 Pin FPC | CONNECTOR OF TOUCH | 6 Pin FPC |
TOUCH IC | FT6336 | NUMBER OF CHANNELS | S26 |
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● Support 1s/1.5s fast update and 0.42s partial screen update
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor.
● Color Optional. We also have other color for you to choose.
● STM32-T01 (E-ink Display HAT)
● DESPI-L(T01) (STM32 Platform/Universal)
● ESP32-L(T01) (WiFi / Bluetooth)
● GDEY042T81-FT02_Specification
● GDEY042T81-FT02 ESP32 Sample Code
● GDEY042T81-FT02 STM32 Sample Code
● Demo code for 4.2 inch touch panel FT6336

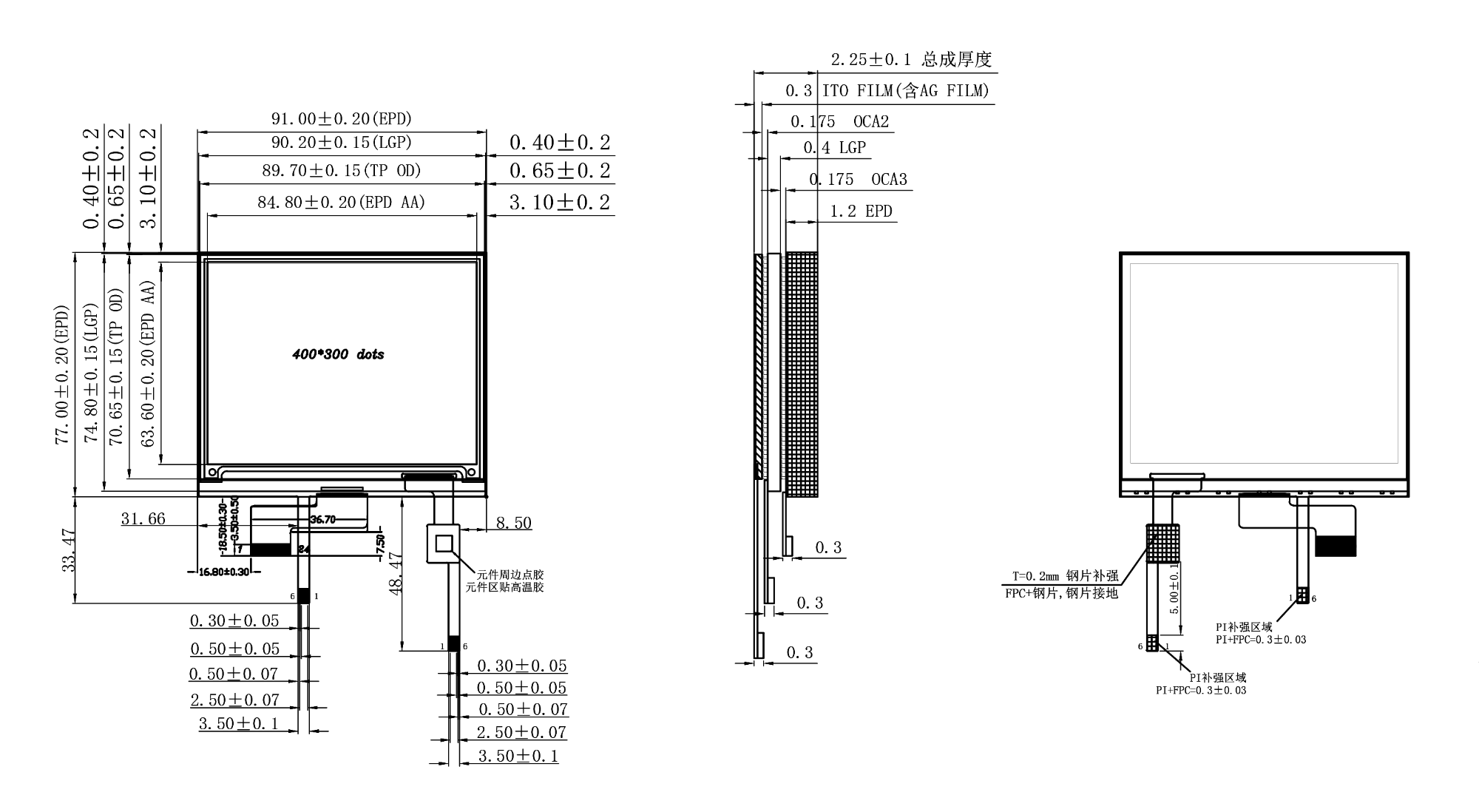

● GDEY42T81-FT02-Drawing
● GDEY042T81-T02 ESP32 Sample Code
Thank you for your interest in our product. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
