Home > Touch & Front-light > 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
1/1
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
Share:
Limited Offer!
3 sold

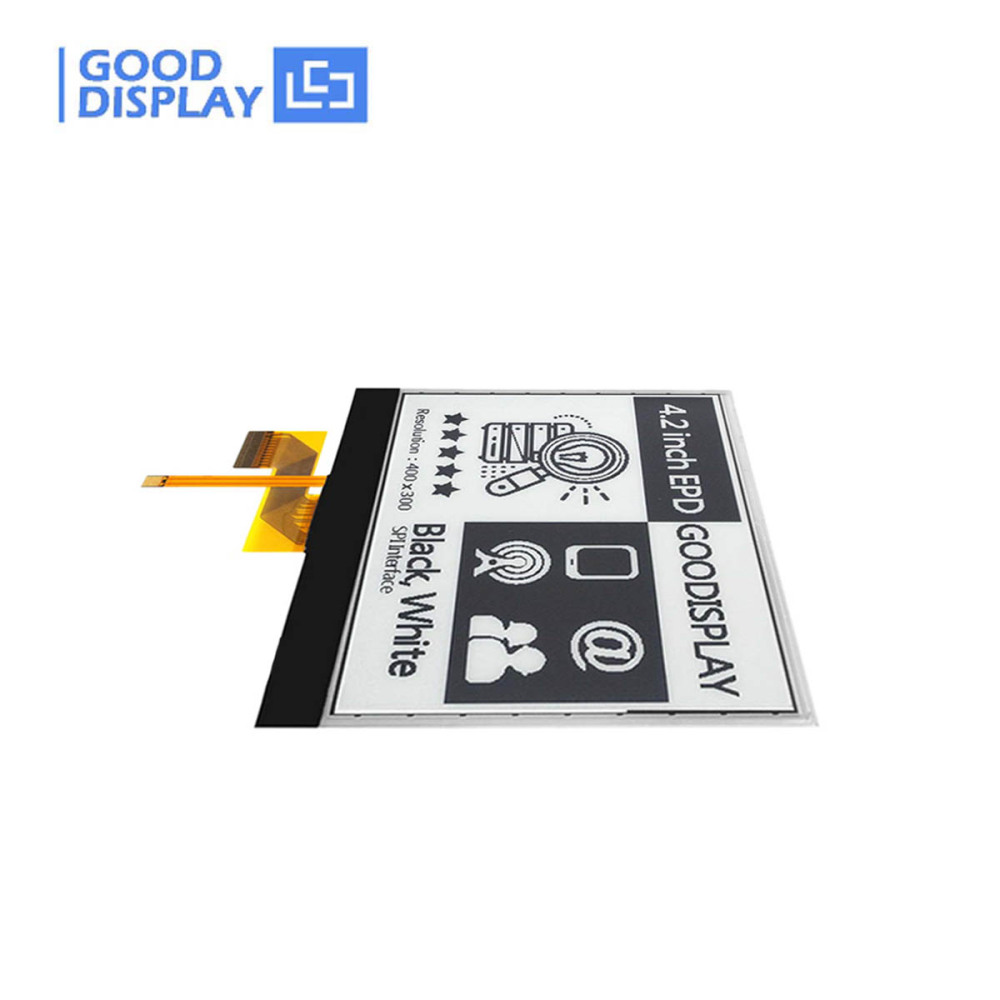

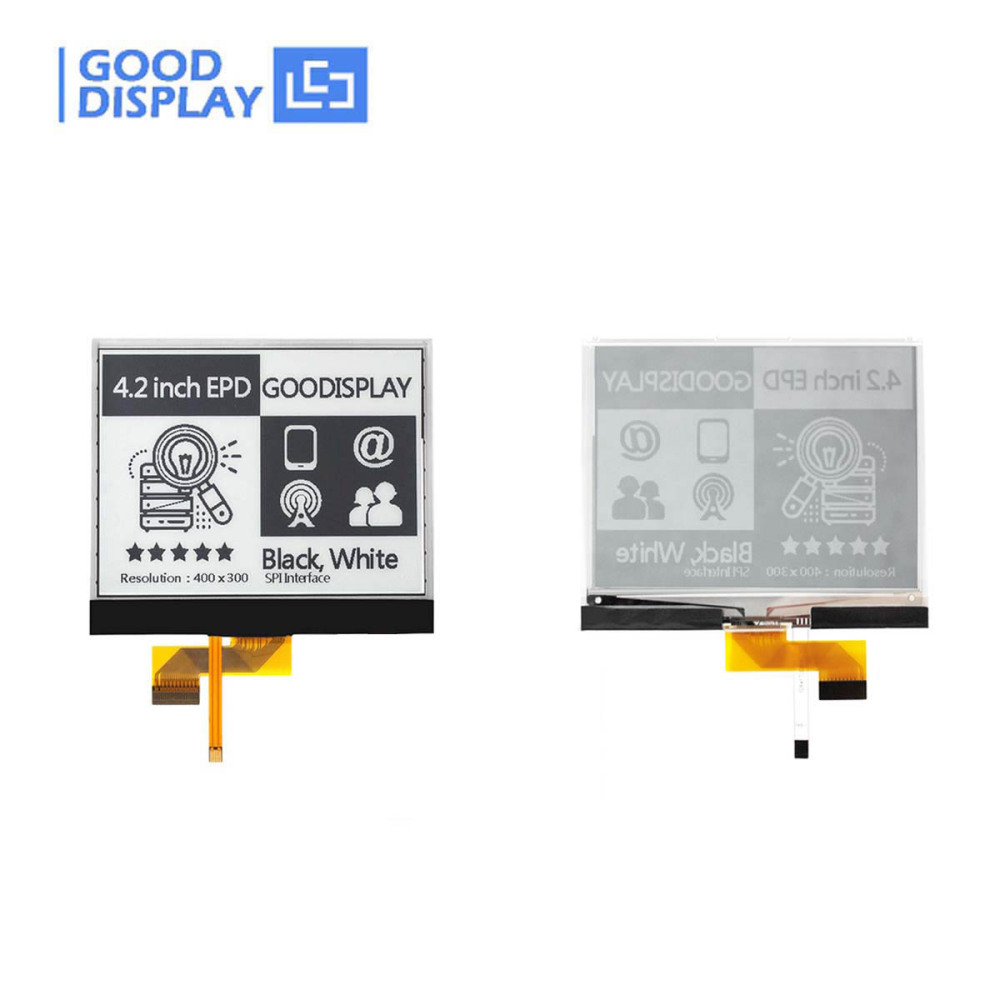

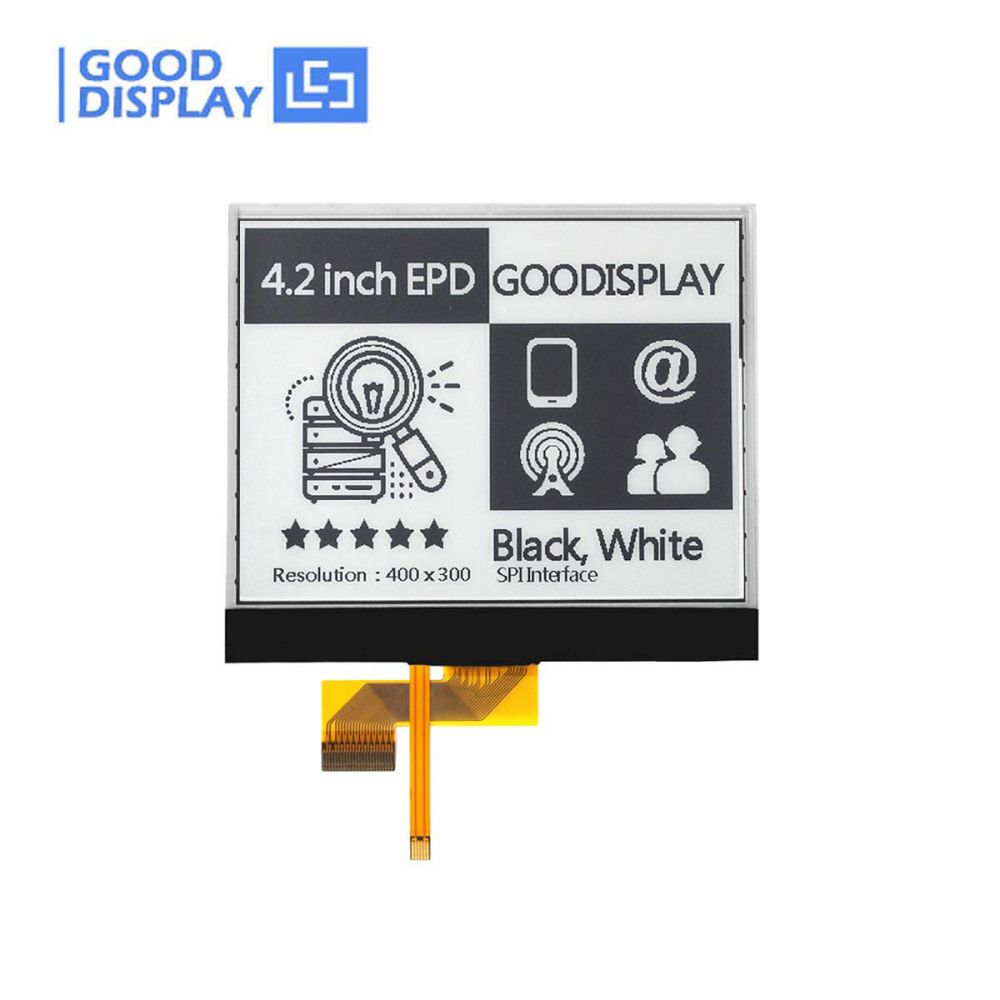

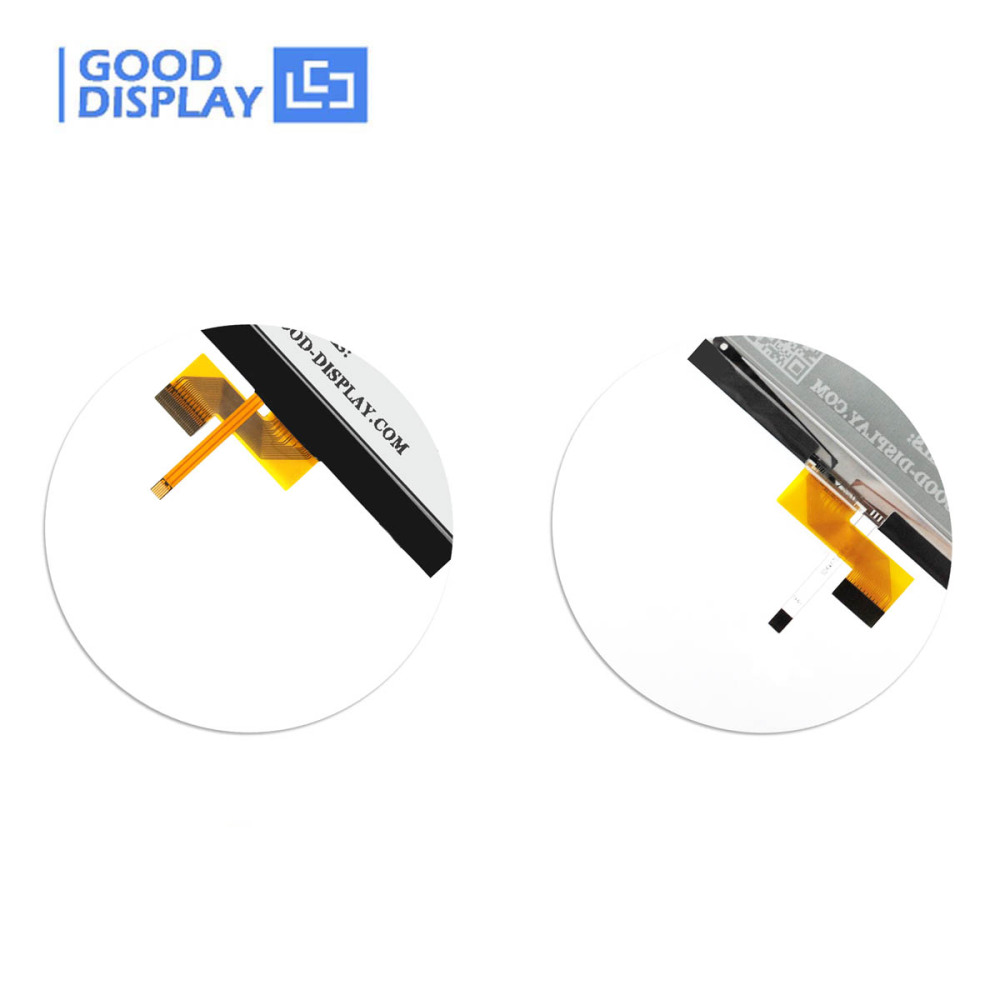

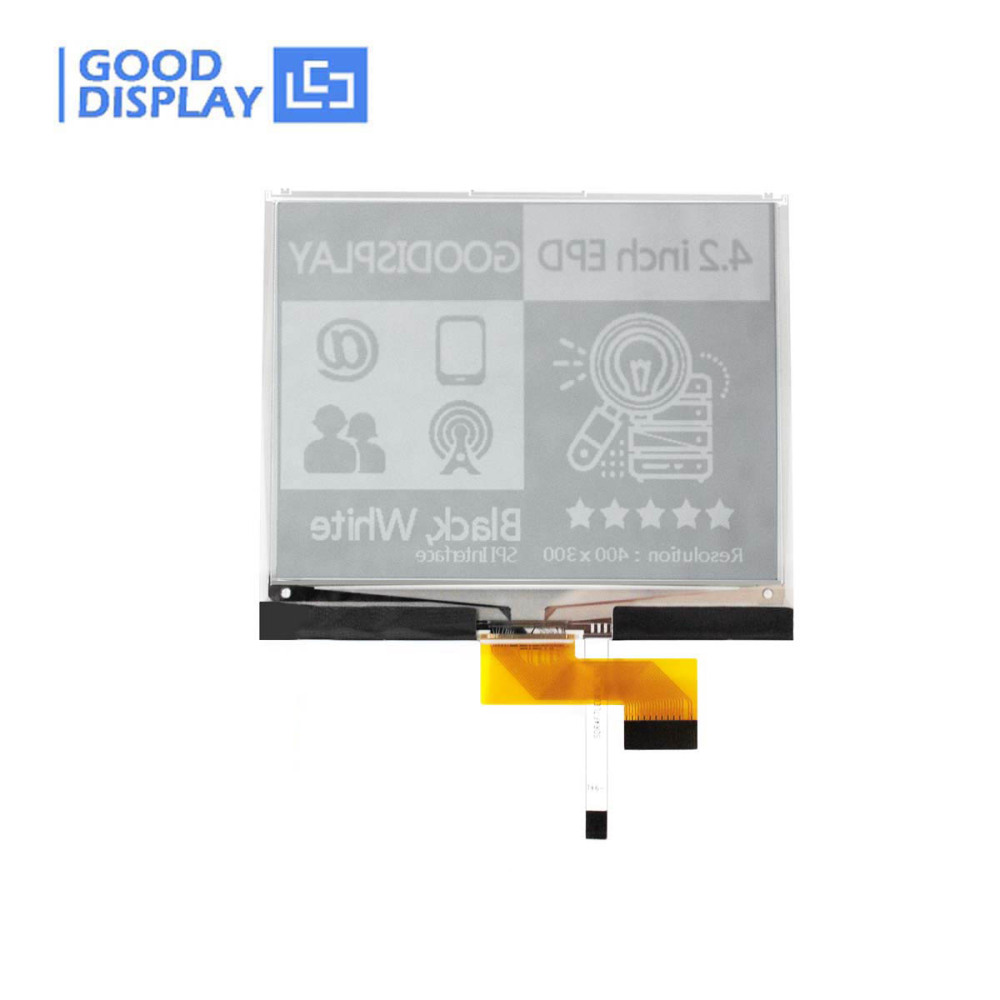

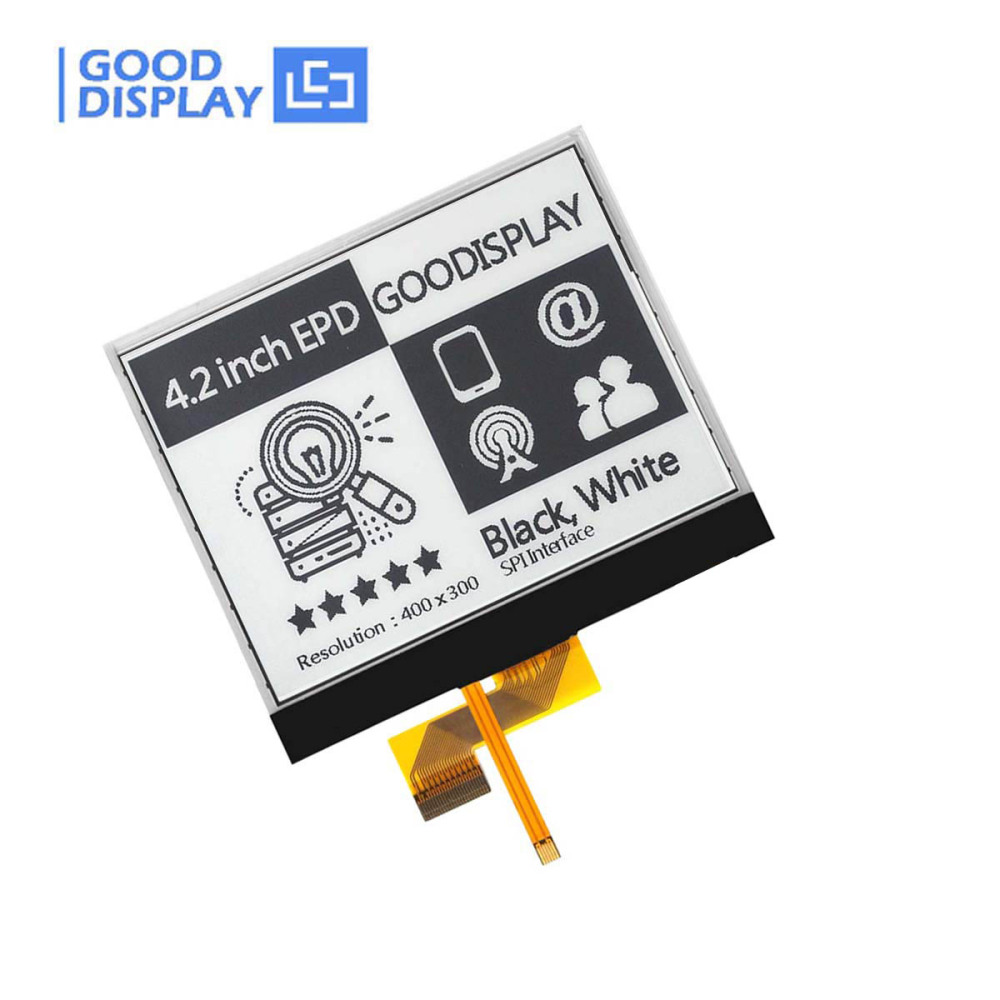

4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution GDEY042T81-FL02

SKU:
(3)
35 Sold
$18.32 $22.89
20% OFF
Experience exceptional readability with our 4.2-inch E-Paper Display featuring a built-in front light and fast refresh, perfect for any lighting condition.
GET $3.00 OFF ON ORDERS OVER $59.00
Get it
ERP72QDC
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X

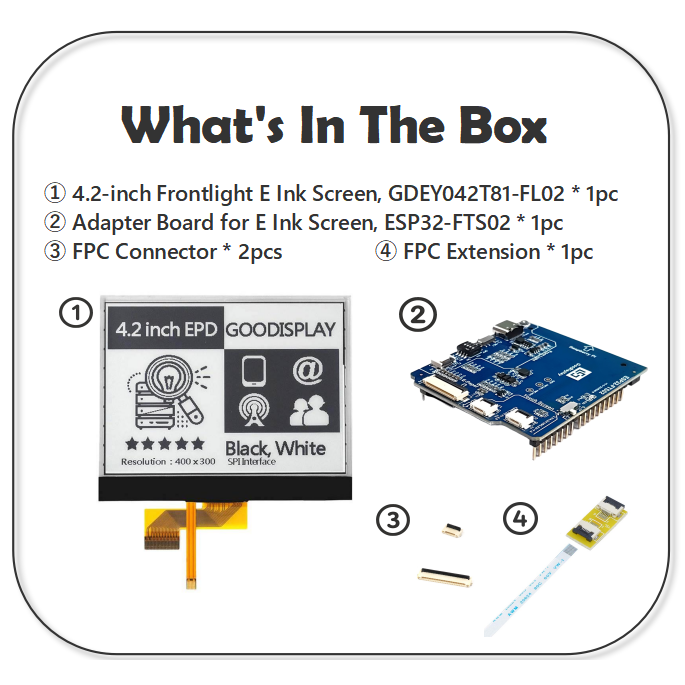

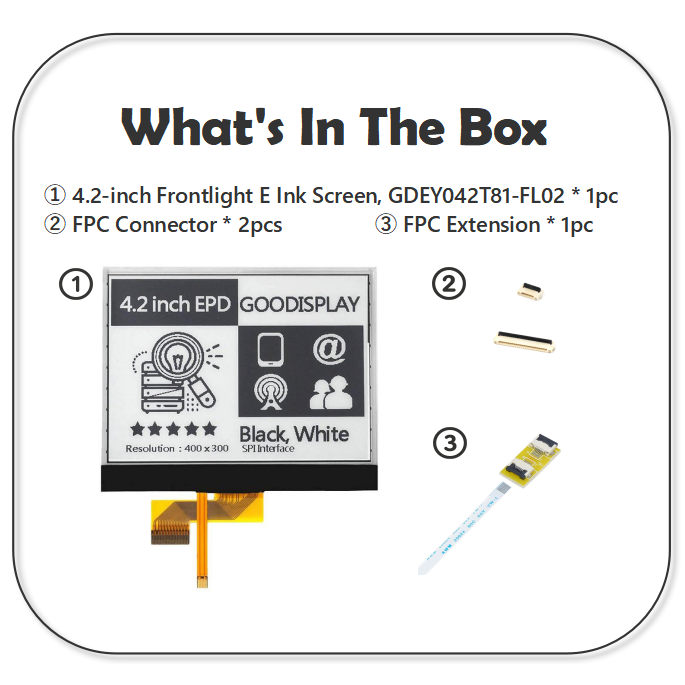

  • Product:

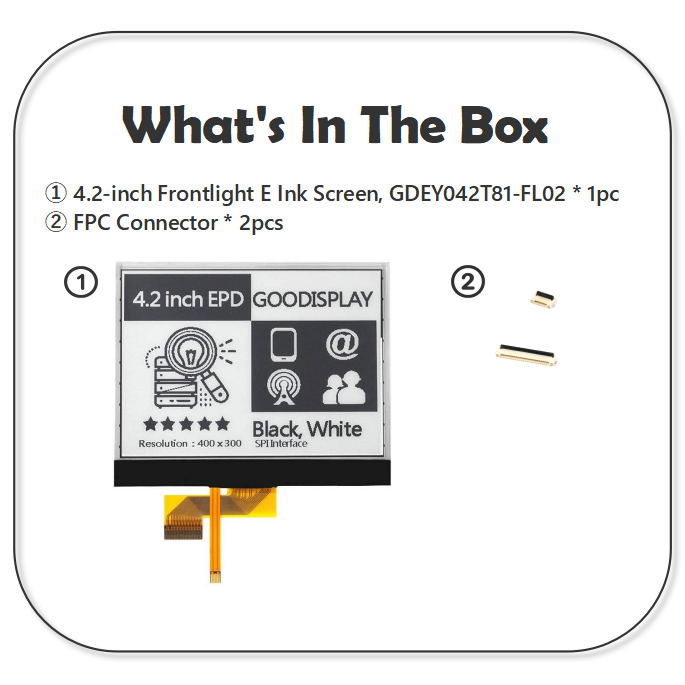

    ePaper Only
    ePaper Only
    with FPC Extension &Socket
    with FPC Extension &Socket
    with Adapter Board
    with Adapter Board
    with ESP32 Demo Kit
    with ESP32 Demo Kit
    Please select the information you wantX
Quantity:
0 in stock
Add to Favorites (2)
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
1/1
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
  • 4.2-Inch E-Paper Display with Front Light 1.5s Fast Refresh Rate 400x300 Resolution
Frequently Bought Together
more
Frequently Bought Together
  • Description
mailTIP: The front light is not sold separately due to precise bonding requirements. Please purchase the complete bonded product. For temperature details, refer to the display screen specifications.

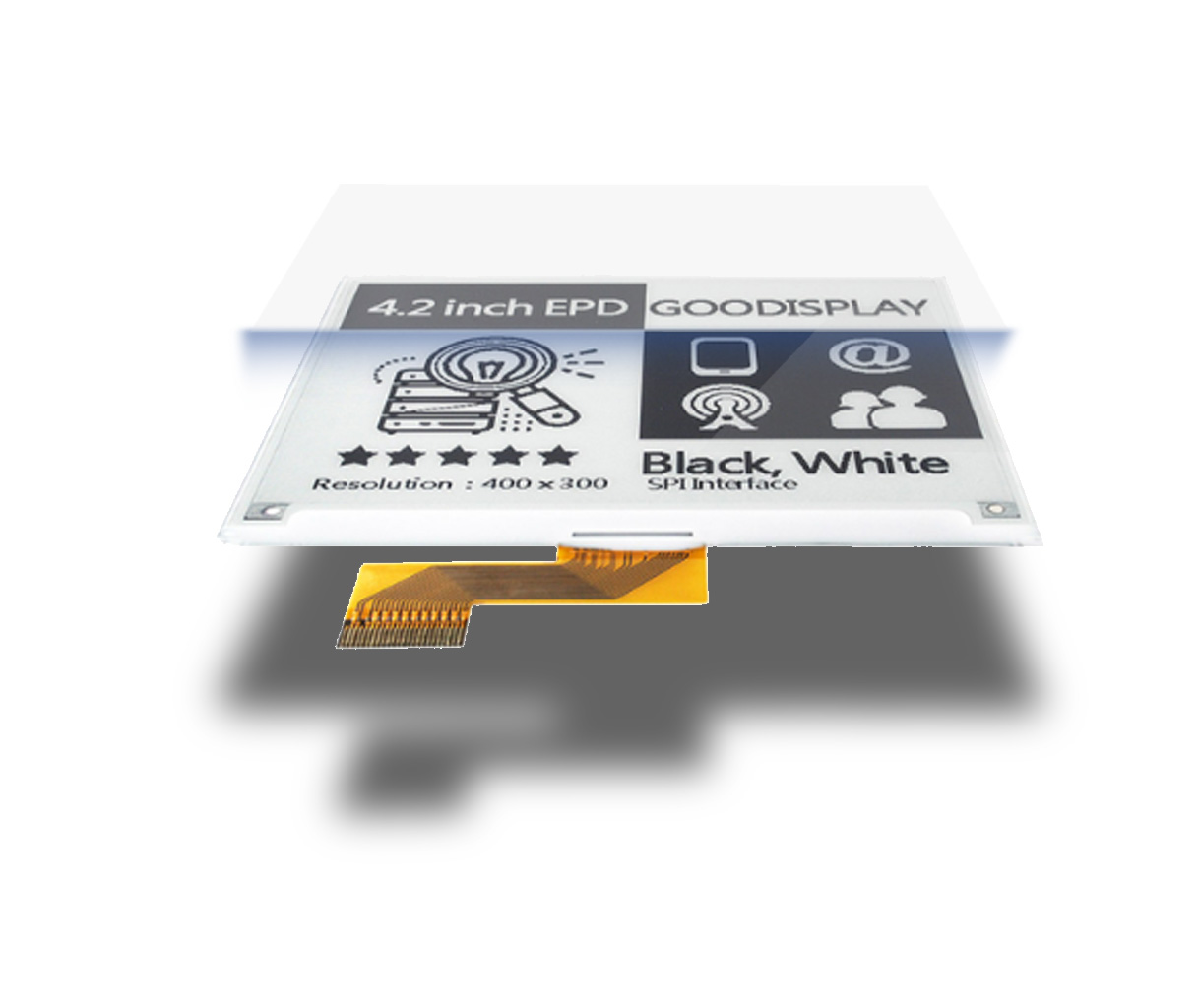

Goodisplay Front Light Panel



Move your LED light to the front

The Goodisplay Front Light Panel is designed to deliver precise lighting for E Ink displays. It reduces power consumption, improves aesthetics, and enables thinner devices. Our ultra-thin optical film integrates seamlessly with the front surface of reflective displays, providing the optimal display module for superior performance.





New Generation of Front-light ePaper




  Resolution: 400x300 Max Grayscale: 4 Low Power Consumption Fast Update: 1.5s Partial Update: 0.3s Full Update: 2s










Our front-lit e-paper display offers:


 ● Choice between cool white or warm light modes.
 ● Adjustable brightness by increasing the number of LEDs.
 ● Flexible circuit design with options for series or parallel configurations.
 ● We're introducing the 4.2-inch frontlight module, designed to fit any 4.2-inch E-Ink display.






Technical Detail










Product Specifications


  PART NUMBER GDEY042T81-FL02 CONNECTOR 24 Pin FPC
TYPE Dot Matrix COLOR Black,White
SIZE 4.2 inch MAX GRAYSCALE 4
IC SSD1683 FRONT-LIT CONNECTOR 6 pin FPC
RESOLUTION 400x300 NUMBER OF LED LIGHT 7
OUTLINE SIZE(mm) 91.00x77.00x2.02 FRONT-LIT CIRCUIT MODE series connection
ACTIVE SIZE(mm) 84.80x63.60 OPERATING VOLTAGE ≤21V
ACTIVE SIZE(mm) 0.212x0.212 OPERATING CURRENT ≤15mA
OPERATING TEMP. 0℃~50℃ FULL REFRESH(s) 2
STORAGE TEMP. -25℃~70℃ FAST REFRESH(s) 1.5
POWER CONSUMPTION OF THE REFRESH(mW) 18.48 PARTIAL REFRESH(s) 0.3
STANDBY POWER CONSUMPTION (mW) 0.003 INTERFACE SPI

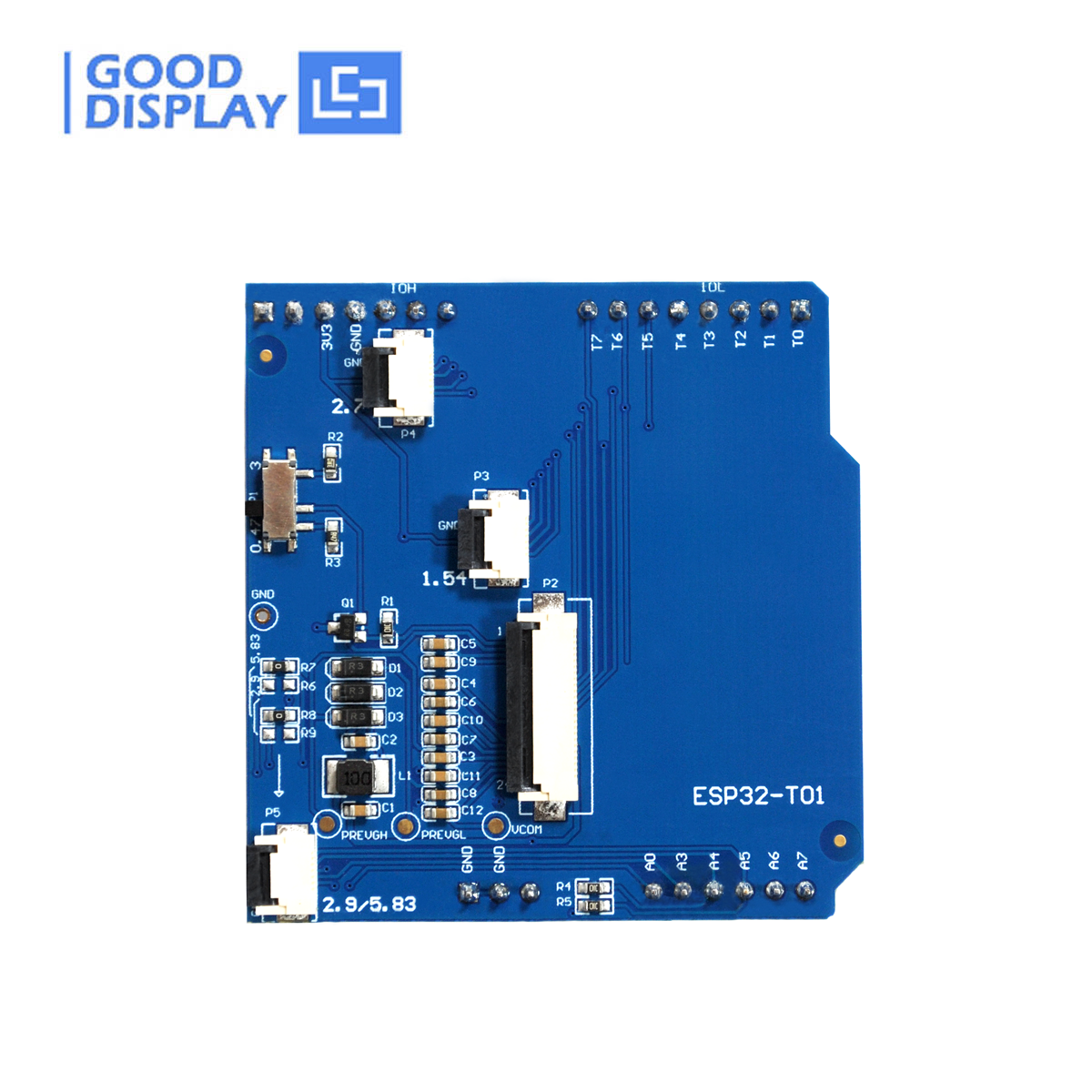

Matching Driver Boards

Ⅰ. ESP32-FTS02
(Adapter Board for Front Light & Touch Screen)

Ⅱ. ESP32-L(FTS02)
(ESP32 Demo Kit with Front Light & Touch)

Ⅲ. ESP32E6-E01
 (Bluetooth/WiFi/USB/SD Card Driver Board)










Files And Download

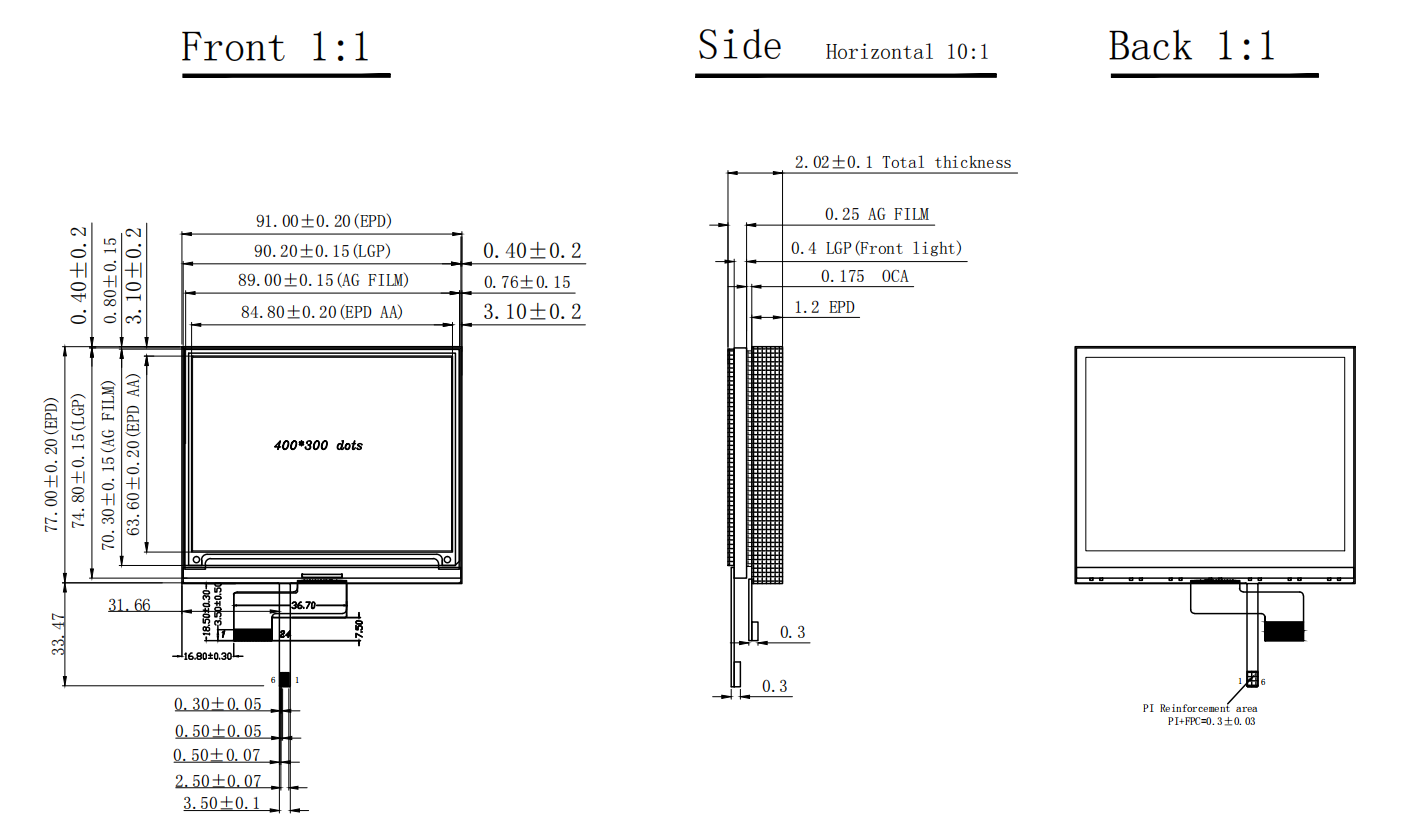

● GDEY042T81-FL02 Drawing ● Why can't I download the files(updated)?
● Front-lignt Drawing of 4.2 inch EPD ● The Lastest Catalog









Eco-friendly & Sustainable




Eye-friendly



E-paper technology



No fear of the dark
No harmful blue light, so it won't cause any damage to your eyes even with prolonged use.   Eco-friendly and sustainable. Get rid of any paper or printing.   Bright, clear image even in  dimly lit spaces.











Product Application

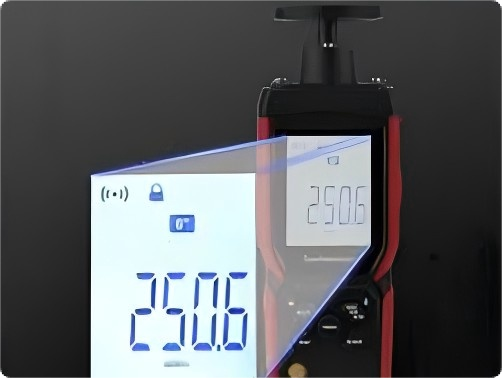

Industrial equipment

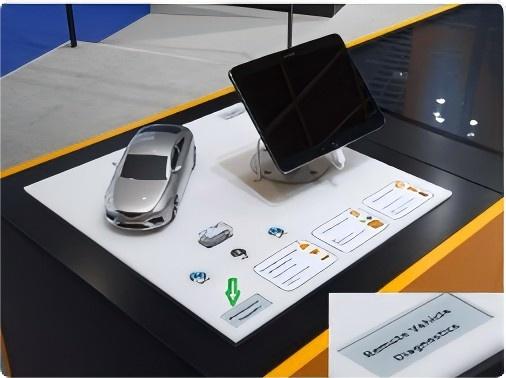

Portable Information Tags

Medical Devices

Smart Home Control Panels









We Also Recommend









About Us


Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at [www.good-display.com].
If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
