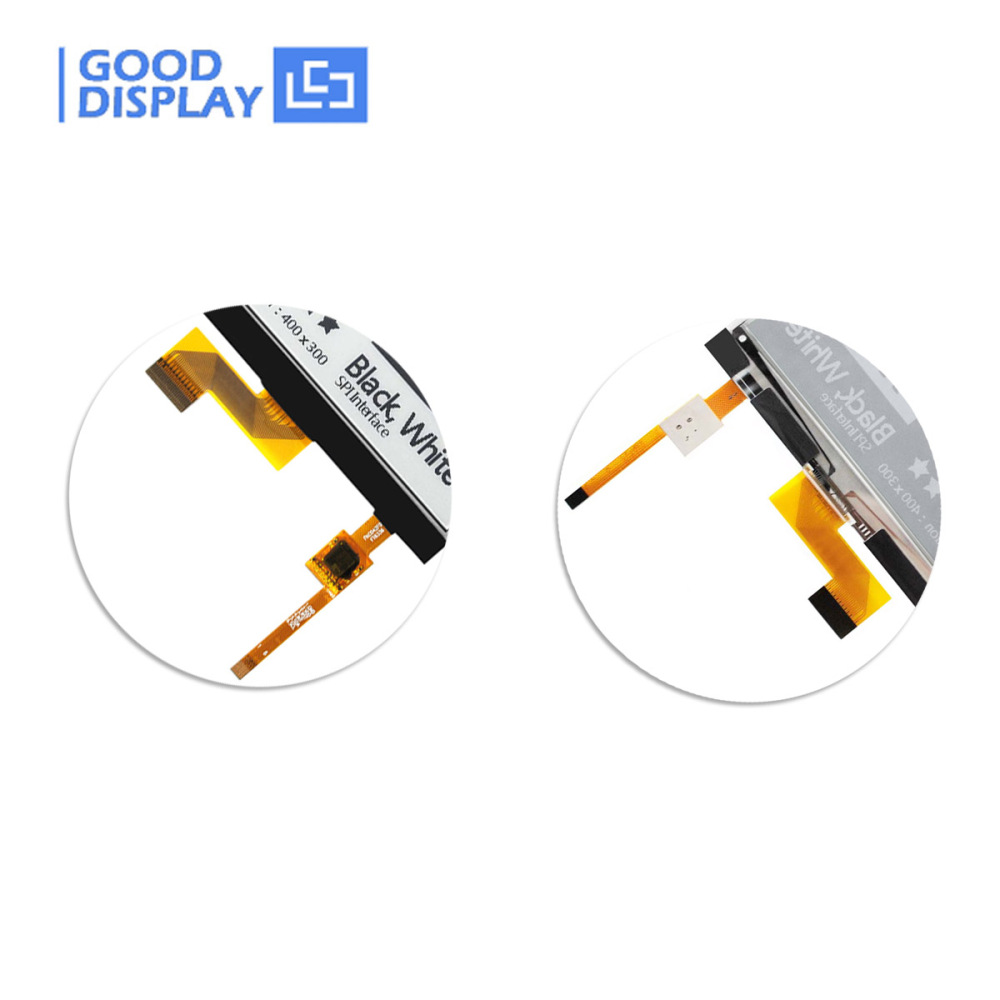

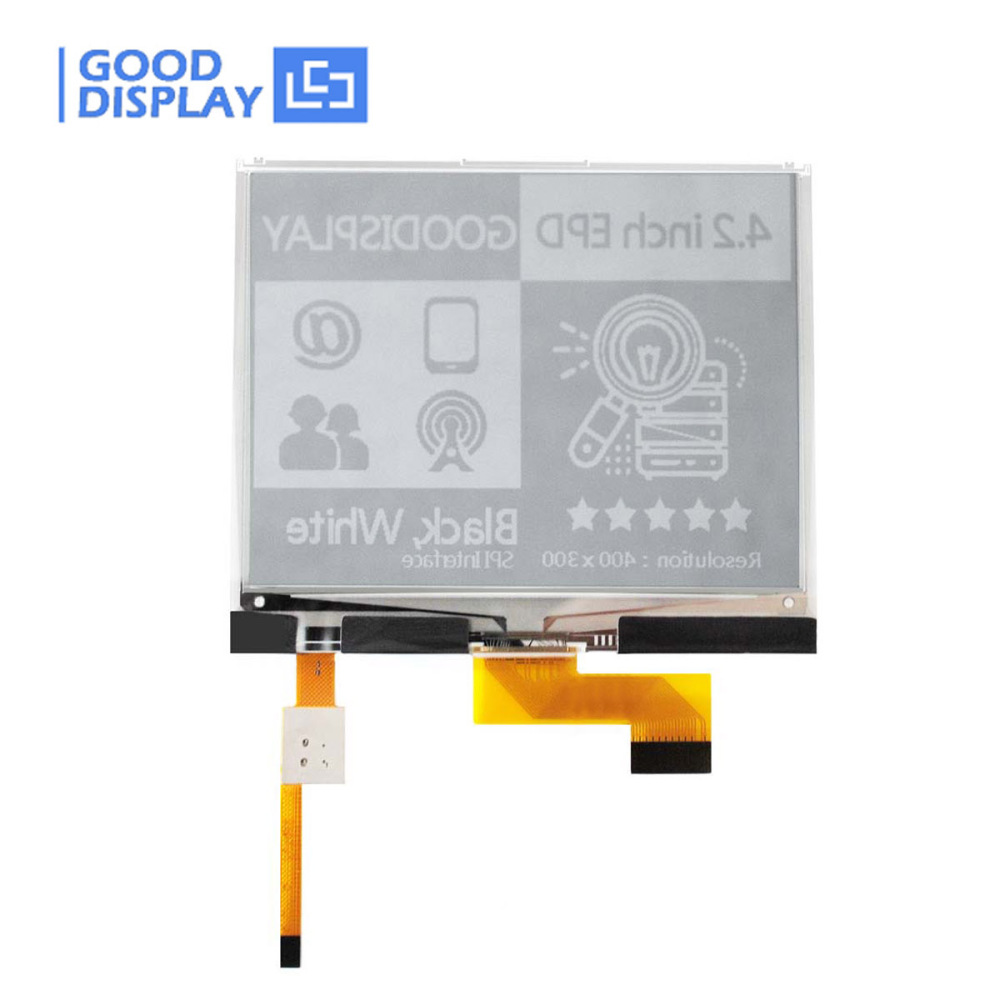

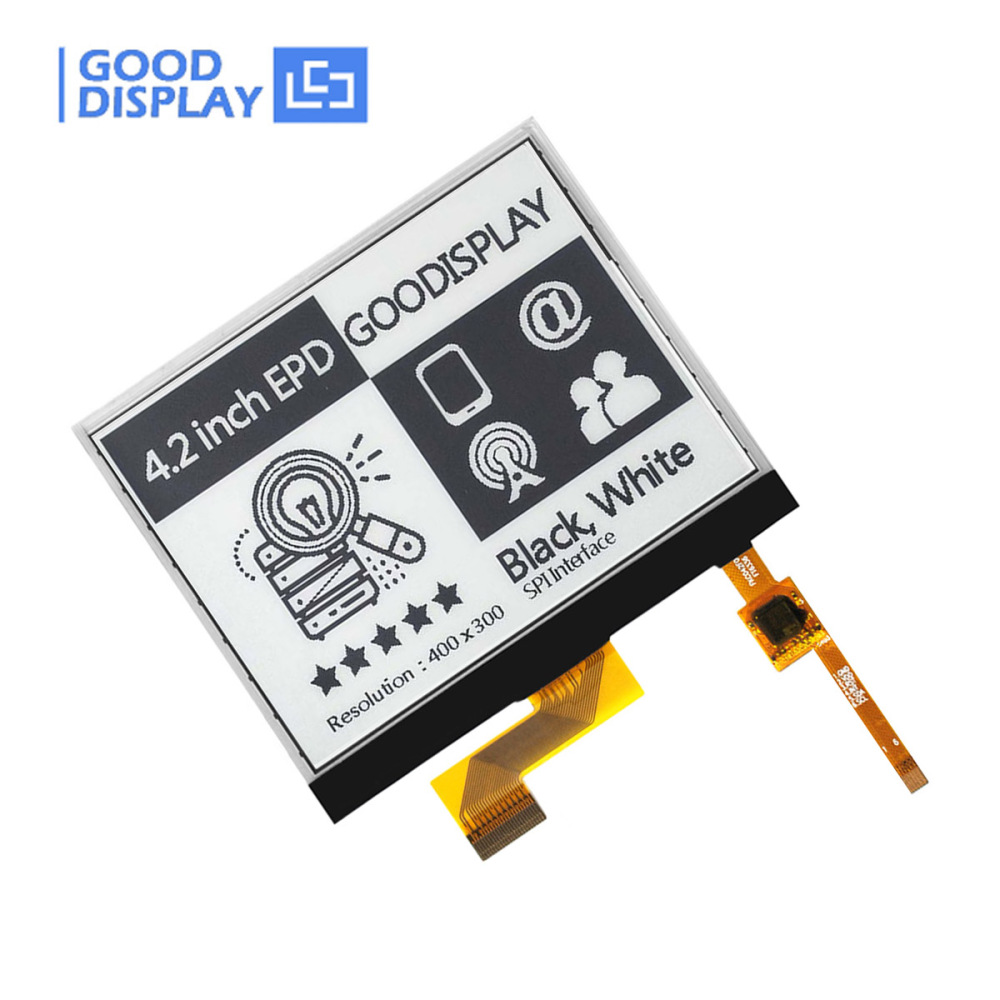

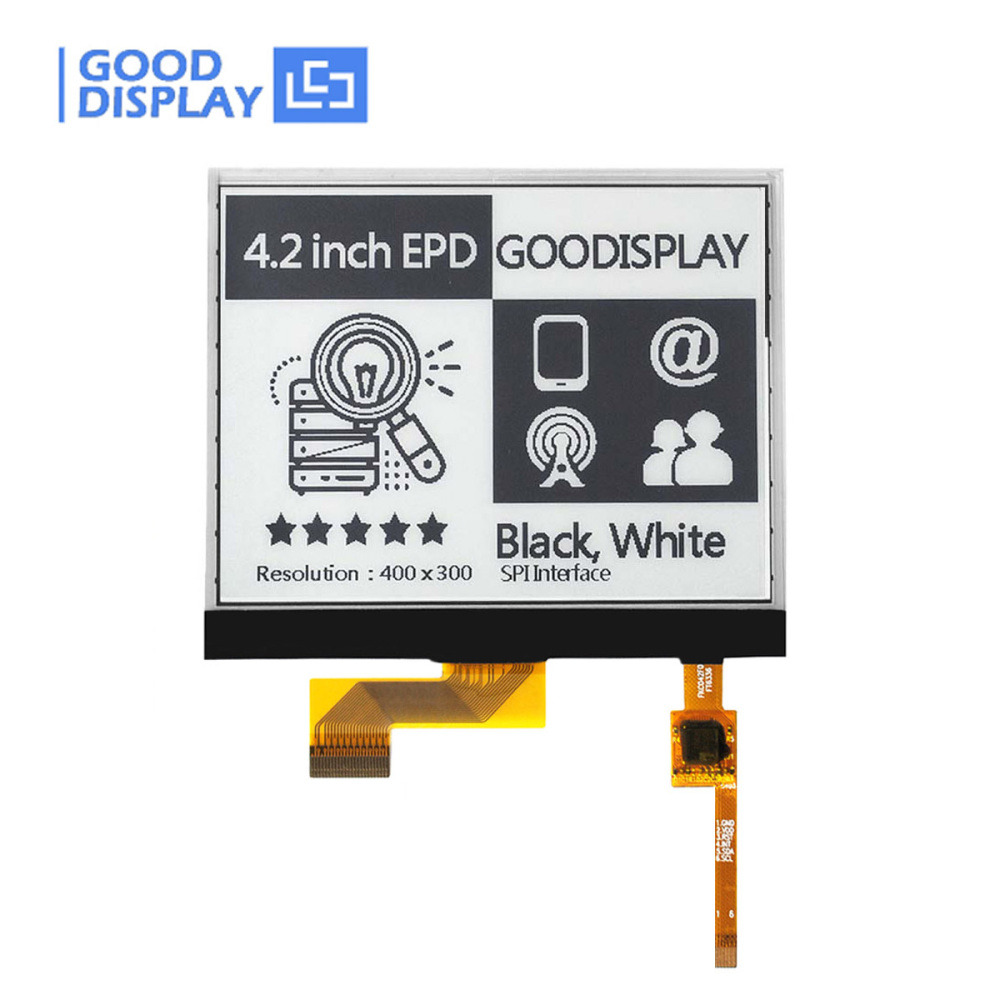

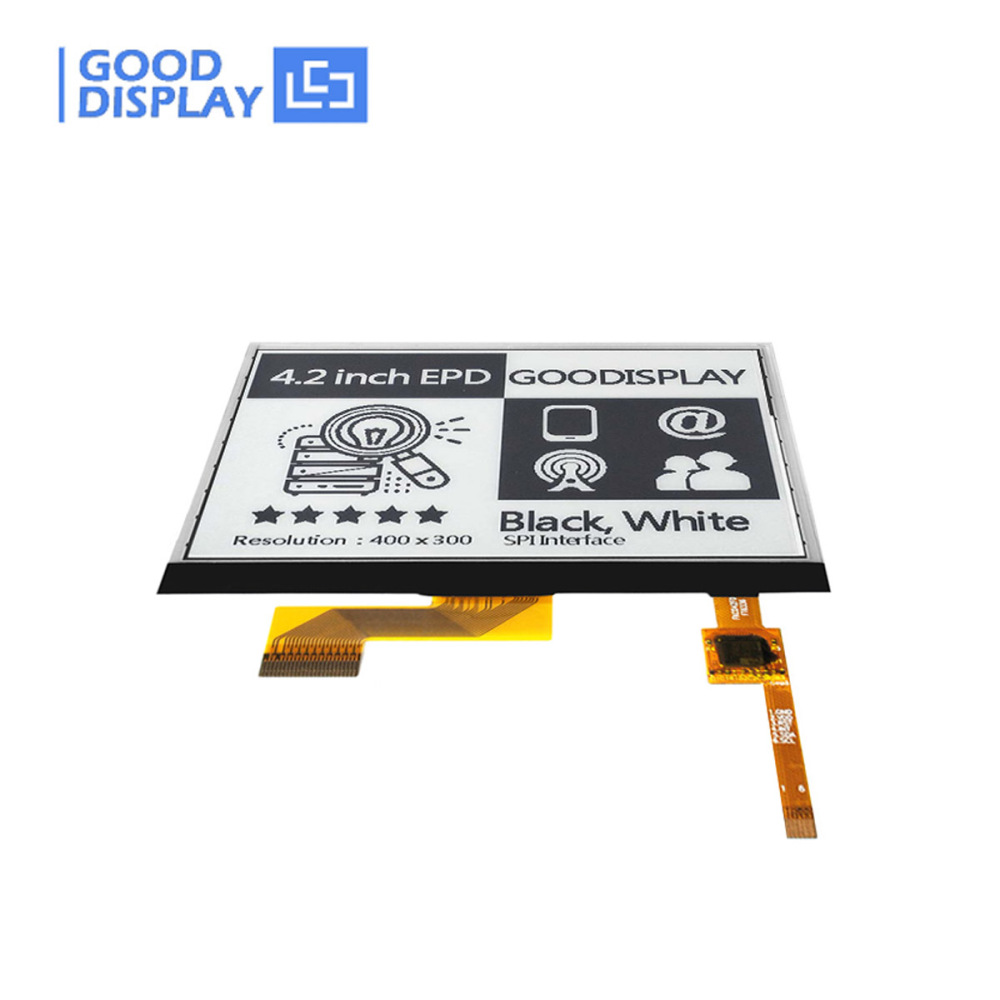

4.2inch Touch E-Paper E-Ink Displays HAT 0.3s Partial Update 400×300 pixels

GDEY042T81-T02
Discover Goodisplay's 4.2-inch E-Ink touchscreen (GDEY042T81-T02)—ultra-thin, high-clarity, and fast-refreshing, with PET-integrated touch that slashes power & costs for retail, smart homes, and more!
1 Review(s) Sold:3
Have a question?
Price:
USD
$20.31
$23.89
(15% OFF)
  • Product:

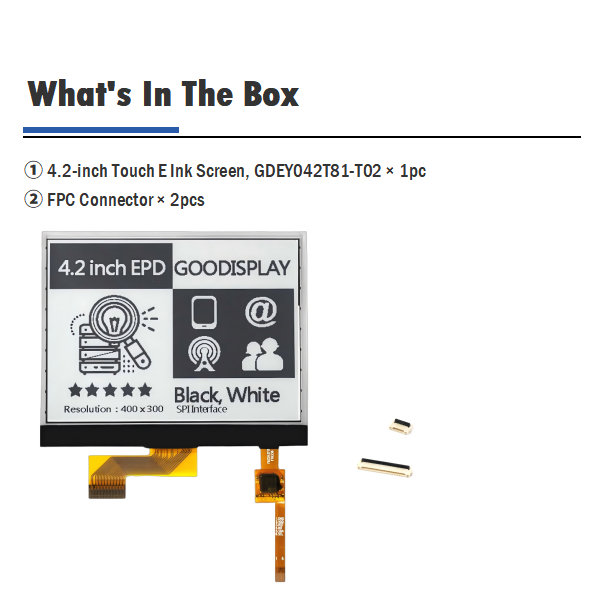

    EPD

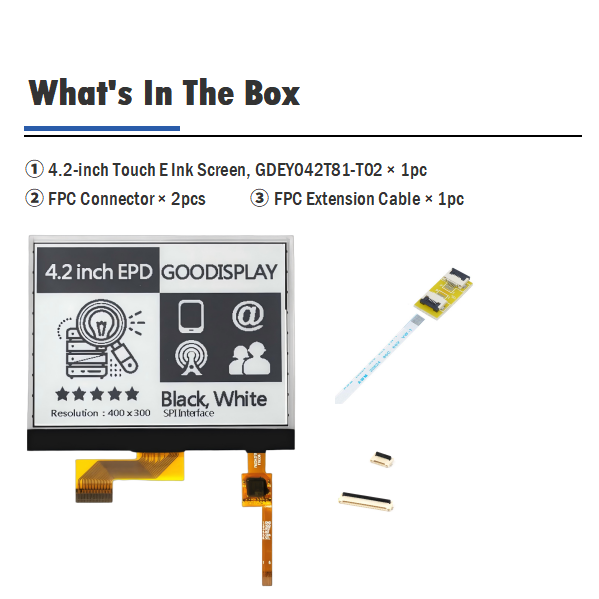

    EPD with FPC Extension & Socket
    EPD with STM32 adapter board
    EPD with STM32 Demo Kit

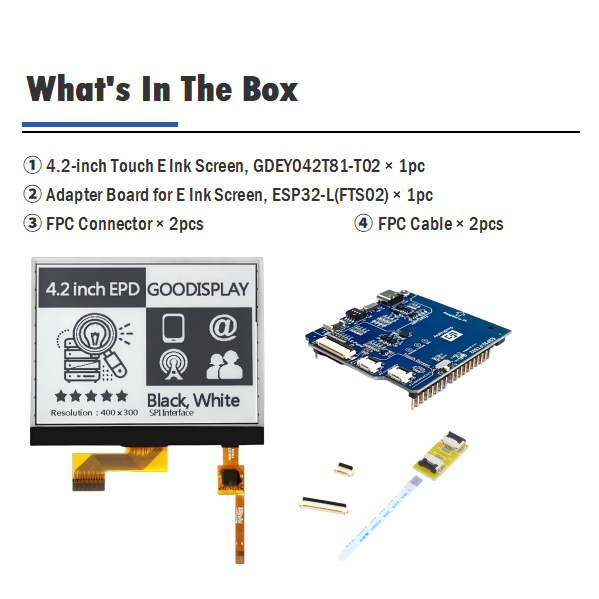

    EPD with ESP32 adapter board

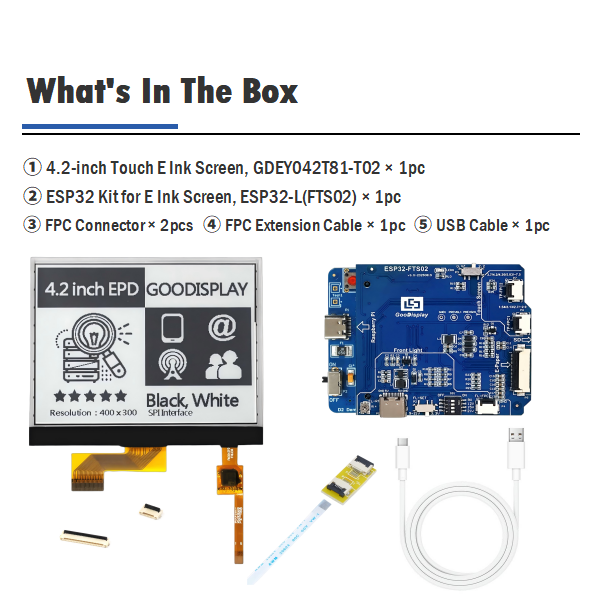

    EPD with ESP32 Demo Kit
    EPD with ESP32E6-E01
Quantity:
-
+
(320 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews(1)

4.2" Touch E-Ink Display

Meet GooDisplay’s cutting-edge 4.2-inch Touch E-Paper Display – where high transparency meets intuitive touch, all while sipping power like never before. Perfect for smart, sustainable tech that demands attention to detail.

  •
  • ✔️ 400x300 High Resolution
  • ✔️ 119.05 DPI
  •
  • ✔️ 4 Grayscale
  • ✔️ Ultra-Low Power Consumption

The image only shows screen orientation in use, not the actual bare screen product.

Core Advantages

Ultra-Low Power Design

  • 0.003mW standby power - 90% more energy-efficient than traditional LCD displays.
  • Integrated PET touch sensor - Reduces power consumption from additional components, enhancing overall energy efficiency
  • Months of use on a single charge - Ideal for IoT devices and portable electronics

High-Performance Touch Interaction

  • 0.3s partial refresh - Industry-leading response speed eliminates traditional e-paper lag
  • 90% light transmittance touch layer - Enhances contrast for clear visibility in indoors
  • 4-level grayscale display - Sharp text and rich image details

Seamless Integration Solution

  • Plug-and-play design - Compatible with mainstream development platforms (STM32/ESP32)
  • Modular architecture - Reduces integration time by 40%, accelerating product launch
  • End-to-end technical support - Professional support from prototype design to mass production

Technical Specifications

Part Number GDEY042T81-T02
Color Black, White
IC SSD1683
Size 4.2"
Type Dot Matrix
Max Grayscale 4
Resolution 400x300
DPI 119.05
Operating Temp. 0℃~50℃
Outline Size(mm) 91.00x77.00x2.02
Full Refresh(s) 2
Storage Temp. -25℃~70℃
Active Size(mm) 84.80x63.60
Fast Update Time(s) 1.5
Touchscreen Connector 6pin FPC
Pixel Pitch(mm) 0.212x0.212
Partial Refresh Time(s) 0.3
Touchscreen Controller IC FT6336
Power Consumption Of The Refresh(mW) 18.48
Connector 24 Pin FPC
Touchscreen Operating Voltage 2.8V-3.3V
Standby Power Consumption (mW) 0.003

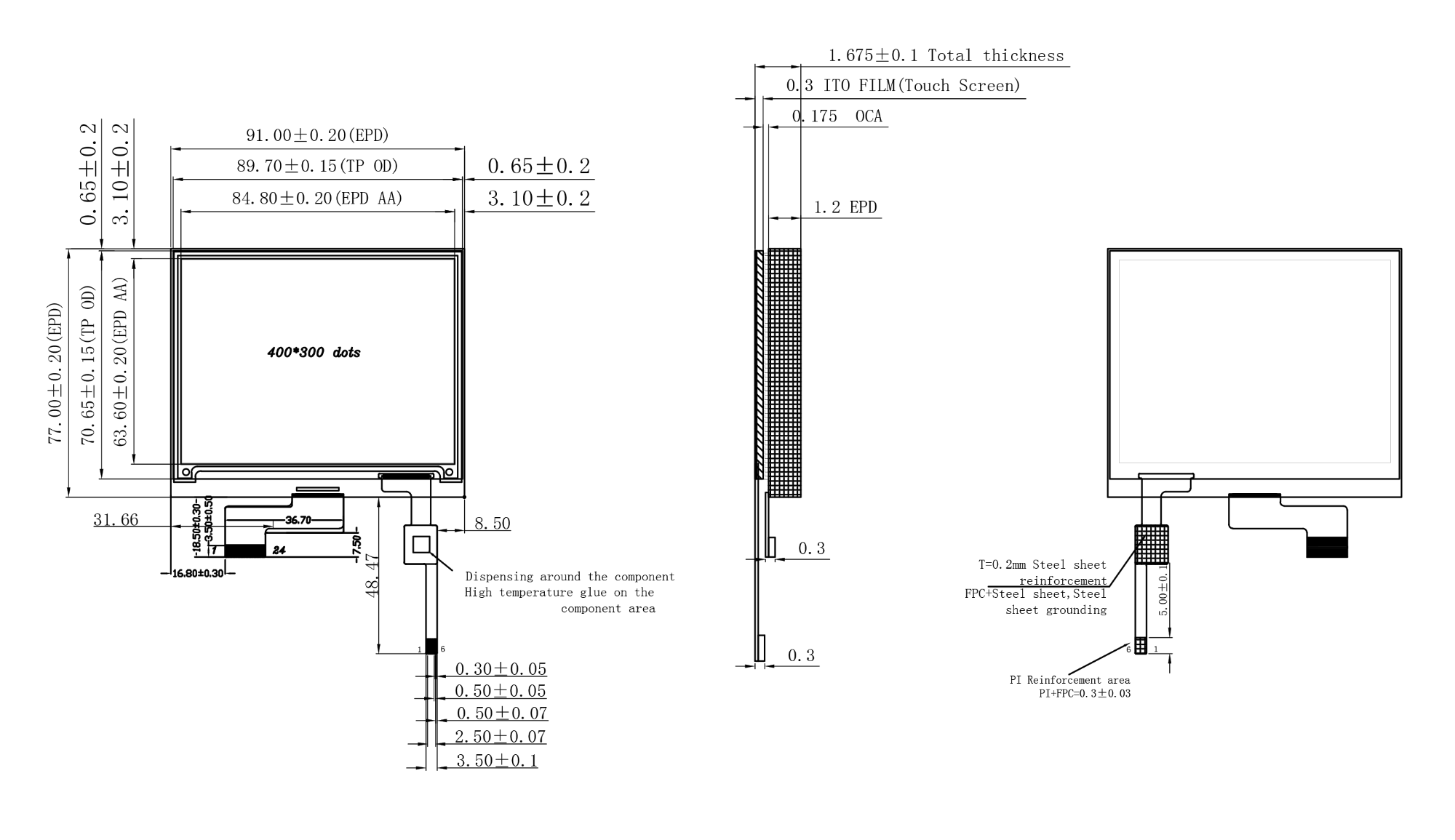

Drawing Details

Matching Driver Boards

STM32-T01

STM32-T01

Specifically designed for STM32 development boards.

View Details
DESPI-L(T01)

DESPI-L(T01)

Top-tier industrial processing power (Cortex-M), featuring USB data transmission.

View Details
ESP32-T01

ESP32-T01

Supports TouchScreen compatible with ESP32-L motherboards.

View Details
ESP32L-L(T01)

ESP32L-L(T01)

Supports common WiFi/BT/USB data transmission.

View Details

ESP32E6-E01

All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin)

View Details

Files & Download

Typical Applications

Education

Flashcards/Learning Cards

Display vocabulary, definitions, example sentences, or knowledge points and formulas. Touch operations allow switching cards, viewing detailed explanations, or taking quizzes, enabling students to study and review anywhere.

Transport

In-vehicle Information Displays

 Installed in cars to show navigation, driving data (e.g., speed, fuel consumption), and multimedia information. Touchscreen operations allow drivers to control and query information simply while driving.

Electronics

Smart Photo Frames

Display photos, with touch operations for switching images, playing slideshows, or adjusting display effects. E-ink screens offer a paper-like photo quality.

We Also Recommend

BLE Price Tag

4.2" Monochrome EPD

View Details
E Ink Desk Sign

4.2" Frontlight EPD

View Details

4.2" Touchscreen EPD

View Details
3-Color ESL

4.2"  Wide Temp EPD

View Details

Sustainable Technology

Paperless Future

Each display saves ≈3,000 sheets annually. Join 15,000+ businesses reducing paper waste with ePaper solutions.

Sustainable Packaging

95% recycled materials with FSC-certified packaging. 100% plastic-free protective materials.

Energy Leadership

90% less energy than LCDs. Annual CO₂ reduction equivalent to 50 mature trees.
