2.4 inch green 128x64 dots OLED display GDOE0240G

GDOE0240G
GDOE0240G is the 128x64 green pixels OLED display, diagonal is only 2.4 inch. Because the display makes its own light, no backlight is required.
Sold:2
Price:
USD
$20.77
Quantity:
-
+
(2 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Reviews



☆ INTRODUCTION




GDOE0240G is the 128x64 green pixels OLED display, diagonal is only 2.4 inch.The controller ic is SSD1305, communicates via 6800/8080 8-bit parallel and I2C/4-wire serial interface. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type,no need connector.Just solder the FPC on your PCB directly.

It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.



Relevant manual about this product on our official website (www.good-display.com), contact us please.




 FEATURE




● Self-luminous, no backlight is required.
● 6800 8-bit Parallel , 8080 8-bit Parallel , I2C, 4-Wire Serial SPI
● FPC-Soldering

● Wide operating temperature: -40℃~70℃






 THE ABOVE PRICE INCLUDE



1) 2.4 inch green 128x64 dots OLED display * 1pc




 MAIN PARAMETERS




PART NUMBER GDOE0240G
DIAGONAL SIZE 2.4"
DISPLAY MODE Passive Matrix
DISPLAY COLOR Green

DRIVE Duty

1/64 Duty

NUMBER OF PIXELS 128x64
INTERFACE 6800 8-bit Parallel , 8080 8-bit Parallel , I2C, 4-Wire Serial SPI
Driver IC SSD1305
OUTLINE DIMENSION(mm) 60.50x37.00x2.00
ACTIVE AREA(mm) 55.01x27.49

PIXEL PITCH(mm)

0.43x0.43

PIXEL SIZE(mm)

0.40x0.40

BRIGHTNESS(Typ) 120 cd/m2
VIEW ANGLE >160°
OPERATING TEMP. -40℃~70℃
STORAGE TEMP. -40℃~85℃

CONNECTION

FPC-Soldering








☆ ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com

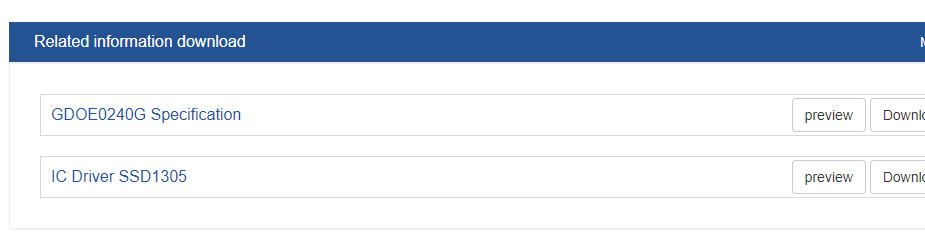

☆ SPECIFICATION DOWNLOAD




1)  GDOE0240G Specification
2)  IC Driver SSD1305
