☆ INTRODUCTION

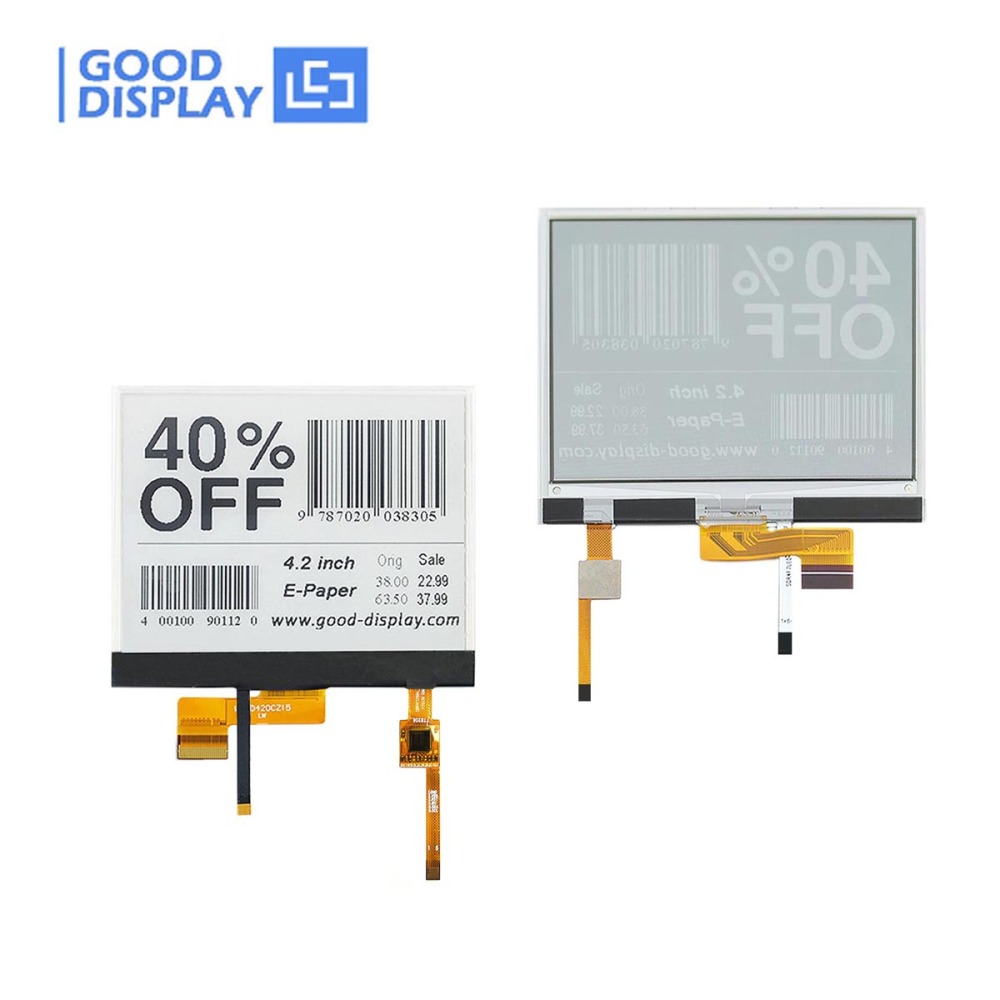

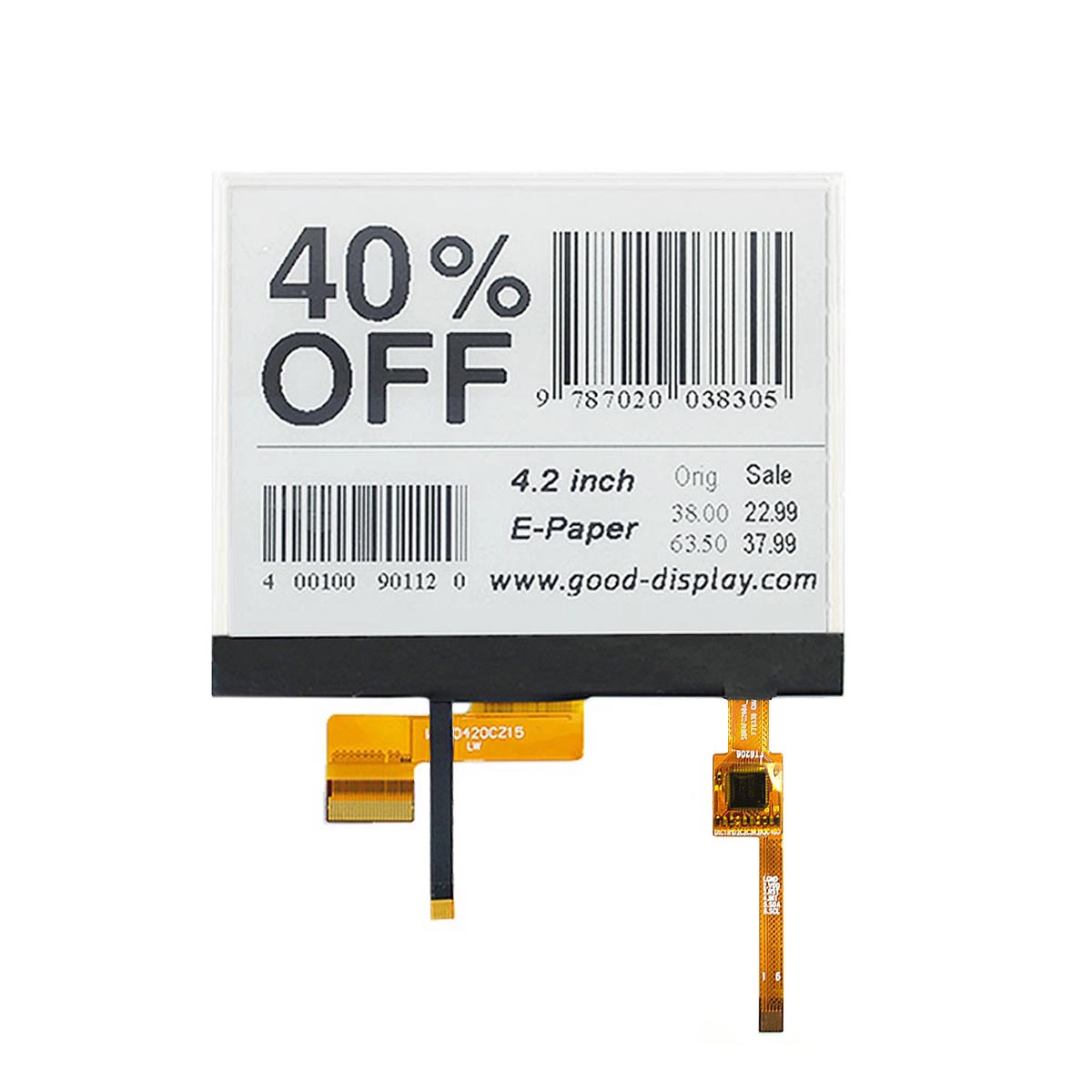

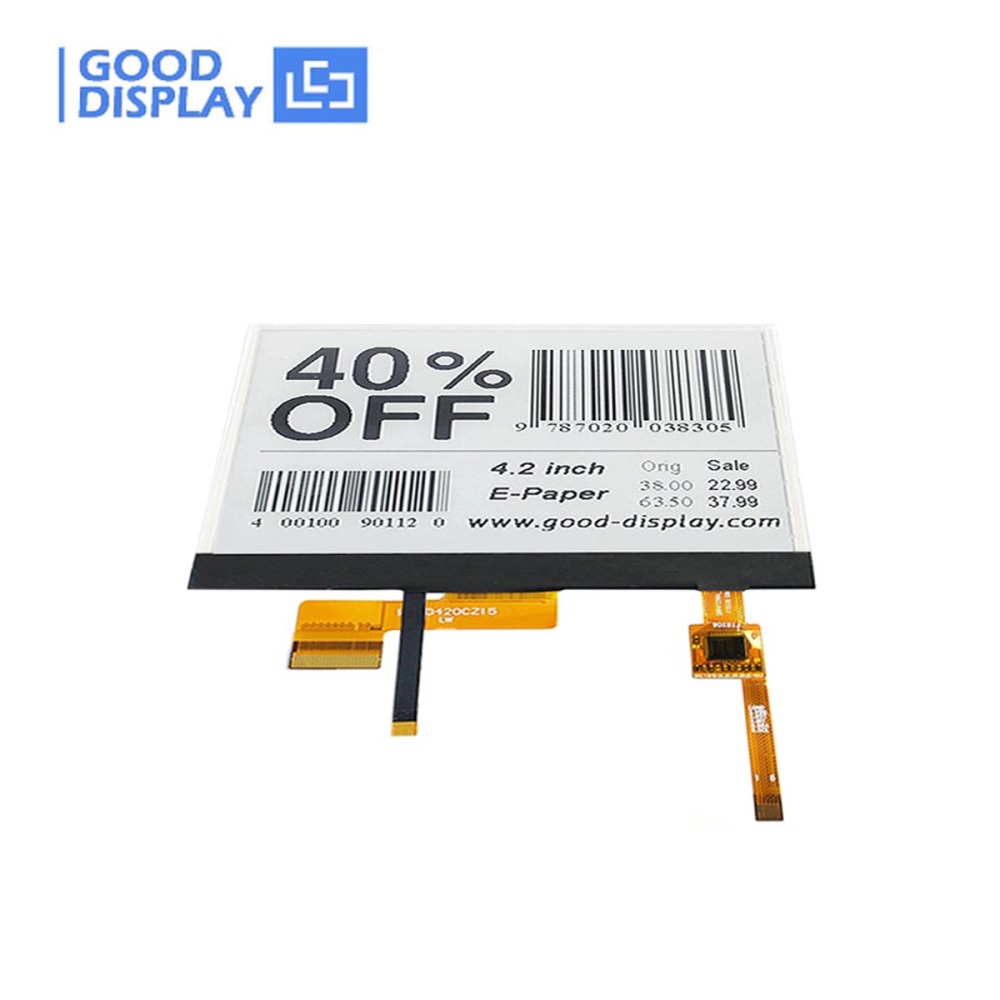

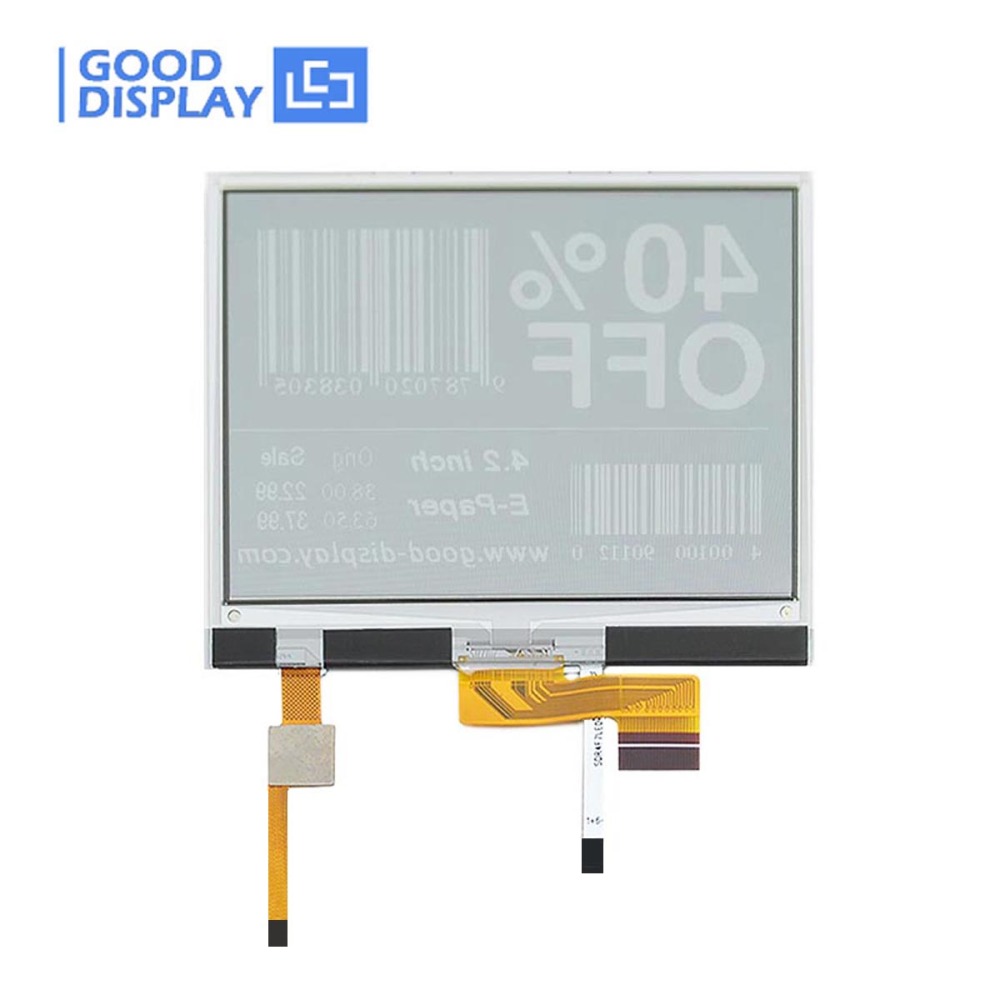

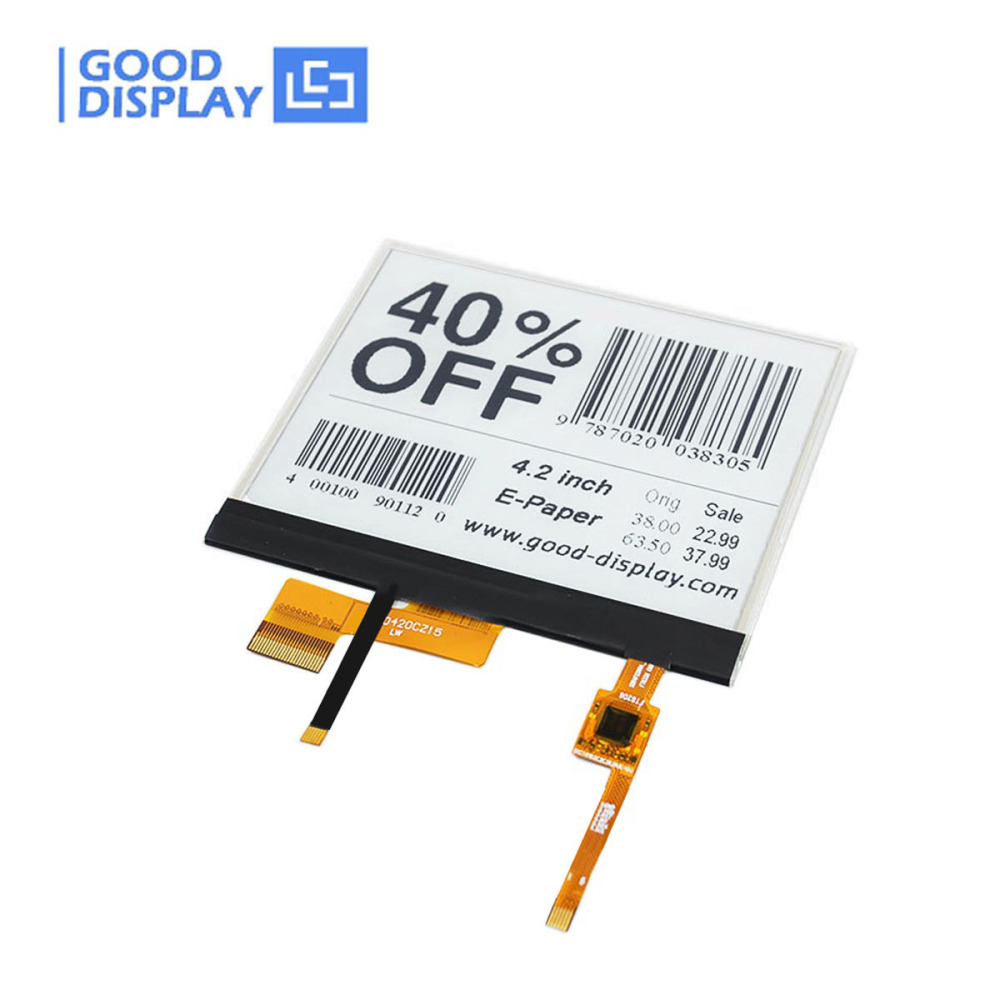

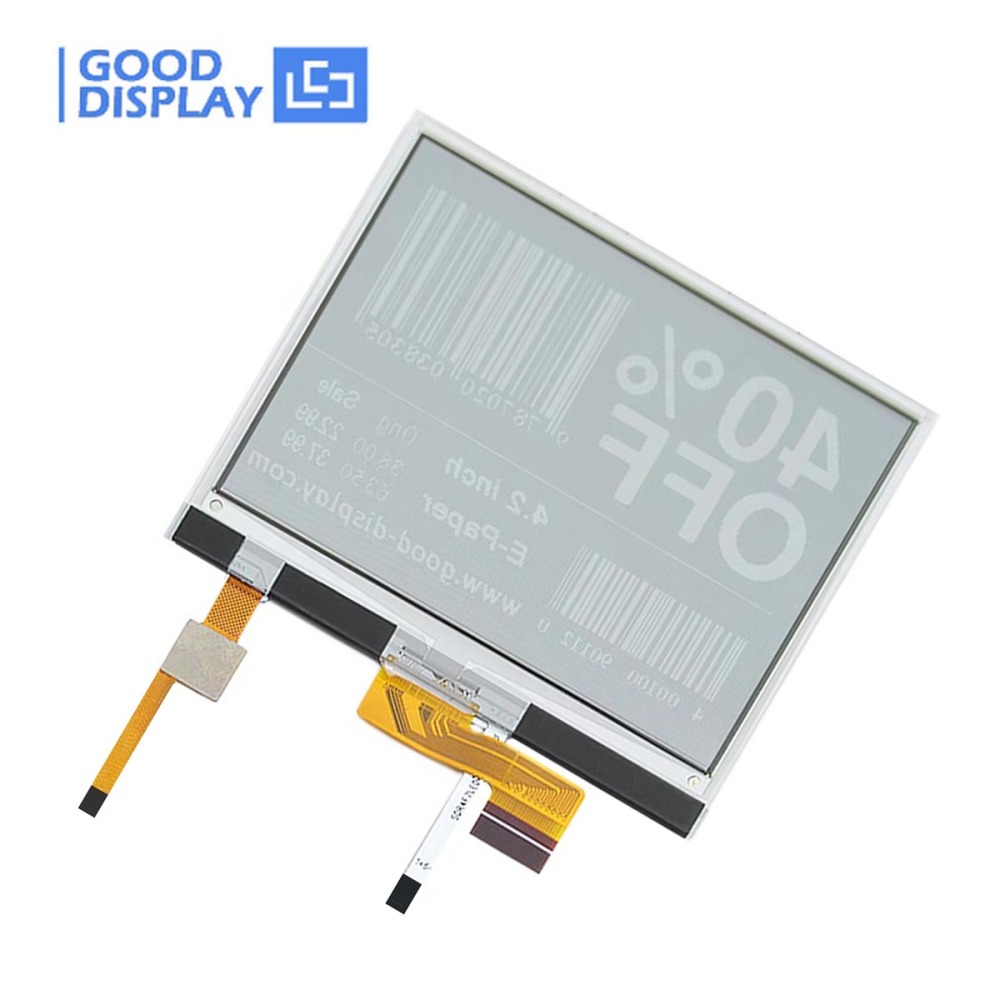

This is a 4.2inch epaper with touch display and backlit, 400x300 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.
This 4.2 inch e-paper display GDEW042T2FT02 is perfect for low power devices powered by solar or batteries, or the products that require slow updates or semi-static content, especially in dark environment.

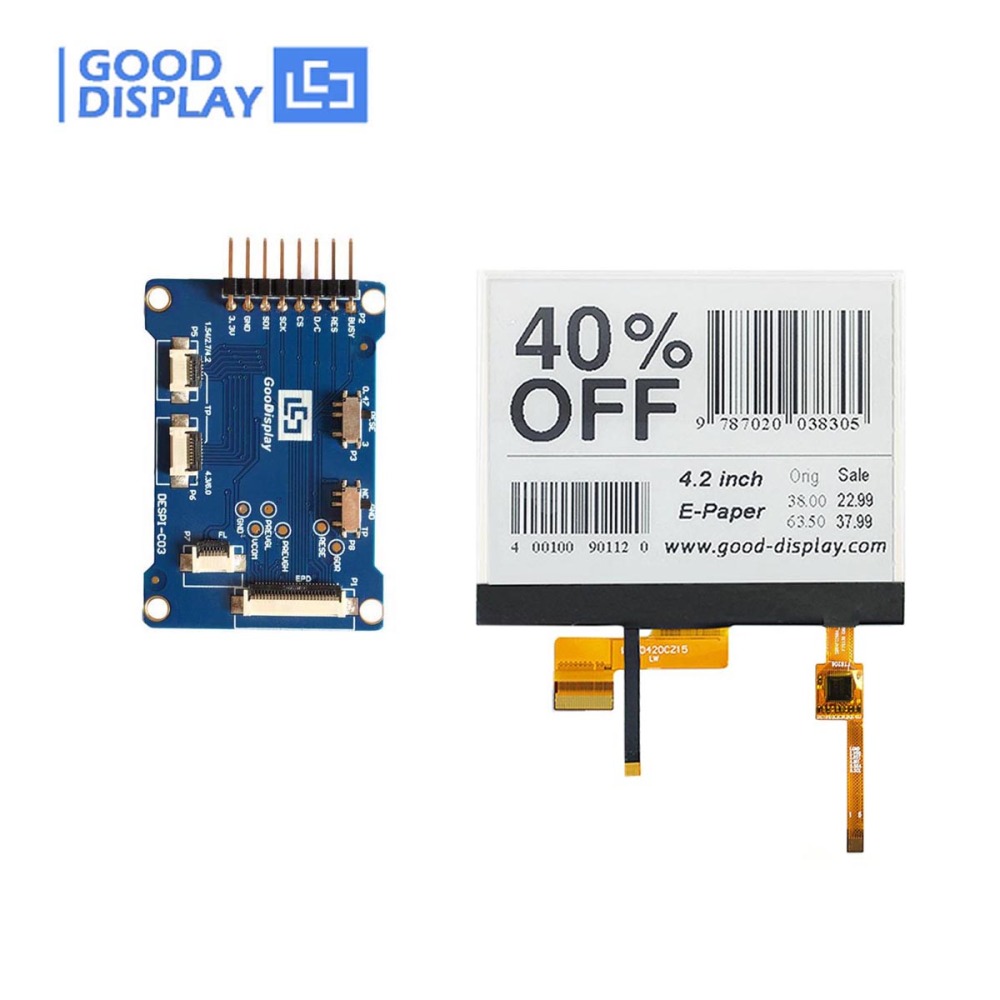

We provide the E-Ink Adapter Board for you to connect the E-paper Display.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array
☆ FEATURE
● Versatile. Use in portrait or landscape format.
● Bistable. (Will continue to display with no power source)
● Color Optional. We also have other color for you to choose.
● I2C Signal Master Interface to read external temperature sensor.
● With touch display and backlit. It can be used in dark environment
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266
☆ THE ABOVE PRICE INCLUDE

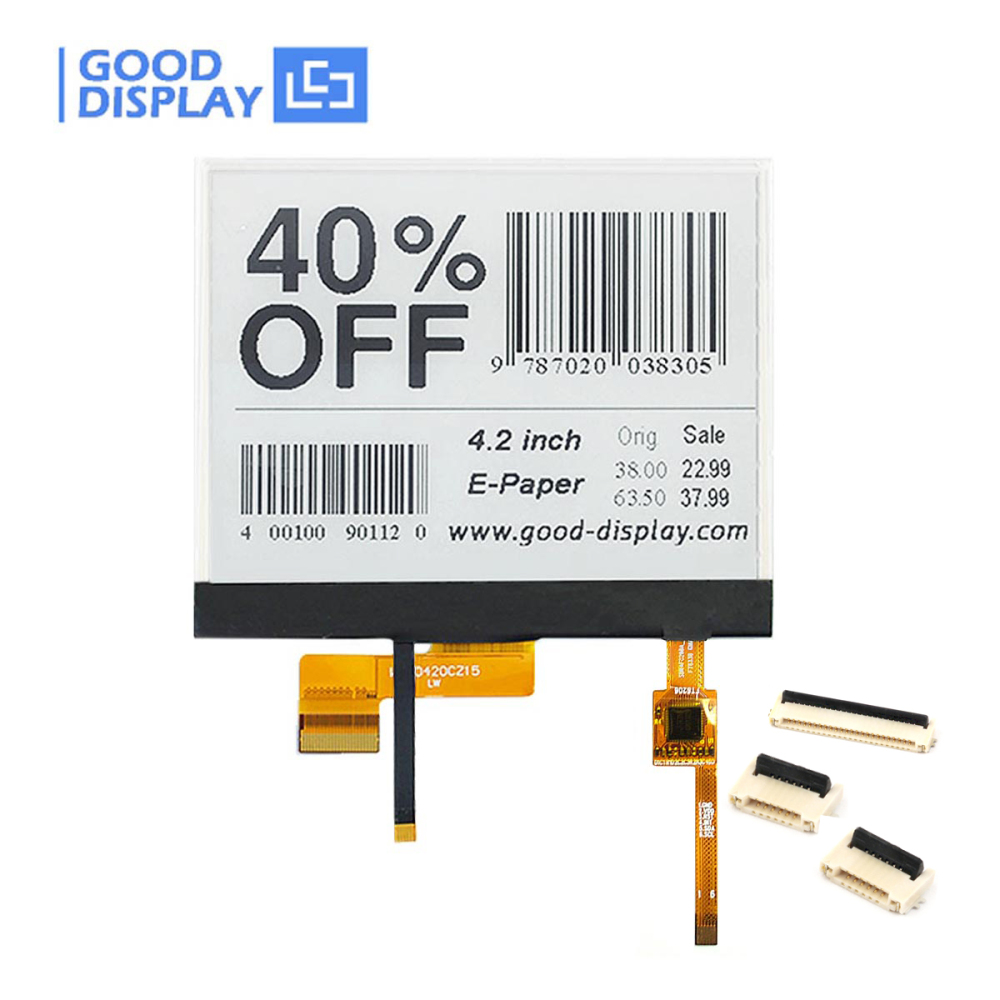

1) 4.2inch epaper 400x300 Touch Display E Paper with Blacklit * 1pc
2) FPC Connector for Epaper * 1pc
3) FPC Connector for backlit * 1pc
4) FPC Connector for touch display * 1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEW042T2FT02
|
|
SIZE
|
4.2 inch
|
|
TYPE
|
Dot Matrix
|
|
IC
|
UC8176
|
|
RESOLUTION
|
400x300 (DPI:120)
|
|

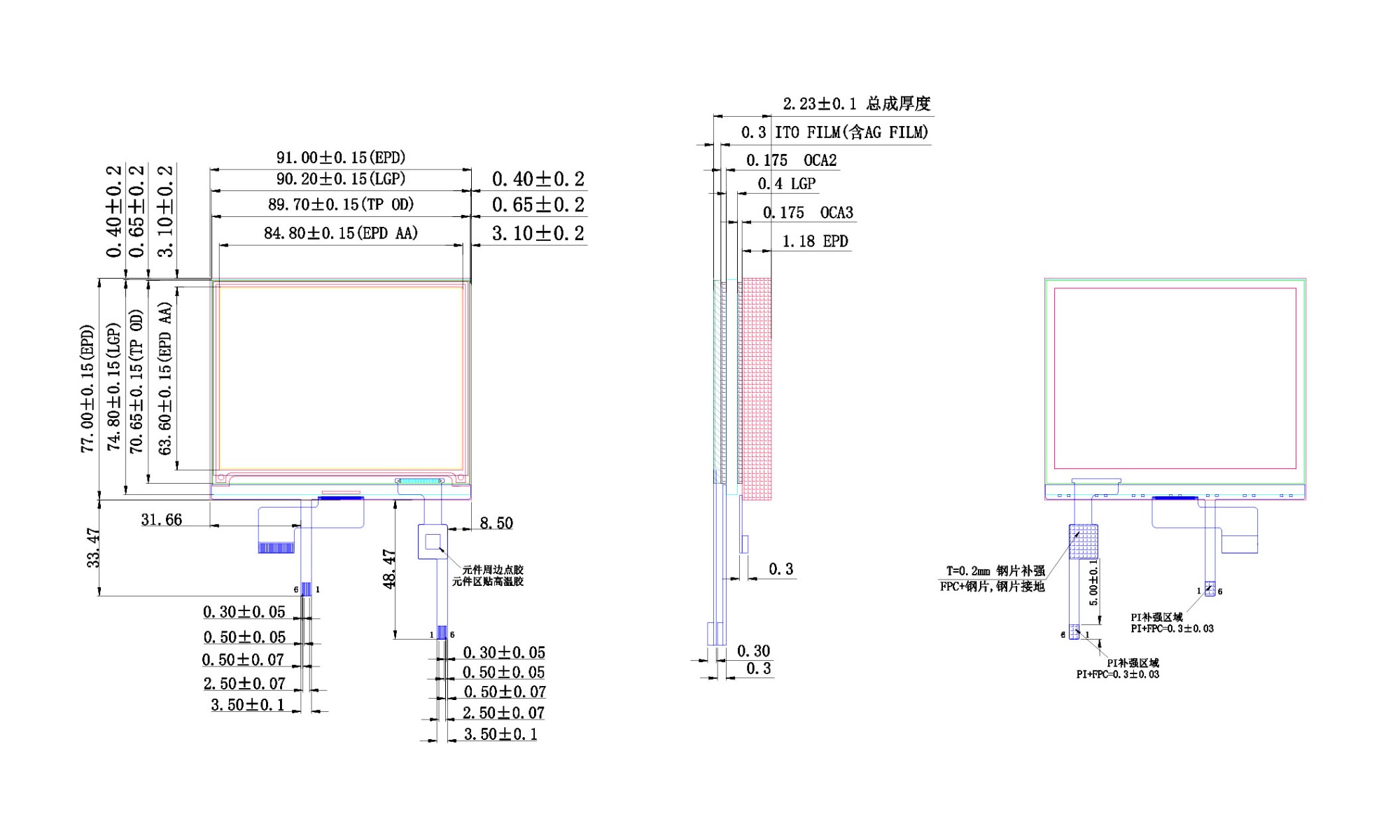

OUTLINE SIZE(mm)
|
91x77x2.23
|
|
EPD ACTIVE SIZE(mm)
|
84.8x63.6
|
|
PIXEL PITCH(mm)
|
0.212x0.212
|
|
OPERATING TEMP.
|
0℃~50℃
|
|
STORAGE TEMP.
|
-25℃~70℃
|
|
CONNECTOR
|
24 Pin FPC
|
|
MAX GRAYSCALE
|
4
|
|
COLOR
|
Black,White
|
|
INTERFACE
|
SPI
|
|
FULL REFRESH(s)
|
3
|
|
Number of LEDs
|
7
|
|
Voltage of Front-light
|
≤21V
|
| Connector of Front-light |
6 Pin FPC |
| Connector of touch display |
6 Pin FPC |
| Touch IC |
FT6336G |
| Number of Channels |
S26 |
| Voltage of Touch |
2.8V-3.6V |
☆ 4.2 INCH E-PAPER DISPLAY
