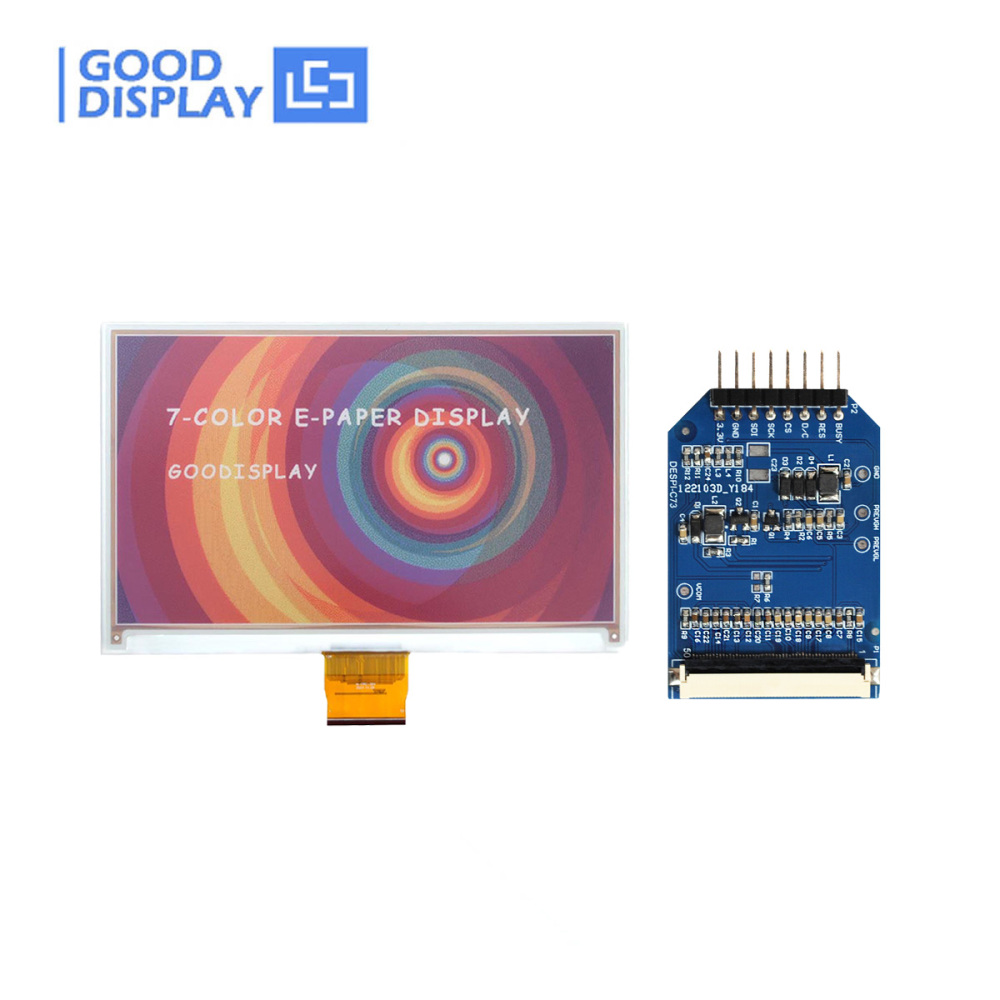

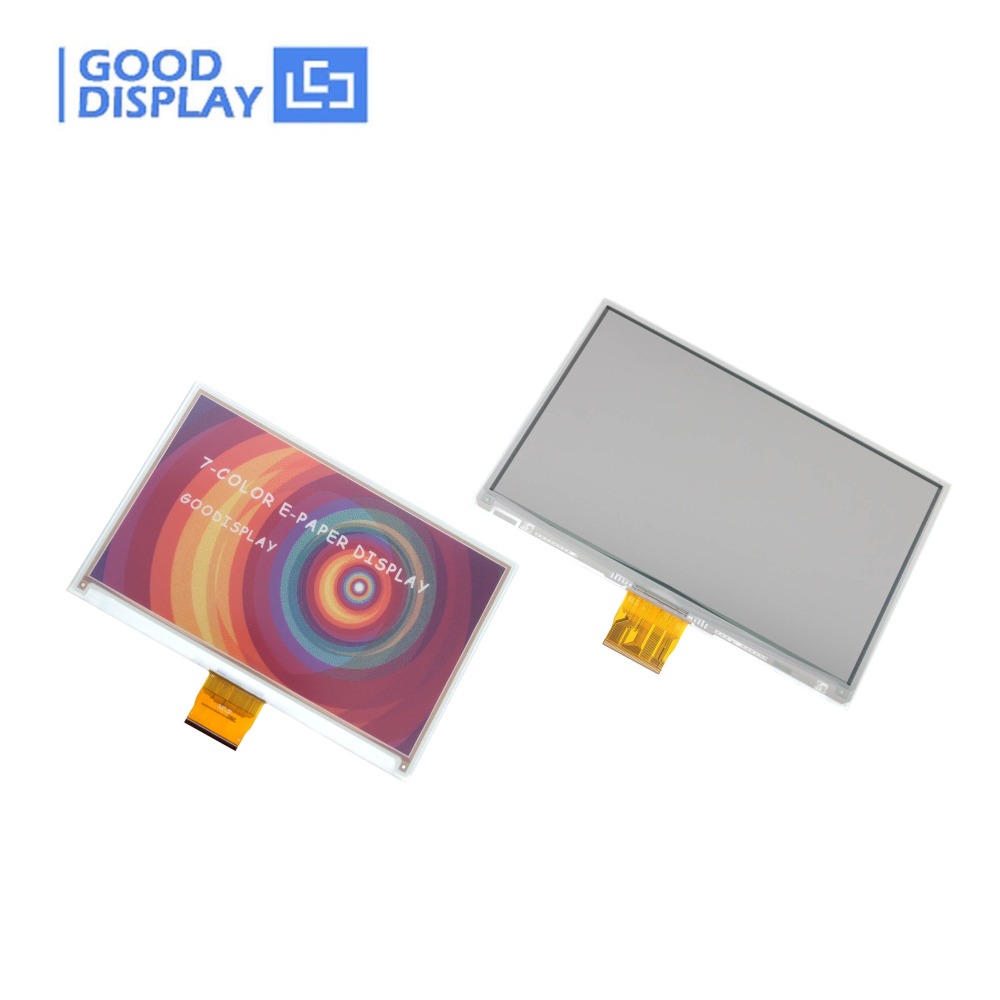

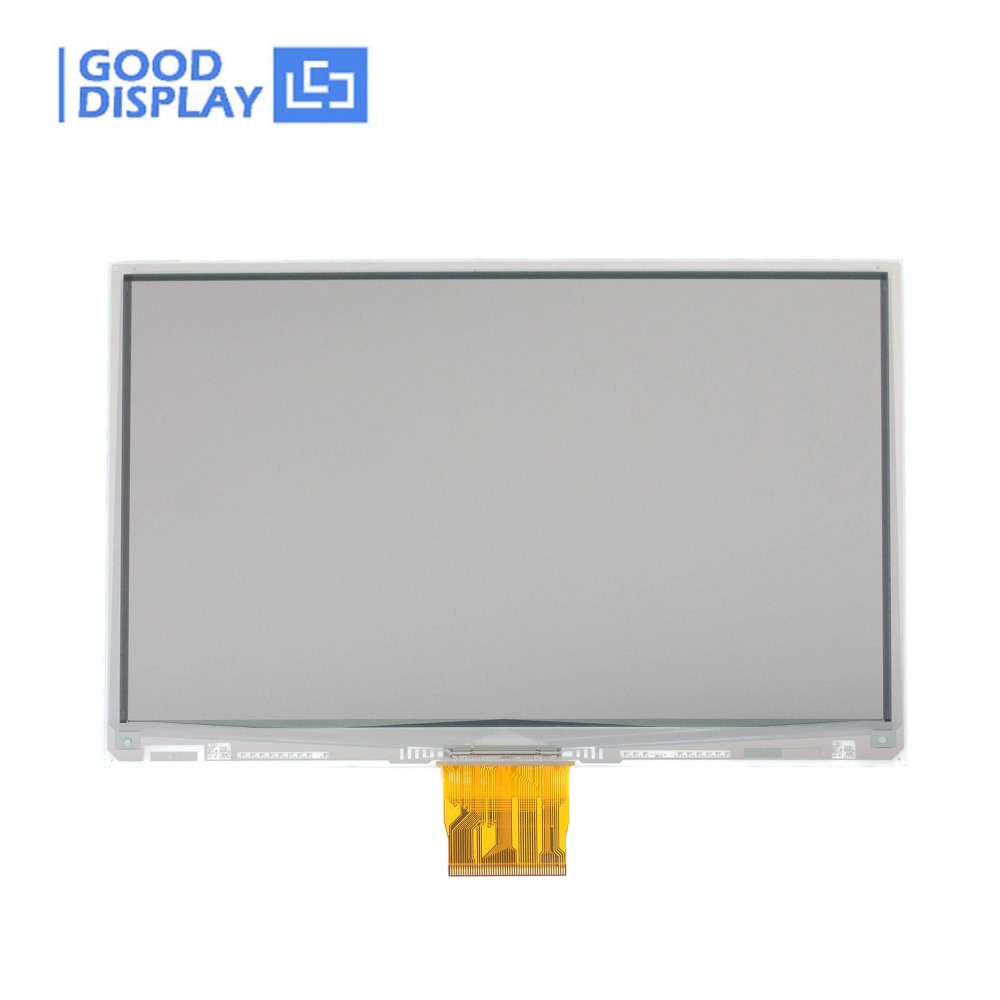

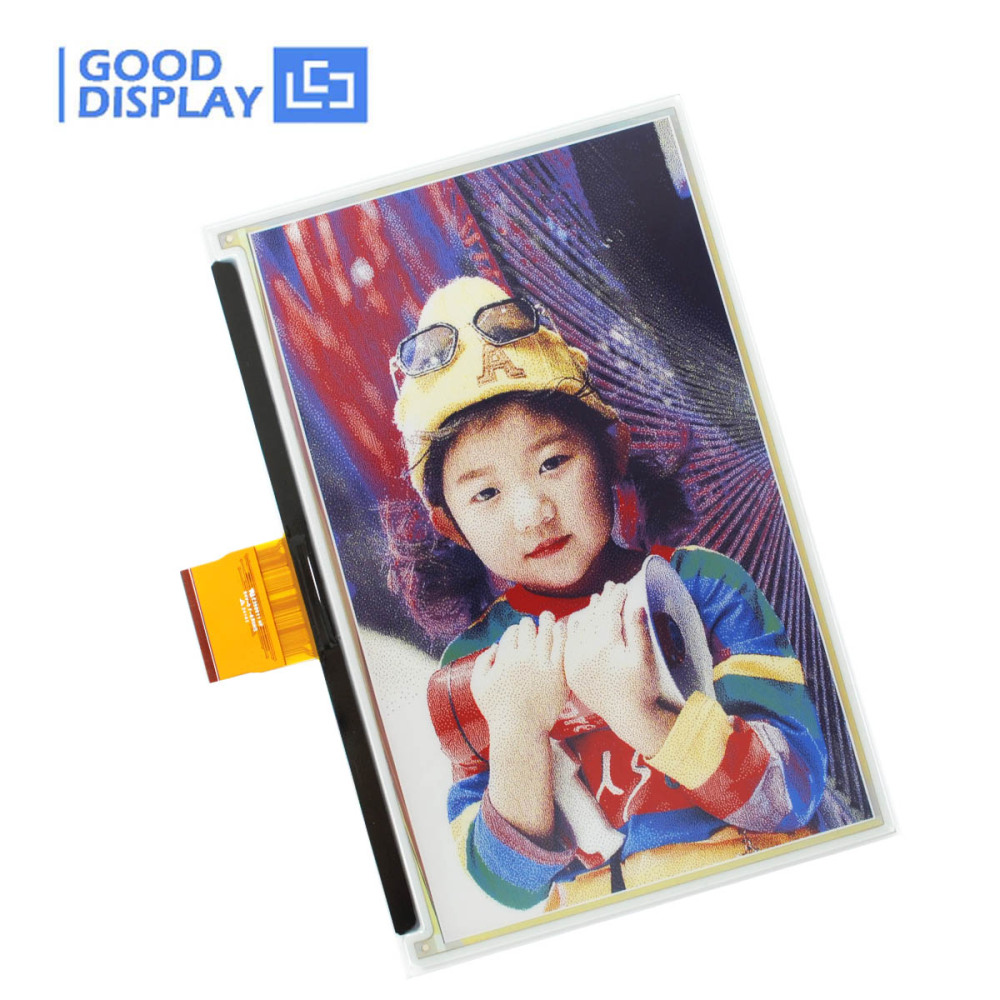

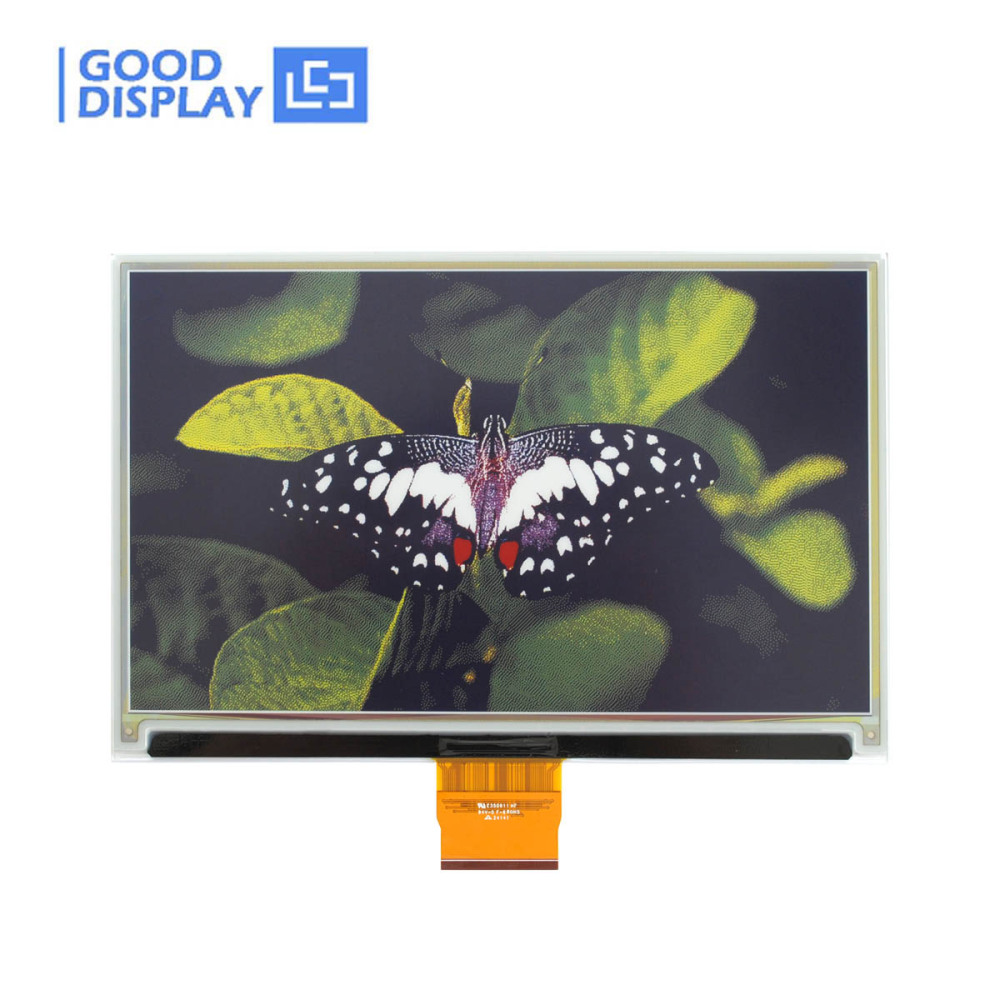

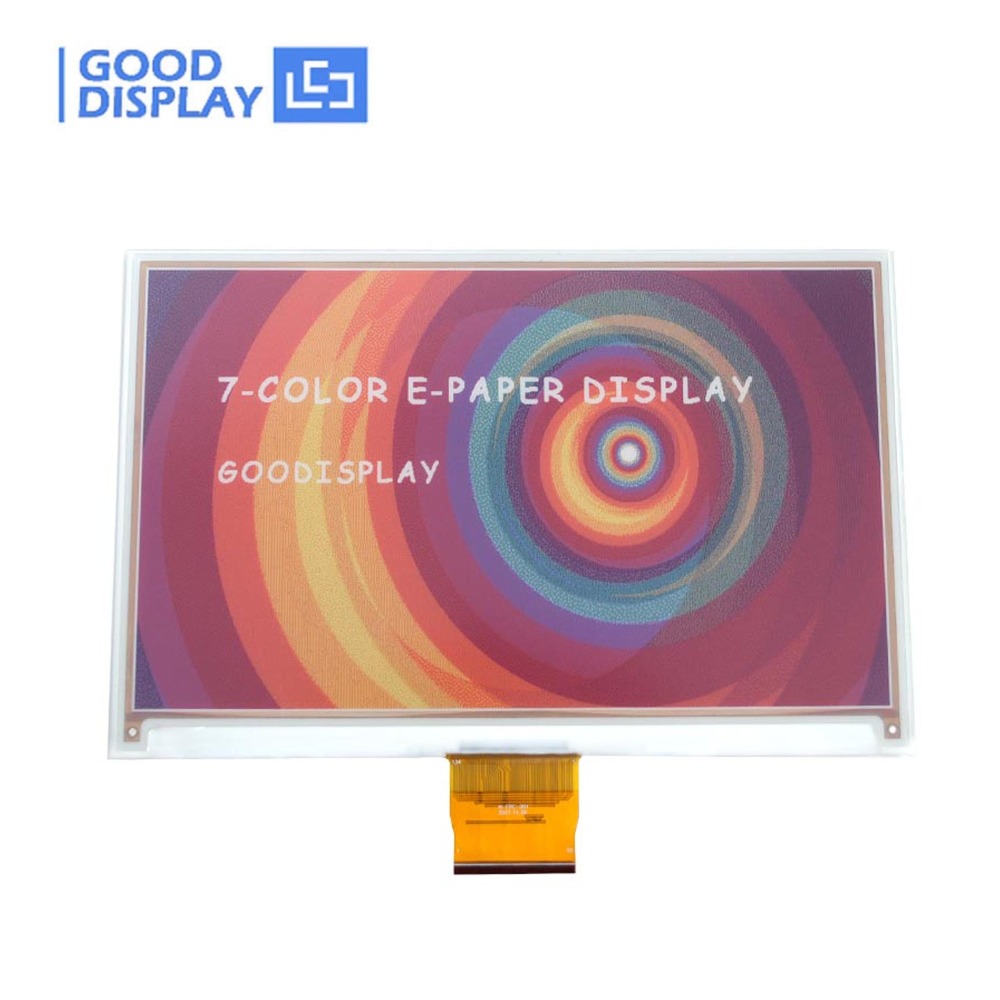

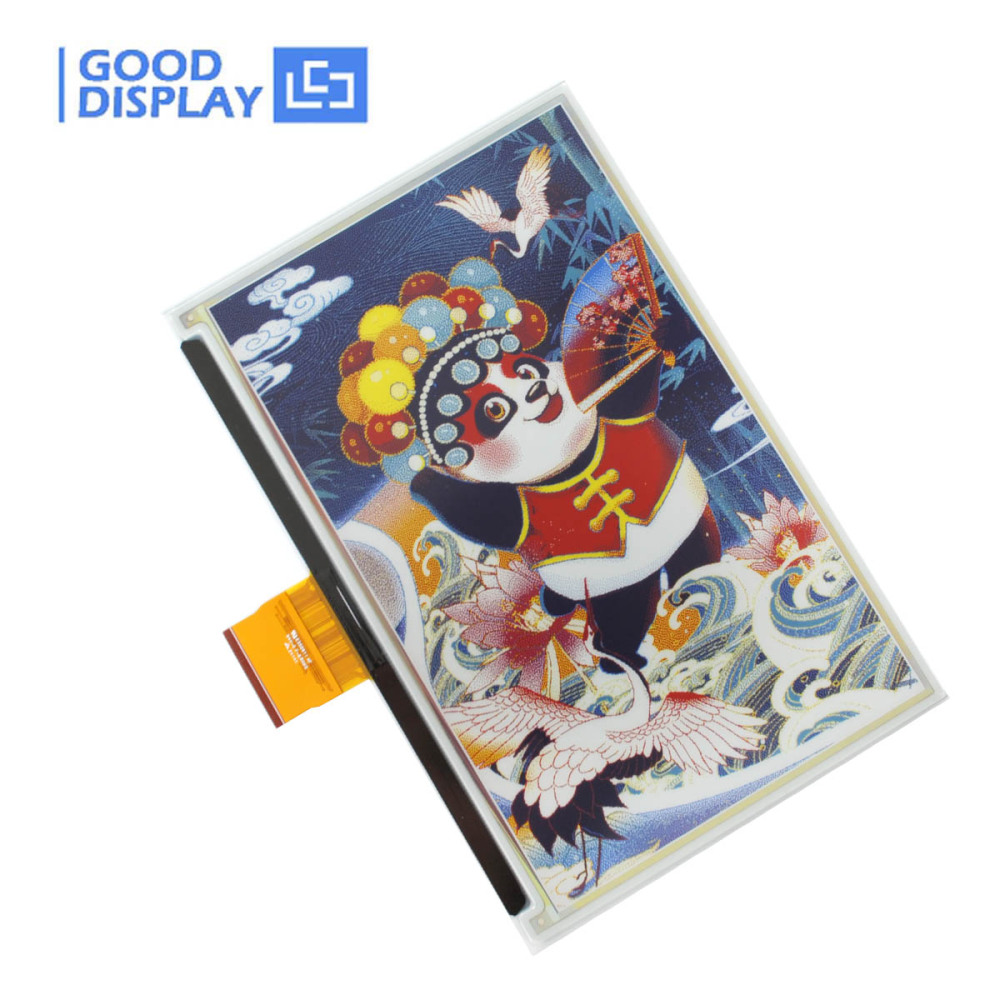

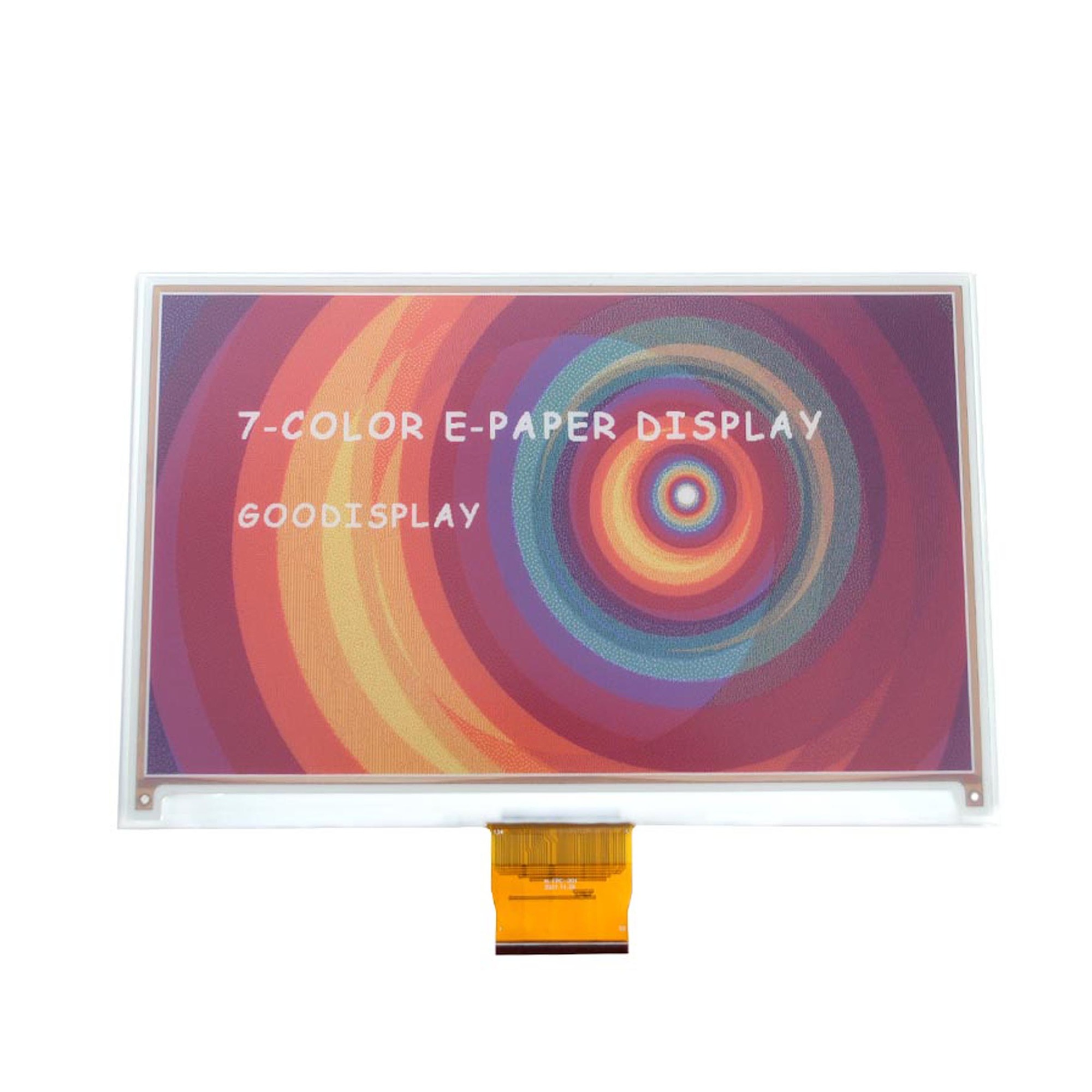

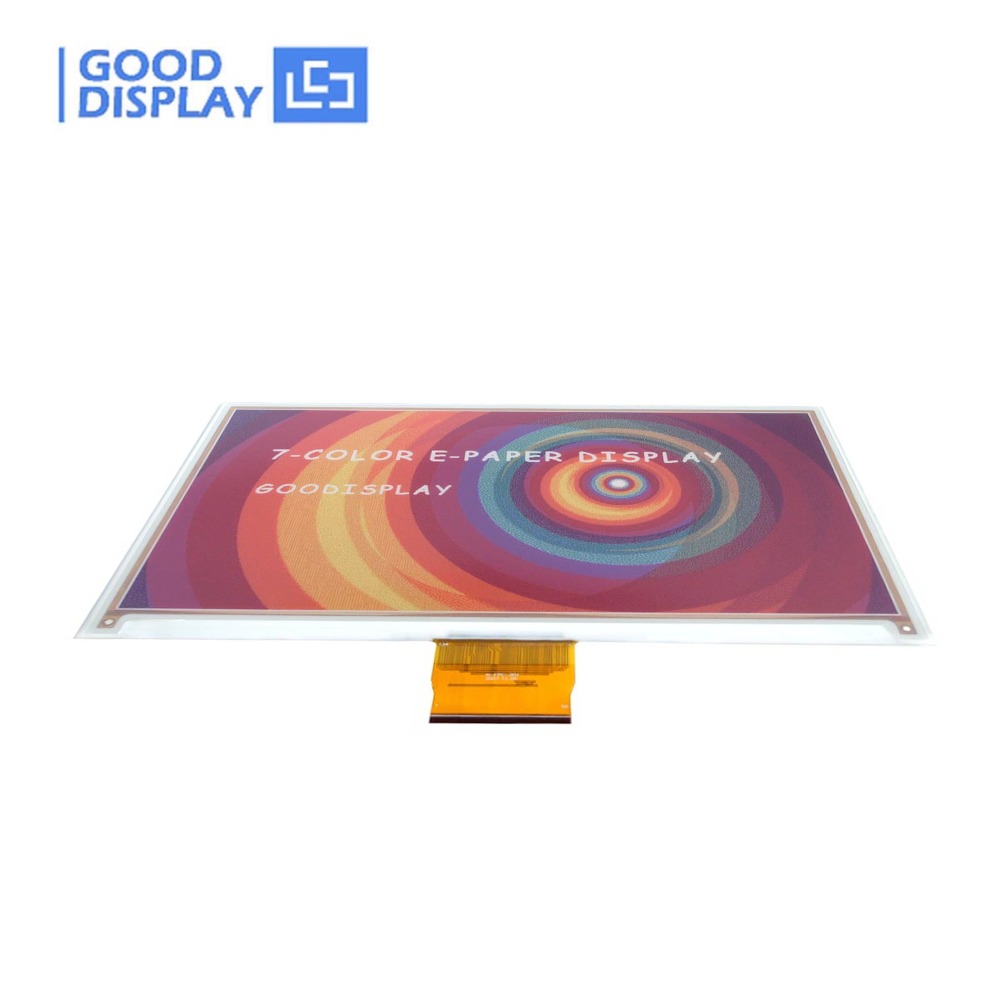

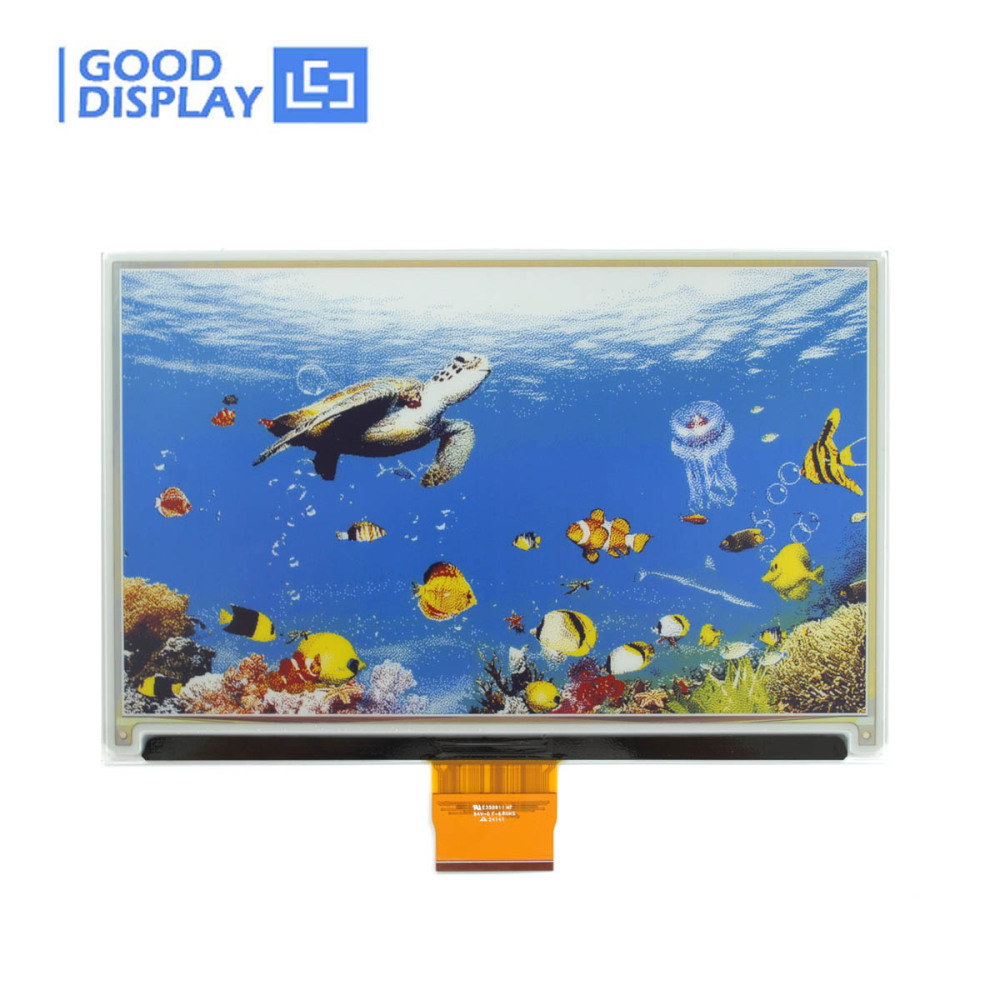

7-Color E-ink Display 7.3 inch Colorful E-paper Screen, GDEY073D46

This E-ink Display has 7 colors (black, white, red yellow blue, green and orange). The 7.3 inch colorful e-paper support 800x480 resolution. The circuitry on the panel includes an integrated gate and source driver, timing controller, oscillator, DC-DC  bo
Sold:1
Price:
USD
$90.00
Quantity:
-
+
(0 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




This E-ink Display has 7 colors (black, white, red yellow blue, green and orange). The 7.3 inch colorful e-paper support 800x480 resolution. The circuitry on the panel includes an integrated gate and source driver, timing controller, oscillator, DC-DC  boost circuit, and memory to store the frame buffer and lookup tables, and additional circuitry to control VCOM and BORDER settings. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.



We also could provide front light, touch screen and other accessories for you.









☆ THE ABOVE PRICE INCLUDE



1) 7-Color E-ink Display 7.3 inch Colorful E-paper Screen * 1pc






 MAIN PARAMETERS




PART NUMBER

GDEY073D46



SIZE

7.3 inch

STORAGE TEMP. -20℃~70℃

TYPE

Dot Matrix

OPERATING TEMP. 15℃~35℃

RESOLUTION

800x480

INTERFACE SPI

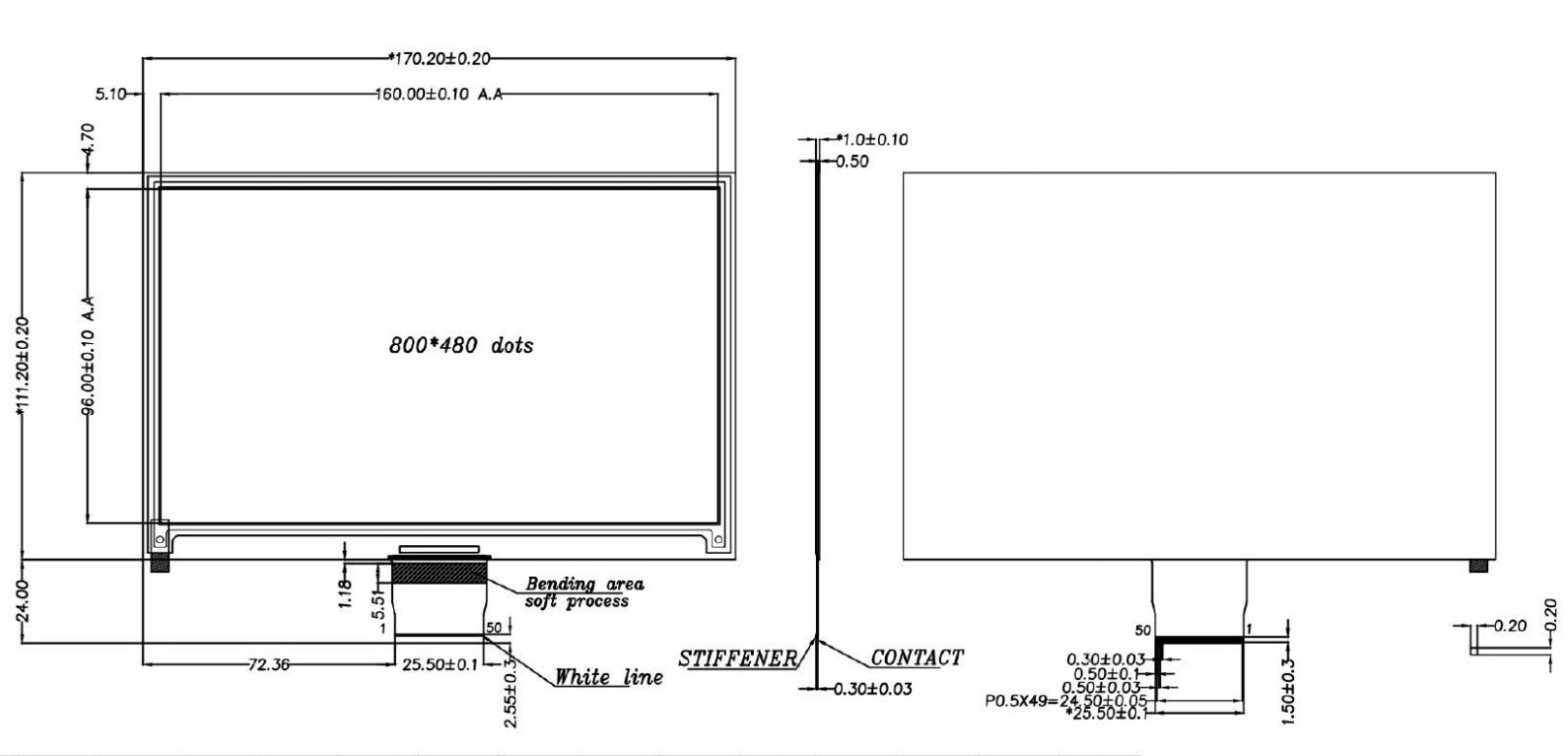

OUTLINE SIZE(mm)

170.2x111.2x1.0

COLOR 7-colors

ACTIVE SIZE(mm)

160x96

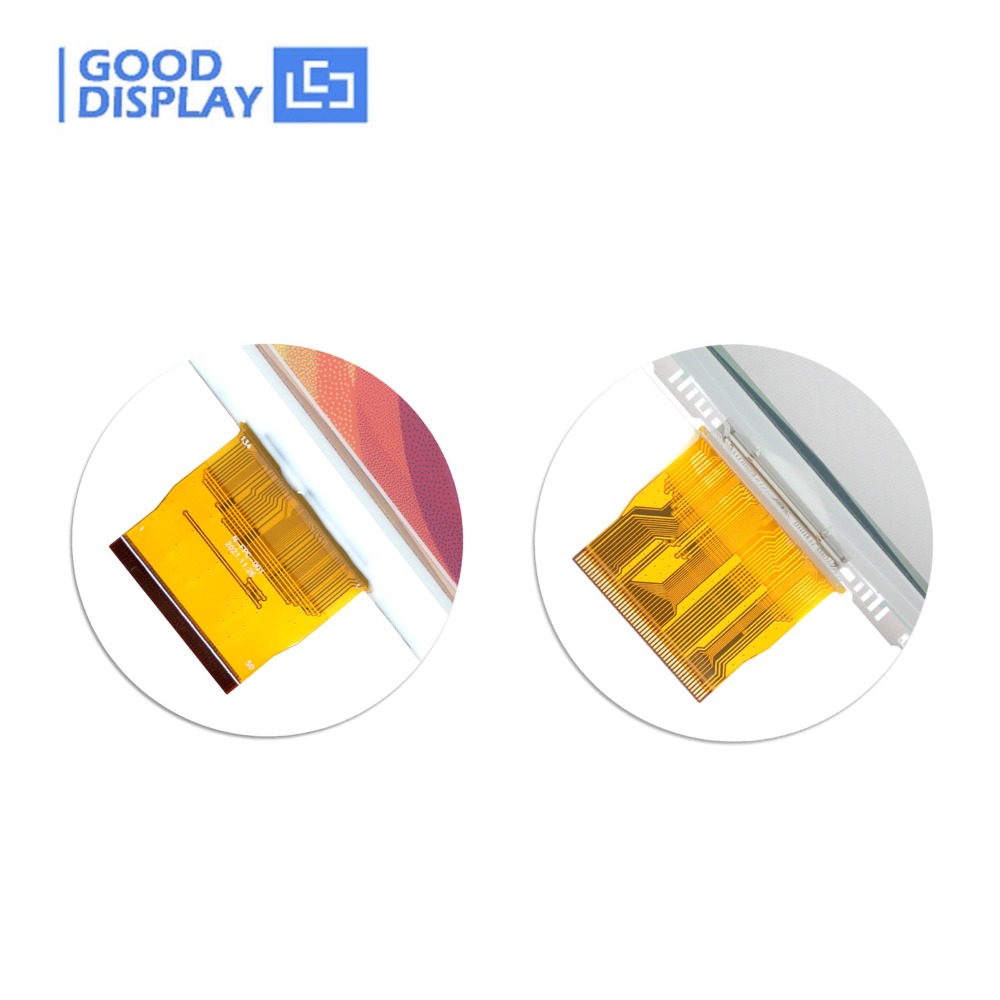

CONNECTOR 50 Pin FPC

PIXEL PITCH(mm)

0.2x0.2

TIME OF REFRESH(s) 32
POWER CONSUMPTION OF THE REFRESH(mW) 52.8 STANDBY POWER CONSUPTION Pc(mW) 0.118






☆ DETEILS







 FEATURE




●  Supports 7-color display
●  Versatile. Use in portrait or landscape format
●  Bistable. (Will continue to display with no power source)
●  Ultra low power consumption, basically power is only required for refreshing

●  It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays











☆ ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com




☆ SPECIFICATION




1. Product Specification
1)  GDEY073D46 Specification

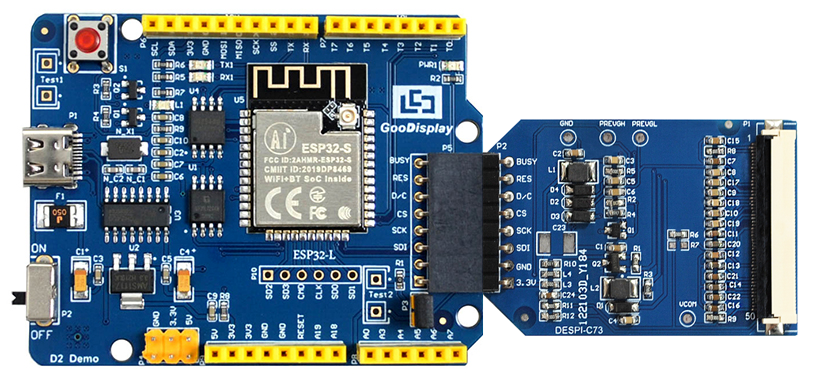

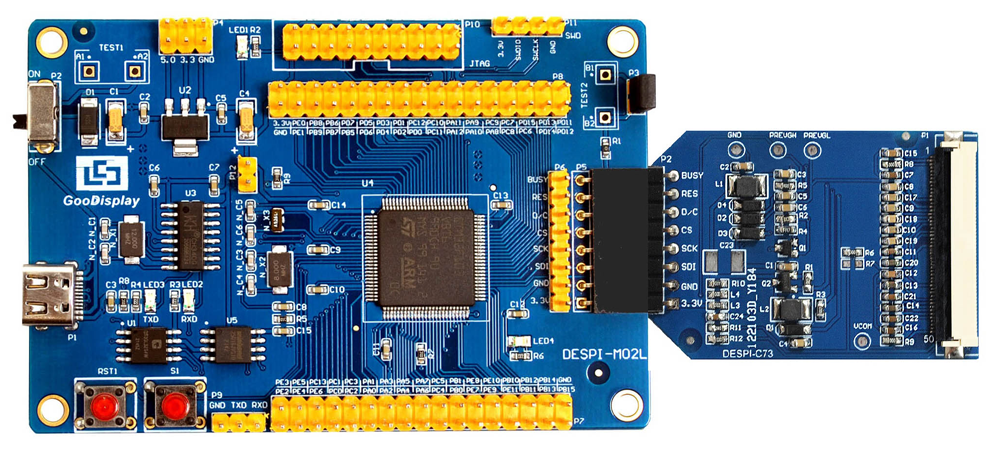

2)  GDEY073D46 STM32 Sample Code



PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0097T50 0.97'' BW 2 184x88 22.264x10.648 4 0℃~50℃   SPI
GDEW0097C50 0.97'' BWY 2 184x88 22.264x10.648 22 0℃~40℃     SPI
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI

GDEW0102I4FC

1.02''

BW

2

128x80

21.76x14

3

0℃~50℃

SPI

GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -10℃~60℃     SPI
GDEY0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃   SPI
GDEY0154Z90 1.54'' BWR 2 200x200 27x27 16 0℃~40℃     SPI
GDEW0154I9FC 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ SPI
GDEY0213B74 2.13'' BW 4 250x122 48.55x23.7046 3 0℃~50℃   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃   SPI
GDEY0266T90 2.66'' BW 4 296x152 60.088x30.704 3 0℃~50℃   SPI
GDEY0266Z90 2.66'' BWR 2 296x152 60.088x30.704 12 0℃~40℃     SPI
GDEY027T91 2.7'' BW 4 264x176 57.29x38.19 3 0℃~50℃   SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃   SPI
GDEY029Z94 2.9'' BWR 2 296x128 66.896x29.056 12 0℃~40℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ SPI
GDEQ031T10 3.1'' BW 2 320x240 62.72x47.04 3 0℃~50℃   SPI
GDEY037Z03 3.71'' BWR 2 416x240 81.54x47.04 12 0℃~40℃     SPI
GDEY037T03 3.71'' BW 2 416x240 81.54x47.04 3 0℃~50℃     SPI
