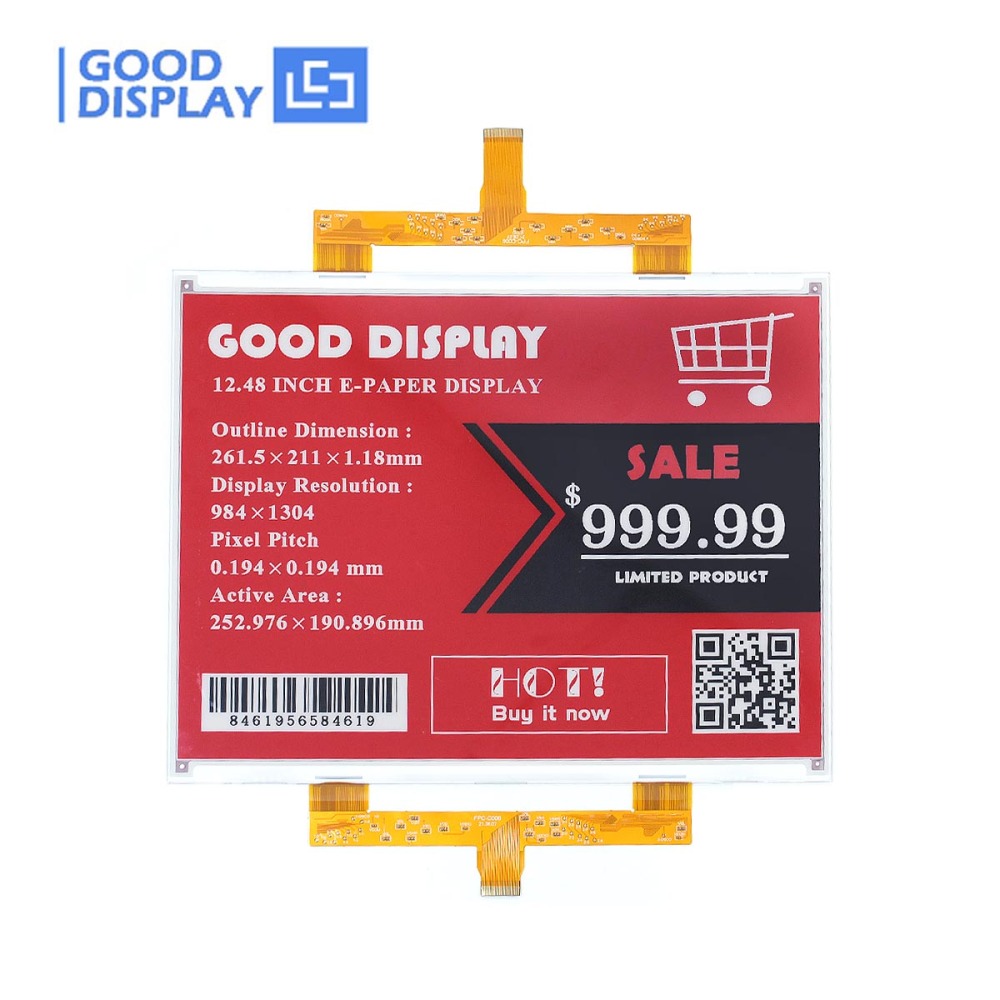

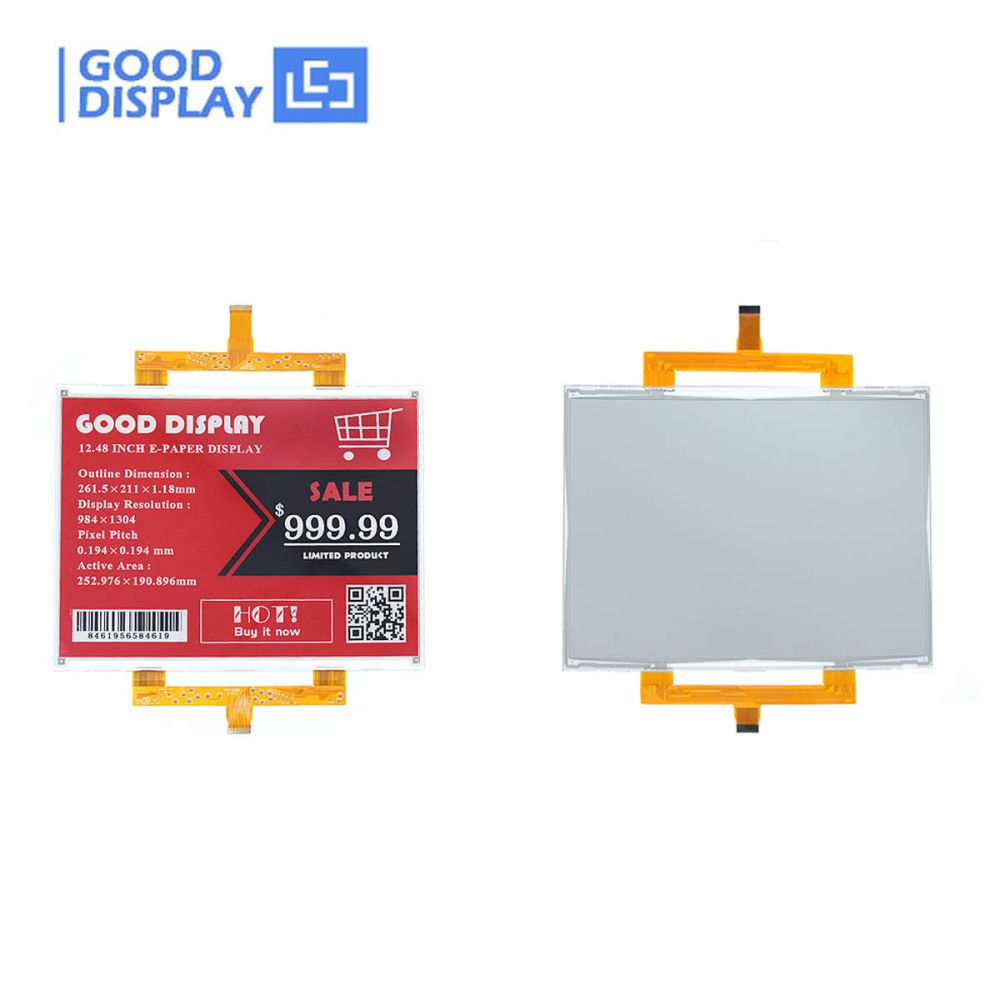

12.48 inch Large E-ink Display UC8179 Big Epaper Color Screen, GDEY1248Z51

This is a 12.48 inch color e ink display with two FPC interfaces, UC8179, 1304x984 resolution, SPI interface, and the display is capable to display images with black, white and red content.
Sold:16
Price:
USD
$125.00
Quantity:
-
+
(30 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Selection Guide
  • Selection Guide (Above 4.2 inch)
  • Reviews



☆ INTRODUCTION

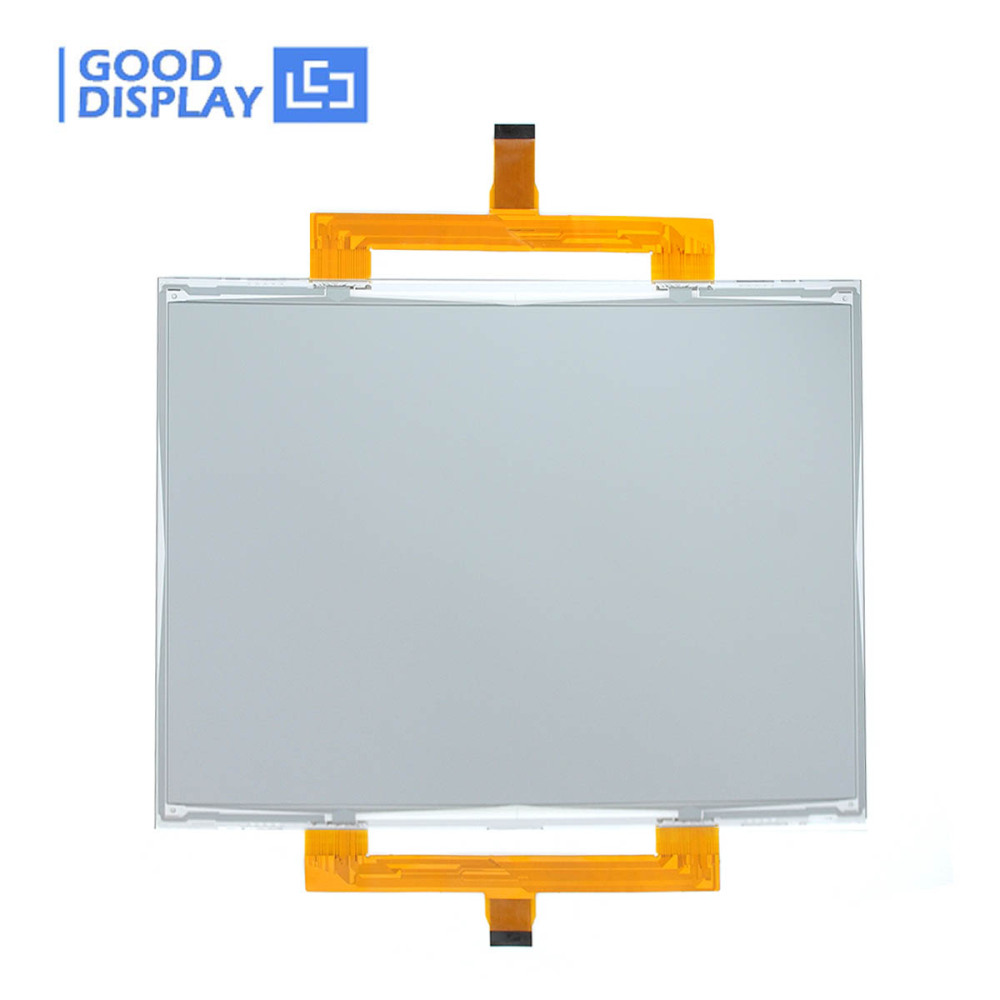

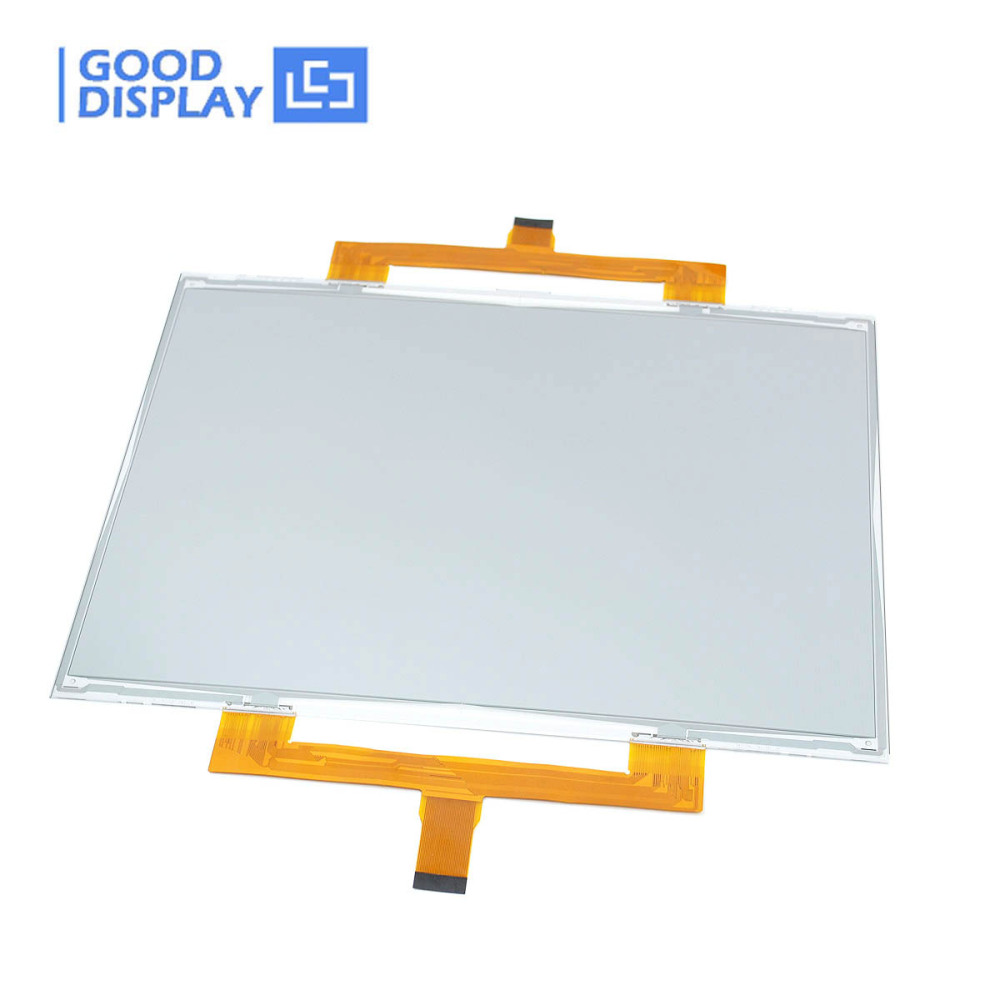

This is a 12.48 inch color e ink display with two FPC interfaces, 1304x984 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.
This 12.48 inch e-ink display GDEY1248Z51 is perfect for low power devices powered by solar or batteries. or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.

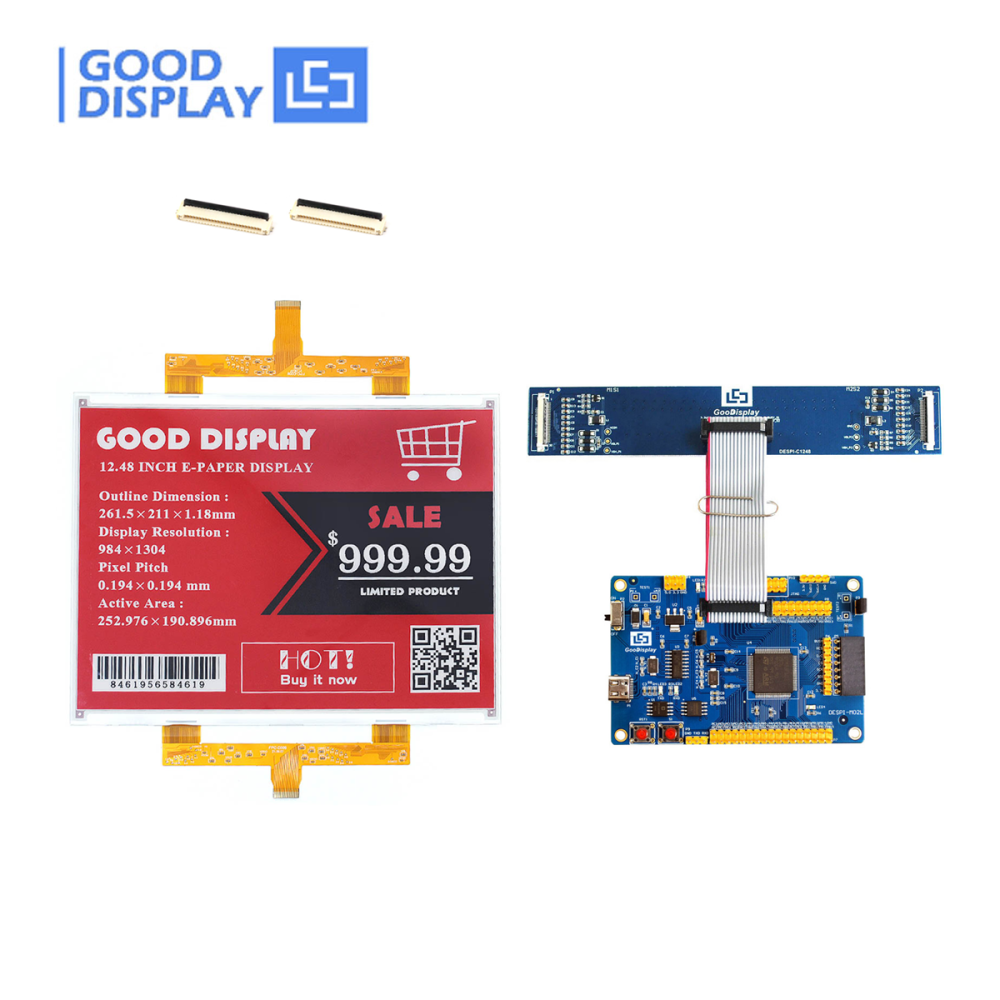

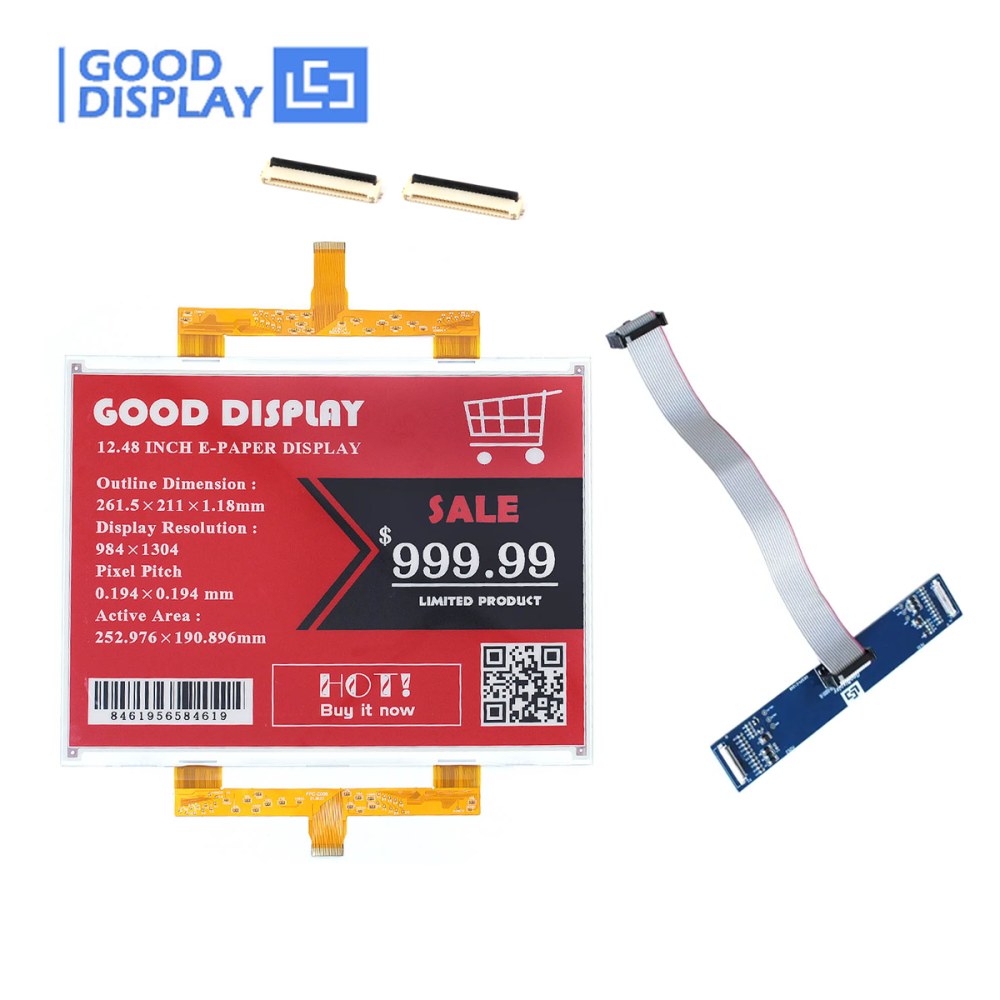

We provide the E-Ink Adapter Board for you to connect the E-paper Display.

We could provide front light, touch screen and other accessories for you.


Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.


You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array

* This e-ink display module DOES NOT support partial updates.

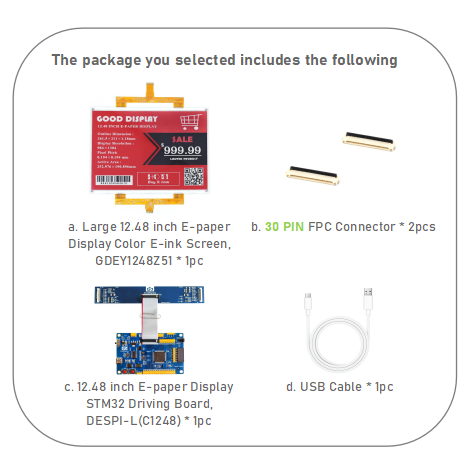

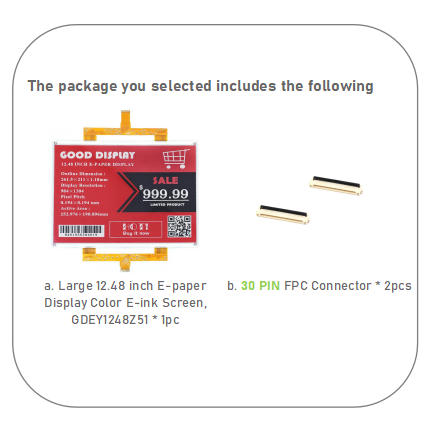

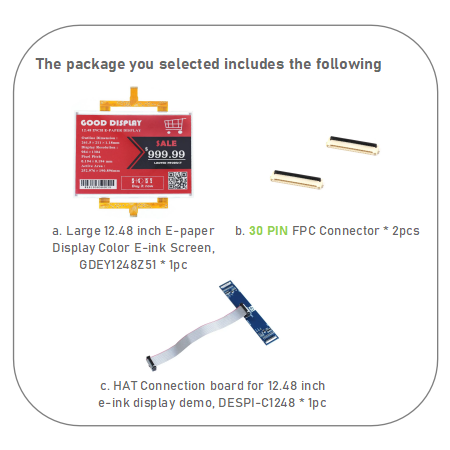

☆ THE ABOVE PRICE INCLUDE



1) 12.48 inch Large E-ink Display UC8179 Big Epaper Color Screen, GDEY1248Z51 * 1pc
2) FPC Connector * 2pcs




☆ MAIN PARAMETERS




PART NUMBER

GDEY1248Z51

SIZE

12.48 inch

STORAGE TEMP. -25℃~60℃

TYPE

Dot Matrix

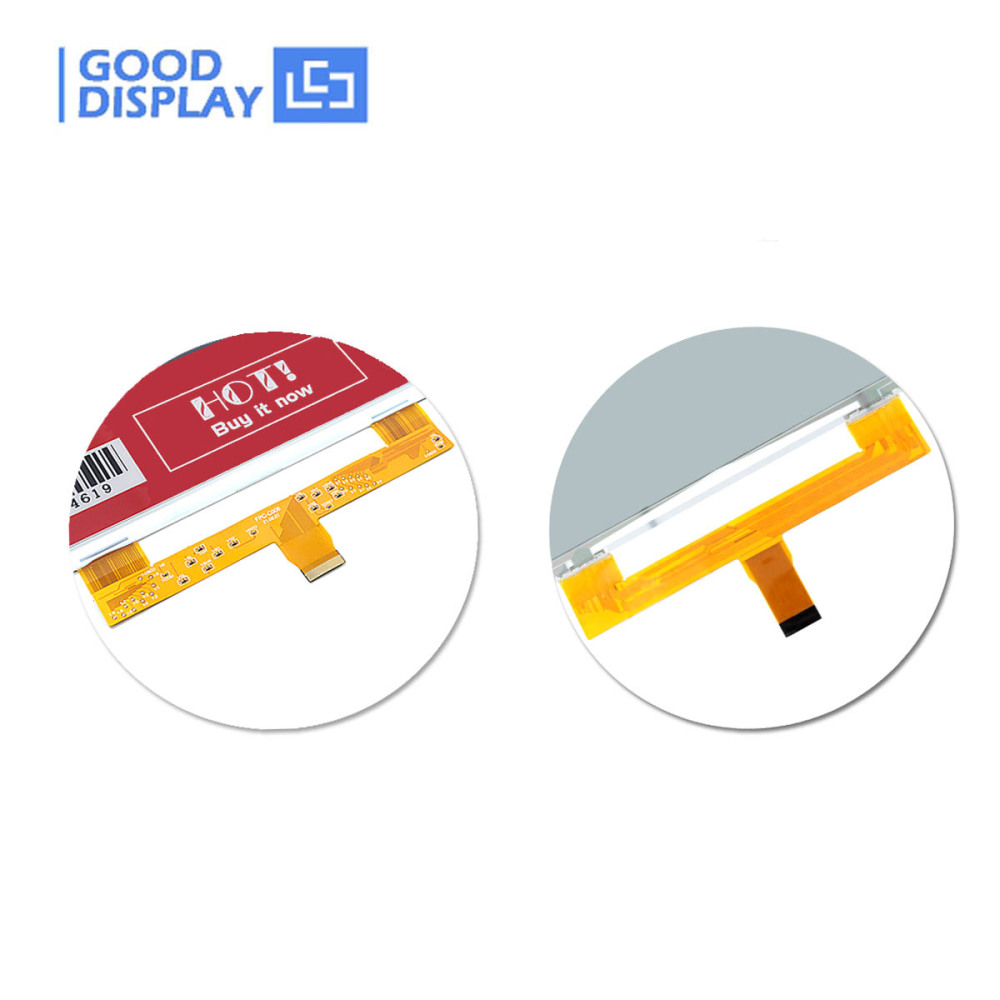

CONNECTOR Two FPC Interface, 30Pin

IC

UC8179

MAX GRAYSCALE 2

RESOLUTION

1304x984

COLOR Black, White, Red

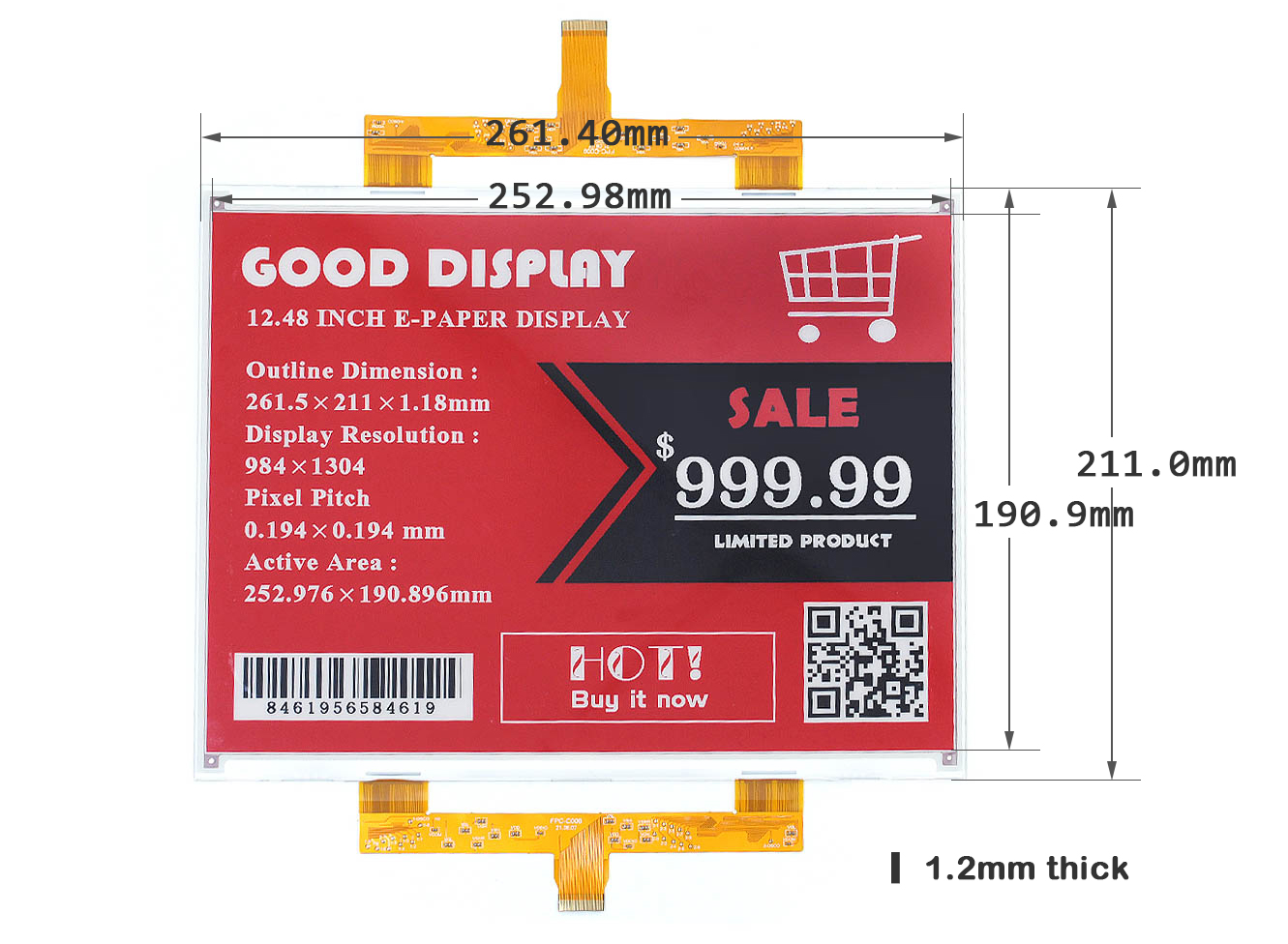

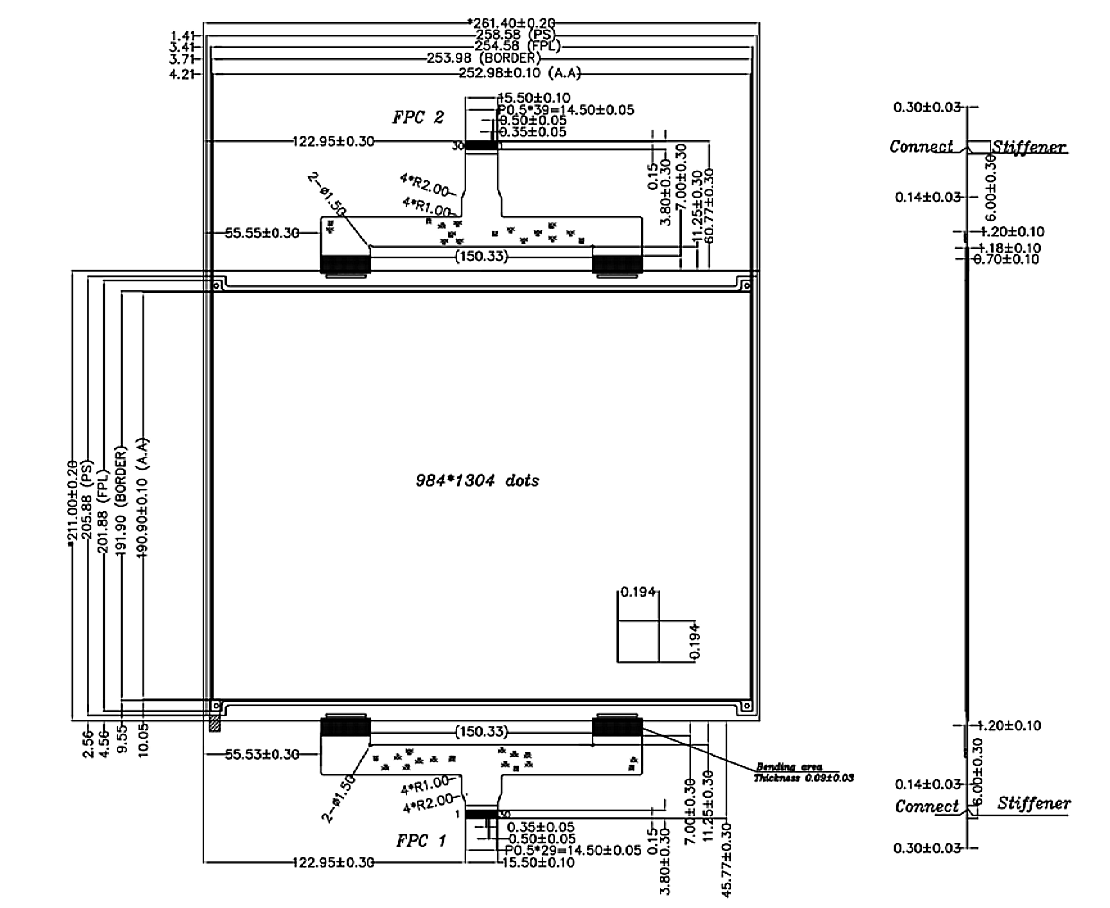

OUTLINE SIZE(mm)

261.4x211x1.20

INTERFACE SPI

ACTIVE SIZE(mm)

252.98x190.90

FULL REFRESH(s) 37

PIXEL PITCH(mm)

0.194x0.194

POWER CONSUMPTION OF THE REFRESH(mW) 148.5

OPERATING TEMP.

0℃~40℃

STANDBY POWER CONSUMPTION (mW) 0.0165




☆ FEATURE



●  Versatile. Use in portrait or landscape format.
●  Bistable. (Will continue to display with no power source)
●  Support partial refresh. The partial refresh rate is 0.3s/frame
●  Compared with other 2.9 inch electornic paper displays, the power consumption is lower

● Development platform available STM32 Raspberry Pi / ESP32




☆ DETAILS

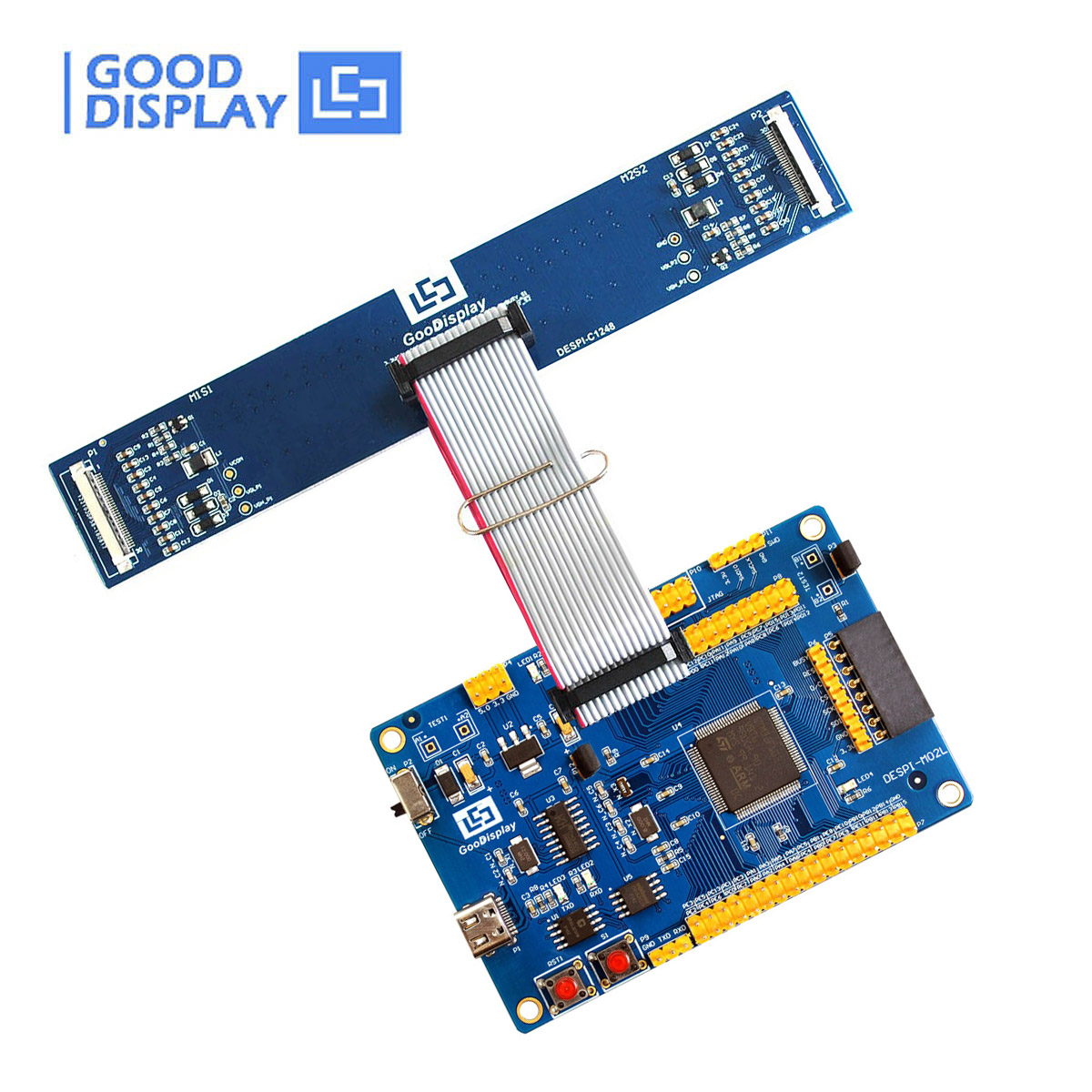

☆ MATCHED DEVELOPMENT KIT

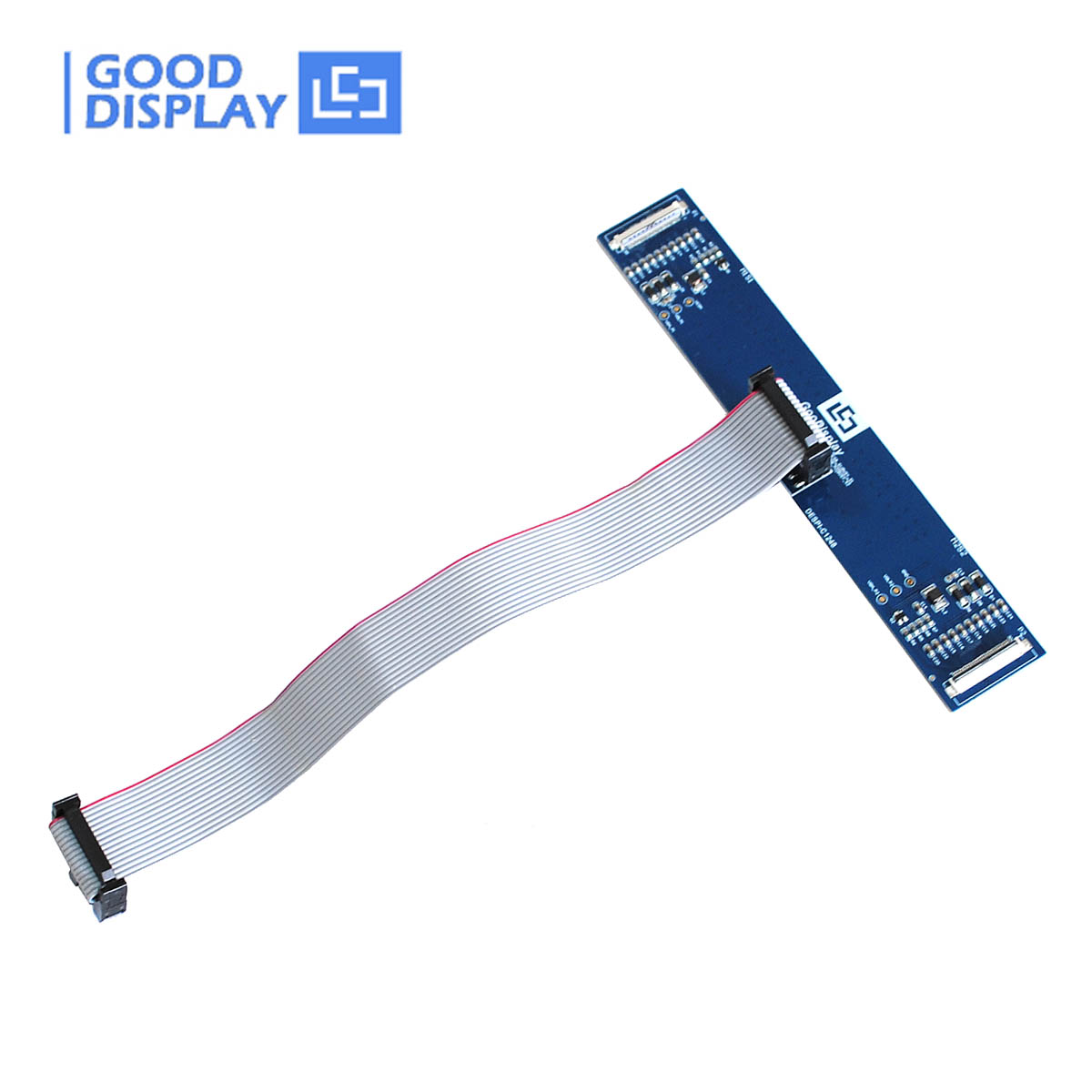

● DESPI-C1248 (E-ink Display HAT)

● DESPI-L(C1248)




☆ RELATED INFORMATION DOWNLOAD



● GDEY1248Z51 Specification

● IC Driver UC8179

● Word Production and Bitmap Convert for GDEY1248Z51

● GDEY1248Z51 STM32 Sample Code

● GDEY1248Z51 ESP32 Sample Code

● GDEY1248Z51 Raspberry Pi Sample Code




☆ WE ALSO SUGGEST...




7.5 inch large e-ink screen SPI electronic paper display, GDEY075T7

E-ink module 800x480 7.5 inch red tri-color electronic paper display, GDEY075Z08

Monochrome 13.3 inch Big E-ink Display HD 1600x1200 Resolution E-paper Screen, GDEP133UT3




☆ ABOUT US



Thank you for your interest in our product. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].

PART NUMBER SIZE COLOR RESOLUTION ACTIVE SIZE(mm) FULL UPDATE(S) OPERATING TEMP. PARTIAL UPDATE FLEXIBLE
GDEW0097T50 0.97'' BW 184x88 22.264x10.648 4 0℃~50℃
GDEW0097C50 0.97'' BWY 184x88 22.264x10.648 22 0℃~40℃
GDEW0102T4 1.02'' BW 128x80 21.76x14 3 0℃~50℃
GDEW0102I3F 1.02'' BW 128x80 21.76x14 3 0℃~50℃

GDEW0102I4FC

1.02''

BW

128x80

21.76x14

3

0℃~50℃

GDEW0154M10 1.54'' BW 152x152 27.512x27.512 3 -10℃~60℃
GDEY0154D67 1.54'' BW 200x200 27x27 2 0℃~50℃
GDEW0154T8D 1.54'' BW 152x152 27.51x27.51 3 0℃~50℃
GDEY0154Z90 1.54'' BWR 200x200 27x27 16 0℃~40℃
GDEW0154I9FC 1.54'' BW 152x152 27.51x27.51 3 0℃~50℃
GDEW0213I5FD 2.13'' BW 212x104 48.55x23.71 3 0℃~50℃
GDEY0213B74 2.13'' BW 250x122 48.55x23.7046 3 0℃~50℃
GDEY0213Z98 2.13'' BWR 250x122 48.55x23.7046 14 0℃~40℃
GDEW0213T5D 2.13'' BW 212x104 48.55x23.71 3 0℃~50℃
GDEW026T0D 2.6'' BW 296x152 60.09x30.7 3 0℃~50℃
GDEY0266T90 2.66'' BW 296x152 60.088x30.704 3 0℃~50℃
GDEY0266Z90 2.66'' BWR 296x152 60.088x30.704 12 0℃~40℃
GDEY027T91 2.7'' BW 264x176 57.29x38.19 3 0℃~50℃
GDEY029T94 2.9'' BW 296x128 66.896x29.056 3 0℃~50℃
GDEY029Z94 2.9'' BWR 296x128 66.896x29.056 12 0℃~40℃
GDEW029I6FD 2.9'' BW 296x128 66.9x29.06 3 0℃~50℃
GDEQ031T10 3.1'' BW 320x240 62.72x47.04 3 0℃~50℃
GDEY037Z03 3.71'' BWR 416x240 81.54x47.04 12 0℃~40℃
GDEY037T03 3.71'' BW 416x240 81.54x47.04 3 0℃~50℃

PART NUMBER SIZE COLOR RESOLUTION ACTIVE SIZE(mm) FULL UPDATE(S) OPERATING TEMP. PARTIAL UPDATE FLEXIBLE
GDEW042C37 4.2'' BWY 400x300 84.8x63.6 28 0℃~40℃
GDEW042T2 4.2'' BW 400x300 84.8x63.6 3 0℃~50℃
GDEY042T91 4.2'' BW 400x300 84.8x63.6 3 0℃~50℃
GDEQ042Z21 4.2'' BWR 400x300 84.8x63.6 19 0℃~40℃
GDEY0579T93 5.79'' BW 792x272 139.00×47.74 3 0℃~50℃
GDEY0579Z93 5.79'' BWR 792x272 139.00×47.74 20 0℃~40℃
GDEW0583C64 5.83'' BWY 600x448 118.80x88.26 25 0℃~40℃
GDEY0583T8 5.83'' BW 648x480 118.78x88.22 3 0℃~50℃
GDEW0583Z83 5.83'' BWR 648x480 119.232x88.32 12 0℃~40℃
GDEY075T7 7.5'' BW 800x480 163.2x97.72 3 0℃~50℃
GDEY075Z08 7.5'' BWR 800x480 163.2x97.72 12 0℃~40℃
GDEP097TC2

9.7''

BW

1200x825

202.8x139.425

1

0℃~50℃



GDEQ102T90 10.2'' BW 960x640 215.52x143.68 4 0℃~50℃
GDEQ102Z90 10.2'' BWR 960x640 215.52x143.68 4 0℃~50℃
GDEH116T91 11.6'' BW 960x640 244.512x163.008 5 0℃~50℃
GDEH116Z91 11.6'' BWR 960x640 244.512x163.008 30 0℃~35℃
GDEY1248Z51 12.48'' BWR 1304x984 252.98x190.90 25 0℃~40℃
GDEP133UT3 13.3'' BW 1600x1200 270.4x202.8 1 -15℃~65℃
