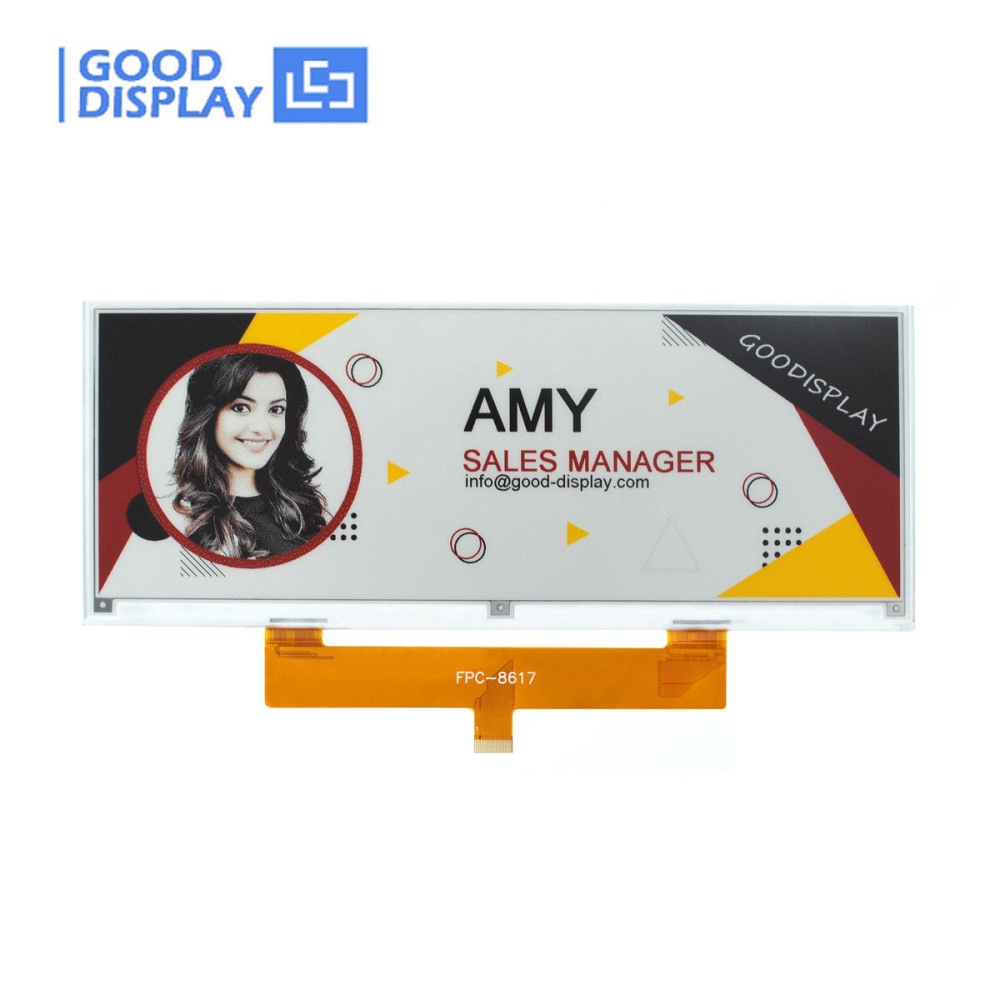

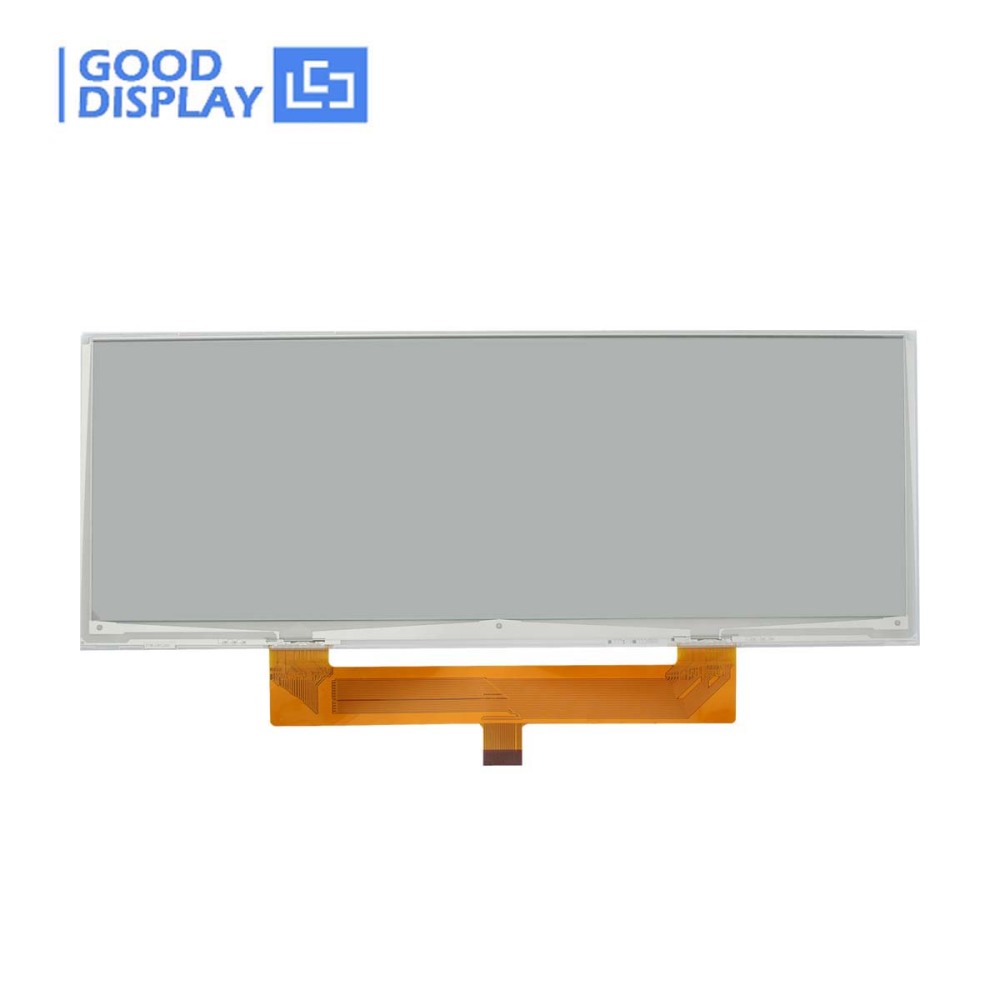

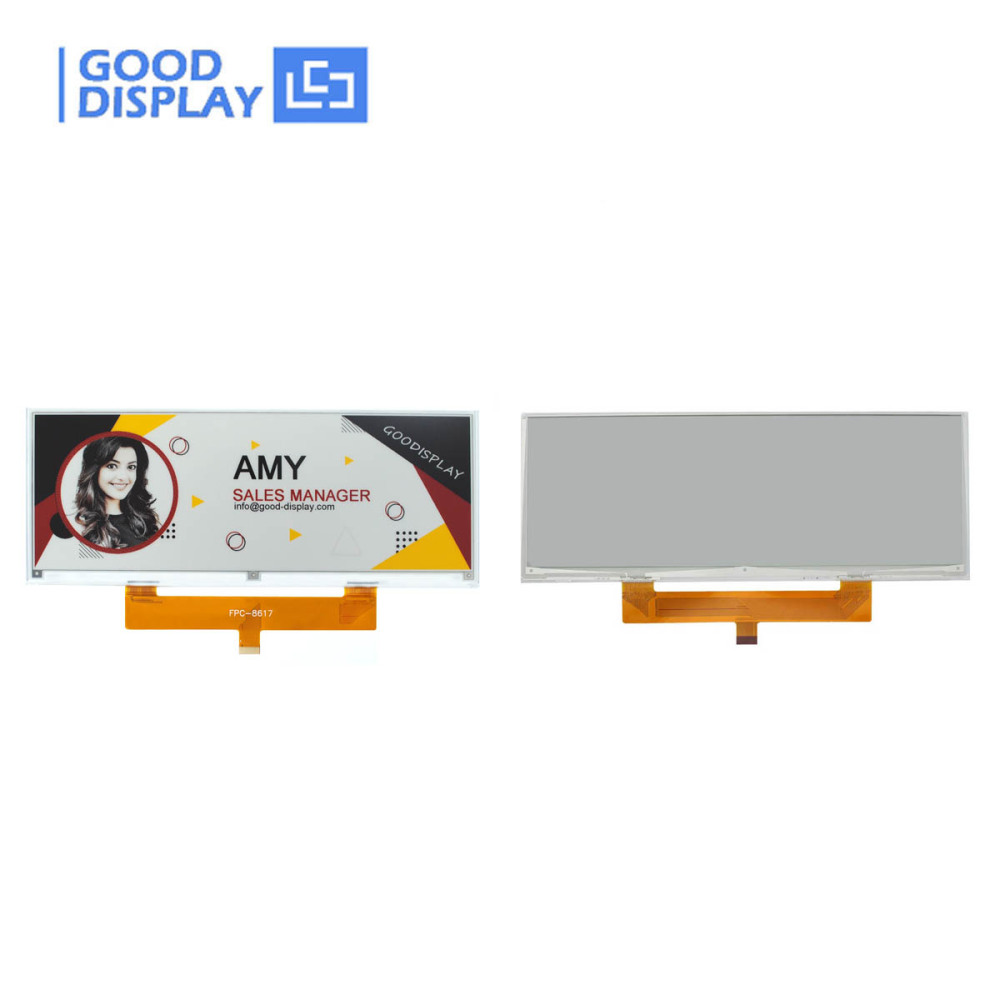

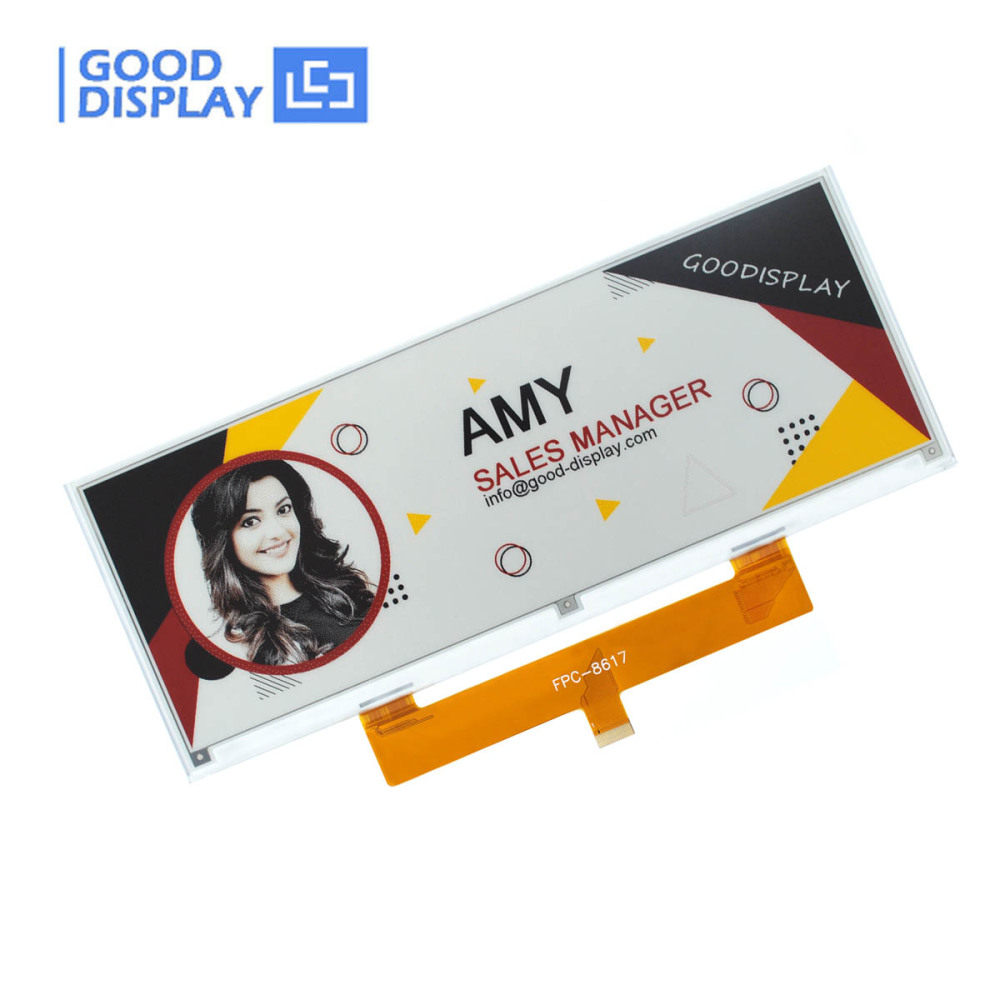

10.85-Inch Large Size Black White Red and Yellow Four-Color E-Paper Display 1360x480

GDEM1085F51
Upgrade to our 10.85-inch Four-Color E-Paper Display and experience vibrant, energy-efficient, and eye-friendly technology. Perfect for all your display needs! Click to learn more and see why our display stands out from the rest!
Have a question?
Price:
USD
$108.00
  • product:
    EPD

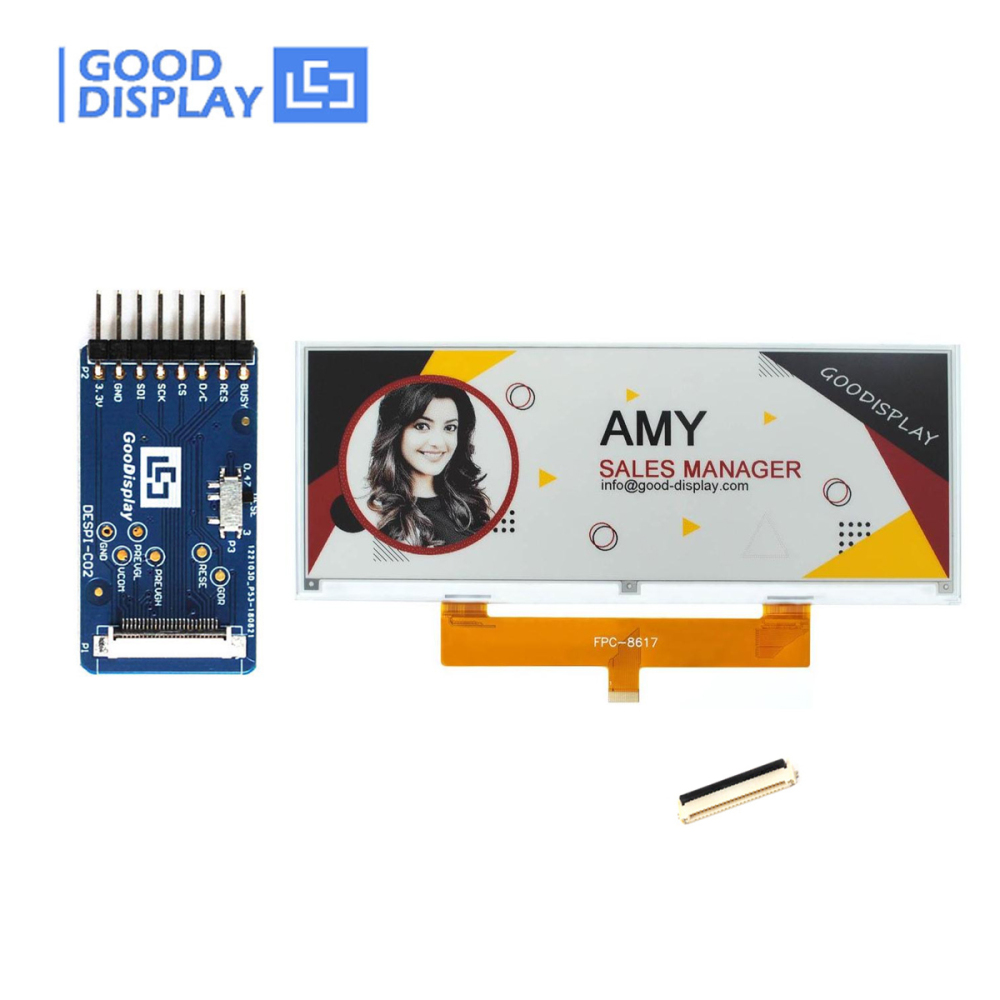

    EPD with adapter board

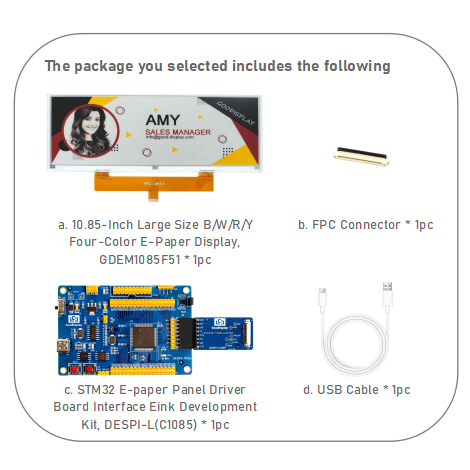

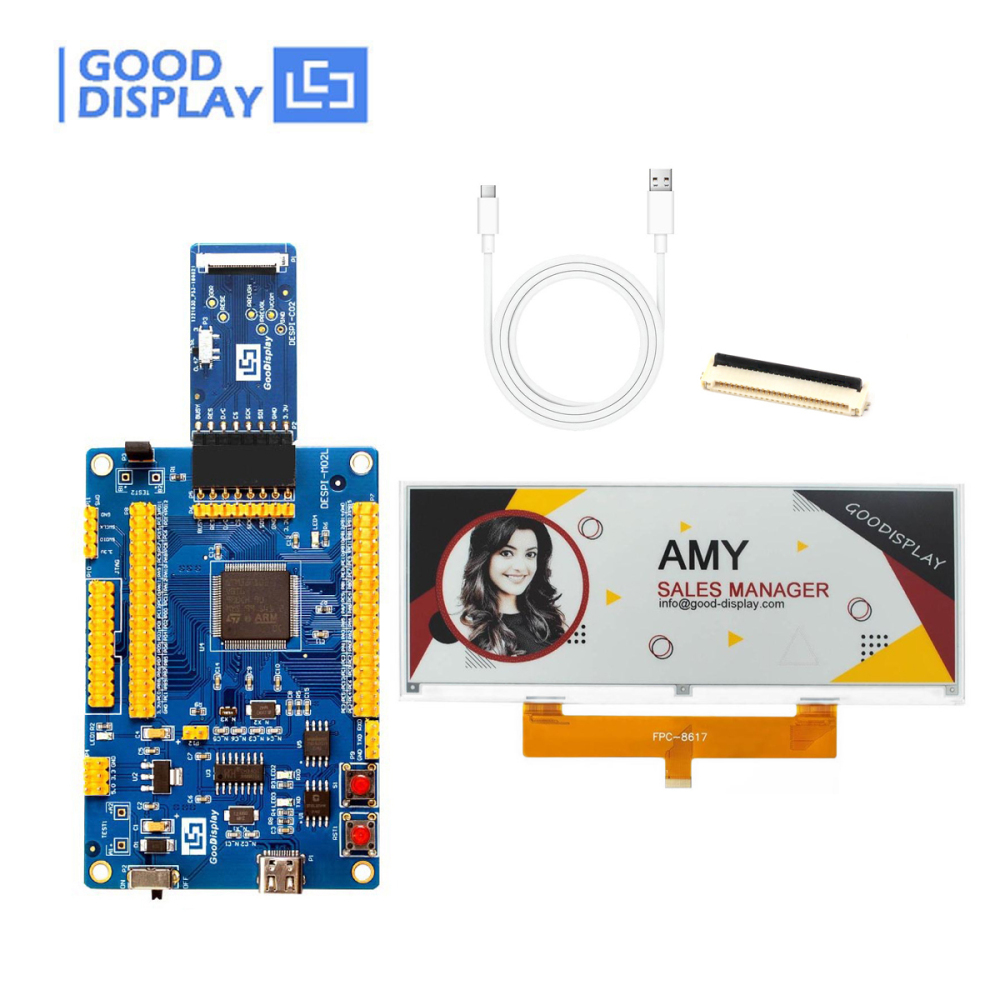

    EPD with STM32 Demo Kit

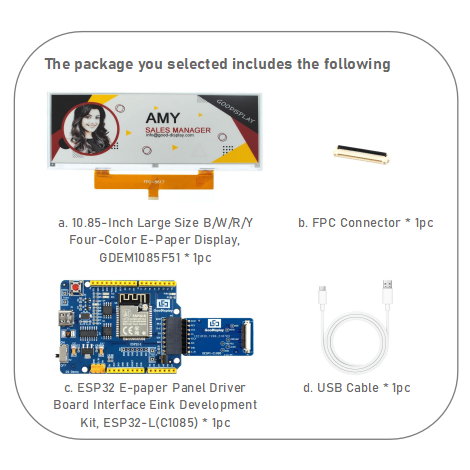

    EPD with ESP32 Demo Kit
    adapter board
Quantity:
-
+
(34 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews


High-Resolution 10.85-Inch Four-Color E-Paper Display 1360x480 SPI Interface, Black/White/Red/Yellow




Introducing our 10.85-inch Four-Color E-Paper Display – the perfect blend of high-res magic and vibrant hues! With 1360x480 pixels, it showcases black, white, red, and yellow in stunning clarity. This SPI interface wonder is a power-saver, retaining your content without guzzling energy. Enjoy wide viewing angles, anti-glare goodness, and eye-friendly tech – all in one sleek package. Ideal for smart tags, home gadgets, and industrial displays, it's your go-to for colorful, efficient, and eye-catching screens!








Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  High-Res, Vivid Colors: Dive into a 1360x480 resolution with stunning black, white, red, and yellow. Perfect for making your content pop!
  ●  Eco-Friendly Power Saver: Thanks to bistable display tech, it only uses power when refreshing. Your content stays put without draining the battery!
  ●  Wide Viewing Angles & Anti-Glare: Enjoy over 170 degrees of clear viewing from any angle. Plus, our anti-glare surface means you’ll always see clearly, even in bright light.
  ●  Easy Integration with SPI Interface: Seamlessly integrate with your devices. Perfect for smart tags, home gadgets, and industrial displays.
  ●  Eye-Friendly Technology: Say goodbye to blue light and radiation. Our display is designed to be easy on your eyes, even with long-term use.
  ●  Persistent Display: Content remains visible even when the power is off. Ideal for critical information that needs to be displayed continuously.







Technical Details


    Please refer to the product drawings for detailed dimensions








Product Specifications


    Please refer to the product specifications for more details

PART NUMBER GDEM1085F51 CONNECTOR 24 Pin
SIZE 10.85 inch TYPE Dot Matrix
IC JD79686AB MAX GRAYSCALE 2
RESOLUTION 1360x480 COLOR Black, White, Red, Yellow
OUTLINE SIZE(mm) 270.56×105.92 ×1.20 INTERFACE SPI
ACTIVE SIZE(mm) 259.76×91.68 FULL UPDATE TIME(s) 20
PIXEL PITCH(mm) 0.191×0.191 TYPICAL POWER(mW) 66
OPERATING TEMP. 0℃~40℃ DEEP SLEEP POWER(mW) 0.003
STORAGE TEMP. -25℃~70℃







  Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

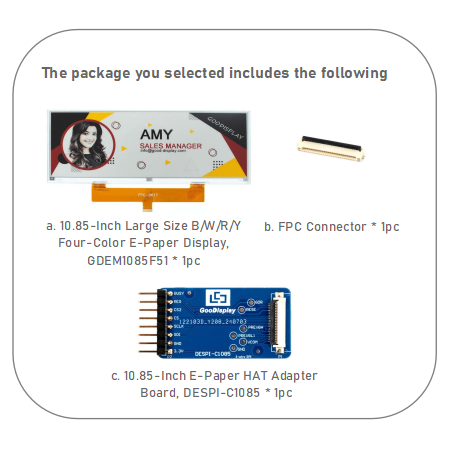

a.DESPI-C1085 (E-ink Display adapter Board) b.DESPI-L(C1085) (STM32 Demo Kit) c.ESP32-L(C1085) (ESP32 Demo Kit)







Related Information Download

Click on the subheadings below to download

  ● GDEM1085F51 Specification ● GDEM1085F51 ESP8266 Sample Code
  ● JD79686AB Driver IC Datasheet ● GDEM1085F51 ESP32 Sample Code
  ● GDEM1085F51 STM32 Sample Code ● The Latest Catalog of ePaper Display
