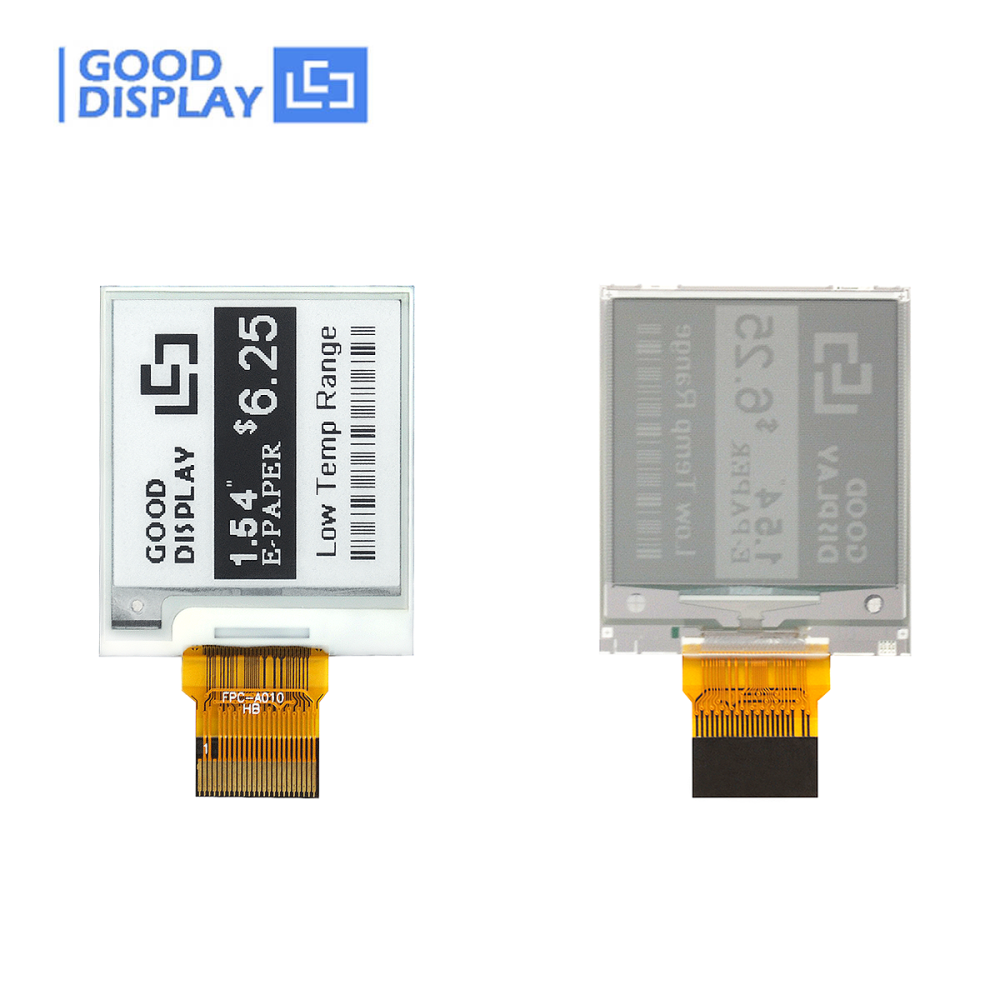

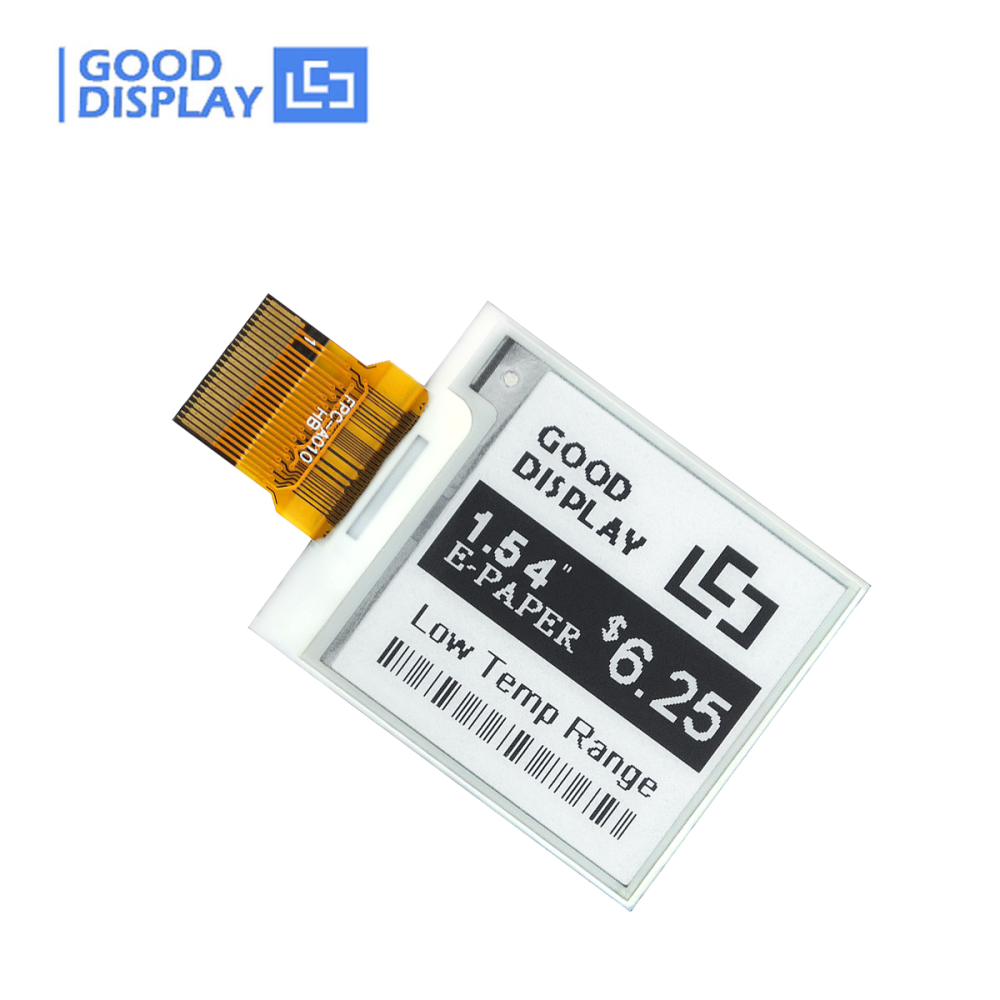

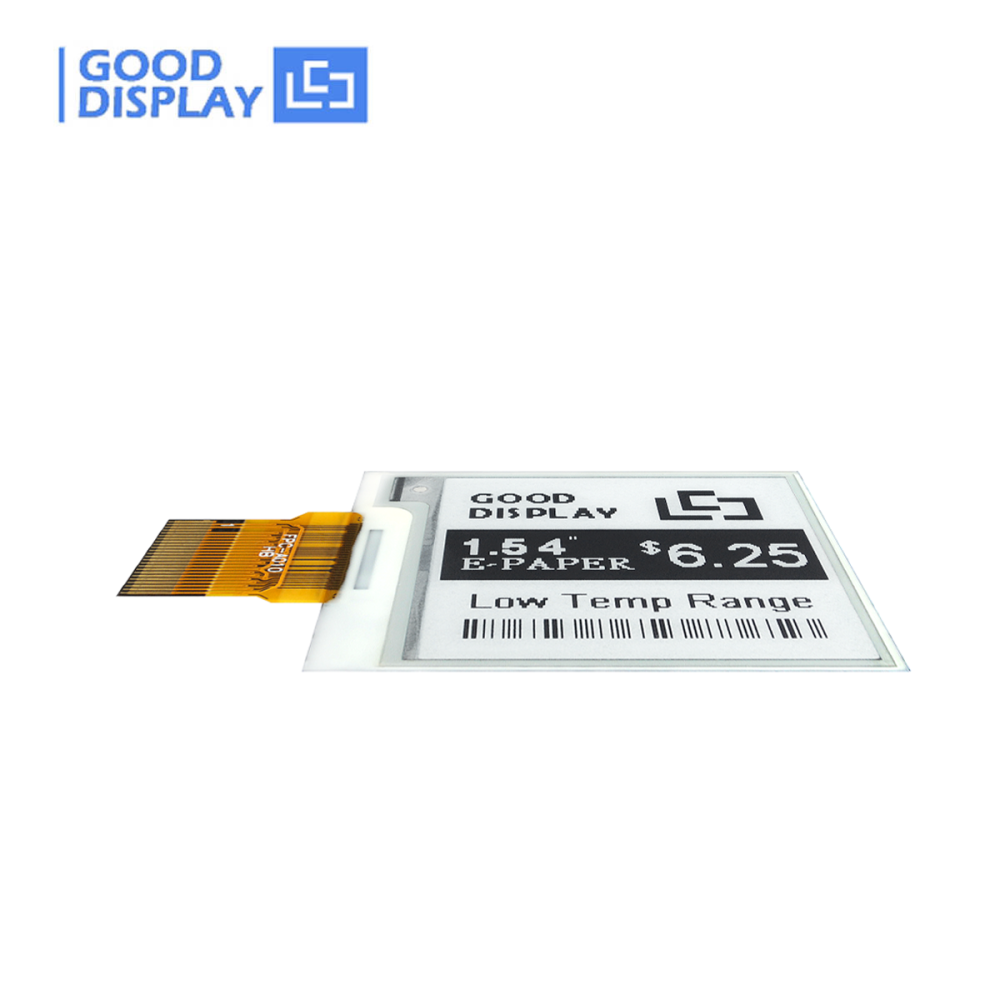

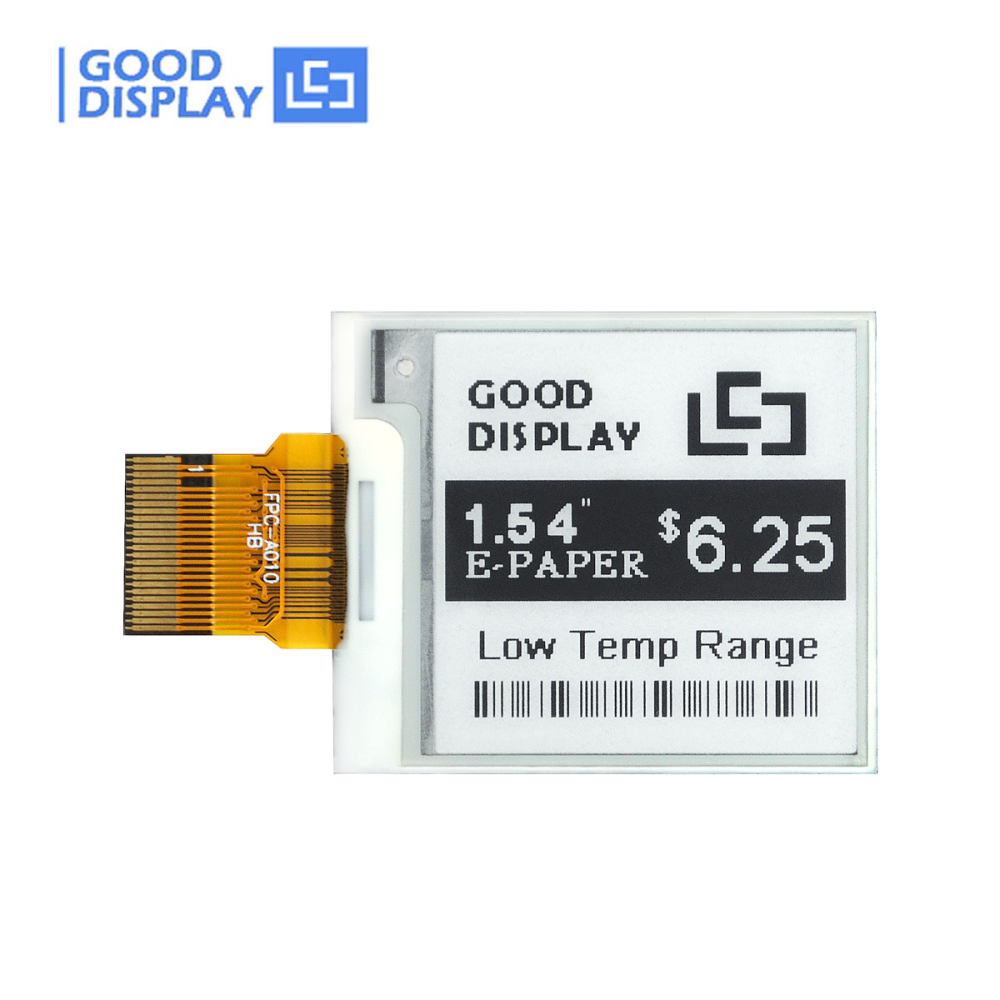

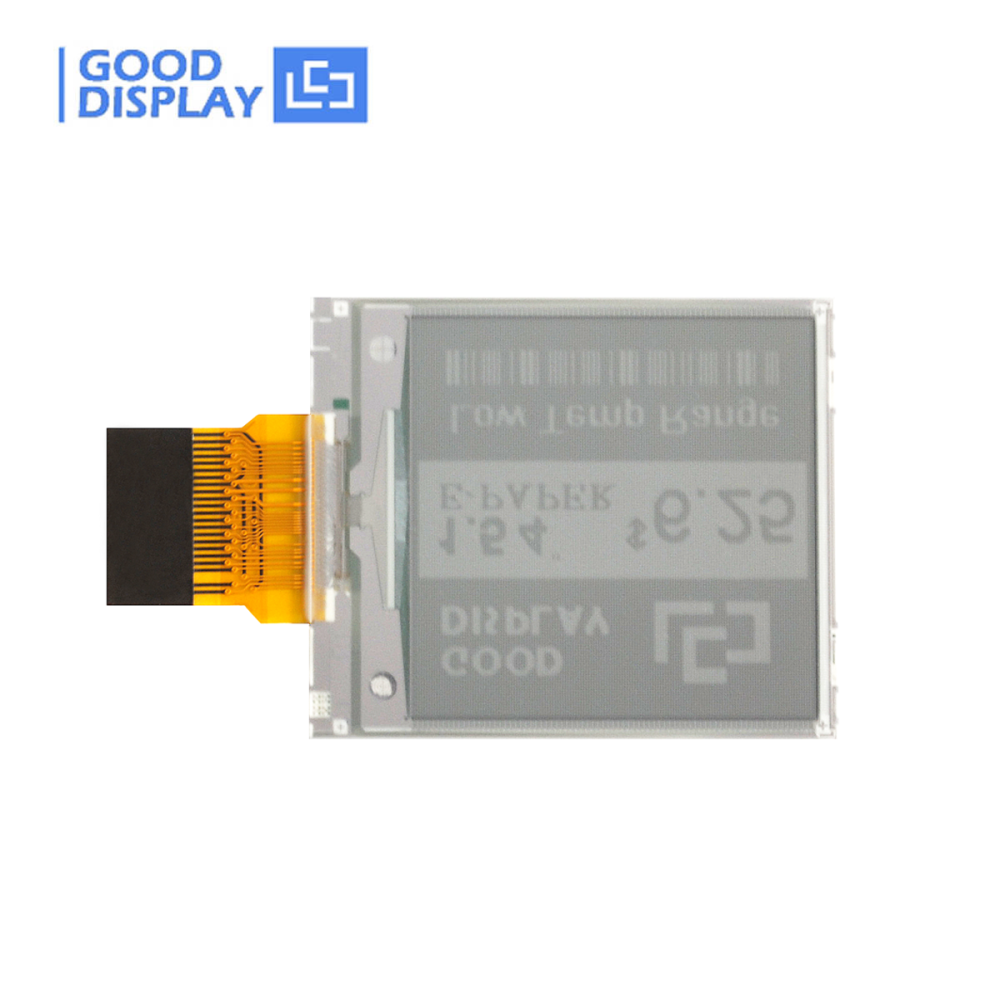

1.54 "low temp e-ink screen resolution 152x152 wide temperature e-paper GDEY0154D61LT

This is a 1.54 inch e-ink screen with 152x152 resolution, SPI interface, and the display is capable to display images with black and white content.
Have a question?
Price:
USD
$5.36
  • Product:
    EPD
    EPD with adapter board
    EPD with STM32 demo kit
    EPD with ESP32 demo kit
Quantity:
-
+
(180 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Selection Guide
  • Selection Guide (Above 4.2 inch)
  • Reviews



☆ INTRODUCTION



This is a 1.54 inch small e-ink display, 152x152 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEY0154D61LT is perfect for low power devices powered by solar or batteries.


We provide the E-Ink Adapter Board for you to connect the E-paper Display.


We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.

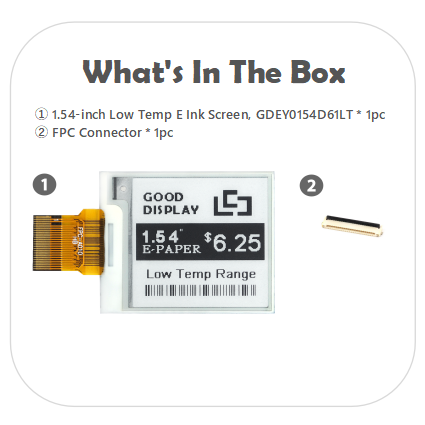

☆ THE ABOVE PRICE INCLUDE

Package A +
  a. 1.54 "low temperature e-ink screen, GDEY0154D61LT* 1pc   b. FPC Connector * 1pc

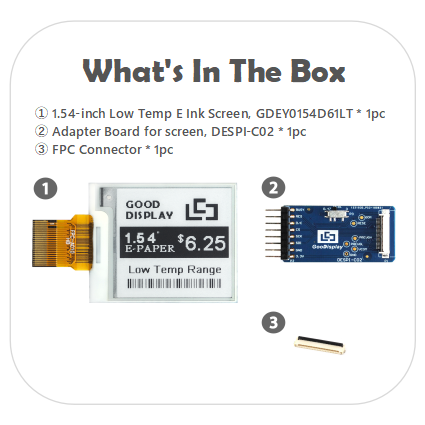

Package B + +

  a. 1.54 "low temperature e-ink screen, GDEY0154D61LT* 1pc   b. FPC Connector * 1pc   c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02* 1pc

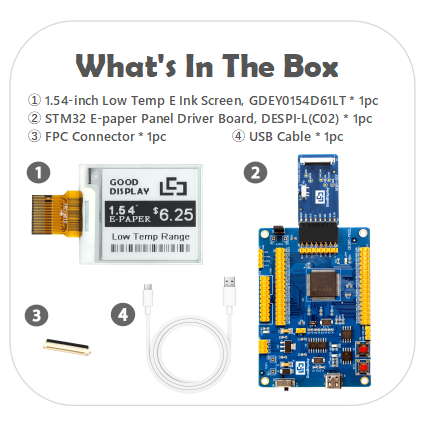

Package C + + +
a. 1.54 "low temperature e-ink screen, GDEY0154D61LT* 2pcs   b. FPC Connector * 2pcs   c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02)* 1pc   d. USB Cable* 1pc

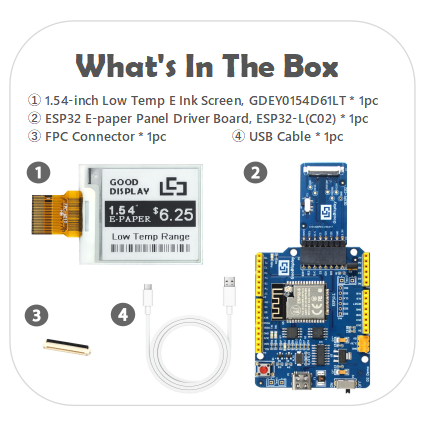

Package D + + +
a. 1.54 "low temperature e-ink screen, GDEY0154D61LT* 2pcs   b. FPC Connector * 2pcs   c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02)* 1pc   d. USB Cable* 1pc




☆ MAIN PARAMETERS



PART NUMBER

GDEY0154D61LT

TYPE

Dot Matrix

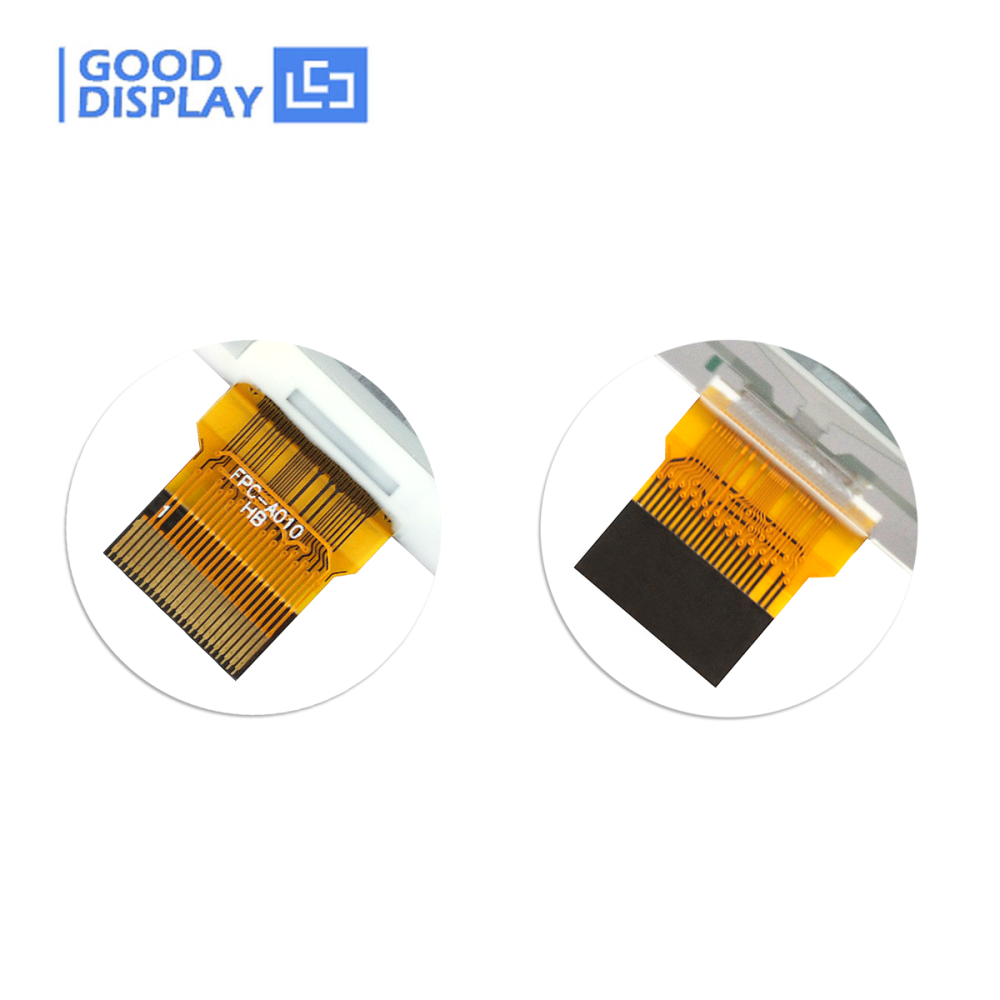

 CONNECTOR 24 Pin FPC

SIZE

1.54 inch

 Touch IC

SSD1680

RESOLUTION

152x152

 COLOR Black,white

OUTLINE SIZE(mm)

37.32X31.8X1.0

 INTERFACE SPI


☆ FEATURE



●  With capacitive touch screen
●  Versatile. Use in portrait or landscape format
●  Bistable. (Will continue to display with no power source)
●  I2C Signal Master Interface to read external temperature sensor
●  It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays

●  Development platform available STM32 / Arduino / ESP8266 / ESP32

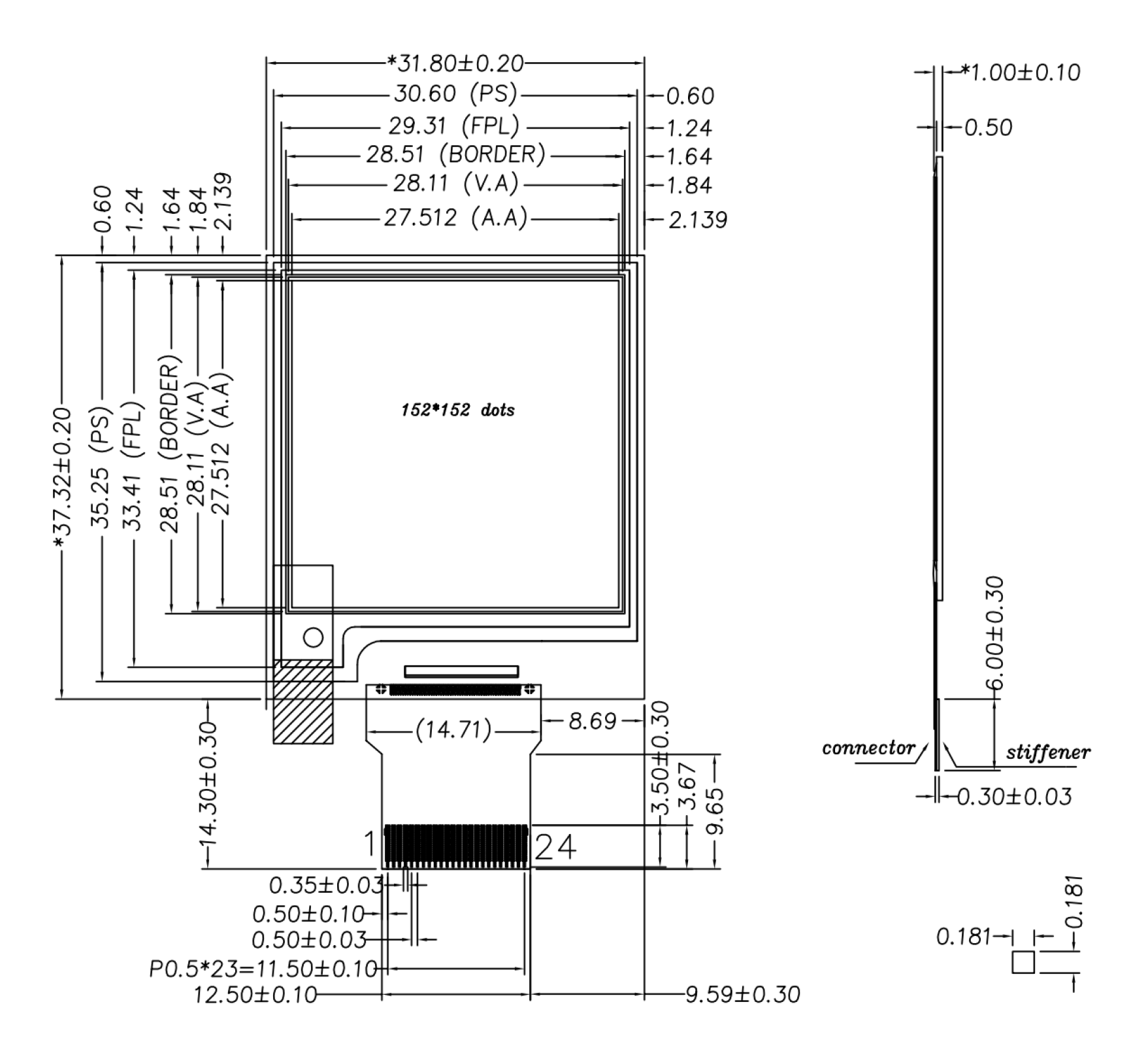

☆ DRAWING






☆ MATCHED DEVELOPMENT KIT



● DESPI-C02 (E-ink Display HAT)


● DESPI-L(C02) (STM32 Platform/Universal)


● DEArduino-L(C02) (Arduino Platform)


● ESP8266-L(C02) (WiFi)


● ESP32-L(C02) (WiFi / Bluetooth)




☆ RELATED INFORMATION DOWNLOAD


● GDEY0154D61LT_Specification

● GDEY0154D61LT Picture Production and Bitmap Conversion

● GDEY0154D61LT_STM32 Sample Code

● GDEY0154D61LT_ESP32 Sample Code

● GDEY0154D61LT_ESP8266 Sample Code

● GDEY0154D61LT_Arduino Sample Code



☆ WE ALSO SUGGEST...



1.54 inch DES e-paper display wide working temperature 152X152 resolution EPD GDEW0154M10

Small 1.54inch Epaper 200x200 SPI Cheap E ink Display, GDEW0154T11

1.54 inch electronic paper display Customizable 1.5s fast refresh partial refresh digital price tags screen, GDEY0154D67

1.54 inch small eink display for support partial update E-paper screen module GDEH0154D67

Epaper-display Thin 1.54inch epaper Electronic Shelf Label E Ink Panel, GDEM0154Z91

1.54 inch colorful red e-paper display panel, GDEH0154Z90

1.54 inch e-ink panel 152x152 flexible partial refresh epaperdisplay ACF Thermal Compression Bonding, GDEW0154I9FC

 e-paper display 1.54 inch 152x152 SPI interface 4 Grayscale eink display partial refresh GDEW0154T8D





☆ ABOUT US


Thank you for your interest in our product. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].



PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ √   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ √ √ SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -20℃~60℃     SPI
GDEH0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃ √   SPI
GDEW0154M09 1.54'' BW 2 200x200 27.6x27.6 0.82 0℃~50℃ √   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ √   SPI
GDEH0154Z90 1.54'' BWR 2 200x200 27x27 15 0℃~40℃     SPI
GDEW0213M21 2.13'' BW 2 212x104 48.548x23.712 3 -20℃~60℃     SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ √ √ SPI
GDEM0213B74 2.13'' BW 4 250x122 48.55x23.7 3 0℃~50℃     SPI
GDEM0213U23 2.13'' BWR 2 250x122 23.67x48.50 - 0℃~25℃     SPI
GDEM0213D23 2.13'' BW 2 250x122 23.67x48.50 - 0℃~25℃     SPI
GDEW0213V7LT 2.13'' BW 2 212x104 48.55x23.71 3 -25℃~10℃ √   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ √   SPI
GDEW0213T5D-FL01(With Frontlight) 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ √   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃ √   SPI
GDEW027W3 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃ √   SPI
GDEW027W3-T(With Touch Panel) 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃ √   SPI
GDEM029E97 2.9'' BW 2 296x128 66.9x29.06 3 0℃~50℃     SPI
GDEH029Z13 2.9'' BWR 2 296x128 66.9x29.06 15 0℃~40℃     SPI
GDEM029T94 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ √   SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃ √   SPI
GDEW029M06 2.9'' BW 2 296x128 66.896x29.056 3 -20℃~60℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ √ √ SPI
GDEW029T5D 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ √   SPI
GDEW029T5D-FL02(With Frontlight) 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ √   SPI
GDEH037Z01 3.71'' BWR 2 416x240 81.54x47.04 16 0℃~40℃     SPI
GDEW0371W7 3.71'' BW 2 416x240 81.536x47.04 4 0℃~50℃     SPI

PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW042C37 4.2'' BWY 2 400x300 84.8x63.6 28 0℃~40℃     SPI
GDEW042T2 4.2'' BW 4 400x300 84.8x63.6 3 0℃~50℃     SPI
GDEY042T91 4.2'' BW 2 400x300 84.8x63.6 3 0℃~50℃     SPI
GDEQ042Z21 4.2'' BWR 2 400x300 84.8x63.6 19 0℃~40℃     SPI
GDEY0579T93 5.79'' BW 2 792x272 139.00×47.74 3 0℃~50℃     SPI
GDEY0579Z93 5.79'' BWR 2 792x272 139.00×47.74 20 0℃~40℃     SPI
GDEW0583C64 5.83'' BWY 2 600x448 118.80x88.26 25 0℃~40℃     SPI
GDEY0583T8 5.83'' BW 2 648x480 118.78x88.22 3 0℃~50℃     SPI
GDEW0583Z83 5.83'' BWR 2 648x480 119.232x88.32 12 0℃~40℃     SPI
GDEY075T7 7.5'' BW 4 800x480 163.2x97.72 3 0℃~50℃ √   SPI
GDEY075Z08 7.5'' BWR 2 800x480 163.2x97.72 12 0℃~40℃     SPI
GDEP097TC2

9.7''

BW

16

1200x825

202.8x139.425

1

0℃~50℃

√



Parallel
GDEQ102T90 10.2'' BW 2 960x640 215.52x143.68 4 0℃~50℃     SPI
GDEQ102Z90 10.2'' BWR 2 960x640 215.52x143.68 4 0℃~50℃     SPI
GDEH116T91 11.6'' BW 2 960x640 244.512x163.008 5 0℃~50℃     SPI
GDEH116Z91 11.6'' BWR 2 960x640 244.512x163.008 30 0℃~35℃     SPI
GDEY1248Z51 12.48'' BWR 2 1304x984 252.98x190.90 25 0℃~40℃     SPI
GDEP133UT3 13.3'' BW 16 1600x1200 270.4x202.8 1 -15℃~65℃     Parallel
