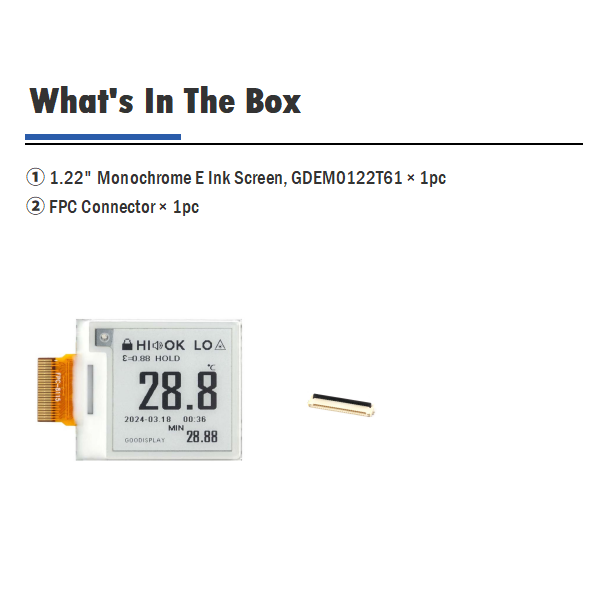

    ePaper Only
    ePaper Only
    with Adapter Board
    with Adapter Board

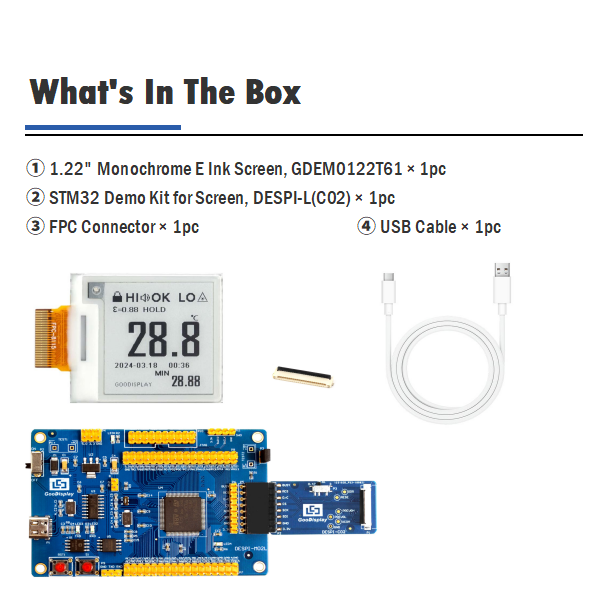

    with STM32 Demo Kit
    with STM32 Demo Kit

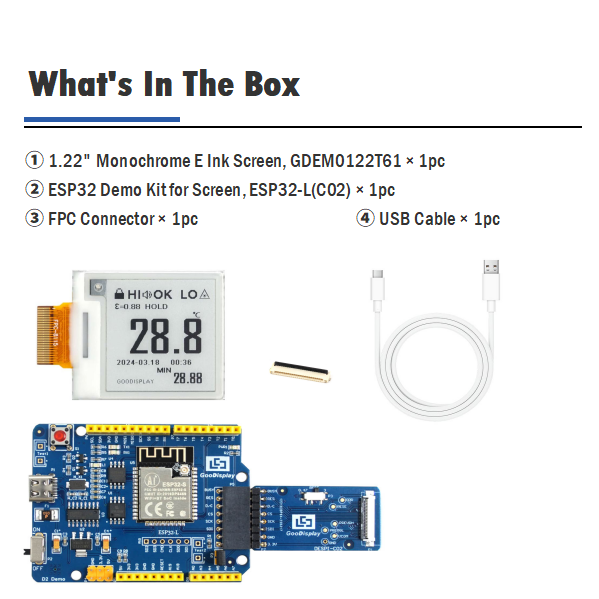

    with ESP32 Demo Kit
    with ESP32 Demo Kit
    Please select the information you wantX
Quantity:
0 in stock
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution, GDEM0122T61
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution, GDEM0122T61
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution, GDEM0122T61
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution, GDEM0122T61
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution, GDEM0122T61
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution, GDEM0122T61
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution, GDEM0122T61
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution, GDEM0122T61
1/1
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution, GDEM0122T61
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution, GDEM0122T61
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution, GDEM0122T61
  • 1.22-Inch High-frequency Update E Ink screen with 2s Refresh Rate 176x192 Resolution, GDEM0122T61
Frequently Bought Together
more
Frequently Bought Together
  • Description
1.22″ · 2s Full / 0.3s Partial Refresh · 6mW Refresh Power

GDEM0122T61 1.22"
Ultra-Fast Refresh E-Paper Display

176×192 resolution · 213.49 PPI · 0.1193mm pixel pitch · SSD1681 driver IC. 2s full refresh / 0.3s partial refresh · 6mW refresh power · 0.003mW standby. A compact powerhouse for shelf tags, smart tags, wearables, smart home gadgets, industrial instruments and smart cards.

View Specifications Download Datasheet

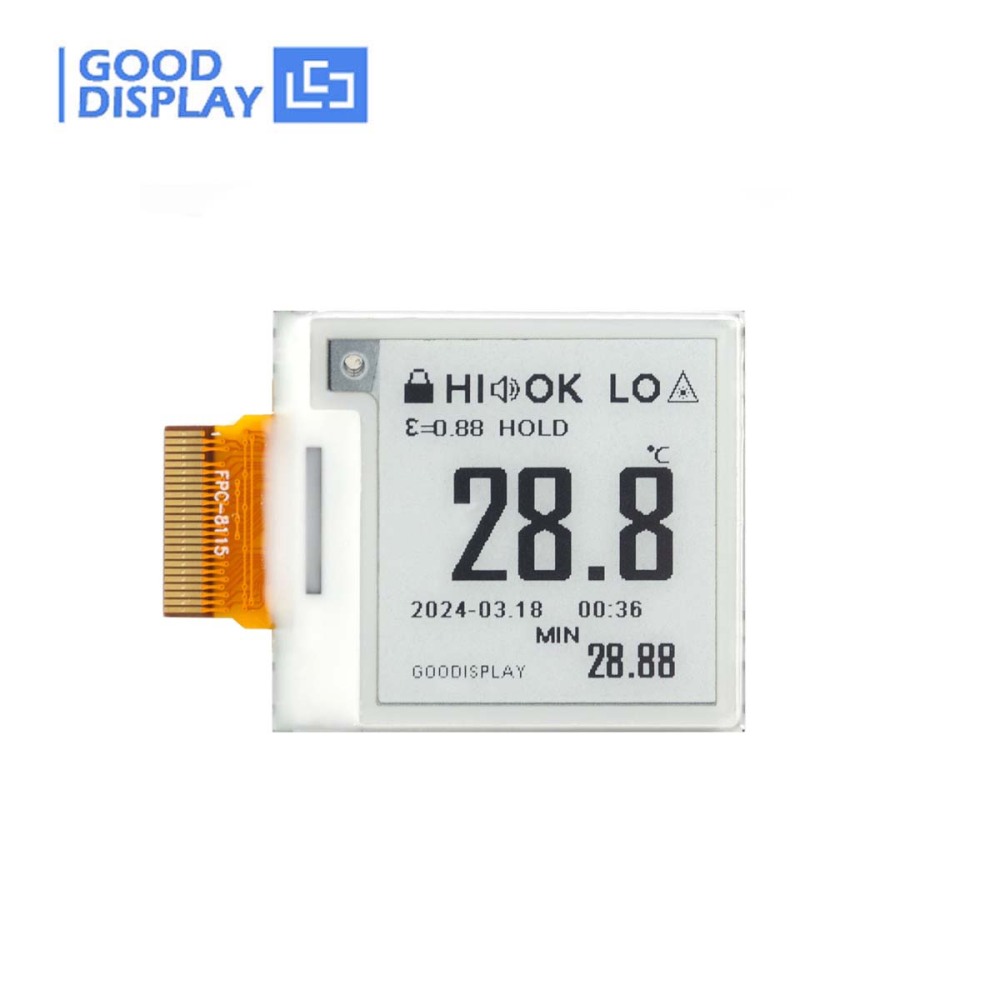

GDEM0122T61 1.22 inch E Ink display

Core Advantages

Compact Powerhouse

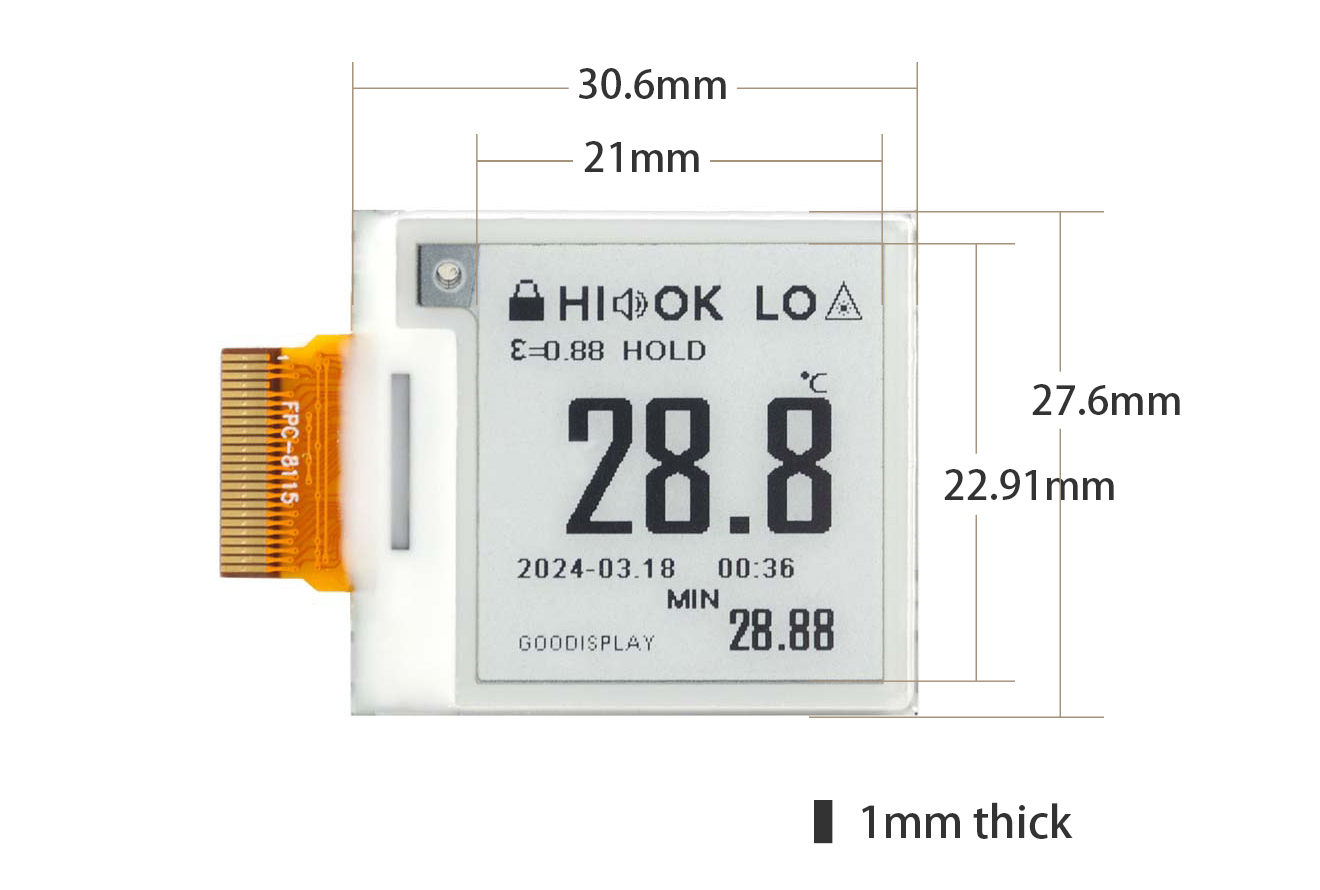

At just 1.22 inches, it is perfect for portable and compact devices. A 21.00×22.91mm active area squeezed into a 27.6×30.6×1.0mm outline — versatility at its best.

1.22" Size    1.0mm Thin    213.49 PPI

Lightning-Fast Refresh

Enjoy a 2-second full refresh and a 0.3-second partial refresh. Quick response, seamless experience — ideal for high-frequency update scenarios.

2s Full    0.3s Partial    4 Grayscale

Ultra-Low Power, Power-Free Retention

Only 6mW during refresh and 0.003mW in standby. The bi-stable image is held without power — ideal for solar and battery-powered devices, keeping content visible even when the power is off.

6 mW refresh    0.003 mW standby

Technical Specifications

Part Number GDEM0122T61
Size 1.22 inch
Type Dot Matrix, Monochrome EPD
IC SSD1681
Resolution 176 × 192
PPI 213.49
Color Black, White
Interface SPI
Connector 24 PIN, 0.5mm pitch
Outline Size 27.6 × 30.6 × 1.0 mm
Active Size 21.00 × 22.91 mm
Pixel Pitch 0.1193 × 0.1193 mm
Full Refresh Time 2 s
Partial Refresh Time 0.3 s
Power Consumption of Refresh 6 mW
Standby Power Consumption 0.003 mW
Max Grayscale 4 levels
Operating Temp. 0℃ ~ 50℃
Storage Temp. -25℃ ~ +70℃
Display Mode Pure reflective, bi-stable

Product Details

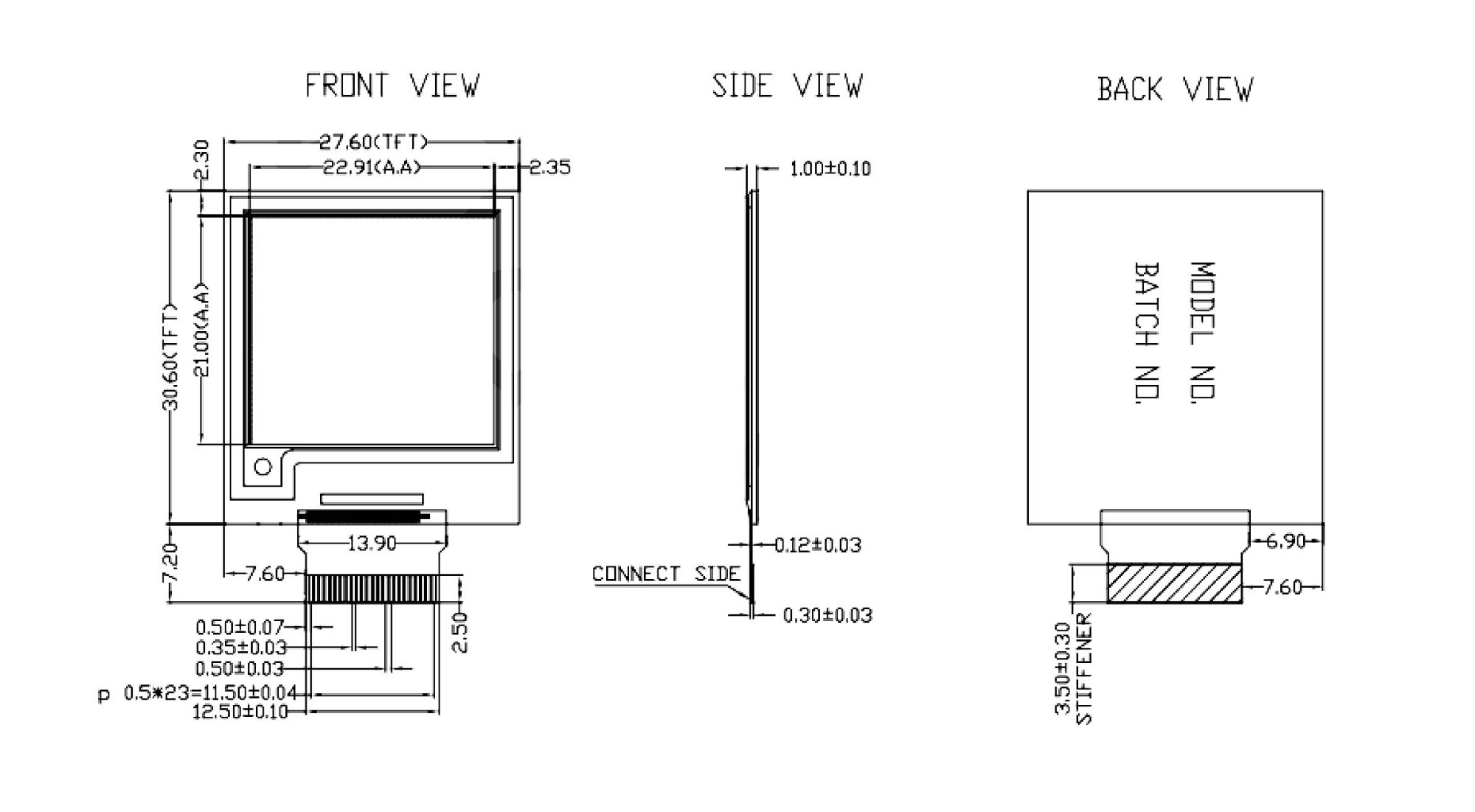

GDEM0122T61 technical drawing and interface definition

Matching Driver Boards

DESPI-C02 EPD adapter board

Ⅰ. DESPI-C02

EPD adapter board. Pure hardware interface, no MCU required.

View Details →
DESPI-L(C02) STM32 demo kit

Ⅱ. DESPI-L(C02)

STM32 demo kit with Type-C interface for rapid prototyping.

View Details →
DEArduino-L(C02) Arduino demo kit

Ⅲ. DEArduino-L(C02)

Arduino demo kit with Type-C interface and ready-made examples.

View Details →
ESP8266-L(C02) demo kit

Ⅳ. ESP8266-L(C02)

ESP8266 Arduino platform demo kit with Wi-Fi connectivity.

View Details →
ESP32-L(C02) demo kit

Ⅴ. ESP32-L(C02)

ESP32 Arduino platform demo kit with Wi-Fi & Bluetooth support.

View Details →

Why GooDisplay E-Paper Refreshes Faster

Optimized Fast-Refresh FPL

We rigorously select fast-refresh FPL films at the raw material level, laying a solid hardware foundation for high-speed performance.

Smart Temp-Controlled Drive

Our engineers optimize waveform files for different temperature ranges, ensuring excellent display quality even during rapid refresh cycles.

Chip-Level Integrated Solution

Optimized waveforms are built into the display driver chip (SSD1681) — activate fast refresh mode with a simple code call!

Display Type Refresh Capability Available Sizes
Black & White (B/W) Displays Supports fast refresh, partial refresh, and 4-level grayscale 0.97" to 10.3"
Black, White & Red (BWR) Displays Supports fast refresh and partial B/W refresh 2.13" to 11.6"
Black, White, Red & Yellow (BWRY) Displays Supports fast refresh with multi-color layered updating 0.97" to 11.6"

Product Application

Industrial instrument

Industrial Instrument

Smart card

Smart Card

Wearable device

Wearable Device

Smart tag

Smart Tag

Smart home application

Smart Home

From shelf tags and smart tags to wearables, smart home gadgets, industrial instruments and smart cards — one screen, countless uses. The 1.22-inch GDEM0122T61 offers unbeatable power efficiency and lasting visibility.
