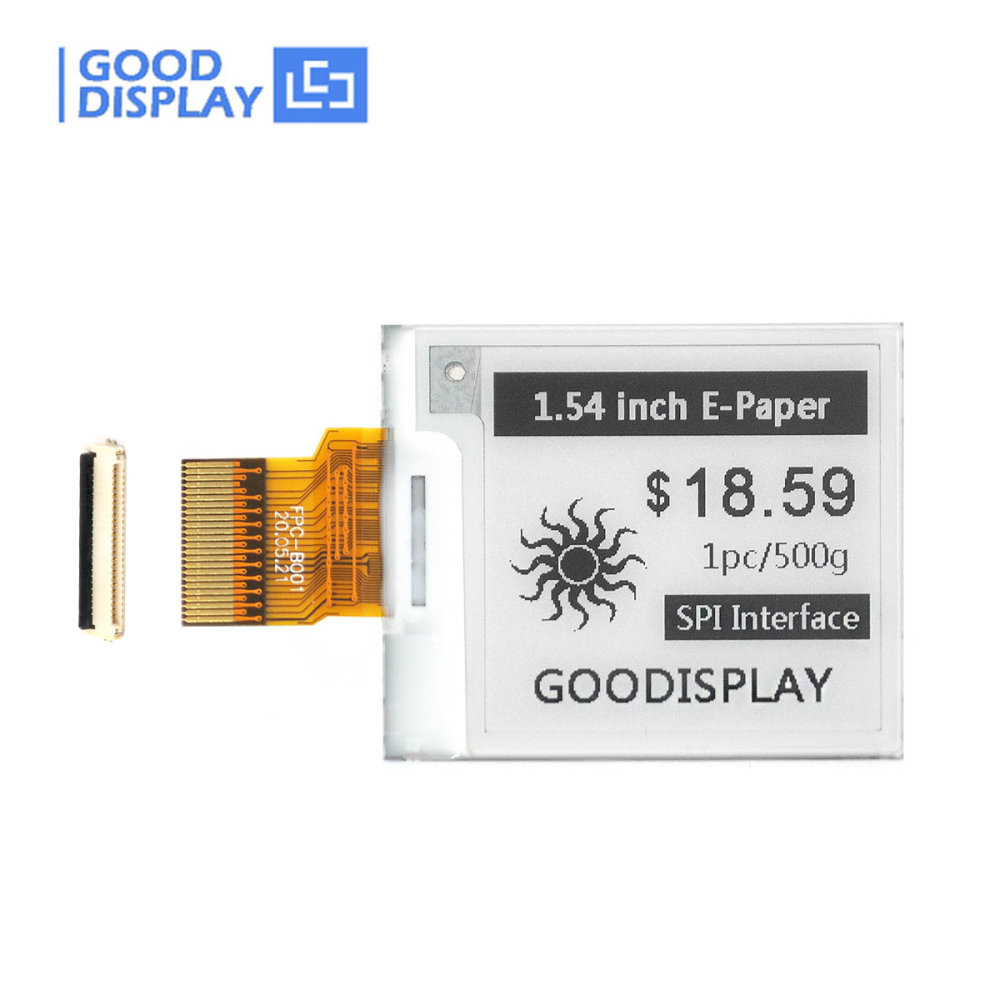

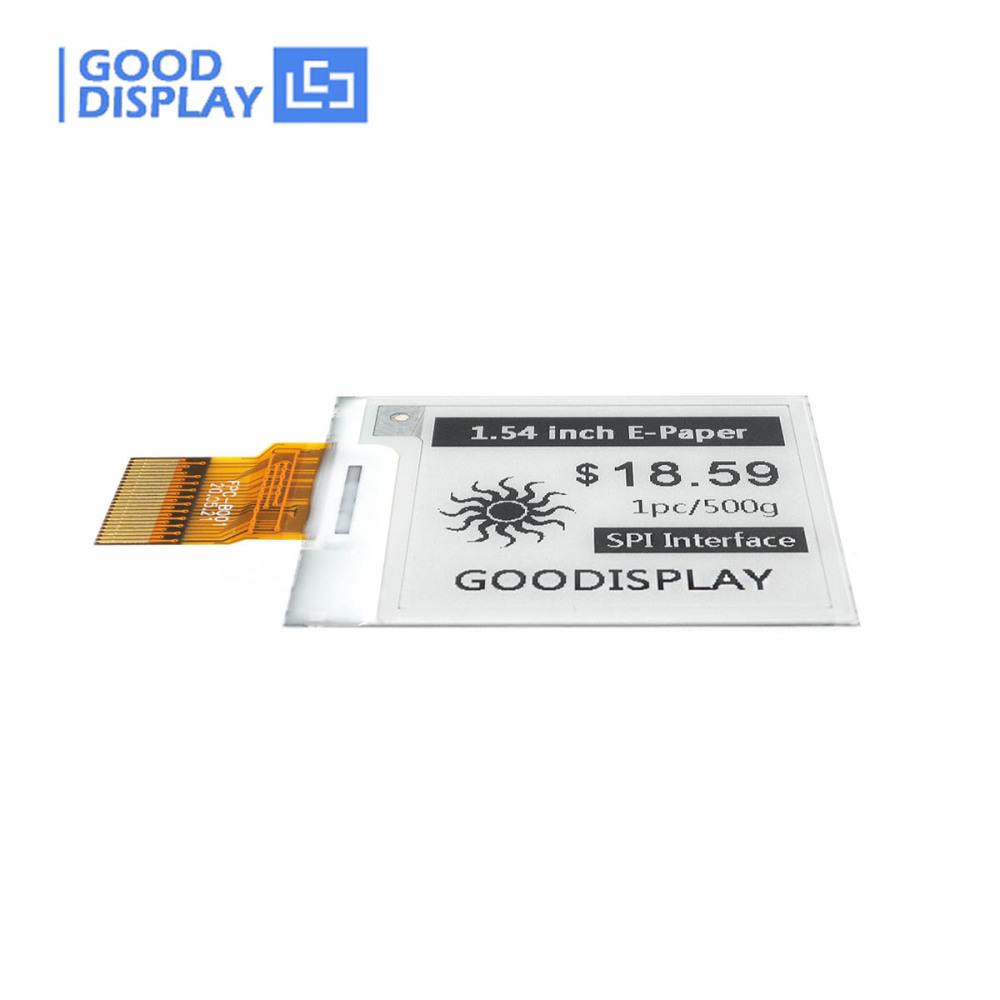

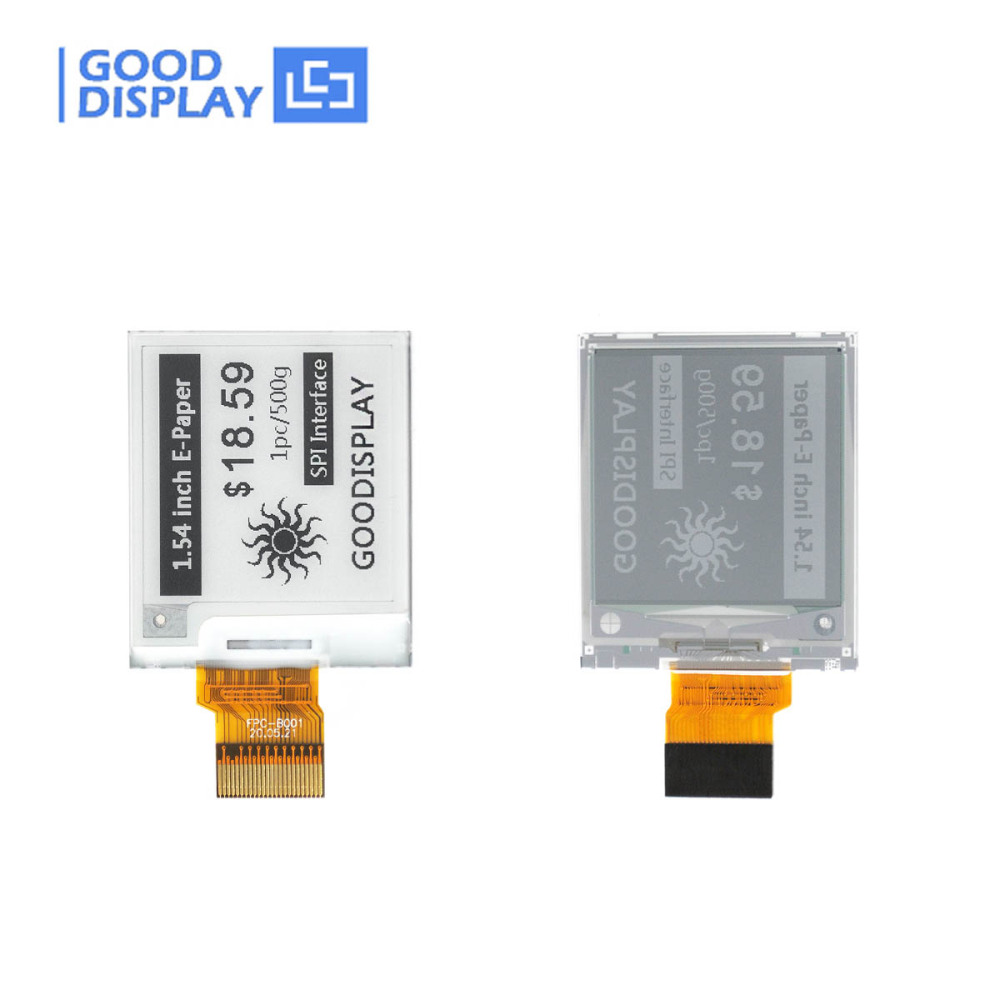

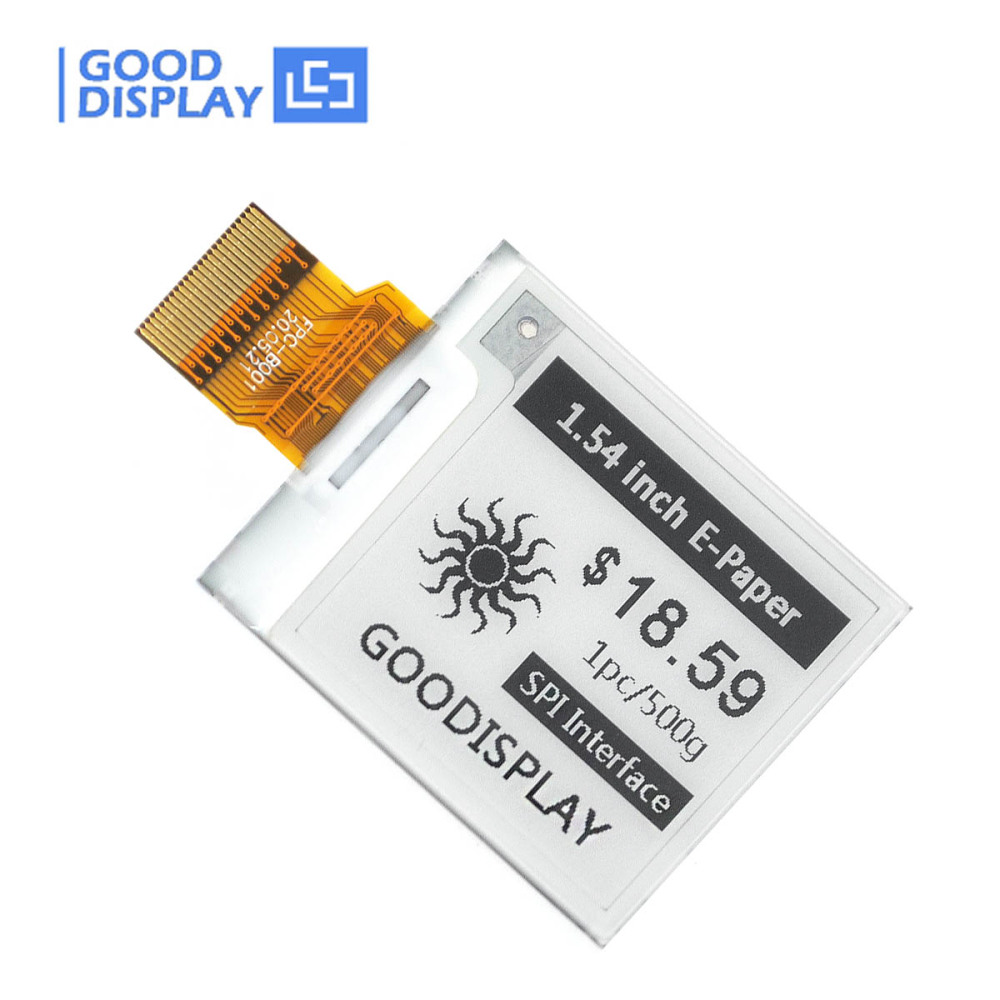

1.54 inch electronic paper display Customizable 1.5s fast refresh partial refresh digital price tags screen

GDEY0154D67
This is a electronic paper display, 1.54 inch, with 200x200 resolution, SSD1681, SPI interface, and the epaper screen supports partial refresh and 4 grayscale. It can be customized to achieve 1.5s fast refresh.
Price:
USD
$6.68
  • Products:

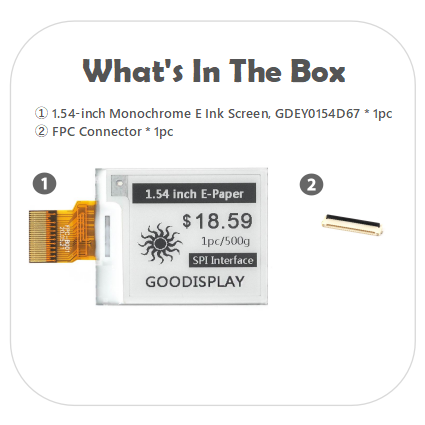

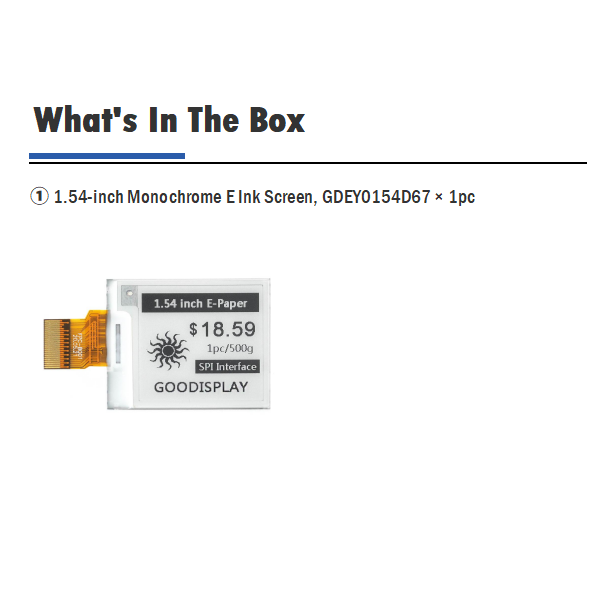

    EPD

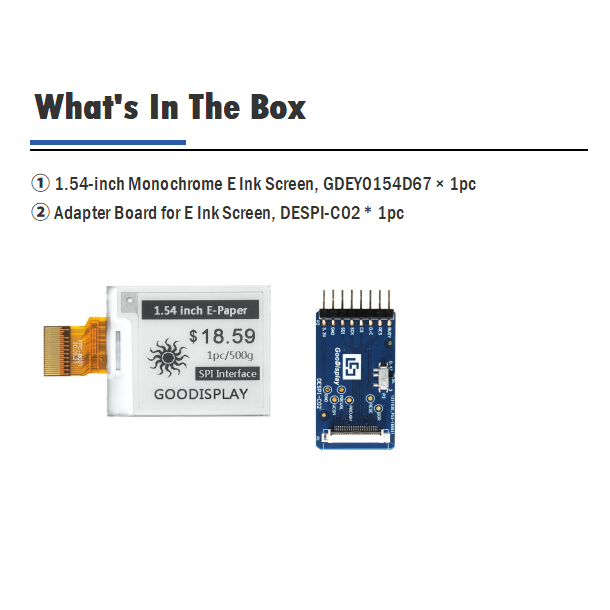

    EPD with adapter board

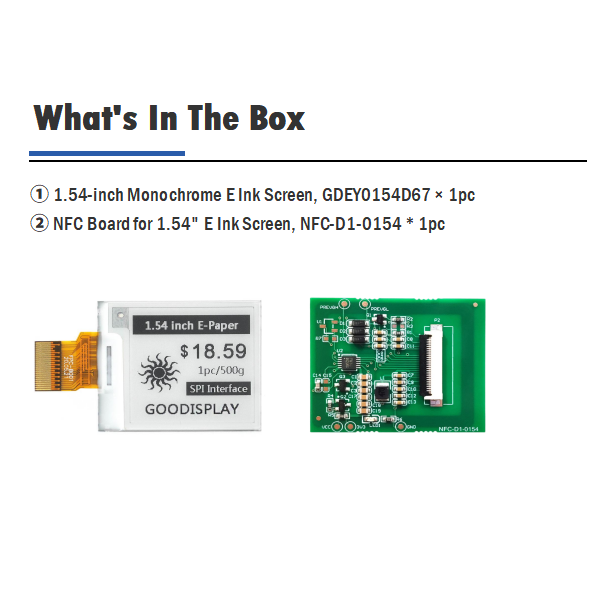

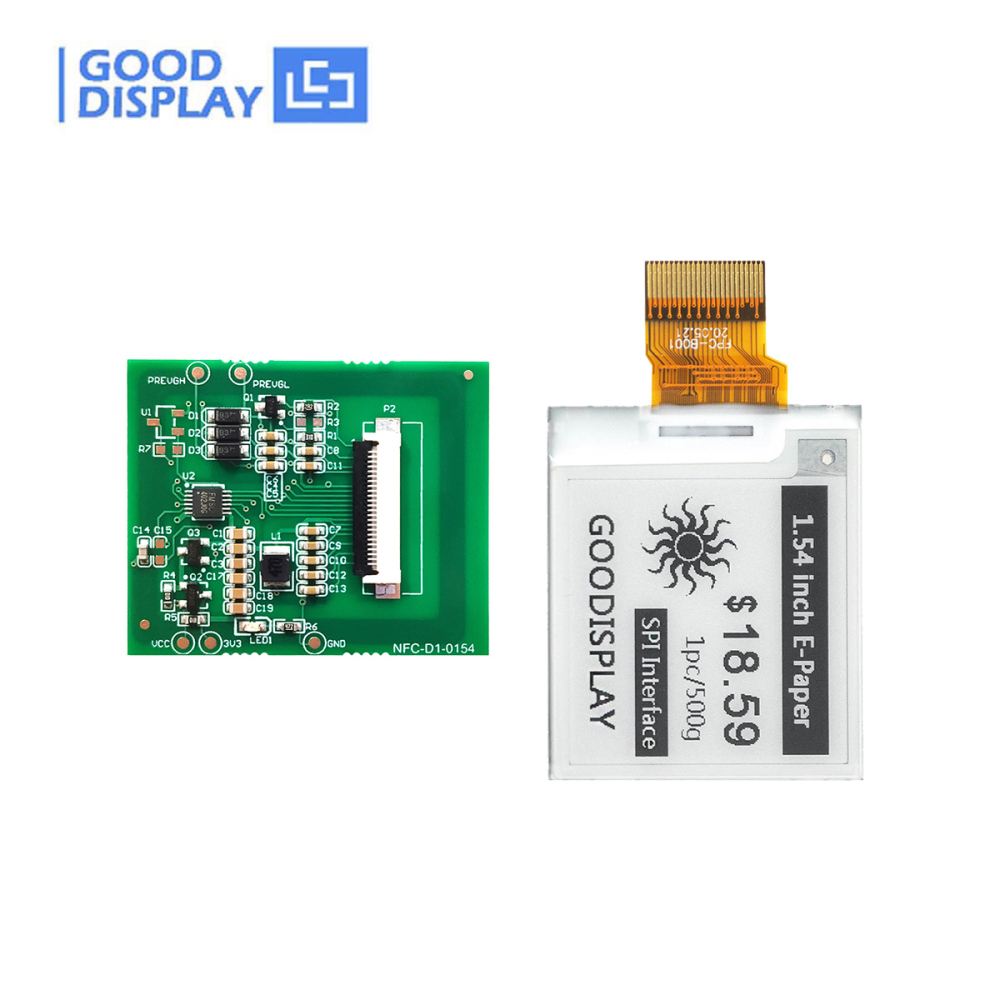

    EPD with NFC Board

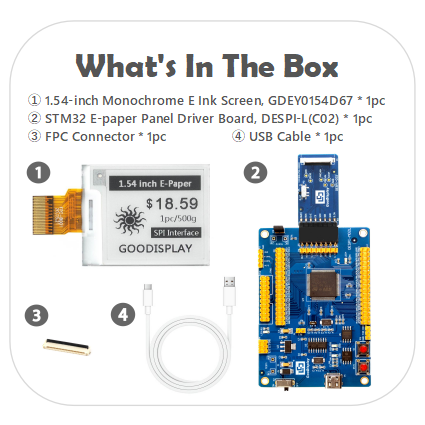

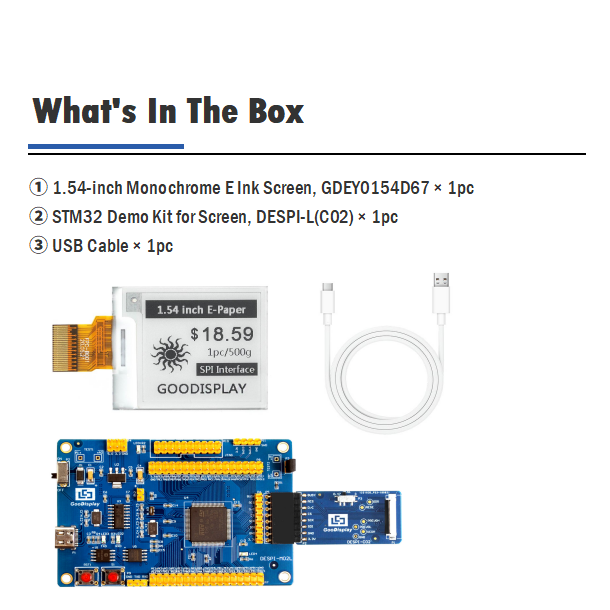

    EPD with STM32 Demo Kit

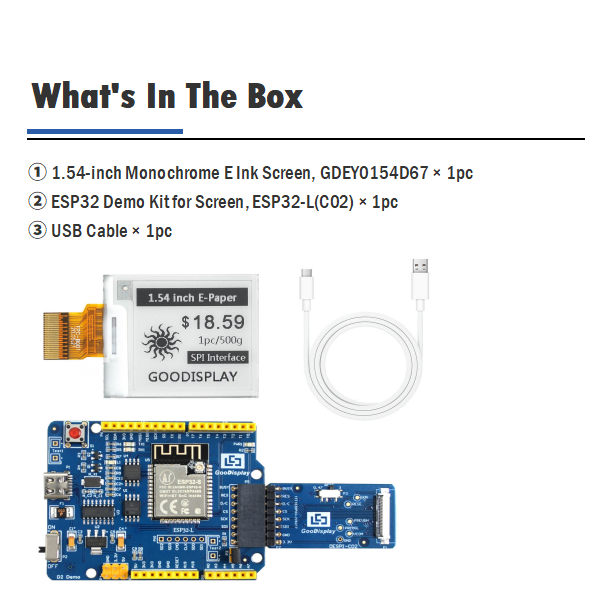

    EPD with ESP32 Demo Kit
    Adapter Board
Quantity:
-
+
(30 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews(13)





1.54'' E-Paper Display with 1.5s Fast Refresh for Digital Price Tags











This 1.54-inch e-ink display with a 200x200 resolution and SPI interface is perfect for low-power applications like solar or battery-powered devices. It can display black and white images and retains the image indefinitely without power. It offers three refresh modes: full (2s), fast (1.5s), and partial (0.26s). The display, driven by the SSD1681 IC, operates at 3.3V and within 0-50°C. It features a wide viewing angle (170+ degrees), anti-glare surface, and no blue light emission. Ideal for shelf tags, smart tags, wearable devices, smart home applications, industrial instruments, and smart cards. Customization options include a touch screen or front light.

* Note: We can customize the OTP code to make the refresh time of this 1.54 inch e-paper display GDEY0154D67 reach to 1.5s, if you need, please contact us.

















Special Features








Our product boasts distinctive features that set it apart from the competition








  ●  Ultra-Low Power, Lasting Display: This 1.54-inch e-ink display requires no power after updating its content, making it perfect for solar or battery-powered devices.  Energy-efficient and utilizing pure reflective display technology, it remains clear even in sunlight, suitable for all lighting conditions without environmental light interference.
  ●  High Resolution, Sharp Images: With a high resolution of 200x200, it delivers crisp and detailed black-and-white images.  No matter the application, it ensures excellent display quality.
  ●  Fast Refresh, Multiple Modes: Offers three refresh modes: 2-second full refresh, 1.5-second fast refresh, and 0.26-second partial refresh, catering to different display needs with quick response and no ghosting.
  ●  Wide Viewing Angle, Clear from Any Perspective: Boasting a wide viewing angle of over 170 degrees, it provides clear visibility from any angle, eliminating concerns about viewing angles.
  ●  Eye-Friendly Design, Comfortable Experience: Free from blue light radiation, it protects your eyes and offers a more comfortable reading experience, ideal for prolonged use.
  ●  Custom Options, Tailored to Your Needs: Available with custom options for a touchscreen or front light, it flexibly meets your specific needs, providing a bespoke display solution.
















Technical Details

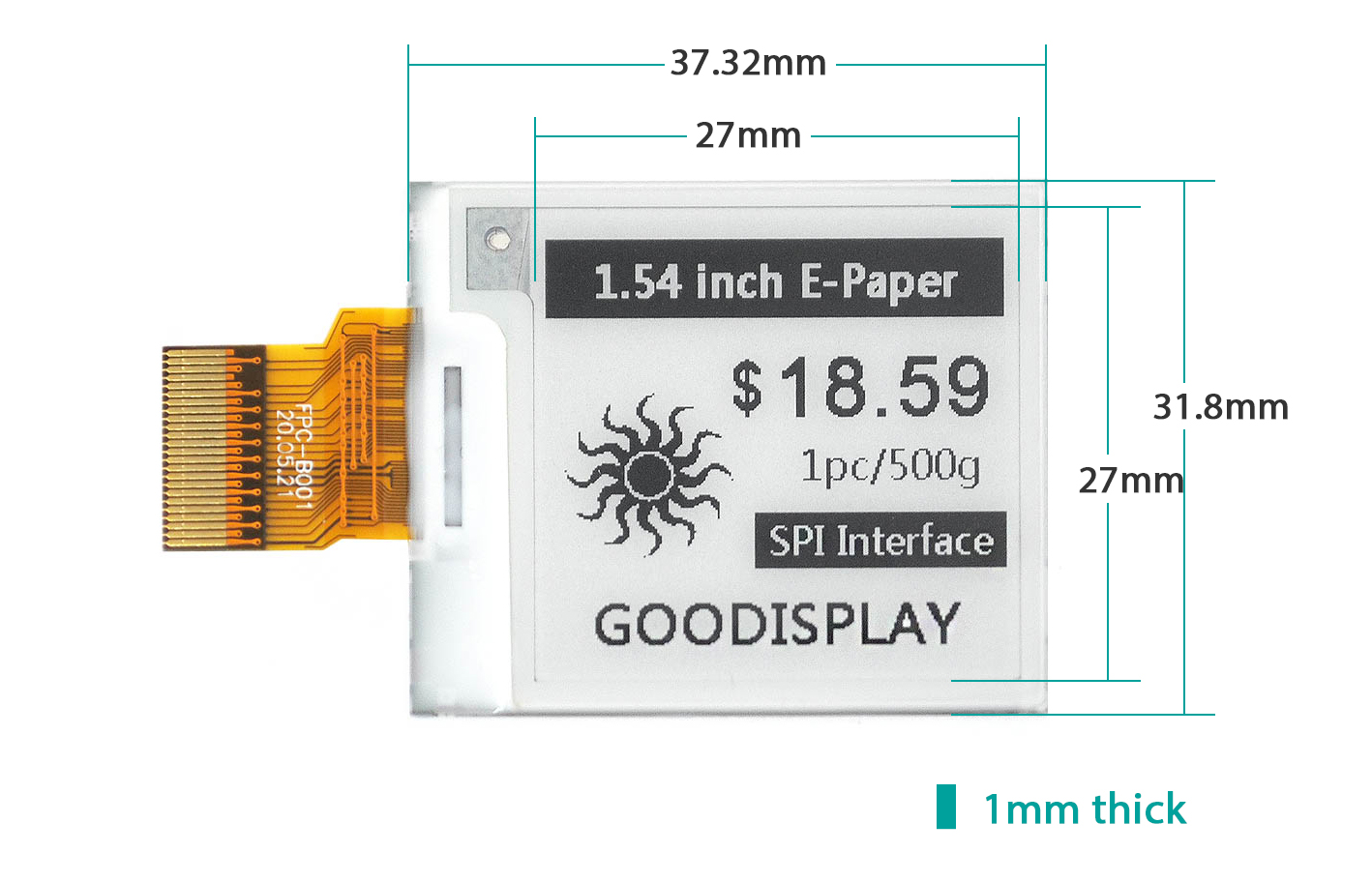

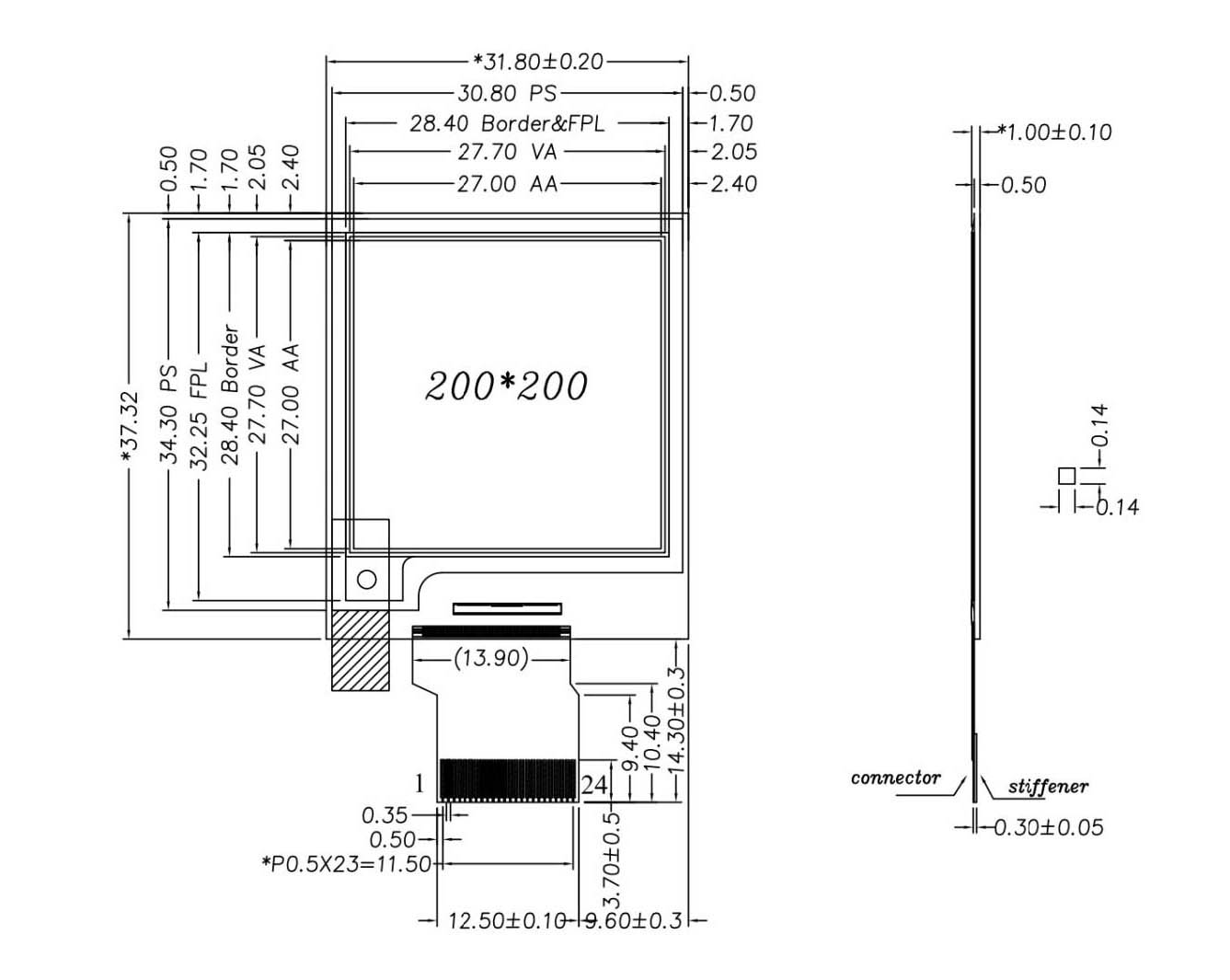

Please refer to the product drawings for detailed dimensions















Product Specifications









Please refer to the product specifications for more details









PART NUMBER

GDEY0154D67

CONNECTOR

24 Pin FPC

TYPE

Dot Matrix

MAX GRAYSCALE

4

SIZE

1.54 inch

COLOR

Black,White

IC

SSD1681

INTERFACE

SPI

RESOLUTION

200x200

FULL REFRESH TIME(s)

2

OUTLINE SIZE(mm)

31.8x37.32x1.00

FAST REFRESH TIME(s)

1.5

ACTIVE SIZE(mm)

27x27

PARTIAL REFRESH TIME(s)

0.26

PIXEL PITCH(mm)

0.14x0.14

POWER CONSUMPTION OF THE REFRESH(mW)

4.5

OPERATING TEMP.

0℃~50℃

STANDBY POWER CONSUMPTION (mW)

0.003

STORAGE TEMP.

-25℃~70℃















Matching Driver Board


To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.
a. DESPI-C02 (E-ink Display adapter Board) b. DESPI-L(C02) (STM32 Demo Kit) c. ESP32-L(C02) (ESP32 Demo Kit) d. ESP8266-L(C02) (ESP8266 Demo Kit)

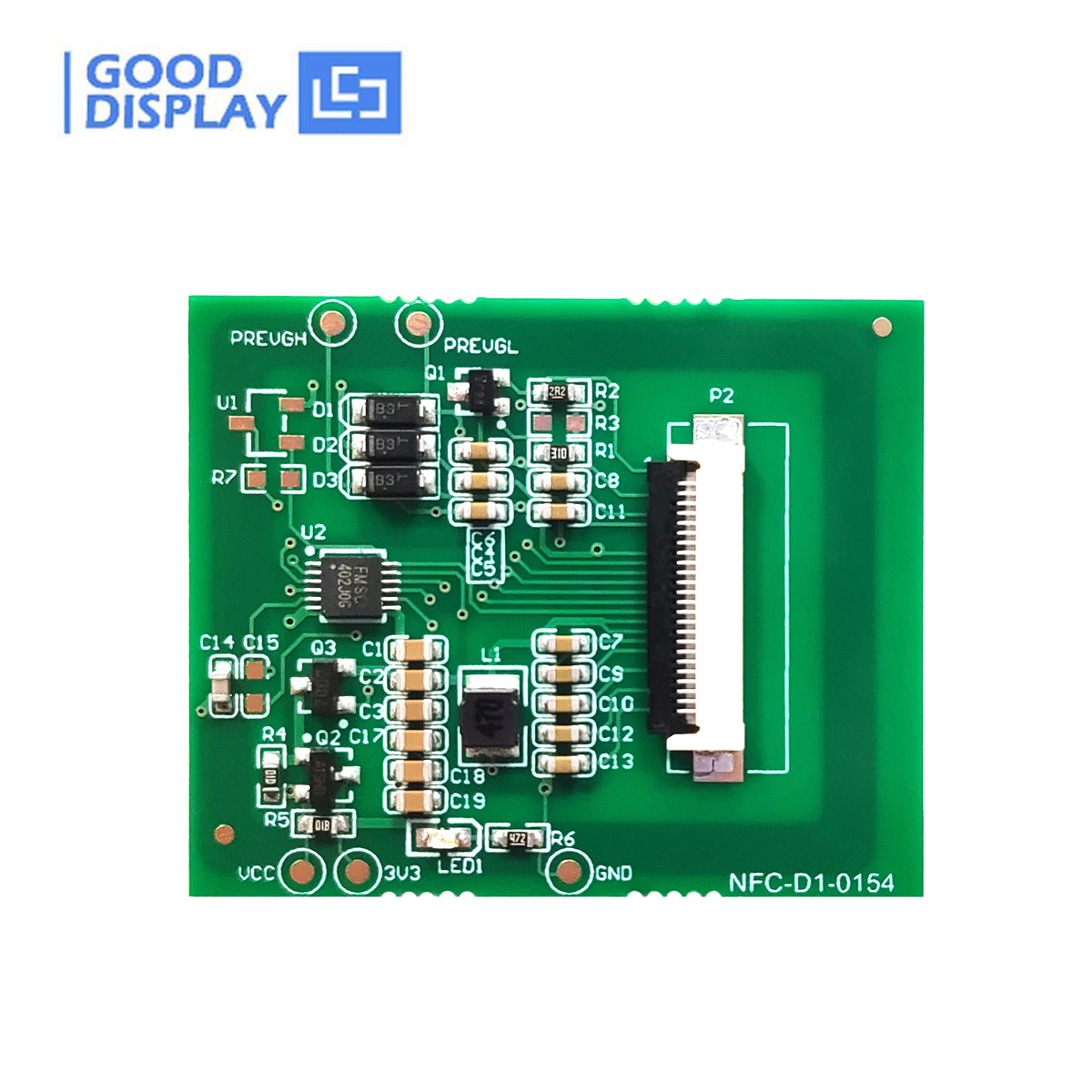

e. DEArduino-L(C02) (Arduino Platform Demo Kit) f. NFC-D1-213 (NFC Driver Board) g. ESP32E6-E01 (24Pin SPI ePaper Display Demo Kit)






Every day is Earth Day





You don't need to be an environmental scientist to make sustainable choices.
At Good Display, we passionately integrate sustainability into the production of e-paper.













Substitute for Paper Usage

Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.

Device Packaging
95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.

Energy Efficiency
Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.









Files and Download

Click on the subheadings below to download











● GDEY0154D67 Specification

● GDEY0154D67 Raspberry Pi Pico Sample Code





● SSD1681 Driver IC Datasheet

● GDEY0154D67 ESP32 Sample Code





● GDEY0154D67 Picture Production and Bitmap Conversion

● The latest Catalog of ePaper display





● GDEY0154D67 STM32 Sample Code

● Disabling-Pop-Up-Blockers





● GDEY0154D67 Arduino Sample Code

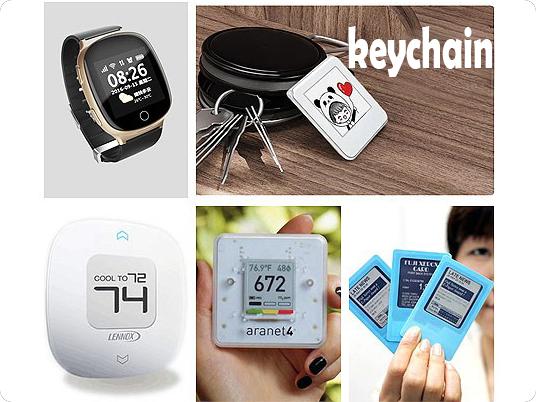

Product Application

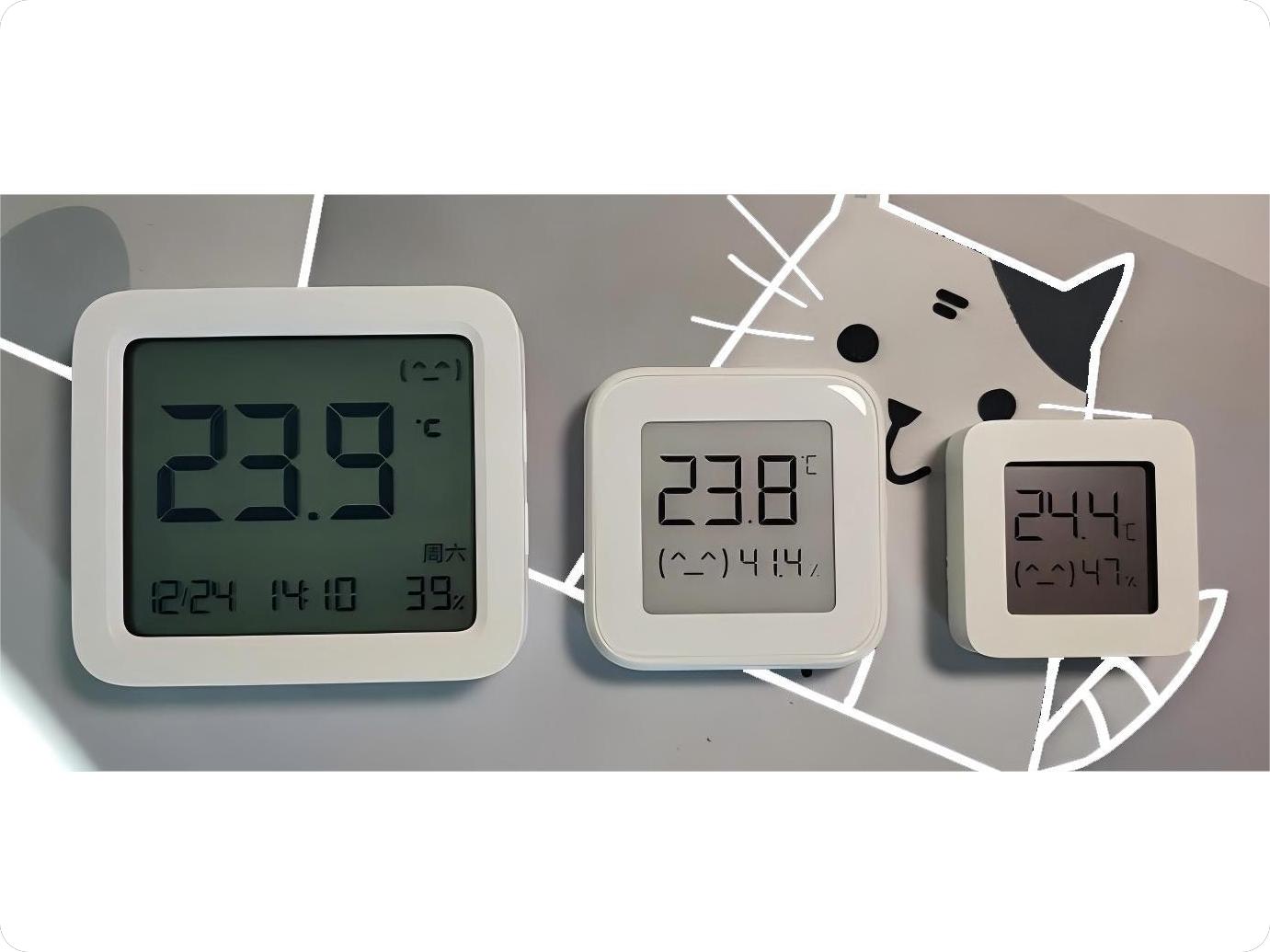

Smart home application

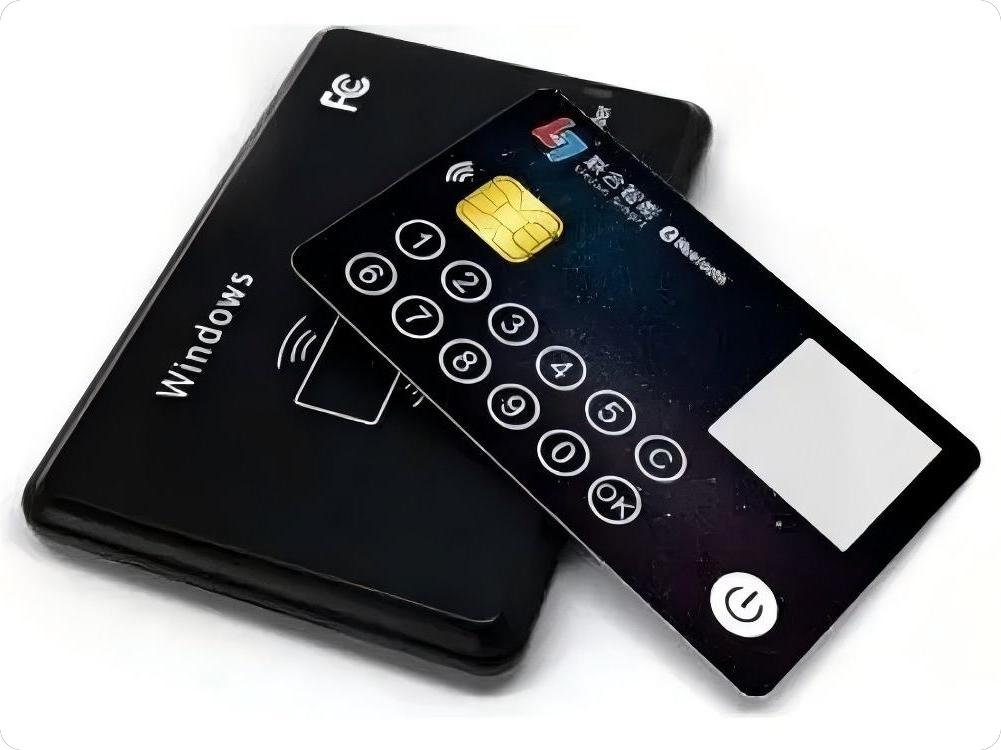

Smart card

Wearable device

Smart tag

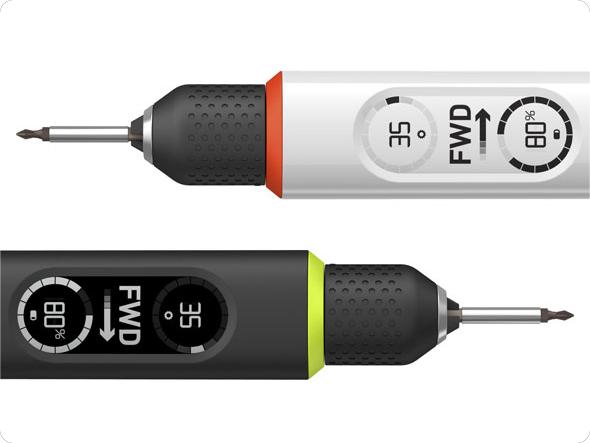

Industrial instrument
