1.54" NFC E-Paper Driver Board - Battery-Free E-Ink Module, NFC-D1-0154

Name: 1.54" NFC E-Paper Driver Board - Battery-Free E-Ink Module, NFC-D1-0154
Brand: GOOD DISPLAY
Price: 9 USD
Availability: InStock

(0)

1 Sold

$9.00 ~~$9.99~~

10% OFF

Integrating the FM1280 tag interface, the NFC-D1-0154 is a passive NFC demo board that enables high-efficiency NFC energy harvesting. Compatible with NFC on Android and iOS.

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (1)

1/1

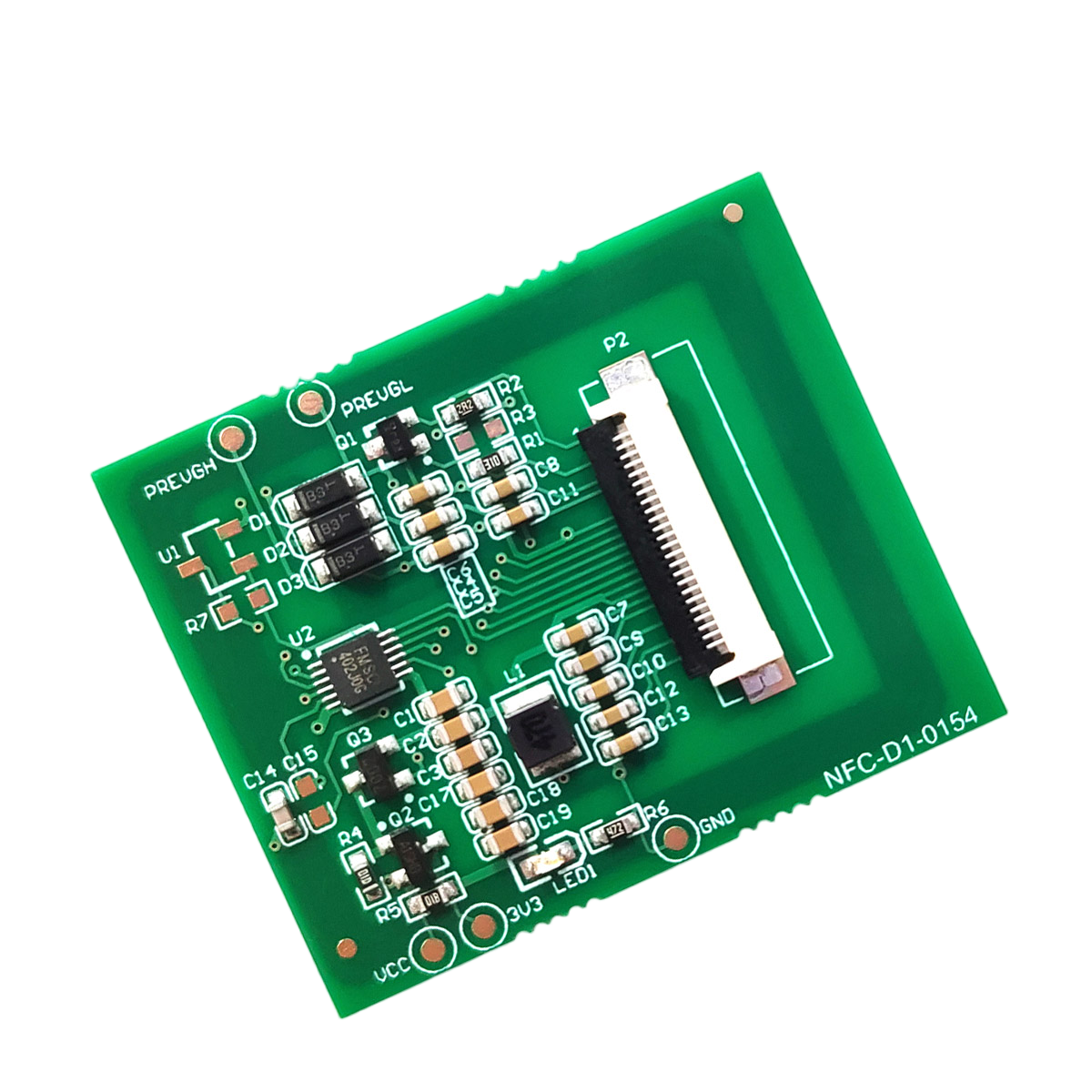

1.54" NFC E-Ink Driver Board

Tap to power your 1.54" E‑Paper display—no batteries, no wires, just NFC energy harvesting that turns any phone into a wireless refresh button. The FM1280 chip and companion app let you update BMP/PNG/JPG to monochrome, 3‑color, or 4‑color e‑ink instantly, with zero coding required. Built for frequent refreshes at ≤15mW and offline storage, it’s perfect for retail signage and smart cards—compatible with Apple & Android (Samsung devices recommended to test first).

Special Features

Smartphone-Controlled

Easily update the 1.54-inch e-ink screen using NFC from any Android smartphone, removing the need for external hardware.

Multi‑E‑Paper Support

Compatible with monochrome, tri‑color, and 4‑color e‑paper displays, offering versatility in display options.

Battery‑Free Operation

Operates solely through NFC power harvesting, eliminating the need for batteries and ensuring long‑term reliability.

Real‑Time Updates

Achieve instant content updates by importing BMP, PNG, or JPG files through the companion app, ideal for fast‑paced environments.

Product Specifications

Product ModelNFC-D1-0154

Screen size1.54 inch

Screen typeMonochrome & 4‑color E Ink

FPC Connector24‑Pin, 0.5mm Pitch

Power SupplyNFC Energy Harvesting

Refresh Power≤15mW

Update MethodNFC Update Image

LanguageDefault English

Weightabout 6g

Outside Dimension37.3 × 31.8 × 0.4mm

Operation temp0℃ ~ 50℃

Storage temp-25℃ ~ 70℃

Operating humidity40% ~ 70%

PC NFC Reader Solution

Effortlessly update your e‑paper display via PC — a perfect complement to our mobile NFC solution. Use the GDPN02 Reader with our desktop tool for fast, secure, and battery‑free content refresh.

Scan to learn more about GDPN02

Reader GDPN02

NFC Power & Data — Tag receives power from reader, refresh on placement
Pure PC Control — Run ImageToNFC tool, import JPG / BMP for instant refresh
Multi‑Color Support — B/W, B/W/R, B/W/R/Y, compatible up to 4.2″
Secure & Traceable — Local file processing, no cloud upload, enterprise‑grade encryption

▶ Click to play demo

Sustainable Technology

Paperless Future

Each display saves ≈3,000 sheets annually. Join 15,000+ businesses reducing paper waste with ePaper solutions.

Sustainable Packaging

95% recycled materials with FSC‑certified packaging. 100% plastic‑free protective materials.

Energy Leadership

90% less energy than LCDs. Annual CO₂ reduction equivalent to 50 mature trees.

About Us

Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at www.good-display.com.
If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at buyepaper@good-display.com.

Certifications

ISO 14001 Environmental Management
RoHS Compliant | Energy Star Certified
