NFC-Driven 1.54" 2.13" 2.66-Inch E-Ink Display Development Kit

NFC-D3-0213
The NFC-D3-213 development kit assists developers in more quickly and smoothly developing NFC-driven electronic paper display projects
Sold:6
Have a question?
Price:
USD
$6.99
Quantity:
-
+
(88 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews

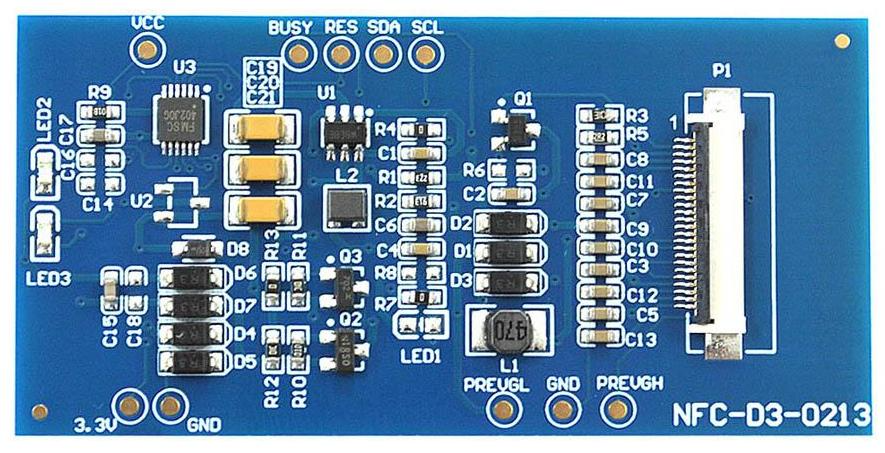

NFC-D3-213 e-Ink Display Driver Board with Mobile App Integration










Introducing the NFC-D3-0213 e-ink display NFC driver board, designed for seamless and efficient updates. This board utilizes NFC communication and power harvesting technology to power and control 1.54" 2.13" 2.66-inch e-paper displays in monochrome, tri-color, and four-color options. Users can effortlessly update display content through a mobile app via NFC, eliminating complex modeling operations. Simply import images in BMP, PNG, or JPG formats into the app for real-time updates, making it ideal for applications requiring frequent changes. Note that not all NFC-enabled phones are compatible, so real-world testing is recommended. Enjoy the convenience of battery-free operation and easy content management with the NFC-D3-0213.

















Special Features








Our product boasts distinctive features that set it apart from the competition








  ●  Eco-Friendly and Battery-Free: Utilizes NFC power harvesting, eliminating the need for batteries or external power, perfect for applications like price tags and name badges.
  ●  Instant Content Updates: Easily update display content in seconds using a smartphone and the companion app, ideal for frequently changing information like restaurant menus, meeting room signs, or in-store promotions.
  ●  User-Friendly Operation: No technical skills required; anyone can update content with a simple app, making it great for small businesses or offices with limited tech support.
  ●  Flexible Image Formats: Supports BMP, PNG, and JPG, allowing for easy content customization.
  ●  Convenience and Flexibility: NFC-based updates mean no wires or extra equipment, reducing maintenance costs and hassle, perfect for dynamic retail environments and logistics tags.















Technical Details




    Please refer to the product drawings for detailed dimensions











Product Specifications









Please refer to the product specifications for more details









PART NUMBER

  NFC-D3-0213
DISPLAY PARAMETER

 Screen Size: 1.54" 2.13" 2.66"

 Screen Type: Black,White/ Black,White,Red/Black,White,Red,Yellow E-Paper

 Resolution: 200x200, 250x122, 296x152
POWER PARAMETER

 Power Input : NFC power supply

 Refresh Power: ≤15mW
POWER CONSUMPTION PARAMETERS

 Update image time:
 ① Black and white e-ink screen for 2 seconds
 ② Black, white, and red e-ink screen for 16 seconds
 ③ Black, white, red, and yellow e-ink screen for 22 seconds
 Update Image Method: NFC Update Image
 Language: Default English
SPECIFICATIONS

 Weight: about 22g

 Dimensions: 59.2x29.2x1.0mm
ENVIRONMENTAL PARAMETER

 Operating Temperature: 0℃~50℃

 Storage Temperature: -25℃~70℃

 Operating Humidity: 40%~70%













NFC-D3 Software Installation




    Download the Software: Scan the QR code below with your phone's browser to download and install the app.








Files and Download

Click on the subheadings below to download











● NFC-D3_SCH

● The latest Catalog of ePaper display


  ● NFC ePaper Tag App

















Every day is Earth Day





You don't need to be an environmental scientist to make sustainable choices.
At Good Display, we passionately integrate sustainability into the production of e-paper.













Substitute for Paper Usage

Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.

Device Packaging
95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.

Energy Efficiency
Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.









NFC-Driven ePaper Compatibility Guide
1.54 Inch Monochrome GDEY0154D67 1.54 Inch Tri-color GDEM0154Z90  2.13 Inch Four-color GDEY0213F52                 2.66 Inch Monochrome GDEY0266T90

2.66 Inch Tri-color GDEY0266Z90 2.66 Inch Tri-color GDEY0266F51 2.66 Inch Four-color high resolution GDEM0266F51H
