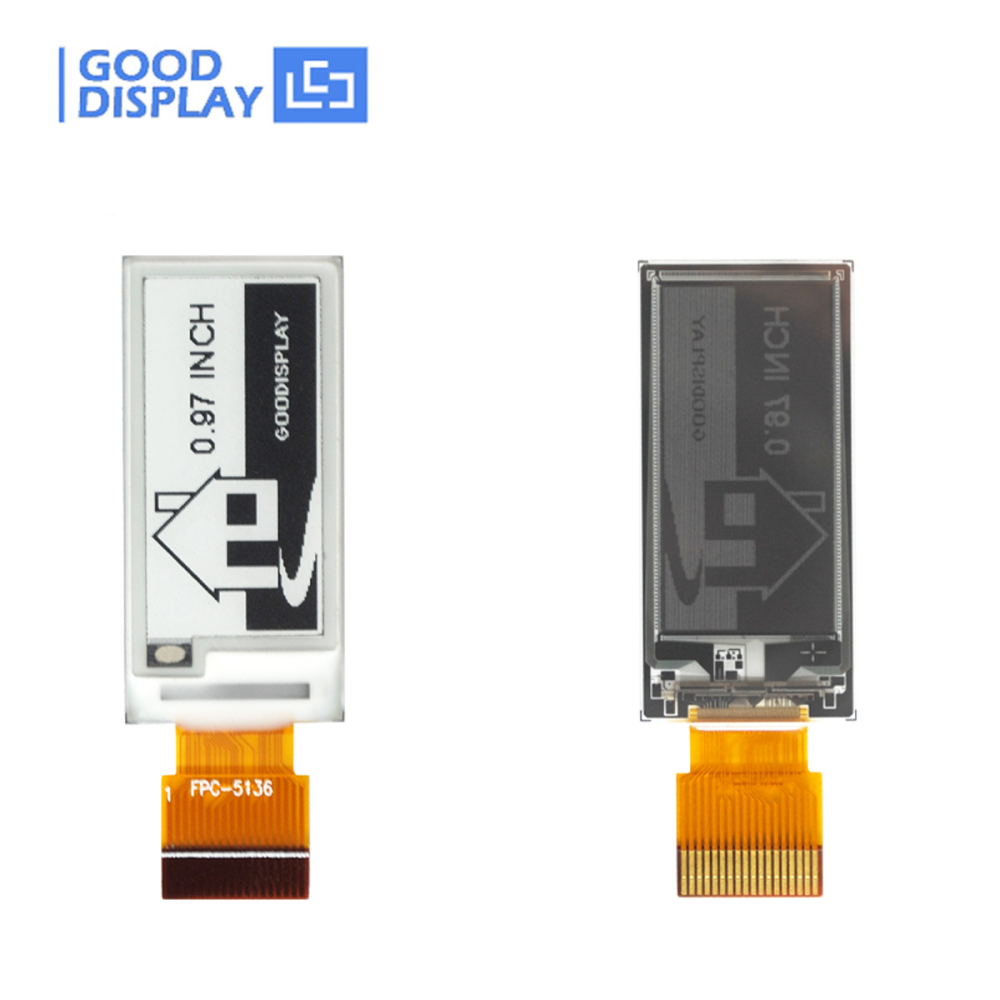

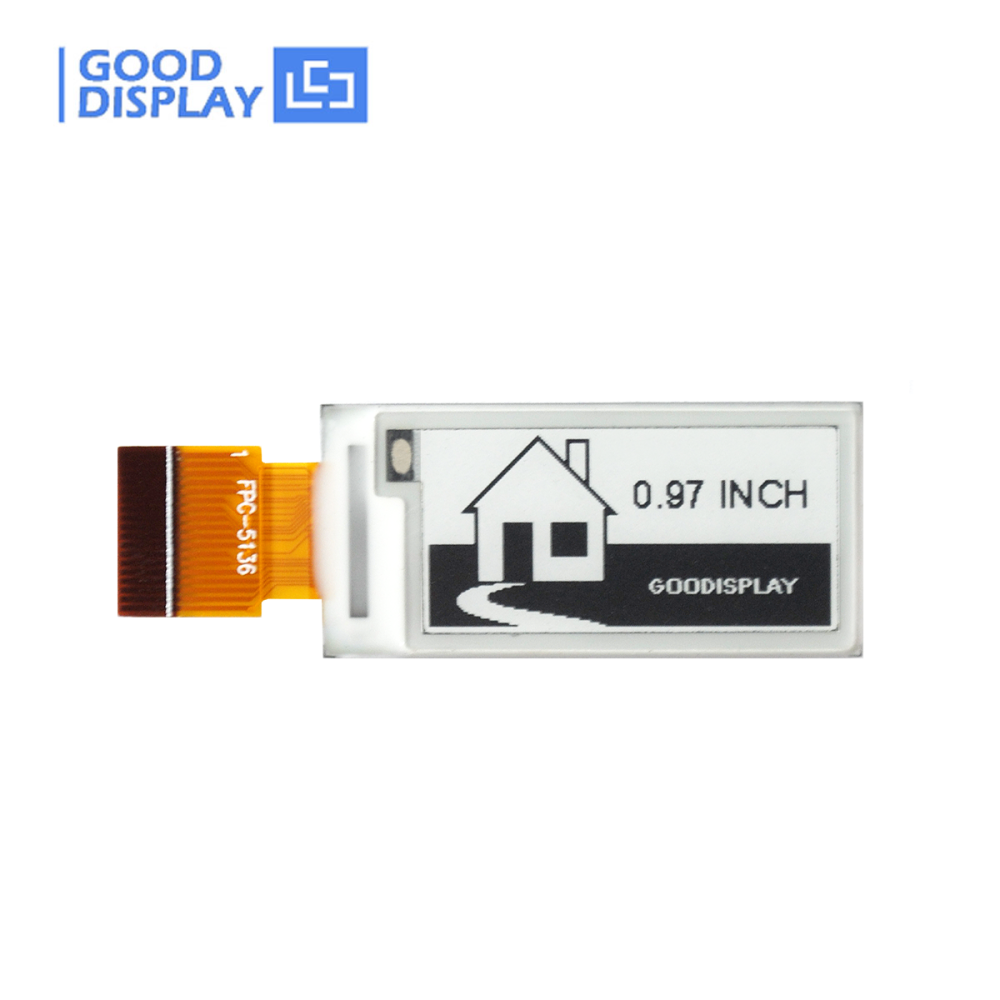

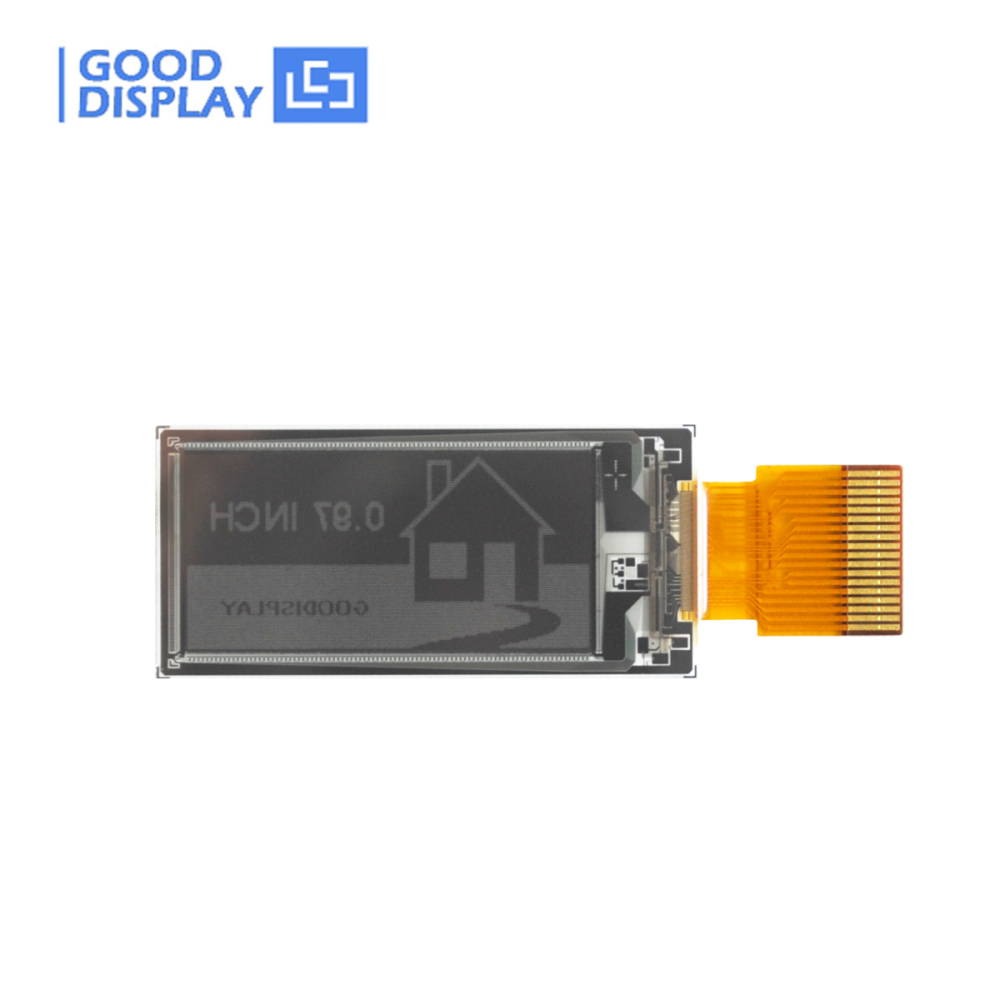

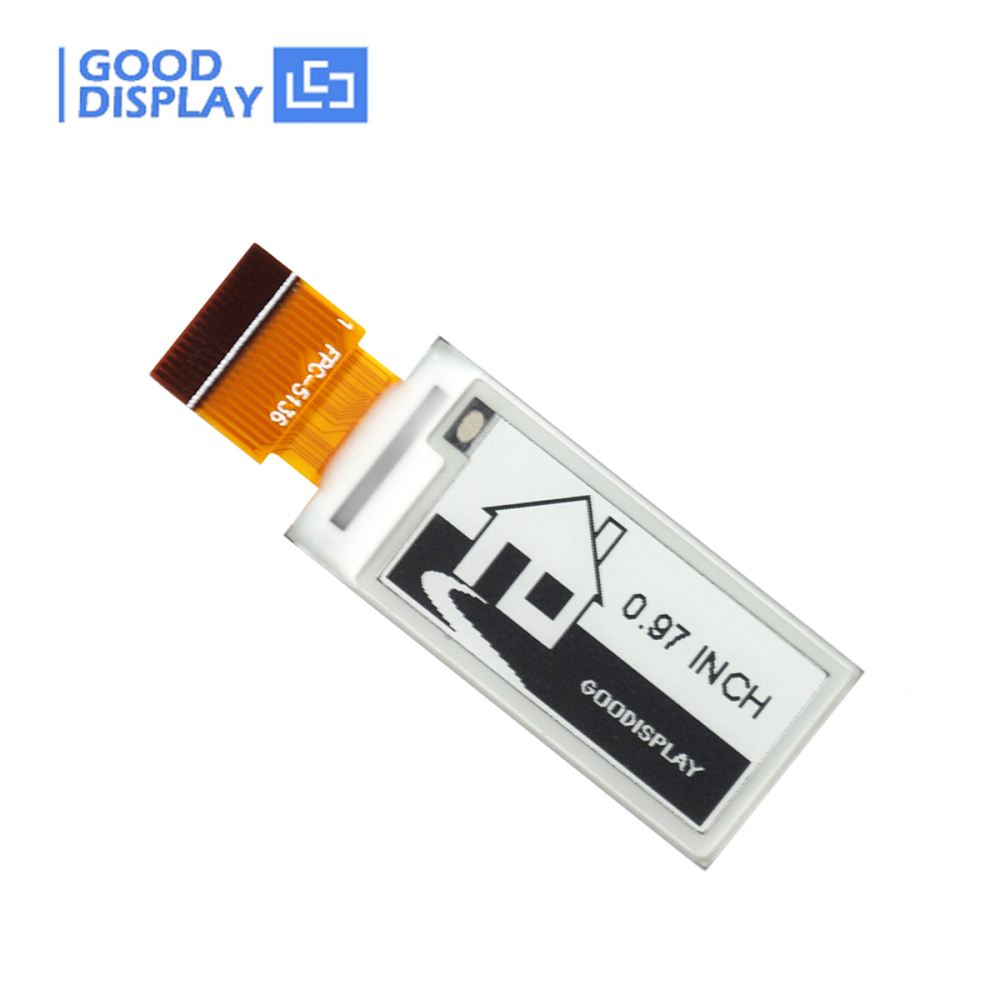

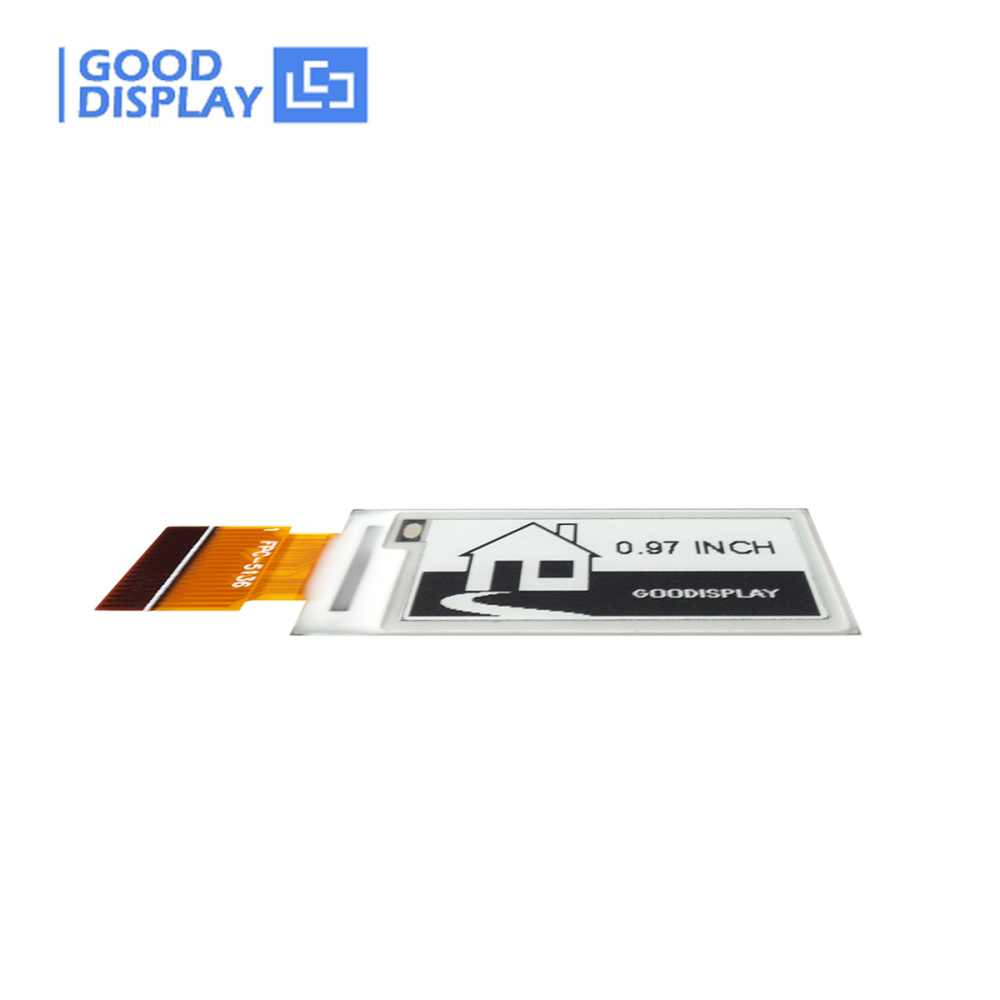

0.97 inch Eink Screen Mini E-Paper Display, GDEM0097T61 (18PIN)

This is a mini e-paper screen, 0.97 inch, 184x88 resolution, SPI interface, and the display is capable to display images with black and white content.
Price:
USD
$4.50
  • Product:
    EPD
    EPD with adapter board
    EPD with STM32 demo kit
    EPD with ESP32 demo kit
    adapter board
Quantity:
-
+
(10 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews(1)


☆ INTRODUCTION





This is a mini e-paper screen, 0.97 inch, 184x88 resolution, SPI interface, and the display is capable to display images with black and white content. It supports partial refresh, the partial refresh time is 0.26s. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper GDEM0097T61 is perfect for low power devices powered by solar or batteries.


We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.



☆ THE ABOVE PRICE INCLUDE

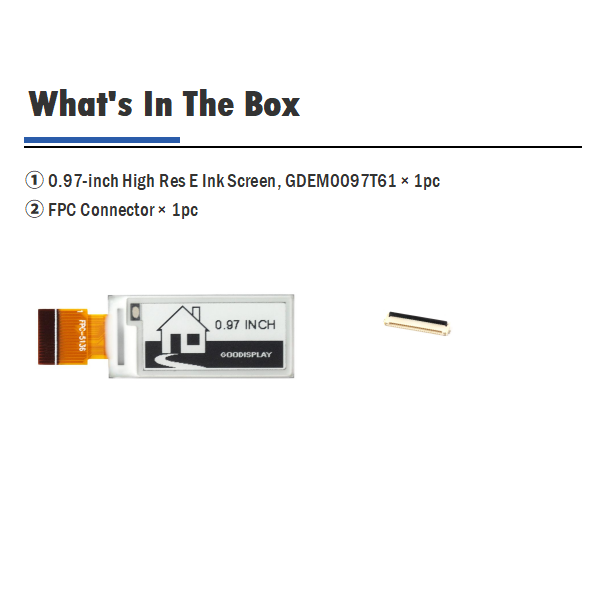

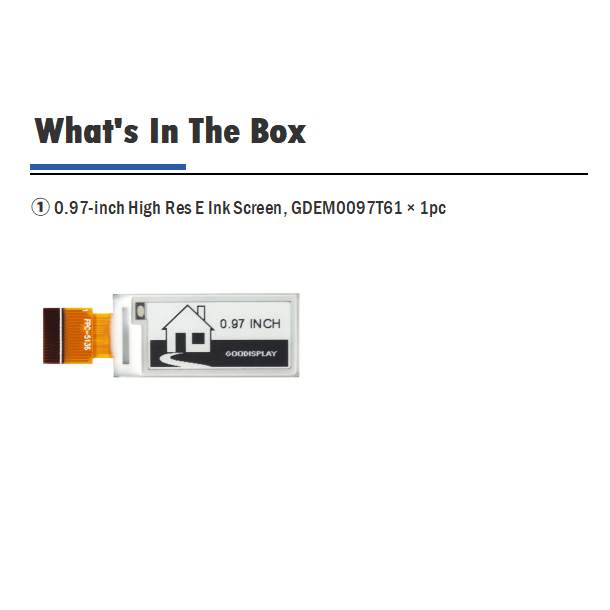

Package A +
  a. Mini 0.97 E-ink Display 184x88 resolution SPI Small E-paper Screen, GDEM0097T61 * 1pc   b. 18PIN FPC Connector * 1pc

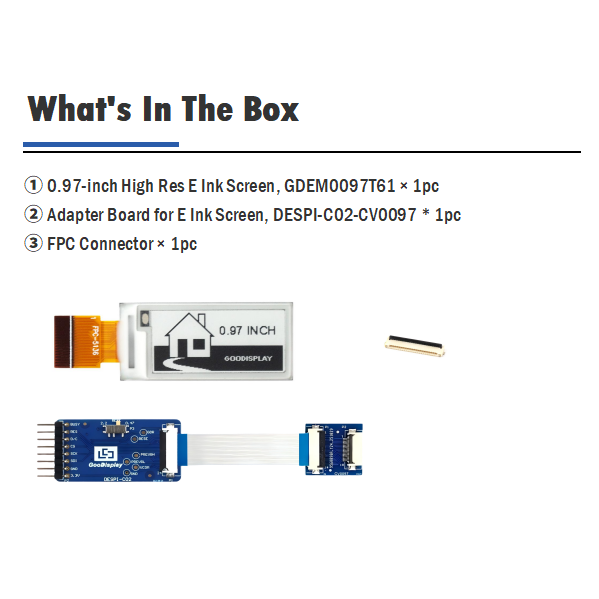

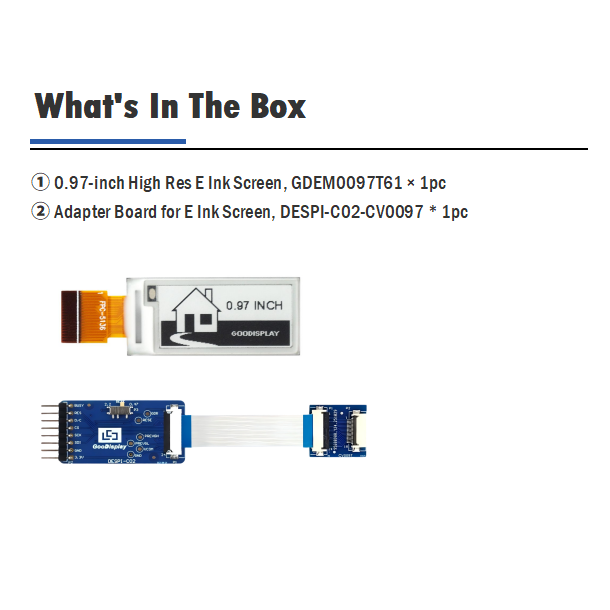

Package B + +

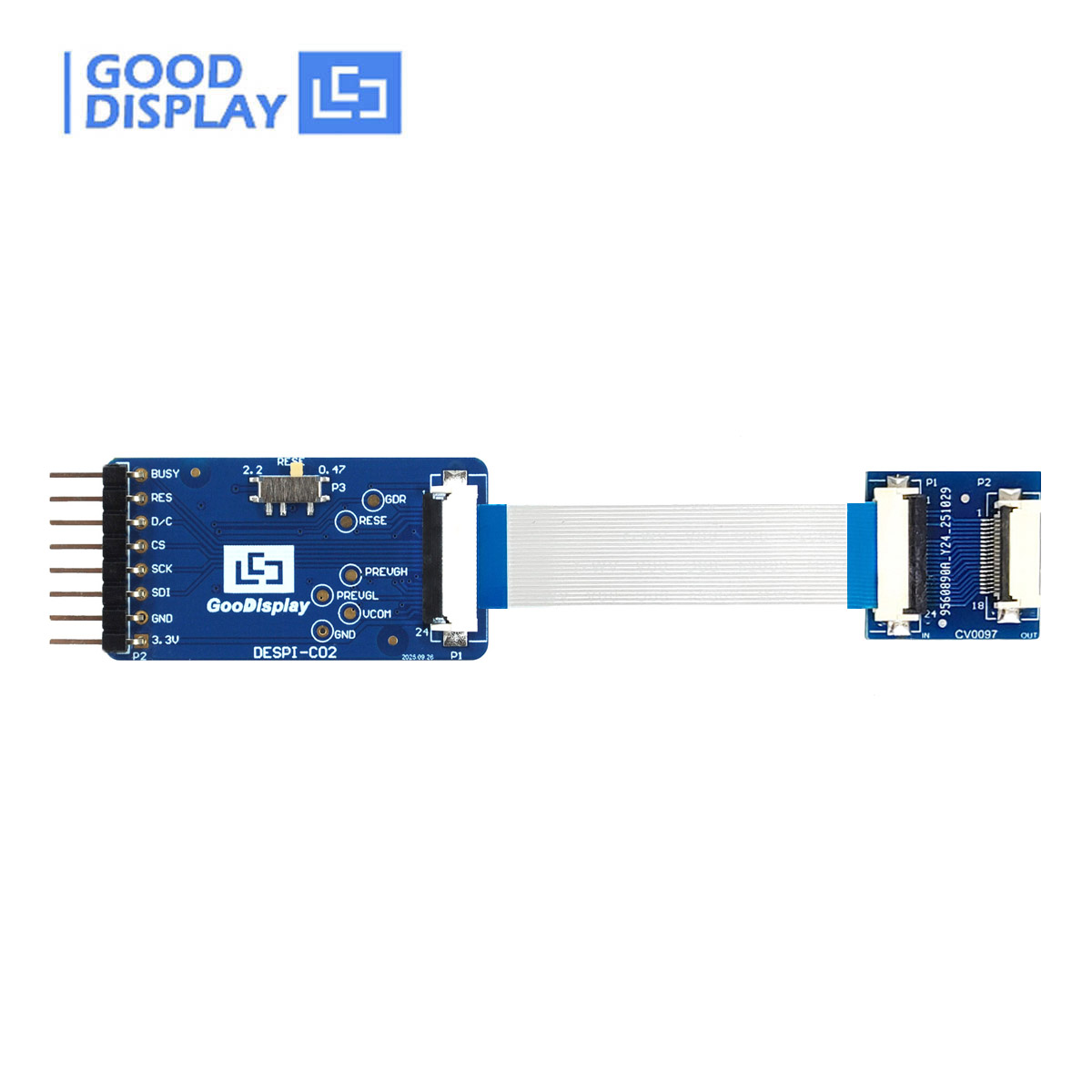

  a. Mini 0.97 E-ink Display 184x88 resolution SPI Small E-paper Screen, GDEM0097T61 * 1pc   b. 18PIN FPC Connector * 1pc   c.HAT Connection Adapter Board for 0.97 inch E Ink Display, DESPI-C097(18 PIN)* 1pc

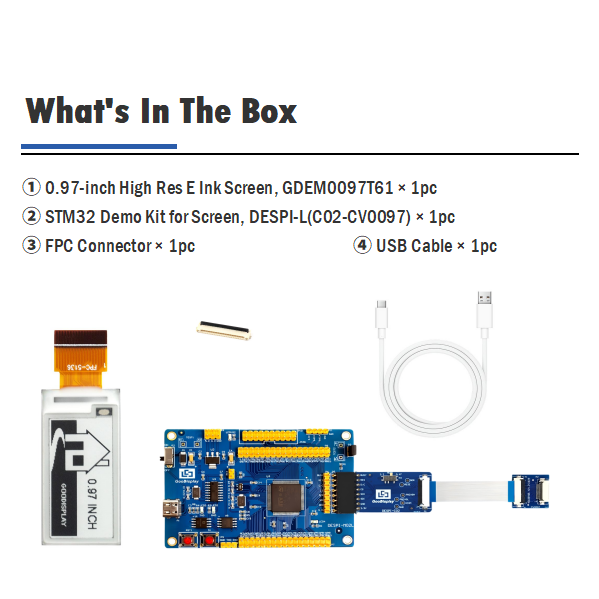

Package C + + +

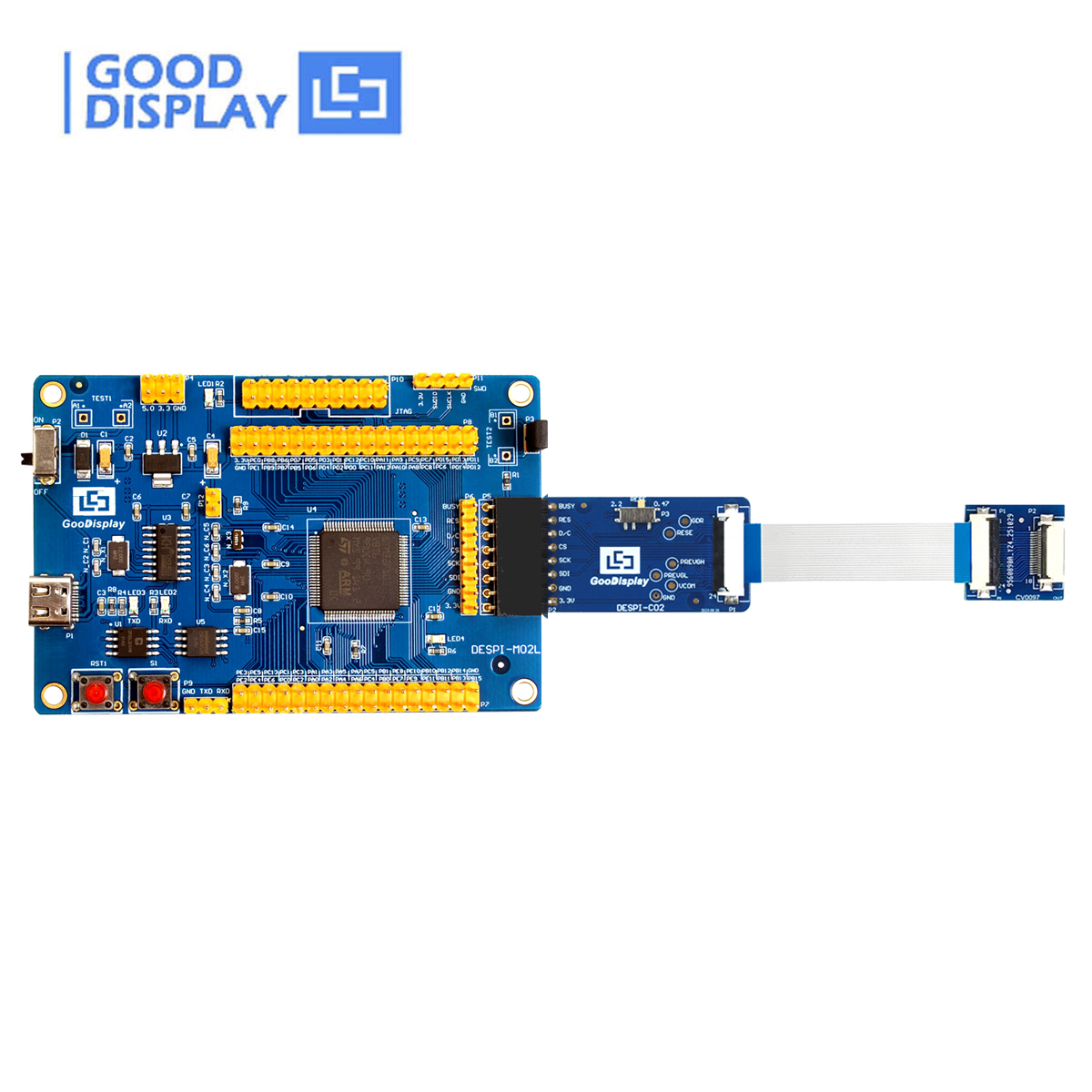

a. Mini 0.97 E-ink Display 184x88 resolution SPI Small E-paper Screen, GDEM0097T61 * 2pcs   b. 18PIN FPC Connector * 2pcs   c. STM32 Epaper Board, STM32-L(C097)18PIN* 1pc   d. USB Cable* 1pc

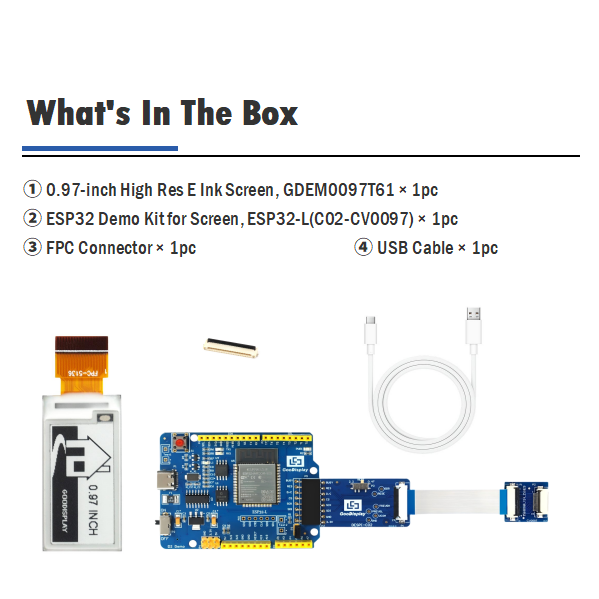

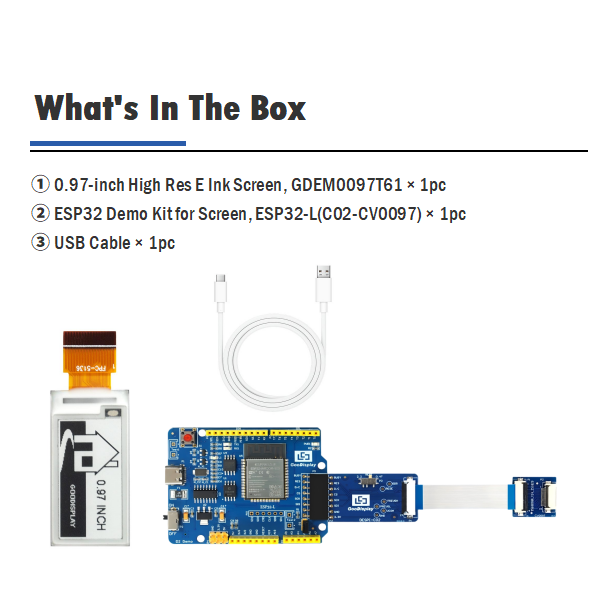

Package D + + +

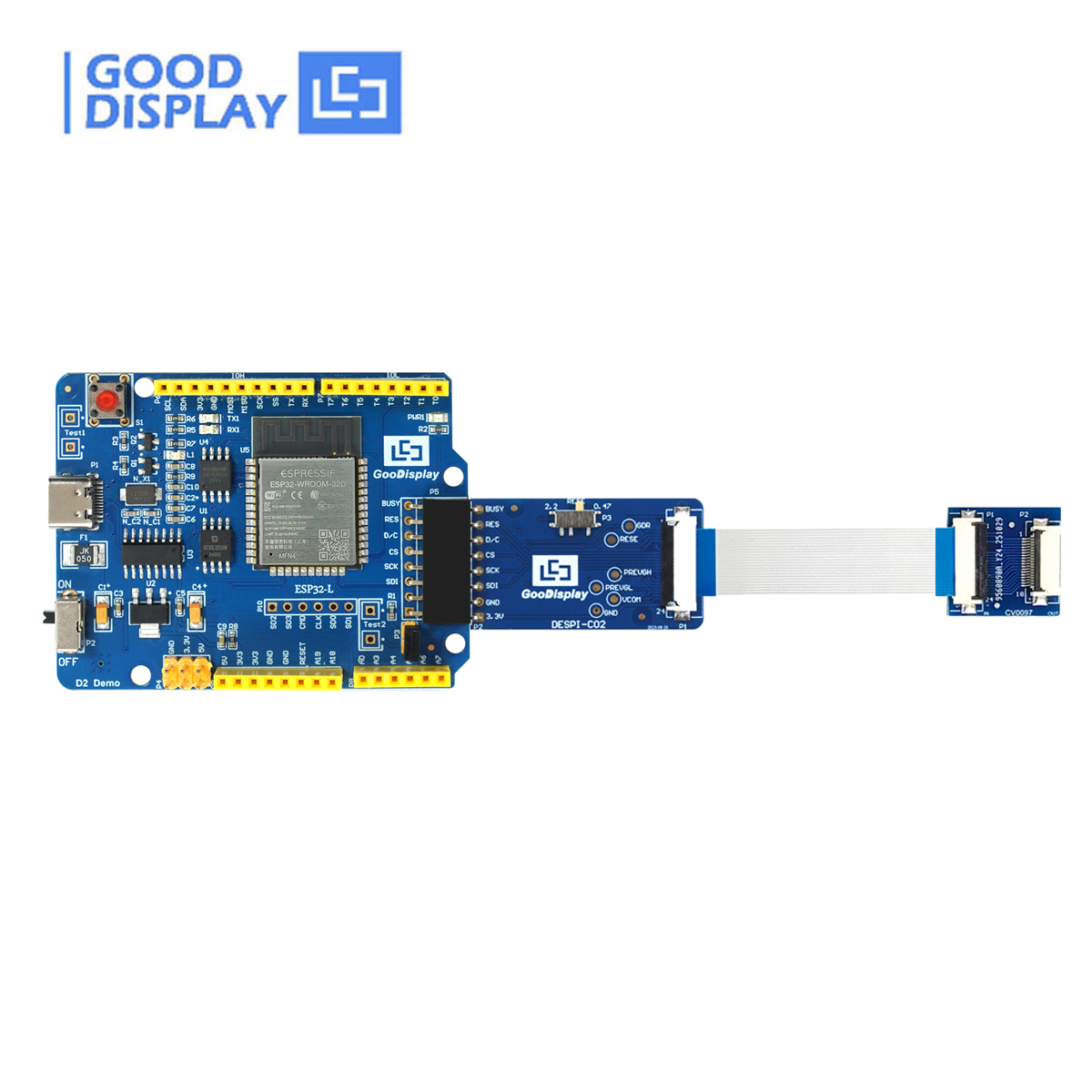

a. Mini 0.97 E-ink Display 184x88 resolution SPI Small E-paper Screen, GDEM0097T61 * 2pcs   b. 18PIN FPC Connector * 2pcs   c. ESP32 Epaper Board, ESP32-L(C097)18PIN* 1pc   d. USB Cable* 1pc


☆ MAIN PARAMETERS




PART NUMBER

GDEM0097T61

SIZE

0.97 inch

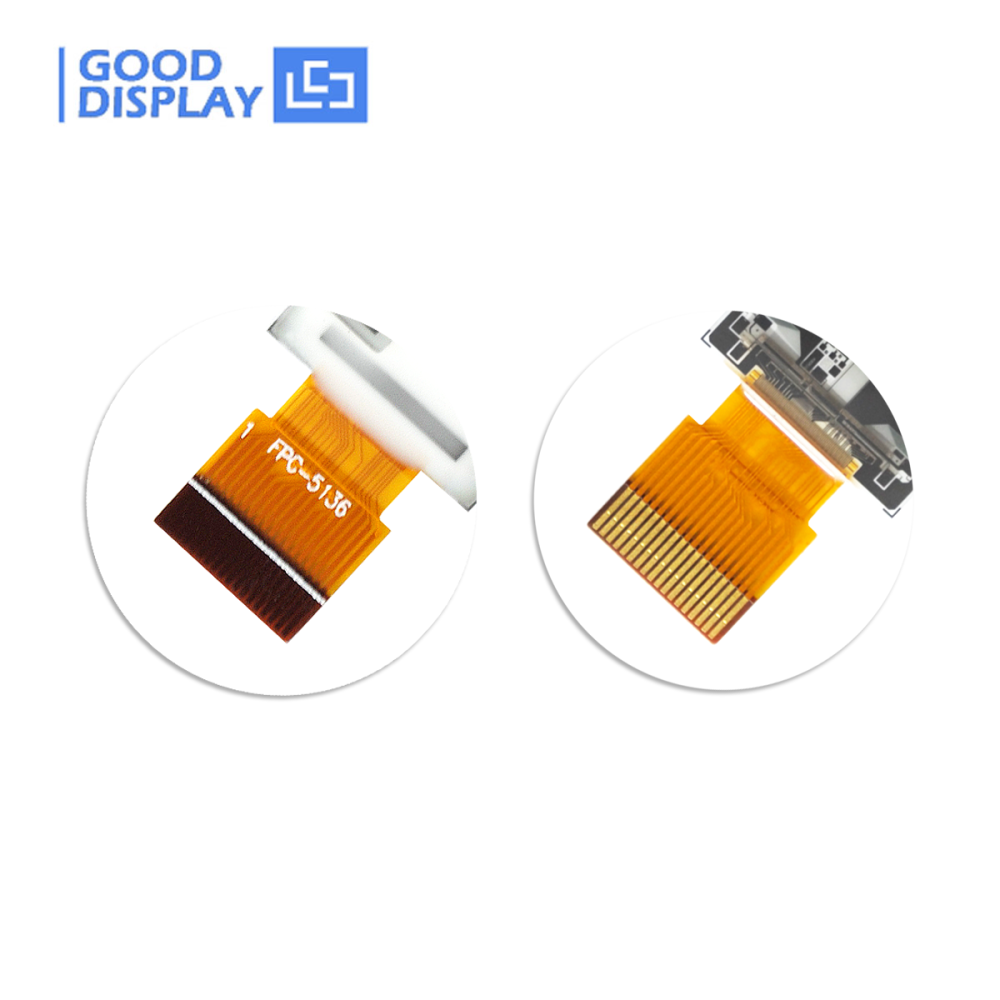

CONNECTOR 18 Pin FPC

TYPE

Dot Matrix

MAX GRAYSCALE 4

IC

SSD1680

COLOR Black, White

RESOLUTION

184x88

INTERFACE SPI

OUTLINE SIZE(mm)

30.0x14.15x1.0

FULL REFRESH(s) 3

ACTIVE SIZE(mm)

22.264x10.648

PARTIAL REFRESH(s) 0.26

PIXEL PITCH(mm)

0.121x0.121

POWER CONSUMPTION OF THE REFRESH(mW) 6

OPERATING TEMP.

0℃~50℃

STANDBY POWER CONSUMPTION (mW) 0.003

STORAGE TEMP.

-25℃~70℃






☆ FEATURE



●  Versatile. Use in portrait or landscape format
●  Bistable. (Will continue to display with no power source)
●  I2C Signal Master Interface to read external temperature sensor
● This e-paper supports partial update, its partial update time is 0.26s.
● It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays




☆ DRAWING






☆ MATCHED DEVELOPMENT KIT




● DESPI-M02L

● ESP32-L

● ESP8266-L

● Arduino UNO-L




☆ RELATED INFORMATION DOWNLOAD



● GDEM0097T61- Specification

● Picture Production and Bitmap Convert for GDEM0097T61

● GDEM0097T61 STM32 Sample Code

● GDEM0097T61_ESP32 Sample Code

● GDEM0097T61_ESP8266 Sample Code

● GDEM0097T61_Arduino Sample Code
