Main Board DESPI-M02, for STM32 Development Platform

This is the Main Board DESPI-M02, for STM32 Development Platform, support all the SPI interface e-paper display from Good Display. It has several different combinations, please choose the one you need.
Price:
USD
$24.99
  • Optional:
    DESPI
    DESPI-V3.0
    DESPI-102
    DESPI-1248
Quantity:
-
+
(191 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Selection Guide (Above 4.2 inch)
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




The STM32 series of 32-bit microcontrollers are based on the Cortex-M processor, which can support a wide range of 32-bit applications, including high performance, real-time functions, digital signal processing, and low power consumption and low voltage operation. Its core based on industry standards, supported by a large number of tools and software, makes this series of chips an ideal choice for many products.

The following development board combinations all support the operation of the host computer software Image to EPD. The Image to EPD software supports the direct import of pictures, eliminating the trouble of picture production and bitmap convert.



Relevant manual about this product on our official website (www.good-display.com), contact us please.
DEMO does not provide electronic paper screen, the screen must be purchased separately













Combination Of STM32 Development Platform And Adapter Board






☆ DESPI




+ =

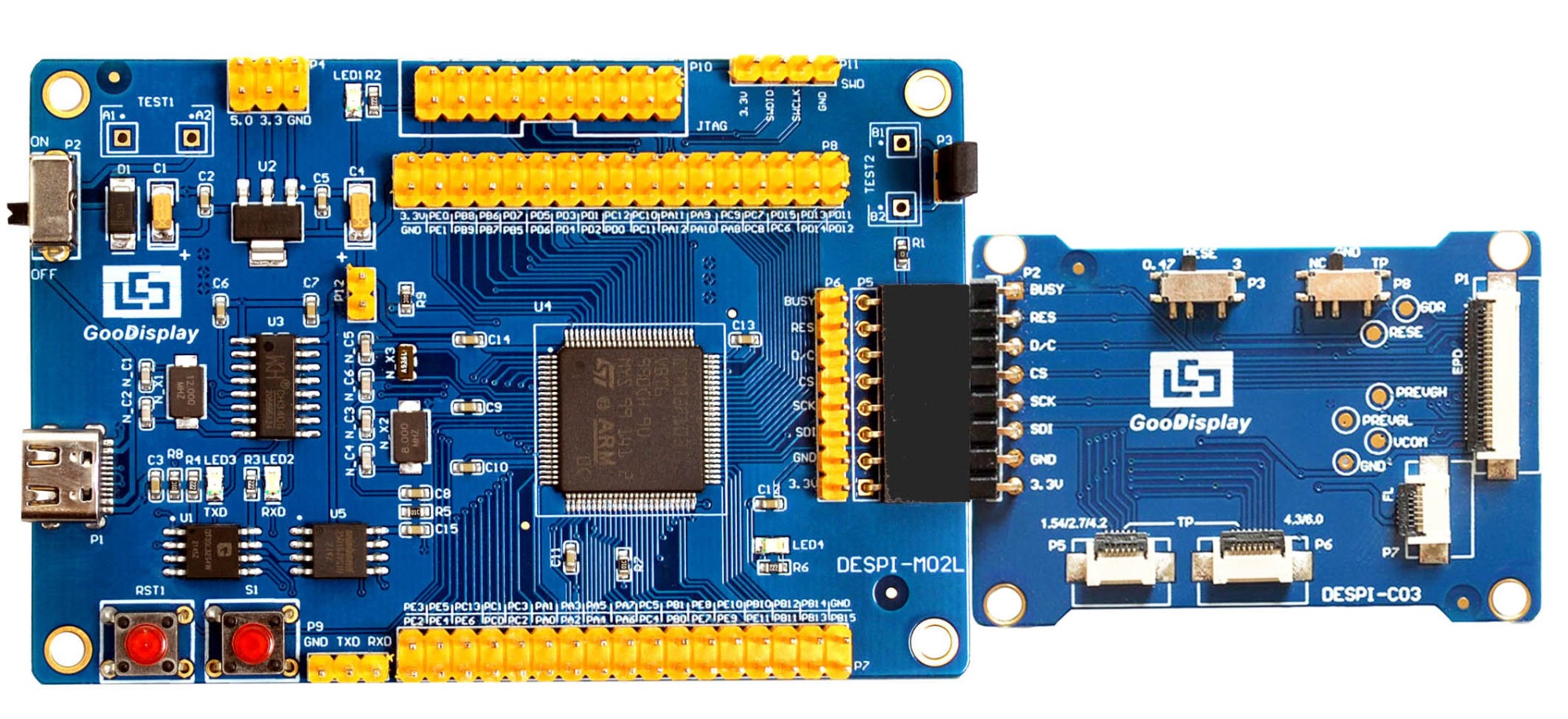

DESPI-M02   DESPI-C02   DESPI




Supporting most part of the SPI interface EPD (1.54 inch, 2.13 inch, 2.6 inch, 2.7 inch, 2.9 inch, 3.71 inch, 4.2 inch, 5.83 inch, 7.5 inch).

PART NUMBER

DESPI

PLATFORM

STM32

FUNCTION

Drive E-paper Display

OUTSIDE DIMENSION

90x60mm (DESPI-M02)
41x22mm (DESPI-C02)

POWER INTERFACE

USB Interface

POWER INPUT

DC5V

FEATURE

Fully and Partial refresh

GREY SCALE LEVEL

Max 16 grey scale

OPERATING TEMP.

-20~70℃

RECOMMENDED TOOL

Keil4

EXAMPLE CODE

Available

RESERVED FUNCTION

USB to serial port, indicator
light 、keys、current detection and so on.










☆ DESPI-V3.0






+ =
DESPI-M02

DESPI-C03 (Raspberry Pi,

with interface for T/P and Frontlight)

  DESPI-V3.0


Supporting most part of the SPI interface EPD (1.54 inch, 2.13 inch, 2.6 inch, 2.7 inch, 2.9 inch, 3.71 inch, 4.2 inch, 5.83 inch, 7.5 inch).

PART NUMBER

DESPI-V3.0

PLATFORM

STM32

FUNCTION

Drive E-paper Display

OUTSIDE DIMENSION

90mmx60mm (DESPI-M02)
52mmx36mm (DESPI-C03)

POWER INTERFACE

USB Interface

MAIN FUNCTION

EPD driving, touch panel driving and frontlight driving.

SAMPLE CODE

Available (please contact sales)

AITIONAL FUNCTION

USB to serial port, indicator light, keys, current detection
and so on.

OPERATING TEMP.

-20~70℃

RECOMMENDED TOOL

Keil4









☆ DESPI-102




+ =
DESPI-M02   DESPI-C102   DESPI-102


Supporting 1.02 inch e-paper display.

PART NUMBER

DESPI-102

PLATFORM

STM32

FUNCTION

Drive E-paper Display

OUTSIDE DIMENSION

90x60mm (DESPI-M02)
 (DESPI-C102)

POWER INTERFACE

USB Interface

POWER INPUT

DC5V

FEATURE

Fully and Partial refresh

GREY SCALE LEVEL

Max 16 grey scale

OPERATING TEMP.

-20~70℃

RECOMMENDED TOOL

Keil4

EXAMPLE CODE

Available

RESERVED FUNCTION

USB to serial port, indicator
light 、keys、current detection and so on.








☆ DESPI-1248







+ =
DESPI-M02   DESPI-C1248   DESPI-1248


Supporting 12.48 inch e-paper display.

PART NUMBER DESPI-1248
PLATFORM STM32
FUNCTION Drive E-paper Display
OUTSIDE DIMENSION 90mmx60mm (DESPI-M02)
150.2mmx26mm (DESPI-C1248)
POWER INTERFACE USB Interface
POWER INPUT DC5V
OPERATING TEMP. -20~70℃
RECOMMENDED TOOL Keil4
EXAMPLE CODE Available
RESERVED FUNCTION USB to serial port, indicator
light 、keys、current detection and so on.






☆ ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com






 SPECIFICATION DOWNLOAD




1. The STM32 Platform relevant download information is as follows:
①
Image to EPD Instruction Manual
②  Host Computer Software
③  Slave Computer Program




2. Relevant information of DESPI
①  DESPI Specification
②  DESPI-C02 Specification
③  DESPI-C02-SCH
④  DESPI-M02-SCH


3. Relevant information of DESPI-V3.0
①  DESPI V3.0 Specification
②  DESPI-C03 Specification
③  DESPI-C03-SCH
④  DESPI-M02-SCH
⑤  Raspberry Pi User Manual


4. Relevant information of DESPI-102
①  DESPI-102(30P) Specification
②  DESPI-C102(30P) Specification
③  DESPI-M02-SCH
④  DESPI-C102-SCH


5. Relevant information of DESPI-1248
①  DESPI-1248 Specification
②  DESPI-C1248 Specification
③  DESPI-M02-SCH
④
DESPI-C1248-SCH







PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -10℃~60℃     SPI
GDEH0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃   SPI
GDEW0154M09 1.54'' BW 2 200x200 27.6x27.6 0.82 0℃~50℃   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃   SPI
GDEH0154Z90 1.54'' BWR 2 200x200 27x27 15 0℃~40℃     SPI
GDEW0213M21 2.13'' BW 2 212x104 48.548x23.712 3 -10℃~60℃     SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ SPI
GDEM0213B74 2.13'' BW 4 250x122 48.55x23.7 3 0℃~50℃     SPI
GDEW0213V7LT 2.13'' BW 2 212x104 48.55x23.71 3 -25℃~10℃   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW0213T5D-FL01(With Frontlight) 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃   SPI
GDEY0266T90 2.66'' BW 4 296x152 60.088x30.704 3 0℃~50℃   SPI
GDEW027W3 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEW027W3-T(With Touch Panel) 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEM029E97 2.9'' BW 2 296x128 66.9x29.06 3 0℃~50℃     SPI
GDEH029Z13 2.9'' BWR 2 296x128 66.9x29.06 15 0℃~40℃     SPI
GDEM029T94 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃   SPI
GDEW029M06 2.9'' BW 2 296x128 66.896x29.056 3 -10℃~60℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ SPI
GDEW029T5D 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEW029T5D-FL02(With Frontlight) 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEH037Z01 3.71'' BWR 2 416x240 81.54x47.04 16 0℃~40℃     SPI
GDEW0371W7 3.71'' BW 2 416x240 81.536x47.04 4 0℃~50℃     SPI

PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW042C37 4.2'' BWY 2 400x300 84.8x63.6 28 0℃~40℃     SPI
GDEW042T2 4.2'' BW 4 400x300 84.8x63.6 3 0℃~50℃     SPI
GDE043A2 4.3'' BW 16 800x600 88x66 1 0℃~50℃   Parallel
GDE043A2-T(With Touch Panel) 4.3'' BW 16 800x600 88x66 1 0℃~50℃   Parallel
GDE043A3 4.3'' BW 16 800x600 88x66 1 0℃~50℃   Parallel
GDEW0583C64 5.83'' BWY 2 600x448 118.80x88.26 25 0℃~40℃     SPI
GDEW0583T8 5.83'' BW 2 648x480 119.232x88.32 4 0℃~50℃     SPI
GDEW0583Z83 5.83'' BWR 2 648x480 119.232x88.32 12 0℃~40℃     SPI
GDE060F3 6.0'' BW 16 1024x758 90.581x122.368 1 0℃~50℃   Parallel
GDEY075T7 7.5'' BW 4 800x480 163.2x97.72 3 0℃~50℃   SPI
GDEY075Z08 7.5'' BWR 2 800x480 163.2x97.72 12 0℃~40℃     SPI
GDEH116T91 11.6'' BW 2 960x640 244.512x163.008 5 0℃~50℃     SPI
GDEH116Z91 11.6'' BWR 2 960x640 244.512x163.008 30 0℃~35℃     SPI
