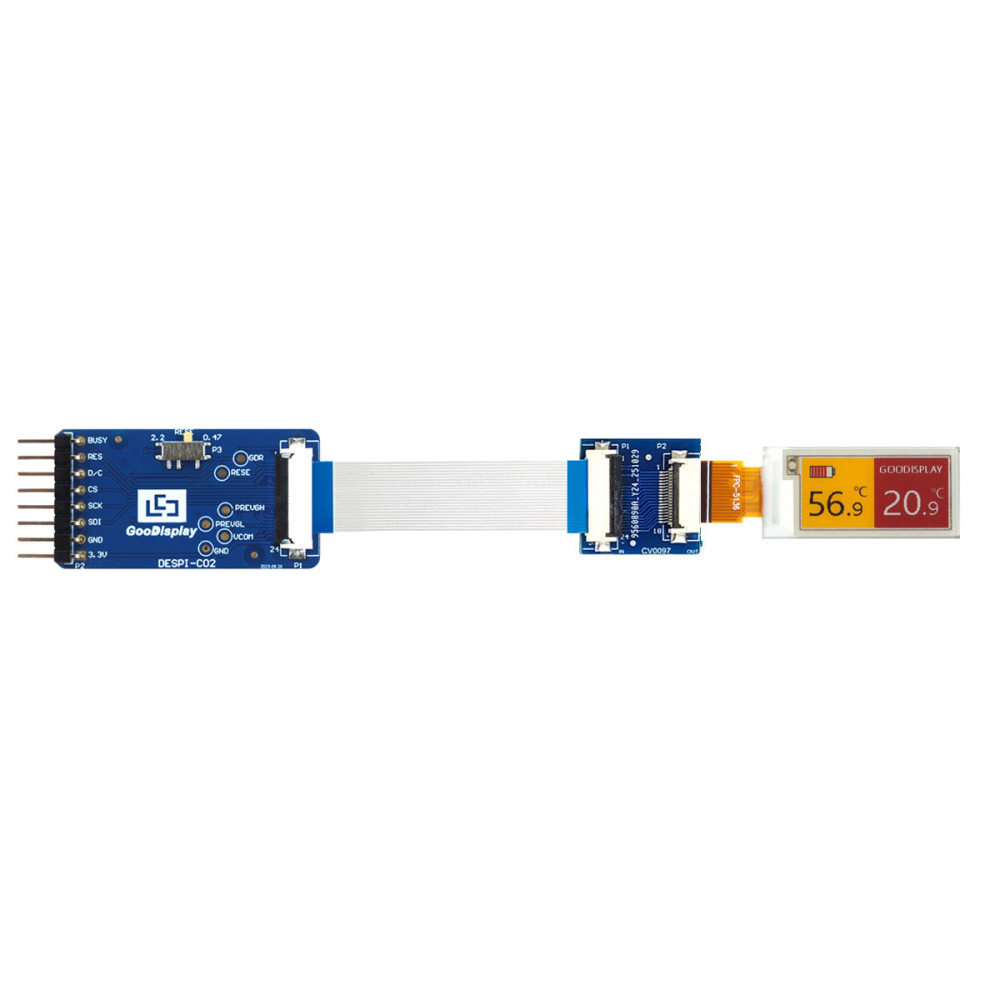

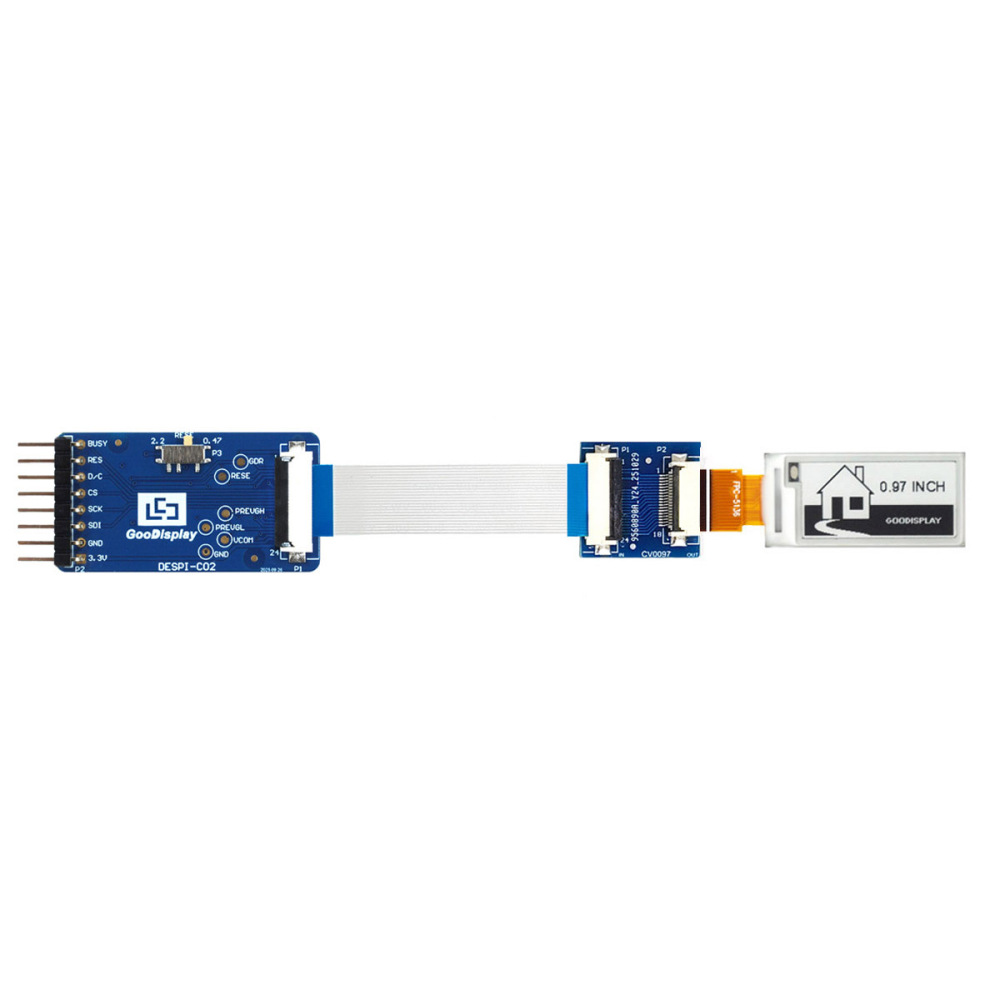

Name: Epaper HAT Connection Adapter Board for 0.97 inch E Ink Display (18 PIN), DESPI-C02-CV0097
Brand: GOOD DISPLAY
SKU: DESPI-C097
Price: 5.6 USD
Availability: InStock

(0)

47 Sold

$5.60 ~~$6.99~~

20% OFF

This HAT connection board DESPI-C02-CV0097 is aim to help users to learn how to use the E-paper Display easier.

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

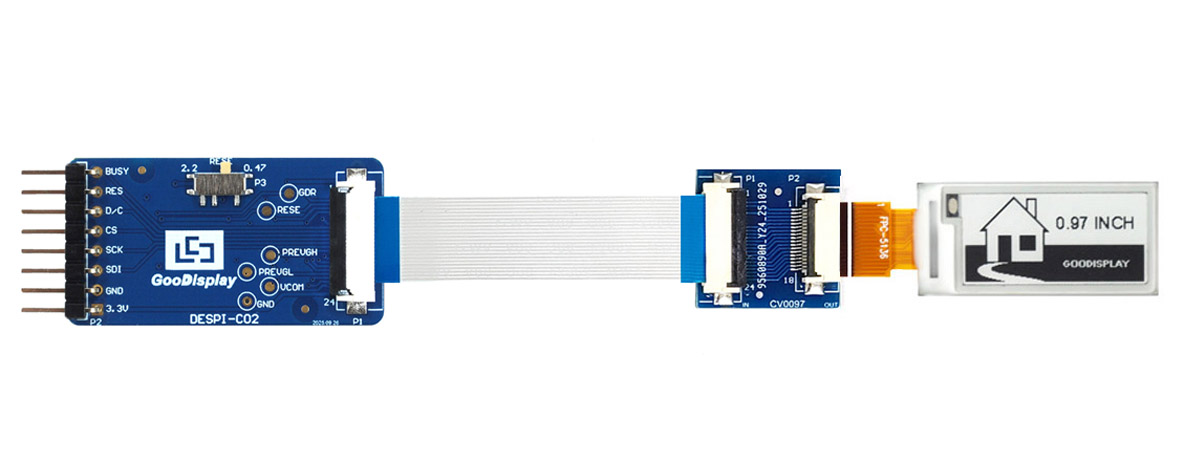

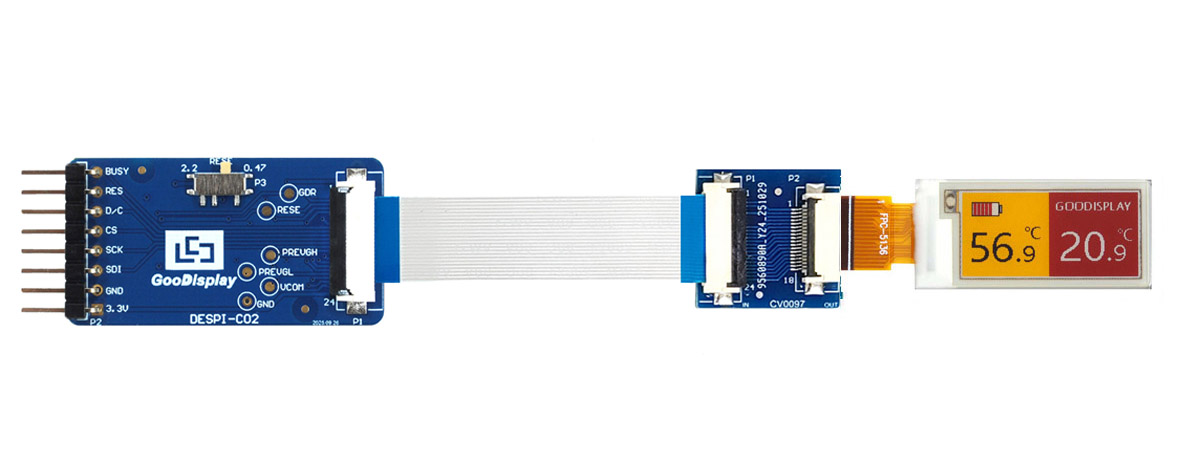

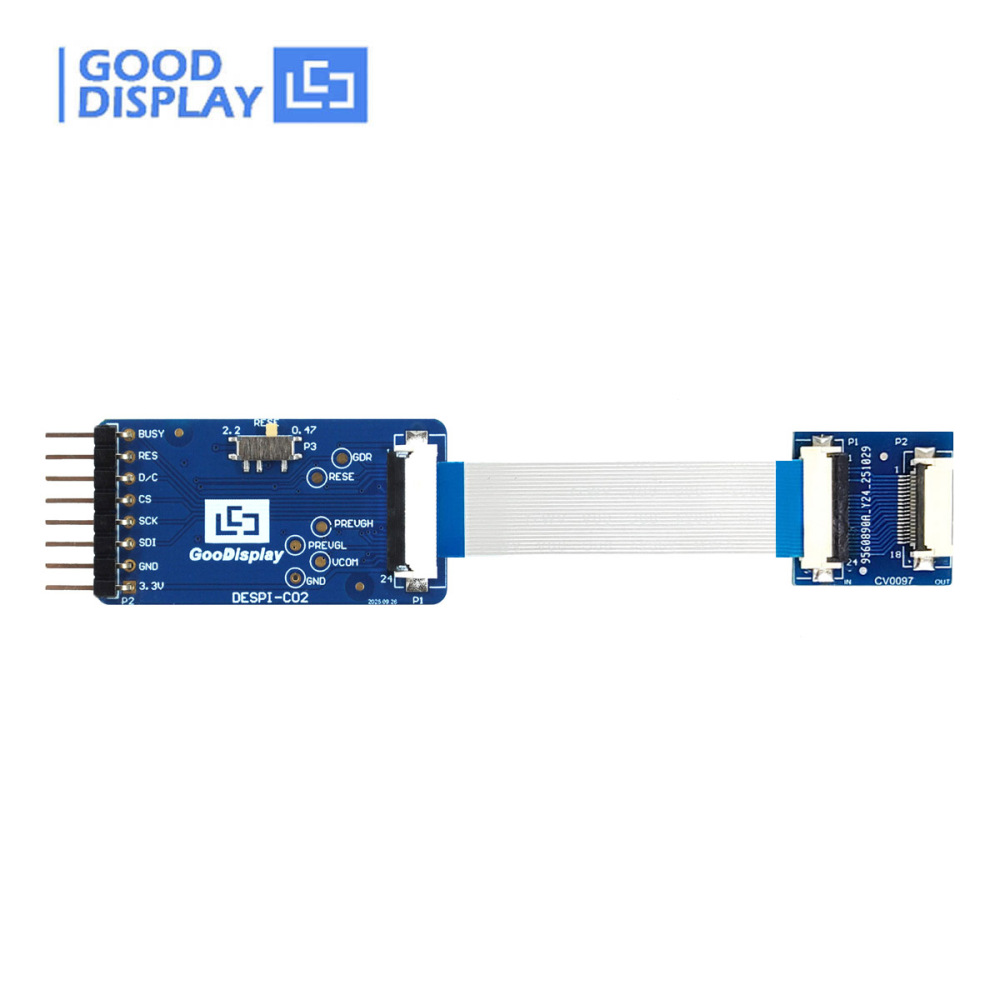

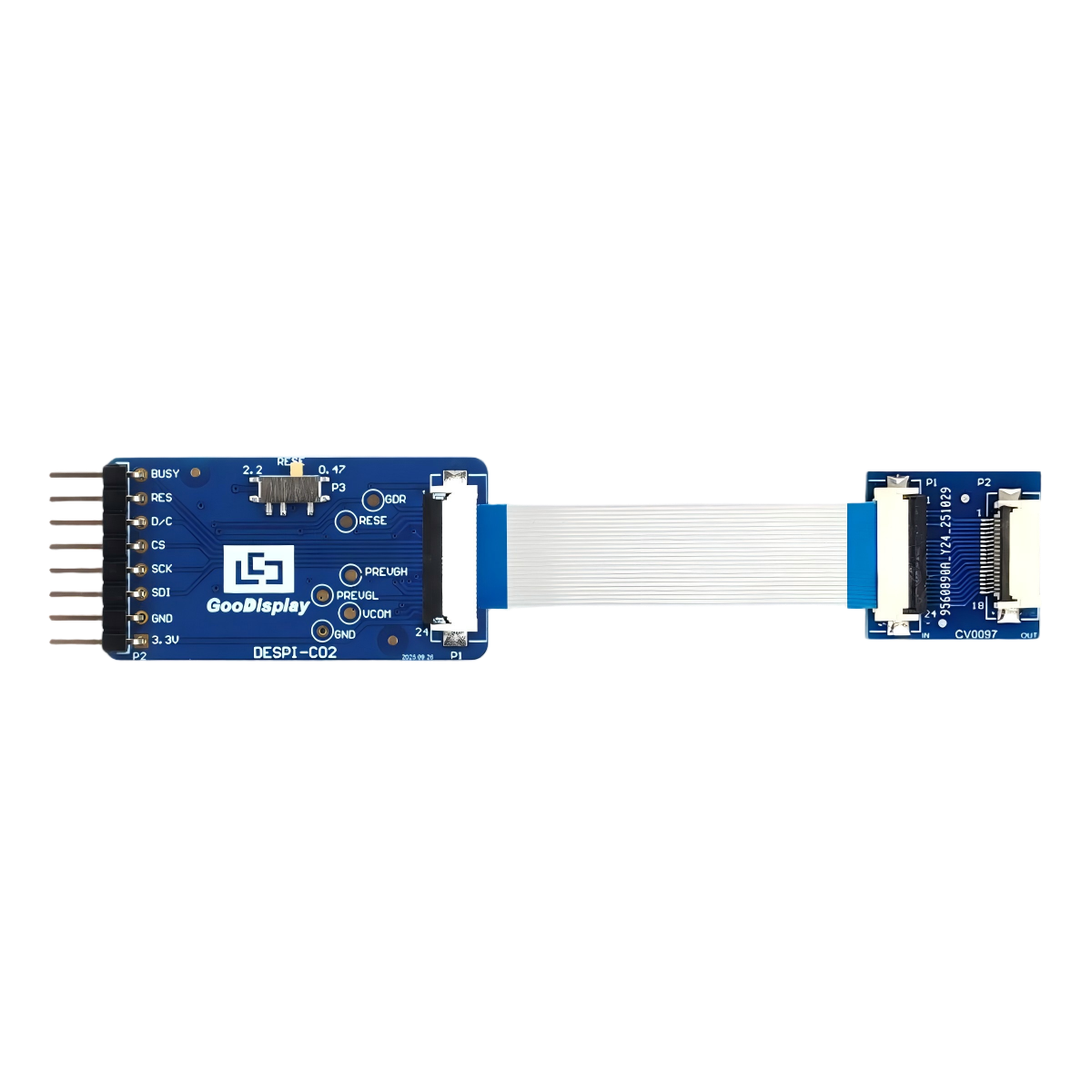

18-Pin E-Ink Display Adapter Board

Our adapter seamlessly converts standard 24-pin HAT interfaces to 18-pin connectors, specifically designed for 0.97" e-paper displays. Engineered for reliable connectivity and cross-platform compatibility.

Key Advantages

Broad Compatibility

Compatible with most 24PIN SPI e-paper displays up to 13.3 inches, meeting diverse display requirements.

Plug & Play Design

Direct connection with mainstream development boards, eliminating complex wiring and simplifying development.

Smart DIP Switch

Built-in DIP switch for easy resistance adjustment, compatible with UC, SSD and other driver IC series.

Debugging Support

Provides power measurement, status detection, and professional voltage test points for circuit validation.

Technical Specifications

Key Components SI1308EDL, MBR0530

DIP Switch RESE resistor selection (2.2Ω, 0.47Ω)

Communication Interface SPI

Operating Voltage 3.3V

Operating Temperature -20~70℃

Platform Compatibility

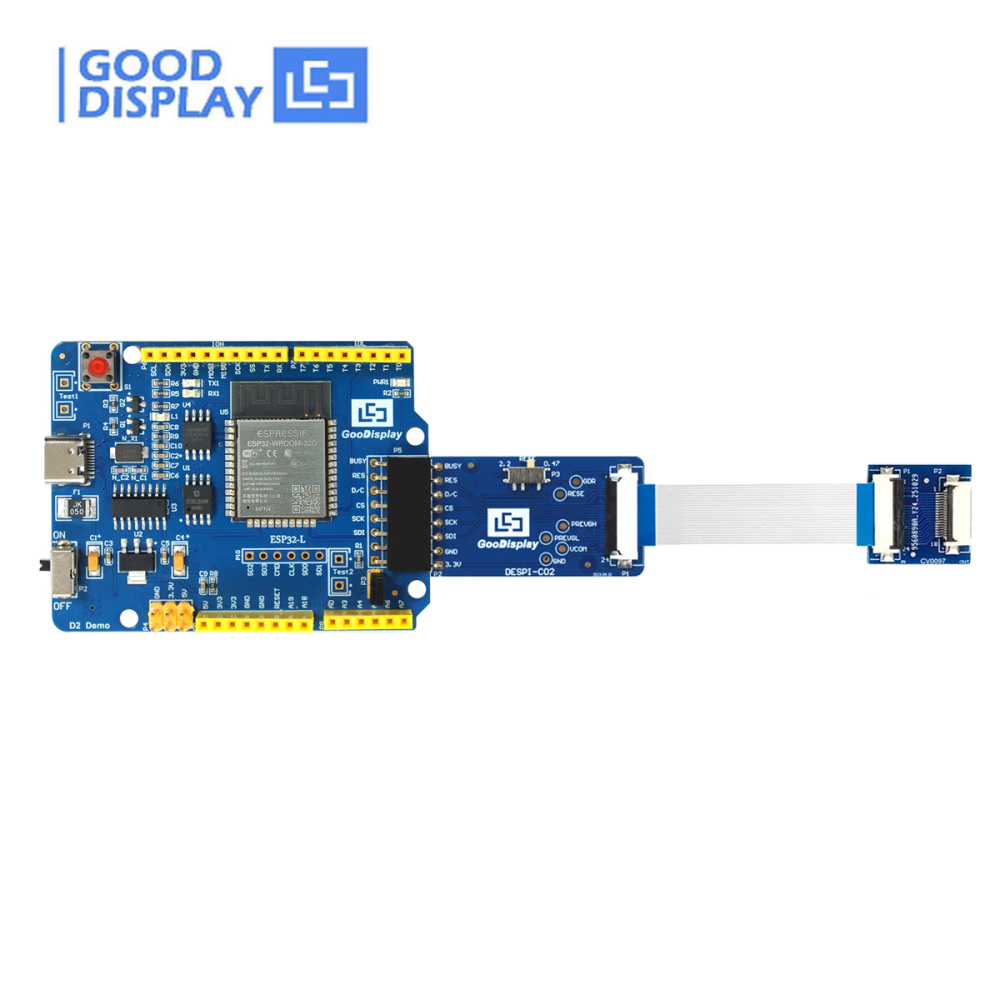

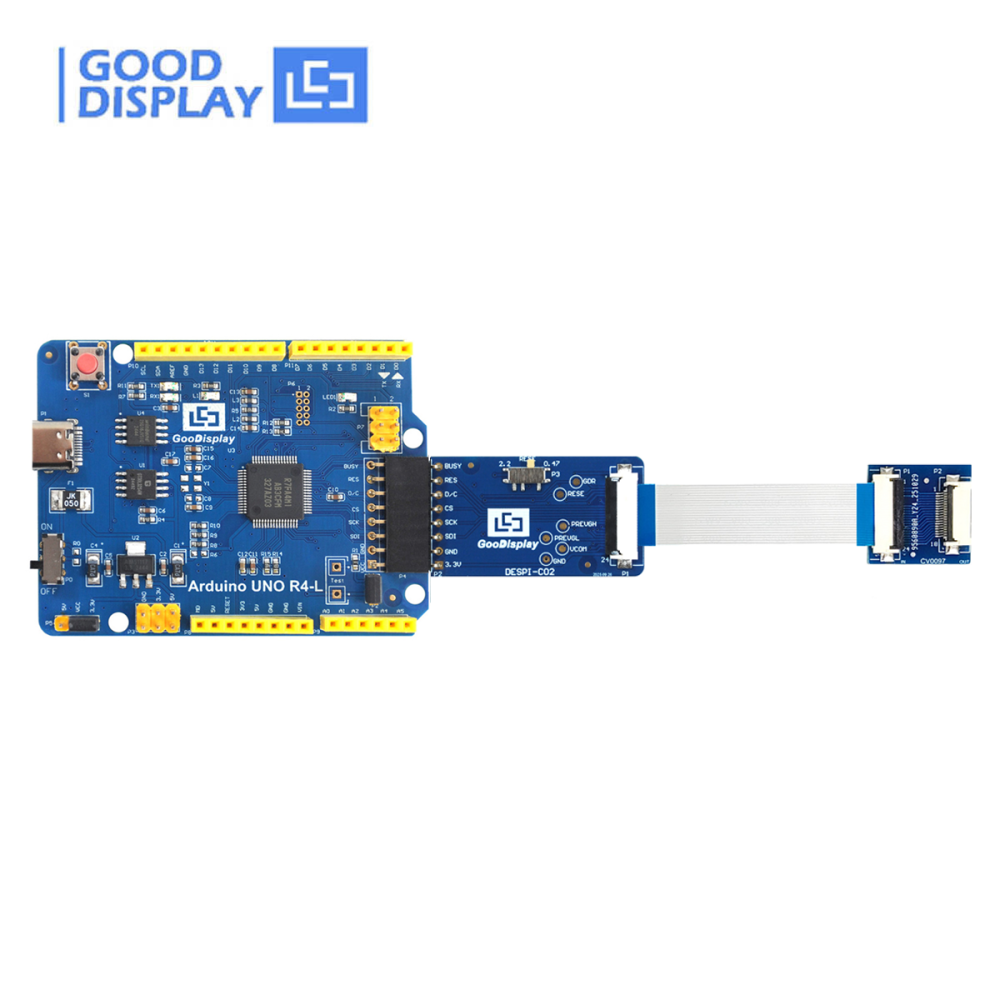

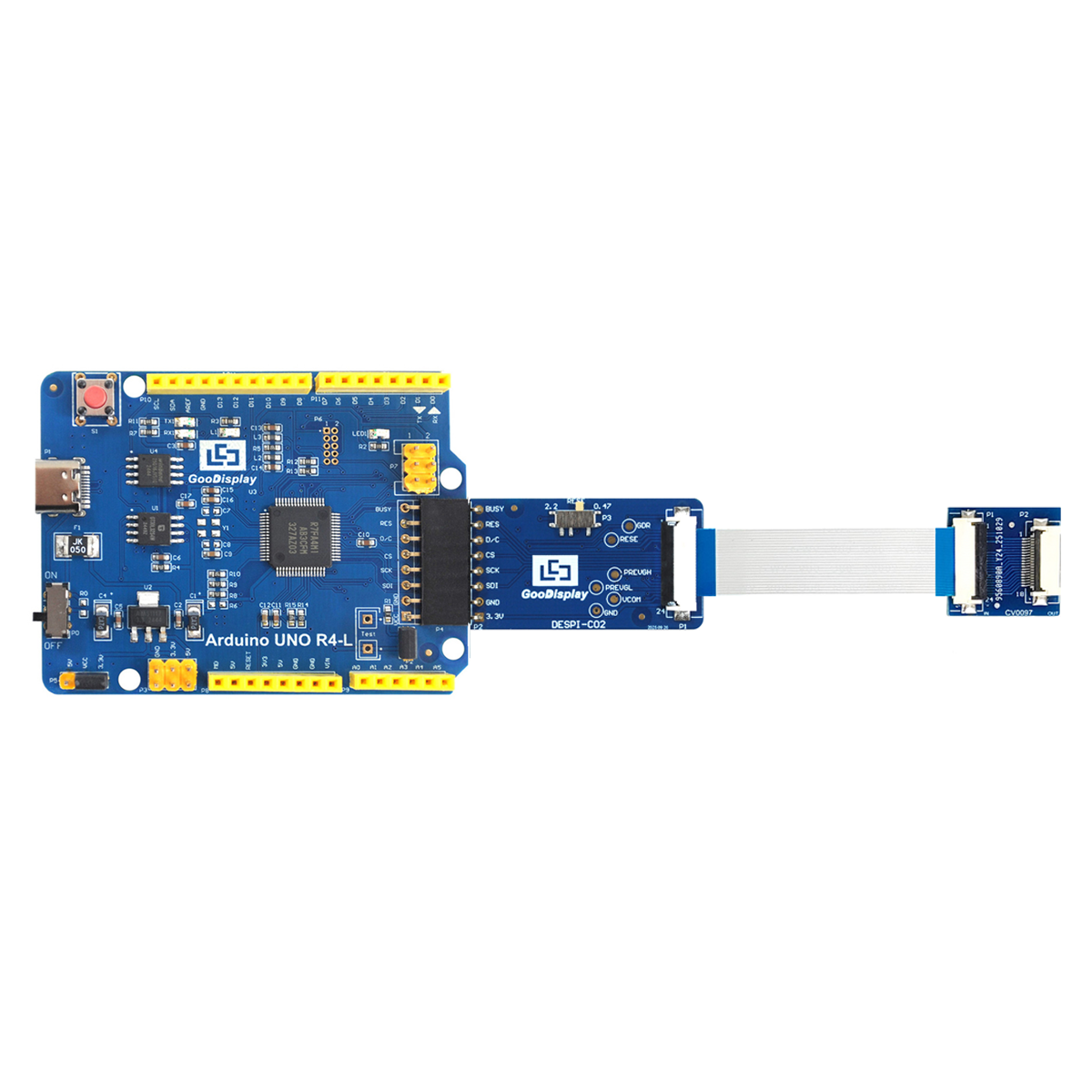

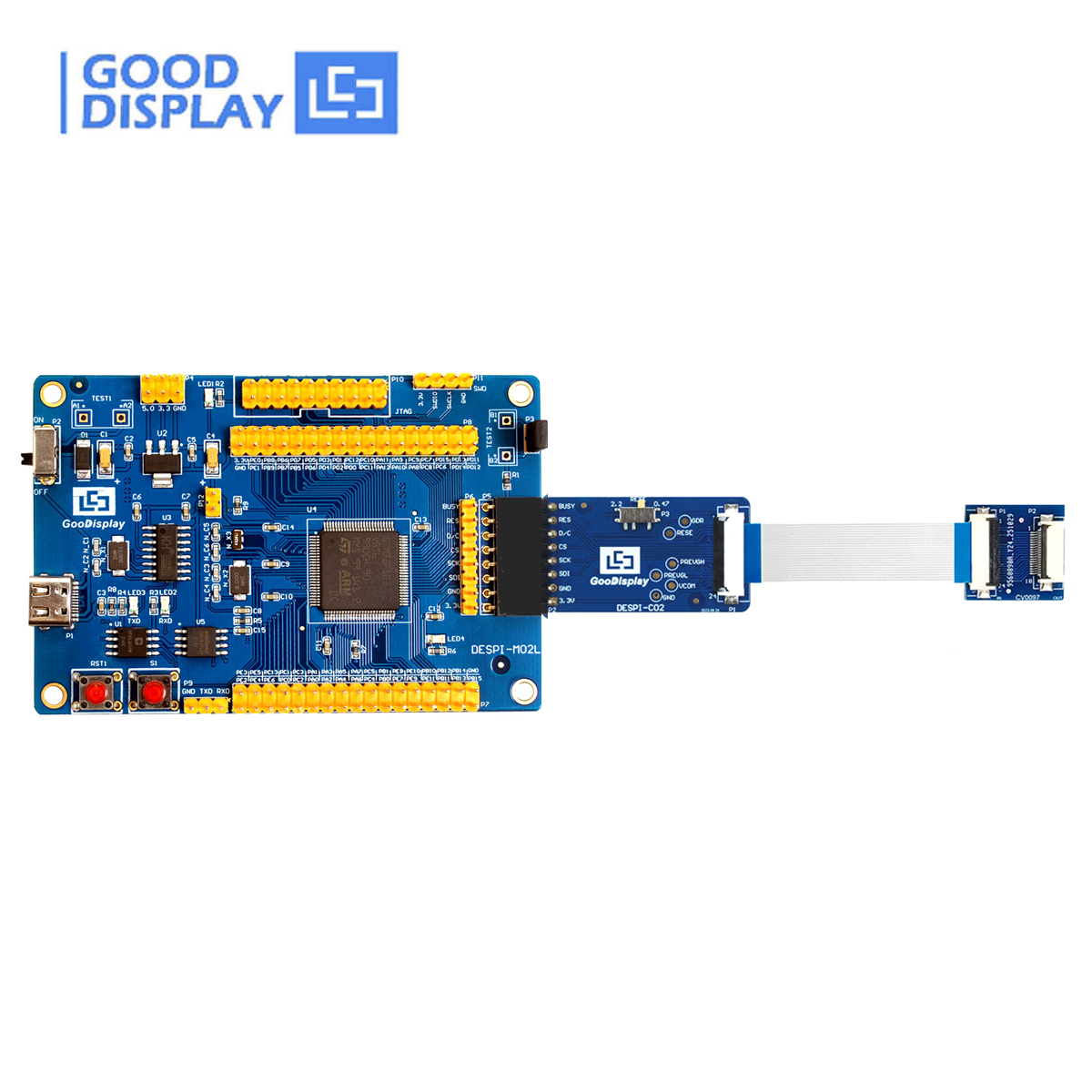

Direct connection with various mainstream development boards for seamless development experience:

Application Scenarios

Embedded & IoT Development

Display interface development for low-power embedded and IoT systems.

Rapid Prototyping

Functional verification and prototyping of E-paper display modules.

Circuit Design & Tuning

E-paper driver circuit design and performance optimization.

Display Pin Functions

Pin Name	Function Description
BUSY	Busy status output pin
RES	External reset pin (low = reset)
D/C	Data/Command control pin (high = data, low = command)
CS	SPI chip select pin (active low)
SCK	SPI clock signal line
SDI	SPI data input line
GND	Ground
3.3V	Power supply (positive)

Driver Solution


DESPI-C02-CV0097 + GDEM0097T61	DESPI-C02-CV0097 + GDEM0097F51
