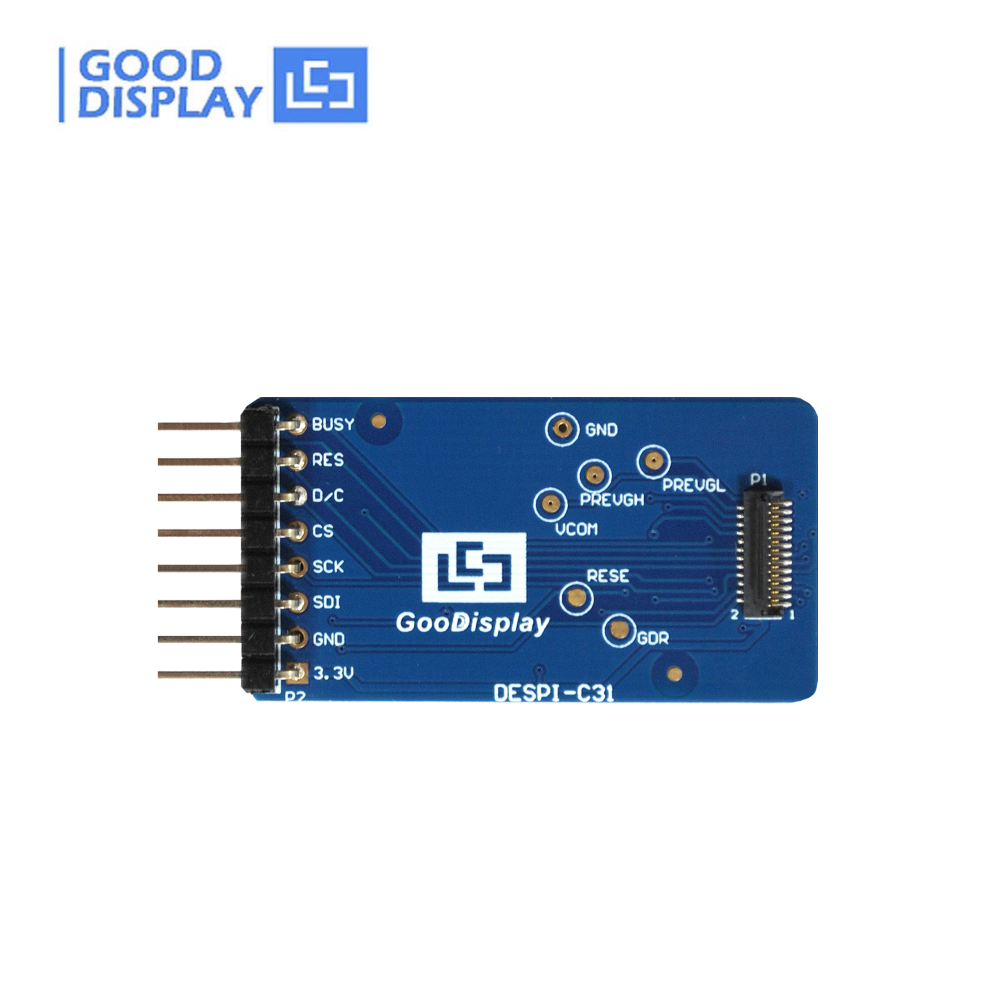

Epaper HAT Connection Adapter Board for 3.1 inch E Ink Display

Special Features

Product Specifications

ABOUT US

SKU: DESPI-C31

(0)

4 Sold

$5.60 ~~$6.99~~

20% OFF

This HAT connection board DESPI-C31 is aim to help users to learn how to use the E-paper Display easier.

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

		Supporting 3.1 inch e-paper display
		The DESPI-C31 is a high-performance adapter board designed specifically for driving 3.1-inch e-paper displays. Equipped with a peripheral boost circuit, it ensures stable operation and efficient power management. This compact and versatile board is compatible with popular development boards like DESPI-M02L, ESP32-L, ESP8266-L, and Arduino UNO-L, making it an ideal choice for various e-paper display applications. With its reliable components and robust design, the DESPI-C31 offers a solid foundation for developing innovative, low-power display solutions.

Our product boasts distinctive features that set it apart from the competition

● Peripheral Boost Circuit: Provides enhanced power management, ensuring consistent performance for 3.1-inch e-paper displays.
● Flexible Compatibility: Supports multiple development boards, including DESPI-M02L, ESP32-L, ESP8266-L, and Arduino UNO-L, offering wide application versatility.

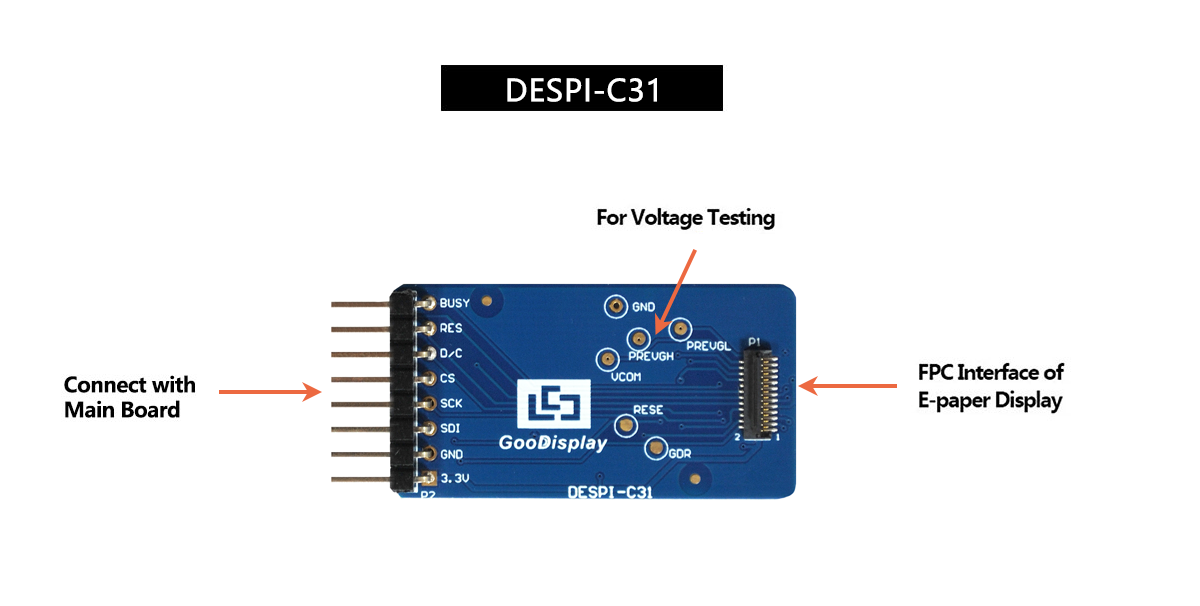

● Fault Diagnosis Support: Reserved boost detection points allow for easy troubleshooting and fault diagnosis, streamlining the development process.

		Technical Details
		Please refer to the product drawings for detailed dimensions

Please refer to the product specifications for more details

PARAMETER	DESPI-C31
IC	SI1308EDL, MBR0530
PLATFORM	STM32、Arduino
SCREEN FUNCTION	25PIN 0.3mm
OUTSIDE DIMENSION	41x22mm
DIP SWITCH	RESE resistor selection (3Ω, 0.47Ω)
COMMUNICATION INTERFACE	SPI
OPERATING VOLTAGE	3.3V
OPERATING TEMPERATURE	-20~70℃
SAMPLE CODE	(please contact sales)
MAIN FUNCTION	Provide driving voltage for e-paper; Provide interface for e-paper and motherboard; Help users operate e-paper quickly.
ADDITIONAL FUNCTION	Measurement of e-paper power consumption; Test of e-paper working condition.

Related Information Download Click on the subheadings below to download

	● DESPI-C31 Specification	● DESPI-C31-SCH

Compatible 3.1 inch E-INK

﹥﹥3.1 inch ePaper Display 1s Fast refresh 320x240 UC8253 SPI E Ink screen, GDEQ031T10
