Your position: Home / Color ePaper / Tri-Color ePaper

facebook
twitter
pinterest
vk
linkedin google digg reddit stumbleupon delicious

PDF Format

$2.20

~~$5.65~~

(61% OFF)

Matching Driver Board

To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

a. DESPI-C02 (E-ink Display adapter Board)

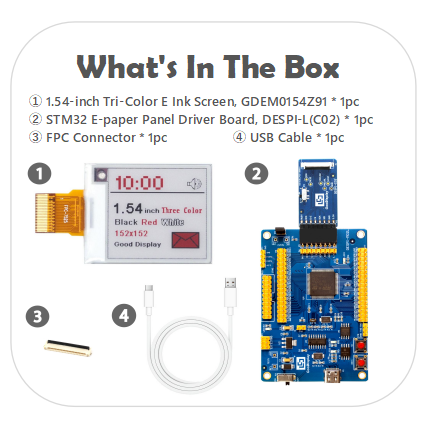

b. DESPI-L(C02) (STM32 Demo Kit)

c. DEArduino-L(C02) (Arduino Platform Demo Kit)

d. ESP8266-L(C02) (ESP8266 Demo Kit)

e. ESP32-L(C02) (ESP32 Demo Kit)

Description
Reviews

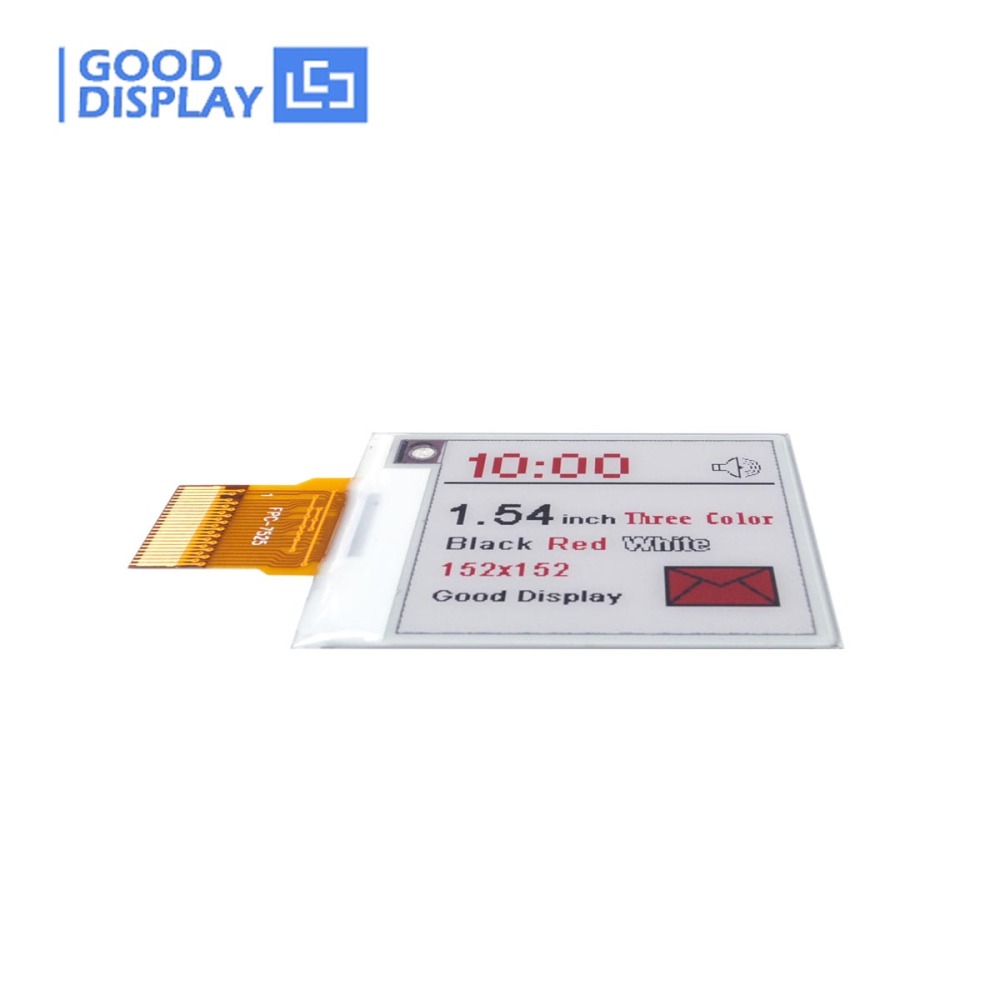

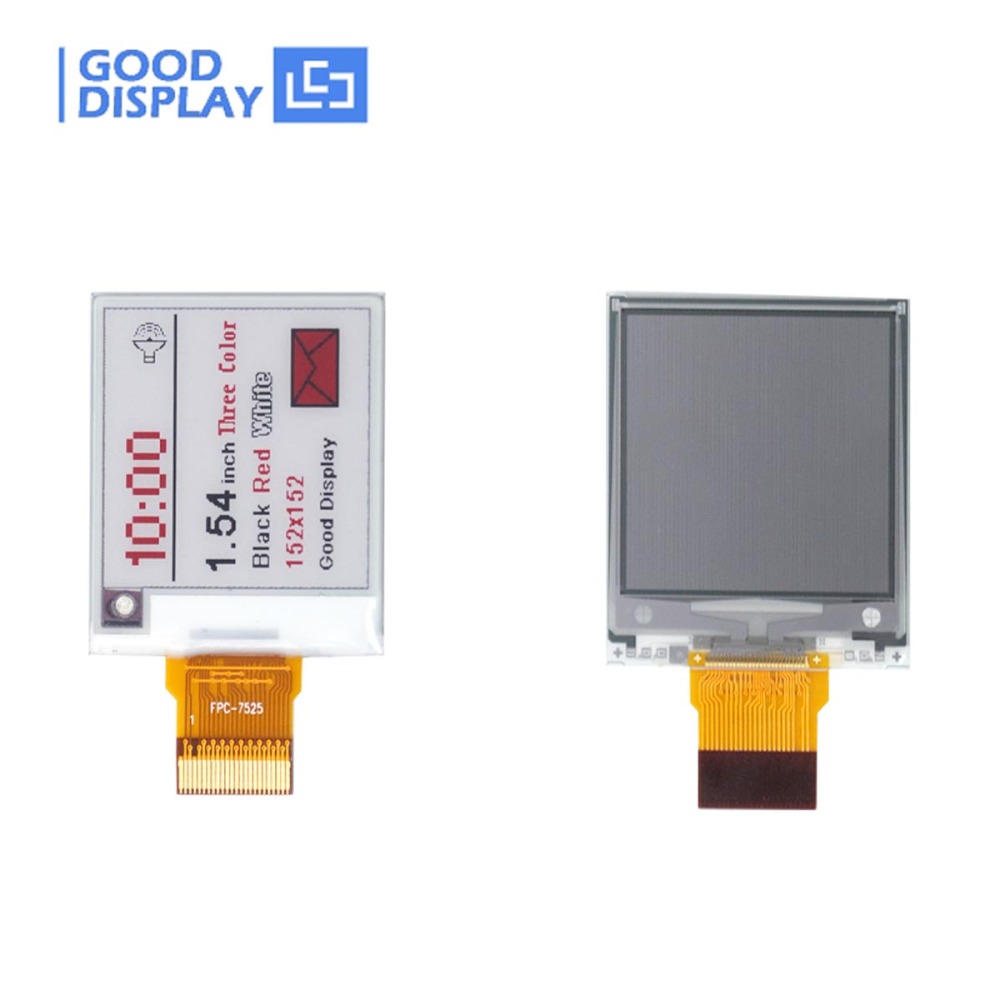

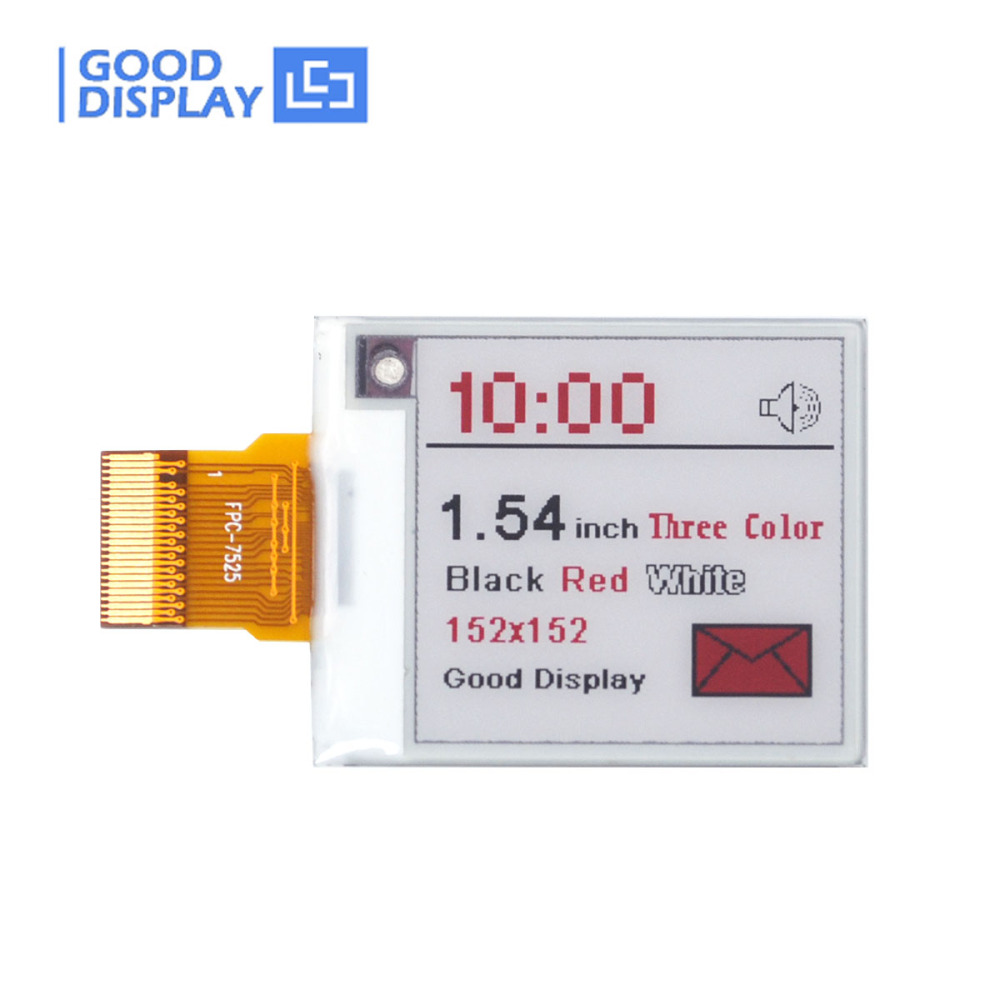

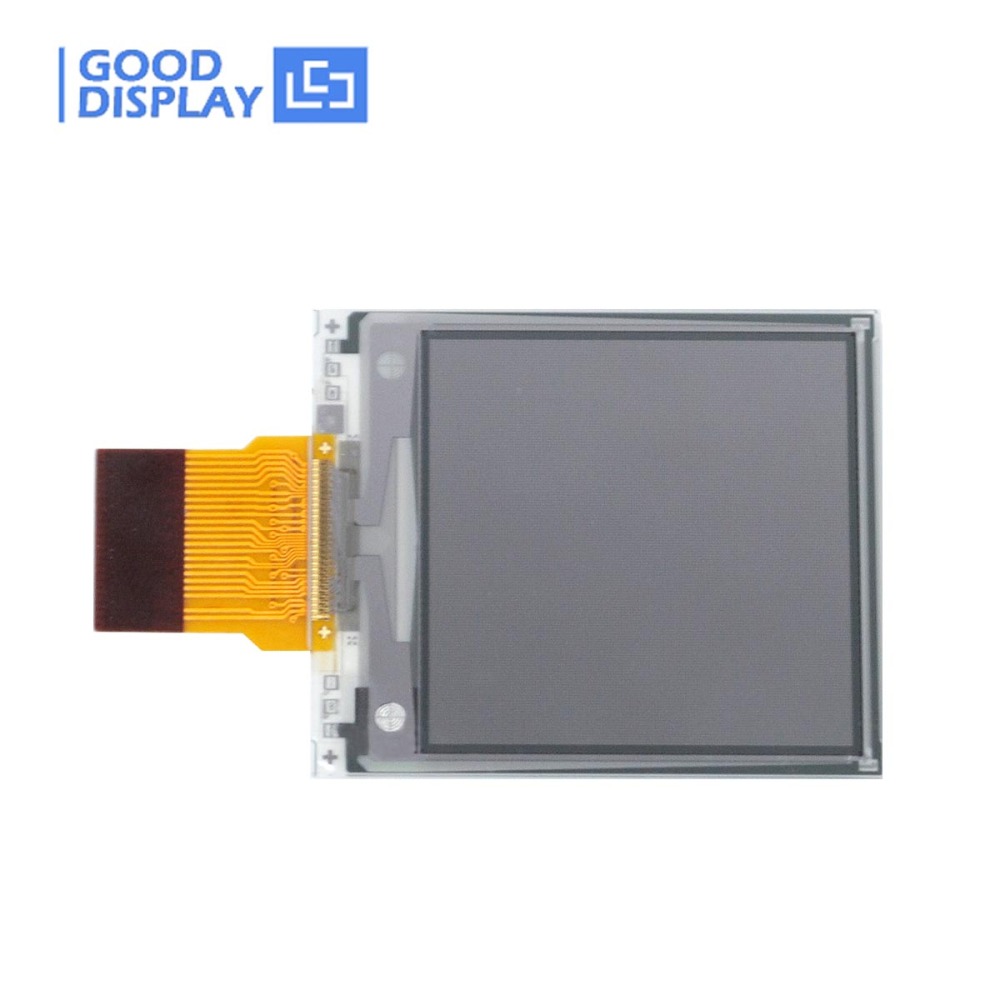

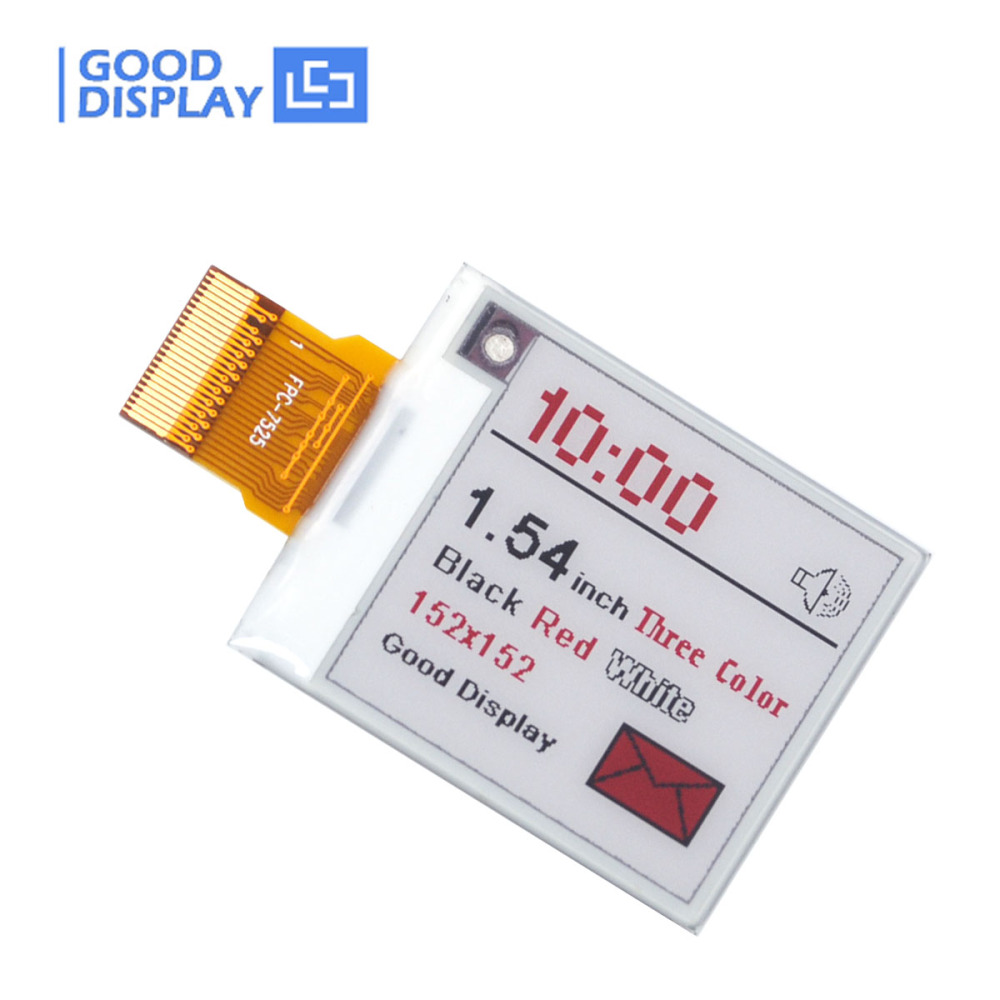

		1.54-Inch Color E-Paper Display Module with SPI Interface
		This is a 1.54 inch color E-paper Eink Display with 152x152 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This color e-ink display GDEM0154Z91 is perfect for low power devices powered by solar or batteries.

		Special Features
		Our product boasts distinctive features that set it apart from the competition
		● Low Power Consumption: Once the display content is updated, it can hold the image without power, making it perfect for solar or battery-powered devices. This feature significantly reduces energy usage. ● High Visibility: Displays in black, white, and red, ensuring your information stands out with high contrast, ideal for any scenario where readability is key. ● Power-Free Retention: After updating the display, the image remains indefinitely, even without power, eliminating the need for constant power supply. ● Versatile Applications: Perfect for smart home displays, e-readers, retail shelf labels, public transit signs, and digital photo frames, this e-paper display fits a wide range of uses. ● Eco-Friendly: With its ultra-low power consumption and long-lasting display capabilities, it’s an ideal choice for sustainable, energy-efficient applications.

		Technical Details

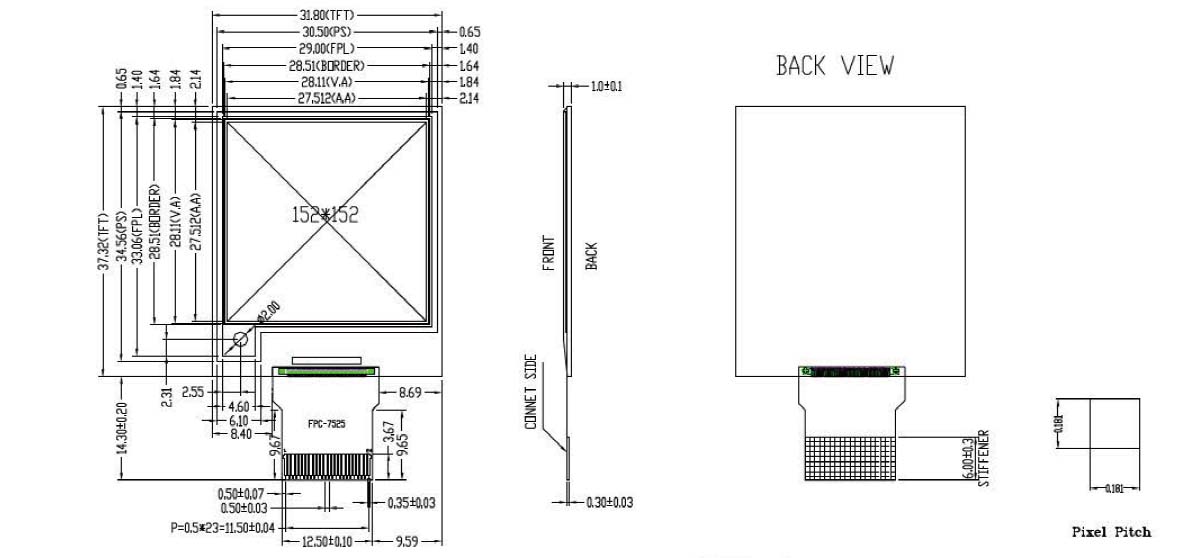

		Please refer to the product drawings for detailed dimensions

Product Specifications

Please refer to the product specifications for more details

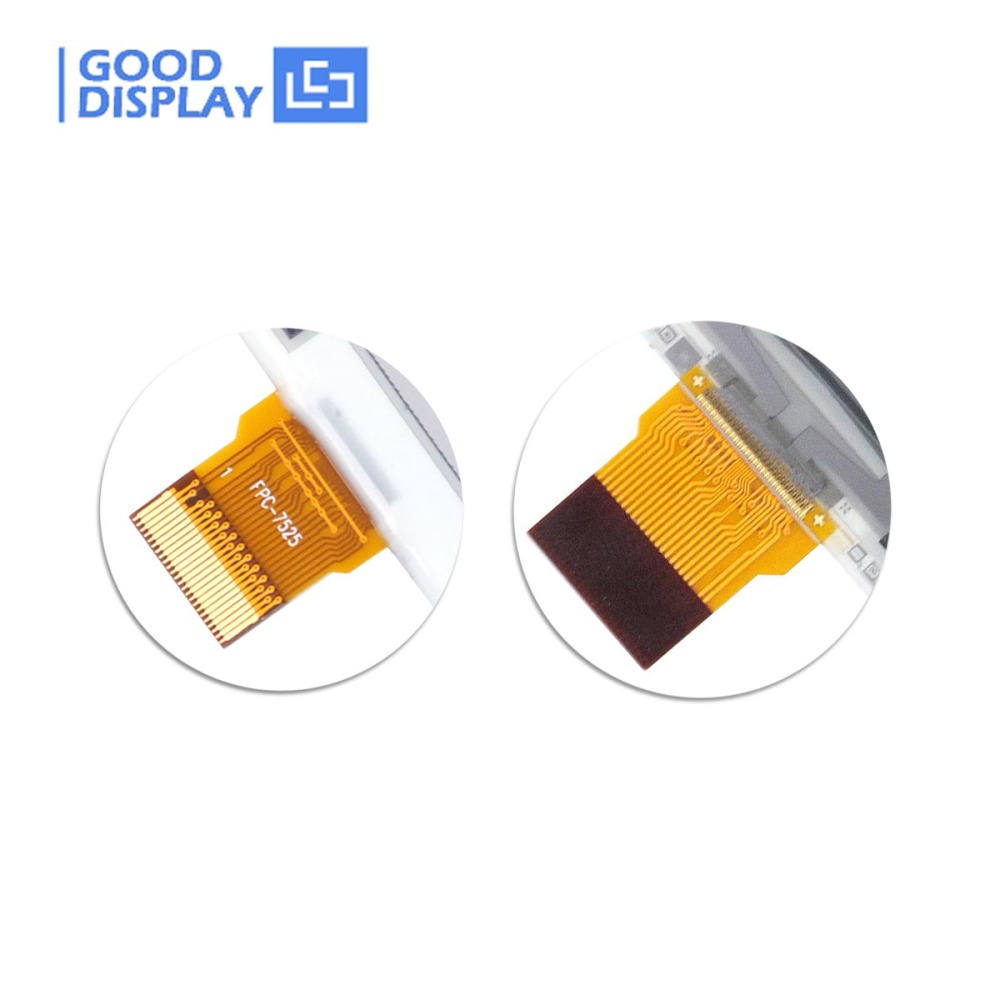

PART NUMBER	GDEM0154Z91	CONNECTOR	24 Pin FPC
SIZE	1.54 inch	TYPE	Dot Matrix
IC	SSD1680	MAX GRAYSCALE	2
RESOLUTION	152x152	COLOR	Black, White, Red
OUTLINE SIZE(mm)	31.8x37.32x1.0	INTERFACE	SPI
ACTIVE SIZE(mm)	27.512x27.512	FULL REFRESH(s)	14
PIXEL PITCH(mm)	0.181x0.181	POWER CONSUMPTION OF THE REFRESH(mW)	9.6
OPERATING TEMP.	0℃~40℃	STANDBY POWER CONSUMPTION (mW)	0.0165
STORAGE TEMP.	-25℃~60℃
