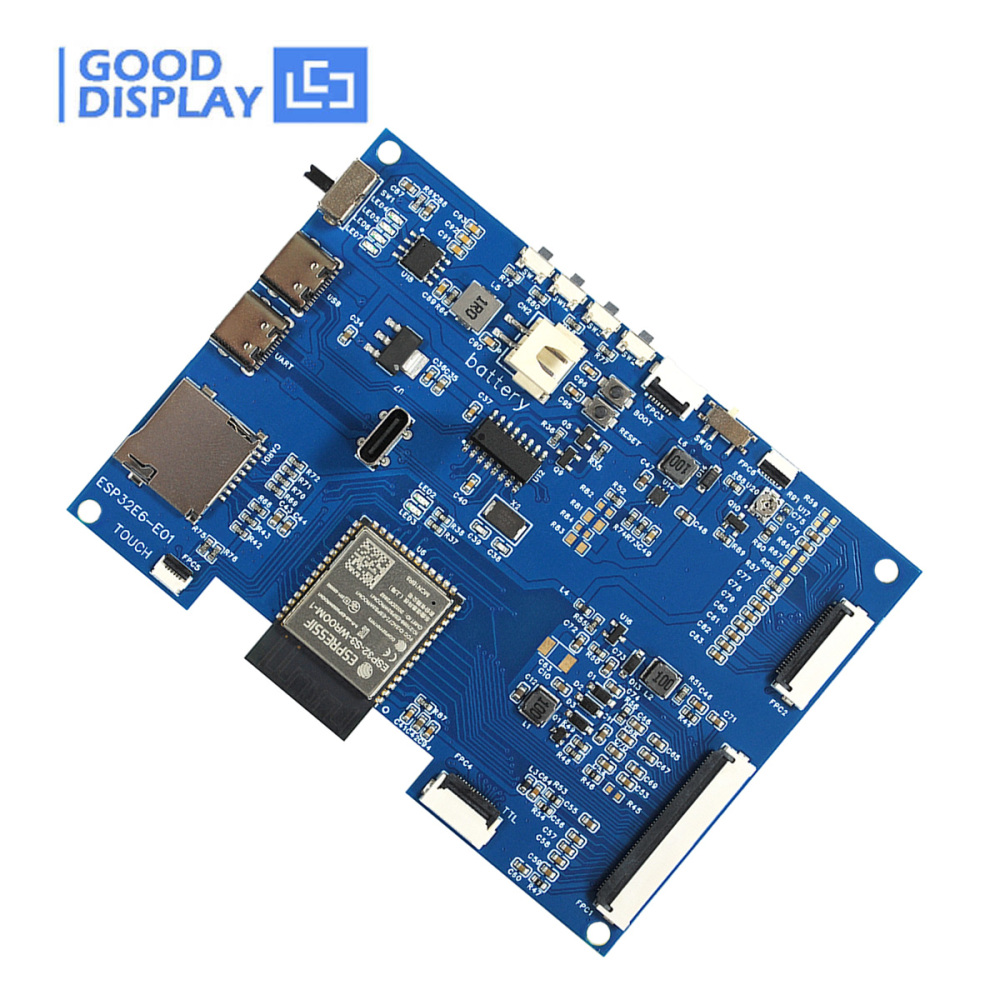

All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin) ESP32E6-E01

$52.35 $69.80
25% OFF
This e-paper development board integrates multiple features, including USB Serial Communication Wi-Fi and Bluetooth, enabling efficient wireless communication and image updates for EPDs. It is equipped with two interfaces: a 24-pin and a 50-pin, making it
GET $3.00 OFF ON ORDERS OVER $59.00
Get it
ERP72QDC
Received successfully
Coupon Code
CONTINUE SHOPPING
Discount
  • 3% OFF WITH PURCHASE OVER 2 UNITS
  • 5% OFF WITH PURCHASE OVER 3 UNITS
    Please select the information you want X
  • Optional:
    Bluetooth Version with EPD
    WiFi Version with EPD

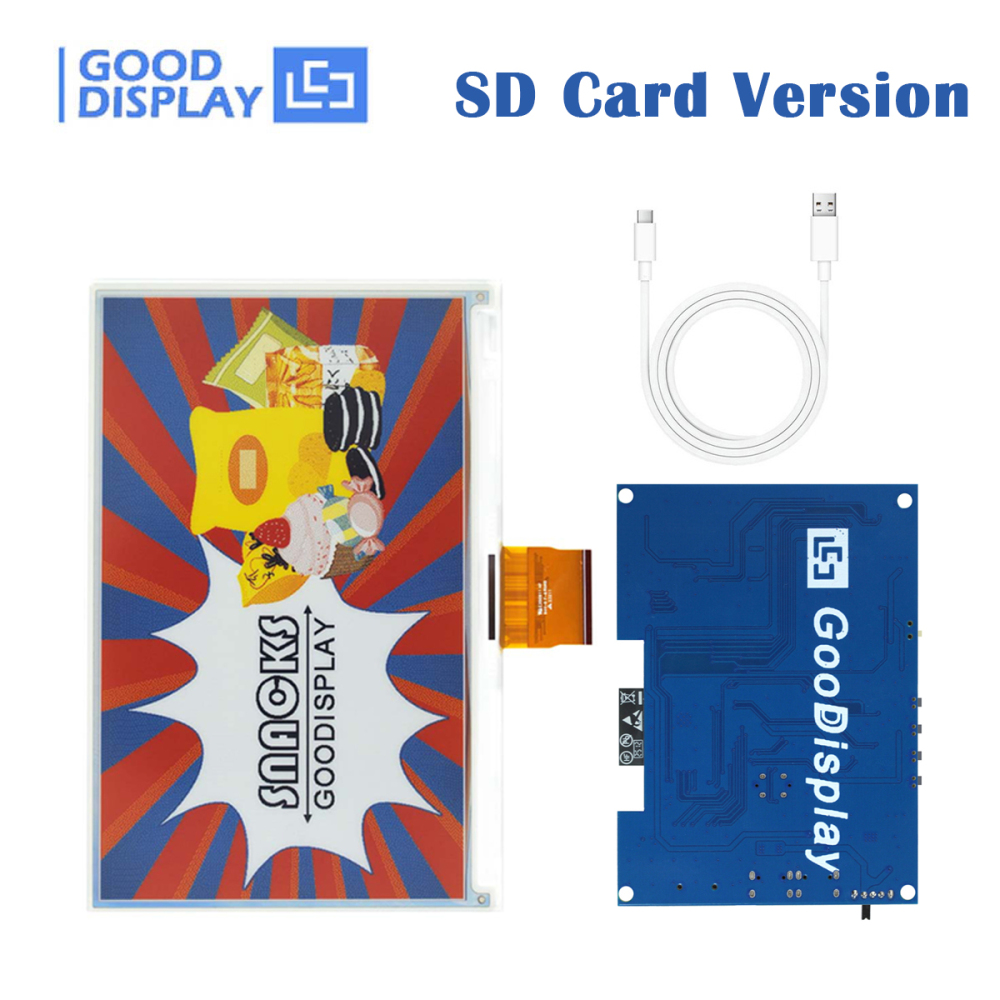

    SD Card Version with EPD
    Please select the information you wantX
Quantity:
0 in stock
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin)
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin)
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin)
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin)
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin)
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin)
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin) ESP32E6-E01
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin) ESP32E6-E01
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin) ESP32E6-E01
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin)
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin)
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin)
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin)
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin)
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin)
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin) ESP32E6-E01
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin) ESP32E6-E01
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin) ESP32E6-E01
1/1
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin)
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin)
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin)
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin)
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin)
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin)
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin) ESP32E6-E01
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin) ESP32E6-E01
  • All-in-One E Ink Display Dev Board Bluetooth/WiFi/USB/SD Card Test Kit (24-pin) ESP32E6-E01
Frequently Bought Together
more
Frequently Bought Together
  • Description

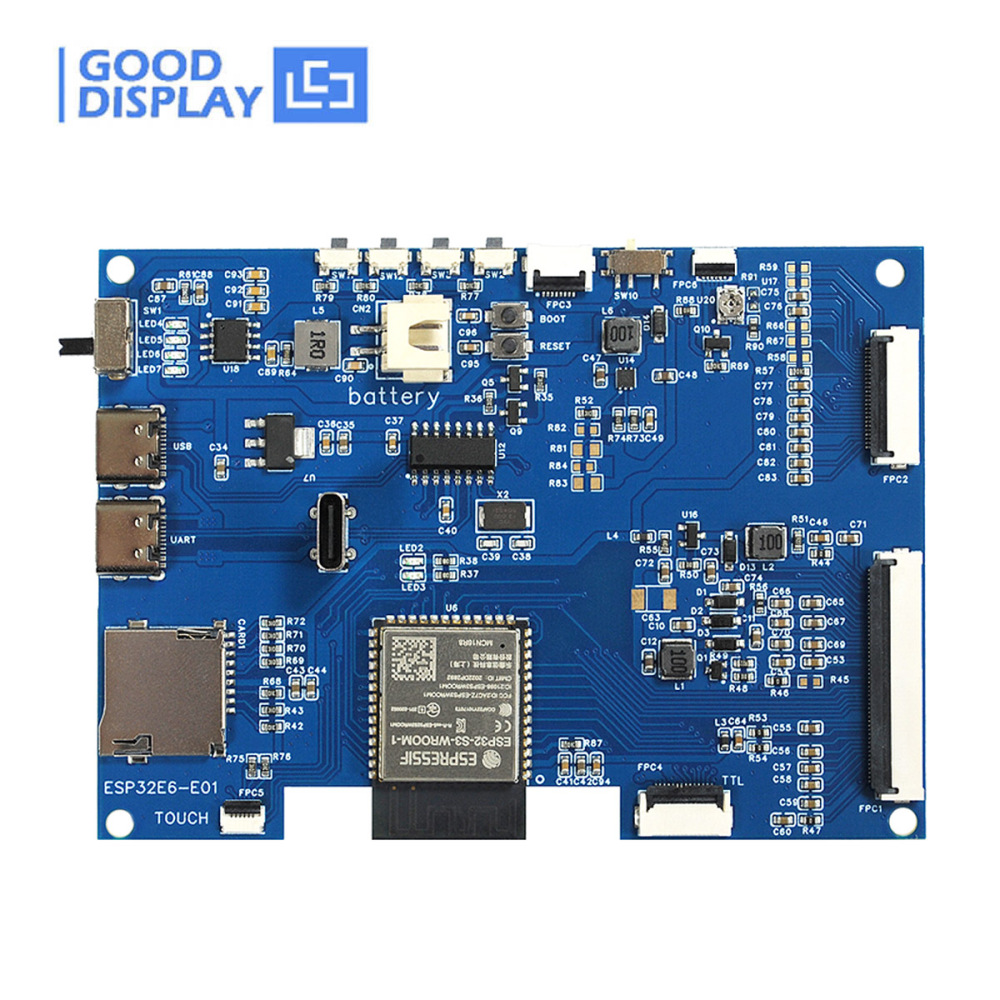

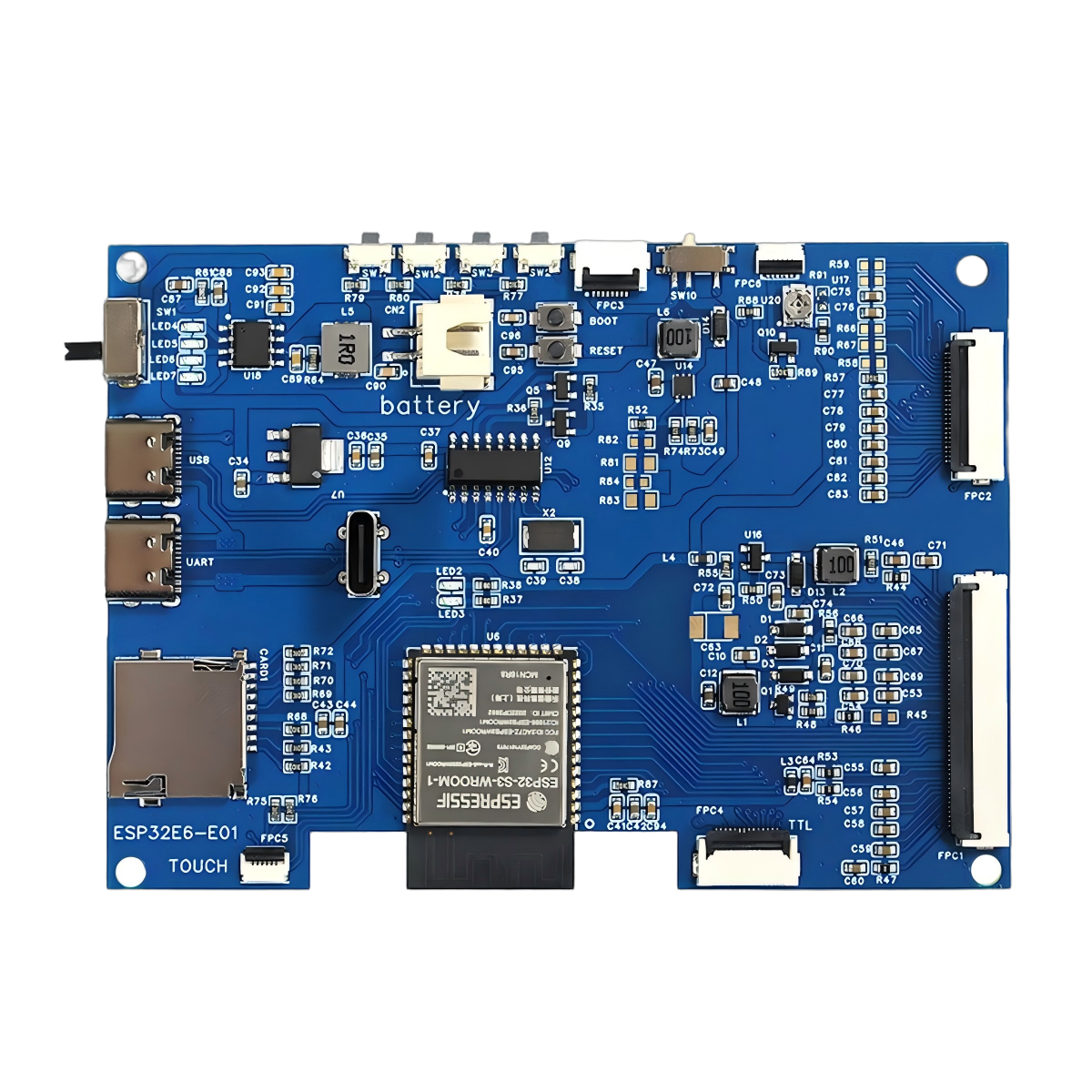

● Wi-Fi + Bluetooth 5.0 ESP32-S3 Powered

ESP32E6-E01
Bluetooth E-Paper Development Kit

A dedicated development board for Electronic Paper Displays, powered by the ESP32-S3 chip. With integrated USB, Wi-Fi and Bluetooth, plus a dedicated 50-pin port for 4" and 7.3" E Ink Spectra™ 6 panels, it delivers a streamlined wireless solution for EPD image updates.

Critical — Firmware Warning: The Bluetooth firmware is not publicly released. Flashing any other firmware (Wi-Fi / USB / SD) will permanently overwrite the Bluetooth firmware, and the board cannot be restored to Bluetooth mode. Please handle with care and do not re-flash unless absolutely necessary.
ESP32-S3 MCU BLE 5.0 + Wi-Fi 50-pin E6 Port 24-pin SPI Port USB-C Powered
ESP32E6-E01 Bluetooth E-Paper Development Kit

Why the Bluetooth Version?

The ESP32E6-E01 Bluetooth version is the only board that unlocks the full enhanced image processing pipeline — and the most convenient way to update your display wirelessly.

Exclusive: 100+ Perceived Tones via Bluetooth

Only the Bluetooth version of ESP32E6-E01 ships with the optimized dithering firmware that produces over 100 perceived color tones, smoother gradients and lifelike portraits on Spectra™ 6 panels. Other firmware variants provide standard rendering only. Combined with BLE 5.0, you get wireless, app-driven image updates without ever touching a cable.

Wireless Updates

Update images from a phone or Bluetooth-enabled PC — no cable, no Wi-Fi setup.

Enhanced Rendering

Exclusive firmware delivers 100+ perceived tones and lifelike color depth.

Mobile App Ready

Pair with iOS or Android devices for one-tap image transfer and refresh.

Ultra-Low Power

BLE 5.0 dramatically reduces energy use, extending battery life in portable builds.

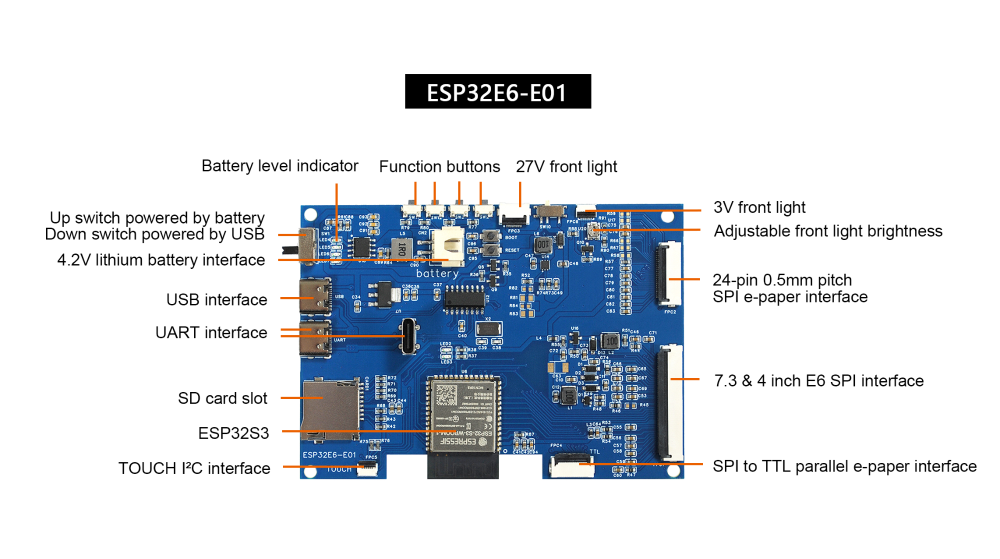

Main Features

Eight core capabilities in one compact ESP32-S3 board

Wi-Fi

Wi-Fi Image Update

Remote updates via built-in web interface

USB

USB Serial Update

Direct connection via USB-C

SD

SD Card Update

Offline storage solution

Buttons

4 Function Buttons

Easy mode switching

Touch

TOUCH I²C Interface

Interactive display capability

Front light

Front-light Interface

Enhanced visibility in low light

Battery

Lithium Battery Support

Portable power solution

Advanced E Ink Features

Designed for makers, engineers and product teams working with every e-paper variant

24-pin

Universal SPI Port

Mono / Tri / Quad-color panels

50-pin

Spectra™ 6 Port

4" & 7.3" E Ink Spectra™ 6

Dual Display Interface System

Two specialized connectors on one board: a 24-pin port supporting most SPI e-paper variants, and a 50-pin port optimized for E Ink Spectra™ 6 color displays — providing unparalleled compatibility across a wide range of applications.

Multi-mode

Multi-Mode Control

Four dedicated function buttons enable instant switching between Wi-Fi, USB, Bluetooth and SD card image updates with remote update capability. Streamline your workflow with seamless mode transitions.

Power

Power Management

Integrated IP5306 lithium battery charging circuit with four LEDs for precise power indication. Optimized for energy efficiency with intelligent power-saving features for extended operation.

Expansion

Expansion Interfaces

Comprehensive I/O configuration with SPI + TTL parallel interface (14-pin FPC), touch I²C interface (6-pin FPC), and front-light control interface (6- or 8-pin FPC options).

Docs

Complete Docs & Support

Comprehensive development resources with detailed image processing algorithm guides, ensuring your e-paper projects are delivered fast and seamlessly with expert technical support.

7.3-inch E Ink Spectra™ 6 · Enhanced Image Processing

Enhanced by Our Development Board.
See Every Detail.

Pair your 7.3-inch E Ink Spectra™ 6 display with the ESP32E6-E01 development board and optimized image processing to achieve over 100 perceived color tones, smoother gradients, and more natural-looking photos.

Exclusively available on the Bluetooth version of ESP32E6-E01
Standard rendering before optimization
Standard Rendering Before optimization
Bluetooth Version Only Enhanced rendering with optimized image processing
Enhanced Rendering With optimized image processing

More natural portraits

Subtler tonal transitions help faces feel more lifelike.

Richer image detail

Bring out fine patterns, textures, and delicate shading.

More expressive color

Go beyond flat color blocks to create images with greater visual depth.

The Palette, Expanded

Six colors are just the beginning.

Optimized dithering combines the panel's base colors into a wider range of perceived tones.

Six-color palette reference

Six-color palette reference

Explore the tonal range
Explore the tonal range Color chart supplied by Good Display

100+ refers to perceived tones produced through image processing and dithering, not additional native panel colors. Appearance varies with image content, processing settings, lighting, and viewing distance. Supplied examples illustrate rendering differences; the portrait samples have different framing.

Dithering in action — watch the difference

See the difference yourself

Try the free dithering tool and experience 100+ perceived tones on your Spectra™ 6 display. Only the Bluetooth version of the ESP32E6-E01 supports this enhanced rendering pipeline.

Start Free Dithering →

3 Ways to Update Your Display

Flexible image transfer options to suit your development workflow — the Bluetooth method is recommended for wireless, enhanced-rendering updates

Wi-Fi Transfer

Wireless updates via web interface

Update your display remotely using the built-in web server. Connect from any smartphone, tablet or computer on the same network.

Wi-Fi Transfer Solution

USB Connectivity

Direct connection via USB-C

Update your display quickly and reliably with a direct USB connection to your computer. Ideal for development and debugging.

Download USB Solution
Firmware Selection Reminder Each of the four functions (Wi-Fi / Bluetooth / USB / SD) requires a different firmware version. Please select the appropriate model based on the function you need when placing your order — each model supports only one specific function. Blue and black versions are functionally identical and interchangeable.
Do Not Re-flash the Bluetooth Firmware The Bluetooth firmware is not publicly released. Flashing any other firmware (Wi-Fi / USB / SD) will permanently overwrite the Bluetooth firmware, and the board cannot be restored to Bluetooth mode. Please think carefully before re-flashing.

Technical Specifications

Part NumberESP32E6-E01
WirelessWi-Fi + Bluetooth 5.0 (BLE)
Function4" & 7.3" E6, 24-pin EPD
Development Env.Arduino IDE
Outline Size86.3 × 69.2 × 1.63 mm
Power SupplyUSB Type-C
Example ProgramAvailable
Operating Temp.-20°C ~ 70°C
AccessibilityUSB comm., indicator LED, current detection
Main FunctionDrive / test / evaluate EPD, secondary development

Files & Downloads

Before You Download Any Firmware The Bluetooth firmware is not publicly released. If you flash any other firmware (Wi-Fi / USB / SD) onto this board, it will overwrite the Bluetooth firmware permanently, and the board cannot be returned to Bluetooth mode. Please confirm the target firmware before flashing.
