☆ INTRODUCTION
ESP32-03 development kit supports program development using Arduino development platform.This development kit is used to help users develop e-paper display projects with provided source code to create more differentiated solutions. It is designed for SPI e-paper display. It supports driving Good Display's black-white e-paper display and three-color (black, white and red/Yellow) e-paper display: 1.54'', 2.04'', 2.13'', 2.6'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'', 7.5'' and 11.6''. What’s more, DESPI-C03 can drive touch panel and front light panel.

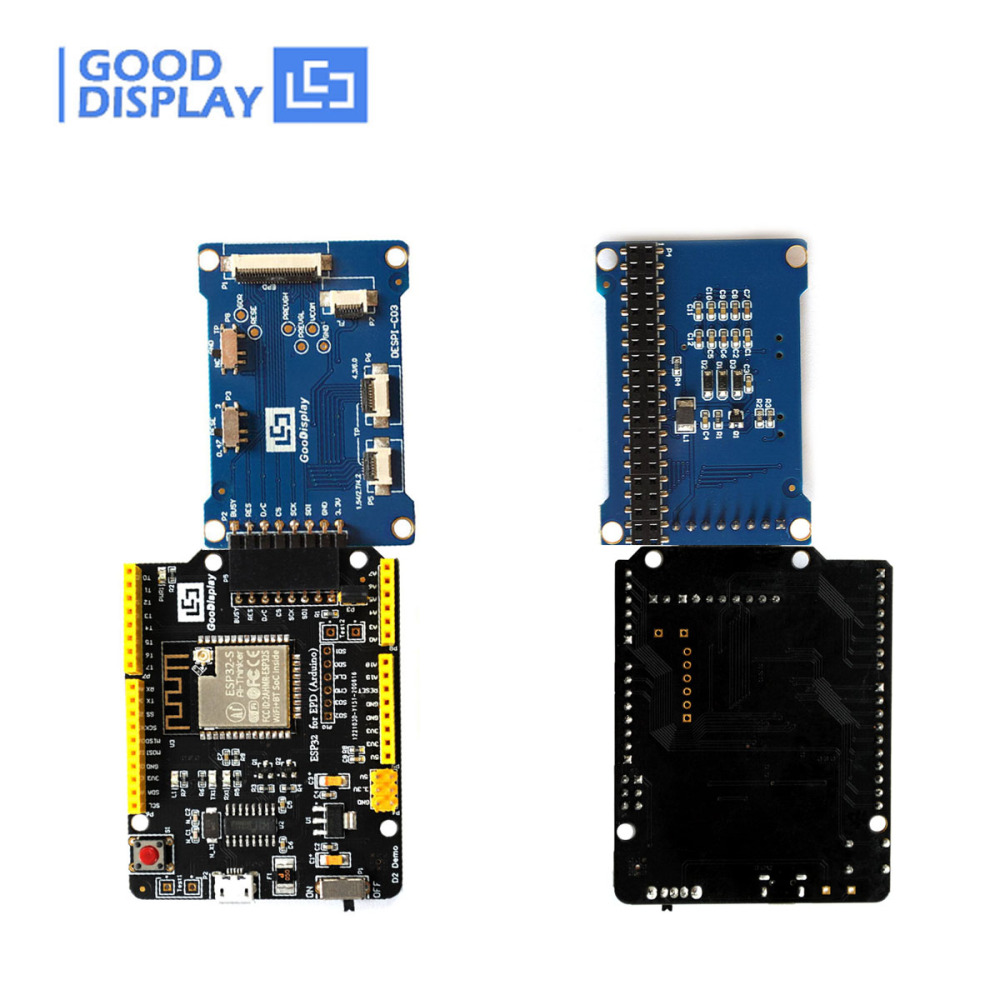

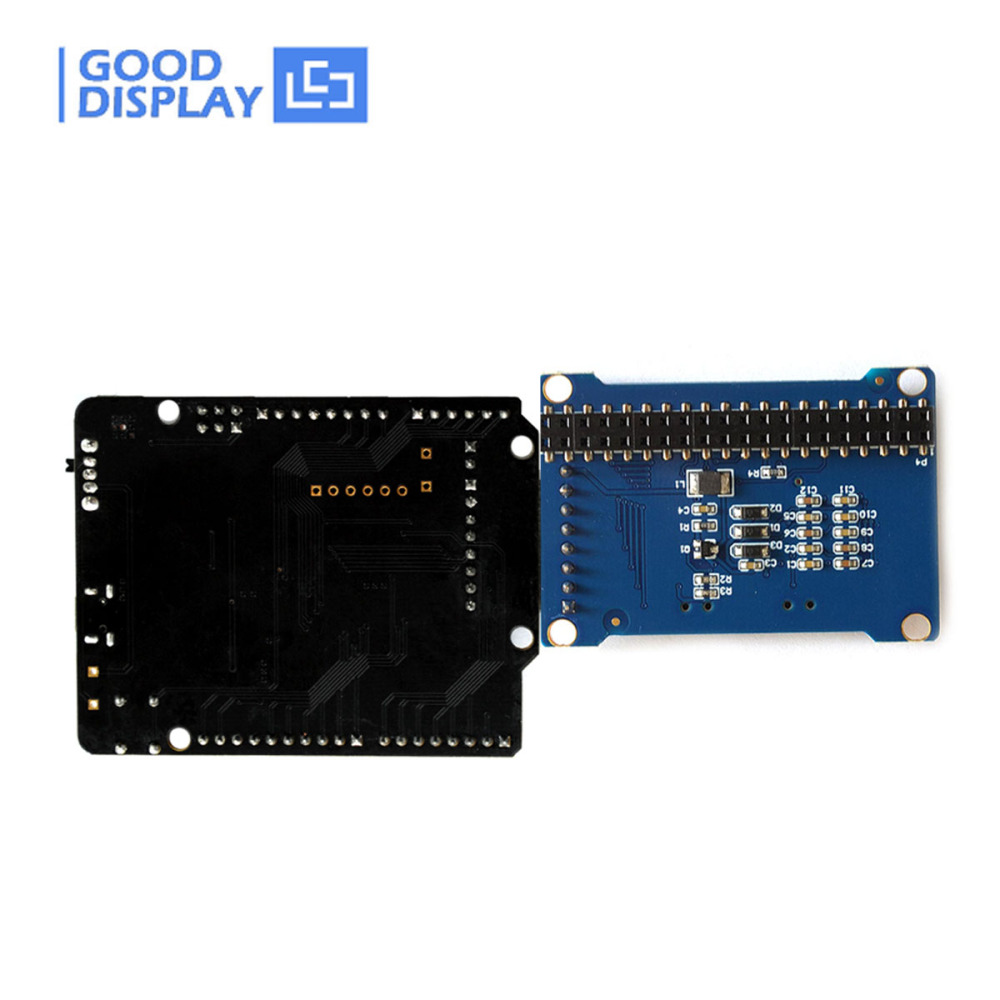

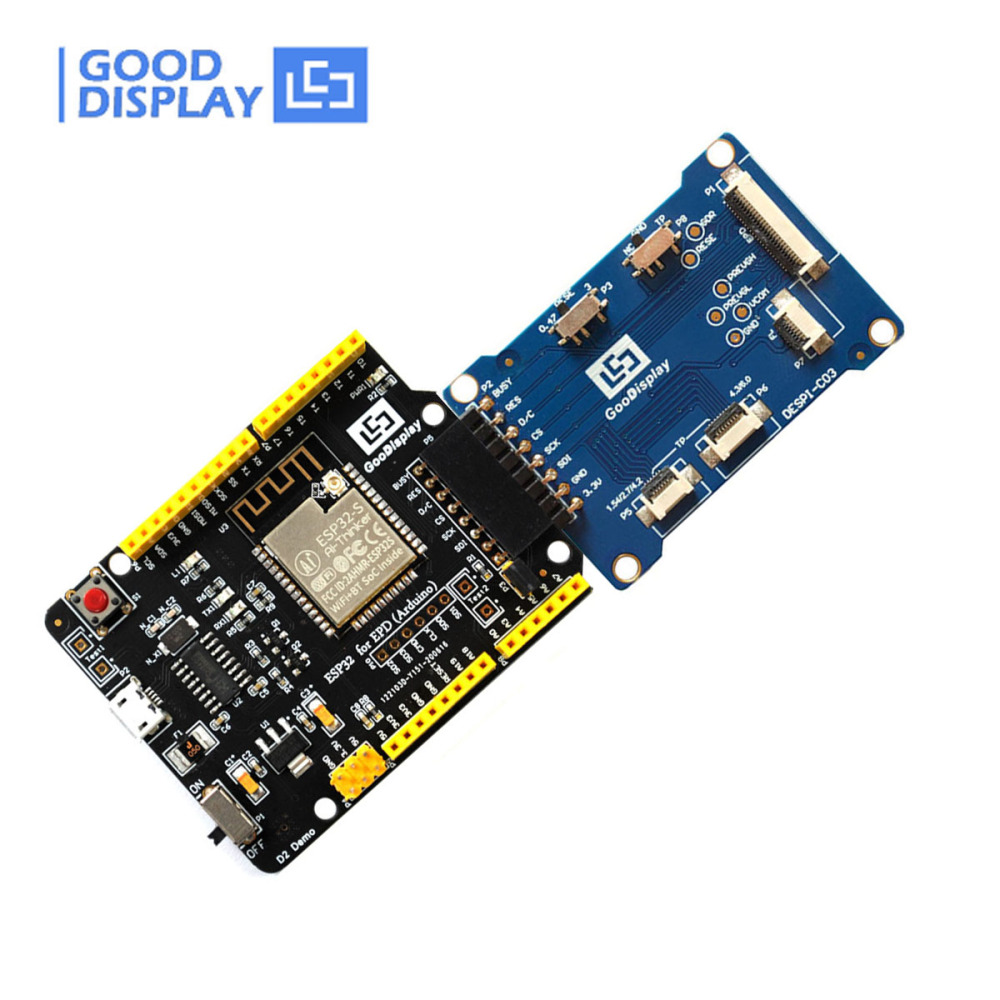

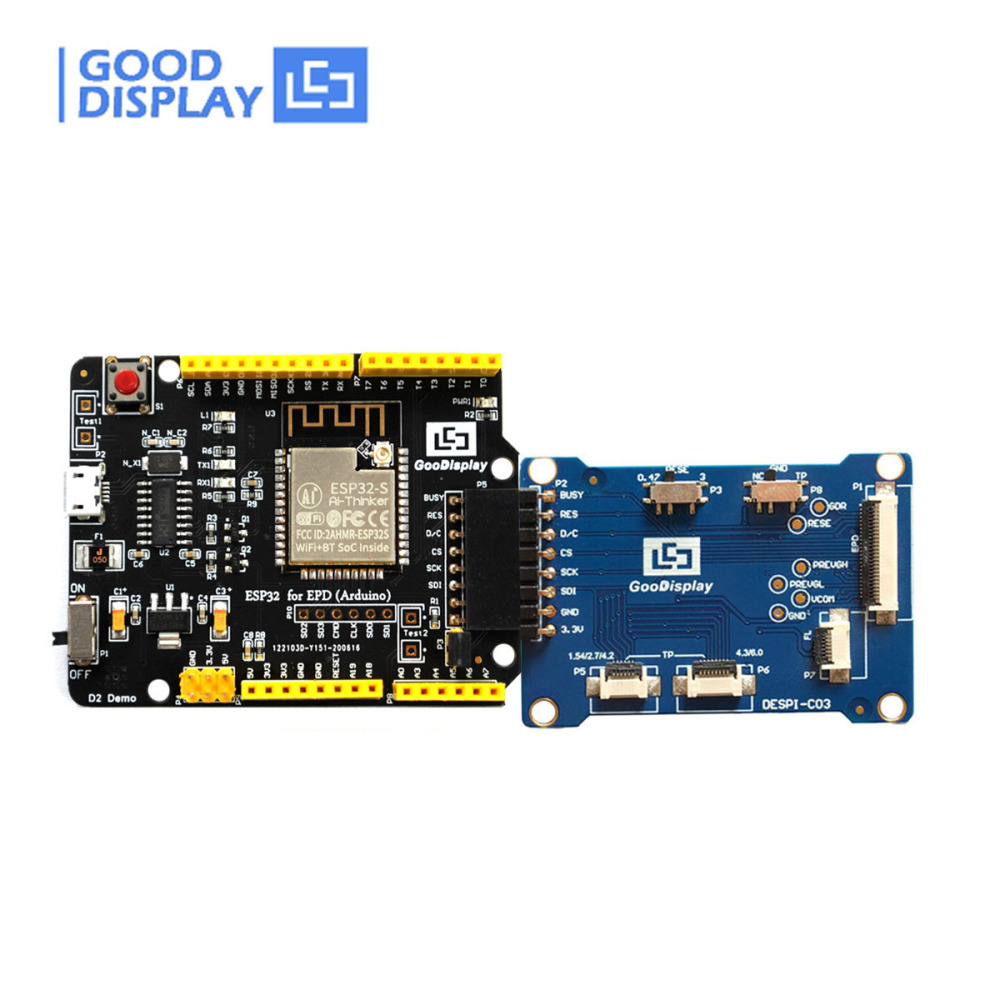

ESP32-03 development kit consists of motherboard ESP32 for EPD and connector board DESPI-C03.
ESP32 development kit is only for driving the e-paper, WIFI, BLE and other functions need to be developed by users according to the project
Relevant manual about this product on our official website (www.good-display.com), contact us please.
☆ THE ABOVE PRICE INCLUDE
1) Driving board ESP32 * 1pc
2) Connector board DESPI-C03 * 1pc
3) USB port cable * 1pc
☆ MAIN PARAMETERS
| PART NUMBER |
ESP32-03 |
| PLATFORM |
Arduino |
| OUTSIDE DIMENSION |
70mm x 54mm (ESP32)
52mm x 36mm (DESPI-C03) |
| POWER INTERFACE |
USB Interface |
| SAMPLE CODE |
Available (please contact sales) |
| OPERATING TEMP. |
-20~70℃ |
| EXAMPLE CODE |
Available |
| MAIN FUNCTION |
Learn to drive e-paper display;
Test and evaluate e-paper display;
For secondary development. |
| RESERVED FUNCTION |
USB to serial port;
Indicator light;
Reset key;
Current measurement. |
☆ OTHER EPD DRIVE BOARD
● DESPI-V3.0 (STM32 Platform)
● DEArduino(C03) (Arduino Platform)
● ESP8266(C03) (WiFi)
