Drive a 5.9-inch E Ink Spectra 6 display with this ESP32 development board. Dual FPC socket, MicroSD offline image updates, Arduino & ESP-IDF examples. Start prototyping six-color e-paper in minutes.

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

3% OFF WITH PURCHASE OVER 2 UNITS
5% OFF WITH PURCHASE OVER 3 UNITS

Add to Favorites (0)

1/1

Description

E Ink Spectra 6 · Dual 36-Pin FPC · ESP32 Driver Board

ESP32-059E01V3A 5.9"
Spectra 6 E-Paper Development Board

A complete drive-and-evaluate board for the 5.9-inch E Ink Spectra™ 6 display. On-board ESP32 host controller, MicroSD card slot for offline image updates, and a dual-FPC socket that connects straight to the GDEH059E01 panel — with Arduino IDE and ESP-IDF example projects included, so six-colour prototypes light up in minutes.

View Specifications

Request Datasheet

680×960 Display Resolution

5.9" Spectra 6 Screen

Dual FPC 36-Pin Panel Interface

Type-C 5V DC Power Input

Core Features & Capabilities

Six-Colour Spectra 6 Rendering

Fully tuned for the 5.9-inch E Ink Spectra™ 6 panel. Black, white, red, yellow, blue and green are driven at 680 × 960, with an advanced dithering algorithm that keeps colour transitions sharp and natural.

6 Colours 680×960 Pixels Dithering Engine

SD-Card Offline Image Update

A MicroSD card slot lets you change what is on screen without touching the toolchain. Drop images onto the card, power the board, and the update runs — ideal for field testing and content demos.

MicroSD Slot No Re-flash Needed Full Refresh

ESP32 Host & Dual Toolchain

The on-board ESP32 runs the full display driver and provides working example projects for both Arduino IDE and ESP-IDF, so the panel can be driven from a familiar environment from day one.

Arduino IDE ESP-IDF Low-Power Standby

Technical Specifications

Model	ESP32-059E01V3A
Product Code	G0371
Host Controller	ESP32
Panel Interface	Dual FPC (36-Pin)
Expansion Storage	MicroSD Card Slot
Power Supply	Type-C 5 V DC
Image Update	Full Refresh, SD-Card Offline
Development Environment	Arduino IDE / ESP-IDF

Supported E-Paper	GDEH059E01
Display Size	5.9 inch
Display Technology	E Ink Spectra™ 6
Resolution	680 × 960
Active Area	87.04 × 122.88 mm
Outline Dimension	94.76 × 140.772 × 0.75 mm
Display Colours	Black / White / Red / Yellow / Blue / Green
Operating Temperature	0°C ~ 50°C

Pin Function Description

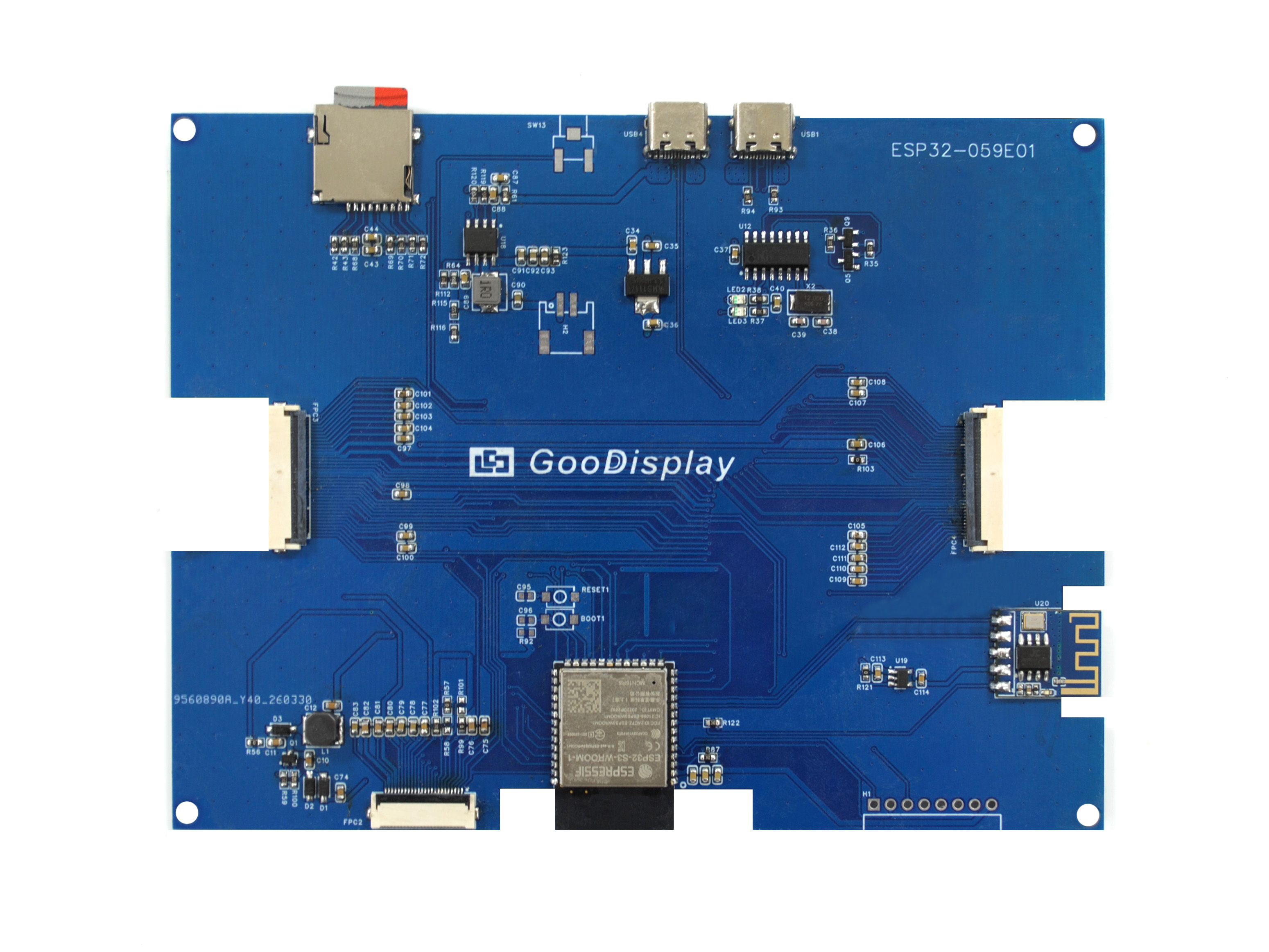

ESP32-059E01V3A 5.9 inch Spectra 6 E-Paper development board with dual FPC socket, MicroSD slot and Type-C power

ESP32-059E01V3A physical interface diagram: the dual FPC socket on one side connects directly to the GDEH059E01 panel, while the MicroSD slot and Type-C port handle image supply and power.

Companion Display

GDEH059E01

5.9-inch E Ink Spectra 6, six colours, exceptional clarity.

Resolution	680 × 960
Outline Dimension (mm)	94.76(H)×140.772(V)×0.75(D)
Operating Temperature	0°C ~ 50°C
Interface	Dual FPC

Platform Compatibility

ESP32 Platform

The board ships with a ready-to-run ESP32 driver and example projects for Arduino IDE and ESP-IDF. The panel is wired to the ESP32 SPI bus, and image data can be delivered from the MicroSD card, so no external host board is required.

Note: The board is designed for the 5.9-inch GDEH059E01 Spectra™ 6 panel with a dual 36-pin FPC. Other Spectra™ 6 sizes require a different adapter and waveform — please contact us before designing in.

Related Downloads

GDEH059E01 – ESP32 Example Code (Arduino IDE & ESP-IDF)

Example projects for the development board, covering both Arduino IDE and ESP-IDF environments.

Download

Firmware Flashing Guide

Instructions for flashing firmware to the ESP32.

Download

Why can't I download the files I need?

Explanation of common download issues.

Download

Why ESP32-059E01V3A Shortens Your Development Cycle

Host Controller On Board

The ESP32 and the complete Spectra™ 6 drive circuit are already integrated, so there is no host board to select, wire or debug before the first image appears.

Update Images Without Code

Content lives on a MicroSD card, so the display can be refreshed in the field with no compiler, no USB cable and no firmware change.

Minutes to First Image

Dual FPC socket, Type-C power and working example code mean the panel lights up on the first session rather than after days of bring-up.

Item	Build It Yourself	ESP32-059E01V3A
Host Controller	Select an MCU board and wire it up	ESP32 integrated on board
Panel Interface	Dual 36-pin FPC needs a custom adapter	Dual FPC socket, plug-in ready
Image Update	Recompile and re-flash every change	MicroSD offline update
Driver Software	Write waveform and driver code from scratch	Arduino IDE & ESP-IDF examples
Power	External supply and boost stage required	Type-C 5 V DC input
Time to First Image	Days of board bring-up	Minutes — plug in and display

About Us

Thank you for your interest in the ESP32-059E01V3A development board. We can supply the matching 5.9-inch Spectra™ 6 panel GDEH059E01 and other accessories. For more information, please visit www.good-display.com.
