Name: BLE Retail ESL System Gateway Bluetooth WiFi MQTT Base Station Supermarket Digital Price Tag Hub, ETAP05
Brand: GOOD DISPLAY
SKU: ETAP05
Price: 190.26 USD
Availability: InStock

SKU: ETAP05

(0)

0 Sold

$190.26 ~~$206.80~~

8% OFF

Industrial ESL BLE Gateway with Bluetooth 5.0 & WiFi, MQTT protocol, 30m wall-penetrating coverage, supports over 1000 electronic shelf labels for retail supermarket ESL system. GooDisplay IoT ESL base station gateway.

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

5% OFF WITH PURCHASE OVER 2 UNITS
8% OFF WITH PURCHASE OVER 3 UNITS

Add to Favorites (0)

1/1

Description

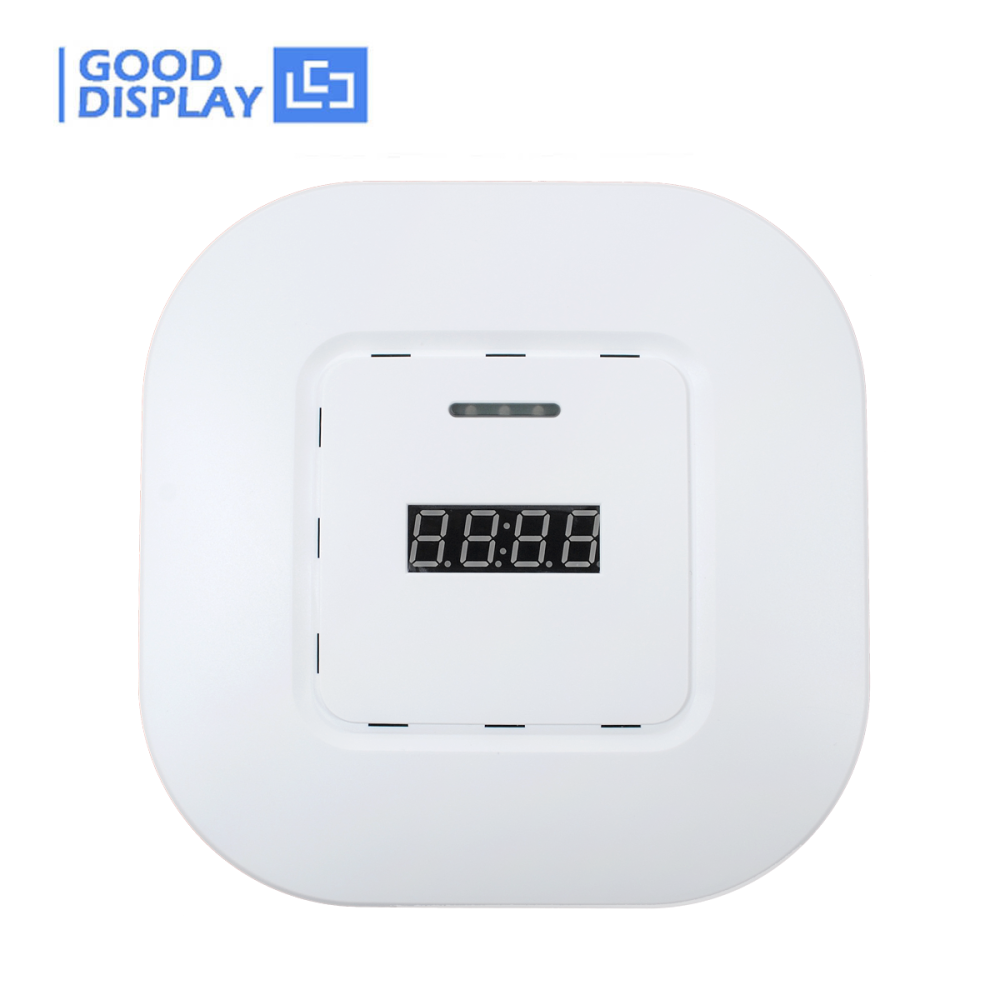

ETAP05 Industrial ESL BLE Gateway

Bluetooth 5.0 · PoE · MQTT+JSON API · Centralized ESL Management

The ETAP05 is an industrial-grade BLE gateway engineered for electronic shelf label (ESL) systems in retail, warehousing, and industrial environments. It combines Bluetooth 5.0, Gigabit Ethernet, and IEEE 802.3af/at PoE for effortless deployment. With a fully open MQTT+JSON API, it integrates seamlessly with ERP, POS, WMS, and custom management platforms — enabling centralized label control, bulk updates, and reliable maintenance.

BLE 5.0 Proprietary link‑layer ESL protocol

20–50 m Typical indoor coverage

1,000+ Stable ESL terminals per gateway

50,000 Max ESL terminals in high‑density

Key Capabilities

Centralized ESL Management

Bulk control

Manage thousands of electronic shelf labels from a single gateway. Streamline price updates, promotional synchronization, and label maintenance while reducing manual inspection and configuration overhead.

Batch update Real‑time sync

Open API for Rapid Integration

MQTT + JSON

Standard MQTT+JSON API enables out‑of‑the‑box integration with ERP, POS, WMS, retail management systems, and custom business platforms. No proprietary lock‑in — build your own workflows.

ERP ready POS compatible

Reliable Coverage & Wall Penetration

Bluetooth 5.0

Leverages Bluetooth 5.0 with a proprietary BLE protocol for stable coverage of ~30 m in typical retail scenarios and 20–50 m indoors — ideal for complex shelving and partitioned store layouts.

30 m typical 50 m open

PoE‑Powered Deployment

IEEE 802.3af/at

Gigabit Ethernet port supports 10/100/1000 Mbps auto‑negotiation and Power over Ethernet — eliminates separate power cabling and simplifies installation in stores, warehouses, and industrial sites.

PoE Gigabit

Product Advantages

✓ Centralized ESL Management

All electronic shelf labels are orchestrated by the ETAP05 gateway. Ideal for store price updates, promotional campaigns, and bulk label maintenance — dramatically reducing manual inspection and configuration costs.

✓ Open API for Rapid Integration

Supports standard MQTT+JSON API for easy integration with ERP, POS, WMS, retail management systems, and custom business platforms. Accelerate time‑to‑market and avoid vendor lock‑in.

✓ Reliable Coverage & Wall Penetration

Built on Bluetooth 5.0 with a proprietary BLE protocol. Stable coverage of ~30 m in typical scenarios and 20–50 m indoors — robust enough for complex shelving, partitioned areas, and dense retail environments.

✓ PoE‑Powered Deployment

Ethernet port supports 10/100/1000 Mbps auto‑negotiation and IEEE 802.3af/at PoE, eliminating separate power cabling. Simplify installation and reduce infrastructure costs in stores and warehouses.

System Integration & Data Flow

Business System ERP / POS / Retail

→

Open API MQTT + JSON

→

ETAP05 Gateway Scheduling & BLE

→

ESL Terminals Labels & sensors

Data flows bi‑directionally: price / promotion updates from business systems → gateway → ESLs, and status / health reports from ESLs → gateway → business systems.

Two‑way Random Authentication ensures mutual identity verification between gateway and ESLs, preventing unauthorized access.

Security & Extended Features

🔒
Two‑way Random Authentication
Mutual identity verification between gateway and ESLs prevents unauthorized device access.
📡
Proprietary BLE Protocol
Enhances stability and reliability in real‑world retail and industrial environments.
📍
BLE Beacon Broadcast
Supports in‑store navigation, zone‑based promotions, and location‑aware services.
💡
Visual Status Indicators

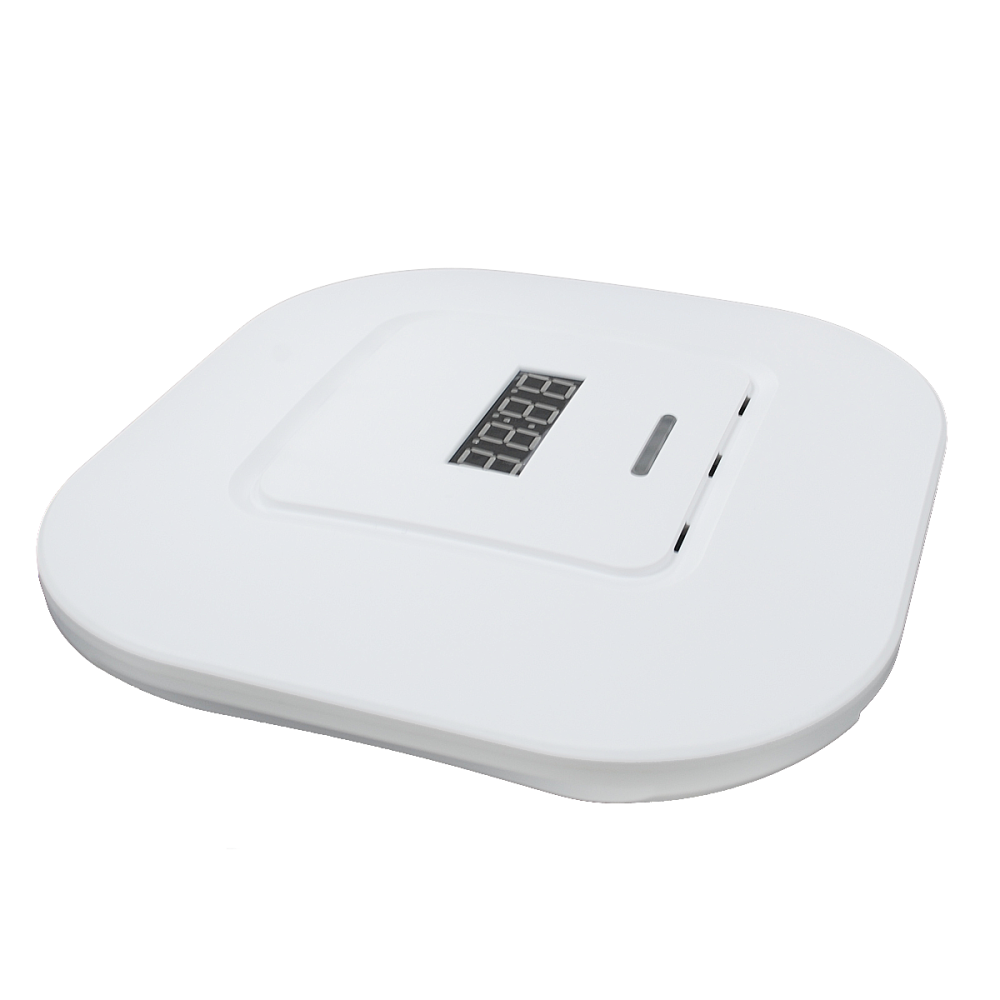

4‑digit LED for base station ID and status; blue power LED and red working LED for easy on‑site maintenance.

Technical Specifications

Product Model	ETAP05
Network Communication	Ethernet 10/100/1000 Mbps auto‑negotiation, PoE support
PoE Standard	IEEE 802.3af/at compliant
Server Protocol	Encrypted proprietary protocol; MQTT+JSON open API
ESL Communication	Bluetooth 5.0 BLE, proprietary link‑layer protocol
Management Capacity	Stable: 1,000+ ESLs; Max: 50,000 ESL terminals (high‑density)
Wireless Coverage	Indoor typical: 20–50 m; stable ~30 m in normal conditions
Frequency & Power	2.400–2.480 GHz, EIRP ≤ 10 mW

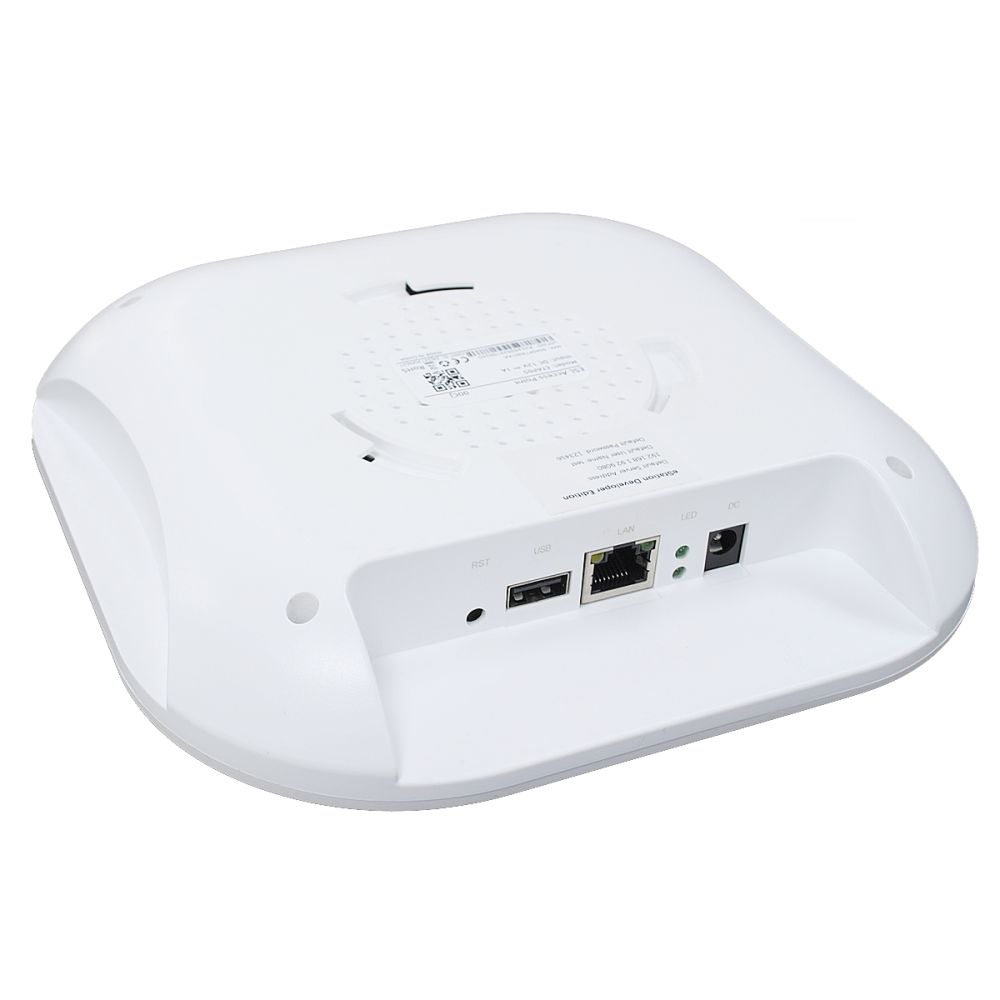

Data Interface	Standard RJ45 Ethernet port
Configuration Interface	USB 2.0 Type‑A (local configuration & maintenance)
Power Input	DC12V / PoE (IEEE 802.3af/at)
Operating Temperature	‑10°C to 55°C
Storage Temperature	‑20°C to 70°C
Humidity	45% – 70% RH
Dimensions (L×W×H)	190.0 mm × 190.0 mm × 41.0 mm
Material & Color	ABS engineering plastic, white
Net Weight	Approx. 335 g
Package Size	320 mm × 240 mm × 80 mm (single unit, color box)
Standard Accessory	100 Mbps Ethernet PoE injector
Certifications	CE, MIC, SRRC
* Wireless coverage and device capacity may vary depending on wall structure, shelving density, interference, update frequency, and deployment topology.

Application Scenarios

Retail & Supermarkets

Batch price updates, promotions, store zoning, centralized ESL maintenance

Warehousing & Industrial

Inventory bin labels, material tags, pick‑to‑light indicators, e‑paper label management

Sustainable Innovation

Designed for low‑power, long‑life operation — reducing waste and energy consumption

99%

Recyclable packaging materials

5+ Years

Typical gateway service life

100k+

Paper labels saved per 1,000 ESLs annually

Resources

📄 ETAP05 Gateway Specification 📄 D21 eStation MQTT v5 Developer Manual ⚙️ Gateway Configuration Tool for MQTT 📖 ESL Management System User Manual ❓ Why can't I download the files?

About Us

Thank you for your interest in the ETAP05 gateway. We offer customisation options including front light, touch screen, and other accessories. For more details, please refer to the relevant manuals in our Library or visit our official website at www.good-display.com.
